TENSION RIVAL

The Tension features a lightweight aluminum frame paired with a full carbon fork, equipped with a mud-clearing SRAM Rival 1x drivetrain and 160 mm hydraulic disc brakes for confident control. We’ve fitted race-legal 32 mm Vee XCX tyres on the 650B XS–S sizes, while 33 mm Schwalbe X-One Allrounds roll on the M–XL models. With rack and fender mounts and a wide-range cassette, it’s ready not just for race day, but also for bikepacking adventures or your daily commute. After all, who says you have to race every day? The weekend will do just fine.

MATT MELON YELLOW

MATT BLACK

HIGHLIGHTS

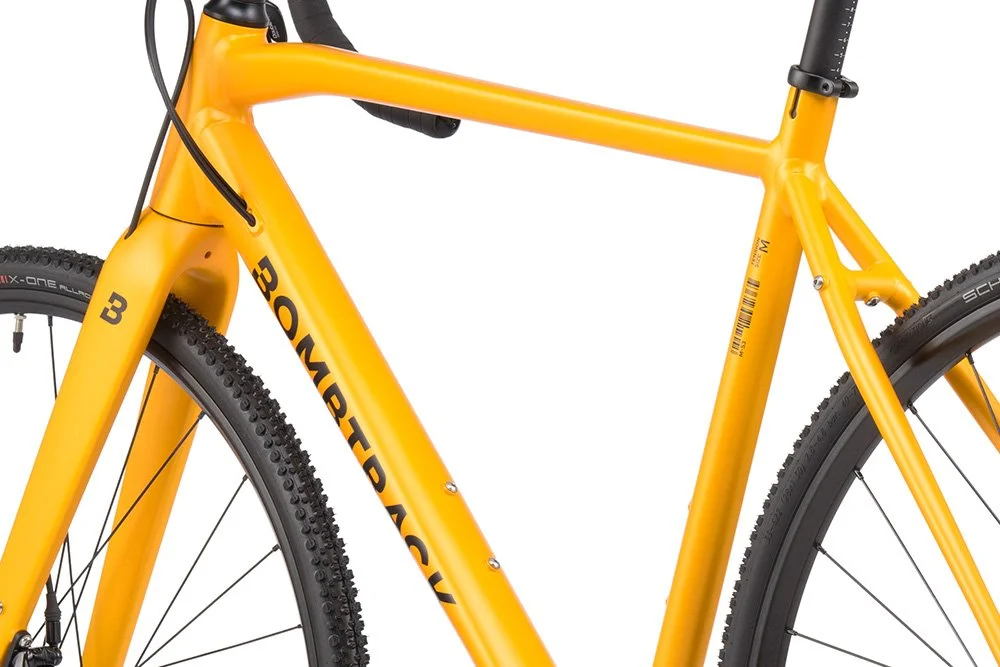

FRAME

Lightweight aluminium frame with T47 bottom bracket.
WHEELS

XS and S with 650B wheels for proper fit without any compromises in geometry.

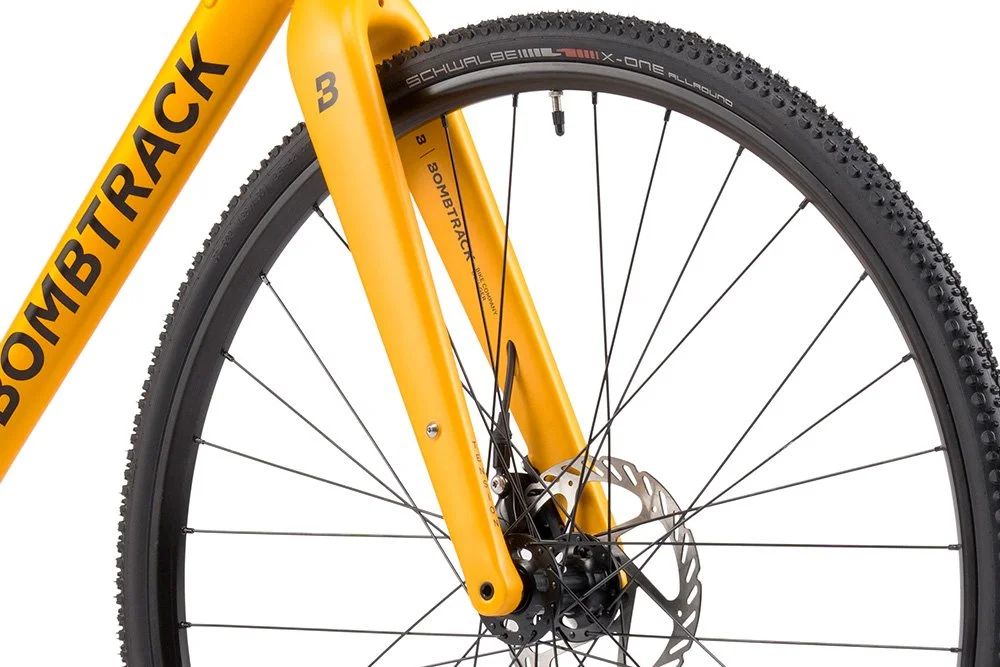

FORK

Full carbon fork with through axles and flat mount disc brake.

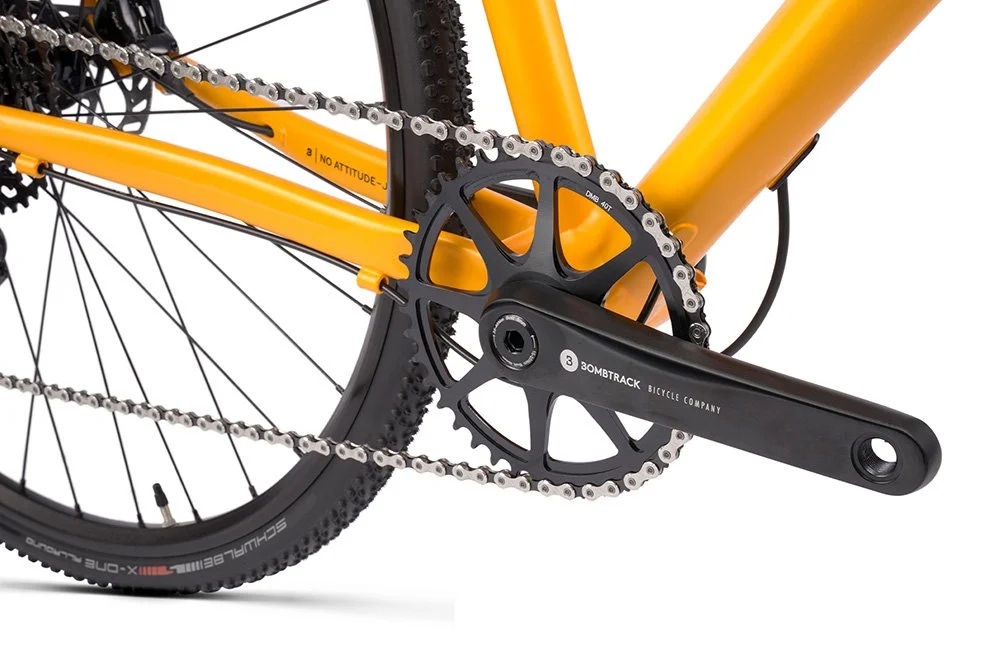

CRANKSET

Bombtrack Lyer 30 mm aluminium crank with 40 T direct mount chainring.

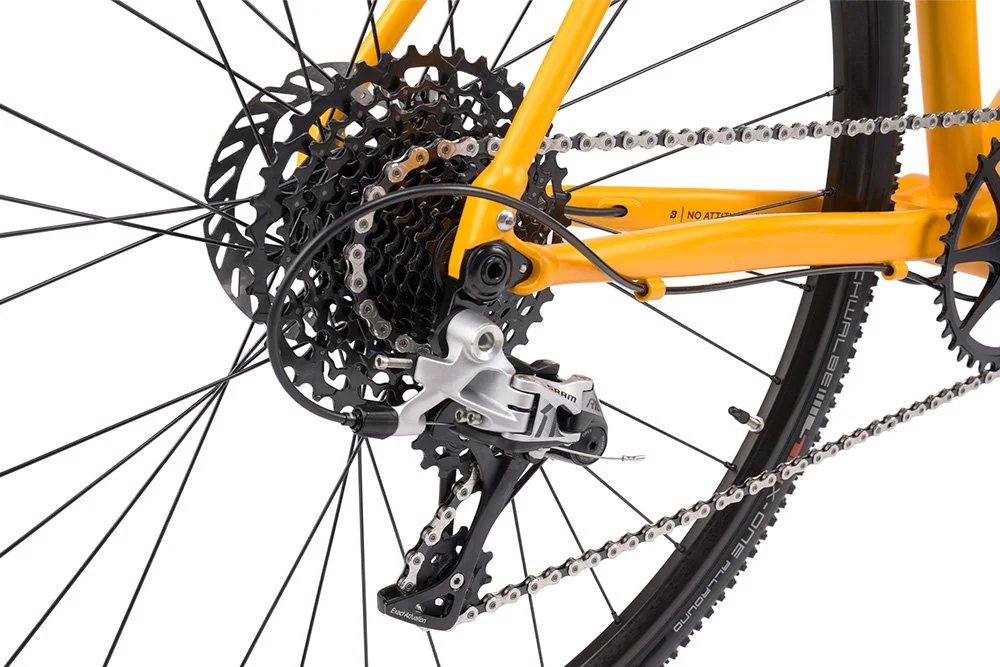

DRIVETRAIN

Hydraulic Sram Rival 1 x 11 groupset and brakes with 11 - 42t cassette.

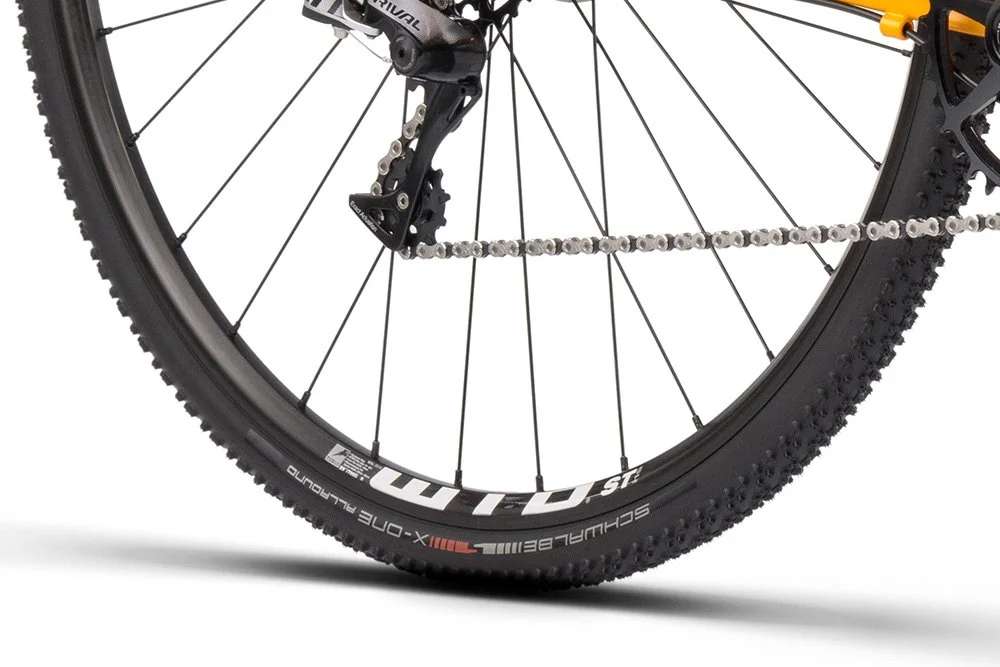

RIMS

Tubeless ready WTB ST i19 rims.

Item 1 of 6

"The beauty of the stiff alloy frame is also that it climbs quickly, readily flying when you open up a sprint. The bike handled tight & twisting turns, loose downhill & pedaly sections, and repeated short sprints all without hesitation.“

SPECIFICATIONS
BUILD INFOS
GEOMETRY

Model	TENSION RIVAL
Color 1	Matt black
Color 2	Matt melon yellow
Color 3	-
Frame	6061-T6 double butted aluminium, TA, rack / fender mounts, 86.5 mm T47 BB shell
Fork	Full carbon, TA, 1.1/2'' - 1.1/8'', fender mounts
Handlebar	Bombtrack CX-10 drop bar, 31.8 mm, 10° flare
Grips	Bombtrack Command bar tape
Stem	Bombtrack Roam forged aluminium stem, -7°
Headset	Sealed integrated aheadset, 1.1/2'' - 1.1/8''
Levers	Sram Rival 1 double tap hydraulic
Shifter	Sram Rival 1 double tap 1 x 11
Brakes	Sram Rival flat mount hydraulic disc brakes
Rotor	Sram G2 Cleansweep 160 mm rotors
Crankset	Bombtrack Lyer forged aluminium crank, direct mount interface (Sram compatible),30 mm spindle
BB	Bombtrack T47 internal sealed BB for 30 mm spindle
Pedals	-
Chain	KMC X11 chain, 1/2'' x 11/128'', 114L
Chainring	CNC machined aluminium, narrow-wide, 40 T
Cassette	Sram PG-1130 11-speed, 11 - 42 T
Front derailleur	-
Rear derailleur	Sram Rival 1, clutch, long cage
Front hub	Bombtrack Arc sealed hub, 6-bolt disc
Rear hub	Bombtrack Arc sealed hub, 11-speed, 6-bolt disc
Through axle	12 x 100 mm / 12 x 142 mm
Front rim	WTB ST i19 double wall, TCS 2.0, 32h
Rear rim	WTB ST i19 double wall, TCS 2.0, 32h
Saddle	Seido Comp saddle
Seat post	Bombtrack Beech 27.2 mm x 400 mm
Seat clamp	Bombtrack Origin 31.8 mm
Front tire	XS - S VEE TIRE XCX 120 TPI TLR 650B x 32C / M - XL Schwalbe X-One Allround TLE 700C x 33C, tubeless ready
Rear tire	XS - S VEE TIRE XCX 120 TPI TLR 650B x 32C / M - XL Schwalbe X-One Allround TLE 700C x 33C, tubeless ready
Fender	-
Rack	-
Kickstand	-
Light	-
Weight	9.4 kg (size M)
Weight frameset	1580 g frame (size L, incl. TA, hanger) / 610 g fork (300 mm steerer, incl. TA)
Maximum rider weight	120 kg incl. luggage
ASTM riding condition	2

Final product may vary in appearance, finish and minor details.

Model	TENSION RIVAL
BB standard	T47 - 86.5 mm shell width
Headset standard (S.H.I.S.)	IS42 / 28.6 \| IS52 / 40
Headset crown race angle	45°
Fork steerer inner diameter	23.6 mm
Fork max tire clearance w/o fender	XS - S 650B x 37C / M - XL 700C x 37C
Frame max tire clearance w/o fender	XS - S 650B x 35C / M - XL 700C x 37C
Maximum chainring clearance 1x	42 T with 45 mm chainline
Maximum chainring clearance 2x	50 / 34 T with 43.5 mm chainline
Seat post diameter	27.2 mm
Seat clamp diameter	31.8 mm
Front derailleur clamp diameter	31.8 mm
Frame front derailleur compatible	yes
Brake mount front	FM 140 / 160
Brake mount rear	FM 140 / 160
Frame thickness rear brake mount	20 mm
Maximum rotor clearance front	160 mm
Maximum rotor clearance rear	160 mm
Front through axle	12 mm x 100 mm, 1.5 thread pitch
Rear through axle	12 mm x 142 mm, 1.5 thread pitch
ISO testing standard	Road
Crankarm	XS 165 mm / S - M 170 mm / L - XL 175 mm
Q Factor	152 mm
BCD crank	Direct mount (Sram Compatible)
Chainring offset	6 mm
Chainline	46 mm
Spoke length front wheel	XS - S 273, 274mm / M - XL 291 mm, 293 mm
Spoke length rear wheel	XS - S 274, 272mm / M - XL 293 mm, 291 mm
Spoke count (front / rear)	32 / 32
ERD	XS - S 570 mm / M - XL 604 mm
Front hub PCD	58 mm
Rear hub PCD	58 mm
Front hub flange distance / offset	56.5 mm center to center / 6.6 mm
Rear hub flange distance / offset	51 mm center to center / 8.8 mm
Stem length	XS - S 80 mm / M 90 mm / L - XL 100 mm
Stem angle	-7°
Headset spacers	1 x 10 mm, 2 x 5 mm
Seat post offset	24 mm
Seat post length	400 mm
Bike trailer	not approved
Seat tube mounted child seat	not approved
Derailleur hanger	BT-DH-018
Frame small parts	BT-CR-013
Hub end caps front	BT-HC-012
Hub end caps rear	BT-HC-017
Cassette body	BT-CB-006
Crankarm bolt	BT-CRP-002
Through axle front	BT-TA-F-603
Through axle rear	BT-TA-R-601

FRAME GEOMETRY

Model	TENSION RIVAL
Bike Size	XS	S	M	L	XL
Wheel size	650B	650B	700C	700C	700C
Seat Tube Length	460	490	530	560	590
Horizontal TT length	507	523	552	570	586
Seat Angle	73.5°	73.5°	73.0°	73.0°	73.0°
Head Angle	71.0°	71.5°	71.5°	72.0°	72.0°
Headtube Length	100	115	139	162	179
BB Drop	55	55	65	65	65
Chainstay Length	410	410	425	425	425
Fork Offset	45	45	45	45	45
Trail	67	64	70	66	66
Wheelbase Length	967	979	1014	1028	1044
Standover	734	757	799	825	848
Reach	355	366	380	391	402
Stack	514	530	563	587	603
Front Center	563	575	598	611	627
Axle to Crown	400	400	400	400	400
Minimum rider height ¹	1500	1600	1700	1790	1880
Maximum rider height ¹	1610	1710	1810	1900	1990

¹ Our bike size recommendation generally represents a rough guideline for quickly narrowing down the sizes from which to choose based on the body height. Bike fitting is a complex topic and other measurements and factors have to be accounted for as well. Since no two human bodys are exactly the same it is not possible to give a 100% correct advice for everyone. Therefore Bombtrack cannot guarantee for the stated recommendations to be correct for every individual customer. The best way to work out the correct size is to consult a local Bombtrack dealer or a professional bike fitter and have them determine the needed size.

HANDLEBAR GEOMETRY

Model	TENSION RIVAL
Bike Size	XS	S	M	L	XL
Handlebar type	Dropbar	Dropbar	Dropbar	Dropbar	Dropbar
Width (drops)	400	400	420	440	440
Width (barends)	446	446	466	486	486
Reach	75	75	75	75	75
Flare	10°	10°	10°	10°	10°
Backsweep	-	-	-	-	-
Drop	116	116	116	116	116
Upsweep	-	-	-	-	-
Rise	-	-	-	-	-
