TEMPEST AL

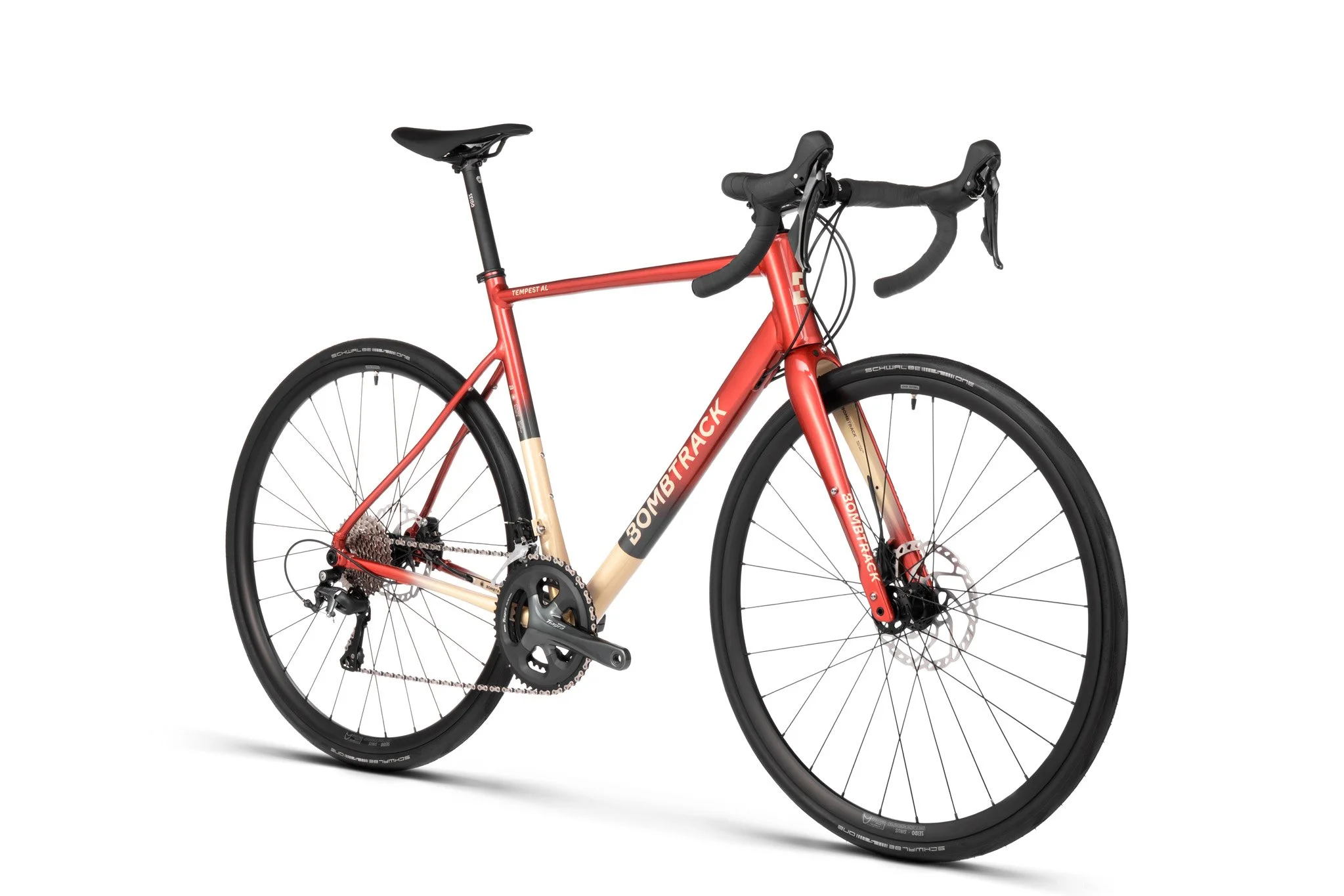

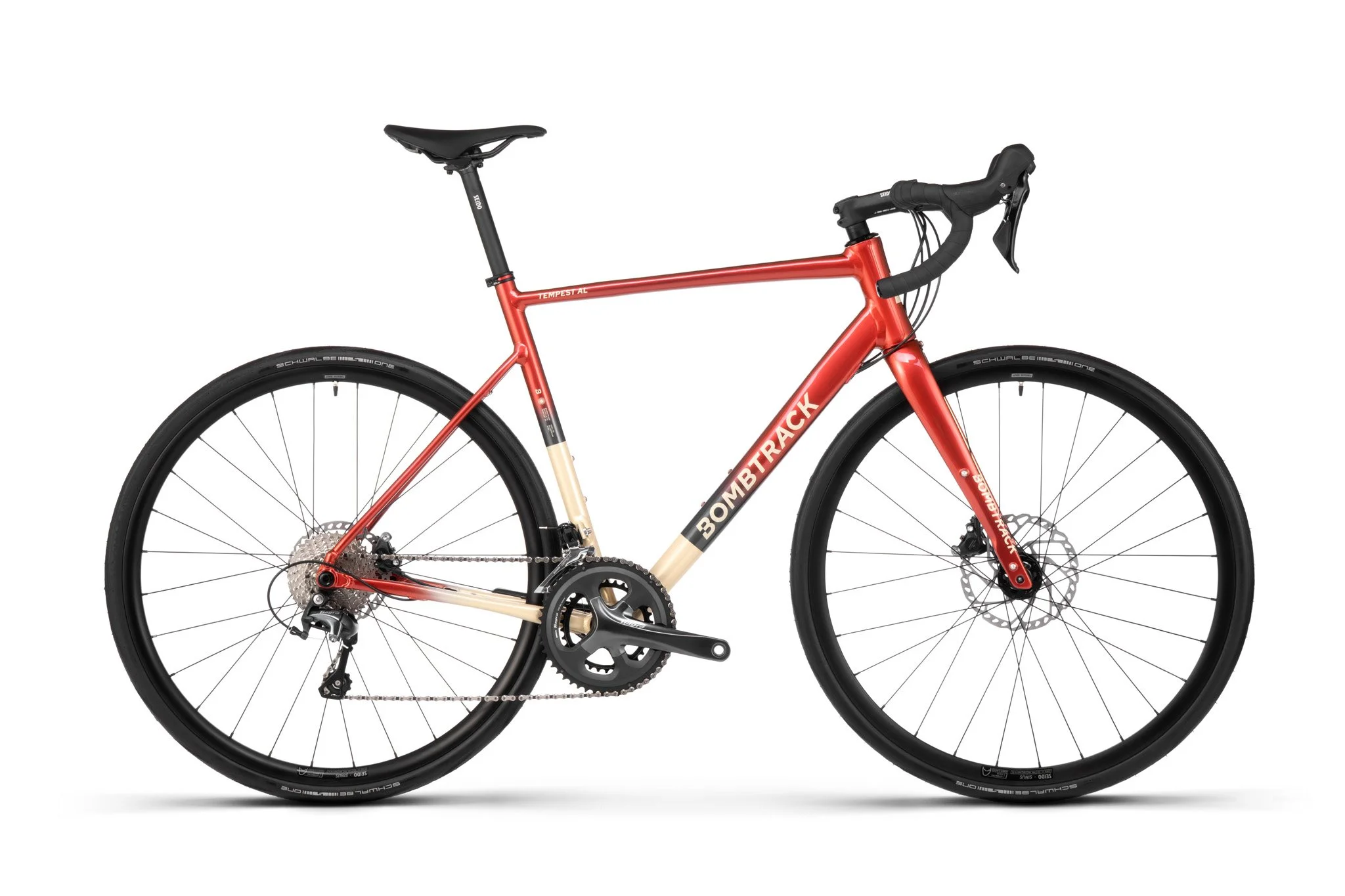

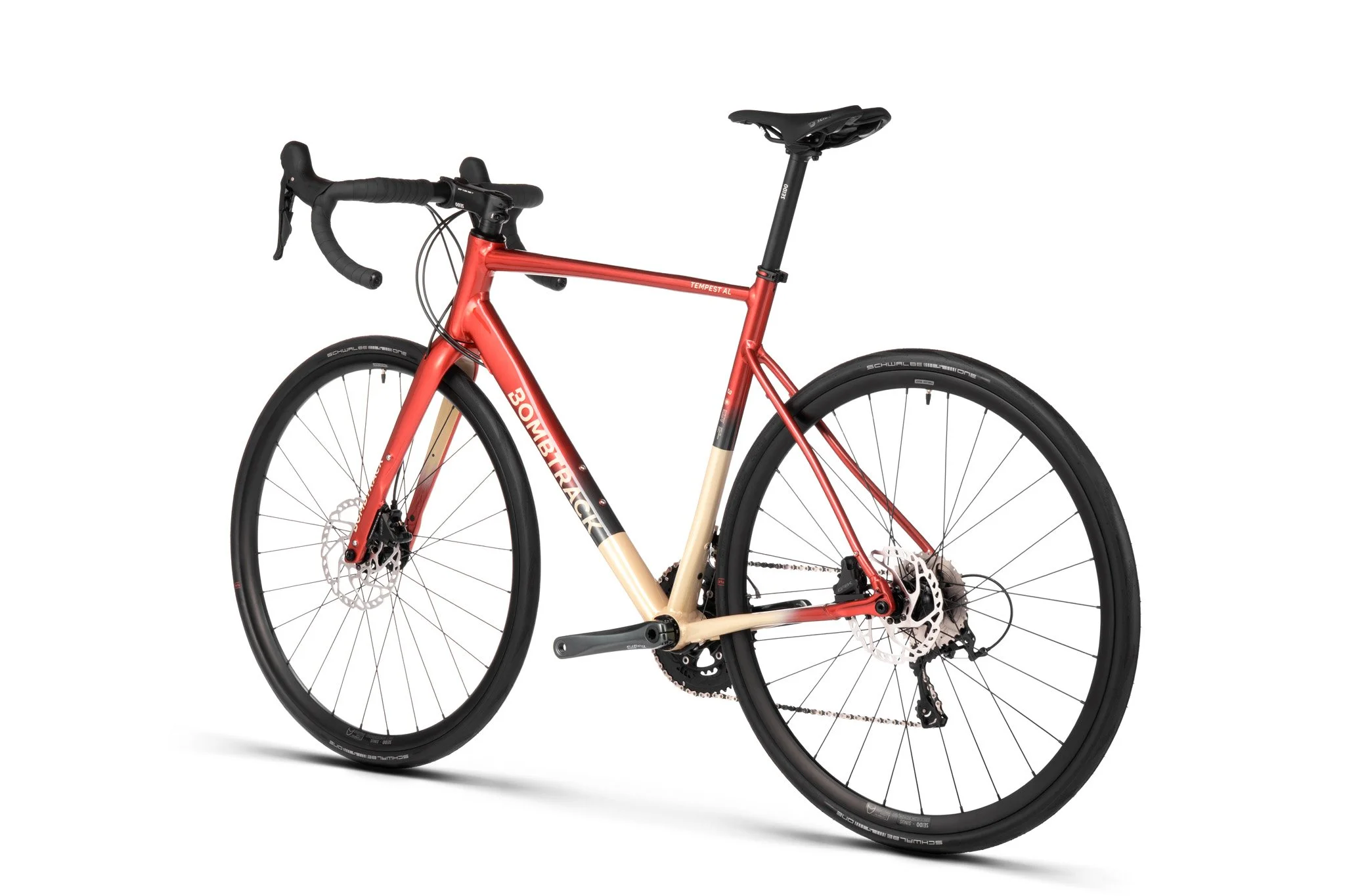

The Tempest AL is a lightweight aluminium allroad bike built for long days, fast commutes, and weekend escapes. Its adventure-ready geometry offers wide tire clearance and a dependable 2x drivetrain, striking the perfect balance between speed and versatility. The T47 bottom bracket adds durability and easy maintenance, while the Seido Banjo carbon fork features internal hub dynamo routing and front rack compatibility for loaded rides and night missions. Shimano’s hydraulic Tiagra 2x10 groupset delivers smooth, precise shifting with powerful braking. Rolling on Seido Sinus i21 tubeless-ready rims and fast-rolling Schwalbe One 700 x 30C tires, the Tempest AL handles mixed terrain with confidence. With Seido Tau disc hubs and 12 mm thru-axles for added stability, this is your go-to setup for allroad riding—efficient, capable, and ready to roam.

DESERT RUST

HIGHLIGHTS

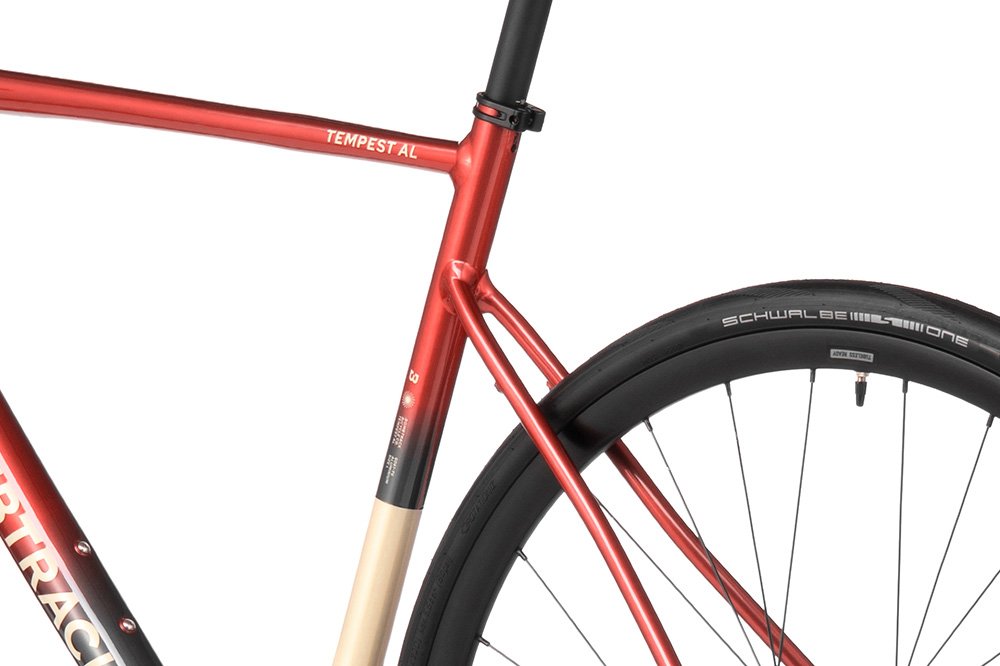

  • GEOMETRY

    Adventure ready road bike with wide tire clearance and reliable 2x drivetrain.

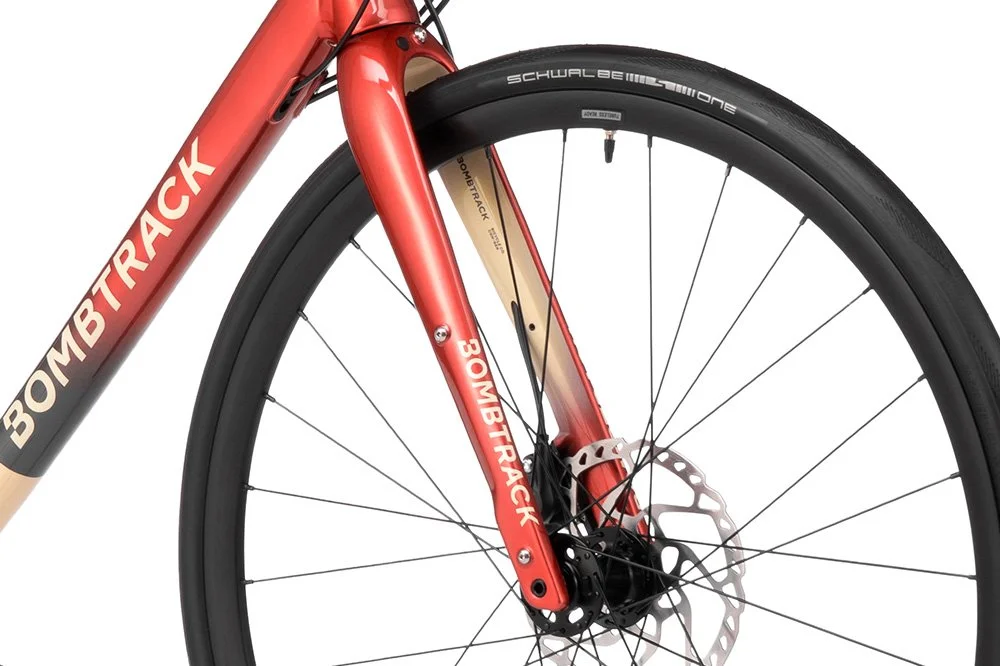

  • FORK

    Seido Banjo carbon fork with internal hub dynamo cable routing and front rack compatibility.

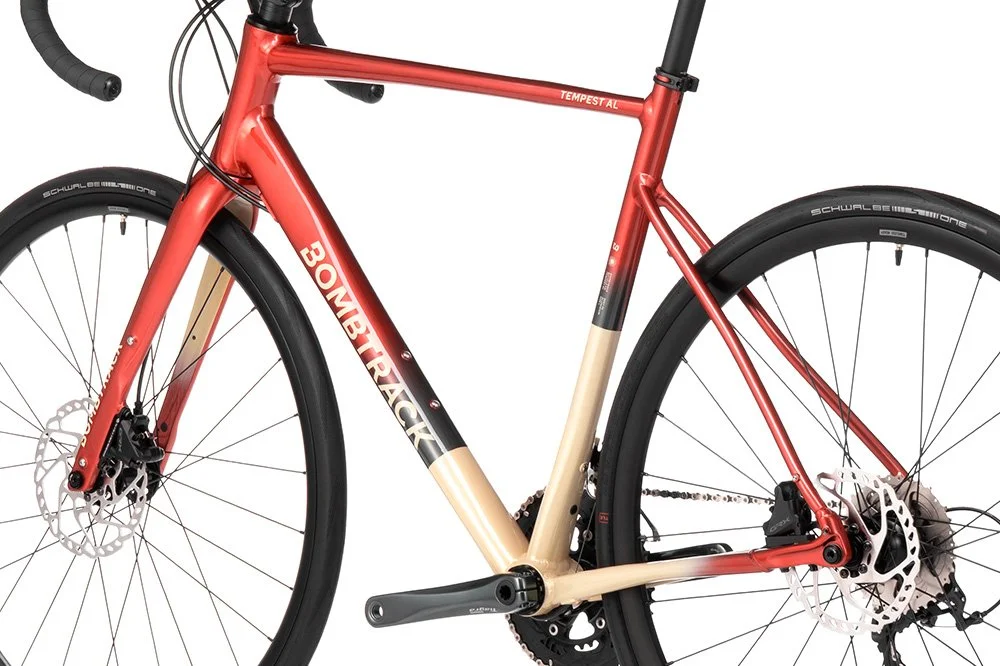

  • FRAME

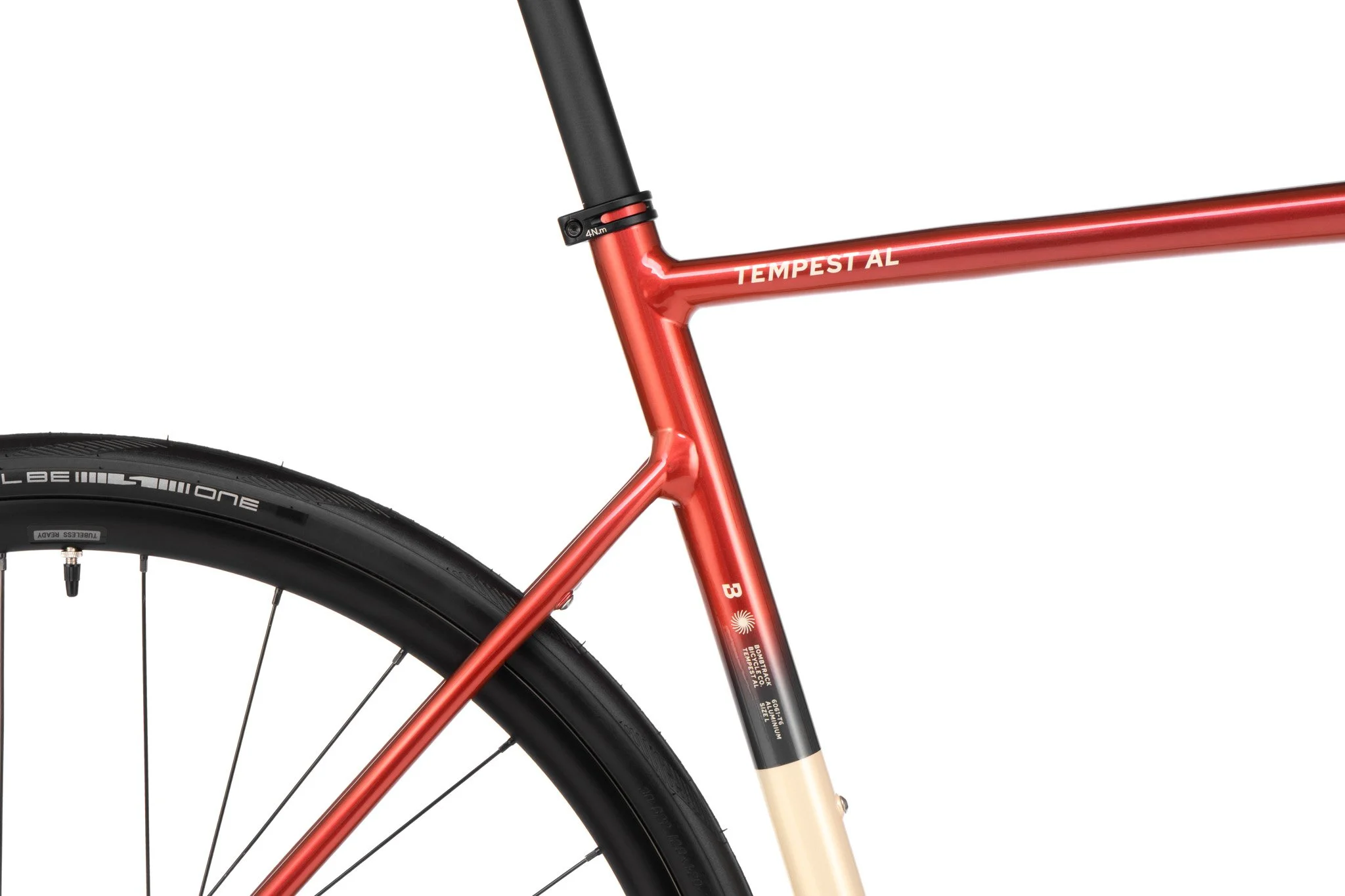

    Lightweight aluminium frame with T47 bottom bracket.

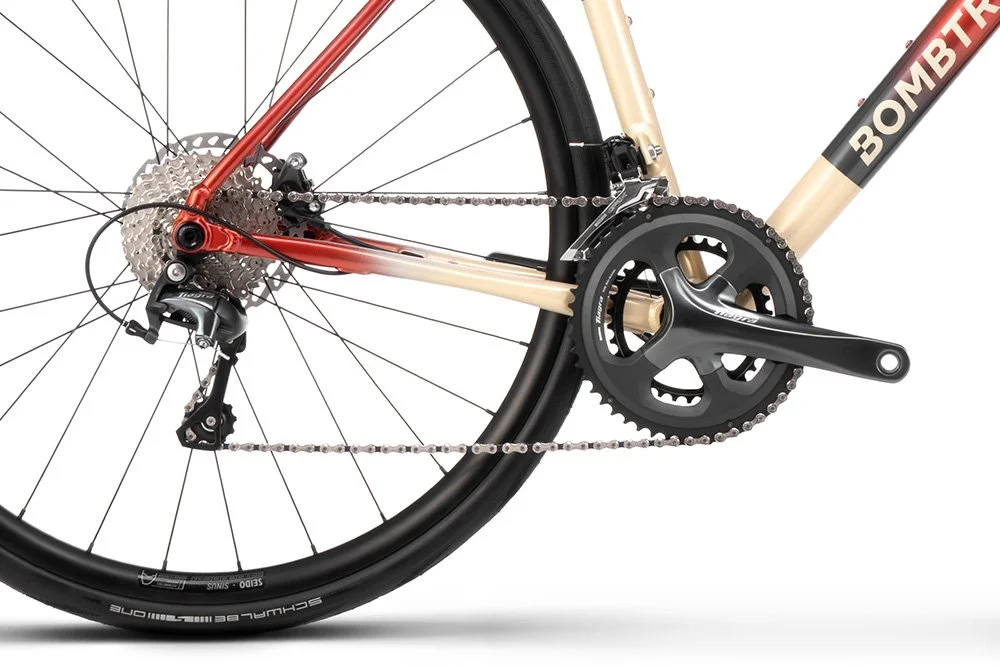

  • DRIVETRAIN

    Hydraulic Shimano Tiagra 2 x 10 groupset.

  • HUBS

    Seido Tau disc brake hubs with 12 mm through axles.

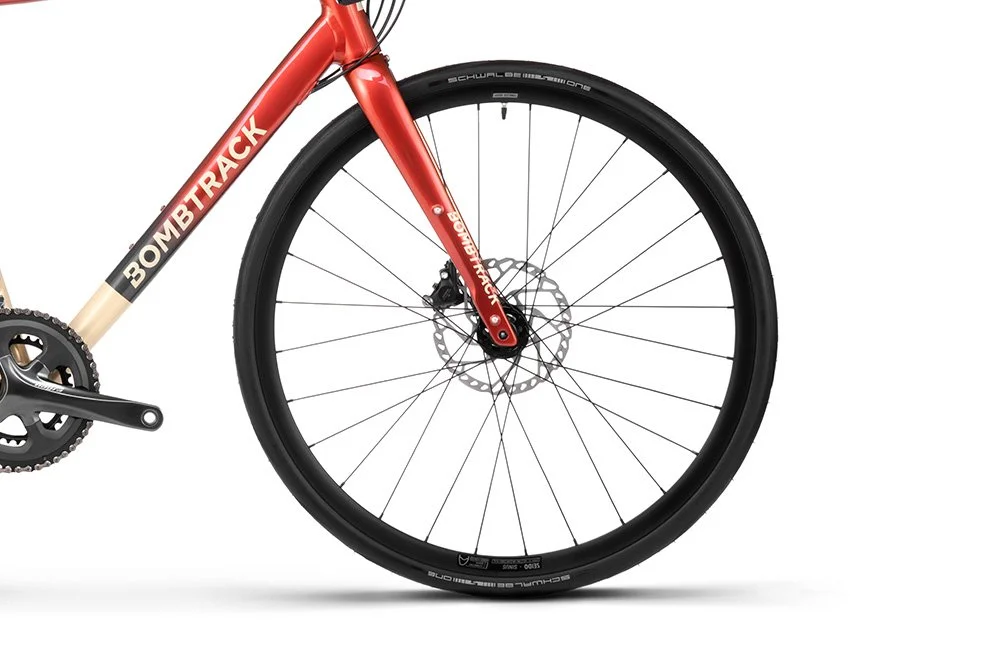

  • WHEELS

    Seido Sinus i21 tubeless ready rims with Schwalbe One 700C x 30C tires.

"The short chainstays make for spritely handling bike when you need it, but a generous BB drop gives a planted and stable ride on long switchback descents"

SPECIFICATIONS

ModelTEMPEST AL
Color 1Desert rust
Color 2-
Color 3-
Frame6061-T6 double butted aluminium, TA, stealth fender mounts, 68 mm T47 BB shell

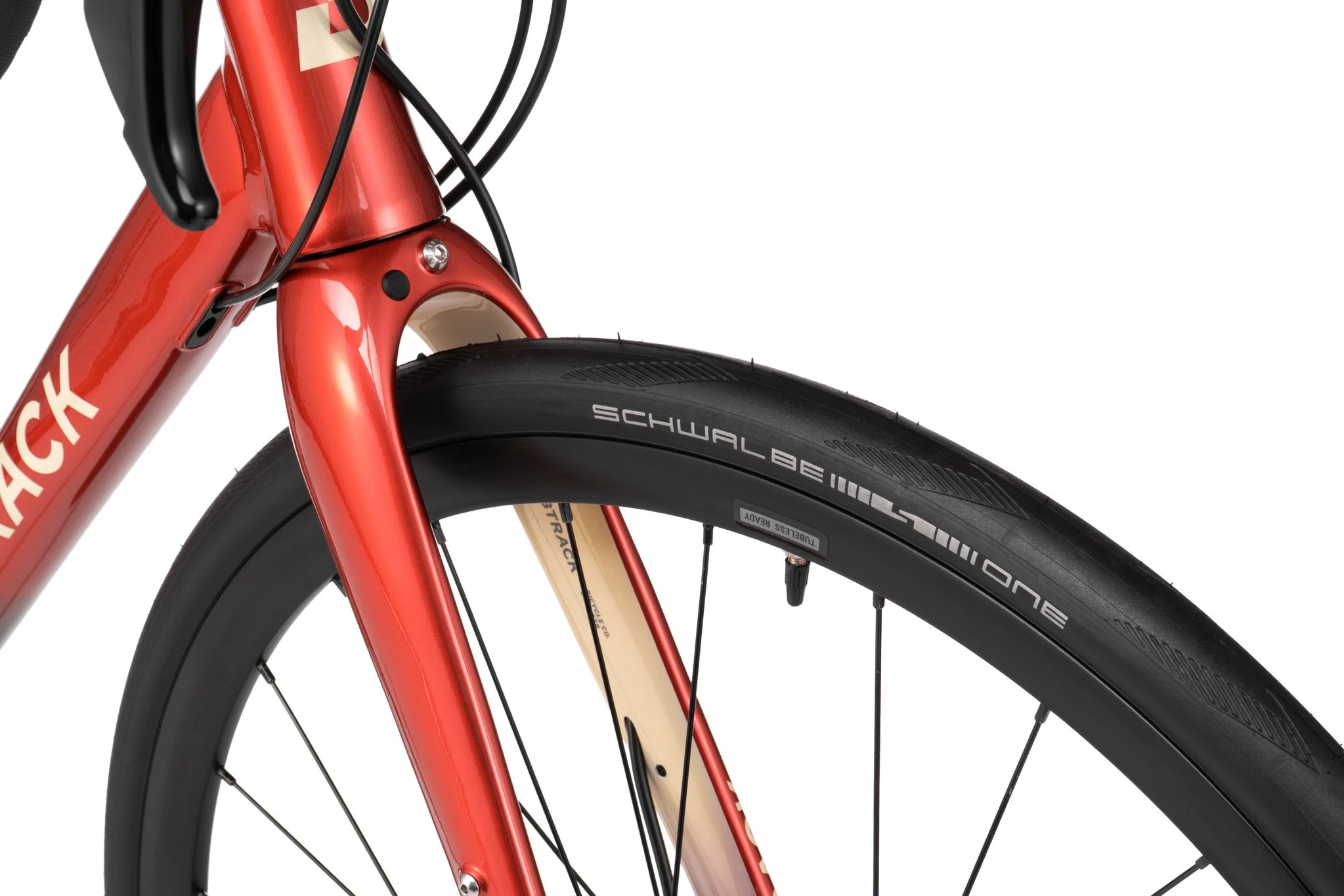

ForkSeido Banjo full carbon, TA, 1.1/2'' - 1.1/8'', 180 mm max rotor size, lowrider rack compatible, internal hub dynamo cable routing

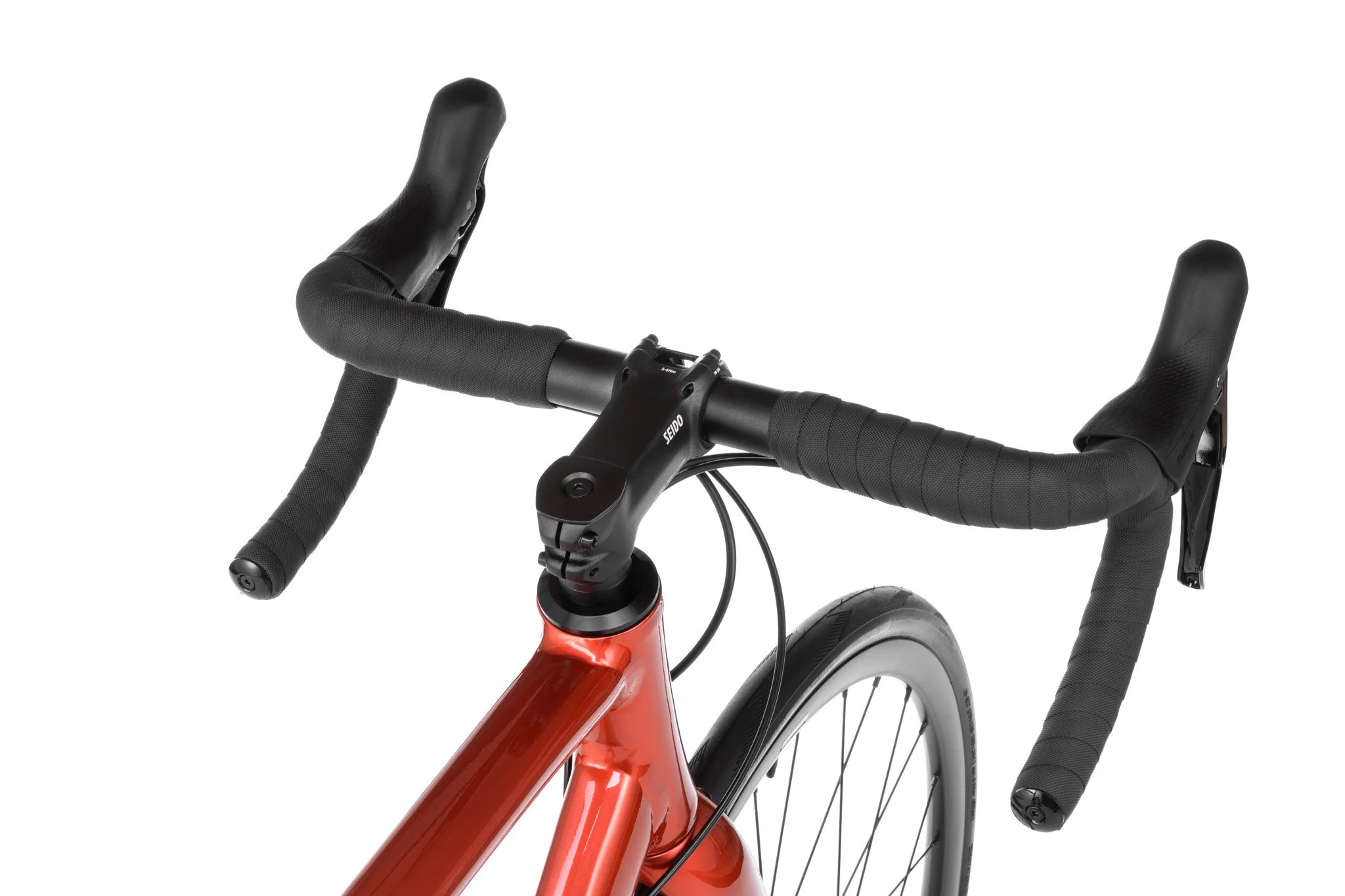

HandlebarSeido Tackle Road drop bar, 31.8 mm, 2° flare
GripsBombtrack Command bar tape
StemSeido Scatter forged aluminium stem, -7°
HeadsetSealed integrated headset, 1.1/2'' - 1.1/2''

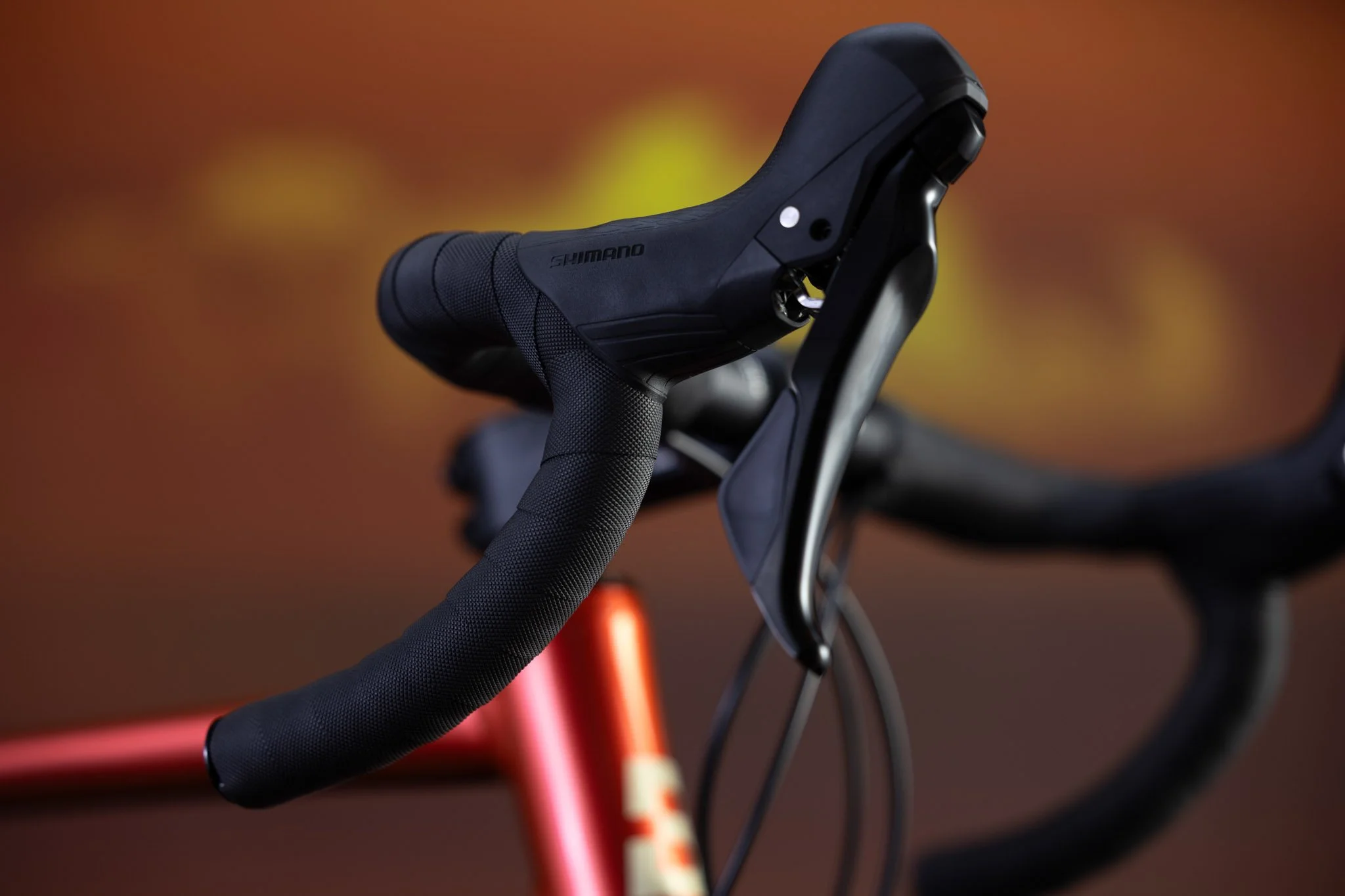

LeversShimano Tiagra ST-4720 STI hydraulic
ShifterShimano Tiagra ST-4720 STI 2 x 10
BrakesShimano Tiagra BR-4770 hydraulic disc brakes
RotorShimano SM-RT66 180 mm front and 160 mm rear rotor

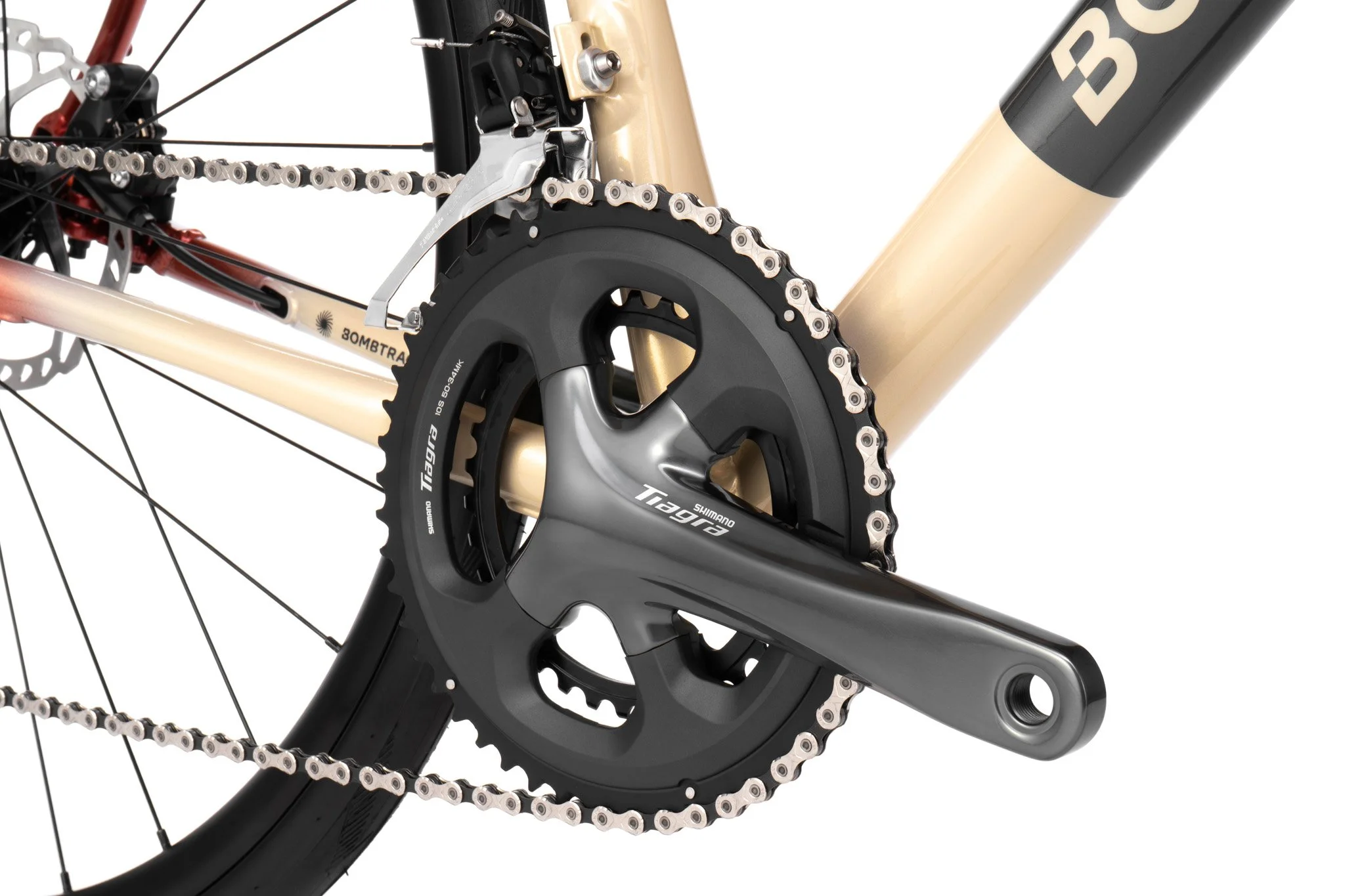

CranksetShimano Tiagra FC-4700, 24 mm spindle
BBSeido T47 Pro external sealed BB for 24 mm spindle
Pedals-
ChainKMC X10 chain, 1/2'' x 11/128''
ChainringShimano Tiagra, 50 T / 34 T
CassetteShimano CS-HG500 10-speed, 11 - 34 T
Front derailleurShimano Tiagra FD-4700-F

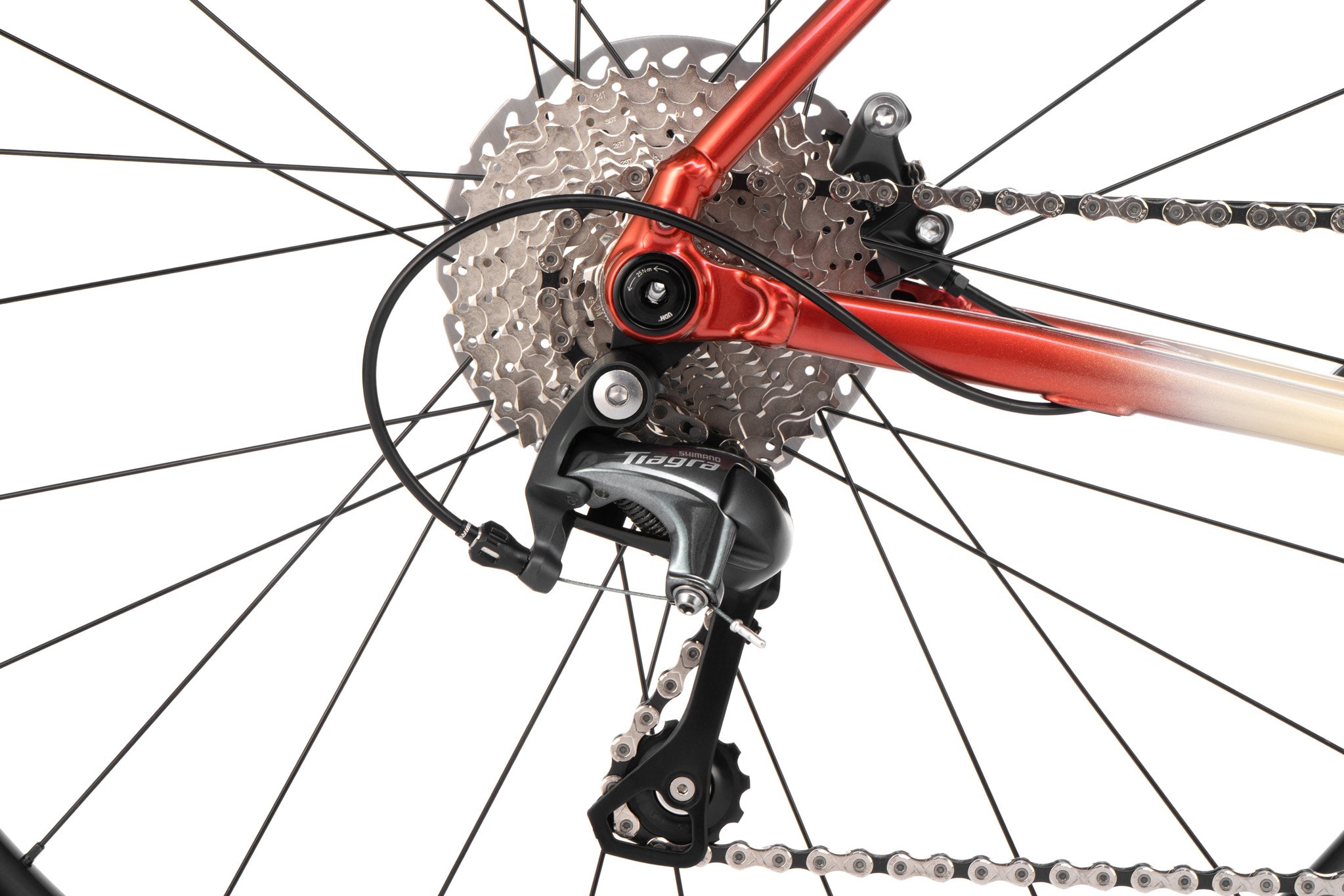

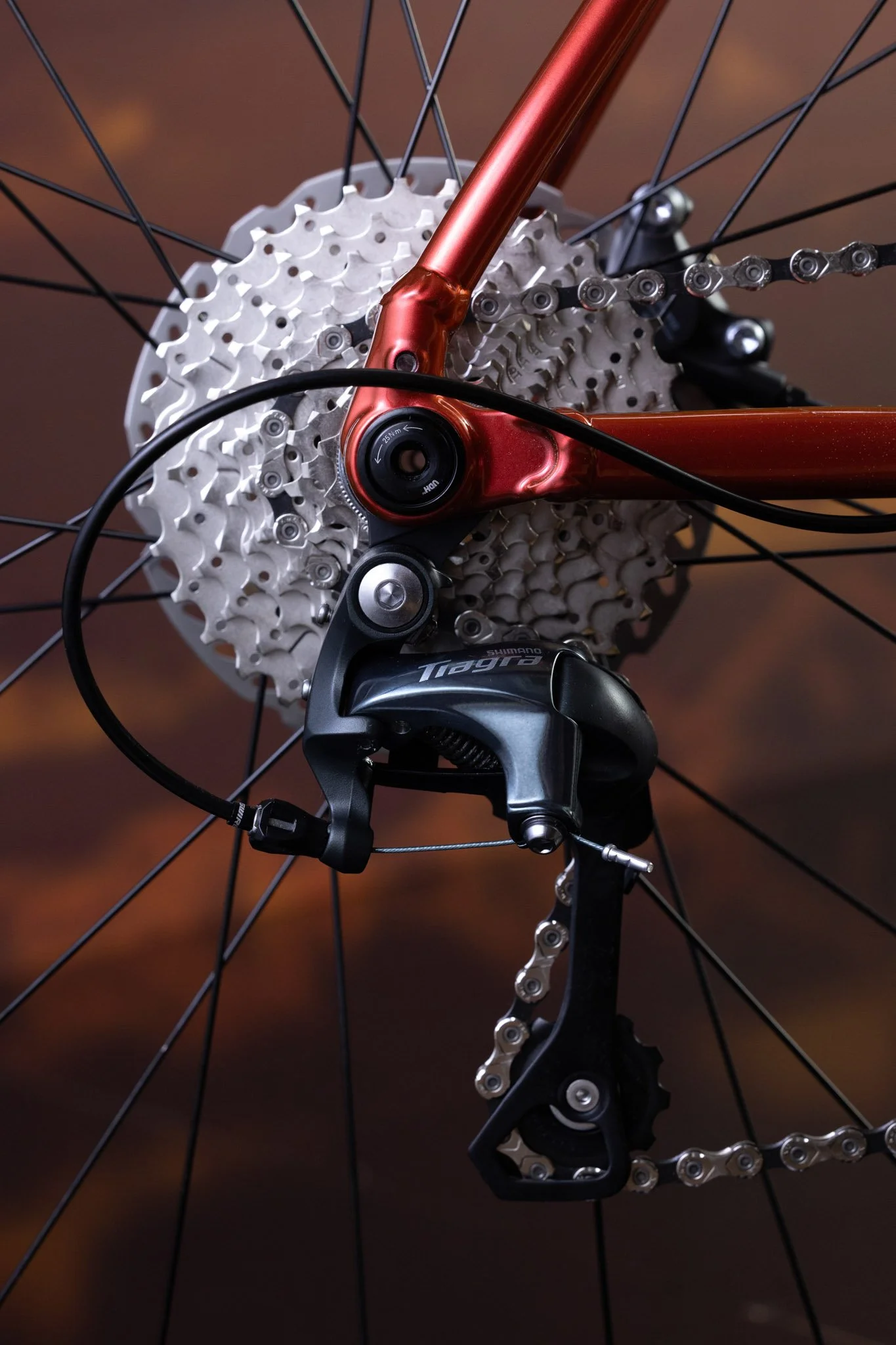

Rear derailleurShimano Tiagra RD-4700-GS

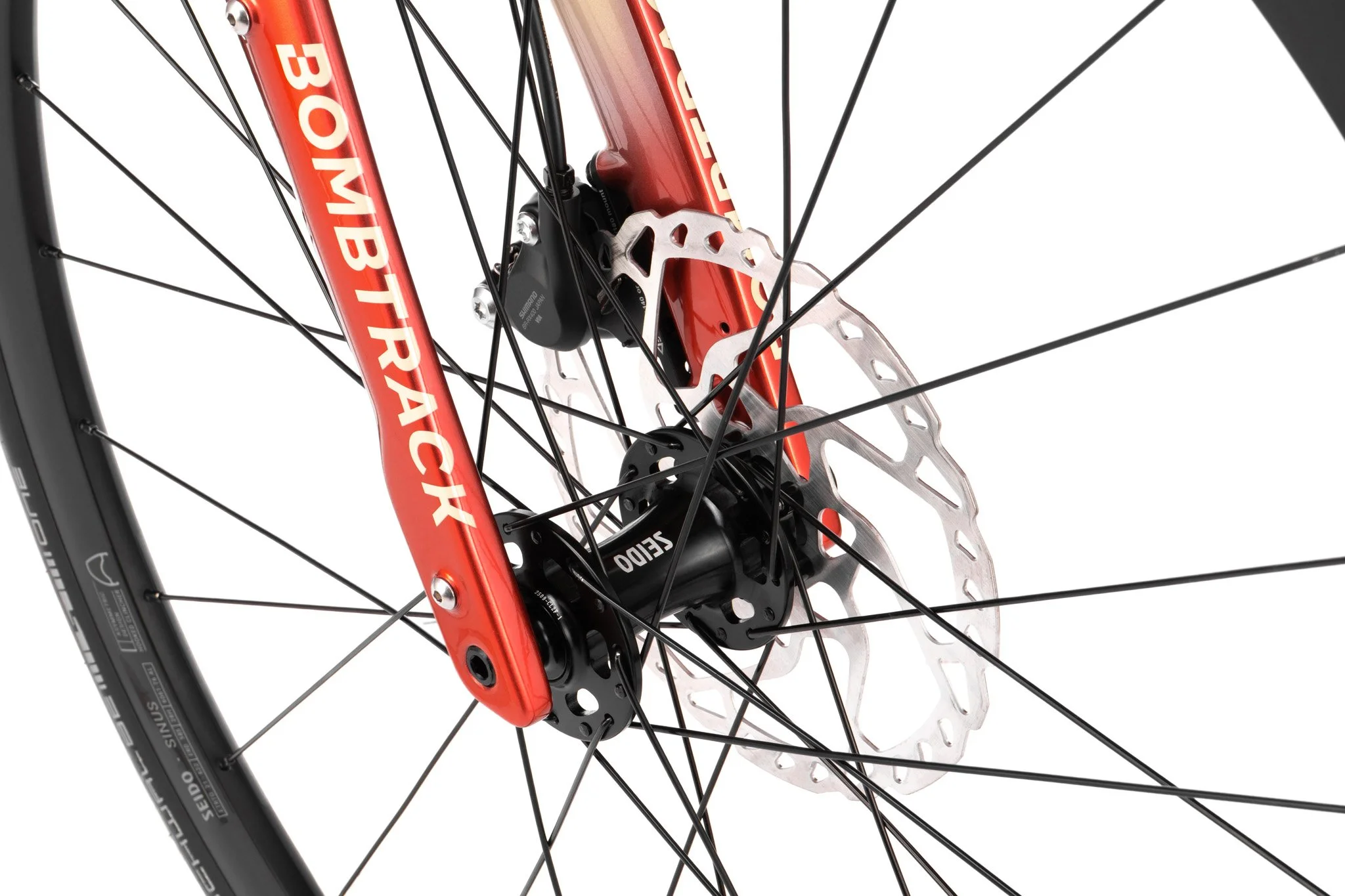

Front hubSeido Tau sealed hub, 6-bolt disc
Rear hubSeido Tau sealed hub, HG driver, 6-bolt disc
Through axle12 x 100 mm / 12 x 142 mm
Front rimSeido Sinus i21, tubeless ready, 28H
Rear rimSeido Sinus i21, tubeless ready, 28H

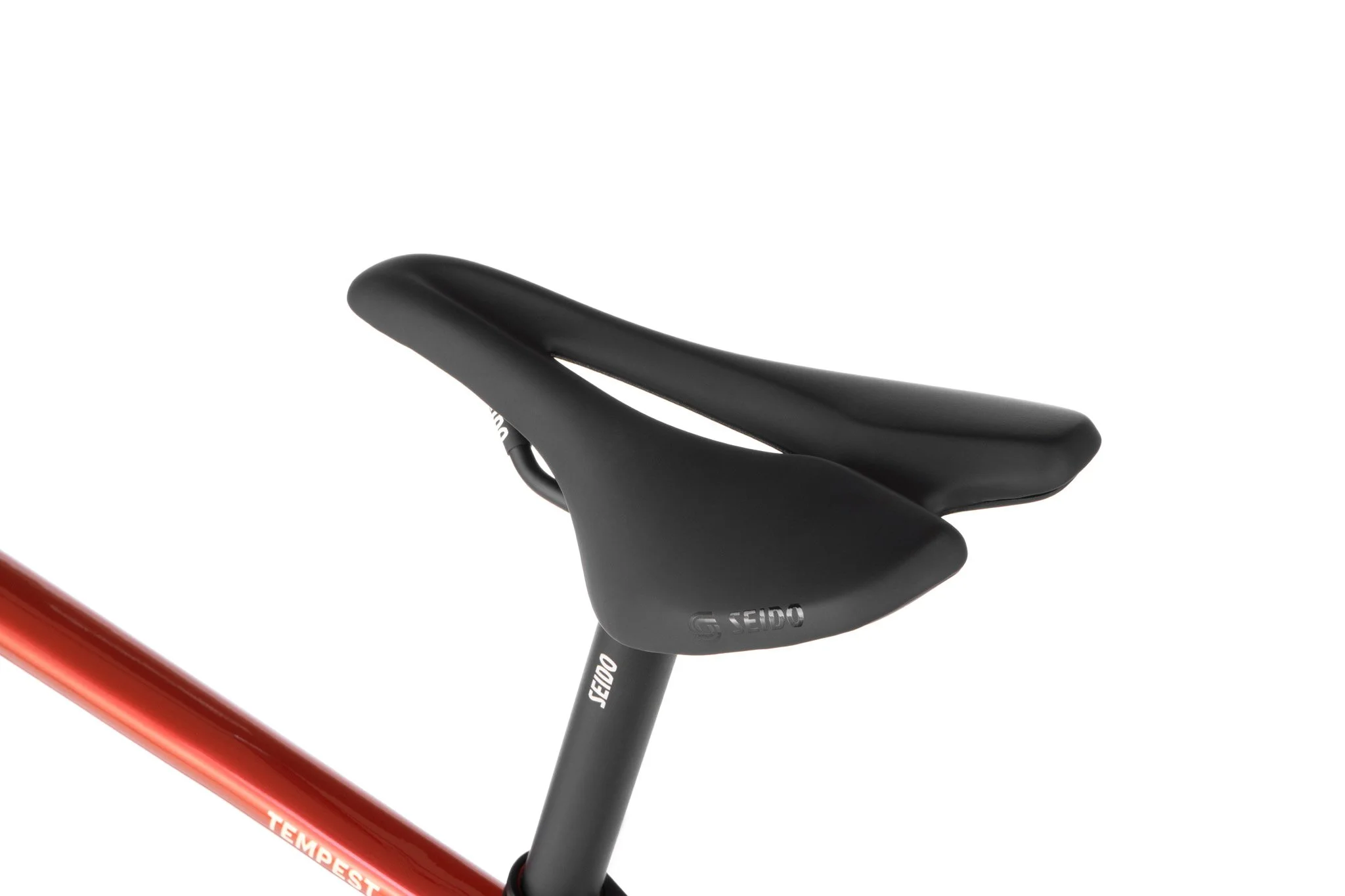

SaddleSeido Course saddle
Seat postSeido Yew aluminium seatpost, 27.2 mm x 350 mm
Seat clampBombtrack Prime 31.8 mm
Front tireSchwalbe One 700C x 30C, tubeless ready
Rear tireSchwalbe One 700C x 30C, tubeless ready
Fender-
Rack-
Kickstand-
Light-
WeightTBA
Weight framesetTBA
Maximum rider weight120 kg incl. luggage
ASTM riding condition1


Final product may vary in appearance, finish and minor details.

BUILD INFOS

ModelTEMPEST AL
BB standardT47 - 68 mm shell width
Headset standard (S.H.I.S.)IS52 / 28.6 | IS52 / 40
Headset crown race angle45°
Fork steerer inner diameter23.6 mm
Fork max tire clearance w/o fender700C x 35C
Frame max tire clearance w/o fender700C x 35C
Maximum chainring clearance 1xTBA
Maximum chainring clearance 2xTBA
Seat post diameter27.2 mm
Seat clamp diameter30.0 mm
Front derailleur clamp diameterintegrated FD hanger
Frame front derailleur compatibleyes
Brake mount frontFM 160 / 180
Brake mount rearFM 140 / 160
Frame thickness rear brake mount20 mm
Maximum rotor clearance front180 mm
Maximum rotor clearance rear160 mm
Front through axle12 mm x 100 mm, 1.5 thread pitch
Rear through axle12 mm x 142 mm, 1.0 thread pitch
ISO testing standardRoad
CrankarmS - M 170 mm / L - 175 mm
Q FactorTBA
BCD crank110 mm, asymmetric Shimano 4 bolts
Chainring offset0 mm
Chainline44.5 mm
Spoke length front wheelTBA
Spoke length rear wheelTBA
Spoke count (front / rear)28 / 28
ERD585 mm
Front hub PCD58 mm
Rear hub PCD58 mm
Front hub flange distance / offset56.5 mm center to center / 6.6 mm
Rear hub flange distance / offset51 mm center to center / 8.8 mm
Stem lengthS 80 mm / M 90 mm / L 100 mm
Stem angle-7°
Headset spacers1 x 10 mm, 2 x 5 mm
Seat post offset0 mm
Seat post length400 mm
Bike trailernot approved
Seat tube mounted child seatnot approved
Derailleur hangerSram UDH
Frame small partsTBA
Hub end caps frontTBA
Hub end caps rearTBA
Cassette bodyTBA
Crankarm bolt-
Through axle frontBT-TA-F-601
Through axle rearTBA


GEOMETRY



FRAME GEOMETRY

ModelTEMPEST AL
Bike SizeSML
Wheel size700C700C700C
Seat Tube Length520550580
Horizontal TT length540557574
Seat Angle73.5°73.5°73.5°
Head Angle71.5°71.5°71.5°
Headtube Length145165185
BB Drop727270
Chainstay Length418418418
Fork Offset535353
Trail606060
Wheelbase Length100610151042
Standover788811836
Reach375386398
Stack559578595
Front Center598616633
Axle to Crown385385385
Minimum rider height ¹160017001790
Maximum rider height ¹171018101900


¹ Our bike size recommendation generally represents a rough guideline for quickly narrowing down the sizes from which to choose based on the body height. Bike fitting is a complex topic and other measurements and factors have to be accounted for as well. Since no two human bodys are exactly the same it is not possible to give a 100% correct advice for everyone. Therefore Bombtrack cannot guarantee for the stated recommendations to be correct for every individual customer. The best way to work out the correct size is to consult a local Bombtrack dealer or a professional bike fitter and have them determine the needed size.

HANDLEBAR GEOMETRY

Tempest ALTEMPEST AL
Bike SizeSML
Handlebar typeDropbarDropbarDropbar
Width (drops)406406426
Width (barends)420420440
Reach777777
Flare3°3°3°
Backsweep6°6°6°
Drop128128128
Upsweep---
Rise---

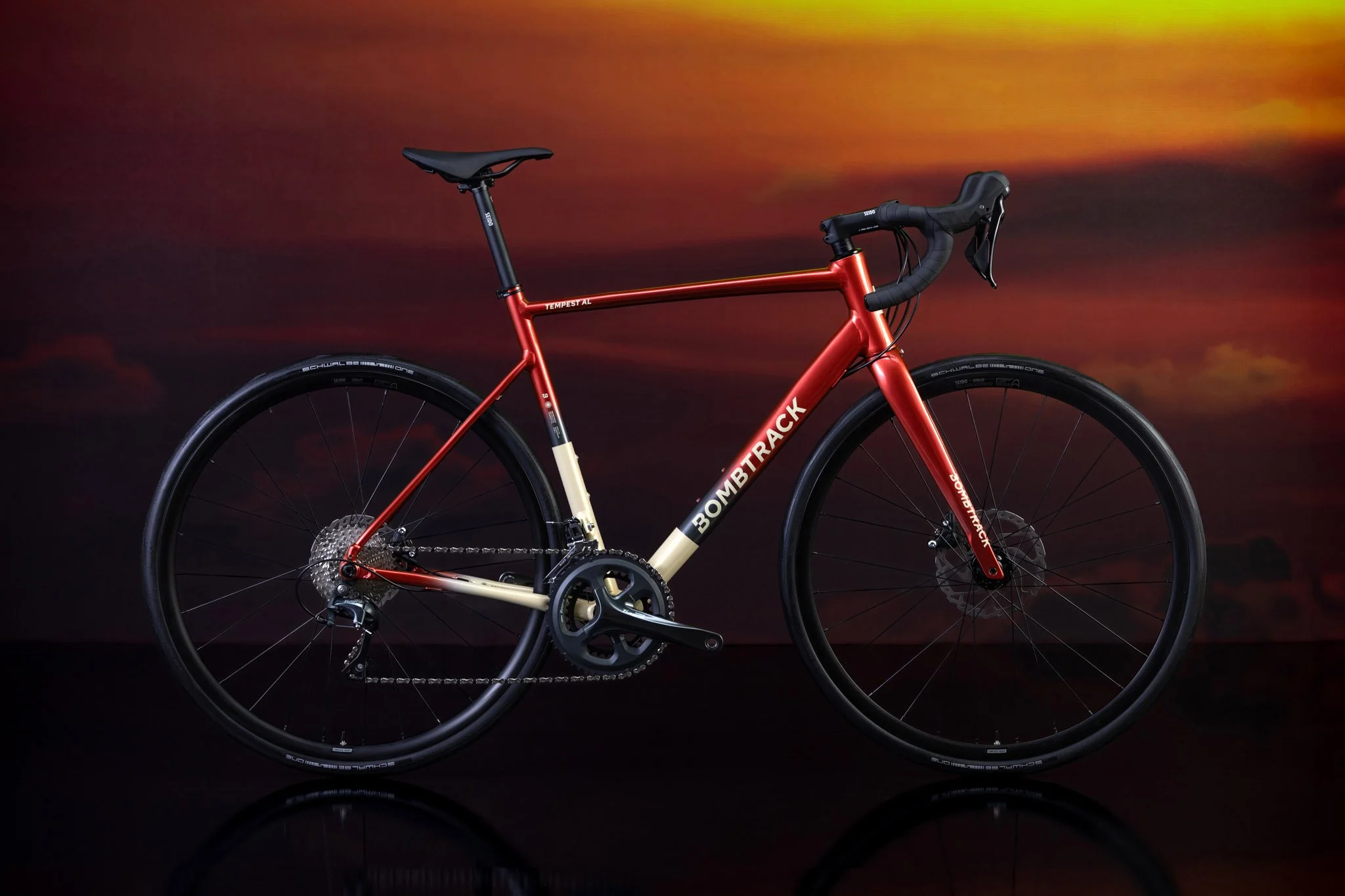

Unbenannter Katalog5099.jpg

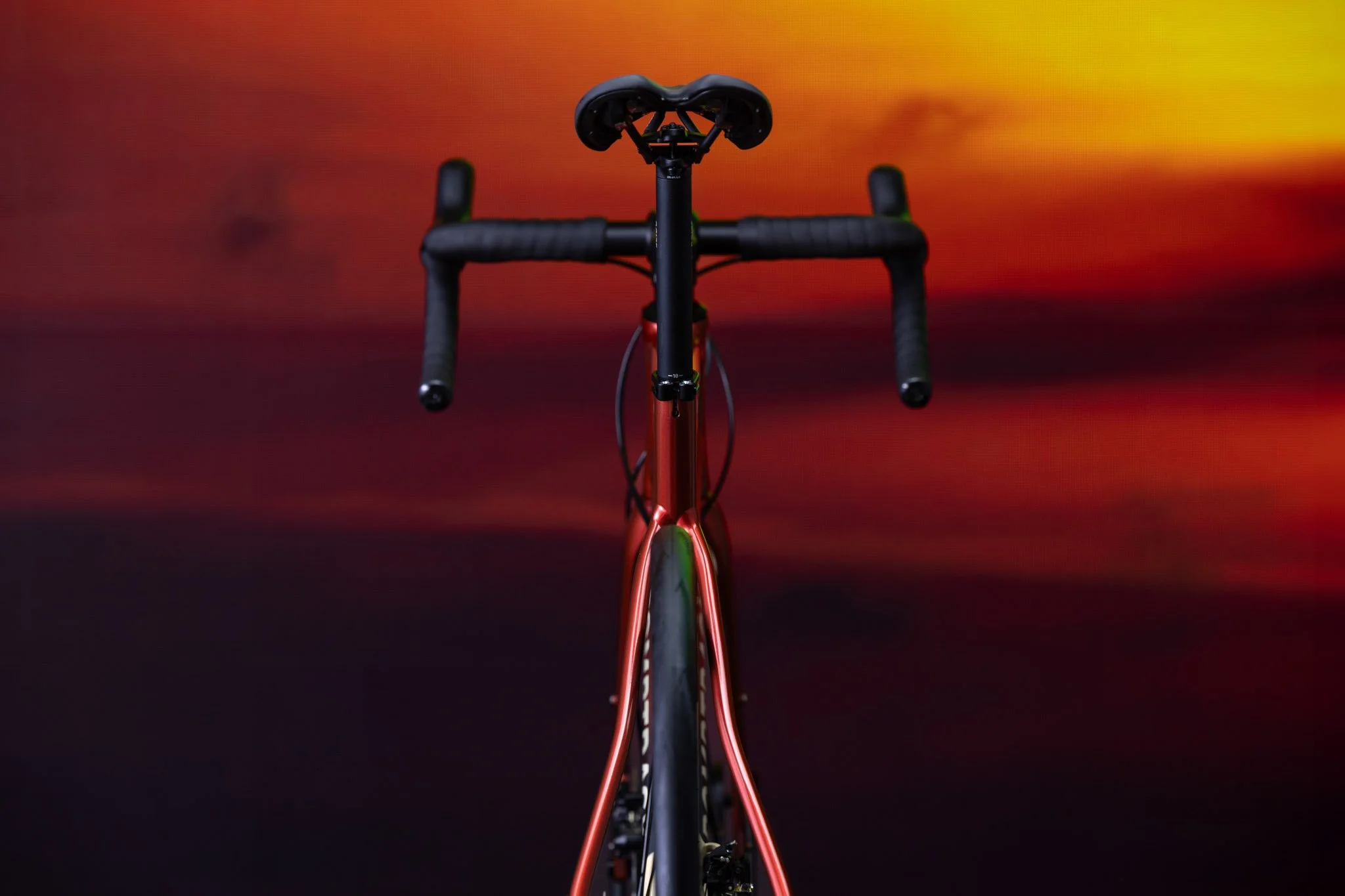

Unbenannter Katalog5157.jpg

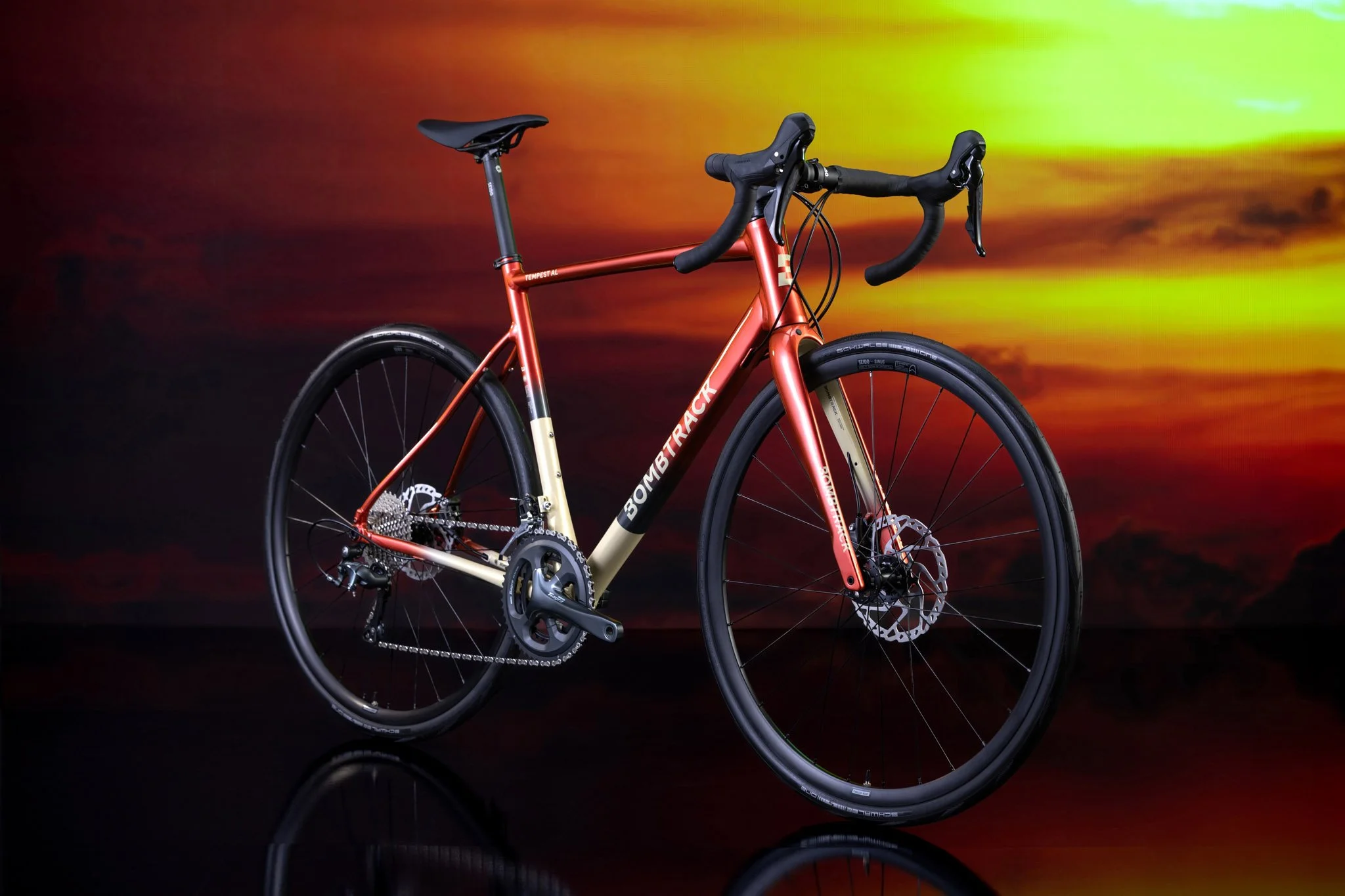

Unbenannter Katalog5173.jpg

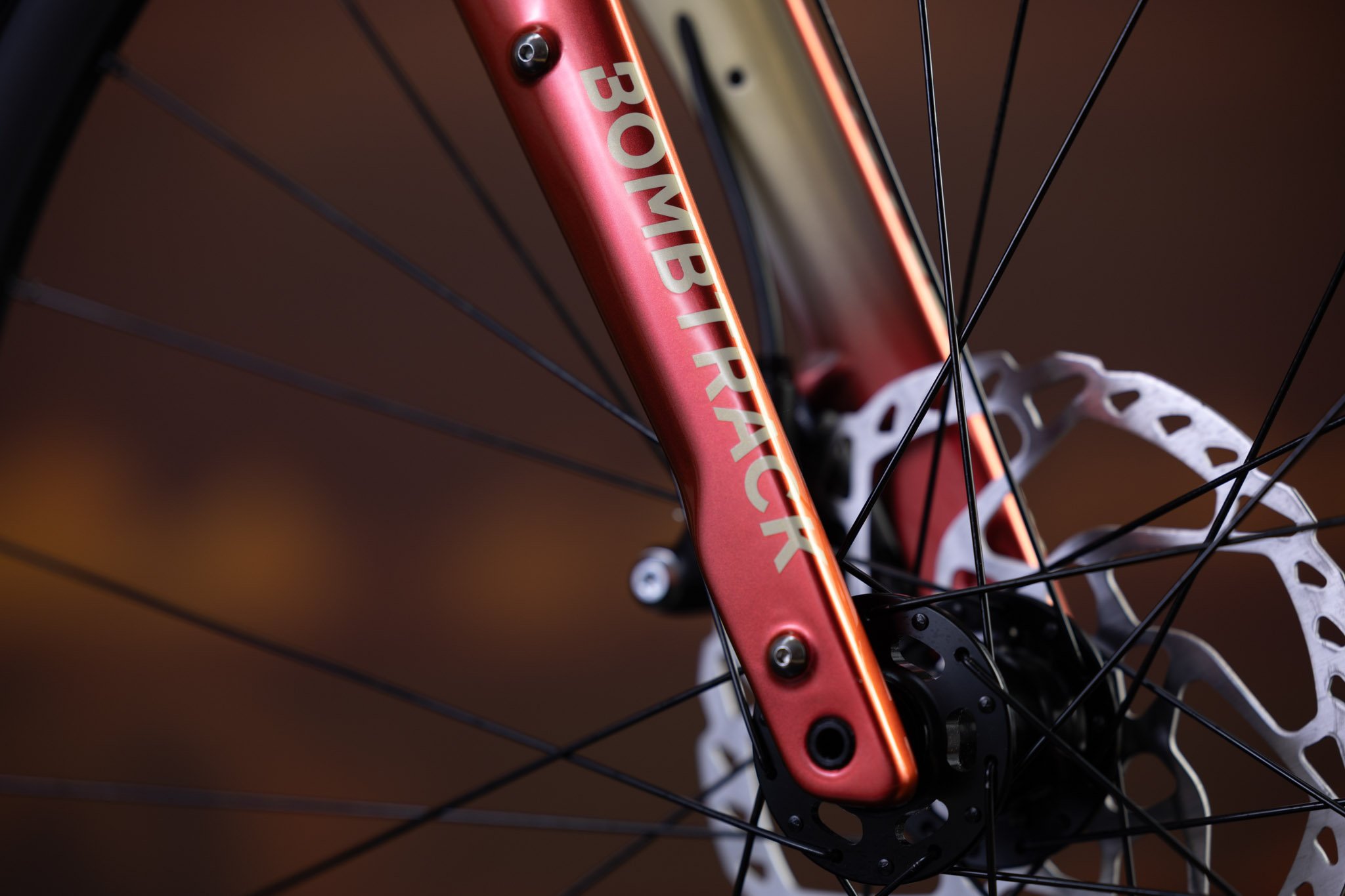

Unbenannter Katalog5195.jpg
Unbenannter Katalog5205.jpg

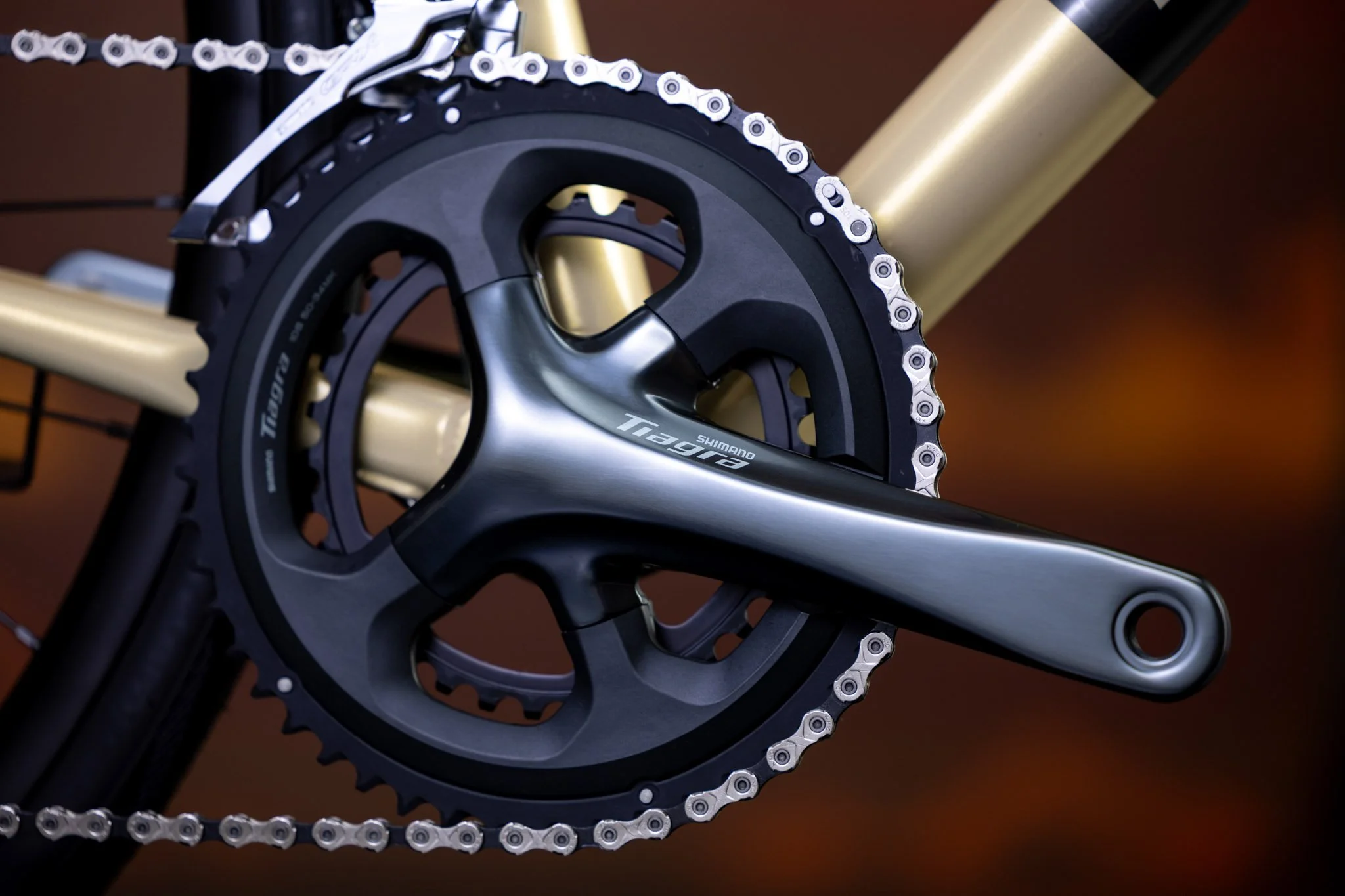

Unbenannter Katalog5213.jpg

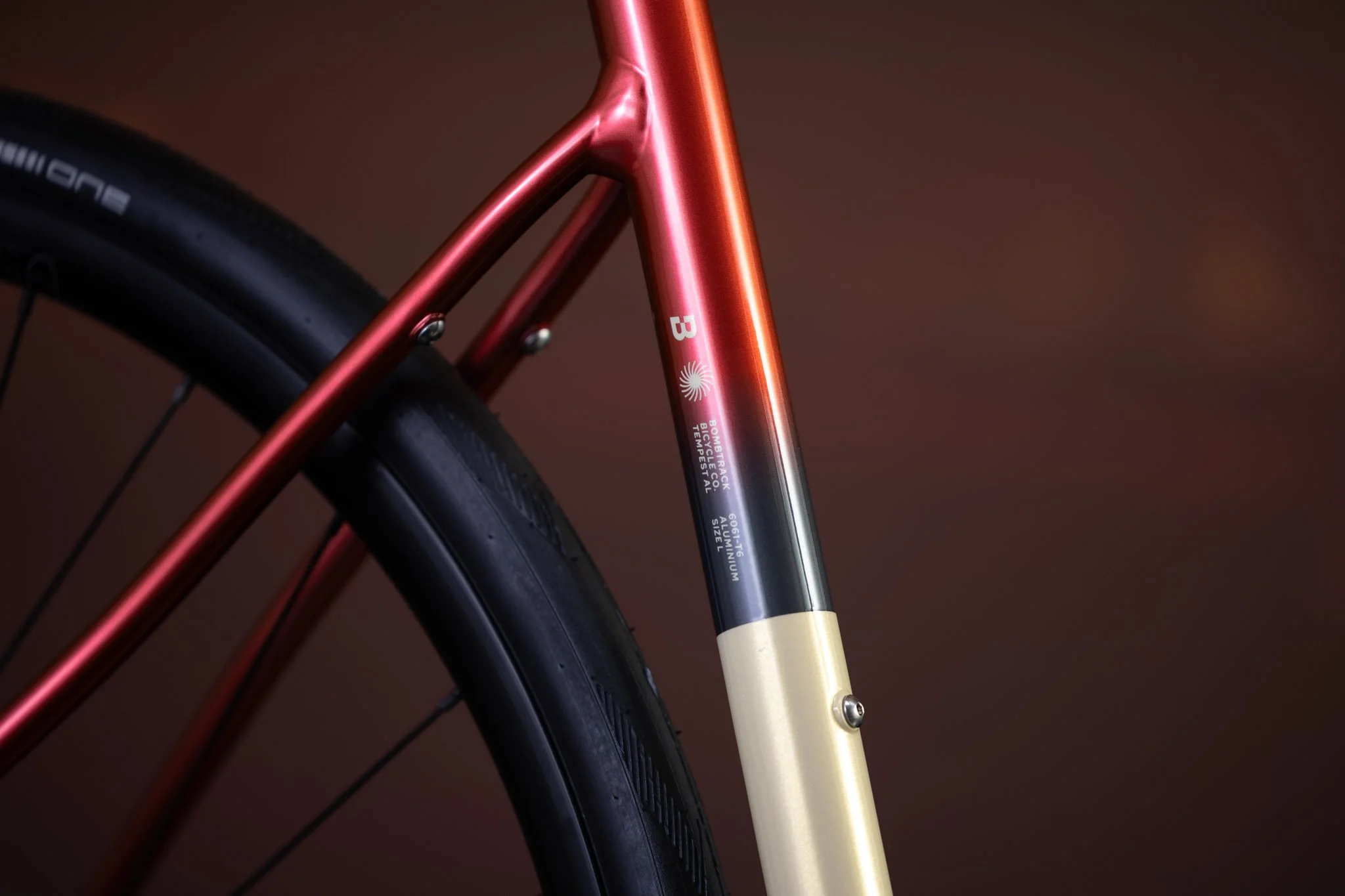

Unbenannter Katalog5215.jpg

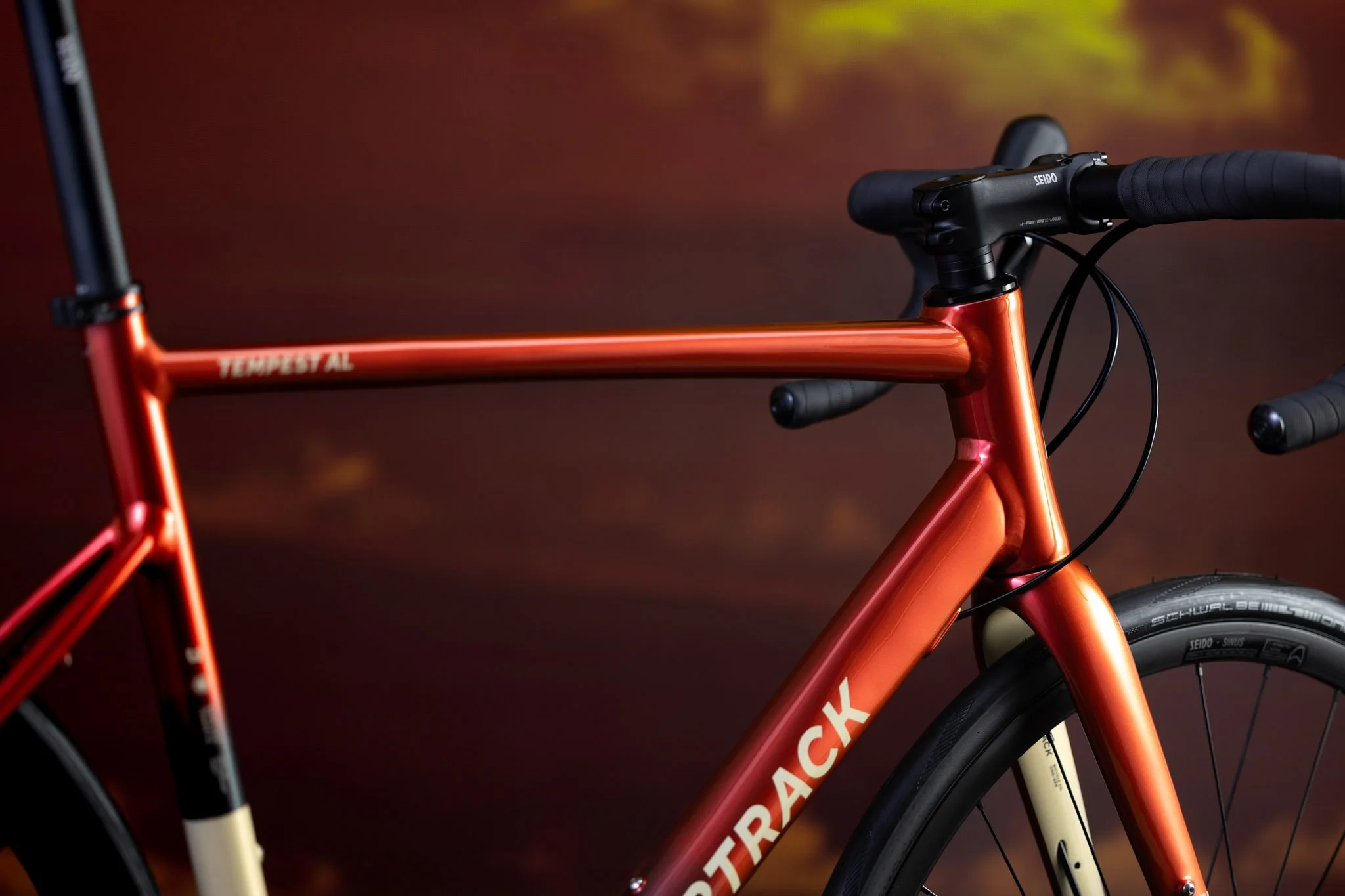

Unbenannter Katalog5236.jpg
Unbenannter Katalog5238.jpg

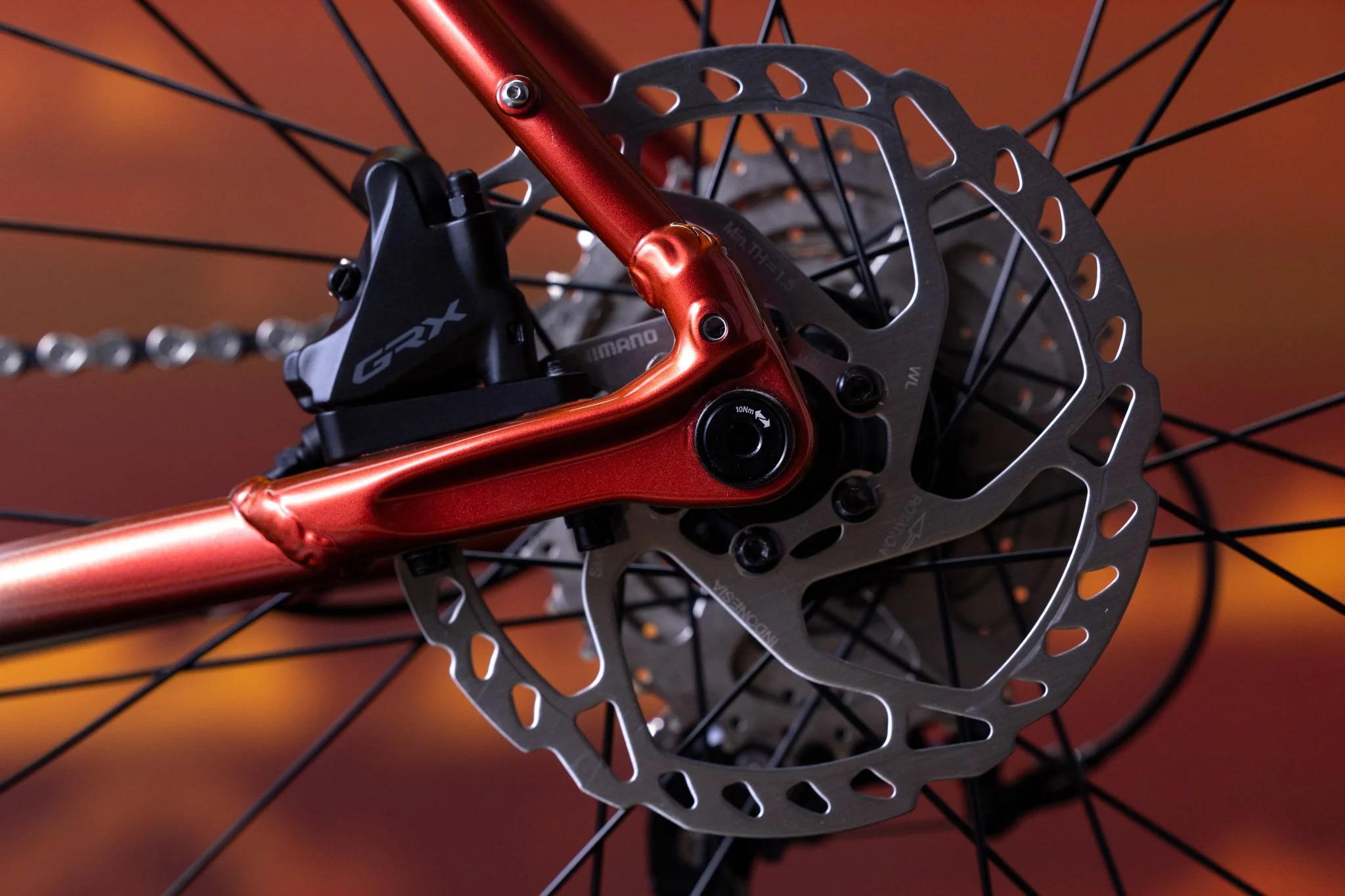

Unbenannter Katalog5254.jpg
