MUNROE SG

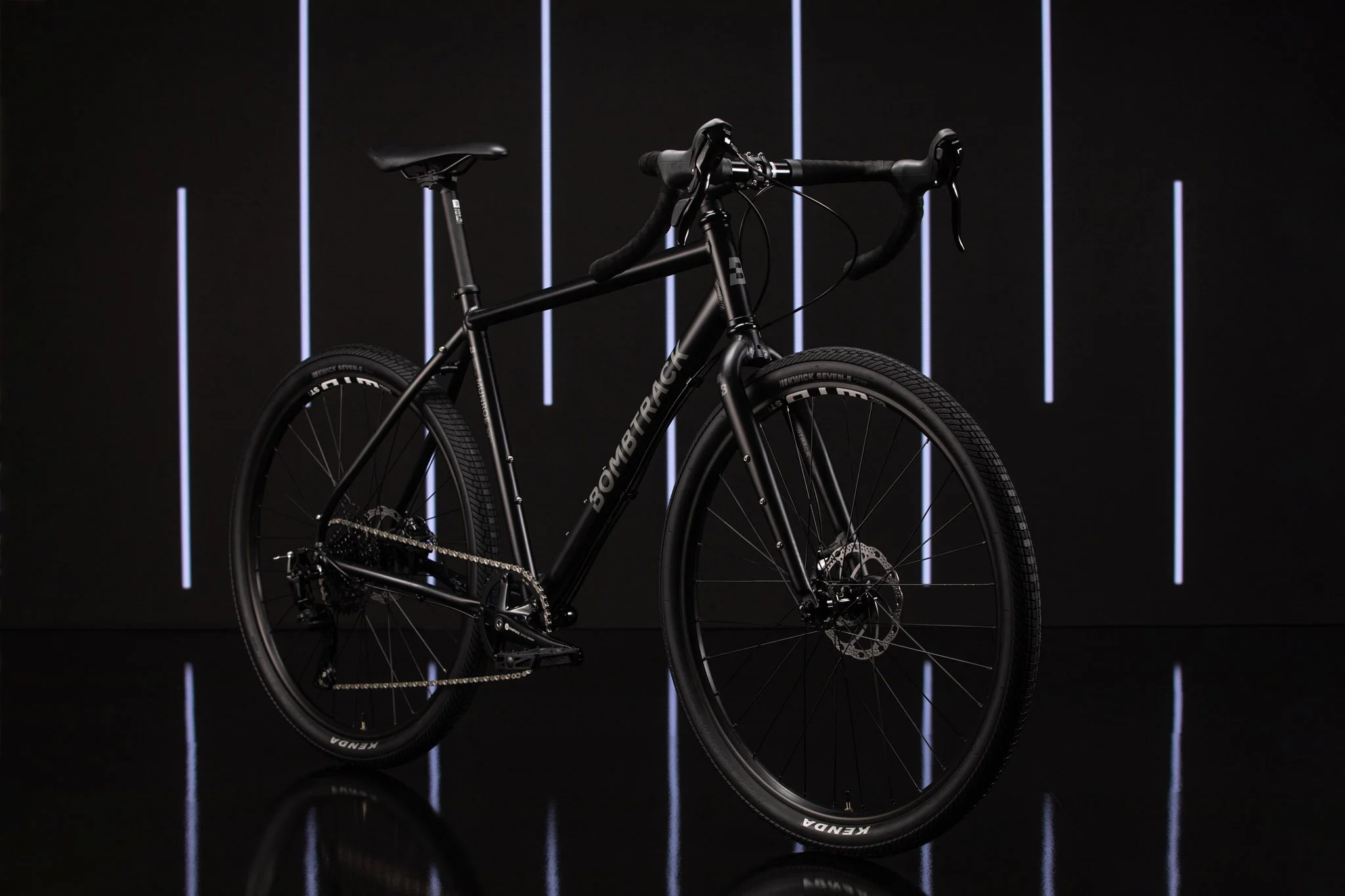

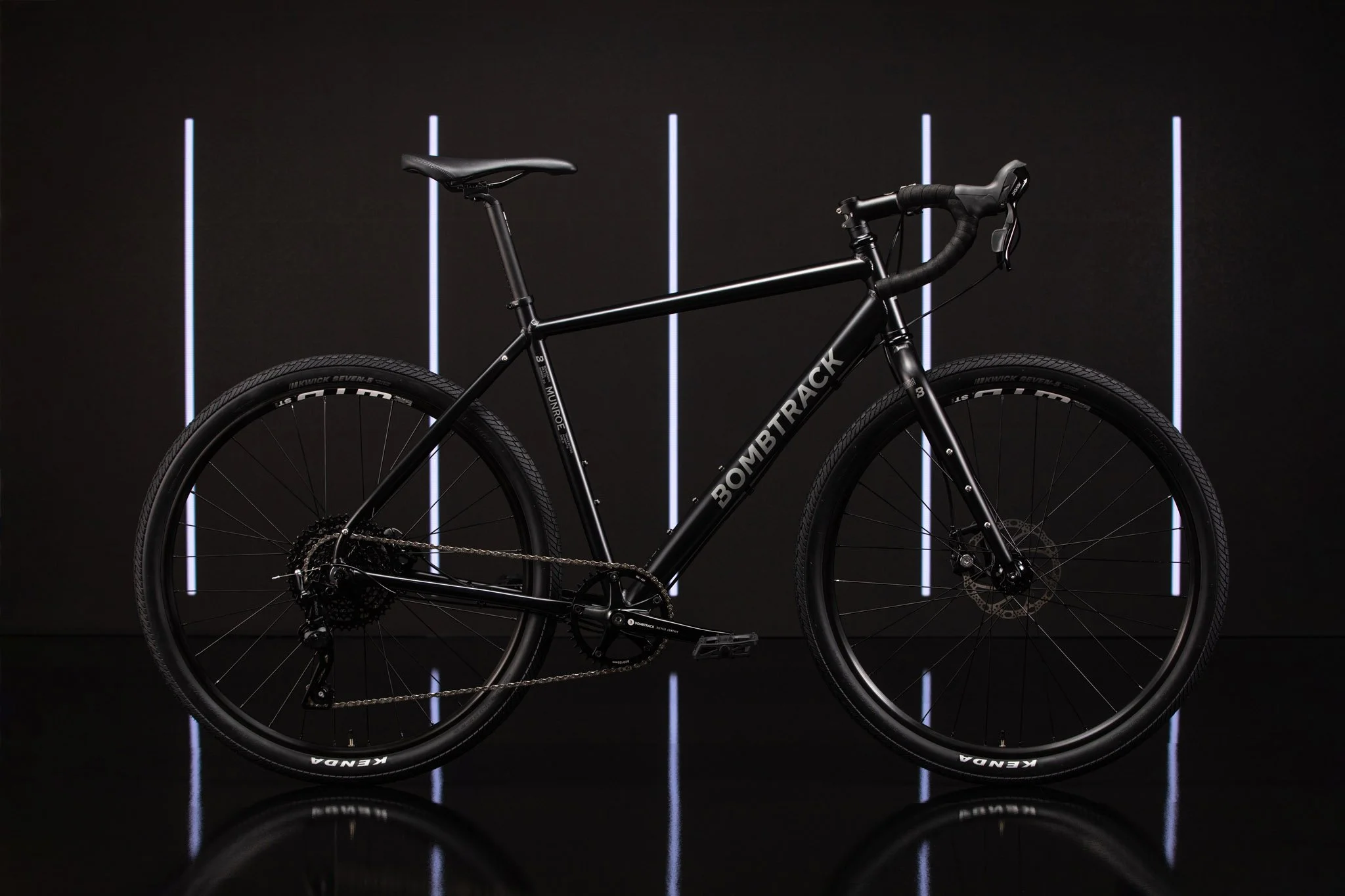

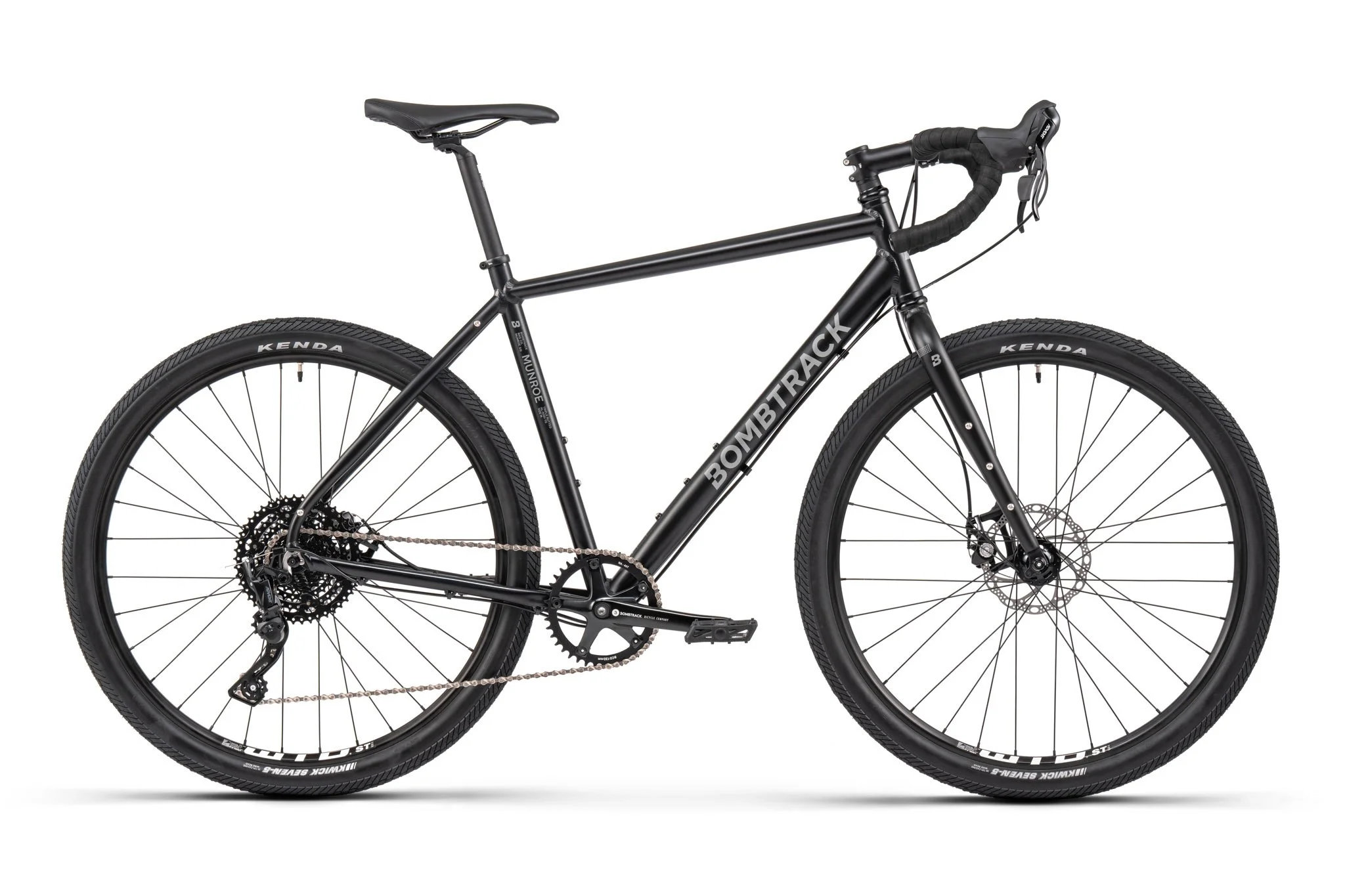

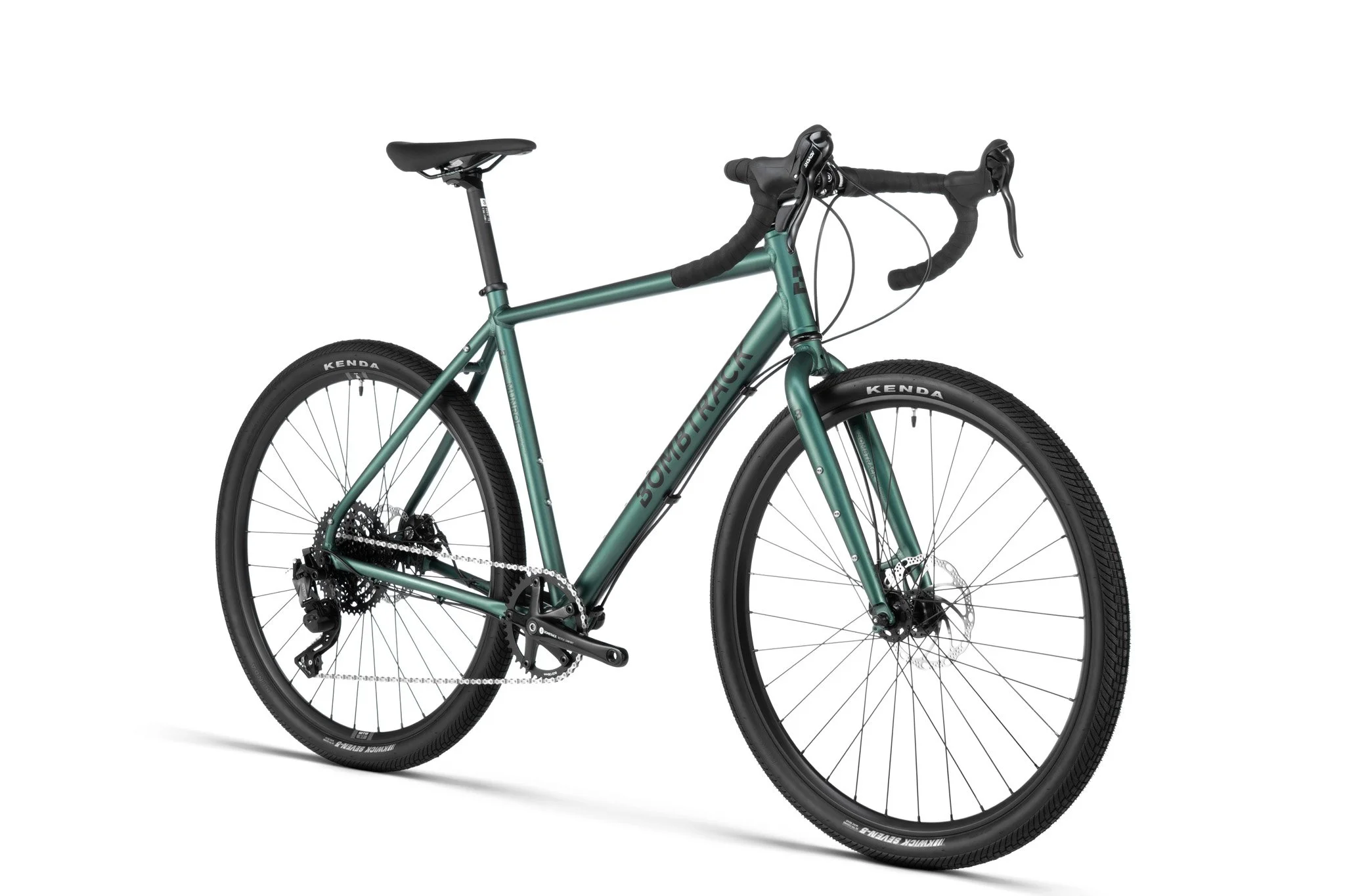

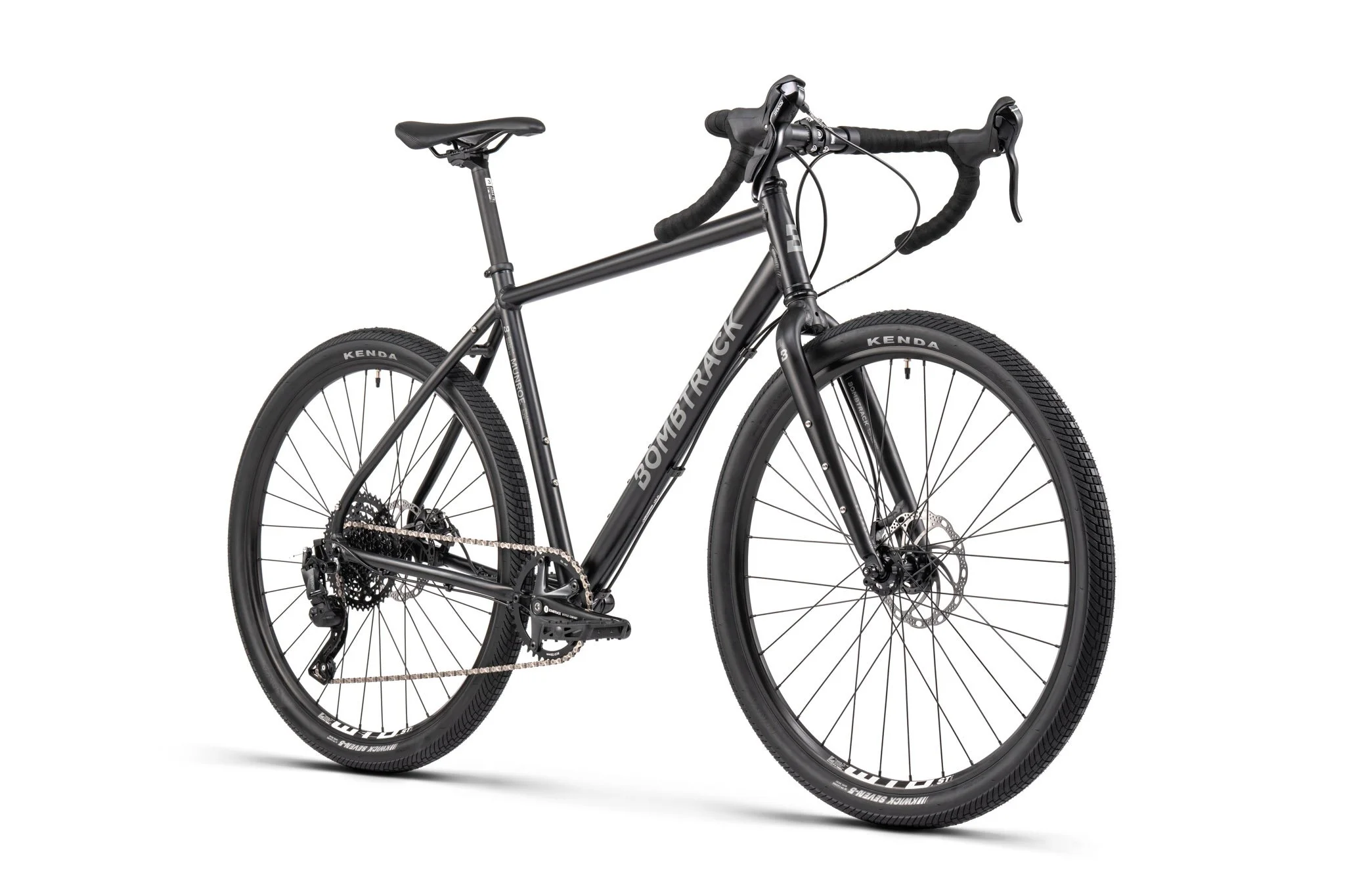

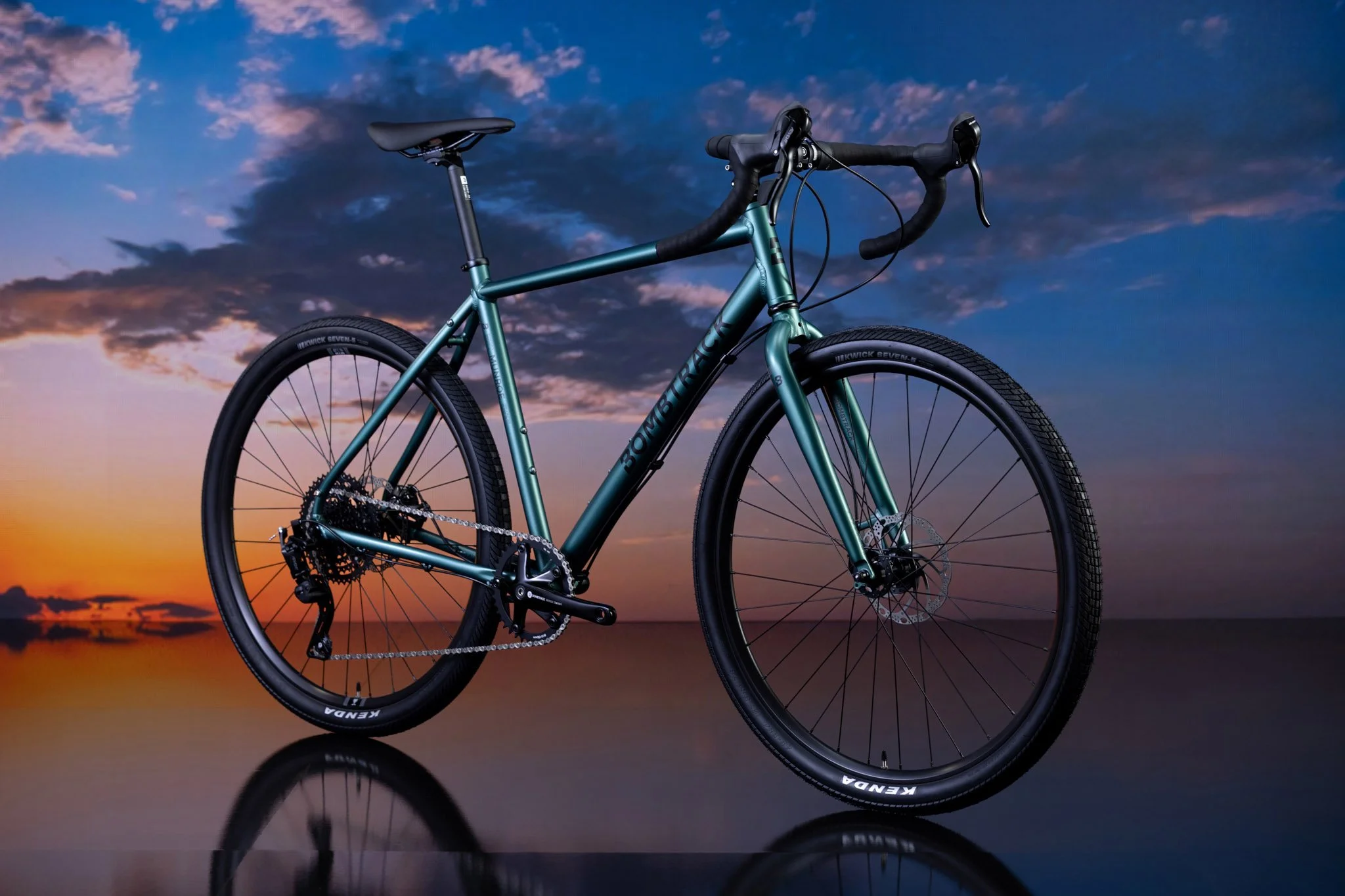

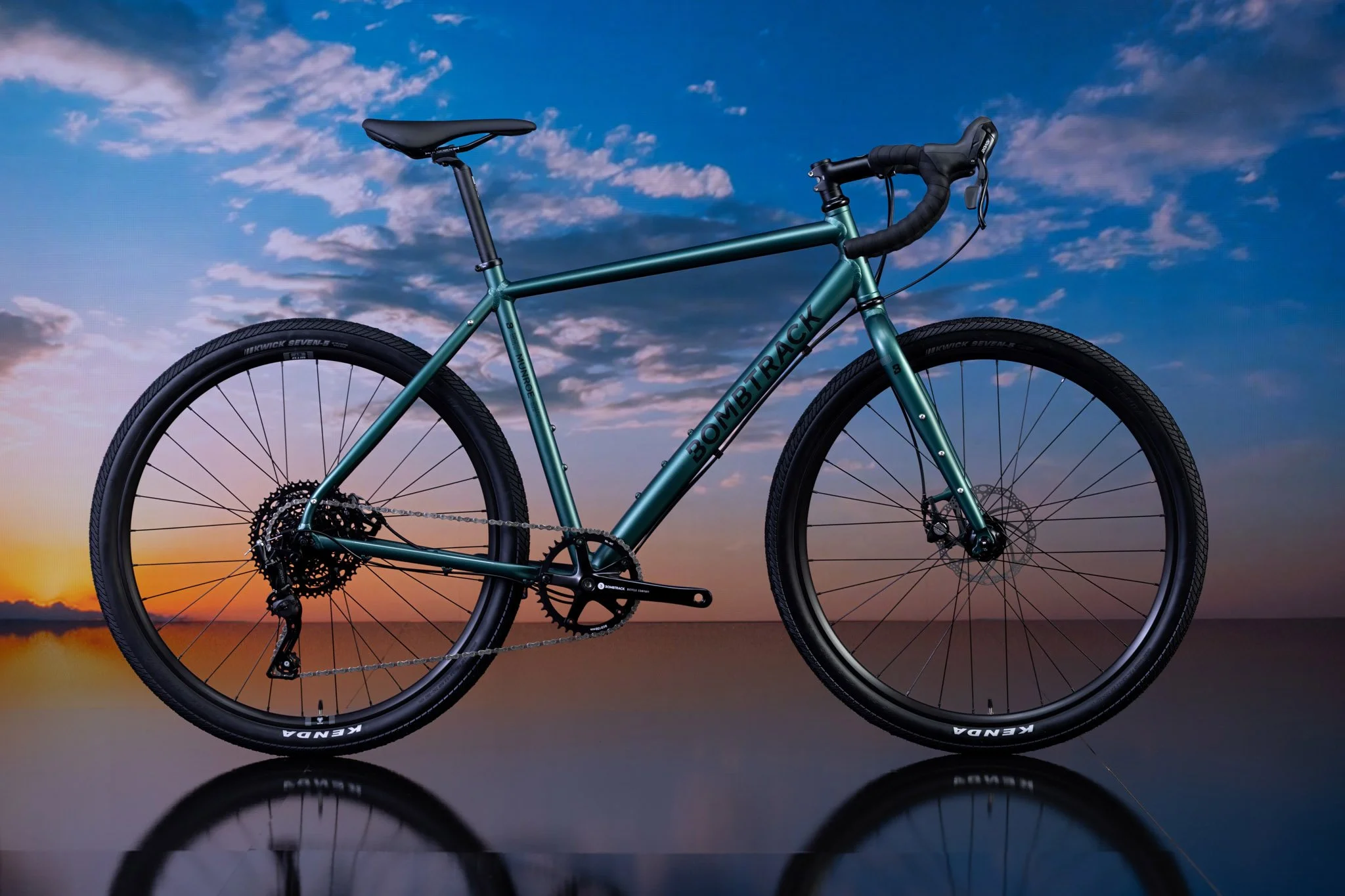

The Munroe AL SG blends city style with off-road capability in a sleek drop-bar package. Its lightweight, triple-butted aluminium frame and wide bars offer agile control, while 45 mm balloon tyres keep your ride smooth—on pavement, gravel, or whatever comes next. Equipped with a reliable Microshift Advent 9-speed drivetrain, a wide-range 11–46T cassette, and a clutch rear derailleur, it’s ready for hills, shortcuts, and the long way home. Plenty of frame and fork mounts let you carry everything from office gear to camping essentials. And thanks to internal dynamo routing in the fork, you’re free to ride late—no rush, no curfew. The Munroe AL SG: Go your own way.

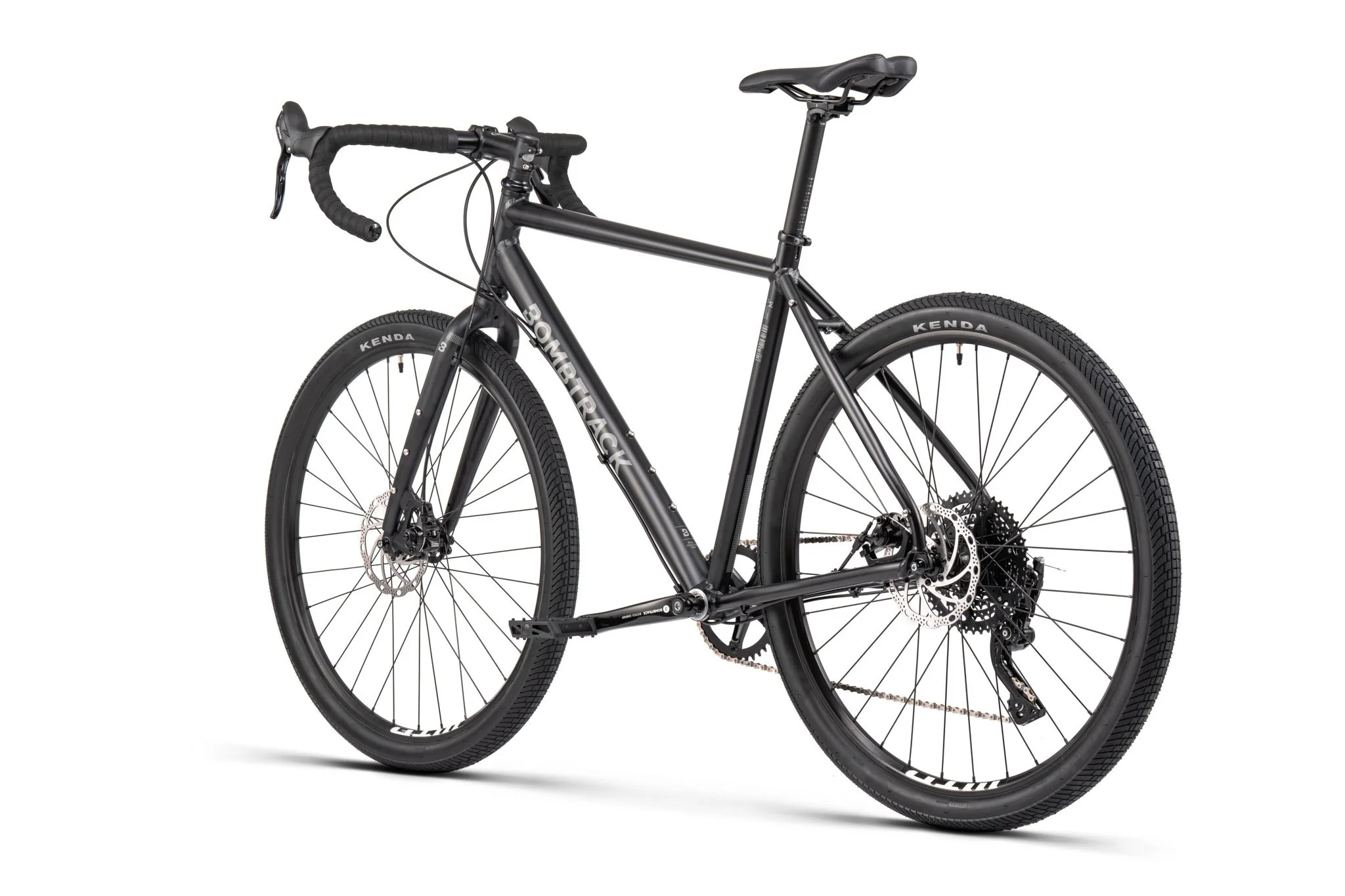

MATT BLACK

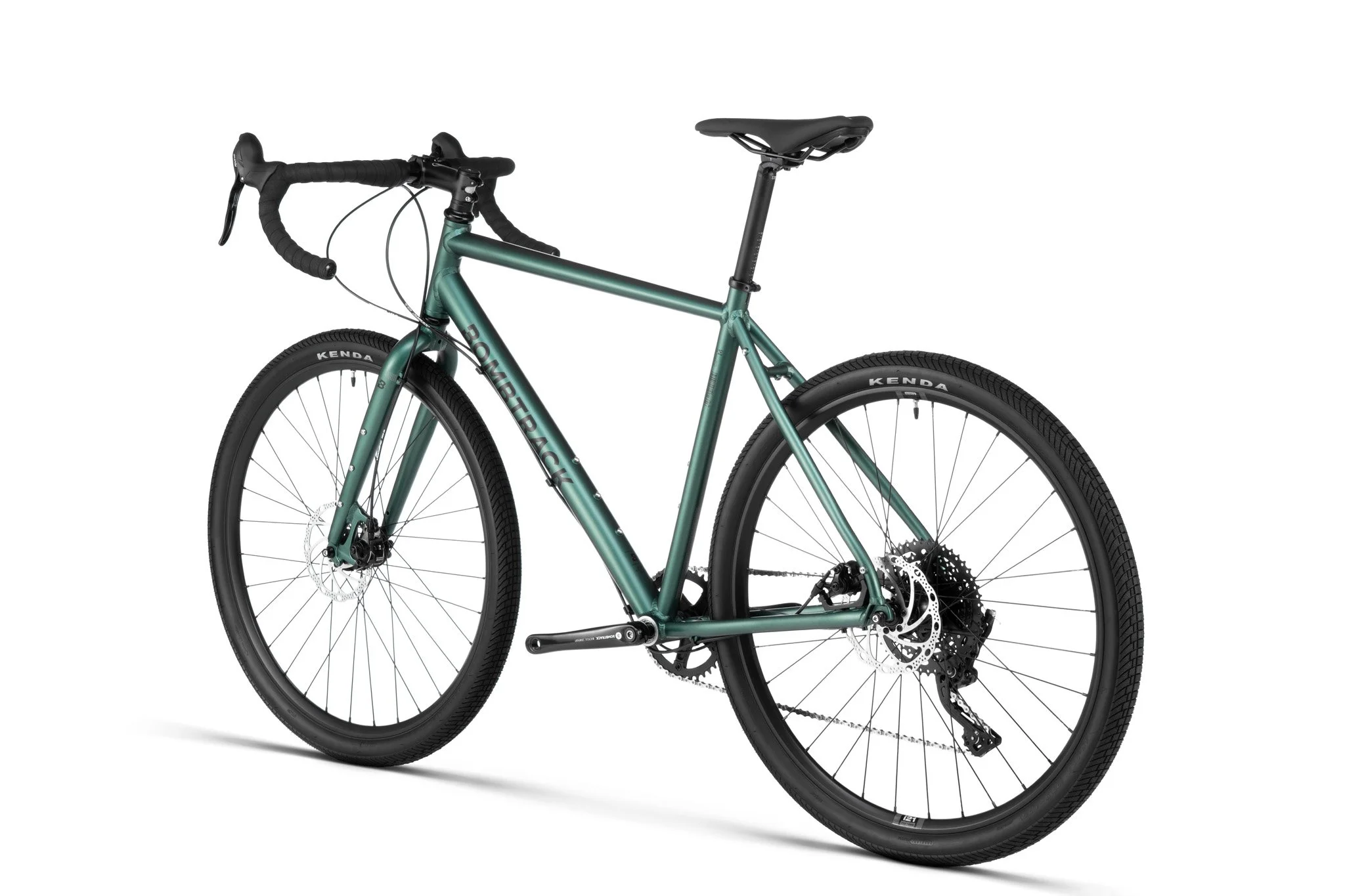

MATT METALLIC OLIVE
HIGHLIGHTS
-
![]()

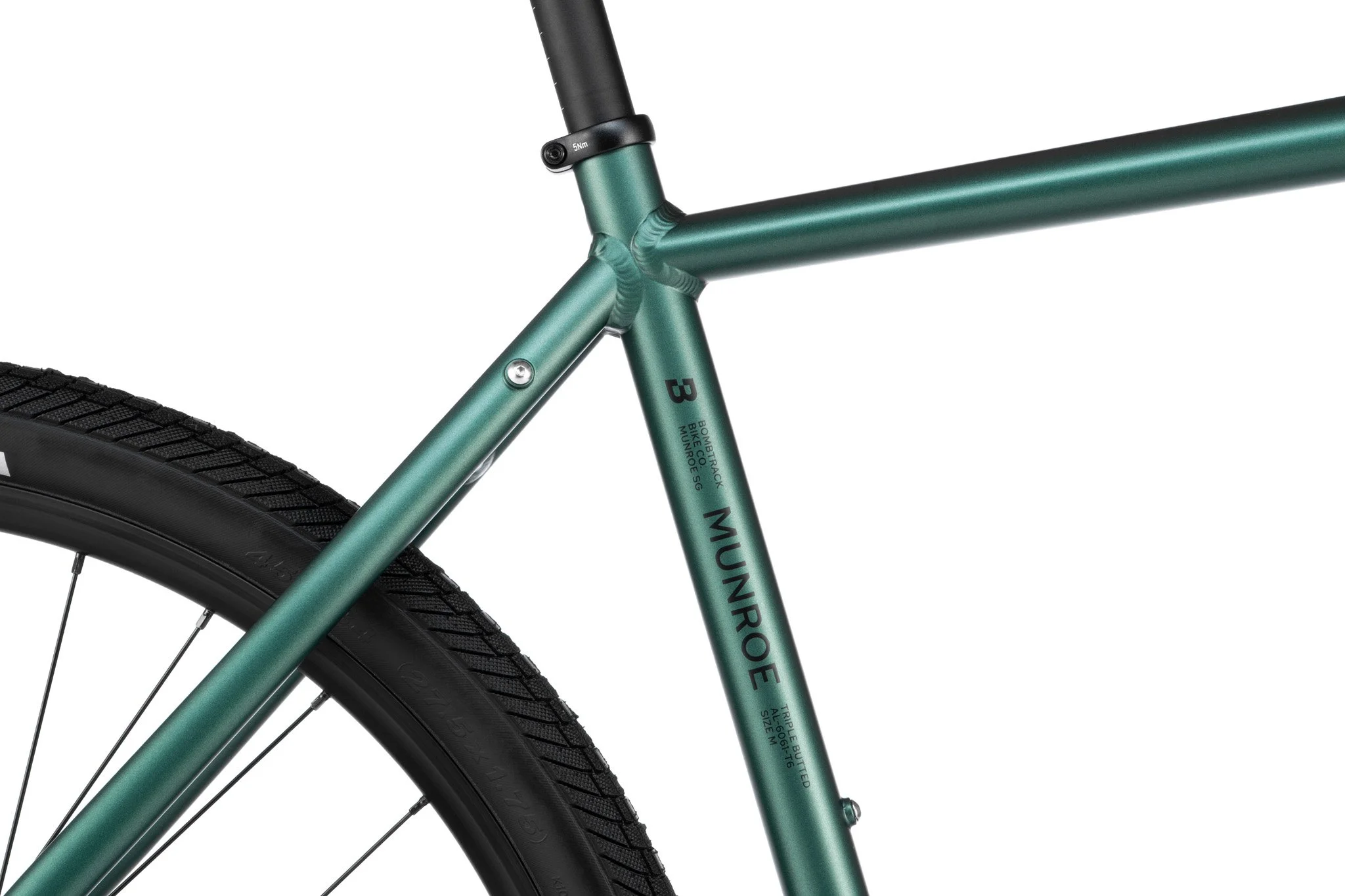

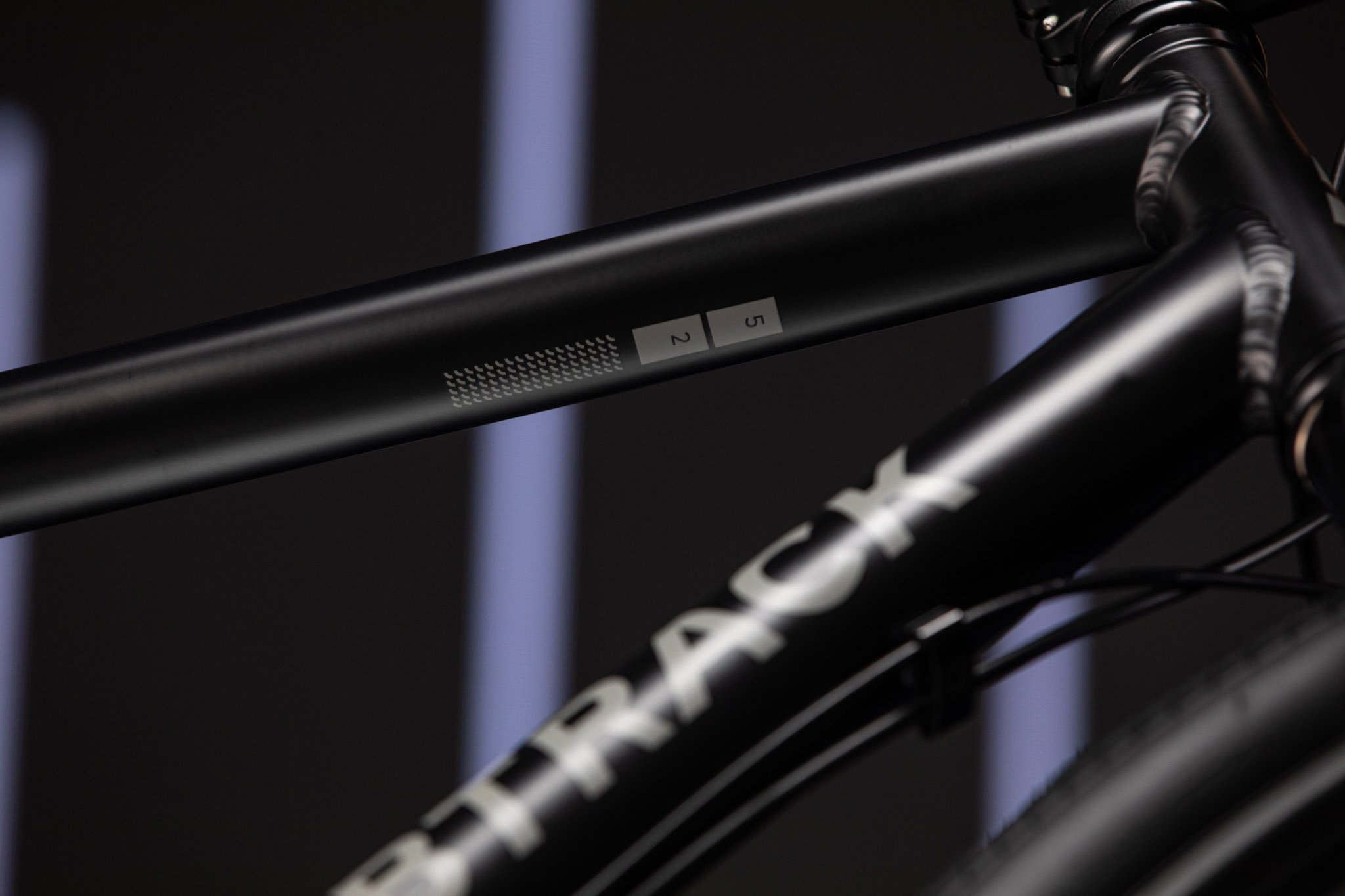

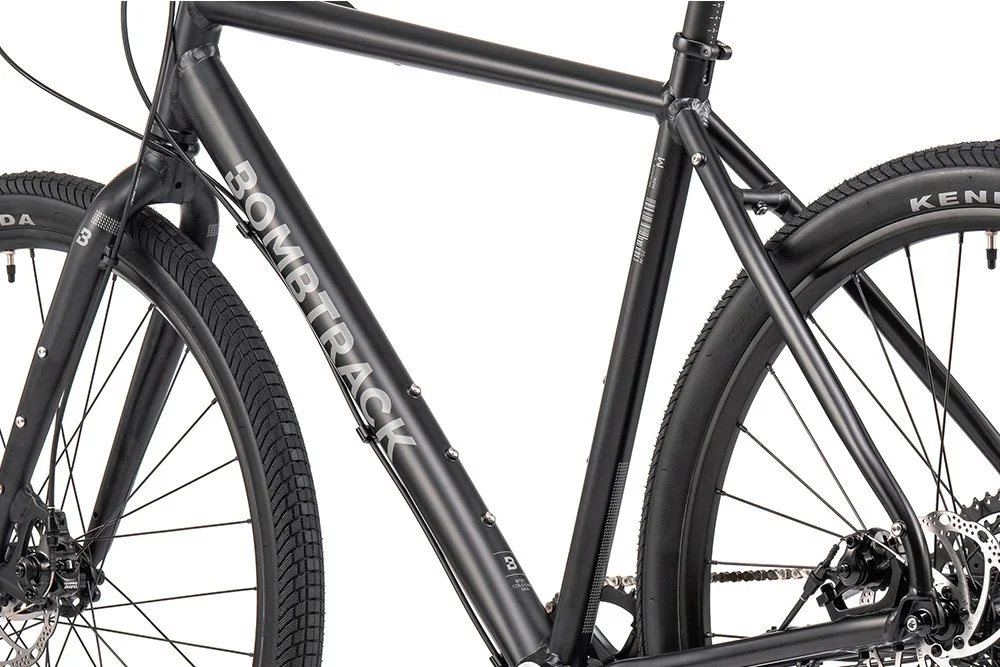

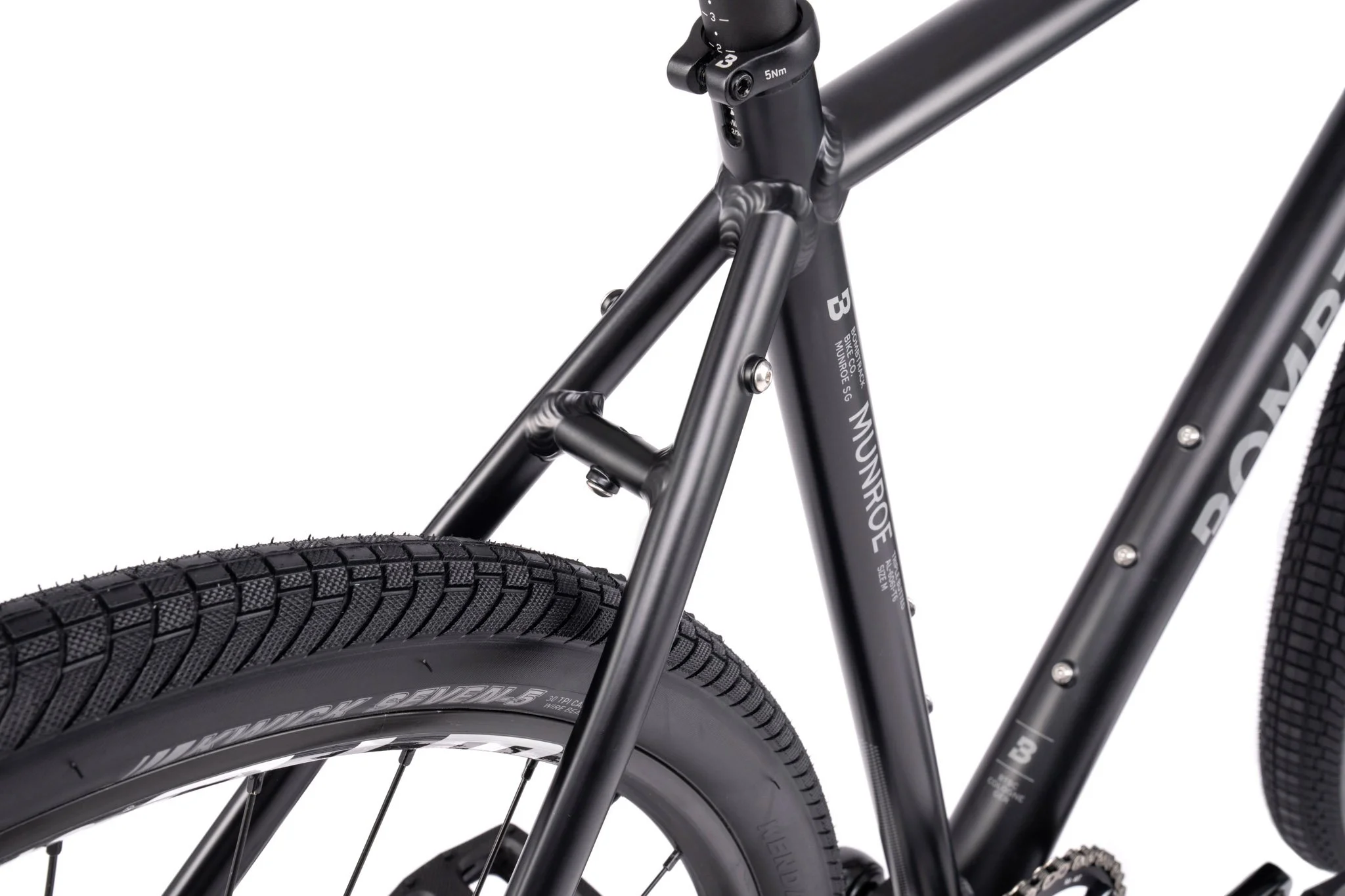

FRAME

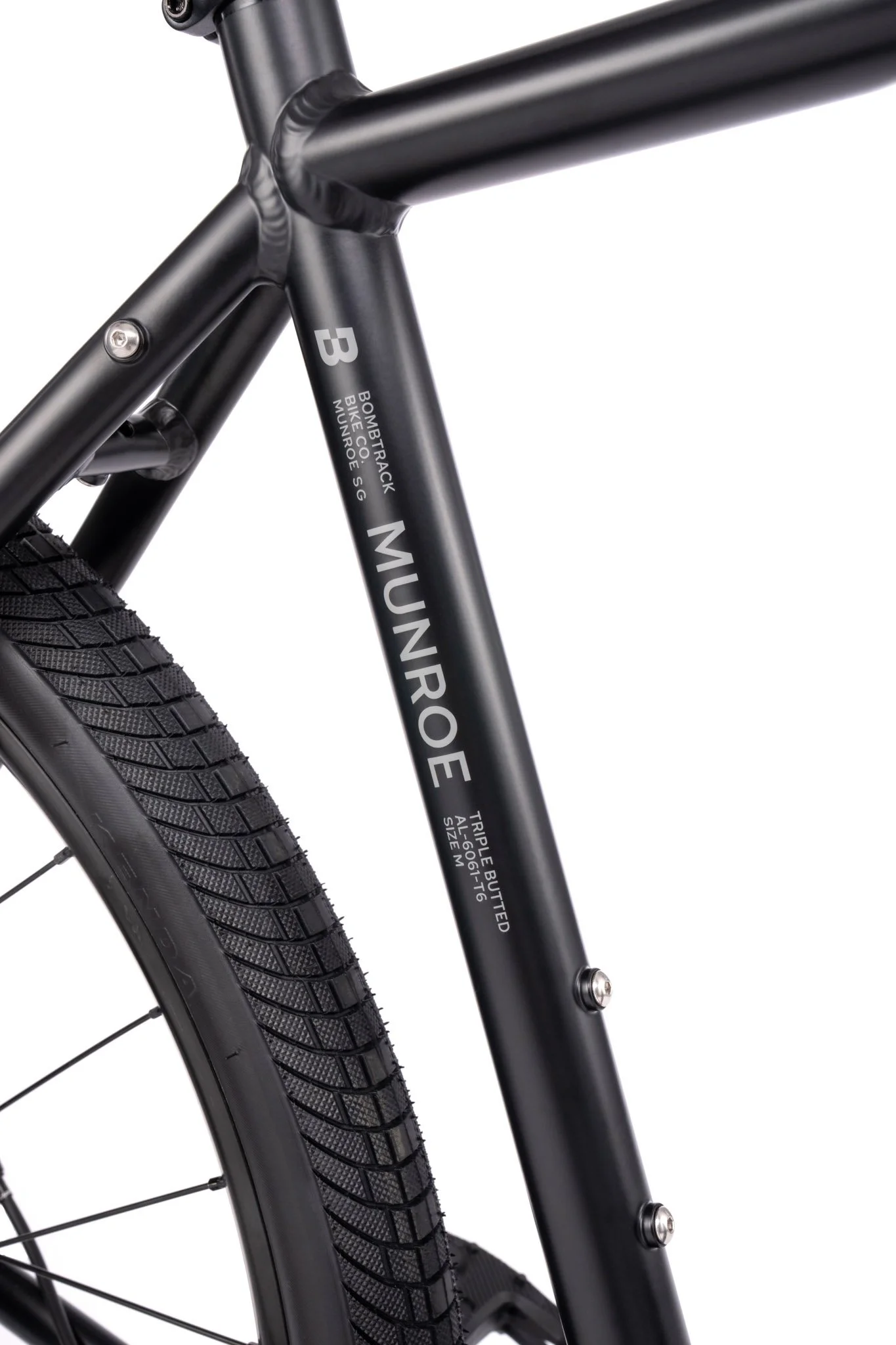

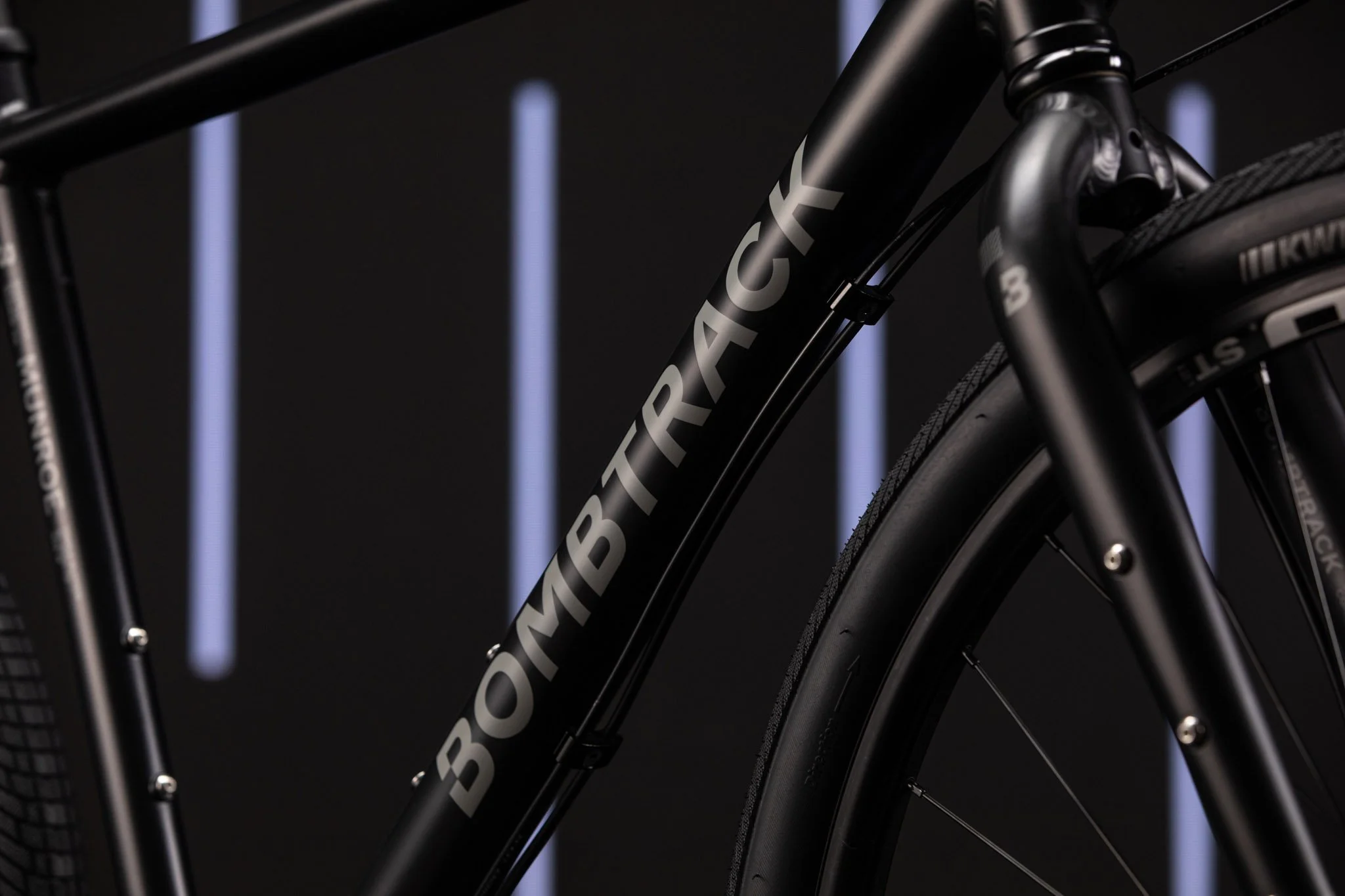

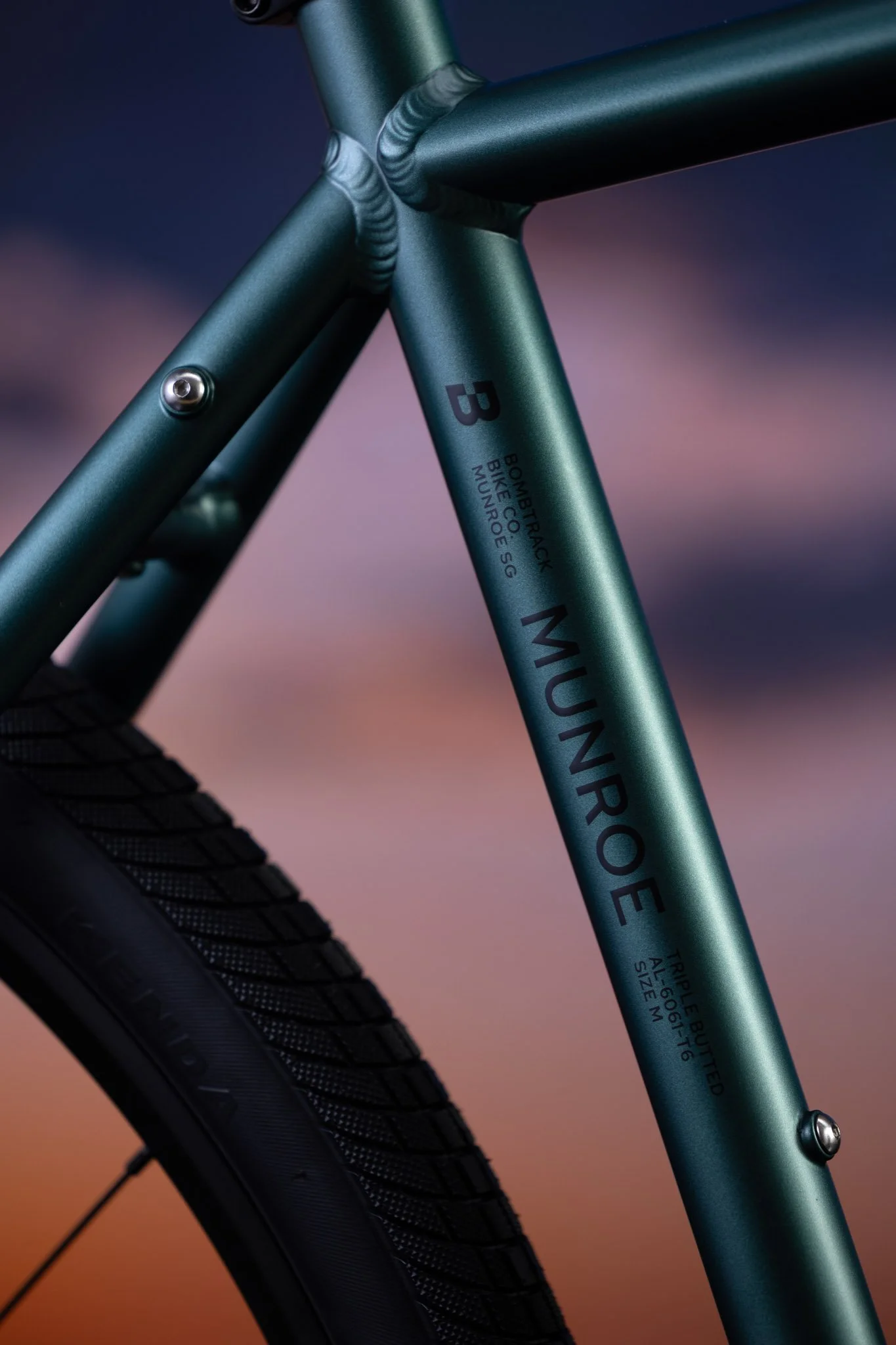

Aluminium frame with cage, rack and fender mounts and post mount disc brakes.
-
![]()

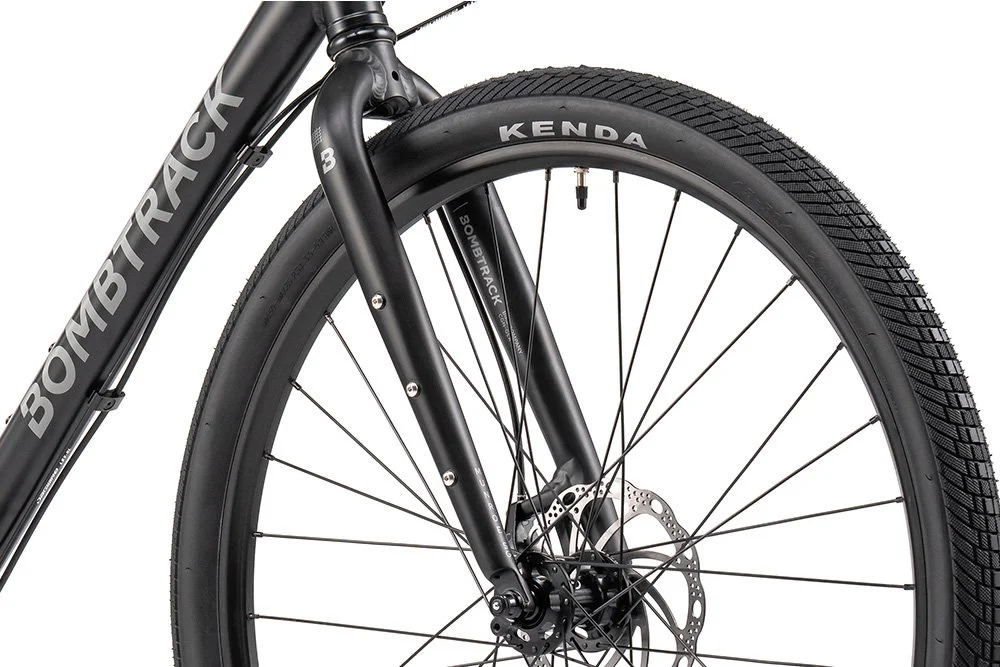

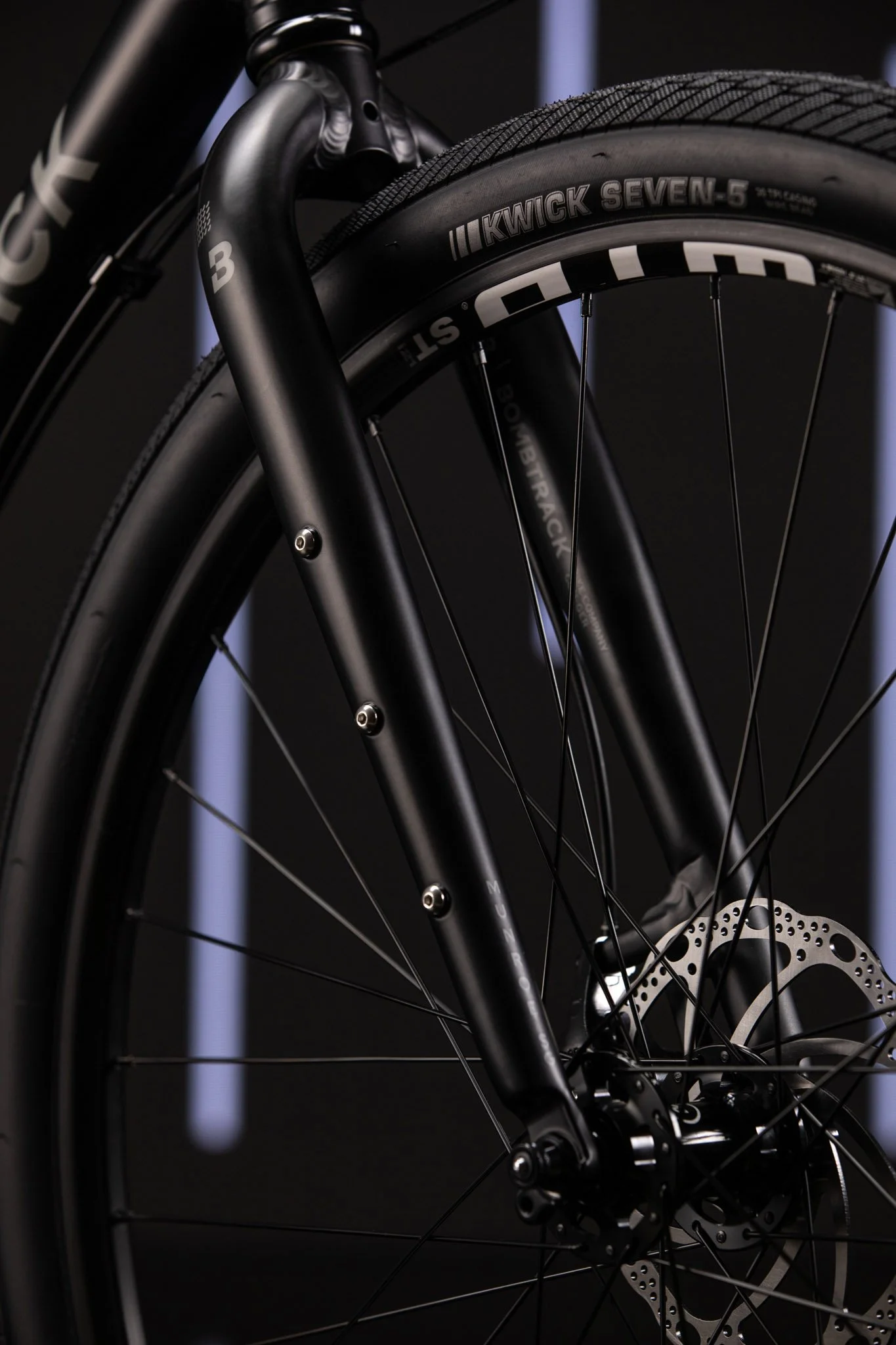

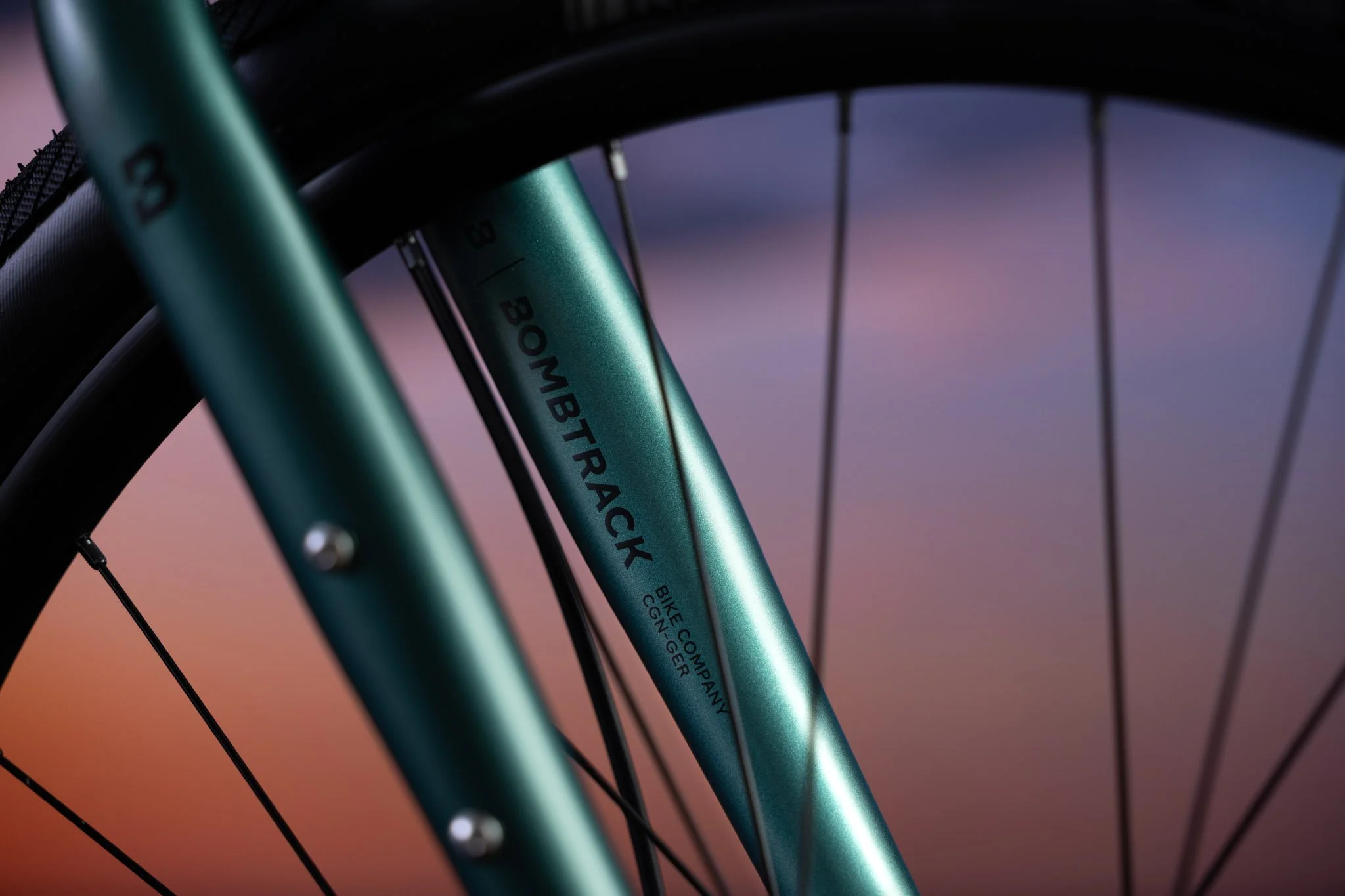

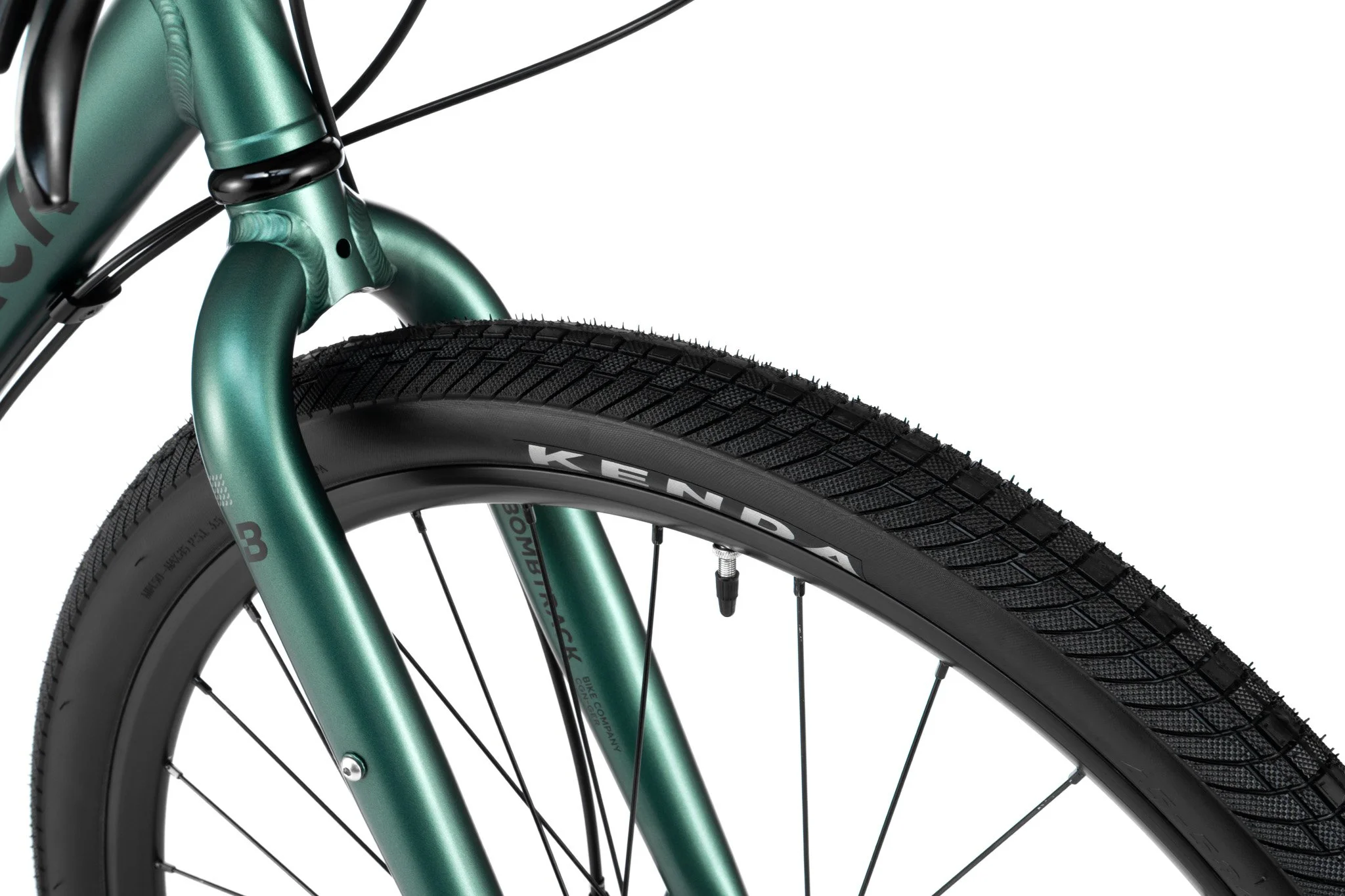

FORK

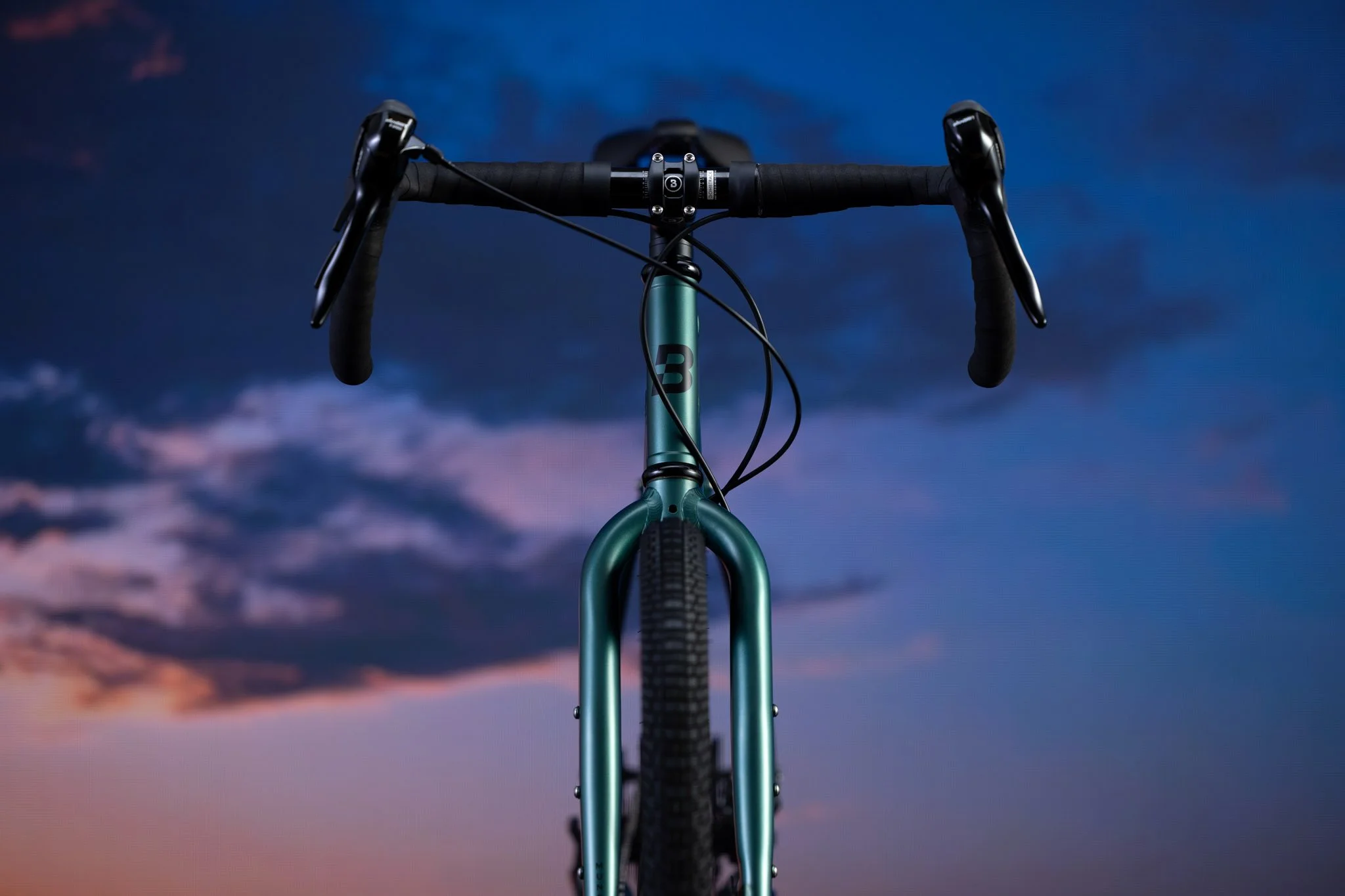

Full aluminium disc fork with cage, fender and rack mounts.
-
![]()

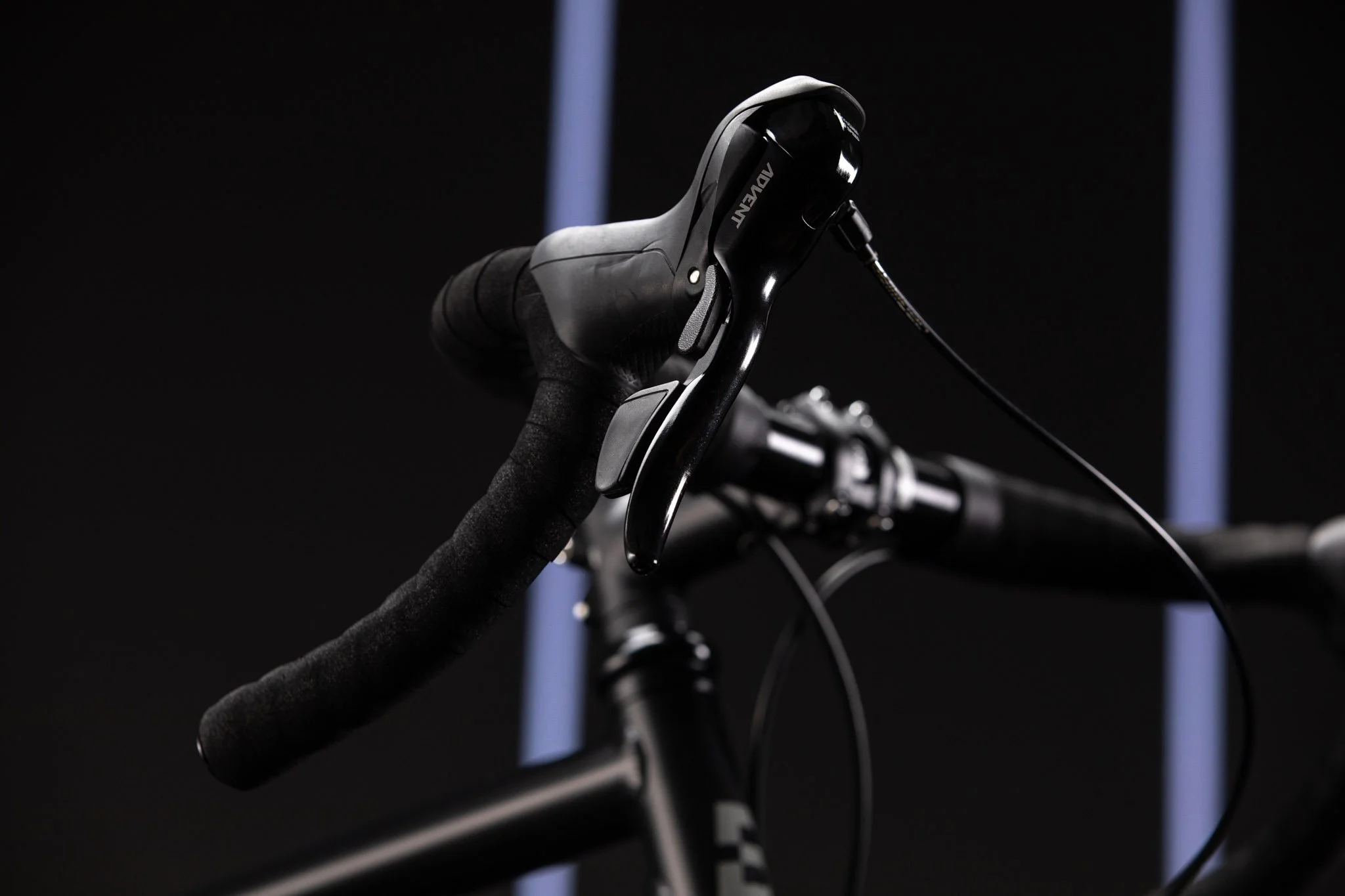

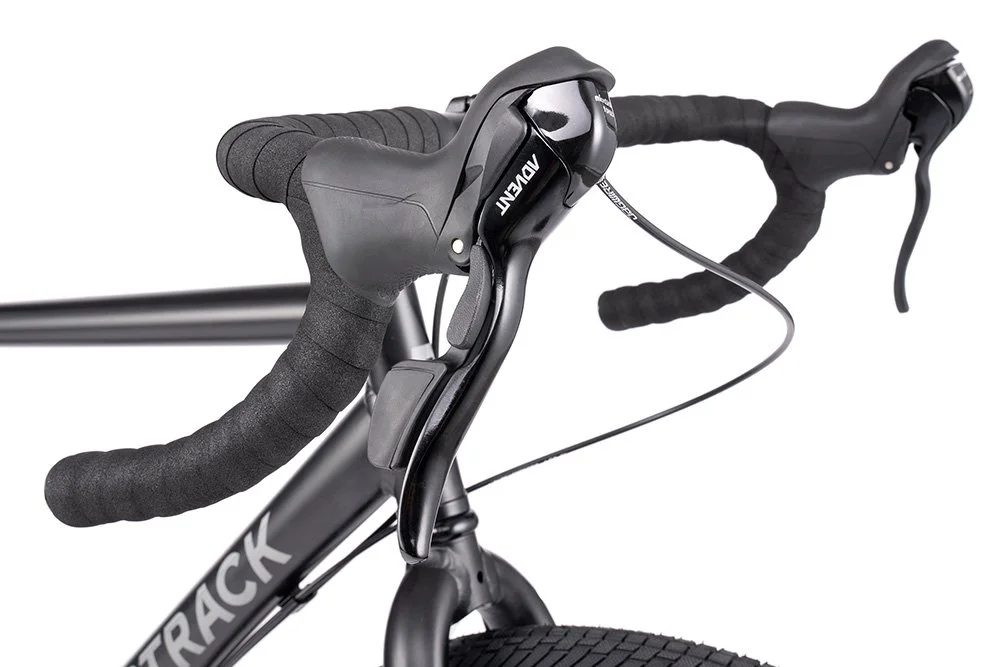

LEVERS

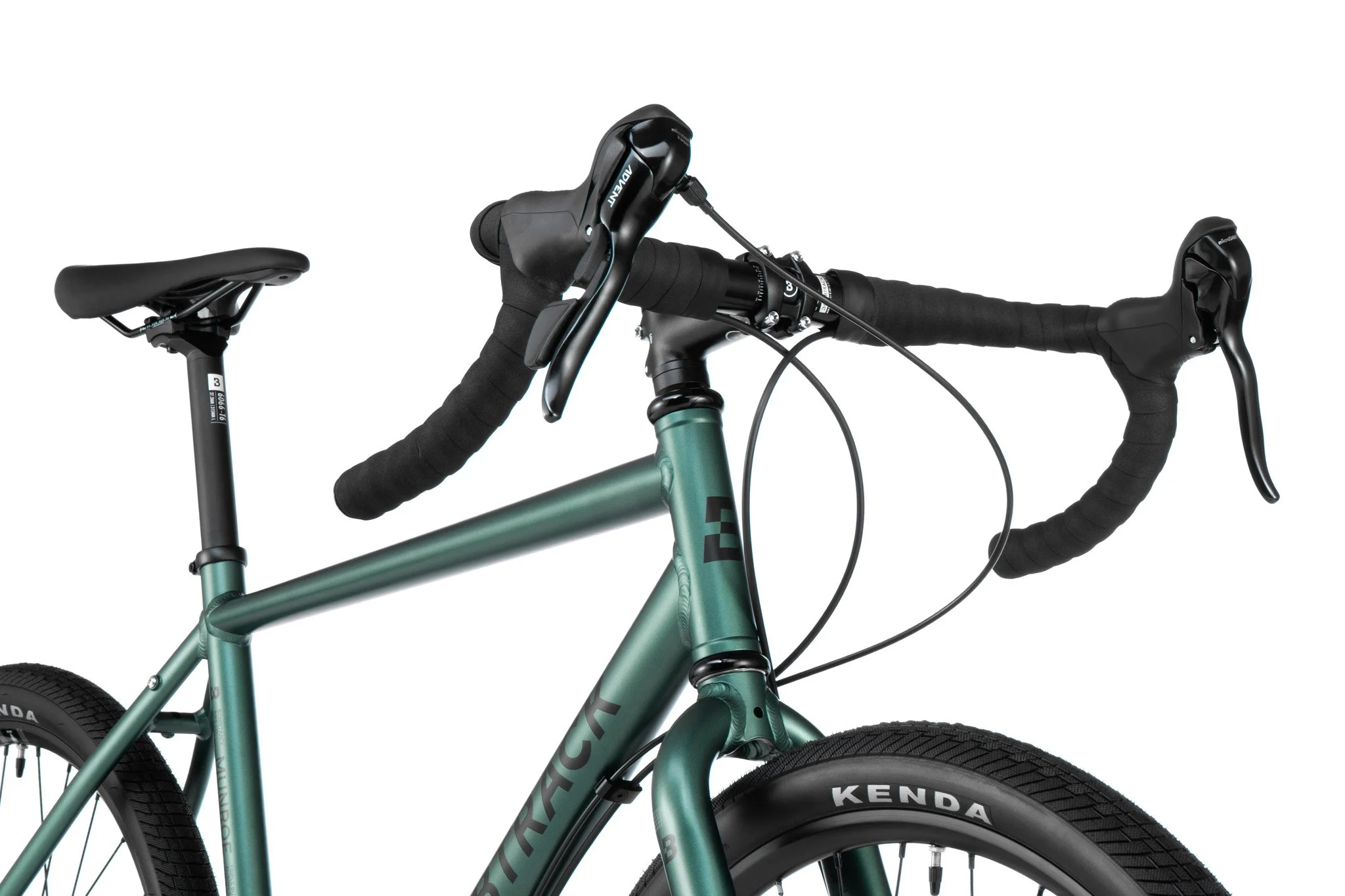

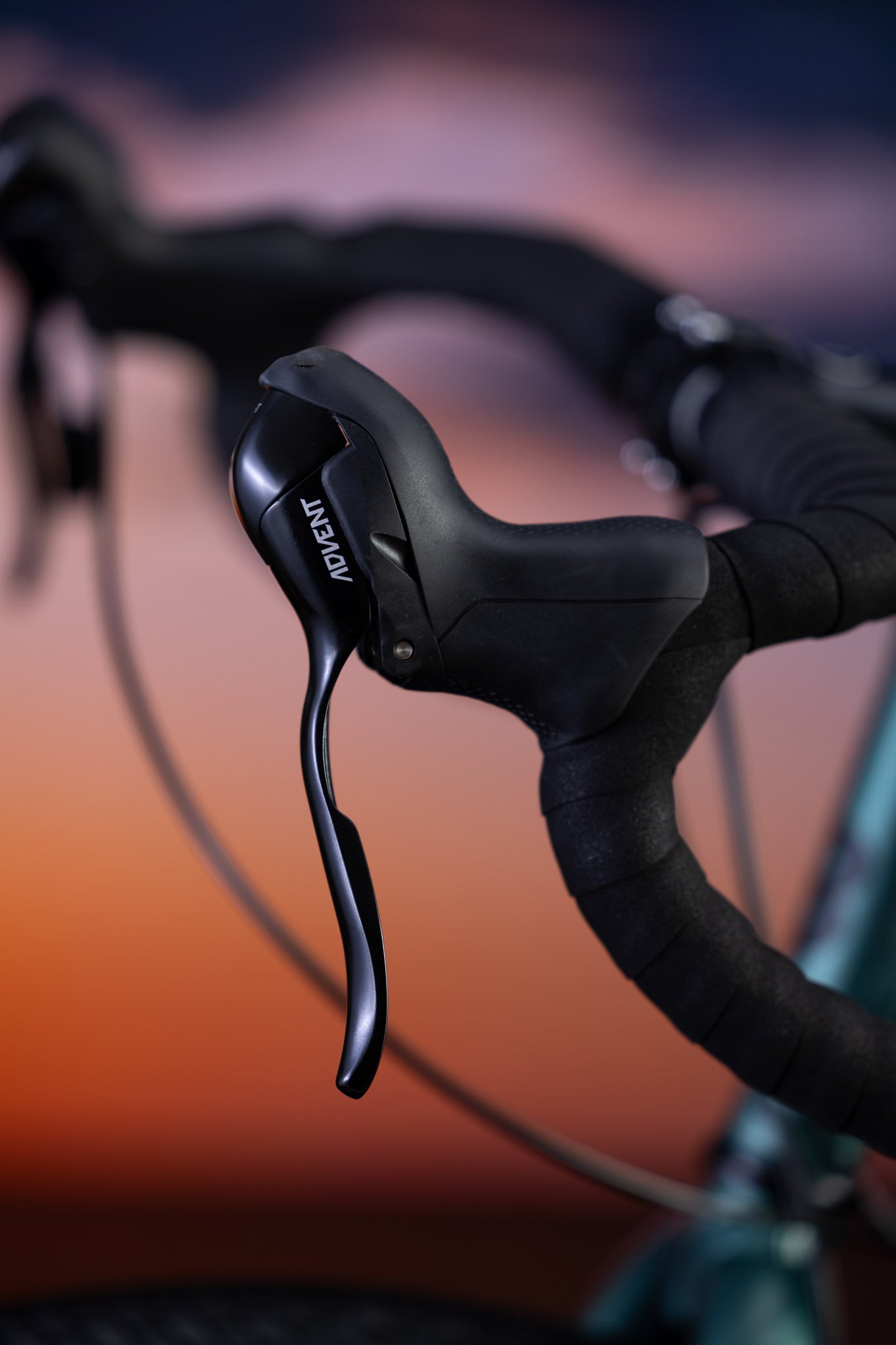

Microshift Advent 1 x 9 drop bar dual control levers.
-
![]()

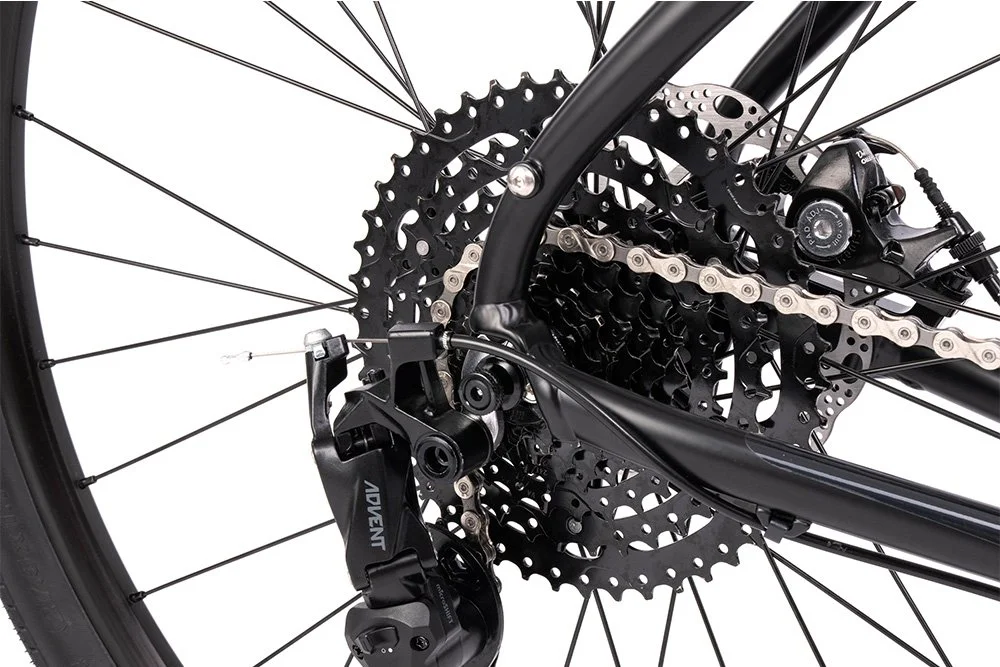

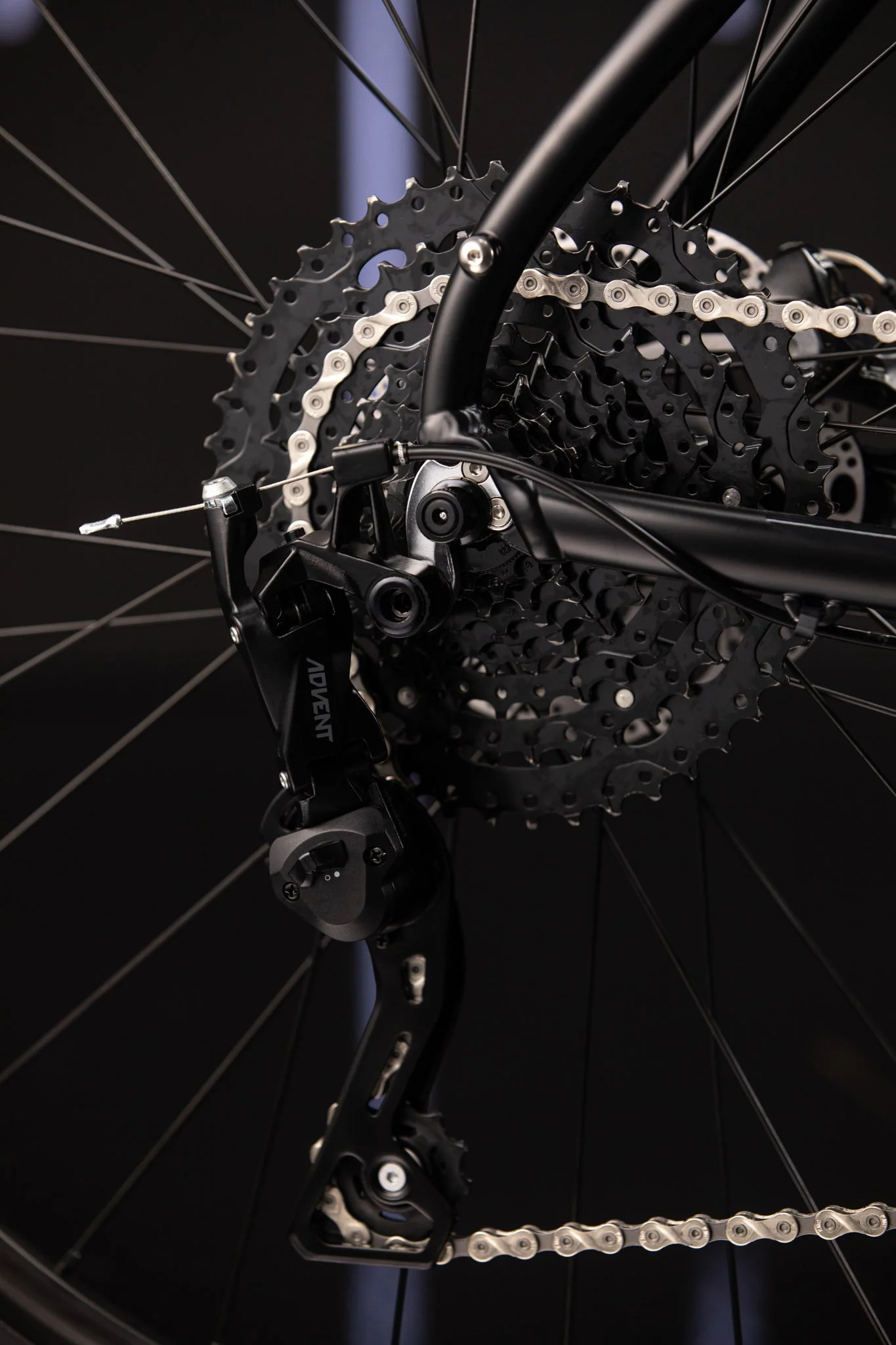

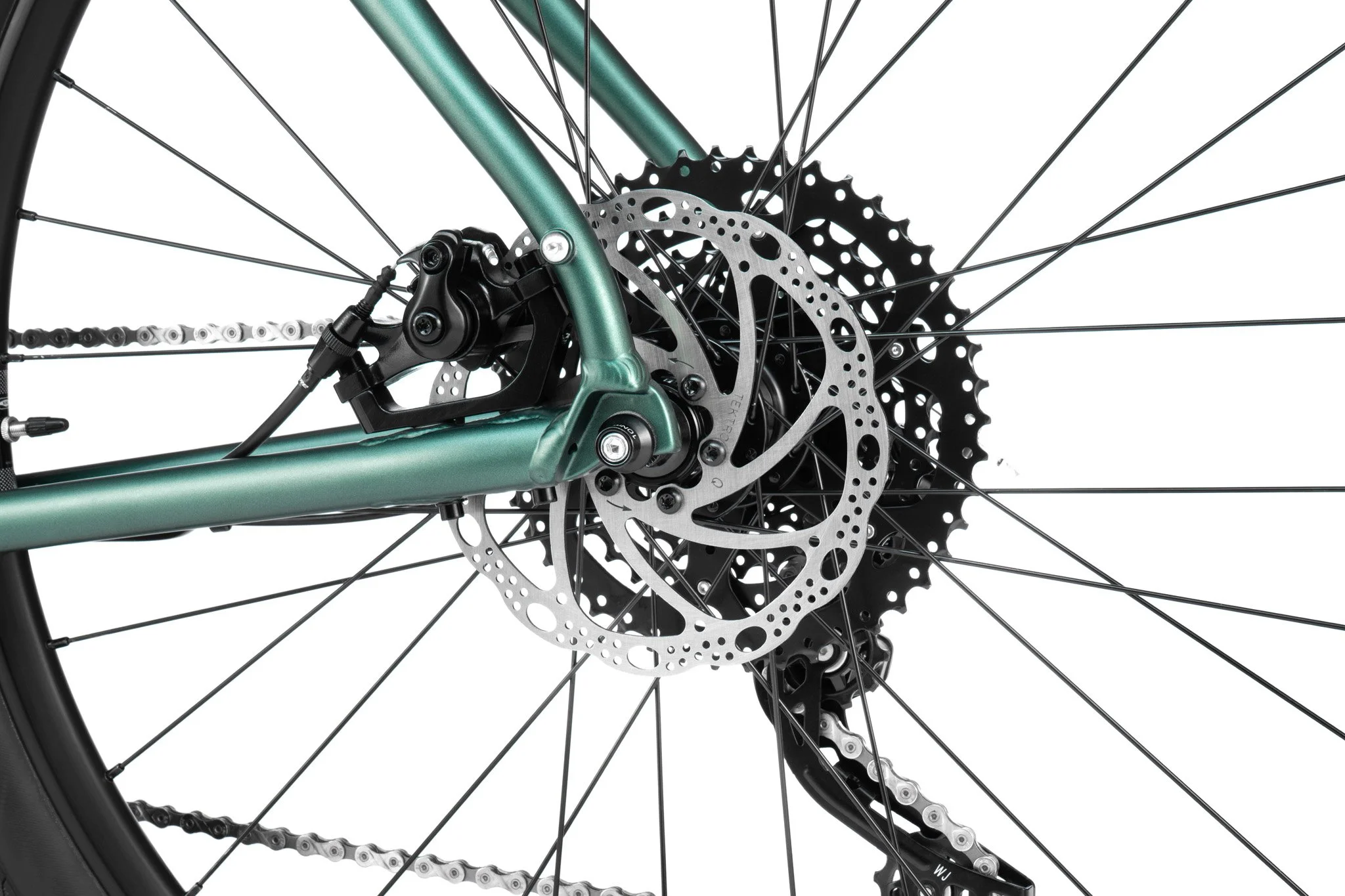

DRIVETRAIN

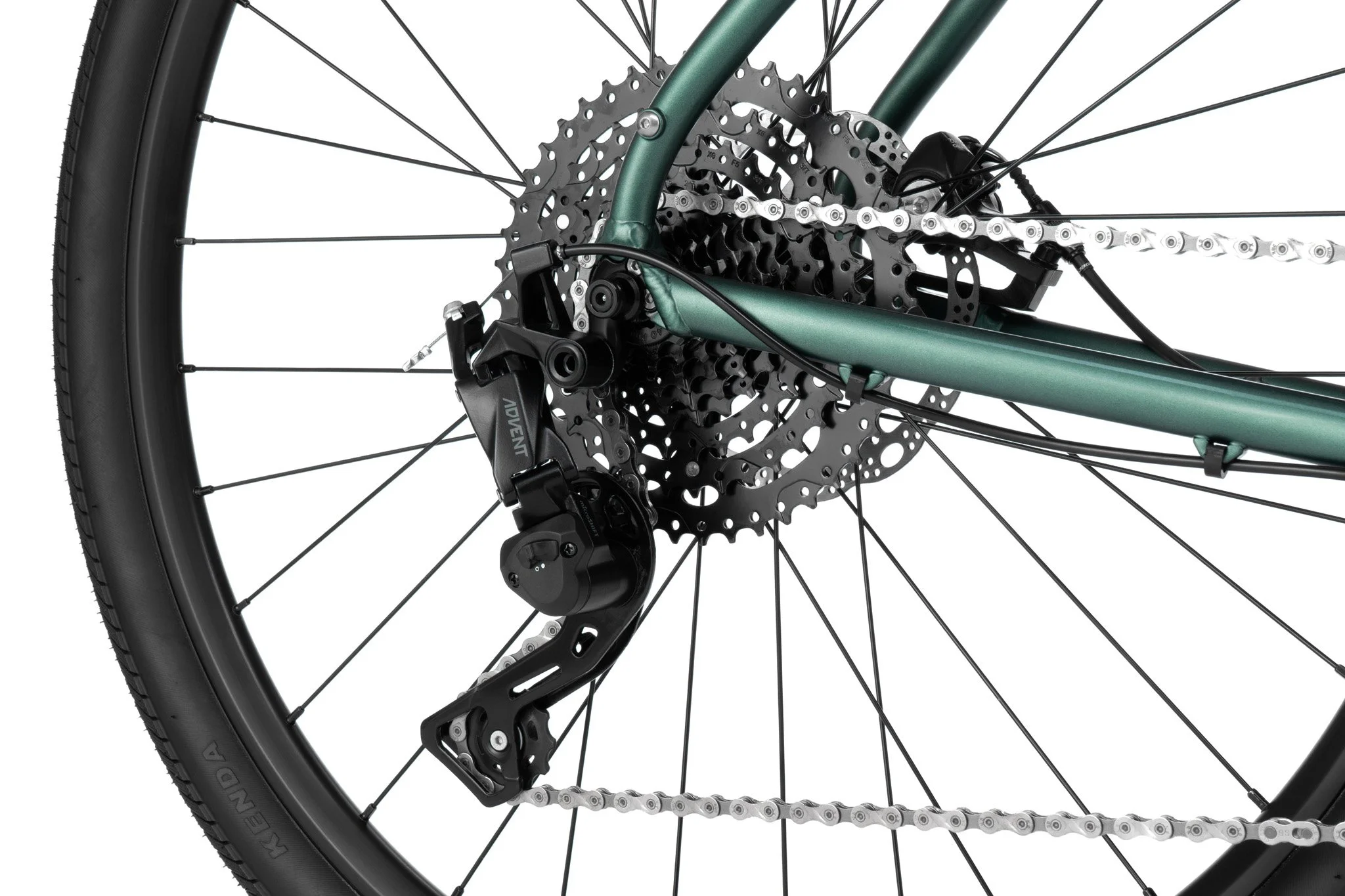

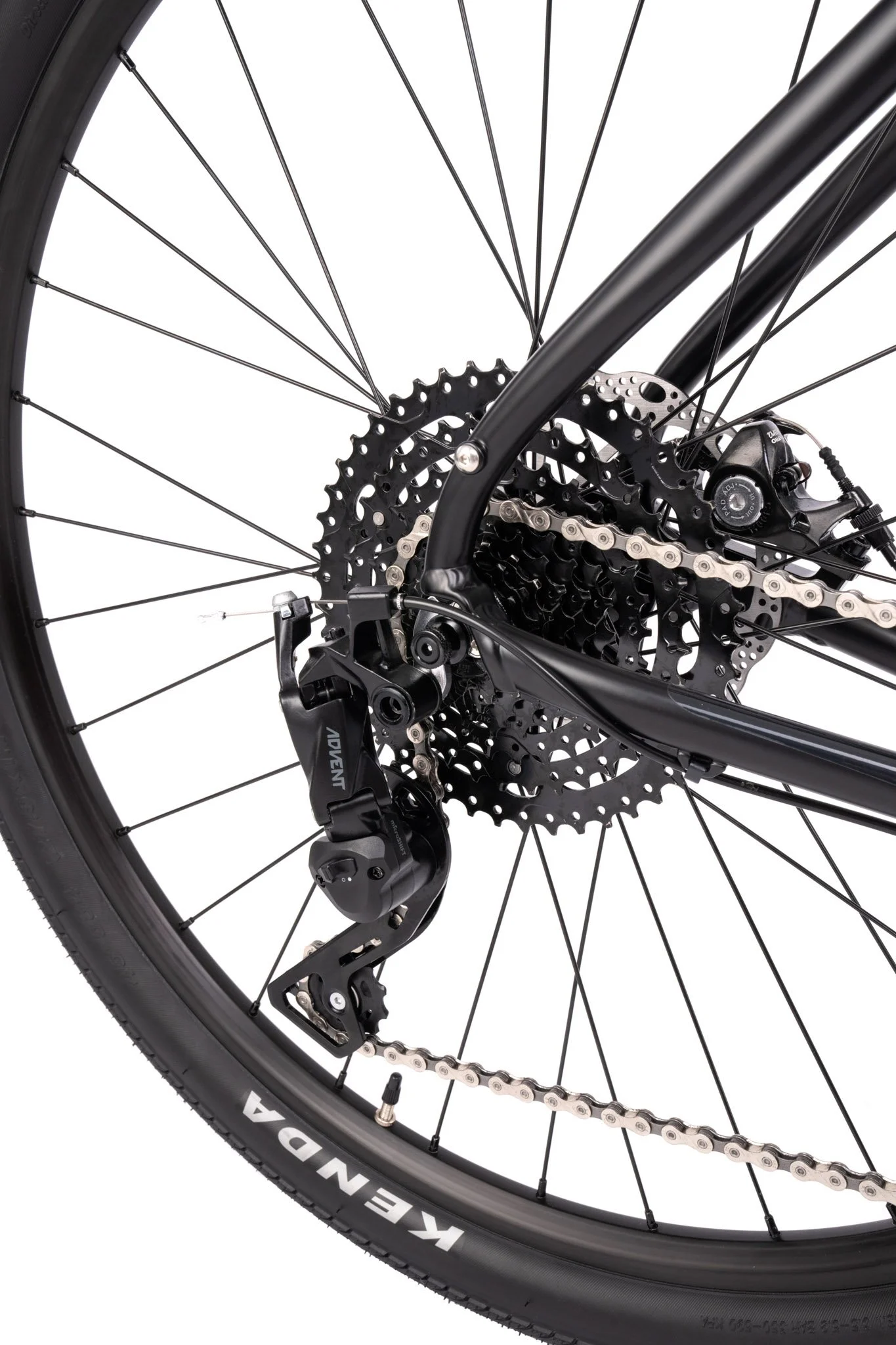

Microshift Advent clutched rear derailleur with wide range 11 - 46 T cassette.
-
![]()

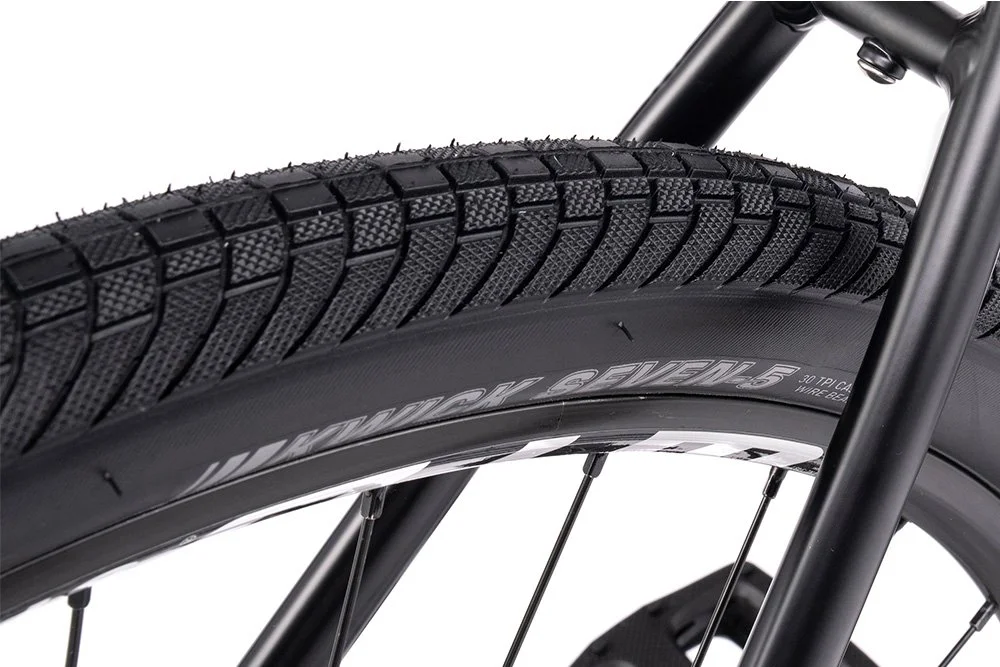

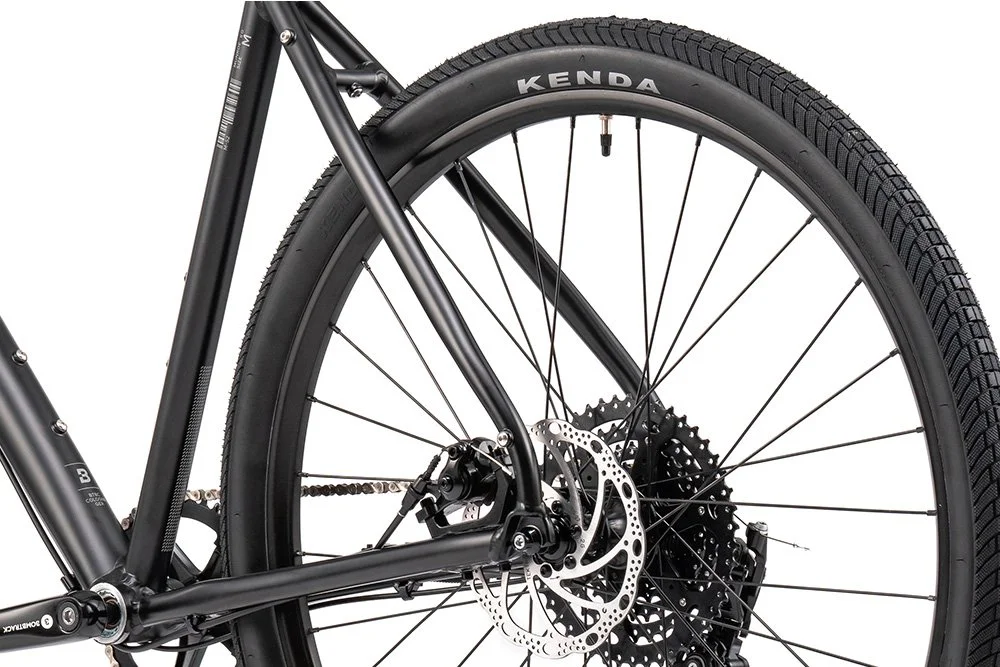

TIRES

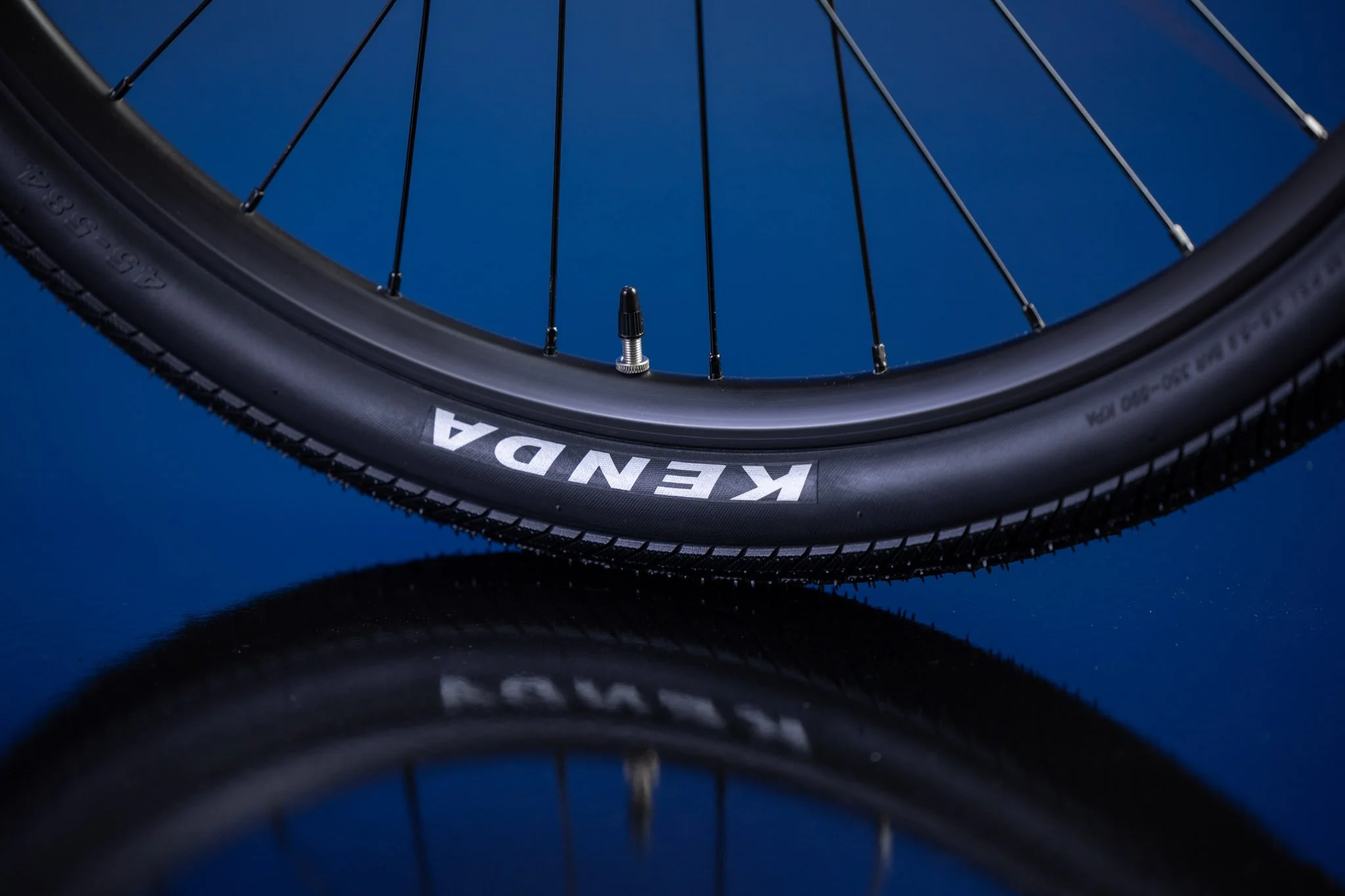

Comfortable Kenda Kwick Seven.5 650B x 45C tires.
-
![]()
WHEELS
Tubeless ready WTB ST i21 double wall rims.
"An investment in healthier urban transport."
SPECIFICATIONS
| Model | MUNROE SG |
|---|---|
| Color 1 | Matt black |
| Color 2 | Matt metallic olive |
| Color 3 | - |

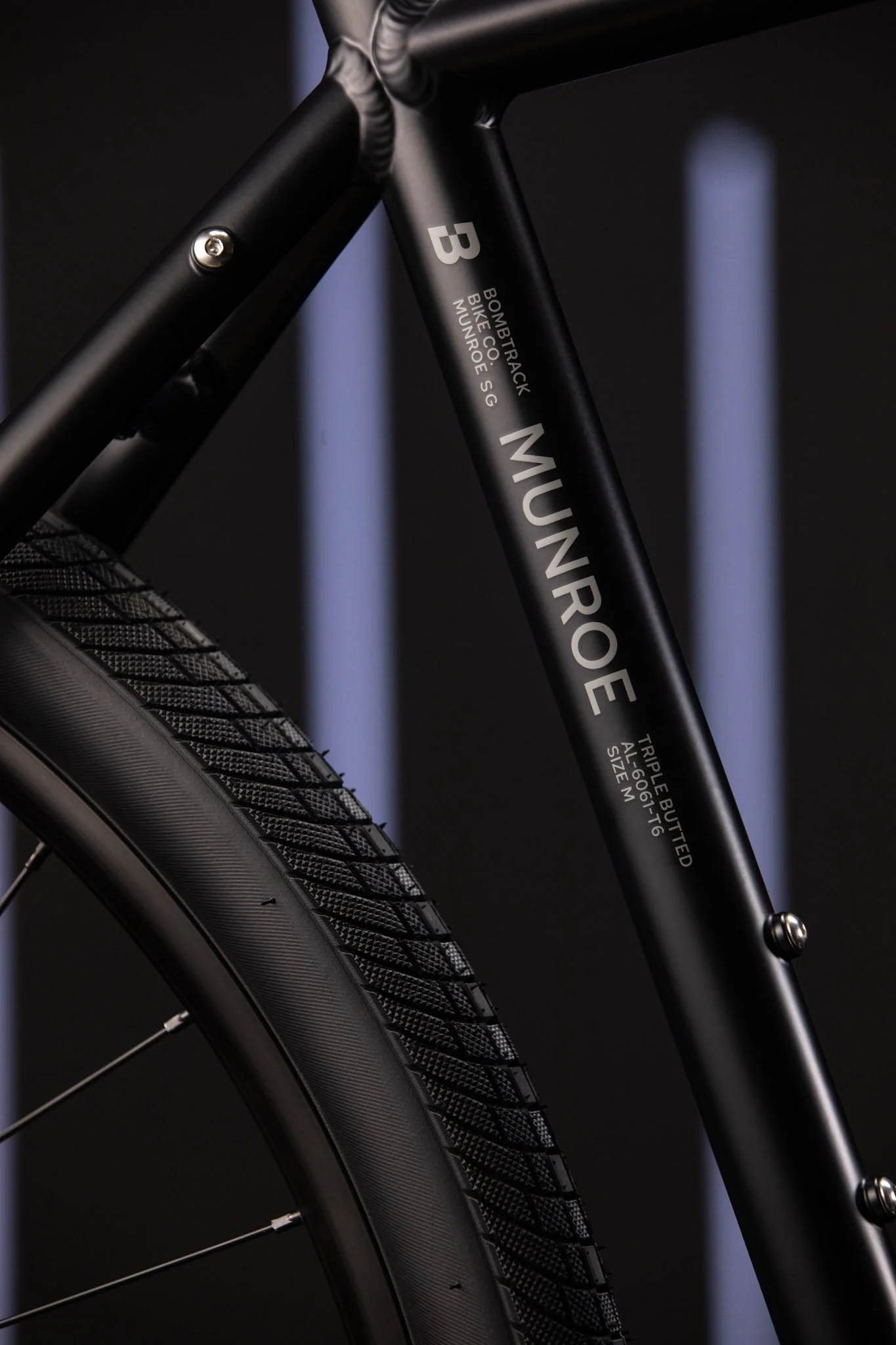

| Frame | 6061-T6 triple butted aluminium, QR, rack / fender mounts, 68 mm BSA shell |
| Fork | 6061 aluminium, QR dropouts, with fender / rack / triple cage mounts, internal light cable routing |

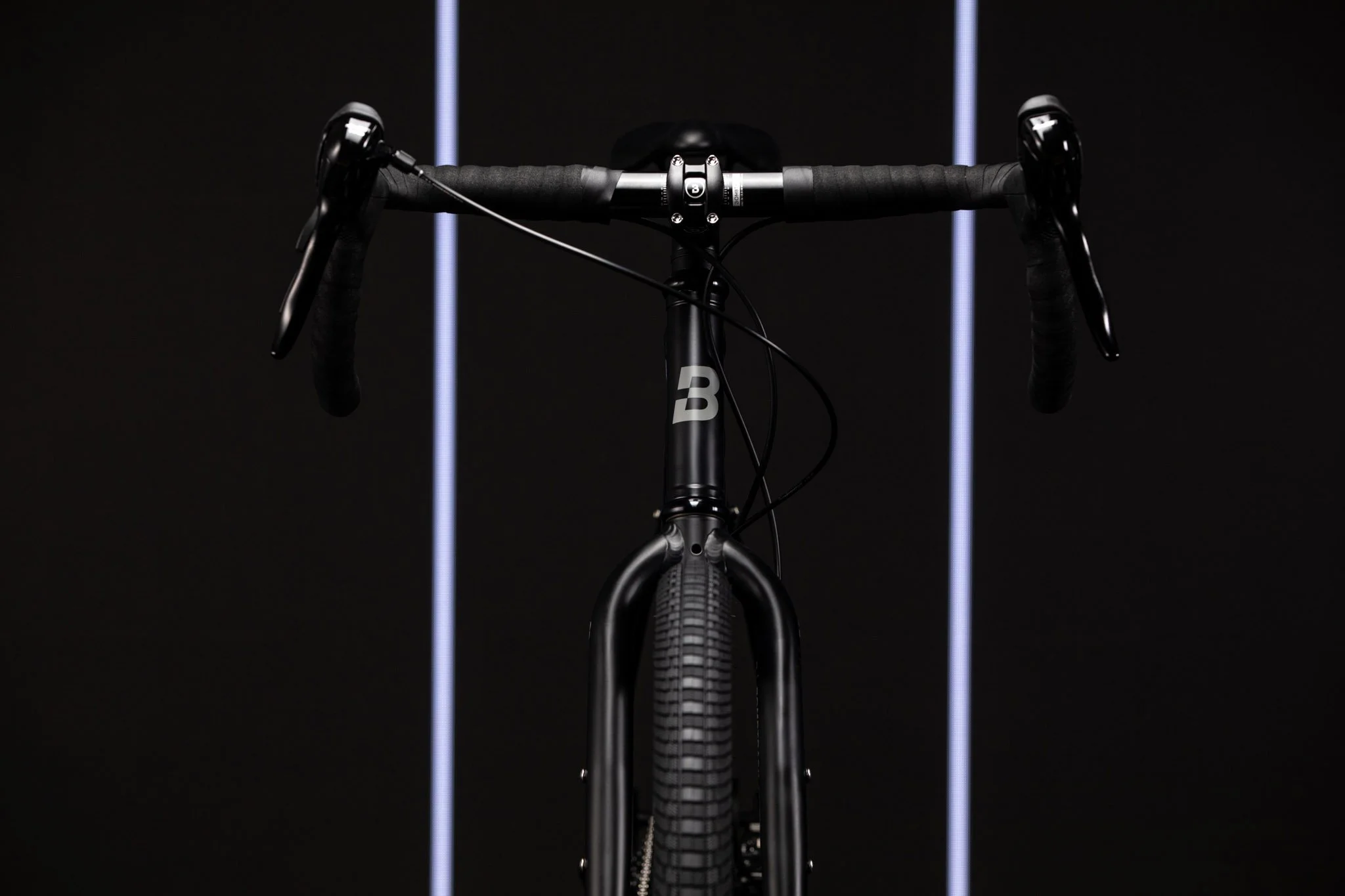

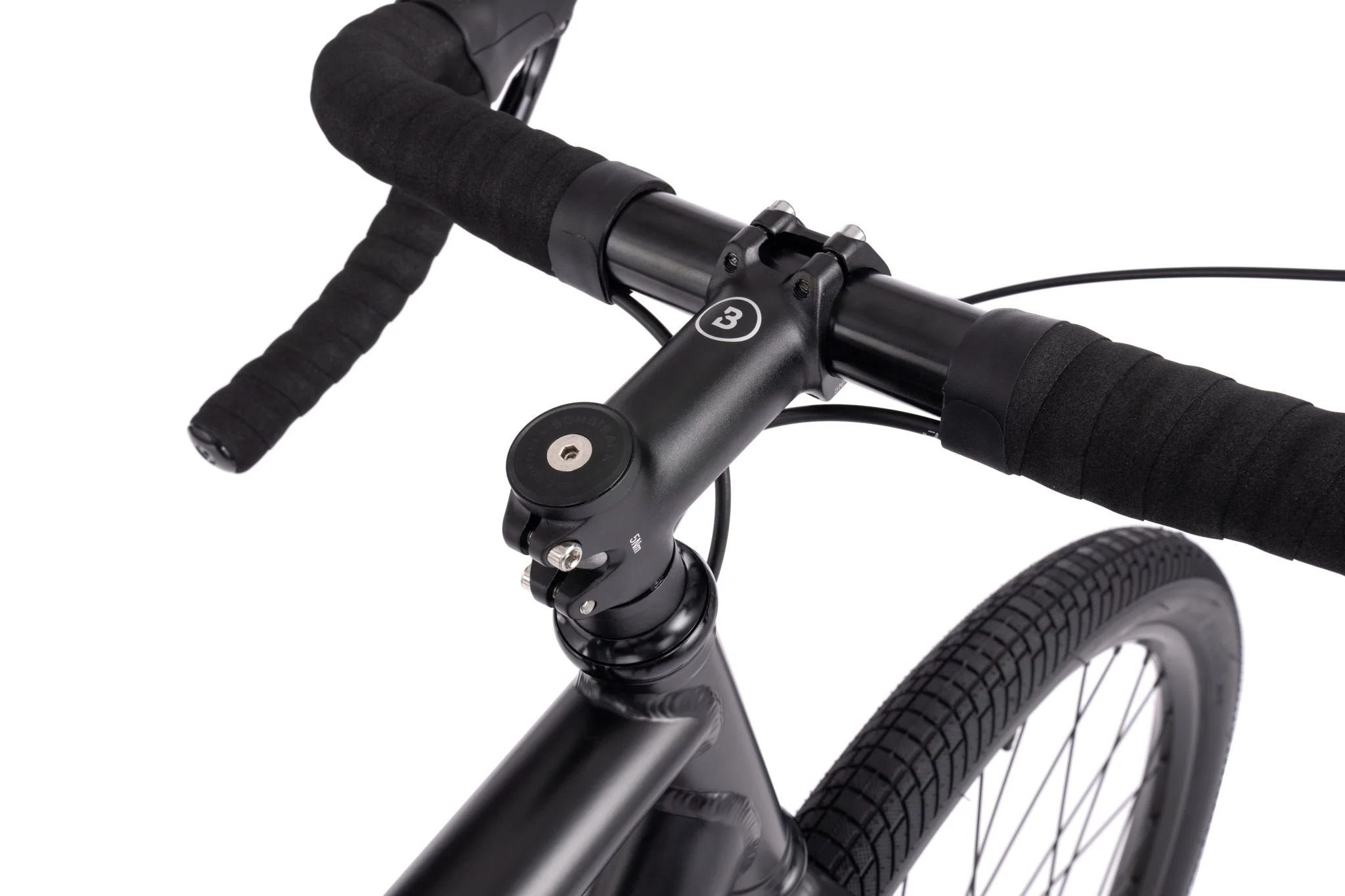

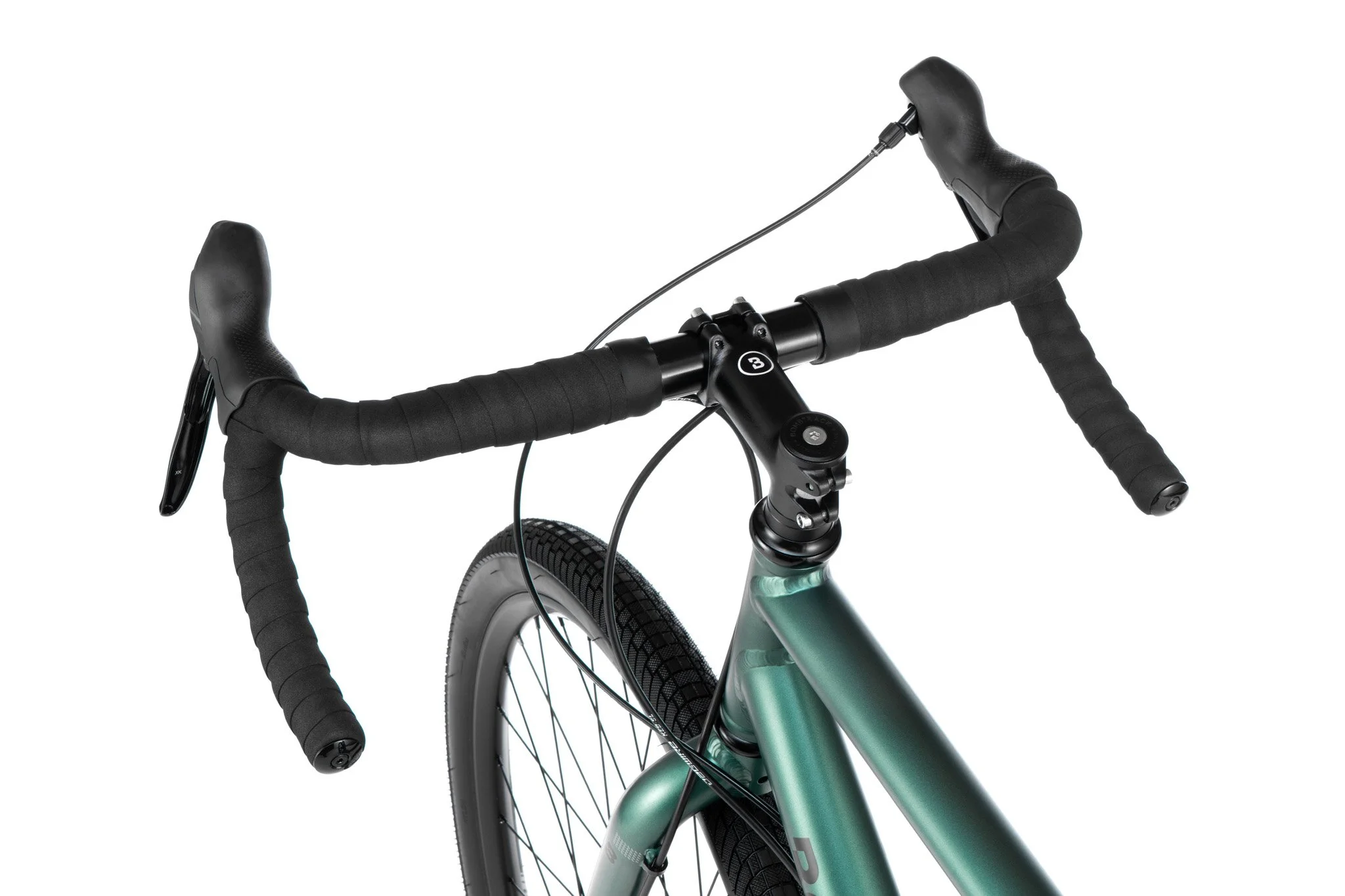

| Handlebar | Bombtrack CX-10 drop bar, 31.8 mm, 10° flare |
| Grips | Bombtrack Control bar tape |
| Stem | Seido Meander forged aluminium stem, -6° |
| Headset | Neco H282 sealed external aheadset, 1.1/8'' |
| Levers | Microshift Advent SB-M090 dual Control lever mechanic |
| Shifter | Microshift Advent SB-M090 dual Control lever 1 x 9 |

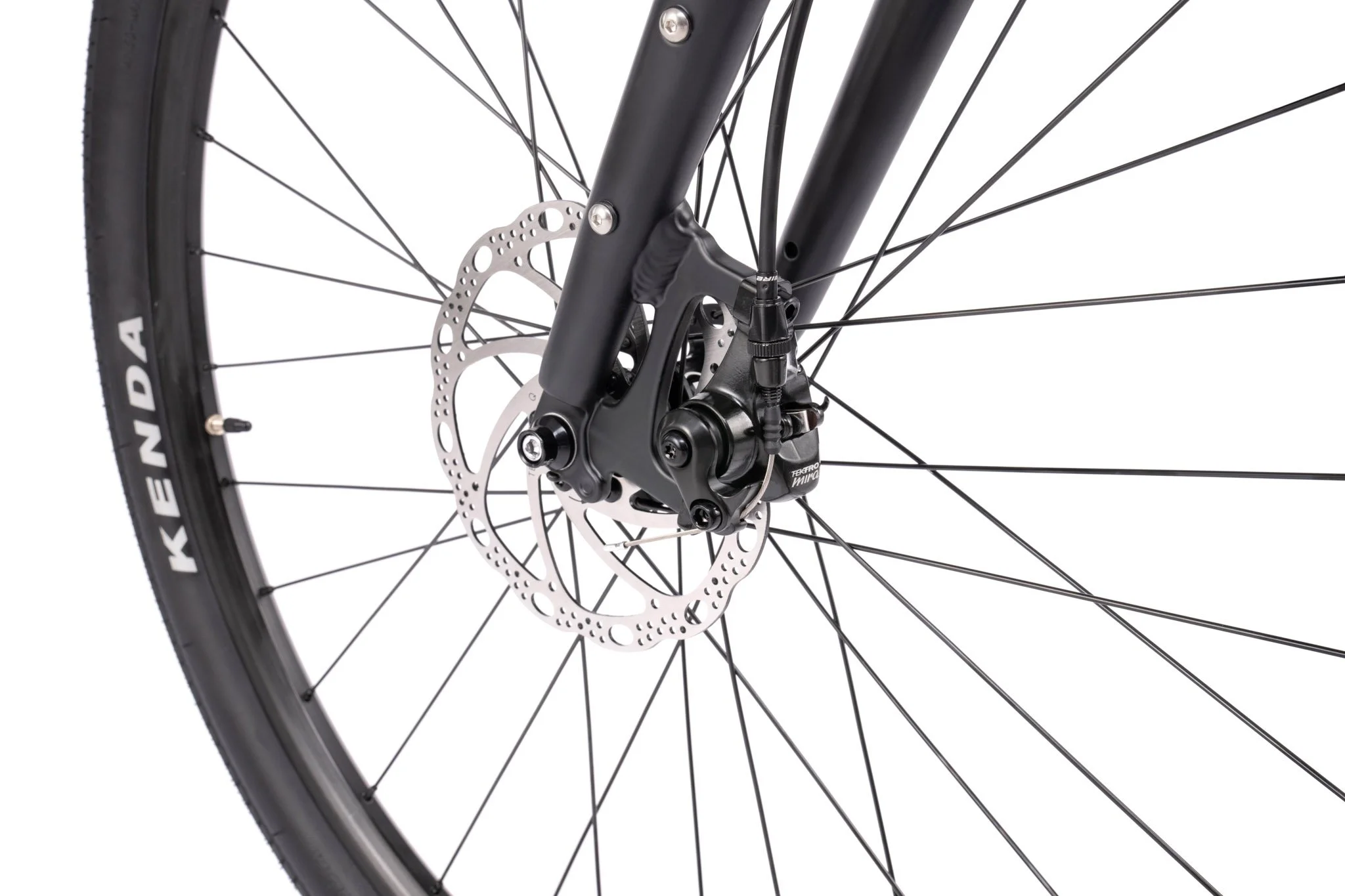

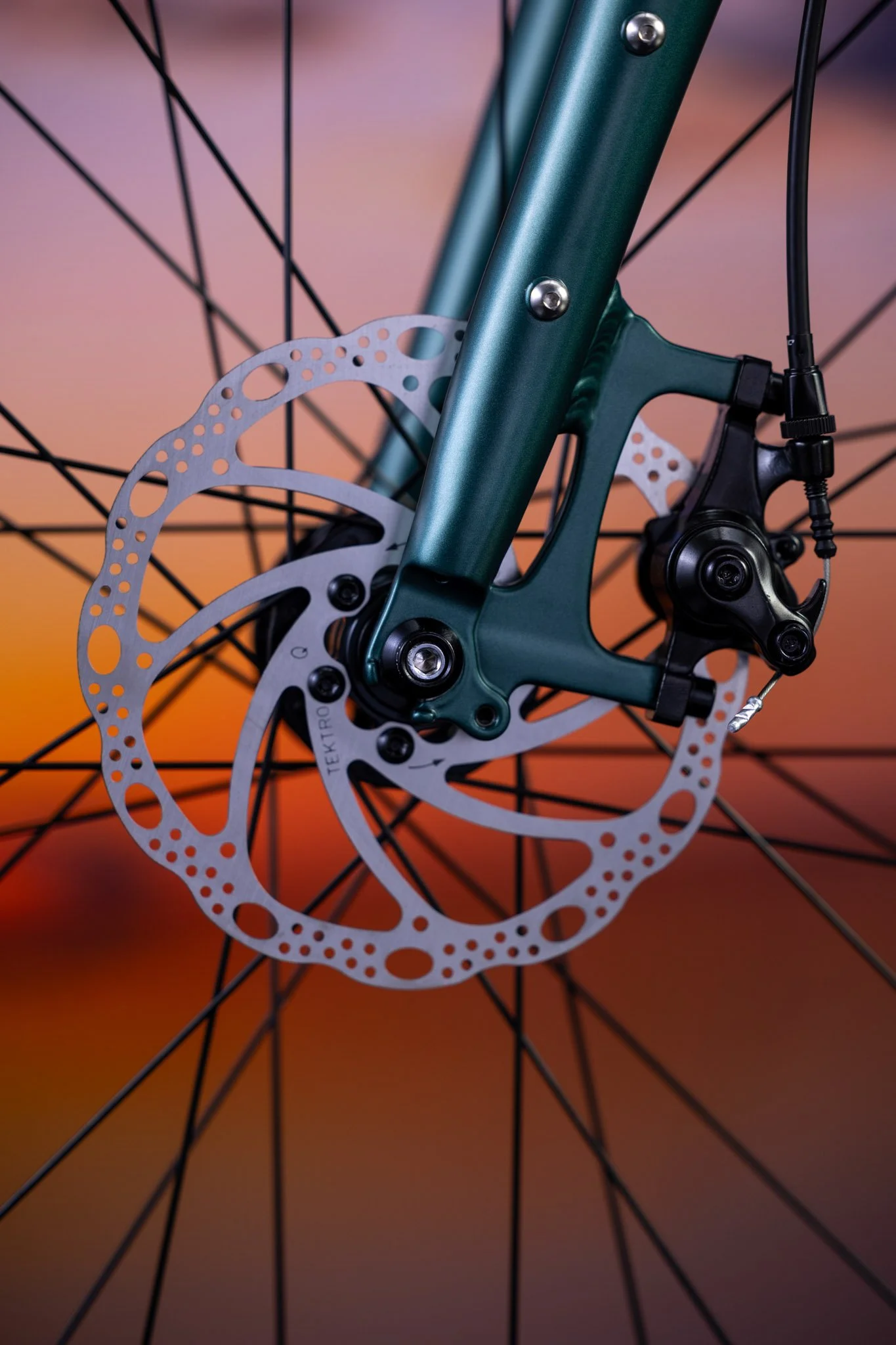

| Brakes | Tektro Mira post mount mechanic disc brakes |
| Rotor | Tektro 180 mm front and 160 mm rear rotor |

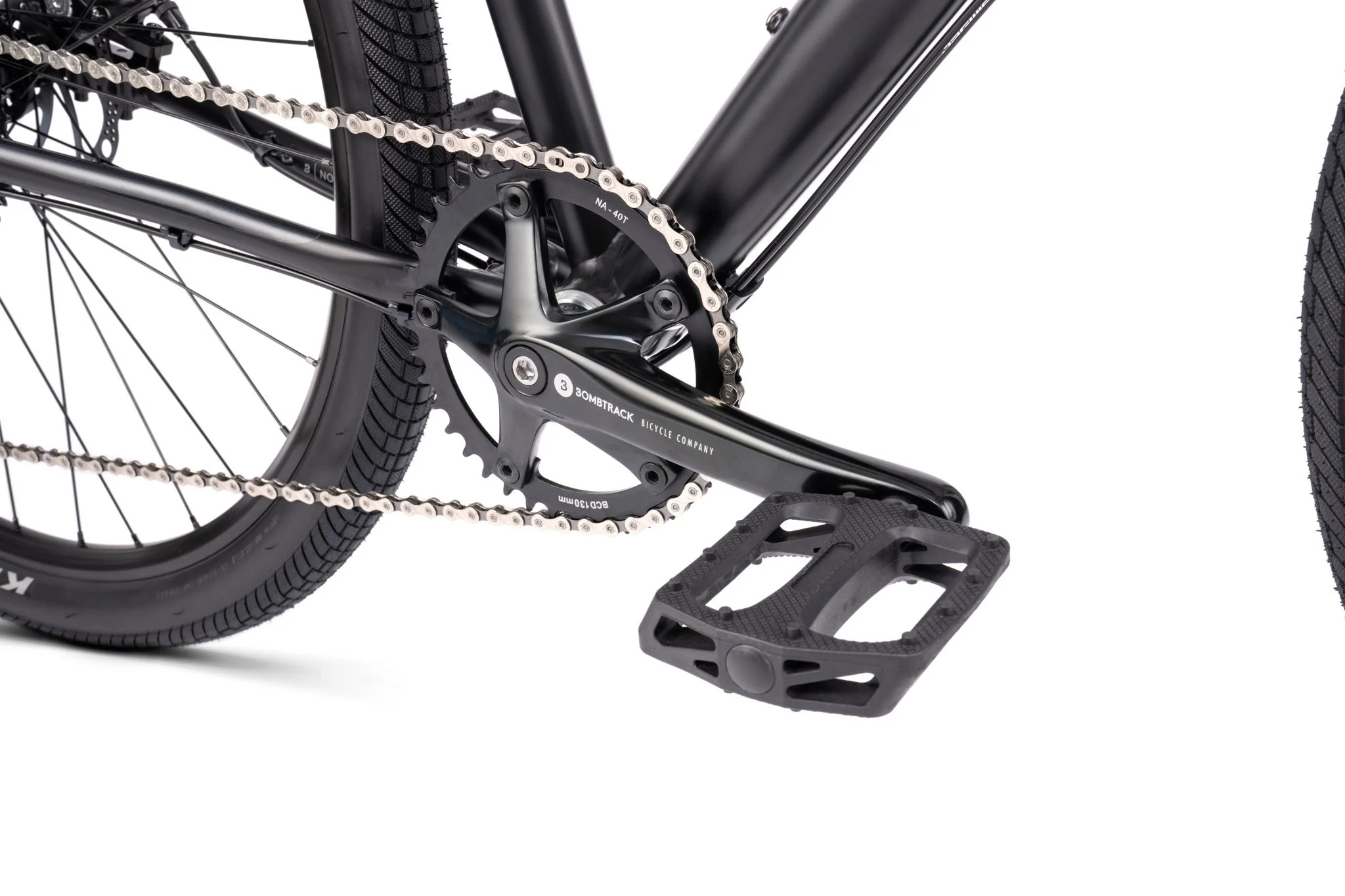

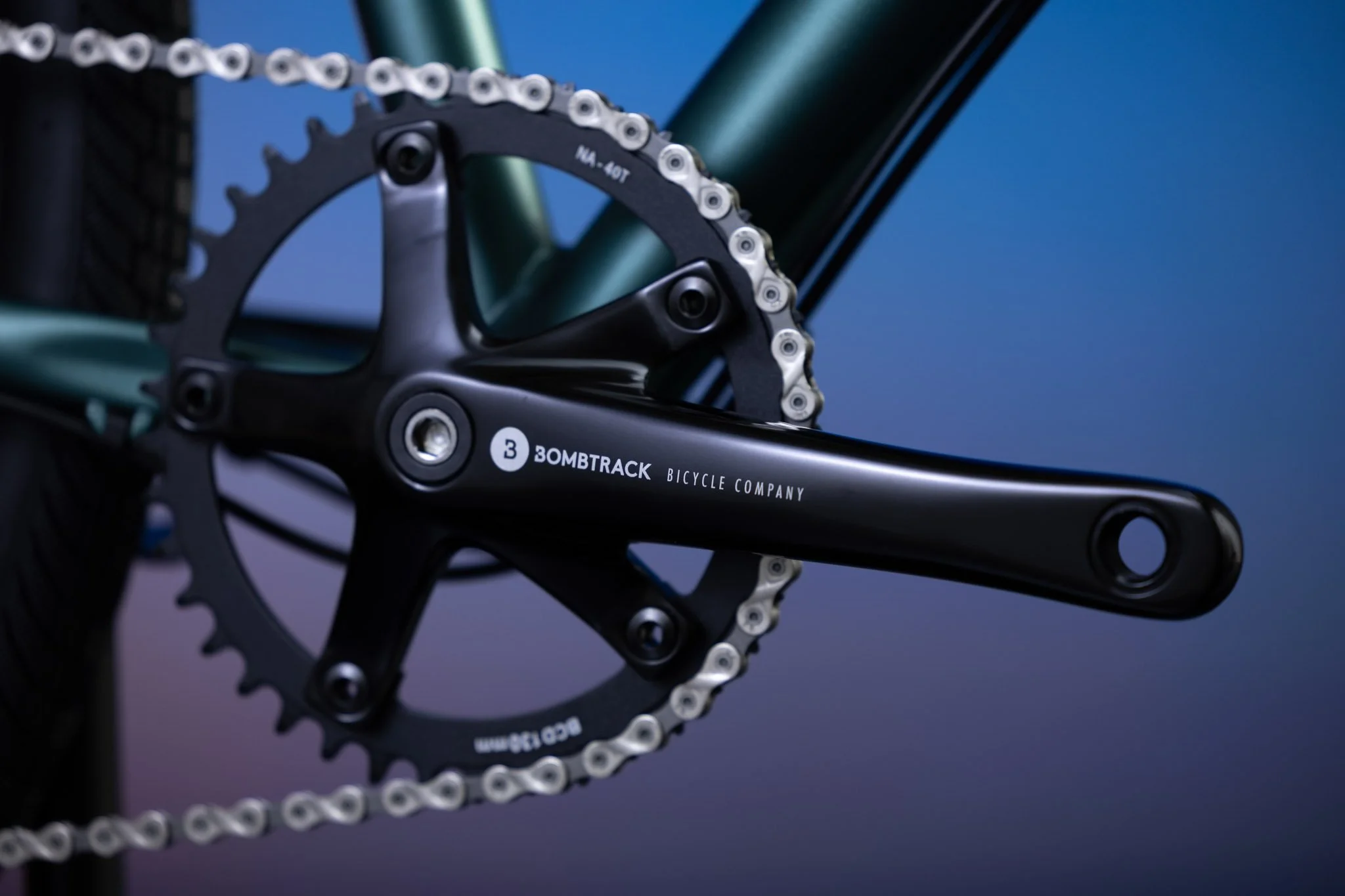

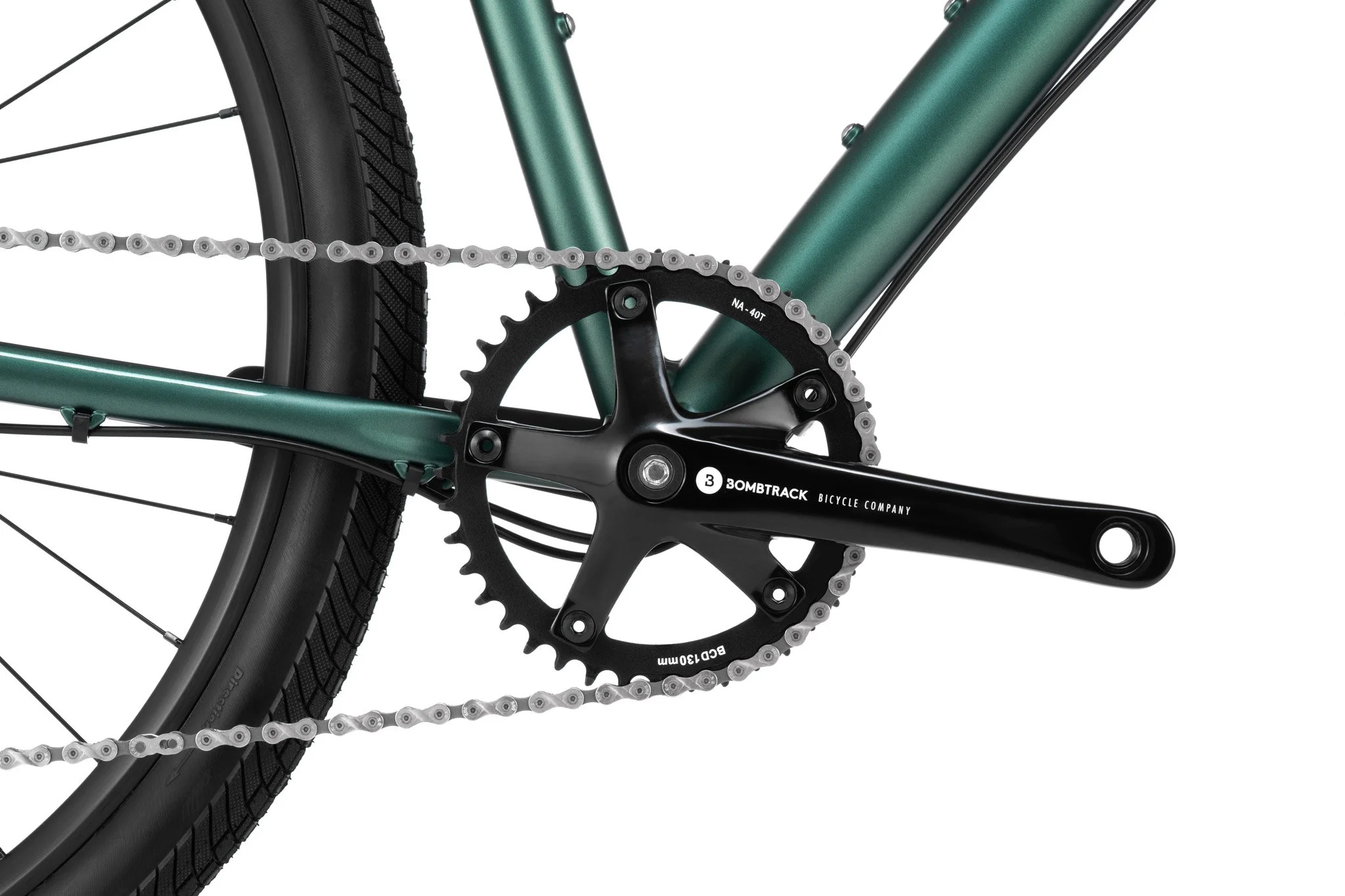

| Crankset | Bombtrack AF19 aluminium crank, square taper |
| BB | BSA sealed BB, 119 mm, square taper |
| Pedals | Wellgo B109N flat pedal |

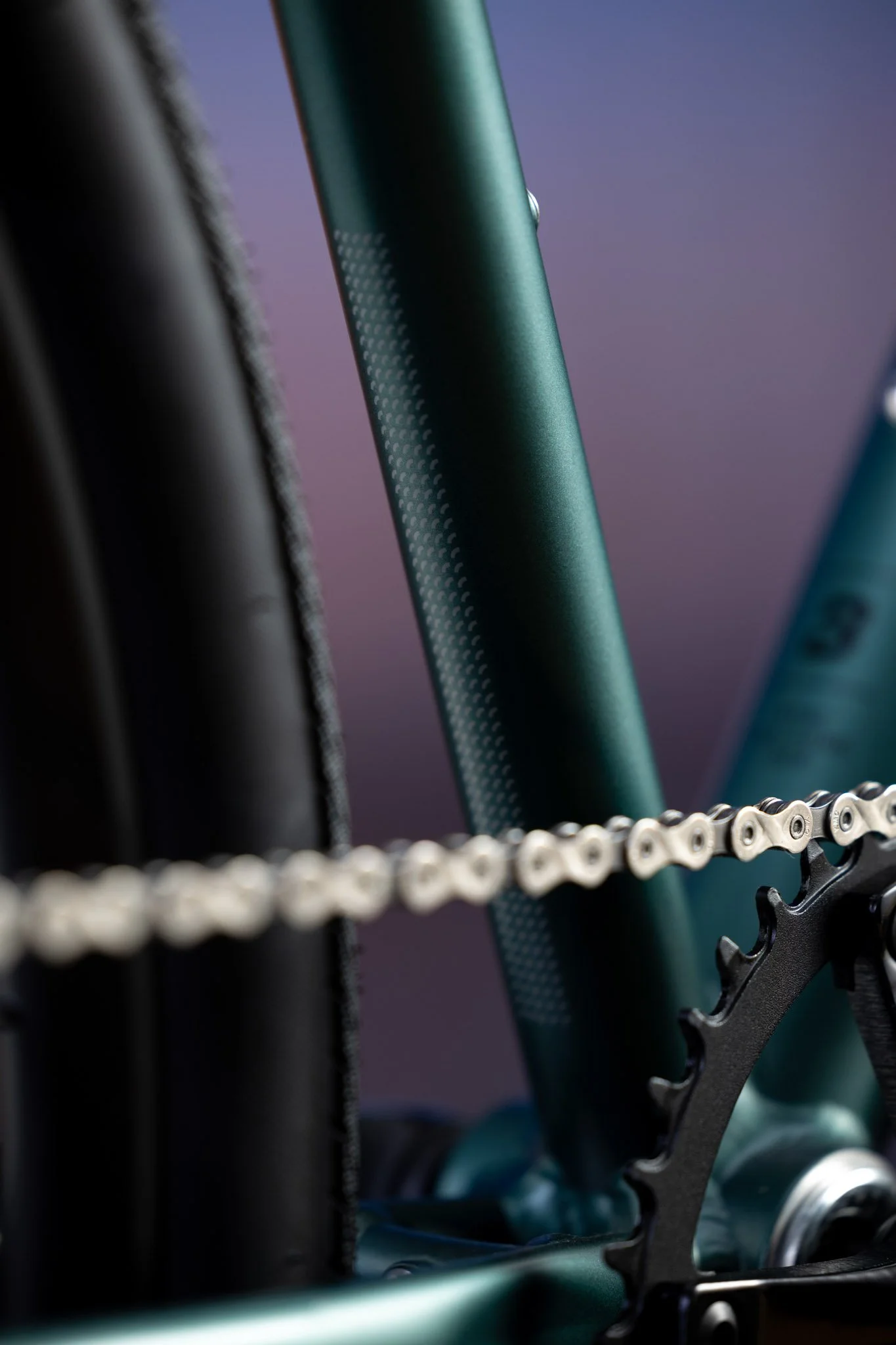

| Chain | KMC X9 chain, 1/2'' x 11/128'', 114L |
| Chainring | Forged steel, narrow wide, 40 T |
| Cassette | Microshift CS-H093 9-speed, 11 - 46 T |
| Front derailleur | - |
| Rear derailleur | Microshift Advent RD-M6195M, clutch |

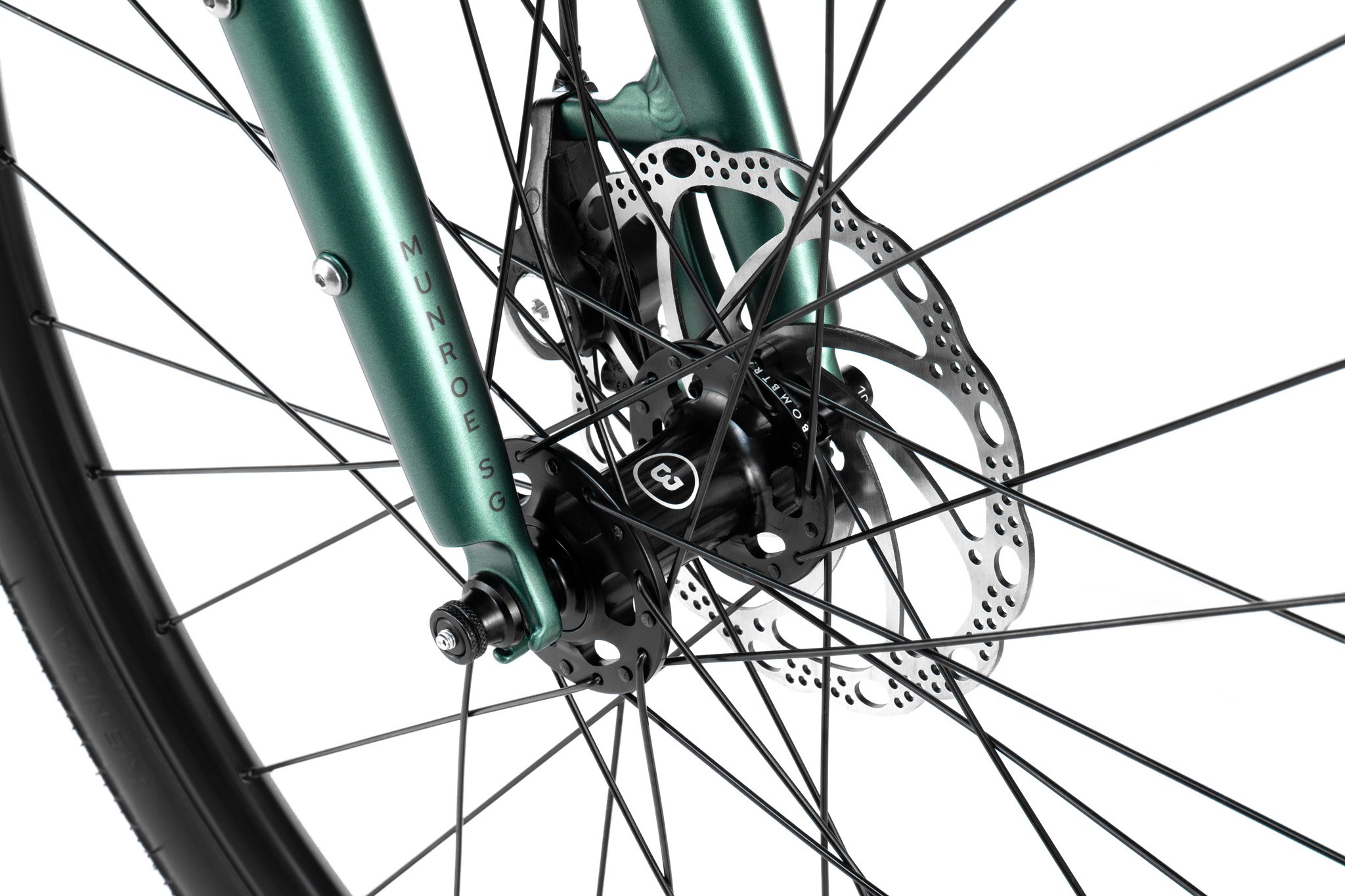

| Front hub | Bombtrack Arc sealed hub, 6-bolt disc, hex key skewer |
| Rear hub | Bombtrack Arc sealed hub, 11-speed, 6-bolt disc, hex key skewer |
| Through axle | - |
| Front rim | WTB ST i21 double wall, TCS 2.0, 32h |
| Rear rim | WTB ST i21 double wall, TCS 2.0, 32h |

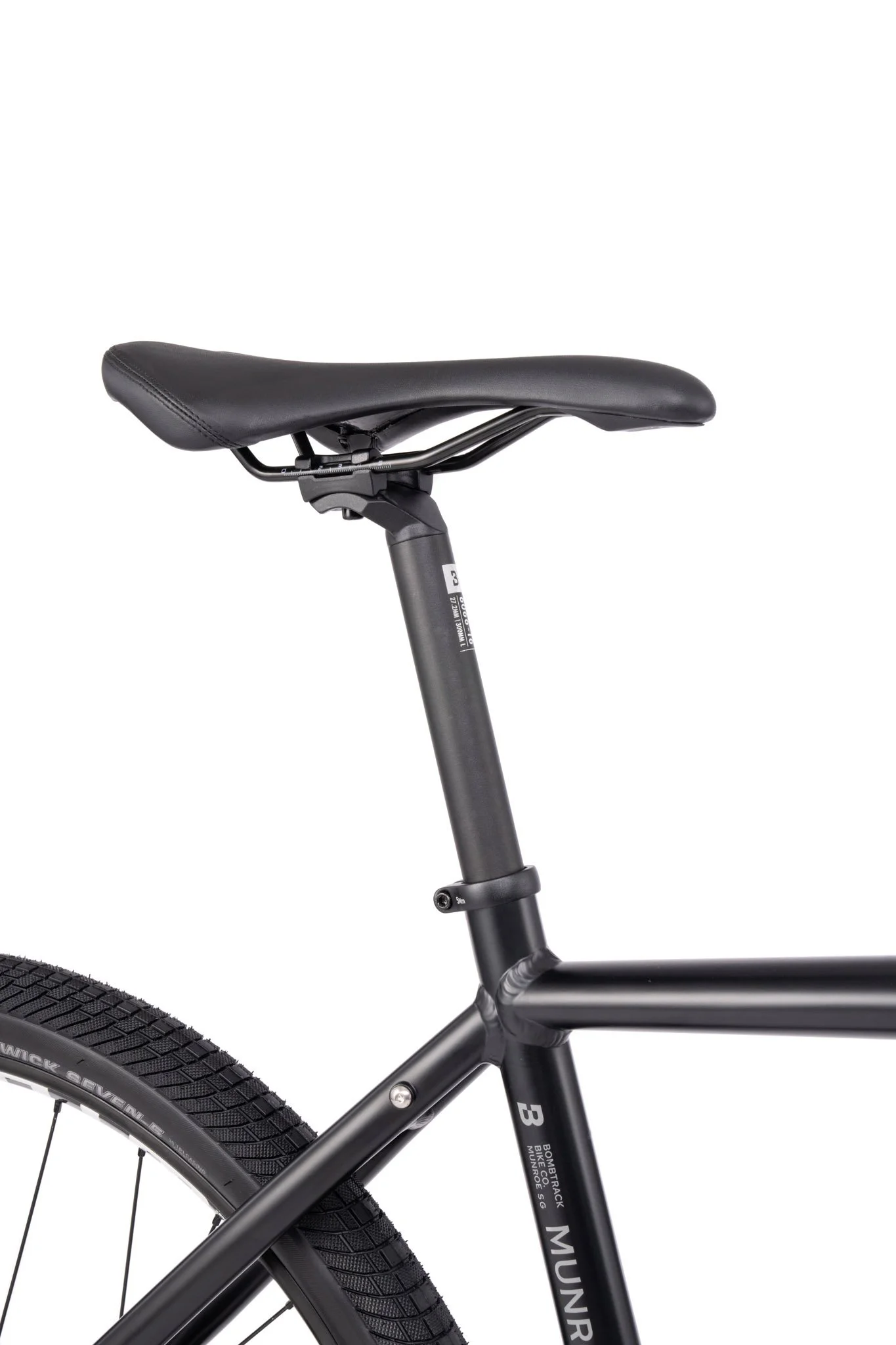

| Saddle | Bombtrack Fuzz saddle |
| Seat post | Bombtrack Beech 27.2 mm x 315 mm |
| Seat clamp | Bombtrack Origin 31.8 mm |
| Front tire | Kenda Kwick Seven.5 650B x 45C |
| Rear tire | Kenda Kwick Seven.5 650B x 45C |
| Fender | - |
| Rack | - |
| Kickstand | - |
| Light | - |
| Weight | 12 kg (size M) |
| Weight frameset | 1660 g frame (size M, incl. hanger) / 810 g fork (300 mm steerer) |
| Maximum rider weight | 110 kg incl. luggage |
| ASTM riding condition | 1 |
Final product may vary in appearance, finish and minor details.
BUILD INFOS
| Model | MUNROE SG |
|---|---|
| BB standard | BSA - 68 mm shell width |
| Headset standard (S.H.I.S.) | EC34 / 28.6 | EC34 / 30 |
| Headset crown race angle | 45° |
| Fork steerer inner diameter | 24.6 mm |
| Fork max tire clearance w/o fender | 650B x 50C / 700C x 35C |
| Frame max tire clearance w/o fender | 650B x 50C / 700C x 35C |
| Maximum chainring clearance 1x | 38 T with 45 mm chainline |
| Maximum chainring clearance 2x | 50 / 34 T with 45 mm chainline |
| Seat post diameter | 27.2 mm |
| Seat clamp diameter | 31.8 mm |
| Front derailleur clamp diameter | 31.8 mm |
| Frame front derailleur compatible | yes |
| Brake mount front | PM 6'' |
| Brake mount rear | FM 140 / 160 |
| Frame thickness rear brake mount | |
| Maximum rotor clearance front | 180 mm |
| Maximum rotor clearance rear | 160 mm |
| Front through axle | - |
| Rear through axle | - |
| ISO testing standard | Road |
| Crankarm | S - M 170 mm / L 175 mm |
| Q Factor | 170 mm |
| BCD crank | 130 mm, 5 bolts |
| Chainring offset | 0 mm |
| Chainline | 45 mm |
| Spoke length front wheel | 273 mm, 274 mm |
| Spoke length rear wheel | 274 mm, 272 mm |
| Spoke count (front / rear) | 32 / 32 |
| ERD | 568 mm |
| Front hub PCD | 58 mm |
| Rear hub PCD | 58 mm |
| Front hub flange distance / offset | 56.5 mm center to center / 6.6 mm |
| Rear hub flange distance / offset | 51 mm center to center / 8.8 mm |
| Stem length | XS - S 80 mm / M 90 mm / L - XL 100 mm |
| Stem angle | -6° |
| Headset spacers | 1 x 10 mm, 2 x 5 mm |
| Seat post offset | 24 mm |
| Seat post length | 315 mm |
| Bike trailer | approved |
| Seat tube mounted child seat | not approved |
| Derailleur hanger | BT-DH-019 |
| Frame small parts | BT-CR-007 |
| Hub end caps front | BT-HC-013 |
| Hub end caps rear | BT-HC-018 |
| Cassette body | BT-CB-009 |
| Crankarm bolt | - |
| Through axle front | - |
| Through axle rear | - |
GEOMETRY
FRAME GEOMETRY
| Model | MUNROE SG | ||
|---|---|---|---|
| Bike Size | S | M | L |
| Wheel size | 650B | 650B | 650B |
| Seat Tube Length | 490 | 520 | 550 |
| Horizontal TT length | 540 | 563 | 588 |
| Seat Angle | 73.0° | 73.0° | 73.0° |
| Head Angle | 70.5° | 70.5° | 70.5° |
| Headtube Length | 130 | 150 | 175 |
| BB Drop | 70 | 70 | 70 |
| Chainstay Length | 440 | 440 | 440 |
| Fork Offset | 45 | 45 | 45 |
| Trail | 74 | 74 | 74 |
| Wheelbase Length | 1025 | 1049 | 1075 |
| Standover | 766 | 790 | 816 |
| Reach | 368 | 385 | 403 |
| Stack | 565 | 583 | 607 |
| Front Center | 595 | 619 | 645 |
| Axle to Crown | 398 | 398 | 398 |
| Minimum rider height ¹ | 1580 | 1690 | 1790 |
| Maximum rider height ¹ | 1710 | 1820 | 1920 |
¹ Our bike size recommendation generally represents a rough guideline for quickly narrowing down the sizes from which to choose based on the body height. Bike fitting is a complex topic and other measurements and factors have to be accounted for as well. Since no two human bodys are exactly the same it is not possible to give a 100% correct advice for everyone. Therefore Bombtrack cannot guarantee for the stated recommendations to be correct for every individual customer. The best way to work out the correct size is to consult a local Bombtrack dealer or a professional bike fitter and have them determine the needed size.
HANDLEBAR GEOMETRY
| Model | MUNROE SG | ||
|---|---|---|---|
| Bike Size | S | M | L |
| Handlebar type | Dropbar | Dropbar | Dropbar |
| Width (drops) | 420 | 440 | 440 |
| Width (barends) | 466 | 486 | 486 |
| Reach | 75 | 75 | 75 |
| Flare | 10° | 10° | 10° |
| Backsweep | - | - | - |
| Drop | 116 | 116 | 116 |
| Upsweep | - | - | - |
| Rise | - | - | - |
