BEYOND AL SWORD

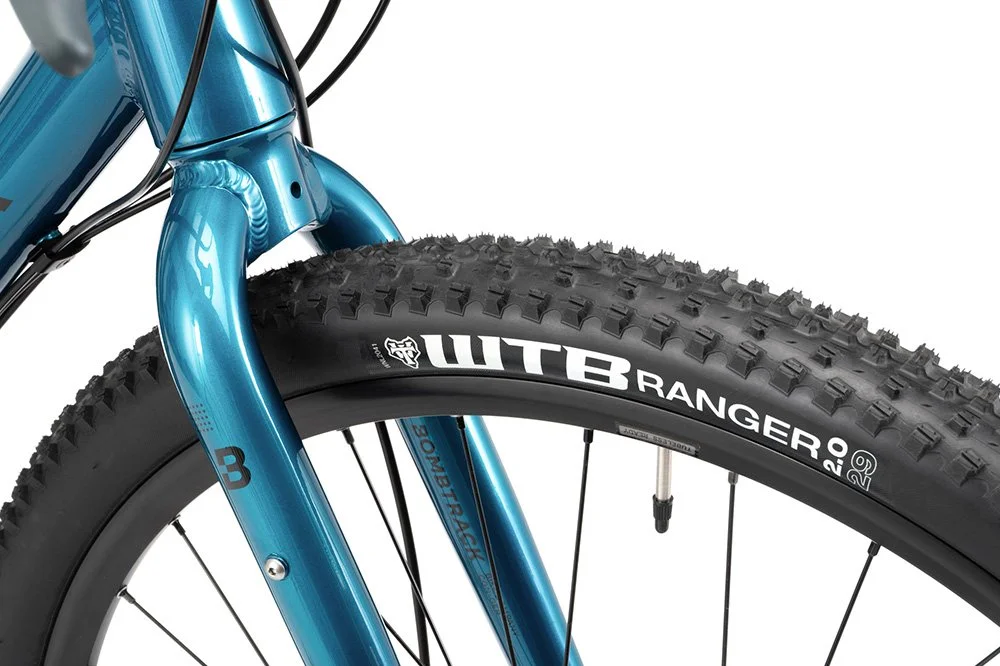

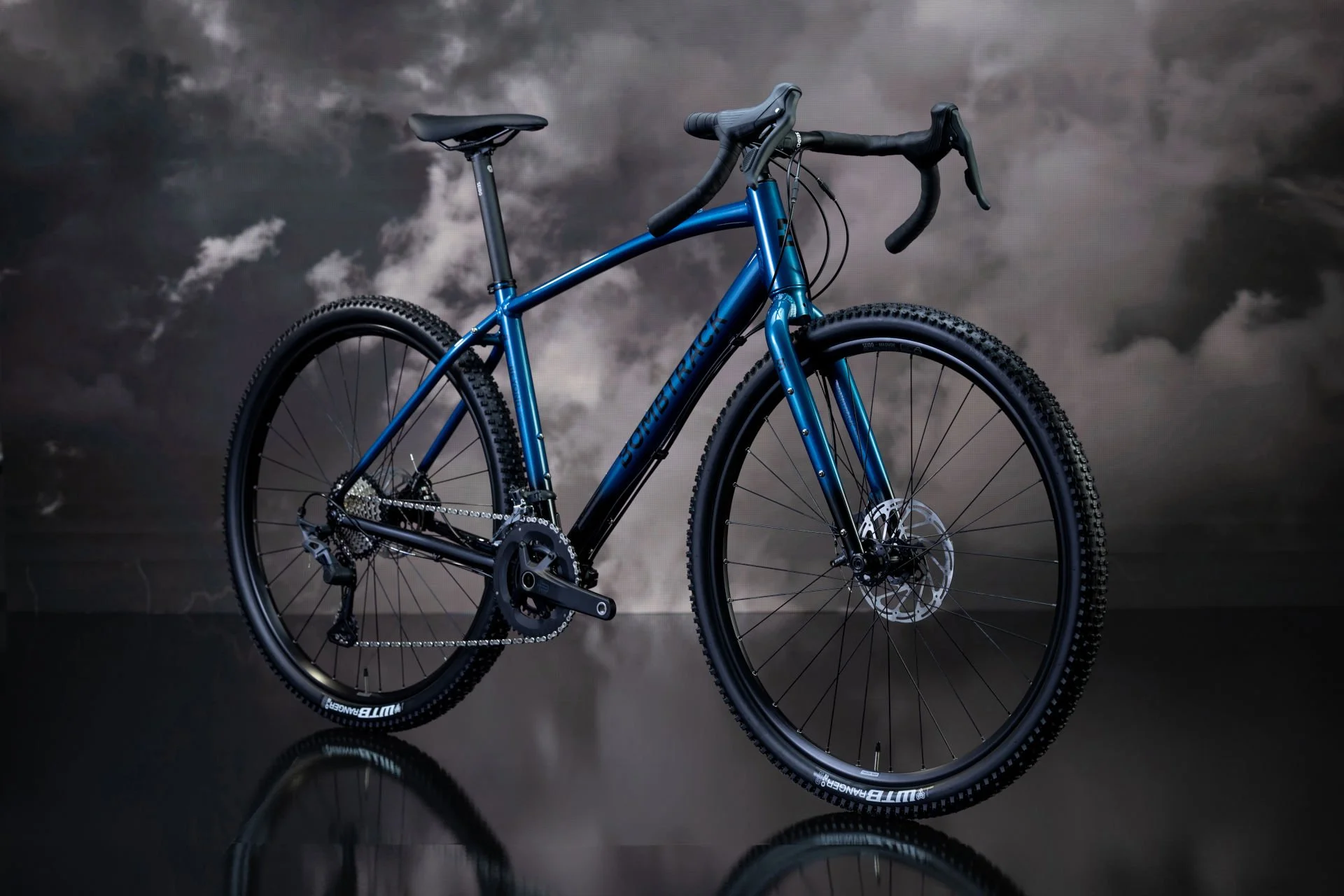

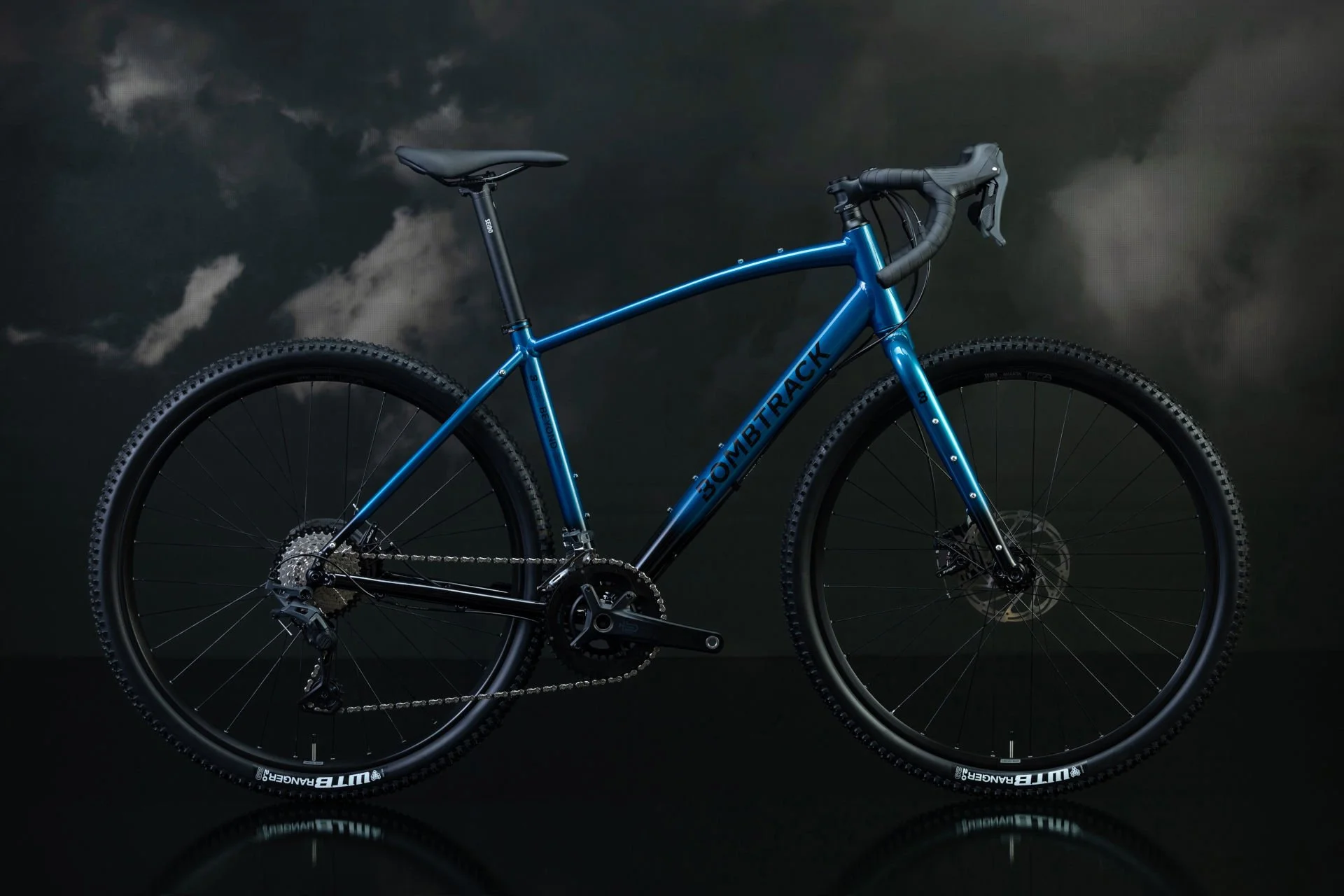

The Beyond AL Sword is a lightweight adventure bike crafted for those seeking a nimble and adaptable ride. Gear changes are managed by Microshift’s Sword mechanical drivetrain, offering dependable and smooth shifting, while TRP calipers paired with 180 / 160 mm rotors deliver strong and consistent braking. It incorporates all the hallmark Bombtrack elements, such as internal routing for dynamo cables, numerous mounting options on both the frame and fork, and compatibility with a dropper post. Smaller frame sizes feature 27.5” wheels, while sizes M through XL come equipped with 29” wheels. Both configurations include tubeless-ready WTB i23 rims fitted with 2.0” WTB Ranger tires, designed to handle diverse terrain so you can stay focused on the adventure ahead.

METALLIC BLACK / TURQUOISE

HIGHLIGHTS

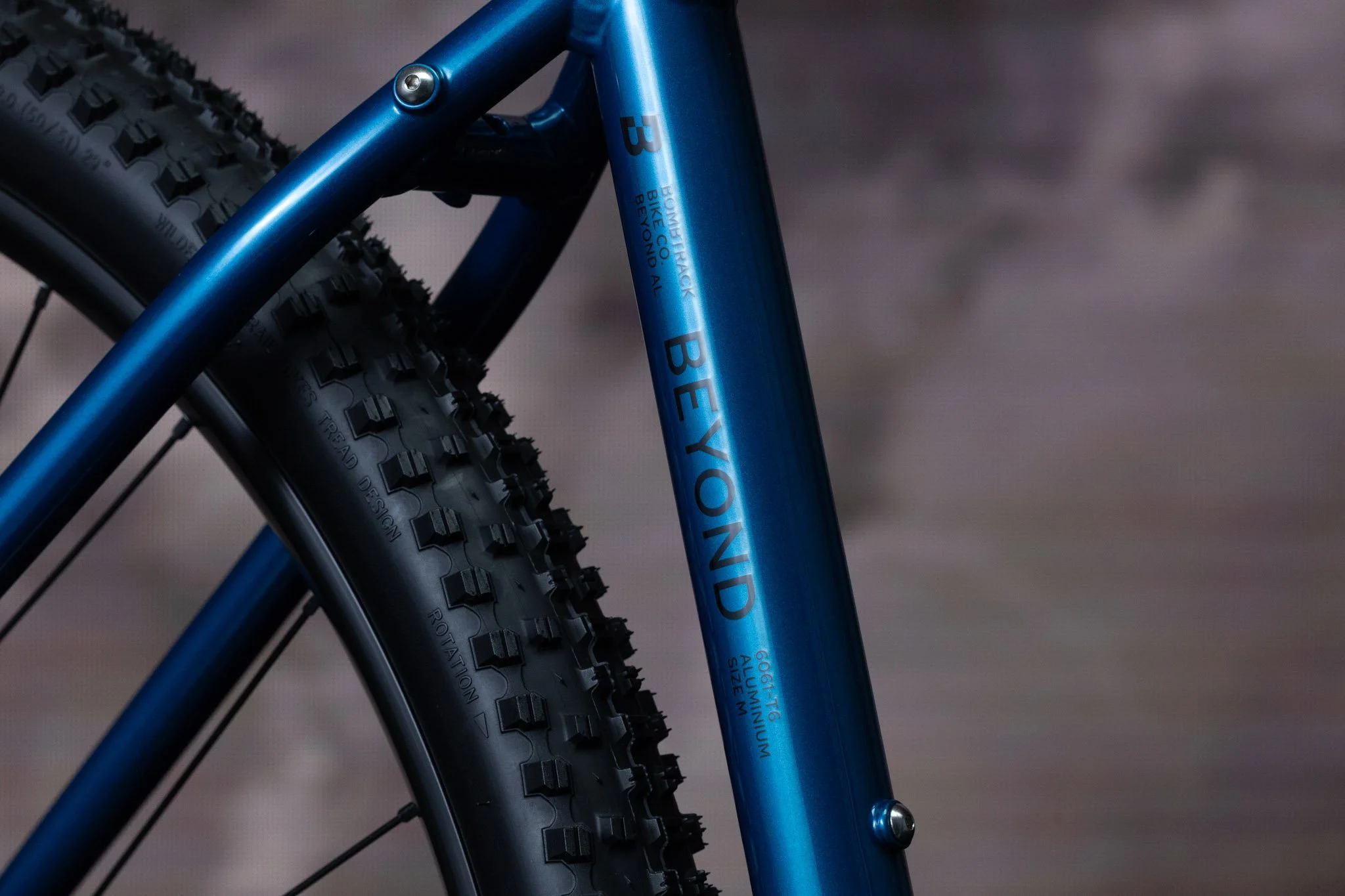

  • FRAME

    Lightweight aluminium frame with T47 bottom bracket.

  • WHEELS

    Size S with 27.5 wheels for proper fit without any compromises in geometry.

  • FORK

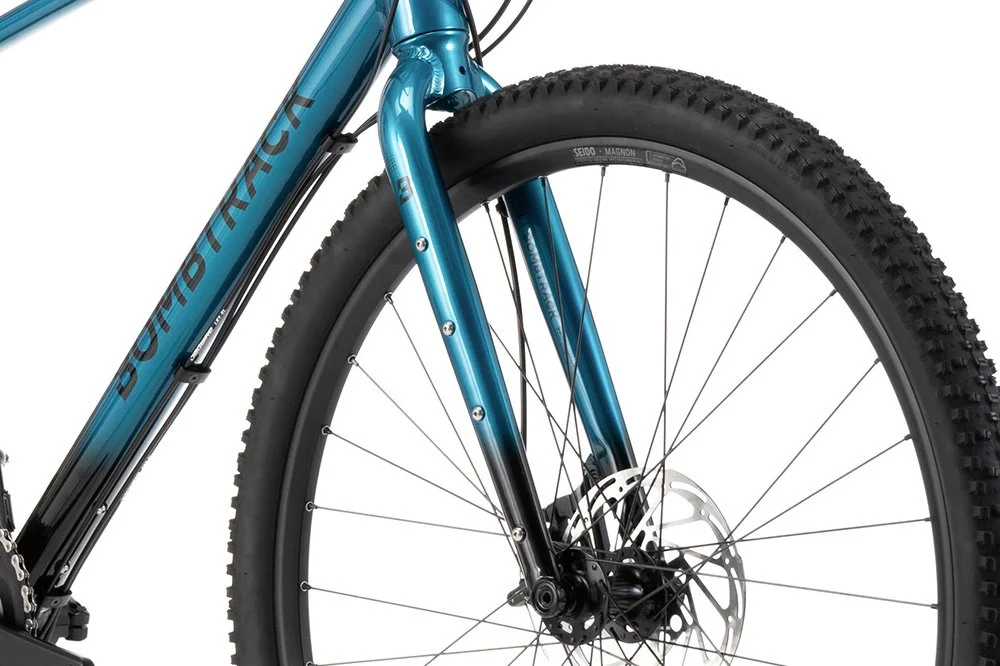

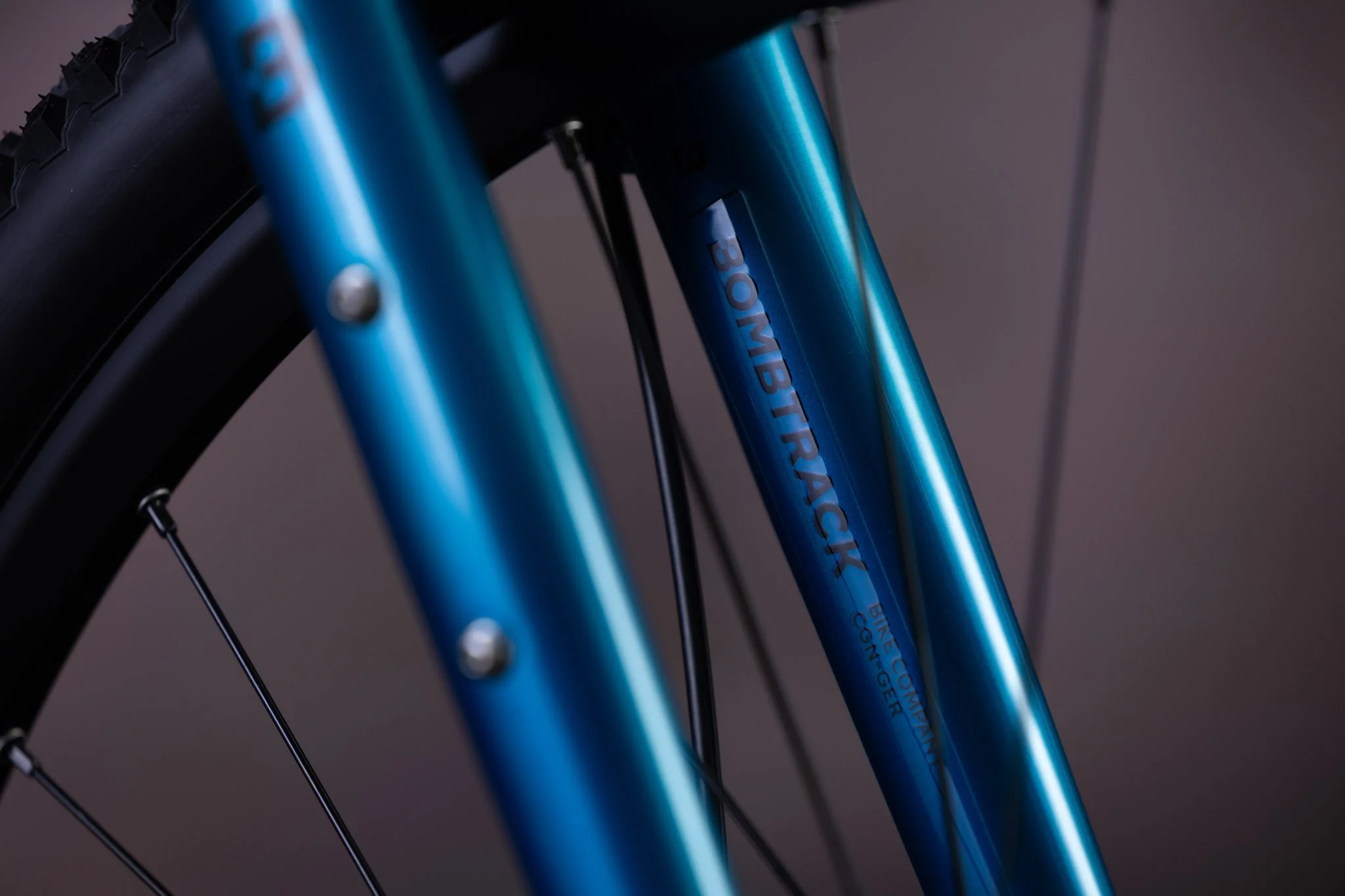

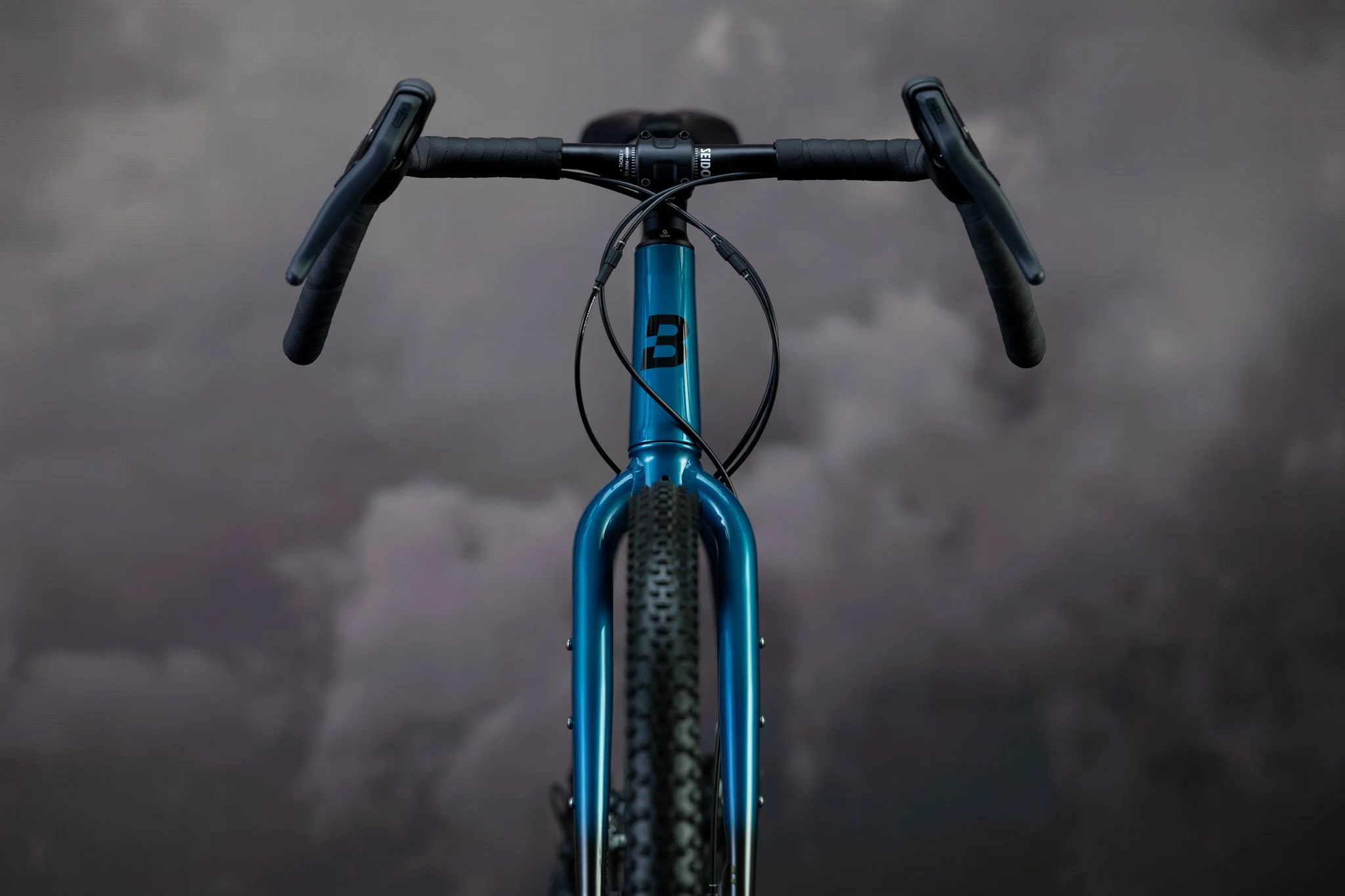

    Fork with internal light cable routing and fender, rack and triple cage mounts.

  • MOUNTS

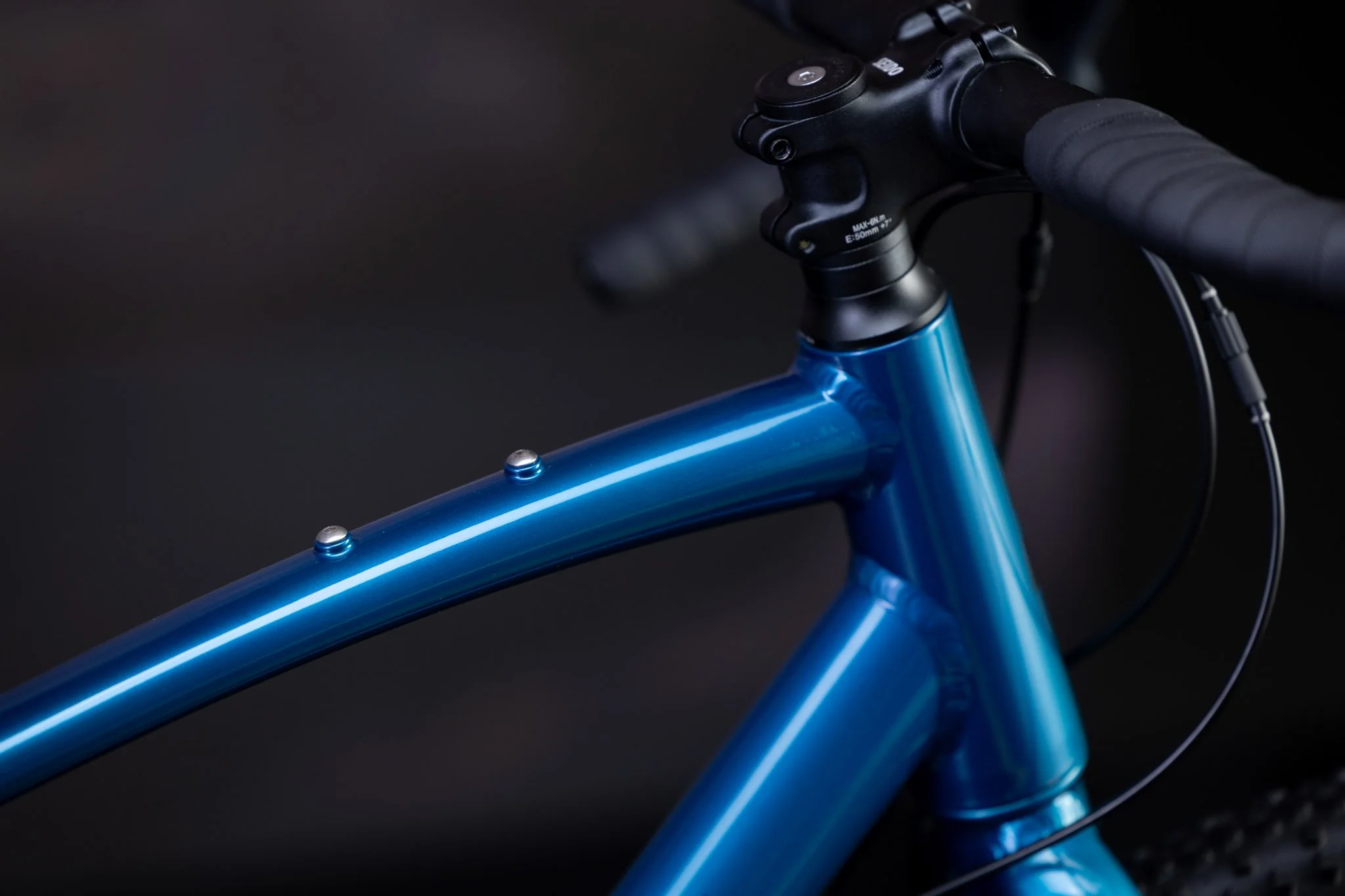

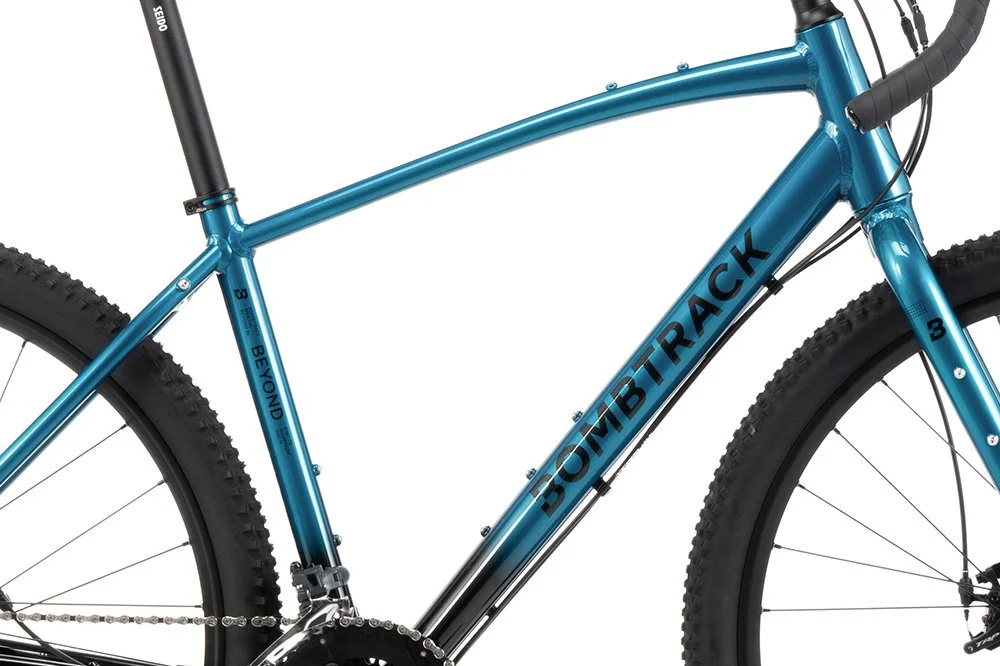

    Toptube bag mounts, triple mounts on downtube and seattube and bottle cage mounts underneath the downtube.

  • DRIVETRAIN

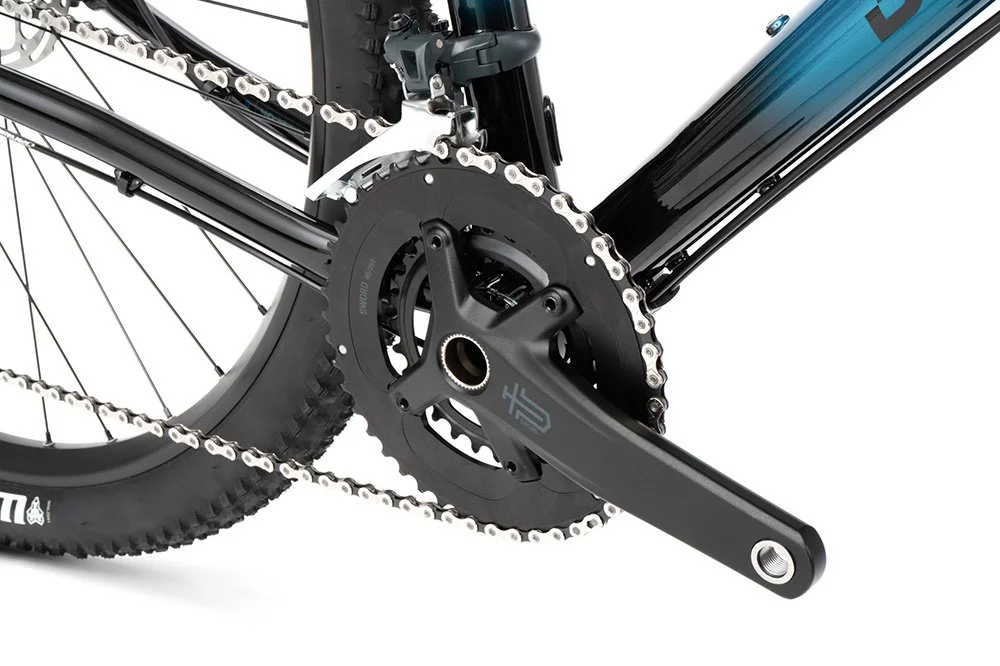

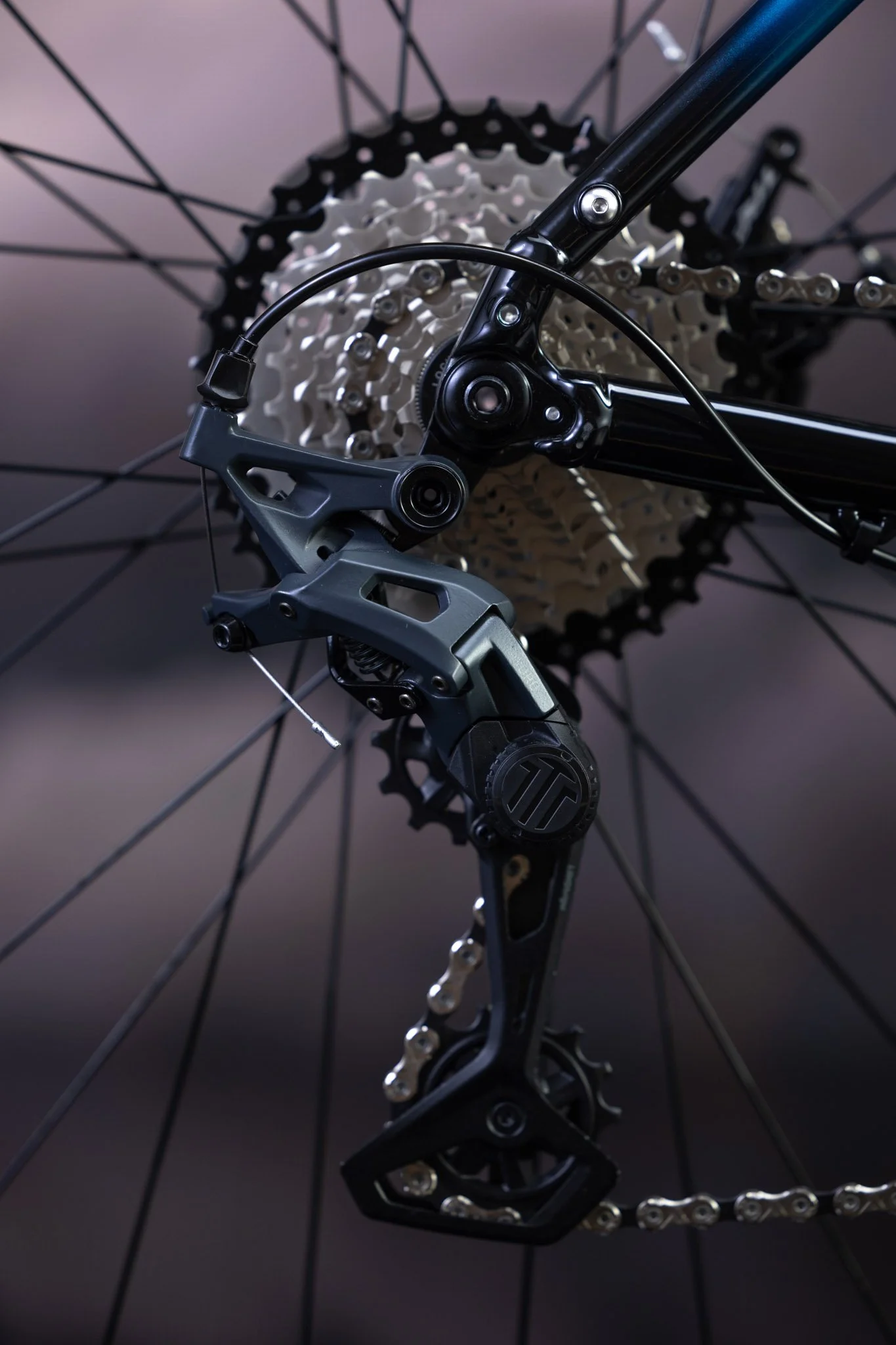

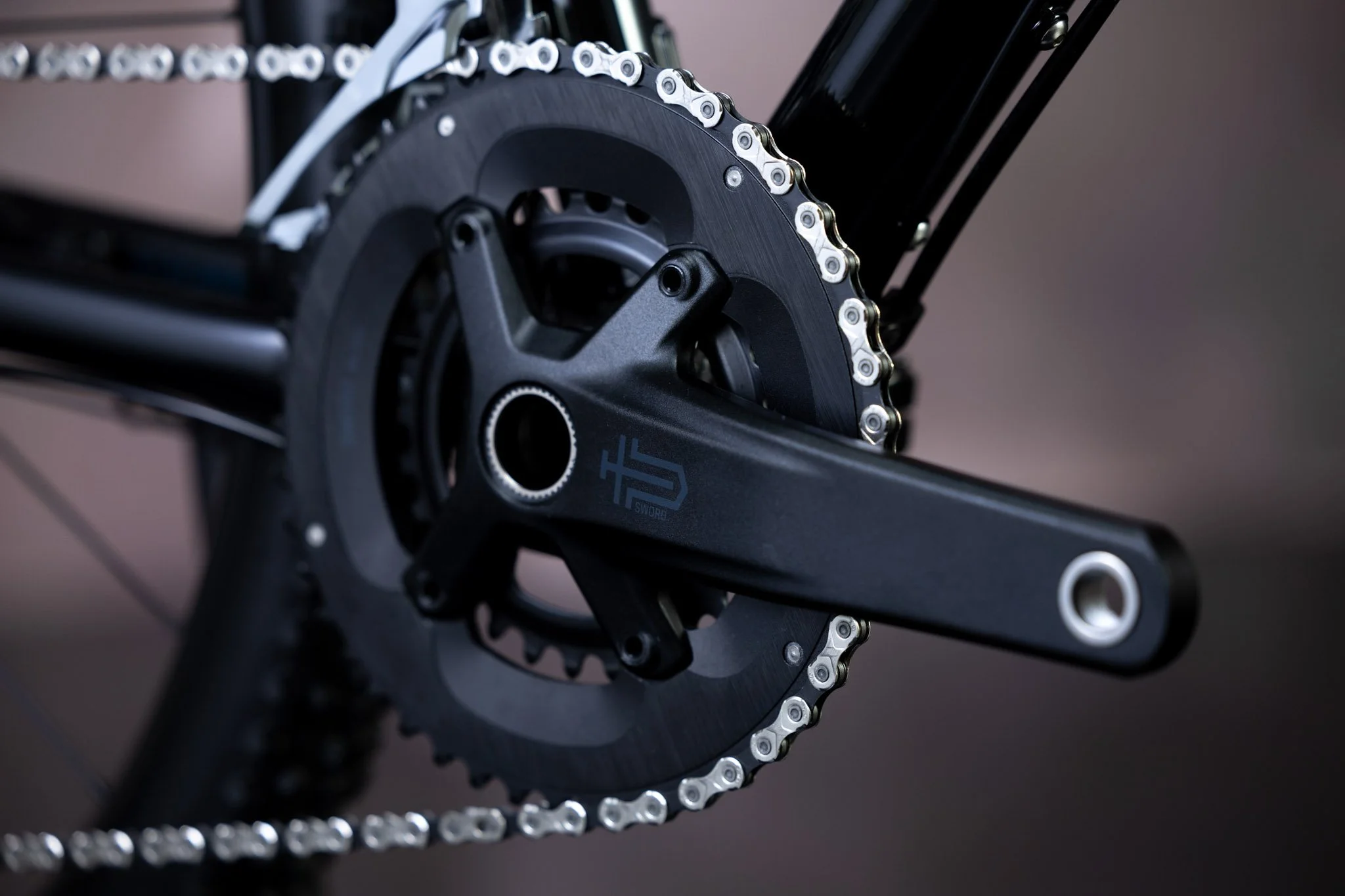

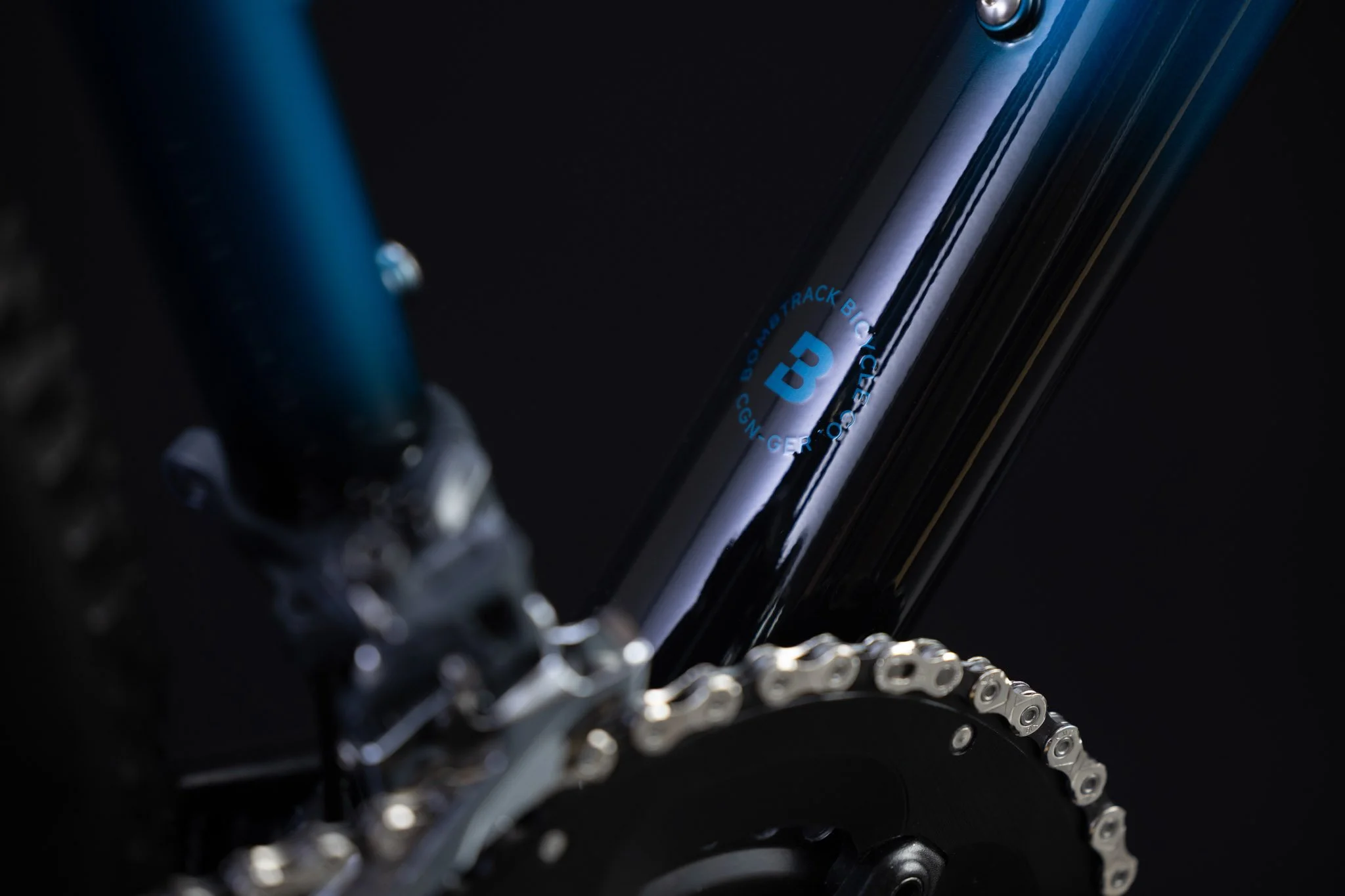

    Microshift 2x10 groupset with wide range gearing and TRP Spyre brakes.

  • RIMS

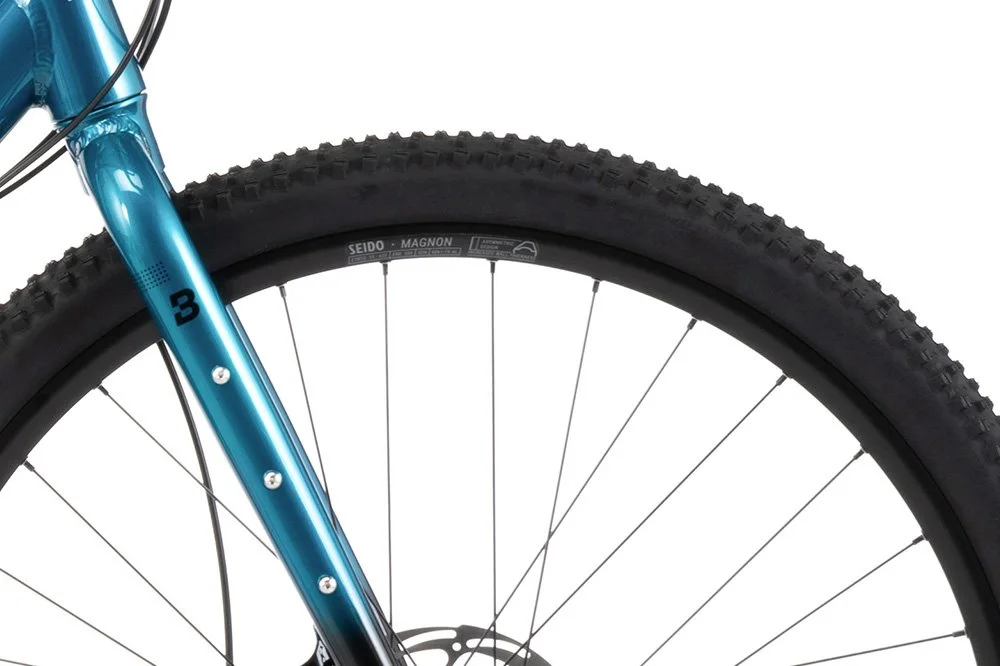

    Tubeless ready Seido Magnon heavy duty i25 rims.

"The Beyond is designed to soak up punishment, and the AL version performs, but with the weight trimming that comes with aluminium"

SPECIFICATIONS

ModelBEYOND AL SWORD
Color 1Metallic black
Color 2-
Color 3-
Frame6061-T6 hydro-formed aluminium, TA, rack / fender mounts, stealth dropper ready, 86.5 mm T47 BB shell
Fork6061 aluminium, TA, 1.1/2'' - 1.1/8'', fender / rack / triple cage mounts, internal hub dynamo cable routing

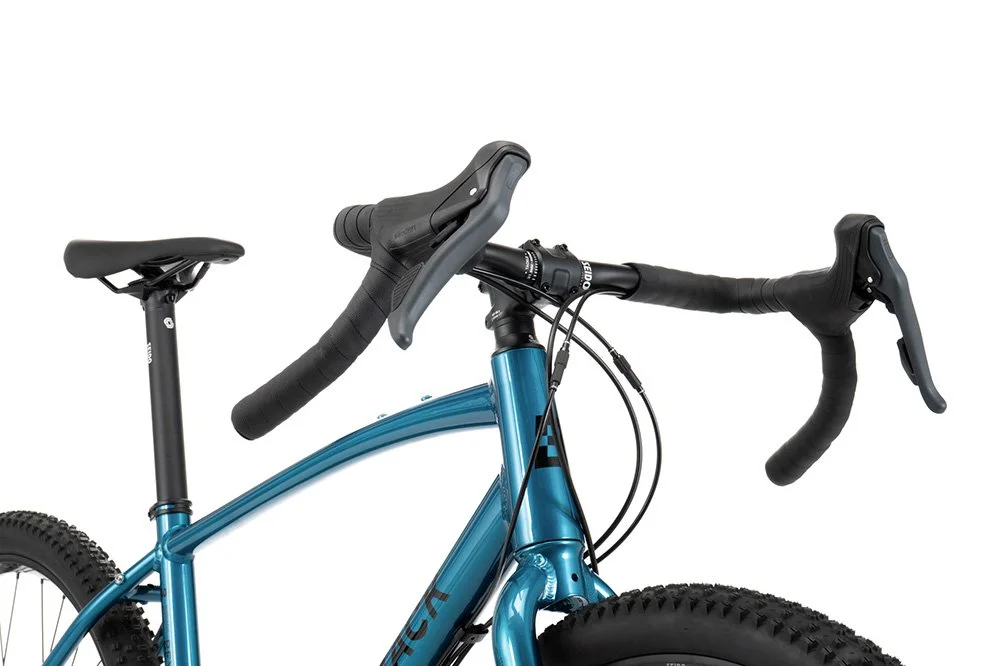

HandlebarSeido Tackle drop bar, 31.8 mm, 25° flare
GripsBombtrack Command bar tape
StemSeido Tramp forged aluminium stem, 3°
HeadsetSeido Pro IS sealed integrated headset, 1.1/2'' - 1.1/8''
LeversMicroshift Sword SB-G7000 dual control lever mechanic
ShifterMicroshift Sword SB-G7000 dual control lever 2 x 10
BrakesTRP Spyre C mechanic disc brakes
RotorTRP 180 mm front and 160 mm rear rotor
CranksetMicroshift Sword 2x Wide forged aluminium crank, 24 mm spindle
BBSeido 86.5 mm T47 internal sealed BB for 24 mm spindle
Pedals-
ChainKMC X10 chain, 1/2'' x 11/128'', 114L
ChainringAluminium / Steel, 46 / 29 T
CassetteMicroshift CS-H105 10-speed, 11 - 38 T
Front derailleurMicroshift Sword FD-G7020-F
Rear derailleurMicroshift Sword RD-G7025L, clutch, long cage
Front hubSeido Arc sealed hub, 6-bolt disc
Rear hubSeido Arc sealed hub, 11-speed, 6-bolt disc
Through axle12 x 100 mm / 12 x 142 mm
Front rimSeido Magnon i25 heavy duty asymmetric, tubeless ready, 32h
Rear rimSeido Magnon i25 heavy duty asymmetric, tubeless ready, 32h

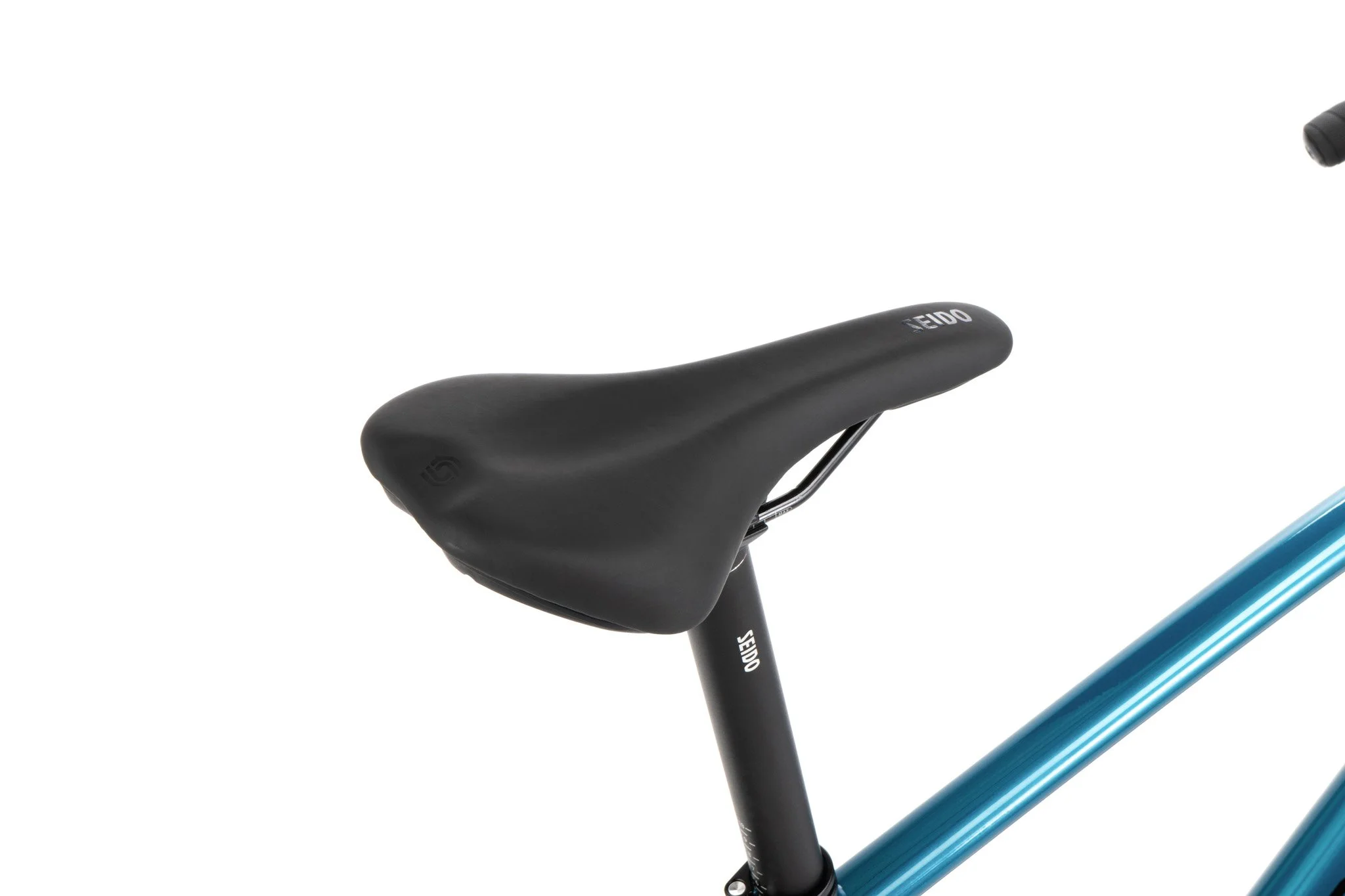

SaddleSeido Origin saddle
Seat postSeido Yew aluminium seatpost, 31.6 mm x 400 mm
Seat clampBombtrack Prime 34.9 mm
Front tireWTB Ranger Comp, S 27.5'' x 2.0'' /
M - XL 29'' x 2.0''
Rear tireWTB Ranger Comp, S 27.5'' x 2.0'' /
M - XL 29'' x 2.0''
Fender-
Rack-
Kickstand-
Light-
Weight12.2 kg (size M)
Weight frameset2145 g frame (size M, incl. TA, bolts, seatclamp, hanger) / 1000 g fork (300 mm steerer, incl. TA)
Maximum rider weight150 kg incl. luggage
ASTM riding condition2


Final product may vary in appearance, finish and minor details.

BUILD INFOS

ModelBEYOND AL SWORD
BB standardT47 - 86.5 mm shell width
Headset standard (S.H.I.S.)IS42 / 28.6 | IS52 / 40
Headset crown race angle45°
Fork steerer inner diameter24.6 mm
Fork max tire clearance w/o fender27.5'' x 2.25'' / 29'' x 2.1''
Frame max tire clearance w/o fenderS 27.5'' x 2.25'' / M - L 29'' x 2.25''
Maximum chainring clearance 1x36 T with 50 mm chainline
Maximum chainring clearance 2x40 / 28 T with 50 mm chainline
Seat post diameter31.8 mm
Seat clamp diameter34.9 mm
Front derailleur clamp diameter34.9 mm
Frame front derailleur compatibleyes
Brake mount frontPM 6''
Brake mount rearFM 140 / 160
Frame thickness rear brake mount20 mm
Maximum rotor clearance front203 mm
Maximum rotor clearance rear160 mm
Front through axle12 mm x 100 mm, 1.5 thread pitch
Rear through axle12 mm x 142 mm, 1.5 thread pitch
ISO testing standardMTB
CrankarmS - M 170 mm / L - XL 175 mm
Q Factor154 mm
BCD crank110 mm / 80 mm, asymmetric Shimano 4 bolts
Chainring offset0 mm
Chainline47 mm
Spoke length front wheeltba
Spoke length rear wheeltba
Spoke count (front / rear)32 / 32
ERDS 561 mm / M - XL 599 mm
Front hub PCD58 mm
Rear hub PCD58 mm
Front hub flange distance / offset56.5 mm center to center / 6.6 mm
Rear hub flange distance / offset51 mm center to center / 8.8 mm
Stem lengthS - M 50 mm / L - XL 80 mm
Stem angle3°
Headset spacersS - L 1 x 10 mm, 2 x 5 mm / XL 1 x 10 mm, 1 x 2 mm
Seat post offset0 mm
Seat post length400 mm
Bike trailerapproved
Seat tube mounted child seatnot approved
Derailleur hangerBT-DH-018
Frame small partsBT-CR-007
Hub end caps frontBT-HC-012
Hub end caps rearBT-HC-017
Cassette bodyBT-CB-006
Crankarm bolt-
Through axle frontBT-TA-F-603
Through axle rearBT-TA-R-601


GEOMETRY



FRAME GEOMETRY

ModelBEYOND AL SWORD
Bike SizeSMLXL
Wheel size27.5''29''29''29''
Seat Tube Length440480520560
Horizontal TT length546567597626
Seat Angle74°74°74°74°
Seat Angle effective
Head Angle70°70,5°70,5°70.5°
Headtube Length140160200230
BB Drop60747474
Chainstay Length420445445445
Fork Offset53535353
Trail70757575
Wheelbase Length1040107711091140
Standover775821859893
Reach382394413´434
Stack569604642670
Front Center627642674705
Axle to Crown420420420420
Minimum rider height ¹1600170017901880
Maximum rider height ¹1710181019001990


¹ Our bike size recommendation generally represents a rough guideline for quickly narrowing down the sizes from which to choose based on the body height. Bike fitting is a complex topic and other measurements and factors have to be accounted for as well. Since no two human bodys are exactly the same it is not possible to give a 100% correct advice for everyone. Therefore Bombtrack cannot guarantee for the stated recommendations to be correct for every individual customer. The best way to work out the correct size is to consult a local Bombtrack dealer or a professional bike fitter and have them determine the needed size.

HANDLEBAR GEOMETRY

ModelBEYOND AL SWORD
Bike SizeSMLXL
Handlebar typeDropbarDropbarDropbarDropbar
Width (drops)420440440440
Width (barends)530550550550
Reach77777777
Flare25°25°25°25°
Backsweep----
Drop128128128128
Upsweep----
Rise----
