BEYOND AL APEX

The Beyond AL is our lightweight hydro-formed aluminium Beyond. It features all our trademark Bombtrack ingredients, such as internal dynamo cable routing, a multitude of mounts on both the frame and on the aluminium fork, plus dropper post compatibility. Sram’s Apex 1 x 11 mechanical setup provides the shifting duties, while TRP callipers with 180 / 160 mm rotors control your momentum. Small bikes come with 27.5’’ wheels, M - XL bikes are fitted with 29’’ wheels and both wheelsets have tubeless-ready WTB i23 rims wrapped in all-condition Ranger 2.0’’ tyres allowing you to just get on with riding whatever the surface.

MATT METALLIC RED

HIGHLIGHTS

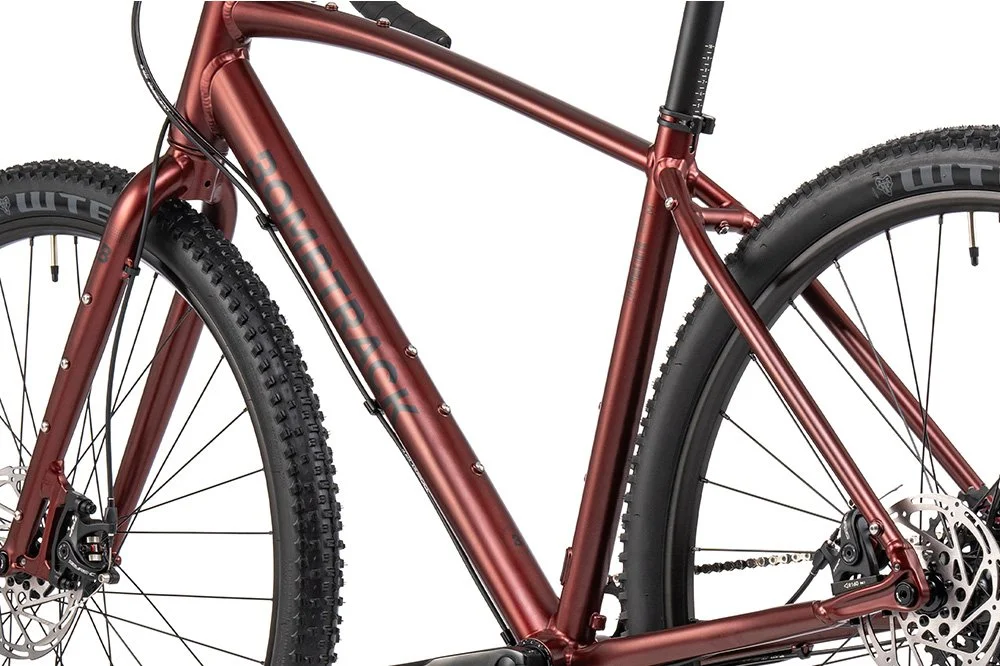

FRAME

Lightweight aluminium frame with T47 bottom bracket.

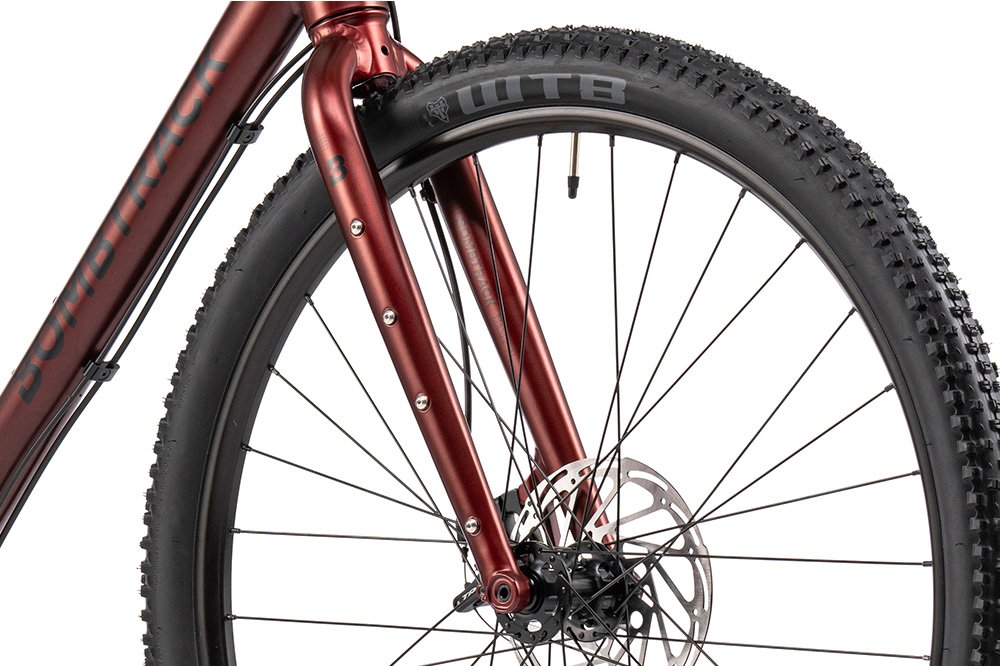

FORK

Fork with internal light cable routing and fender, rack and triple cage mounts.

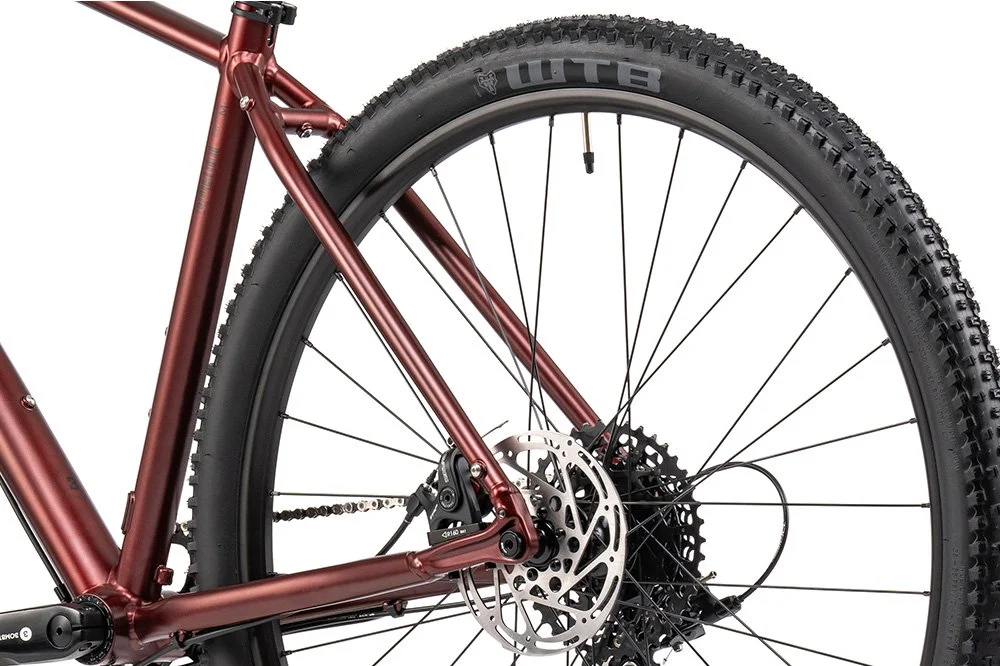

WHEELS

Size S with 27.5 wheels for proper fit without any compromises in geometry.

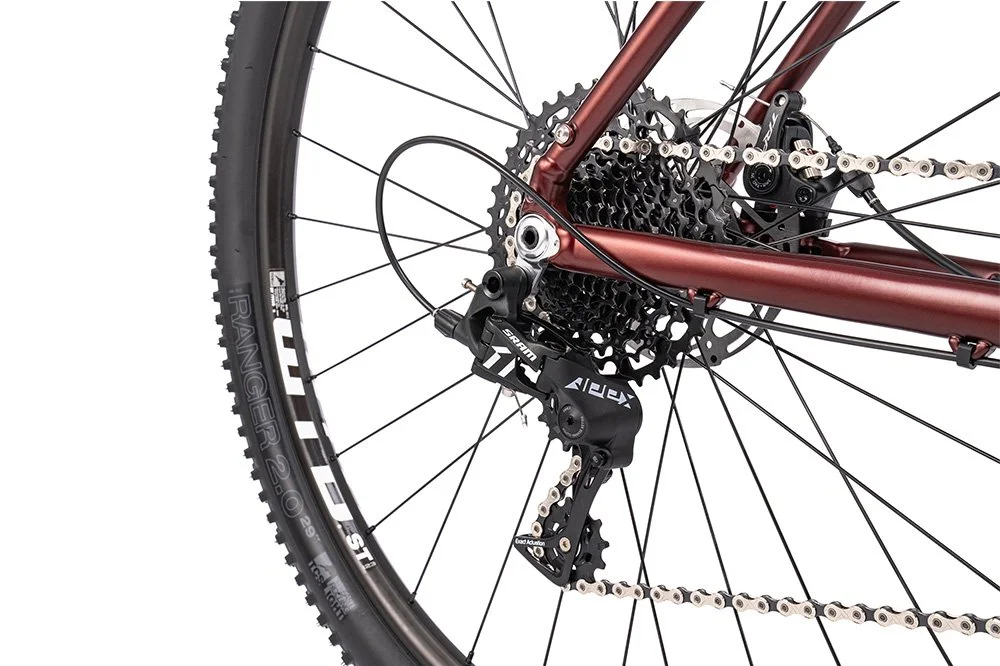

DRIVETRAIN

Sram Apex 1 x 11 groupset with TRP Spyre brakes and Jagwire KEB-SL compressionless cable housing.

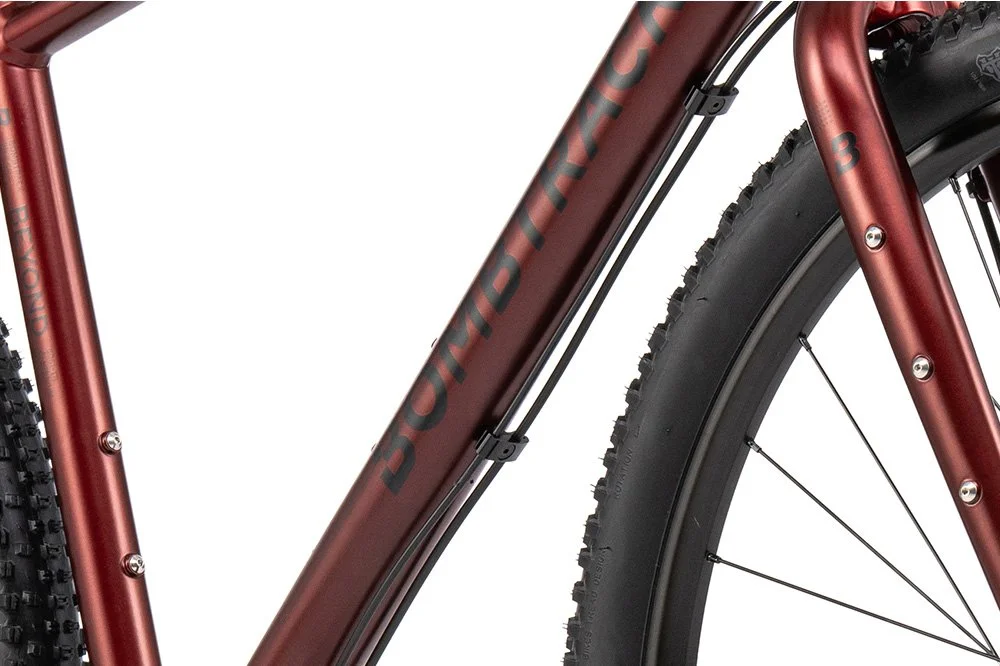

MOUNTS

Toptube bag mounts, triple mounts on downtube and seattube and bottle cage mounts underneath the downtube.

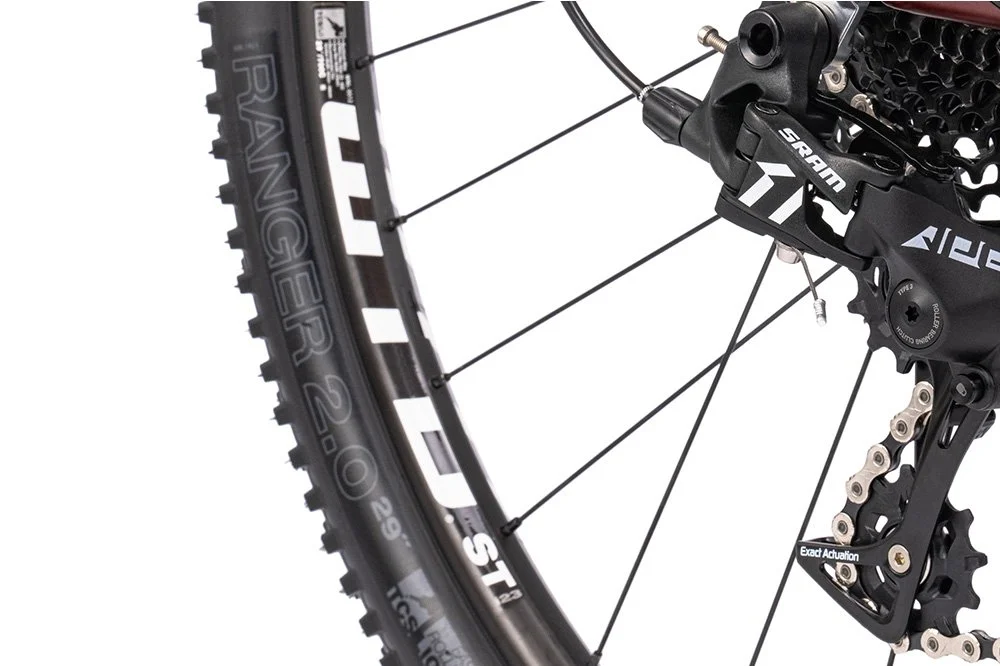

RIMS

Tubeless ready WTB ST i23 rims with tubeless ready WTB Ranger tires.

Item 1 of 6

"With a full range of mounts and braze-ons across its fork and frame, it's happy to accept either panniers or bikepacking bags."

SPECIFICATIONS
BUILD INFOS
GEOMETRY

Model	BEYOND AL APEX
Color 1	Matt metallic red
Color 2	-
Color 3	-
Frame	6061-T6 hydro-formed aluminium, TA, rack / fender mounts, stealth dropper ready, 86.5 mm T47 BB shell
Fork	6061 aluminium, TA, 1.1/2'' - 1.1/8'', fender / rack / triple cage mounts, internal hub dynamo cable routing
Handlebar	Bombtrack Tackle gravel bar, 31.8 mm, 25° flare
Grips	Bombtrack Command bar tape
Stem	Bombtrack Tramp forged aluminium stem, 3°
Headset	Sealed integrated aheadset, 1.1/2'' - 1.1/8''
Levers	Sram Apex double tap mechanic
Shifter	Sram Apex double tap 1 x 11
Brakes	TRP Spyre C mechanic disc brakes
Rotor	TRP 180 mm front and 160 mm rear rotor
Crankset	Bombtrack Ames forged aluminium crank, 24 mm spindle
BB	Bombtrack T47 internal sealed BB for 24 mm spindle
Pedals	-
Chain	KMC X11 chain, 1/2'' x 11/128'', 114L
Chainring	Steel, narrow-wide, 36 T
Cassette	Sram PG-1130 11-speed, 11 - 42 T
Front derailleur	-
Rear derailleur	Sram Apex 1, clutch, long cage
Front hub	Bombtrack Arc sealed hub, 6-bolt disc
Rear hub	Bombtrack Arc sealed hub, 11-speed, 6-bolt disc
Through axle	12 x 100 mm / 12 x 142 mm
Front rim	WTB ST i23 double wall, TCS 2.0, 32h
Rear rim	WTB ST i23 double wall, TCS 2.0, 32h
Saddle	Bombtrack Fuzz saddle
Seat post	Seido Yew aluminium seatpost, 31.6 mm x 400 mm
Seat clamp	Bombtrack Prime 34.9 mm
Front tire	WTB Ranger TCS Light / Fast Rolling, S 27.5'' x 2.0'' / M - XL 29'' x 2.0'', tubeless ready
Rear tire	WTB Ranger TCS Light / Fast Rolling, S 27.5'' x 2.0'' / M - XL 29'' x 2.0'', tubeless ready
Fender	-
Rack	-
Kickstand	-
Light	-
Weight	11.7 kg (size M)
Weight frameset	2145 g frame (size M, incl. TA, bolts, seatclamp, hanger) / 1000 g fork (300 mm steerer, incl. TA)
Maximum rider weight	140 kg incl. luggage
ASTM riding condition	2

Final product may vary in appearance, finish and minor details.

Model	BEYOND AL APEX
BB standard	T47 - 86.5 mm shell width
Headset standard (S.H.I.S.)	IS42 / 28.6 \| IS52 / 40
Headset crown race angle	45°
Fork steerer inner diameter	24.6 mm
Fork max tire clearance w/o fender	27.5'' x 2.25'' / 29'' x 2.1''
Frame max tire clearance w/o fender	S 27.5'' x 2.25'' / M - L 29'' x 2.25''
Maximum chainring clearance 1x	36 T with 50 mm chainline
Maximum chainring clearance 2x	40 / 28 T with 50 mm chainline
Seat post diameter	31.8 mm
Seat clamp diameter	34.9 mm
Front derailleur clamp diameter	34.9 mm
Frame front derailleur compatible	yes
Brake mount front	PM 6''
Brake mount rear	FM 140 / 160
Frame thickness rear brake mount	20 mm
Maximum rotor clearance front	203 mm
Maximum rotor clearance rear	160 mm
Front through axle	12 mm x 100 mm, 1.5 thread pitch
Rear through axle	12 mm x 142 mm, 1.5 thread pitch
ISO testing standard	MTB
Crankarm	S - M 170 mm / L 175 mm
Q Factor	179 mm
BCD crank	104 mm, 4 bolts
Chainring offset	0 mm
Chainline	50 mm
Spoke length front wheel	S 272 mm / M - XL 292 mm
Spoke length rear wheel	S 274 mm, 272 mm / M - XL 293 mm, 291 mm
Spoke count (front / rear)	32 / 32
ERD	S - S 570 mm / M - XL 606 mm
Front hub PCD	58 mm
Rear hub PCD	58 mm
Front hub flange distance / offset	56.5 mm center to center / 6.6 mm
Rear hub flange distance / offset	51 mm center to center / 8.8 mm
Stem length	S - M 50 mm / L - XL 80 mm
Stem angle	3°
Headset spacers	S - L 1 x 10 mm, 2 x 5 mm / XL 1 x 10 mm, 1 x 2 mm
Seat post offset	0 mm
Seat post length	400 mm
Bike trailer	approved
Seat tube mounted child seat	not approved
Derailleur hanger	BT-DH-018
Frame small parts	BT-CR-007
Hub end caps front	BT-HC-012
Hub end caps rear	BT-HC-017
Cassette body	BT-CB-006
Crankarm bolt	BT-CRP-001
Through axle front	BT-TA-F-603
Through axle rear	BT-TA-R-601

FRAME GEOMETRY

Model	BEYOND AL APEX
Bike Size	S	M	L	XL
Wheel size	27.5''	29''	29''	29''
Seat Tube Length	440	480	520	560
Horizontal TT length	546	567	597	626
Seat Angle	74°	74°	74°	74°
Head Angle	70°	70,5°	70,5°	70.5°
Headtube Length	140	160	200	230
BB Drop	60	74	74	74
Chainstay Length	420	445	445	445
Fork Offset	53	53	53	53
Trail	70	75	75	75
Wheelbase Length	1040	1077	1109	1140
Standover	775	821	859	893
Reach	382	394	413	´434
Stack	569	604	642	670
Front Center	627	642	674	705
Axle to Crown	420	420	420	420
Minimum rider height ¹	1600	1700	1790	1880
Maximum rider height ¹	1710	1810	1900	1990

¹ Our bike size recommendation generally represents a rough guideline for quickly narrowing down the sizes from which to choose based on the body height. Bike fitting is a complex topic and other measurements and factors have to be accounted for as well. Since no two human bodys are exactly the same it is not possible to give a 100% correct advice for everyone. Therefore Bombtrack cannot guarantee for the stated recommendations to be correct for every individual customer. The best way to work out the correct size is to consult a local Bombtrack dealer or a professional bike fitter and have them determine the needed size.

HANDLEBAR GEOMETRY

Model	BEYOND AL APEX
Bike Size	S	M	L	XL
Handlebar type	Dropbar	Dropbar	Dropbar	Dropbar
Width (drops)	420	440	440	440
Width (barends)	530	550	550	550
Reach	77	77	77	77
Flare	25°	25°	25°	25°
Backsweep	-	-	-	-
Drop	128	128	128	128
Upsweep	-	-	-	-
Rise	-	-	-	-
