ARISE SG RIVAL

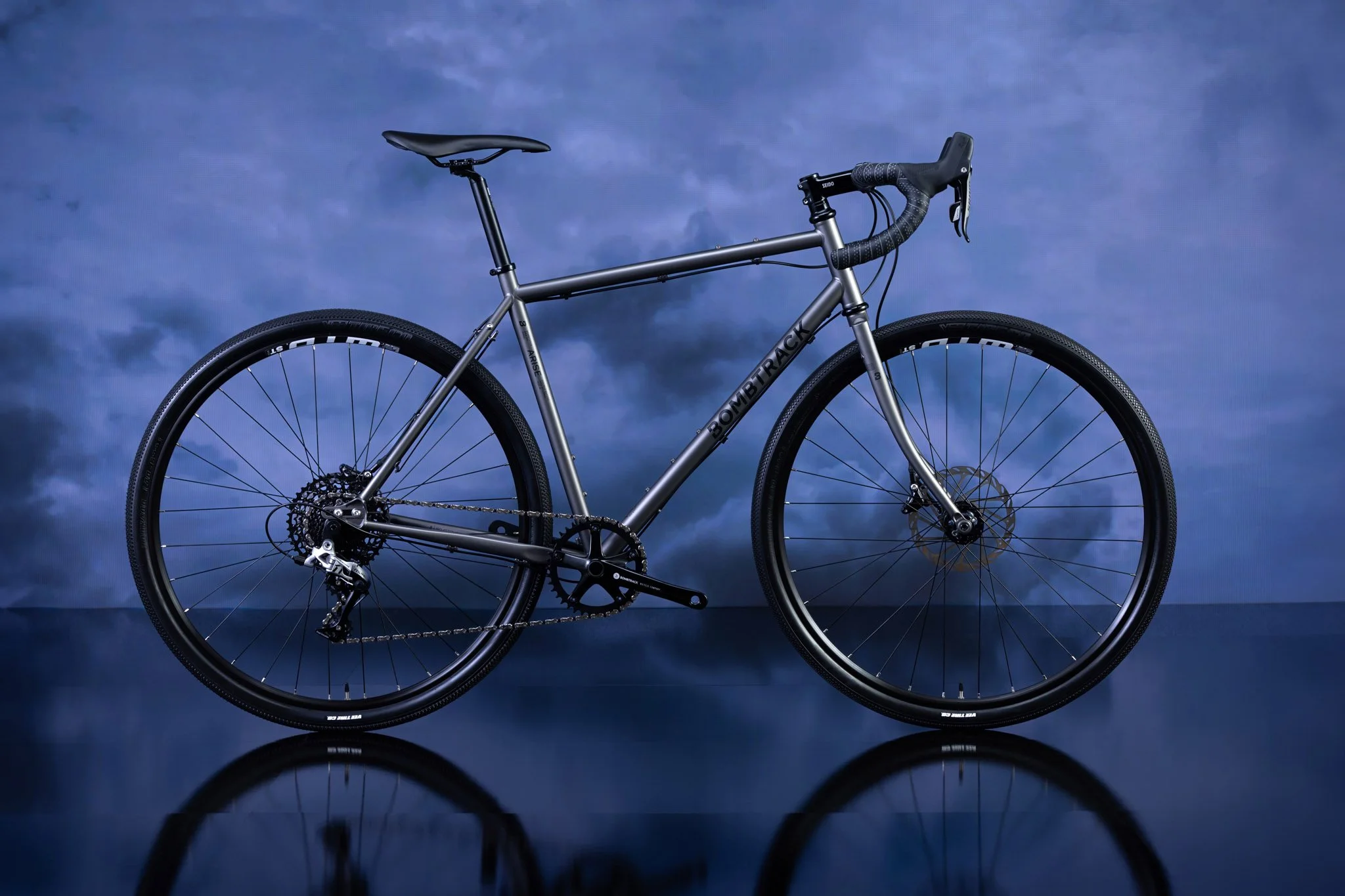

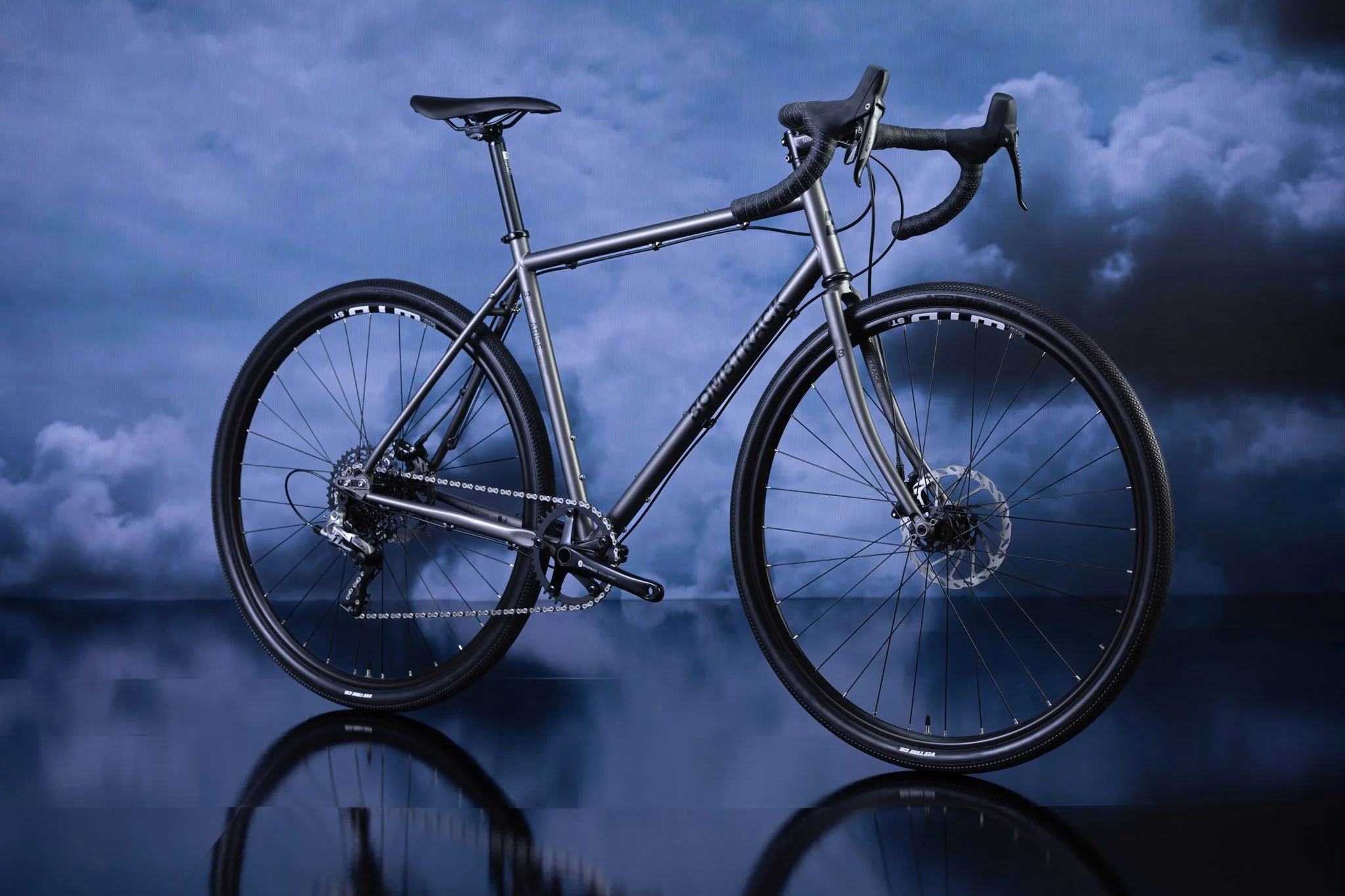

The Arise SG Rival is a versatile allroad bike built for riders who demand performance, comfort, and reliability - on pavement or beyond. Its double-butted chromoly frame is paired with a classic brazed steel fork, featuring flat mount brake compatibility and thru-axle dropouts for added stiffness and precise handling. Internal routing for lighting cables keeps the setup clean and adventure-ready. Sizes XS and S roll on 650B wheels, ensuring a proper fit and consistent geometry across the range. The bike is equipped with a SRAM Rival 1x11 hydraulic groupset, offering powerful braking and smooth, reliable shifting. A clutched Rival rear derailleur paired with an 11–42T cassette provides a wide gear range for steep climbs and loaded rides. Tubeless-ready WTB ST rims complete this capable, no-nonsense allroad machine.
MATT VOLCANIC GREY
HIGHLIGHTS
-
![]()

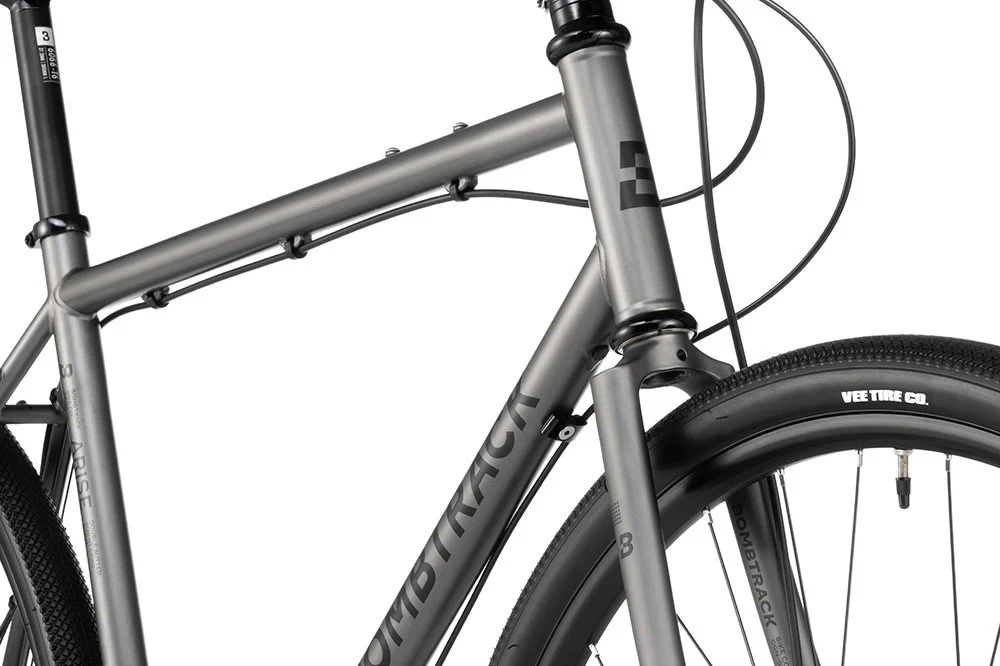

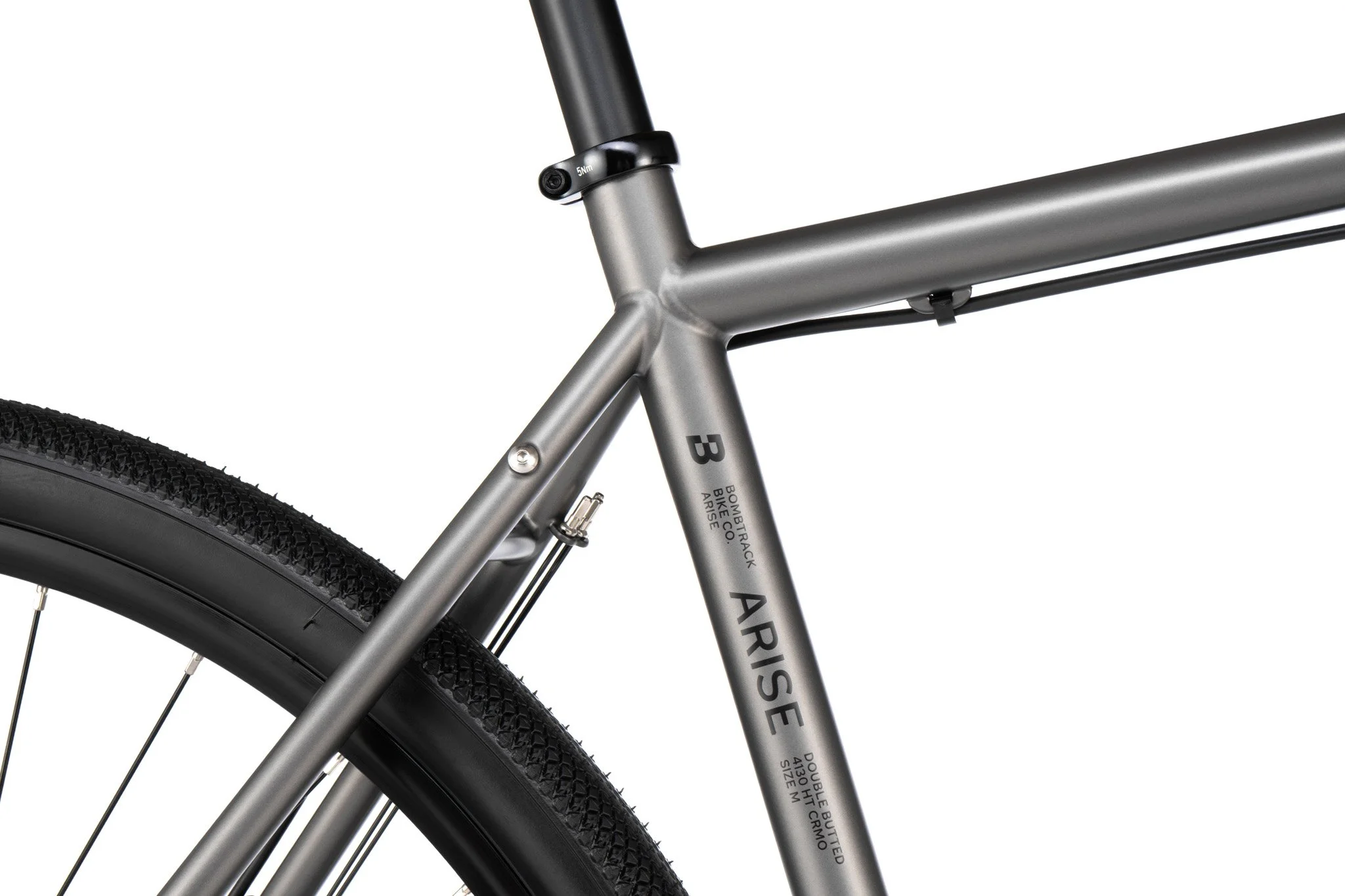

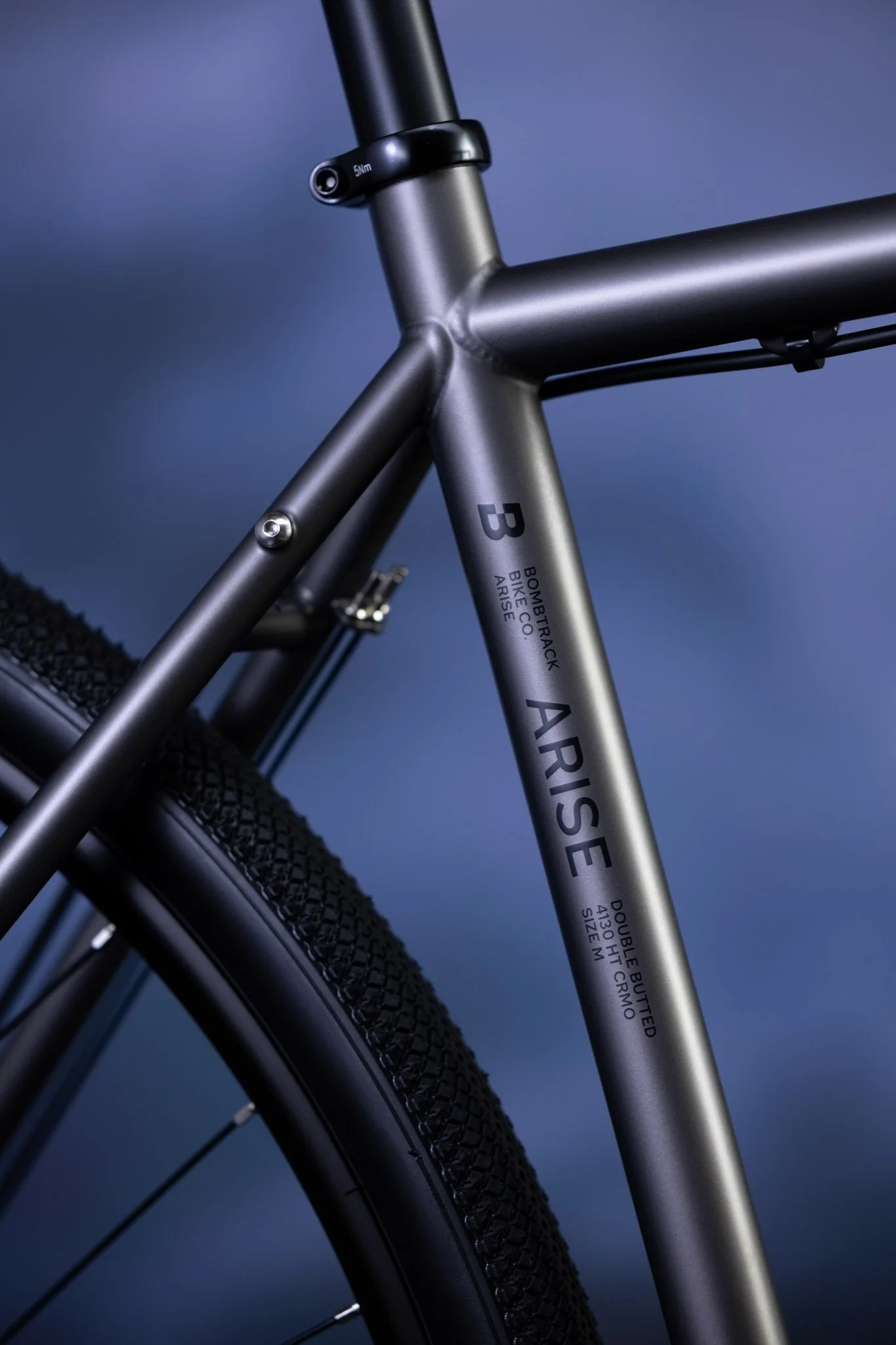

FRAME
Double butted crmo frame and fork with internal light cable routing.
-
![]()

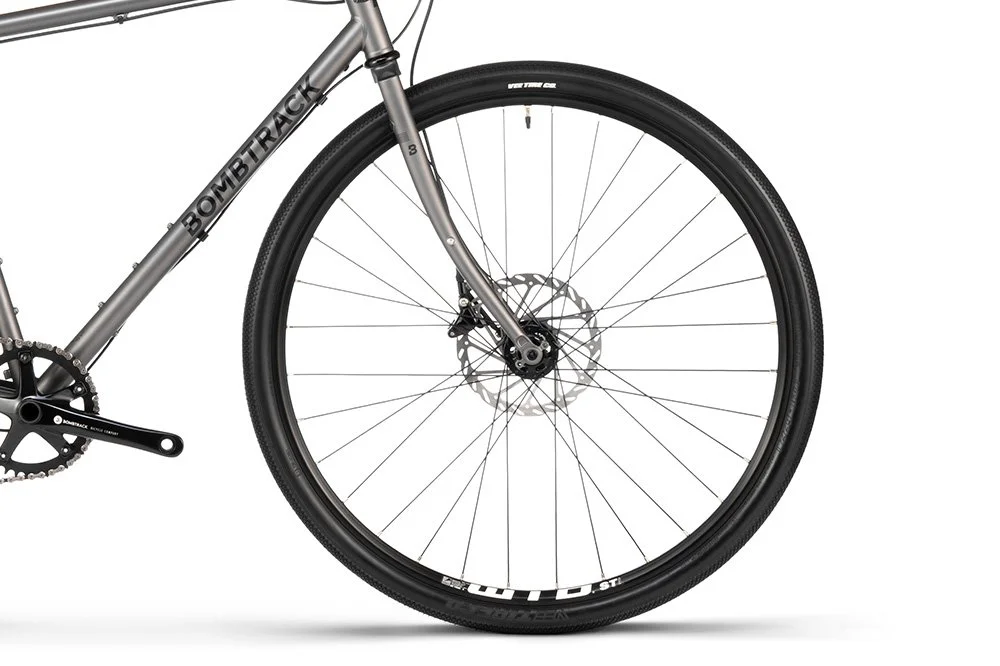

WHEELS
XS and S with 650B wheels for proper fit without any compromises in geometry.
-
![]()

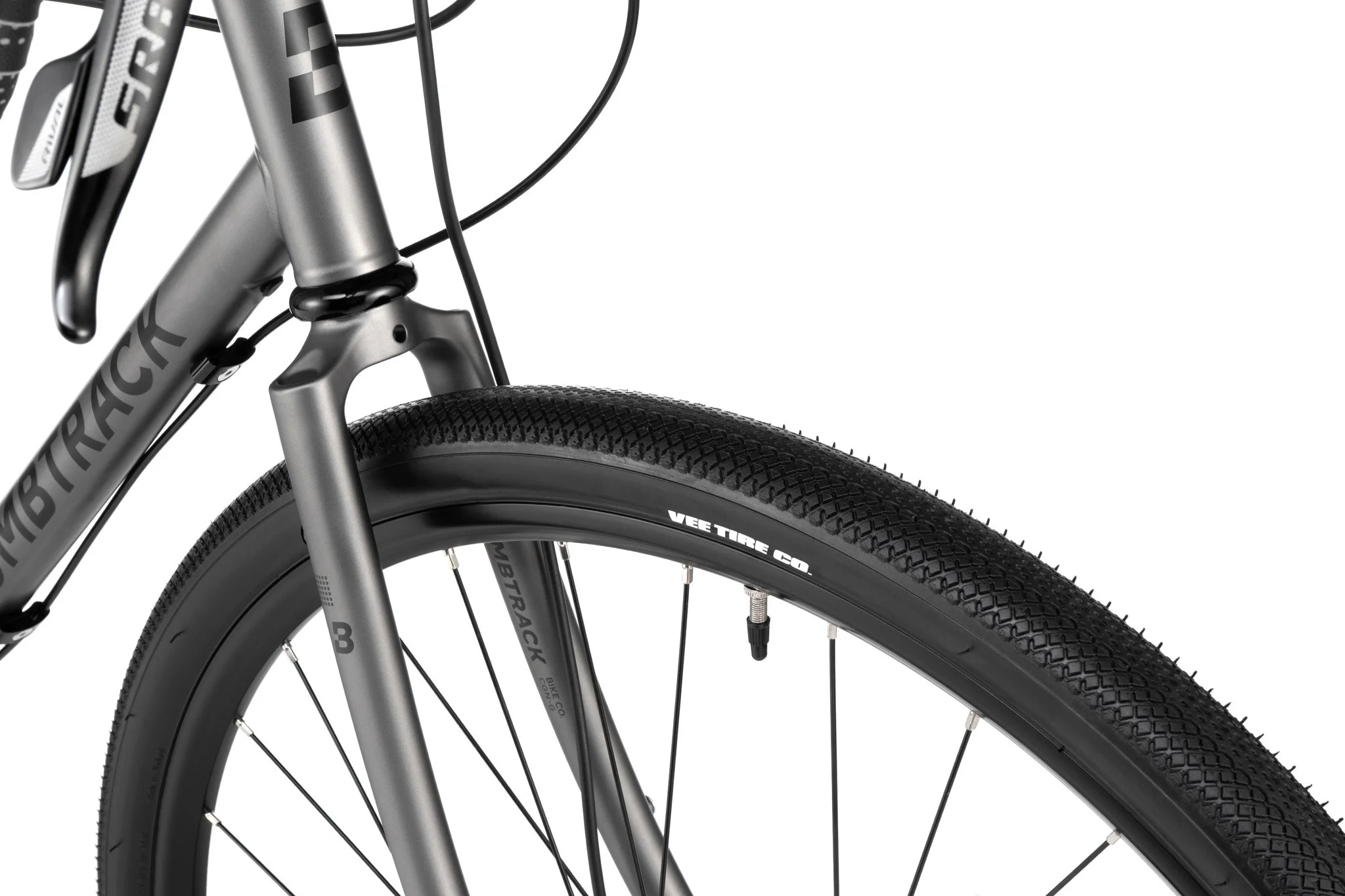

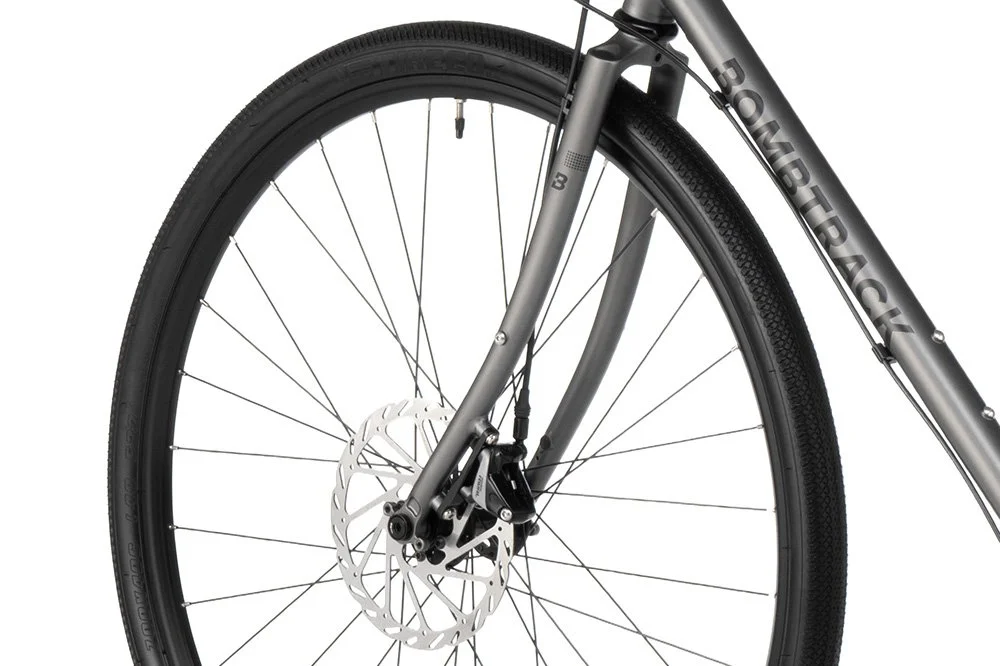

FORK

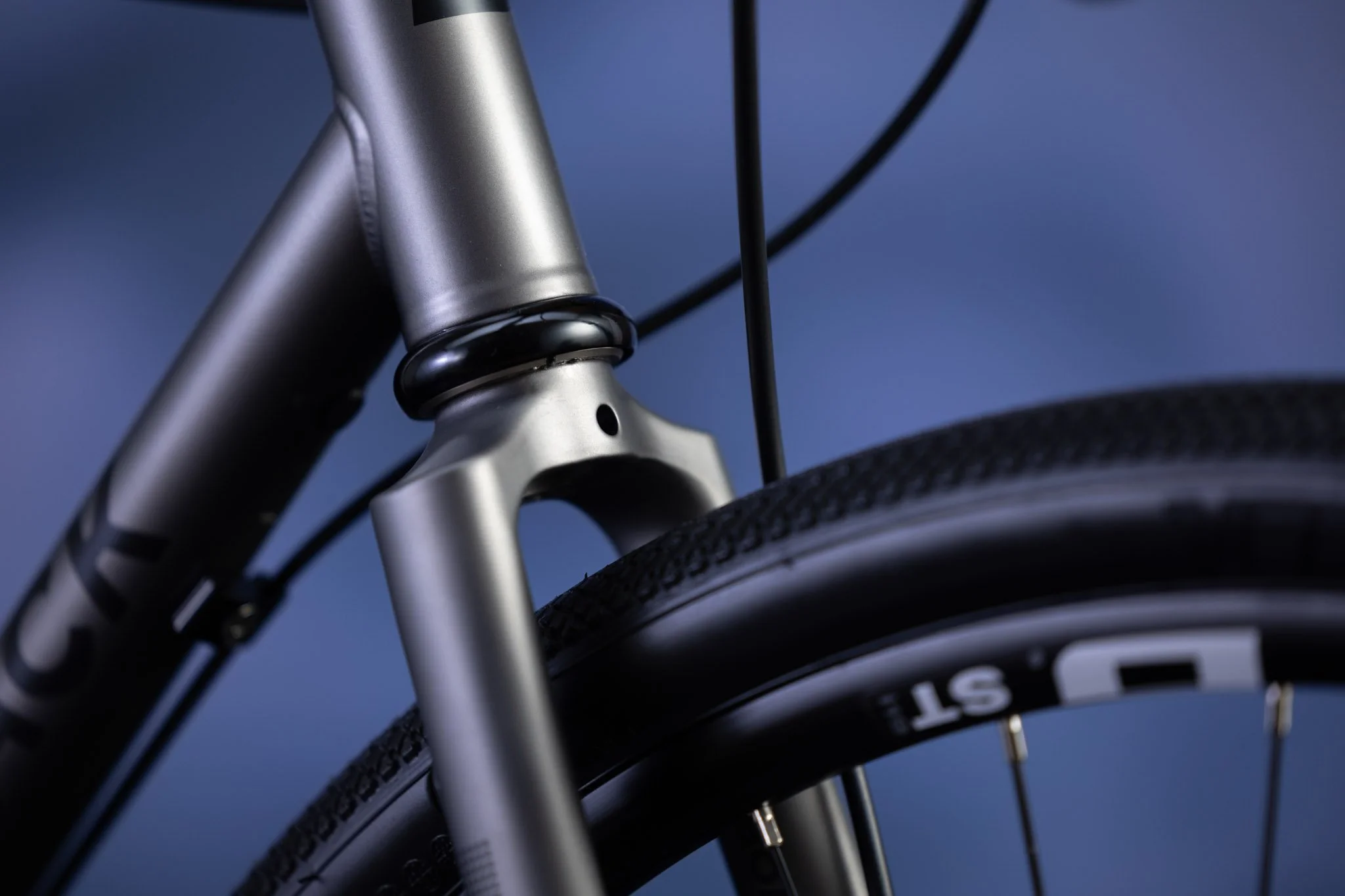

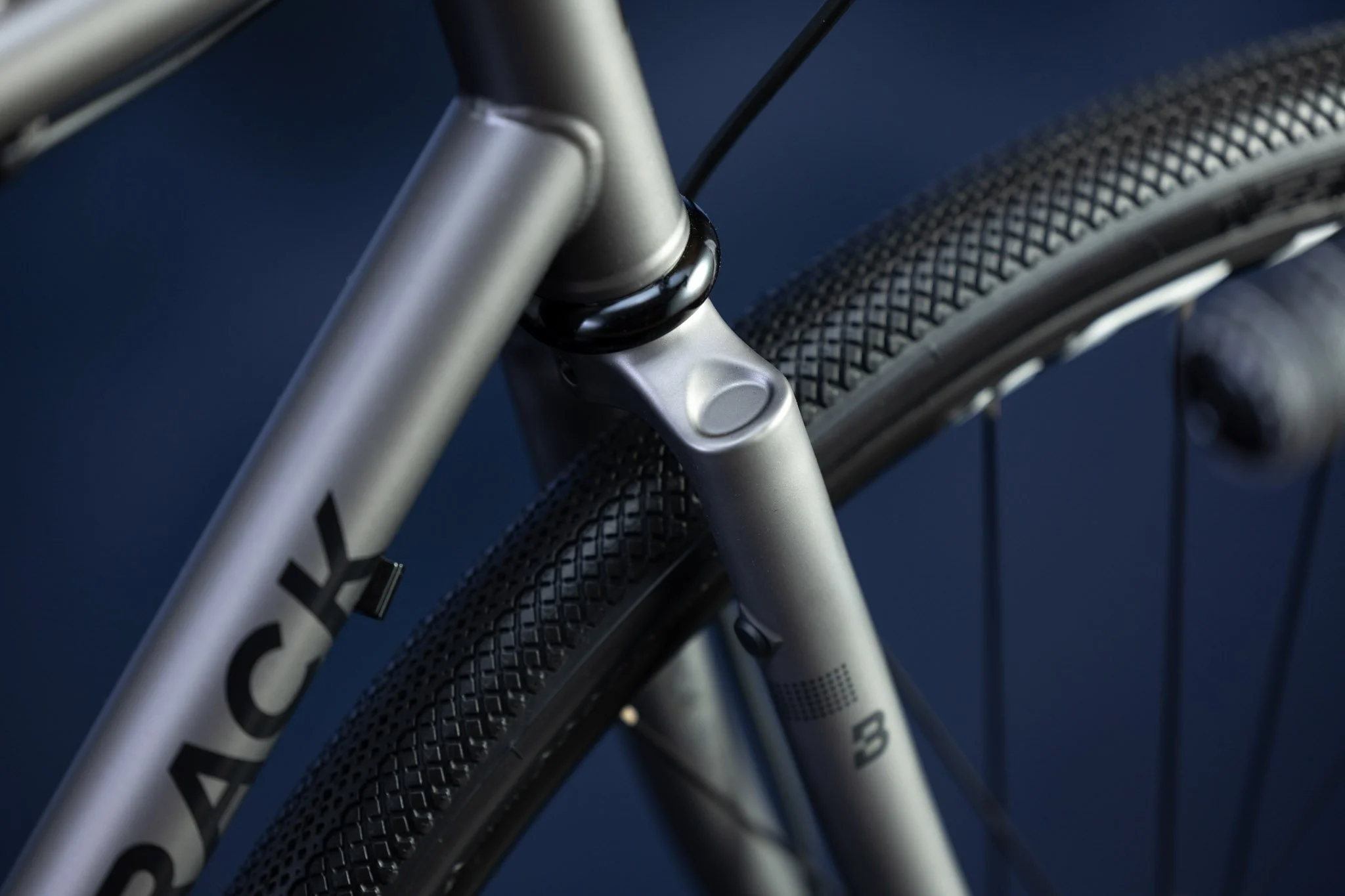

Slender brazed steel fork with FM brake mount and throughh axle dropouts.
-
![]()

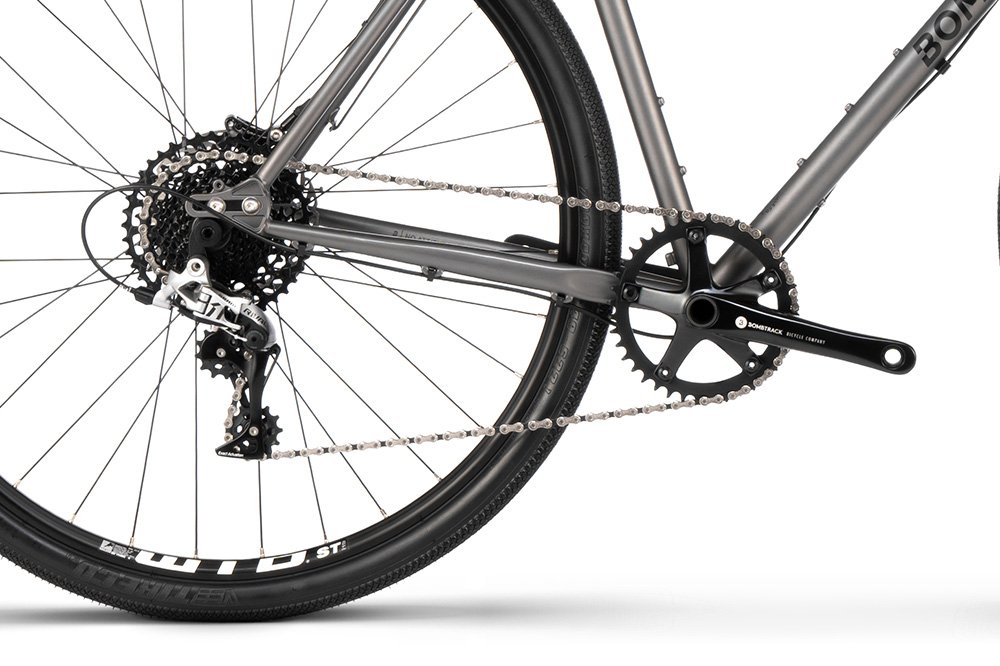

DRIVETRAIN
Hydraulic Sram Rival 1 x 11 groupset and brakes.
-
![]()

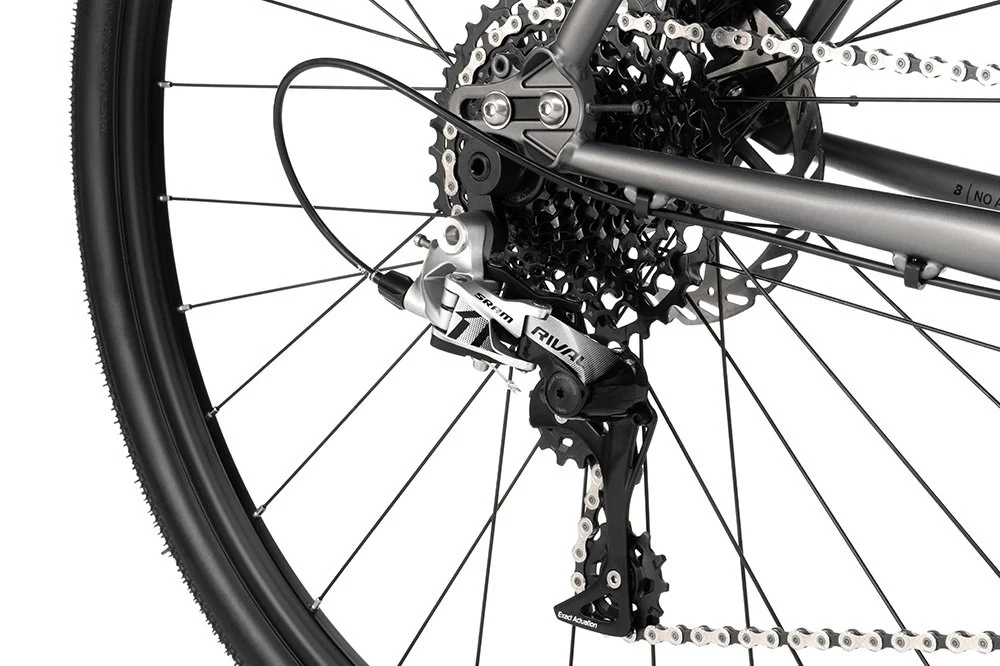

DERAILLEUR
Sram Rival clutched rear derailleur with wide range 11-speed 11 – 42 T cassette.
-
![]()

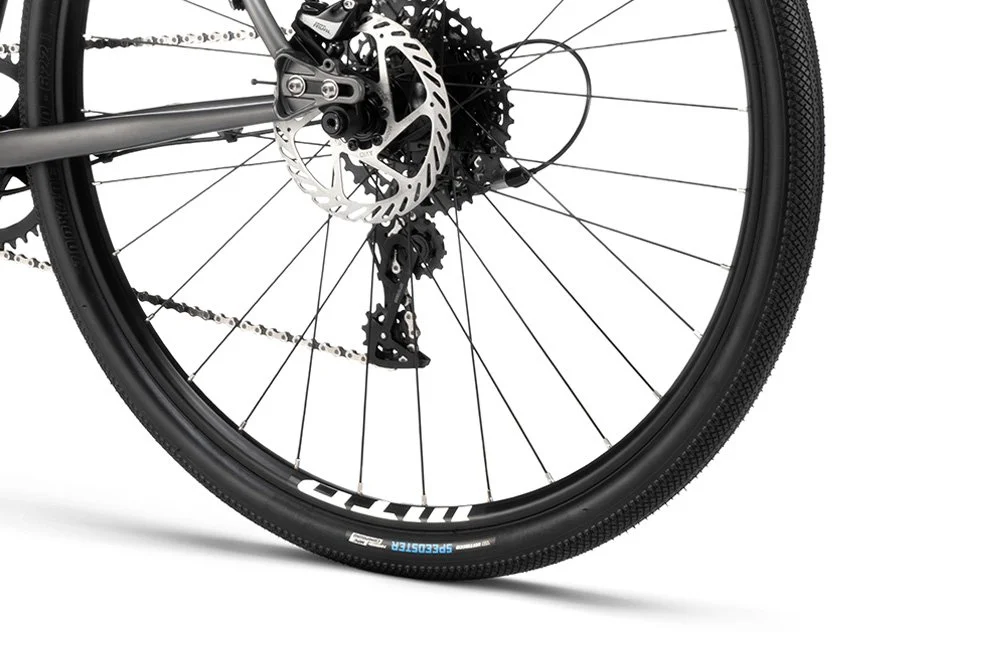

RIMS
WTB ST tubeless ready rims.
"The Rival drivetrain gives this Arise model the edge, and amplifiies its multisurface spirit"
SPECIFICATIONS
| Model | ARISE SG RIVAL |
|---|---|
| Color 1 | Matt metallic volcanic grey |
| Color 2 | - |
| Color 3 | - |

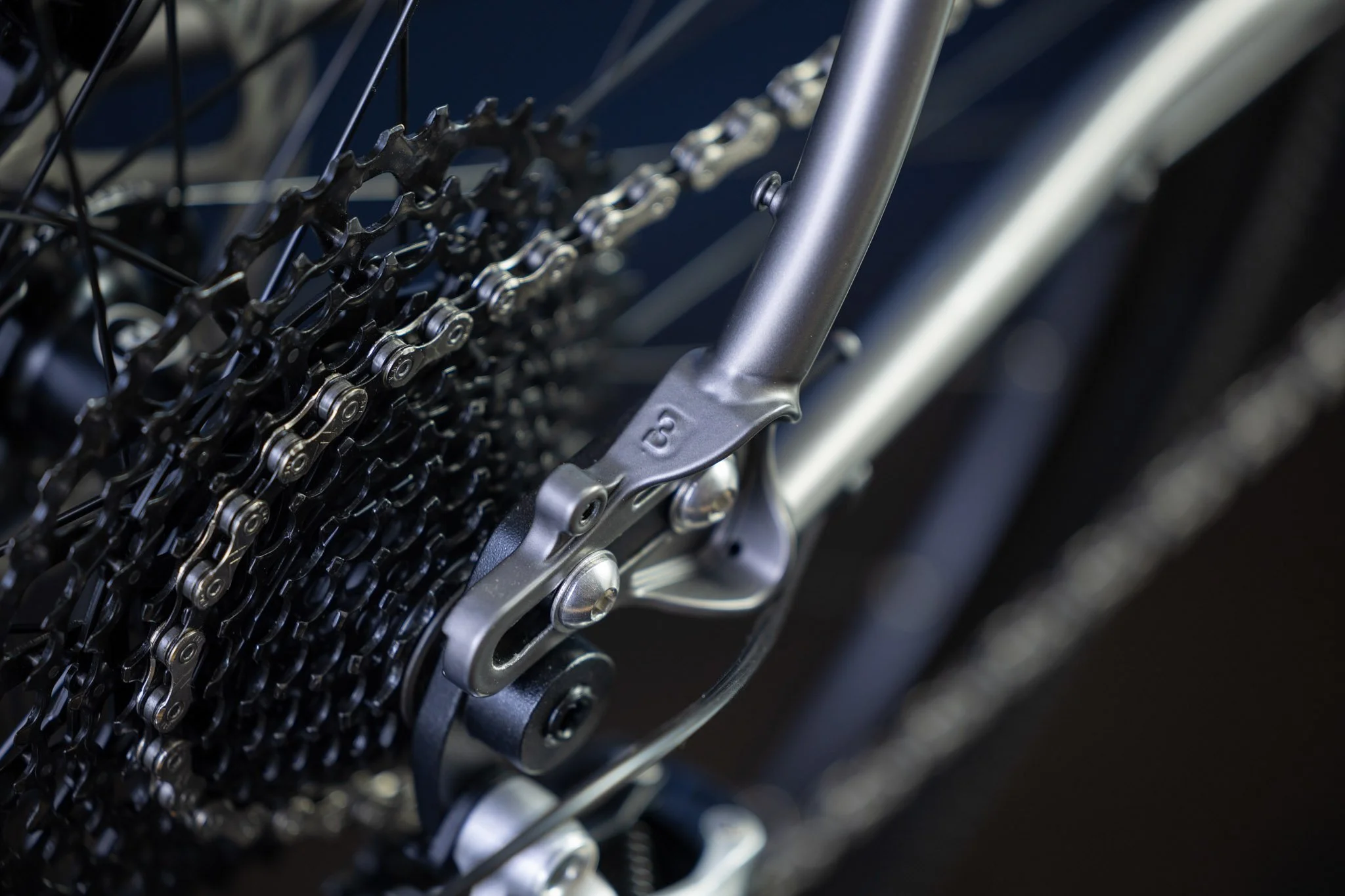

| Frame | 4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, 68 mm BSA BB shell |
| Fork | 4130 crmo, TA, rack / fender mounts, internal hub dynamo cable routing |
| Handlebar | Bombtrack CX-10 drop bar, 31.8 mm, 10° flare |
| Grips | Bombtrack Escape bar tape |
| Stem | Seido Meander forged aluminium stem, -6° |
| Headset | Neco H282 sealed external aheadset, 1.1/8'' |
| Levers | Sram Rival 1 double tap hydraulic |
| Shifter | Sram Rival 1 double tap 1 x 11 |

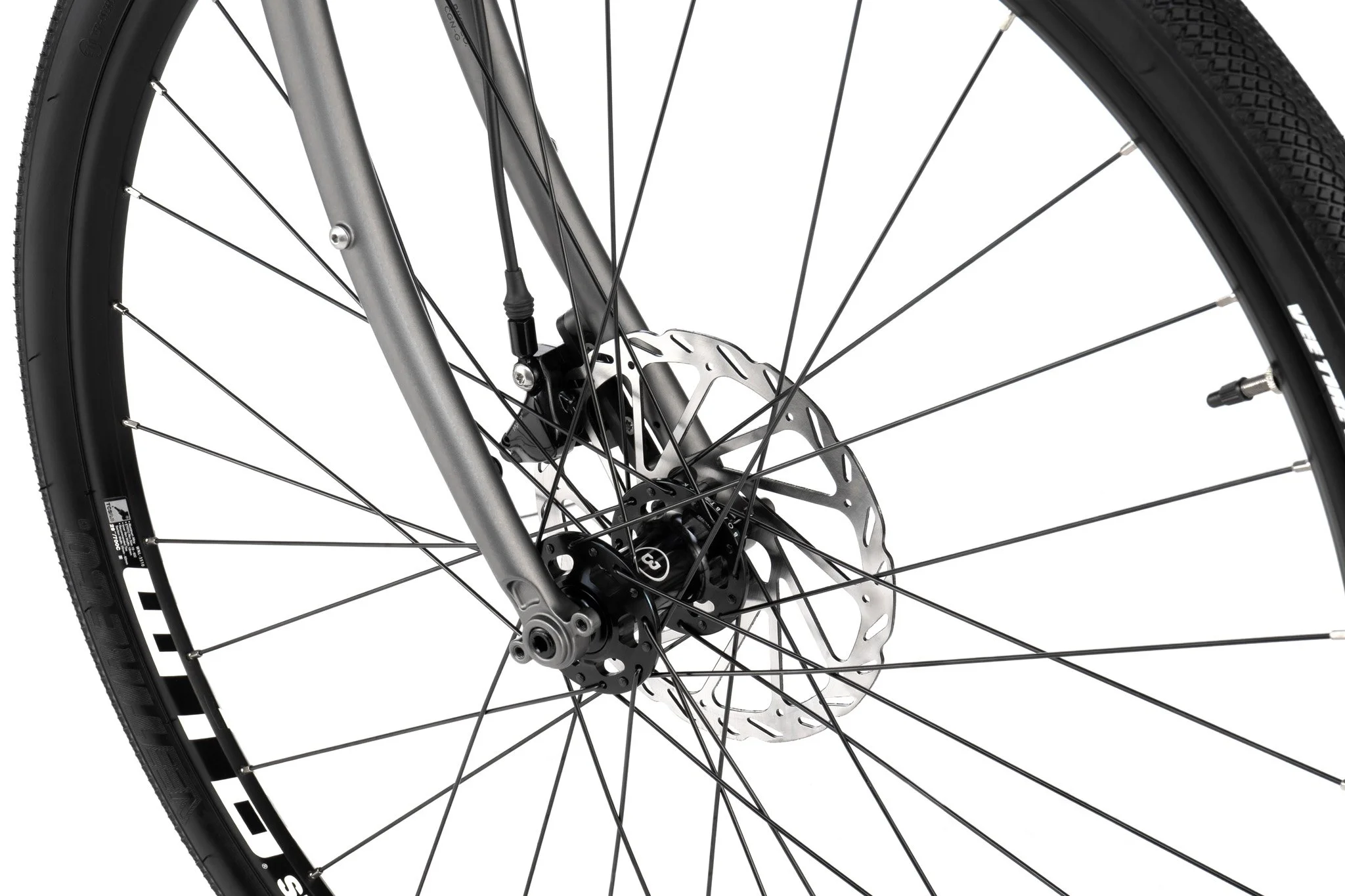

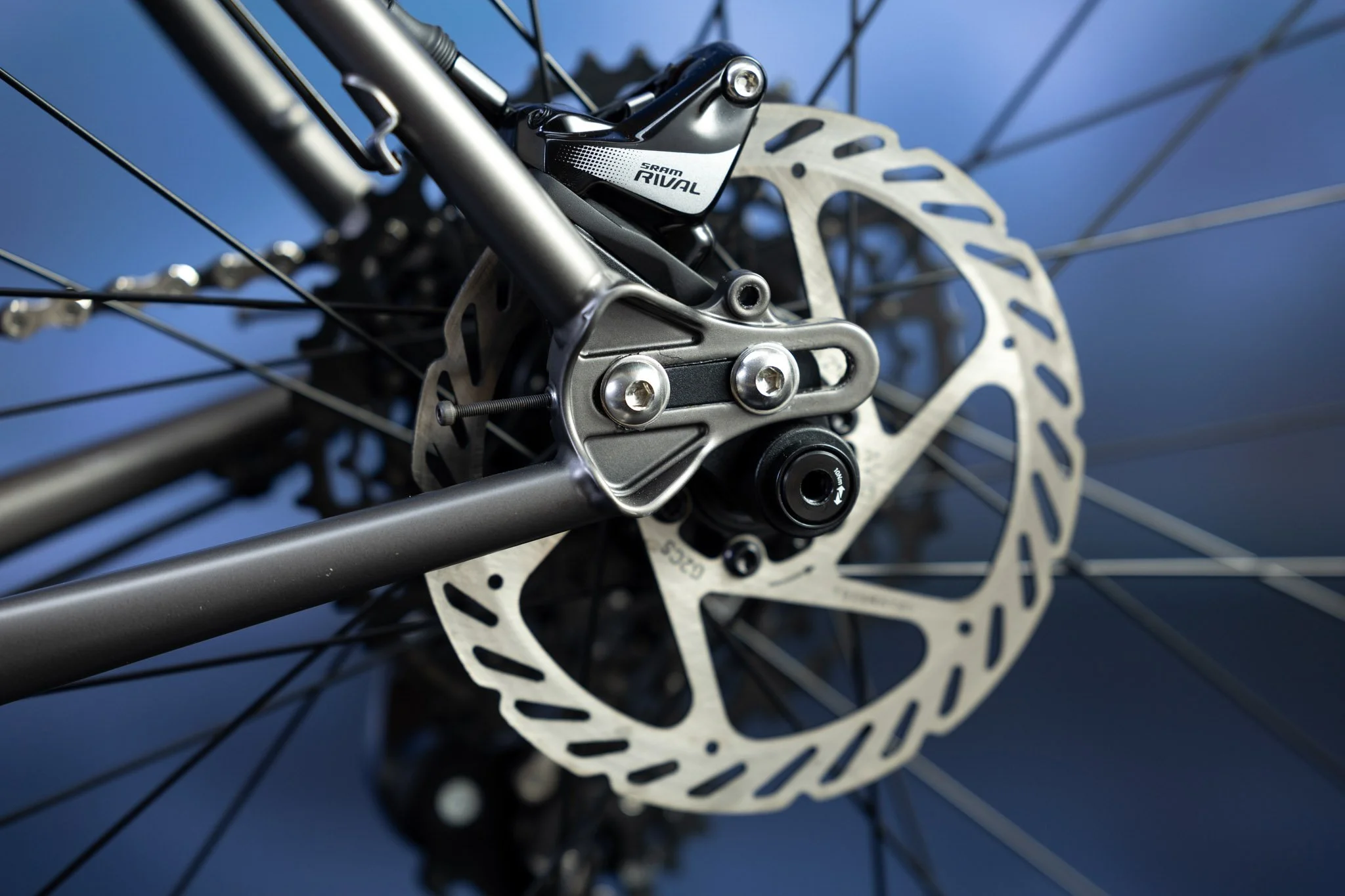

| Brakes | Sram Rival flat mount hydraulic disc brakes |
| Rotor | Sram G2 Cleansweep 180 mm front and 160 mm rear rotor |

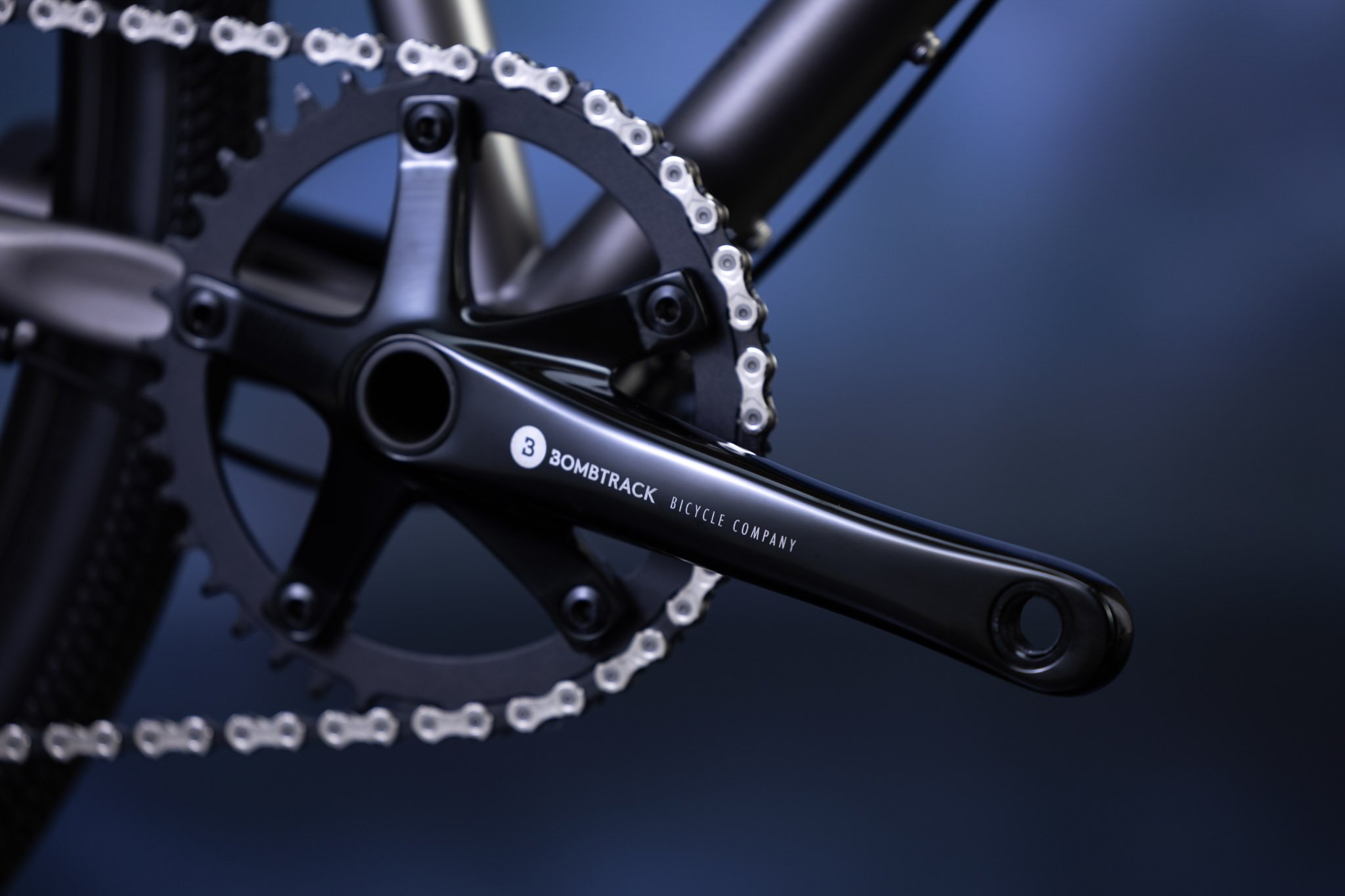

| Crankset | Bombtrack TAF19 aluminium crank, 24 mm spindle |
| BB | BSA sealed BB, external cups |
| Pedals | - |
| Chain | KMC X11 chain, 1/2'' x 11/128'', 114L |
| Chainring | Bombtrack Ridge aluminium chainring, narrow-wide, 40 T |
| Cassette | Sram PG-1130 11-speed, 11 - 42 T |
| Front derailleur | - |
| Rear derailleur | Sram Rival 1, clutch, long cage |
| Front hub | Bombtrack Arc sealed hub, 6-bolt disc |
| Rear hub | Bombtrack Arc sealed hub, 11-speed, 6-bolt disc |
| Through axle | 12 x 100 mm / 12 x 142 mm |
| Front rim | WTB ST i19 double wall, TCS 2.0, 32h |
| Rear rim | WTB ST i19 double wall, TCS 2.0, 32h |
| Saddle | Bombtrack Dart saddle |
| Seat post | Bombtrack Beech 27.2 mm x 300 mm |
| Seat clamp | Bombtrack Origin 29.8 mm |
| Front tire | XS - S Vee Tire Speedster 650B x 38C / M - XL Vee Tire Speedster 700C x 40C |
| Rear tire | XS - S Vee Tire Speedster 650B x 38C / M - XL Vee Tire Speedster 700C x 40C |
| Fender | - |
| Rack | - |
| Kickstand | - |
| Light | - |
| Weight | TBA |
| Weight frameset | TBA |
| Maximum rider weight | 120 kg incl. luggage |
| ASTM riding condition | 2 |
Final product may vary in appearance, finish and minor details.
BUILD INFOS
| Model | ARISE SG RIVAL |
|---|---|
| BB standard | BSA - 68 mm shell width |
| Headset standard (S.H.I.S.) | EC34 / 28.6 | EC34 / 30 |
| Headset crown race angle | 45° |
| Fork steerer inner diameter | 25.4 mm |
| Fork max tire clearance w/o fender | XS - S 650B x 42C / M - XL 700C x 42C |
| Frame max tire clearance w/o fender | XS - S 650B x 42C / M - XL 700C x 42C ¹ |
| Maximum chainring clearance 1x | 44 T with 45 mm chainline |
| Maximum chainring clearance 2x | 52 / 36 T with 45 mm chainline |
| Seat post diameter | 27.2 mm |
| Seat clamp diameter | 29.8 mm |
| Front derailleur clamp diameter | 28.6 mm |
| Frame front derailleur compatible | yes |
| Brake mount front | FM 160 / 180 |
| Brake mount rear | FM 140 / 160 |
| Frame thickness rear brake mount | 10 mm |
| Maximum rotor clearance front | 180 mm |
| Maximum rotor clearance rear | 160 mm |
| Front through axle | 12 mm x 100 mm, 1.5 thread pitch |
| Rear through axle | 12 mm x 142 mm, 1.5 thread pitch |
| ISO testing standard | Road |
| Crankarm | XS 165 mm / S - M 170 mm / L - XL 175 mm |
| Q Factor | 170 mm |
| BCD crank | 130 mm, 5 bolts |
| Chainring offset | 0 mm |
| Chainline | 45 mm |
| Spoke length front wheel | XS - S 273 mm, 275 mm / M - XL 292 mm, 293 mm |
| Spoke length rear wheel | XS - S 272 mm, 274 mm / M - XL 291 mm, 293 mm |
| Spoke count (front / rear) | 32 / 32 |
| ERD | XS - S 570 mm / M - XL 604 mm |
| Front hub PCD | 58 mm |
| Rear hub PCD | 58 mm |
| Front hub flange distance / offset | 56.5 mm center to center / 6.6 mm |
| Rear hub flange distance / offset | 51 mm center to center / 8.8 mm |
| Stem length | XS - S 80 mm / M 90 mm / L - XL 100 mm |
| Stem angle | -6° |
| Headset spacers | 1 x 10 mm, 2 x 5 mm |
| Seat post offset | 24 mm |
| Seat post length | 300 mm |
| Bike trailer | approved |
| Seat tube mounted child seat | approved |
| Derailleur hanger | BT-DH-025 |
| Frame small parts | BT-CR-007 |
| Hub end caps front | BT-HC-012 |
| Hub end caps rear | BT-HC-017 |
| Cassette body | BT-CB-006 |
| Crankarm bolt | BT-CRP-001 |
| Through axle front | BT-TA-F-603 |
| Through axle rear | BT-TA-R-603 |
¹ Max tire clearance of 650B x 47C is possible, but depending on the tire and rim combination it might be necessary to move the sliding dropout to a rearwards position or accept tire clearance of less than 6 mm between tire and frame.
GEOMETRY
FRAME GEOMETRY
| Model | ARISE SG RIVAL | ||||
|---|---|---|---|---|---|
| Bike Size | XS | S | M | L | XL |
| Wheel size | 650B | 650B | 700C | 700C | 700C |
| Seat Tube Length | 460 | 490 | 520 | 550 | 580 |
| Horizontal TT length | 506 | 529 | 554 | 578 | 602 |
| Seat Angle | 73.5° | 73.5° | 73° | 73° | 73° |
| Head Angle | 70° | 70.5° | 70.5° | 71° | 71° |
| Headtube Length | 100 | 130 | 150 | 180 | 210 |
| BB Drop | 55 | 55 | 70 | 70 | 70 |
| Chainstay Length | 420 | 420 | 435 | 435 | 435 |
| Fork Offset | 55 | 55 | 55 | 55 | 55 |
| Trail | 64 | 60 | 68 | 65 | 65 |
| Wheelbase Length | 995 | 1016 | 1045 | 1065 | 1090 |
| Standover | 733 | 762 | 799 | 828 | 857 |
| Reach | 351 | 370 | 379 | 394 | 409 |
| Stack | 508 | 538 | 572 | 602 | 631 |
| Front Center | 582 | 602 | 619 | 639 | 664 |
| Axle to Crown | 390 | 390 | 390 | 390 | 390 |
| Minimum rider height ¹ | 1500 | 1600 | 1700 | 1790 | 1880 |
| Maximum rider height ¹ | 1610 | 1710 | 1810 | 1900 | 1990 |
¹ Our bike size recommendation generally represents a rough guideline for quickly narrowing down the sizes from which to choose based on the body height. Bike fitting is a complex topic and other measurements and factors have to be accounted for as well. Since no two human bodys are exactly the same it is not possible to give a 100% correct advice for everyone. Therefore Bombtrack cannot guarantee for the stated recommendations to be correct for every individual customer. The best way to work out the correct size is to consult a local Bombtrack dealer or a professional bike fitter and have them determine the needed size.

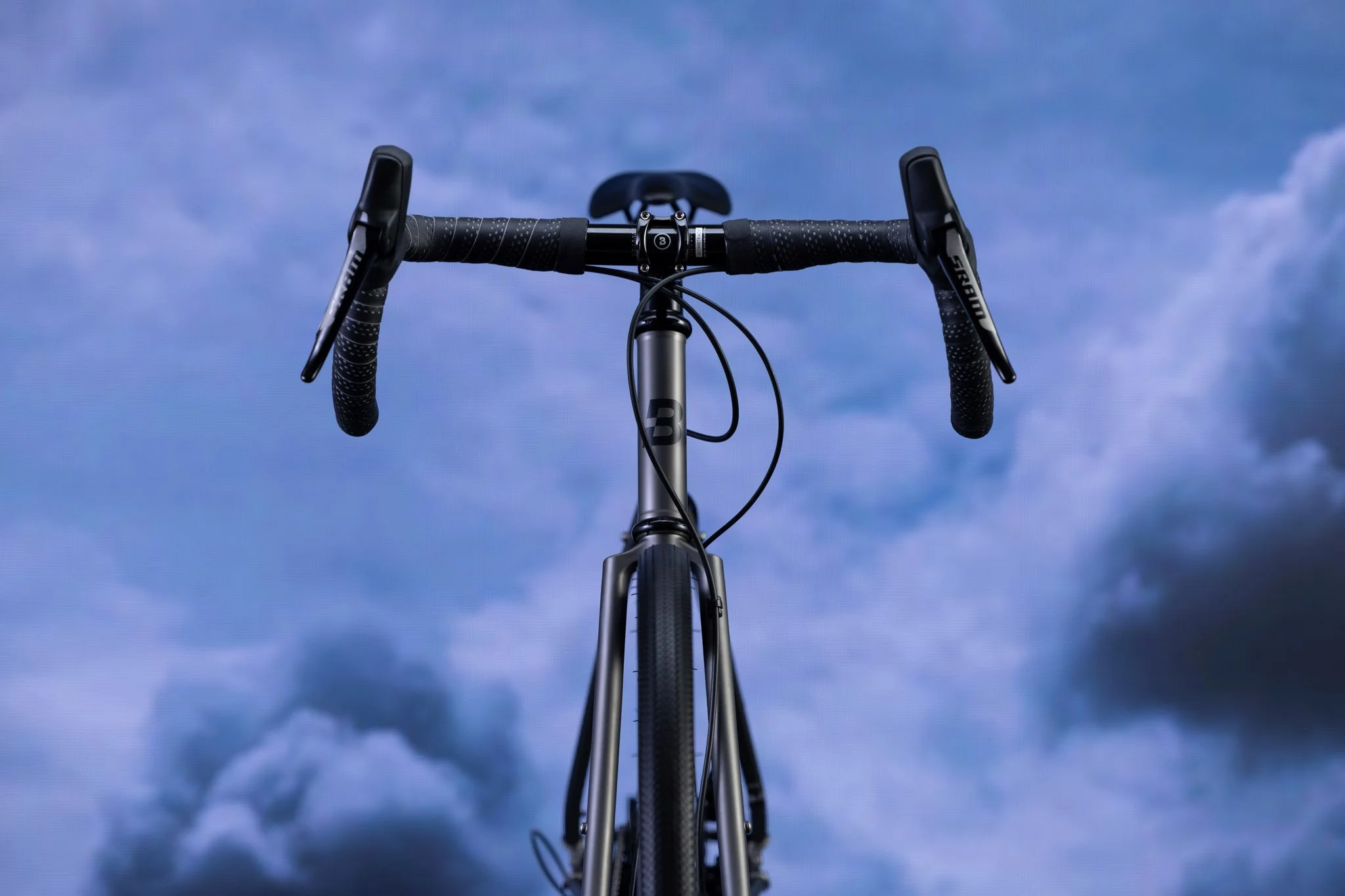

HANDLEBAR GEOMETRY
| Model | ARISE SG RIVAL | ||||
|---|---|---|---|---|---|
| Bike Size | XS | S | M | L | XL |
| Handlebar type | Dropbar | Dropbar | Dropbar | Dropbar | Dropbar |
| Width (drops) | 420 | 420 | 440 | 440 | 440 |
| Width (barends) | 466 | 466 | 486 | 486 | 486 |
| Reach | 75 | 75 | 75 | 75 | 75 |
| Flare | 10° | 10° | 10° | 10° | 10° |
| Backsweep | - | - | - | - | - |
| Drop | 116 | 116 | 116 | 116 | 116 |
| Upsweep | - | - | - | - | - |
| Rise | - | - | - | - | - |
