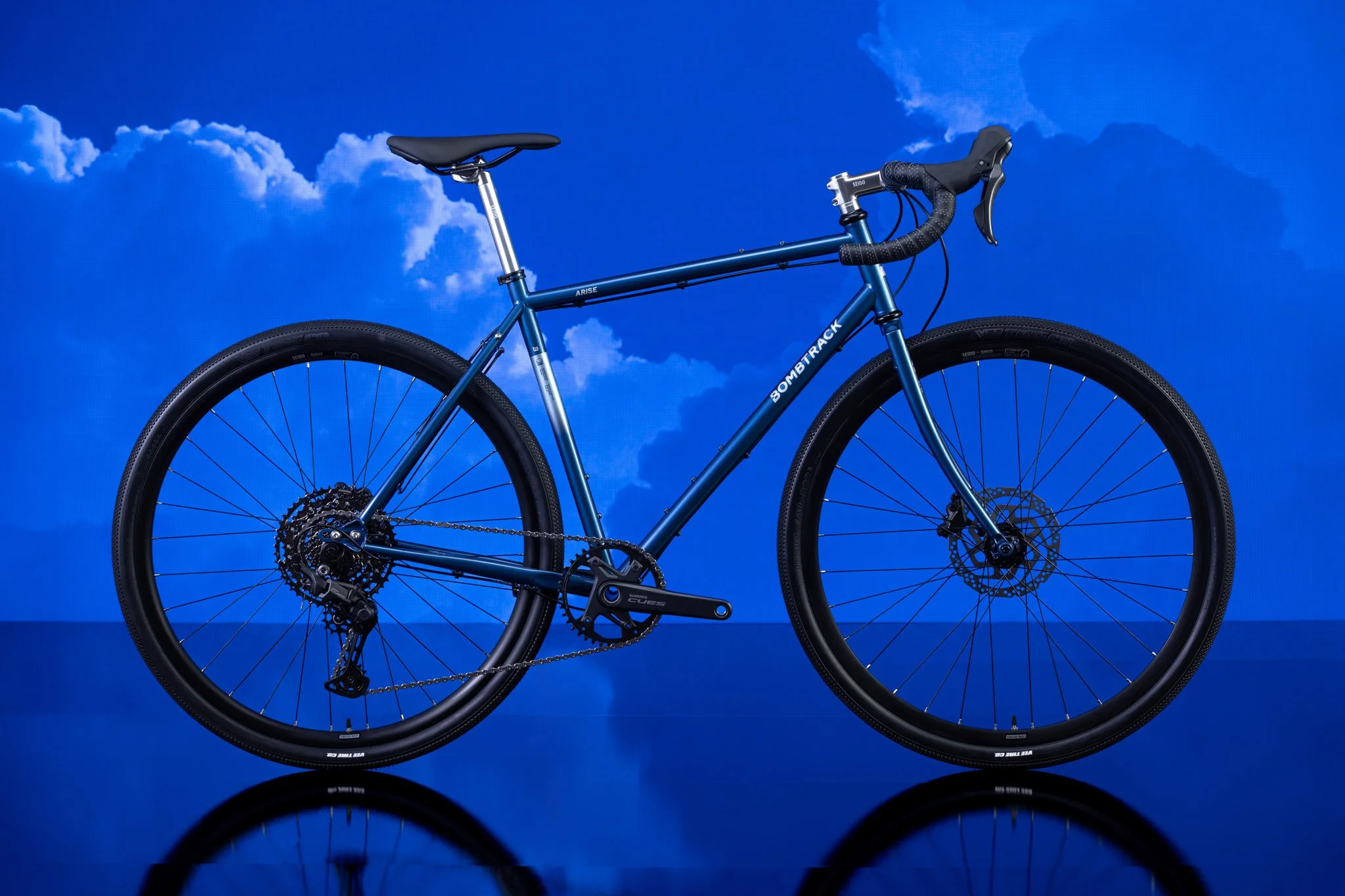

ARISE SG CUES

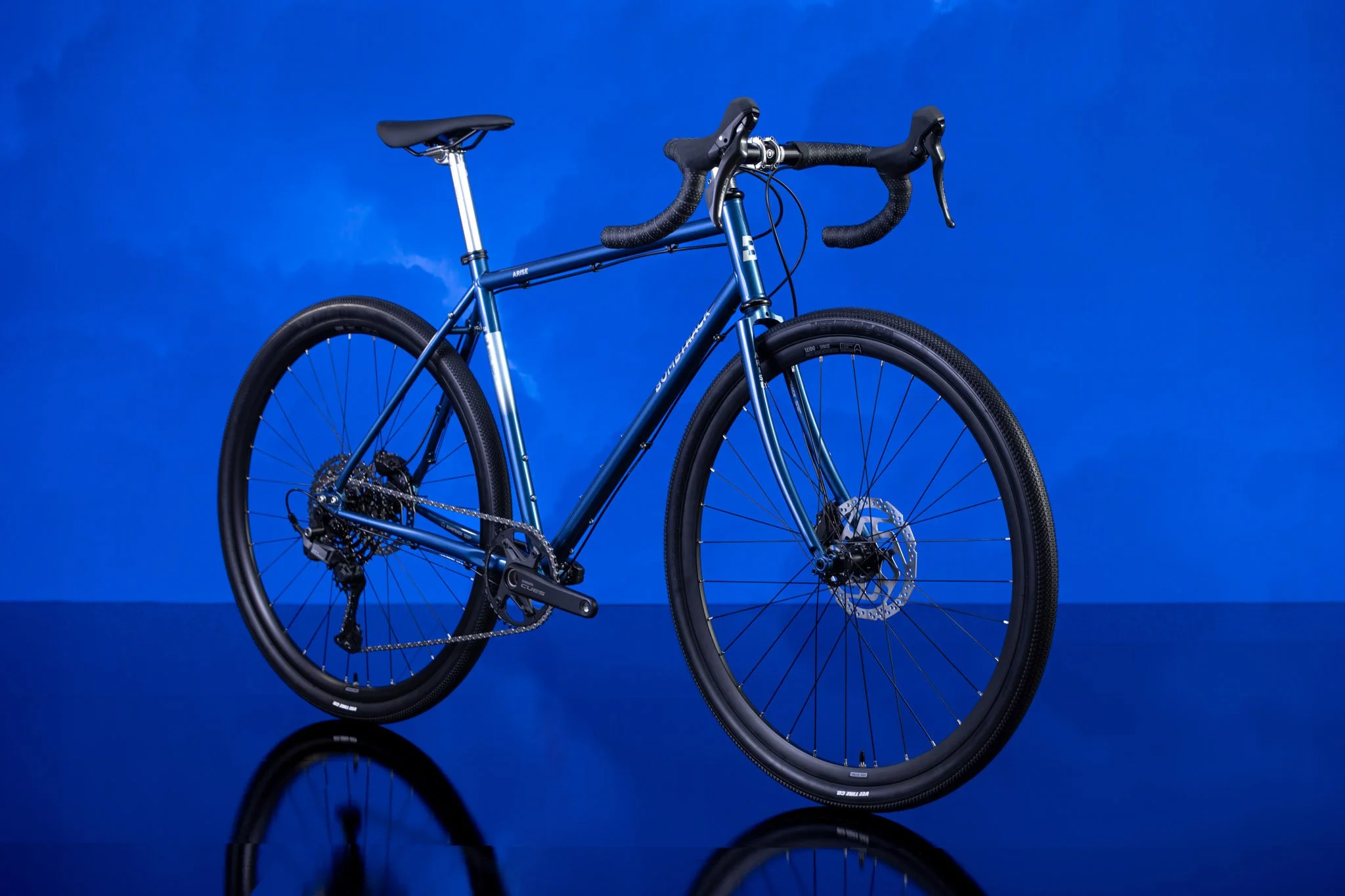

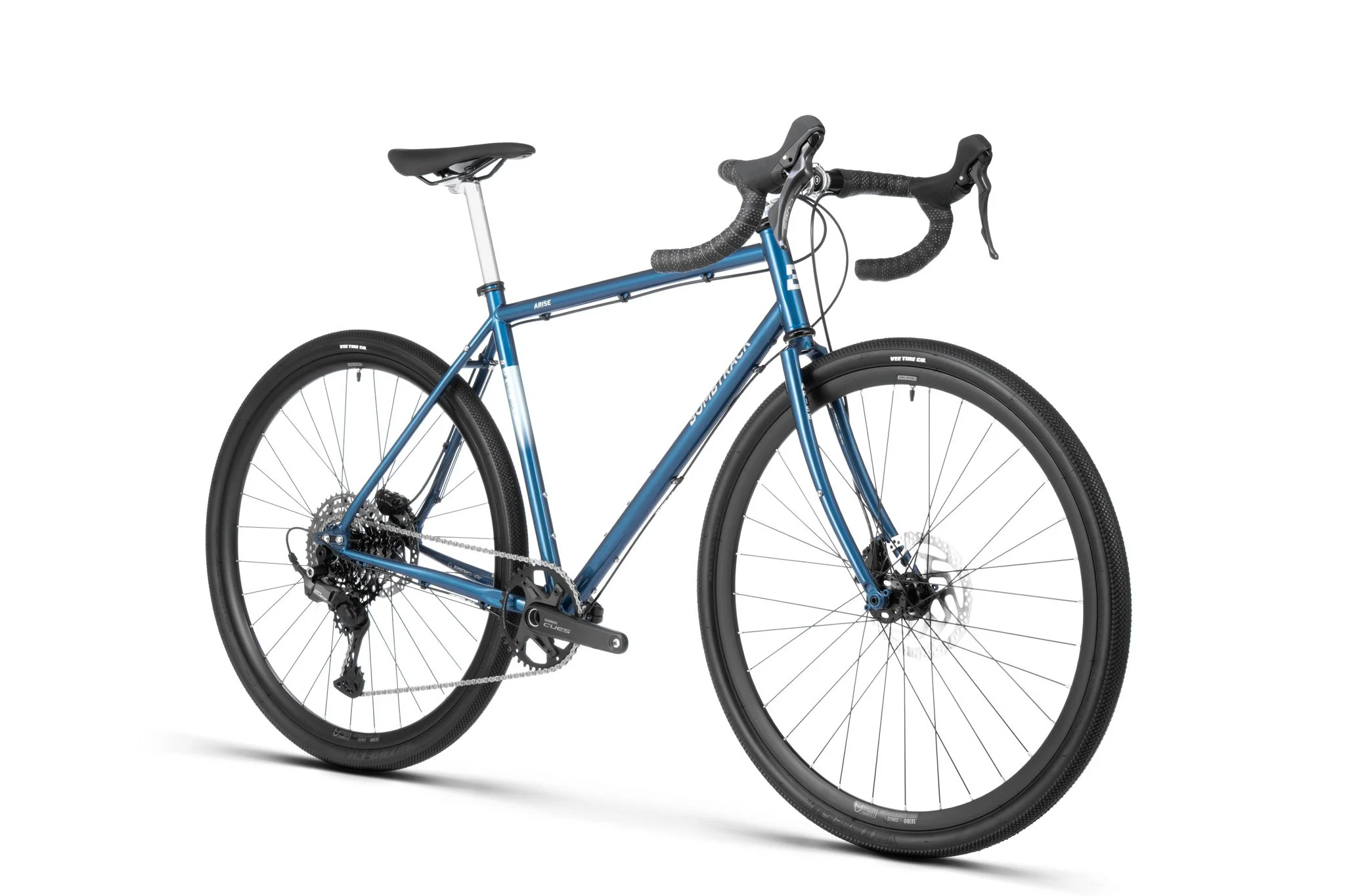

Featuring the new Shimano Cues drop bar, hydraulic groupset, sliding dropouts and all the tire clearance and braze-on options that the Bombtrack Arise is known and loved for, the Arise SG Cues breathes a whole new layer of versatility into our lineup. The 11 - 48T wide range 10 speed cassette provides that get-out-of-jail gear for when things get steep on the weeklong bike tour, but the one-by chainset means there is one less thing to clog up with grime during those winter commuting months. The Arise chassis is a blank canvas onto which any adventurer can build up a bike for all scenarios. Ready for internal dynamo cable routing but equipped with external shift and brake hose routing for easy field and home servicing, the Arise SG Cues might just be your next forever-bike.

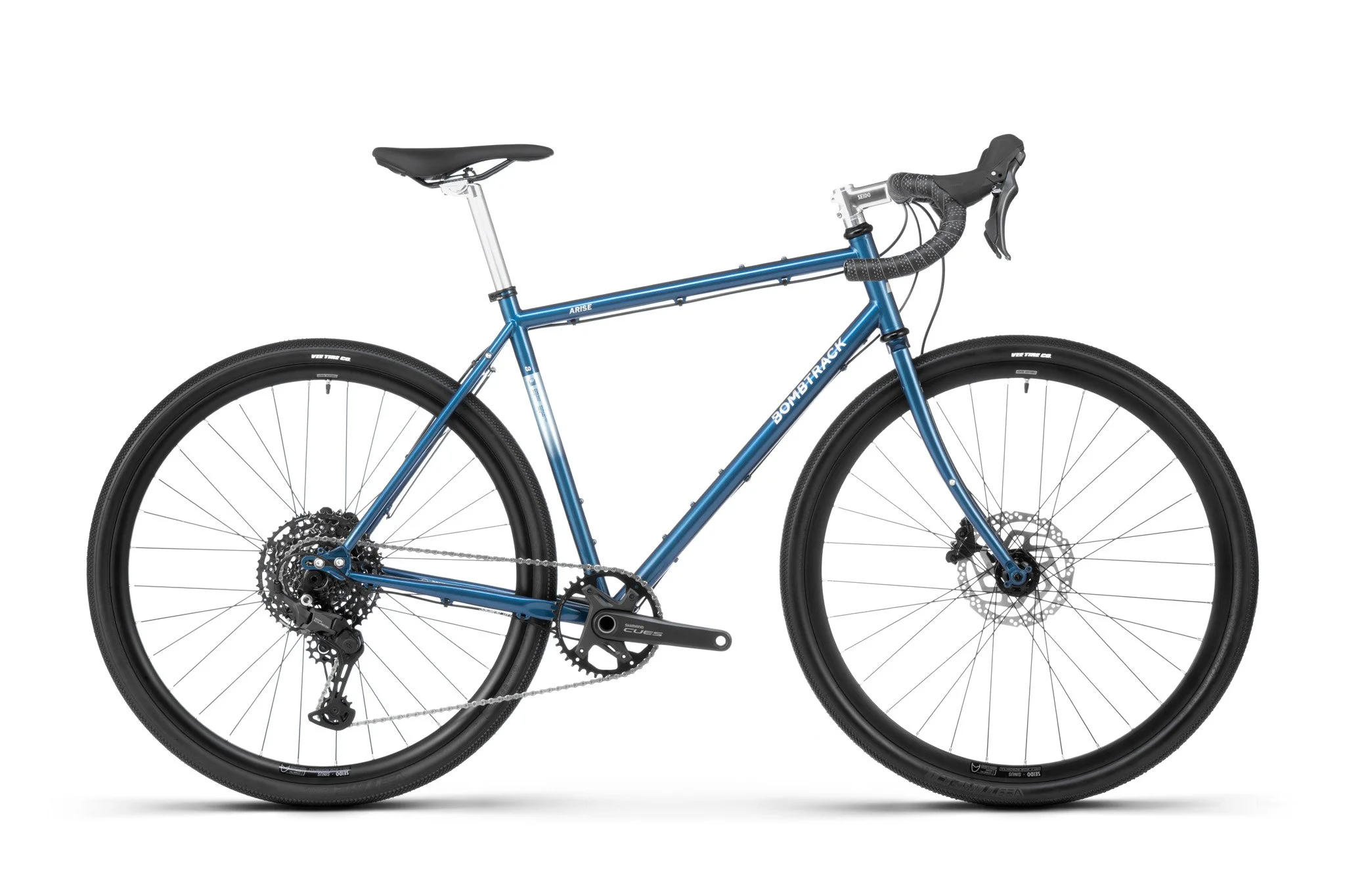

METALLIC MIDNIGHT BLUE
HIGHLIGHTS
-
![]()

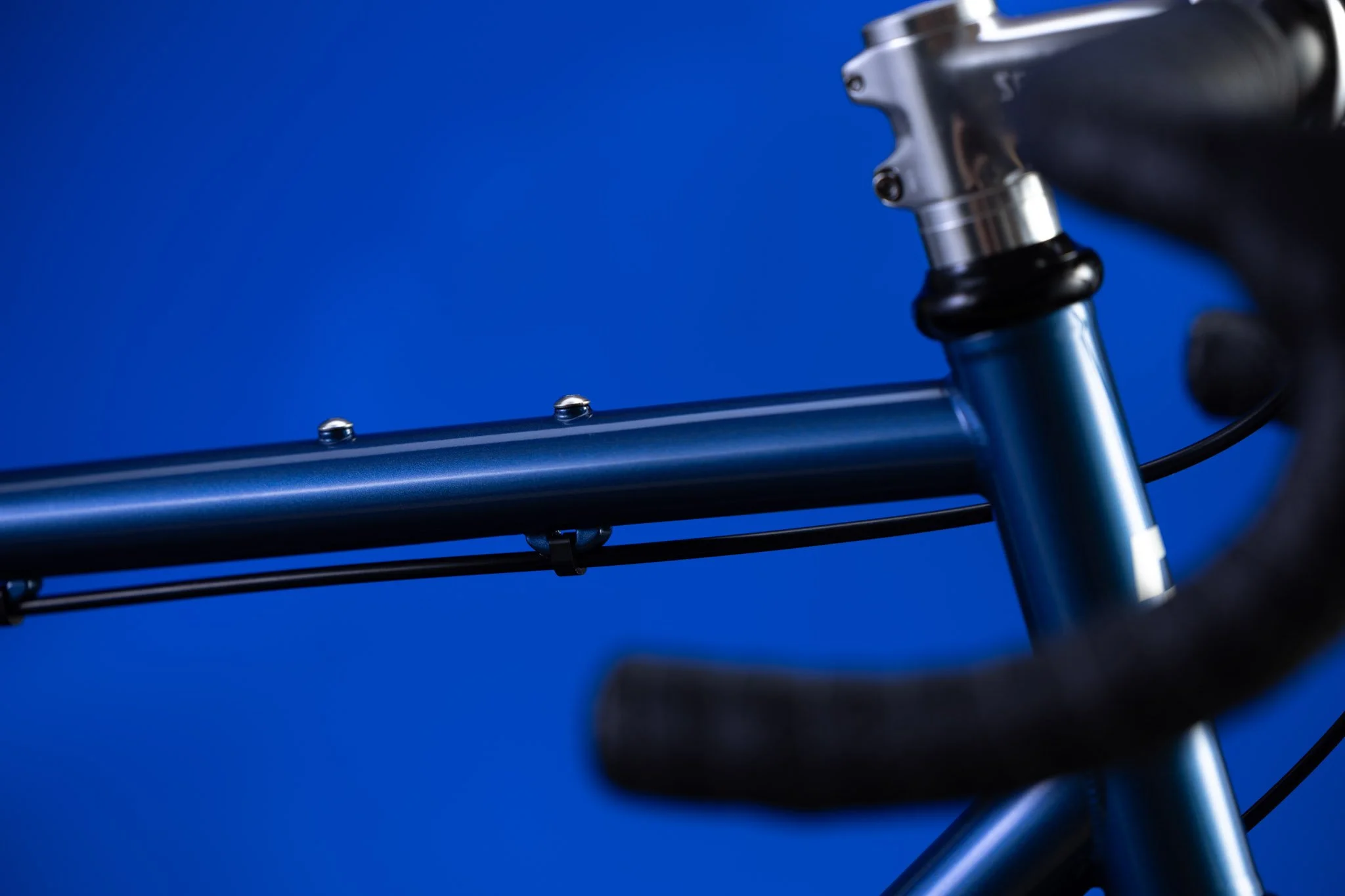

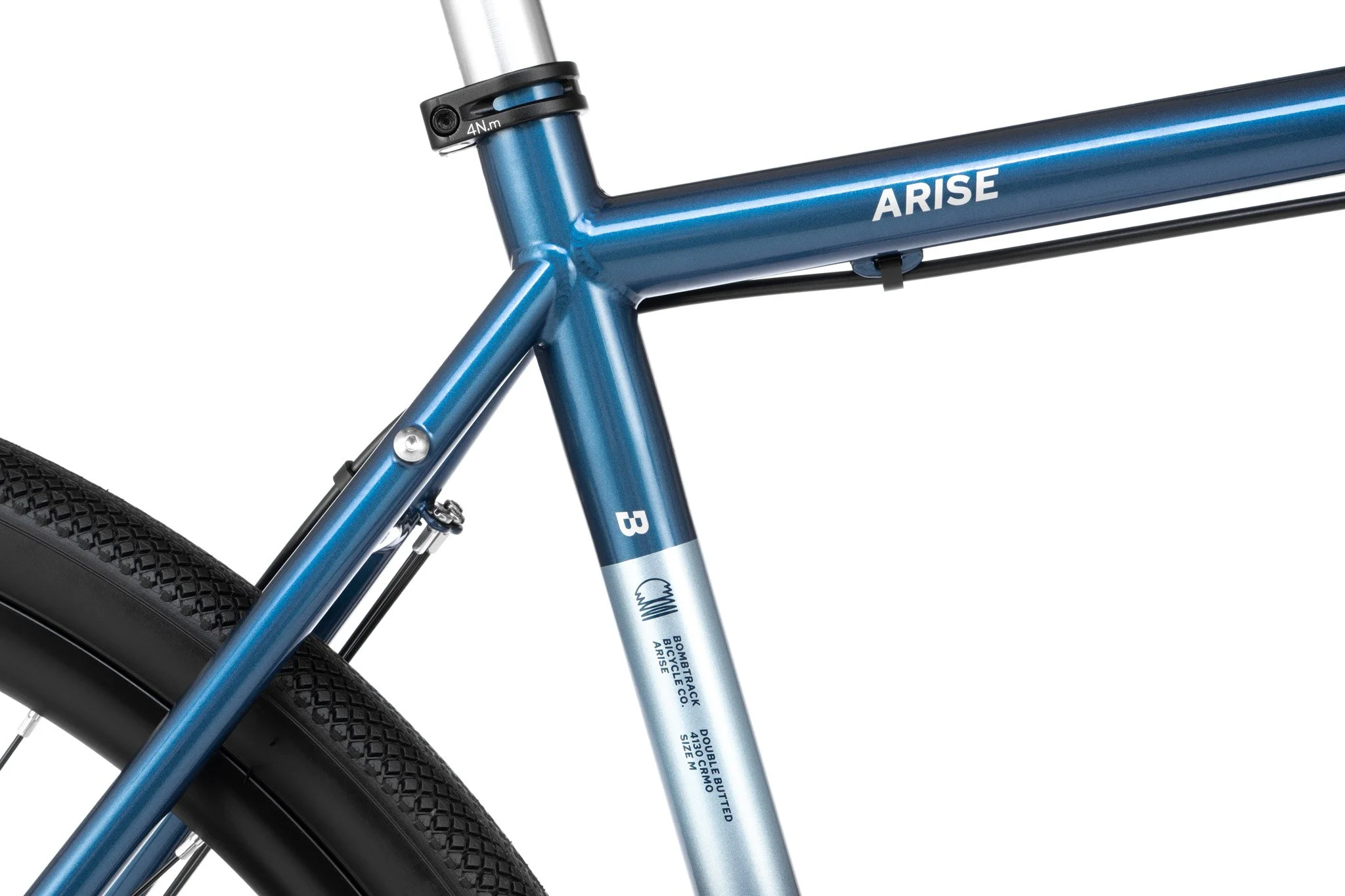

FRAME

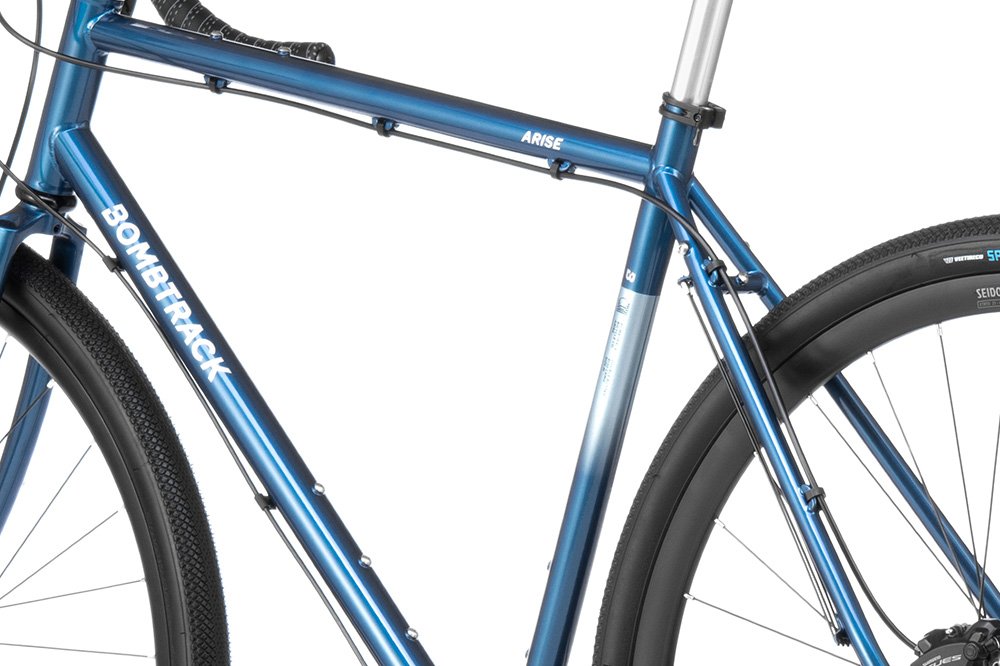

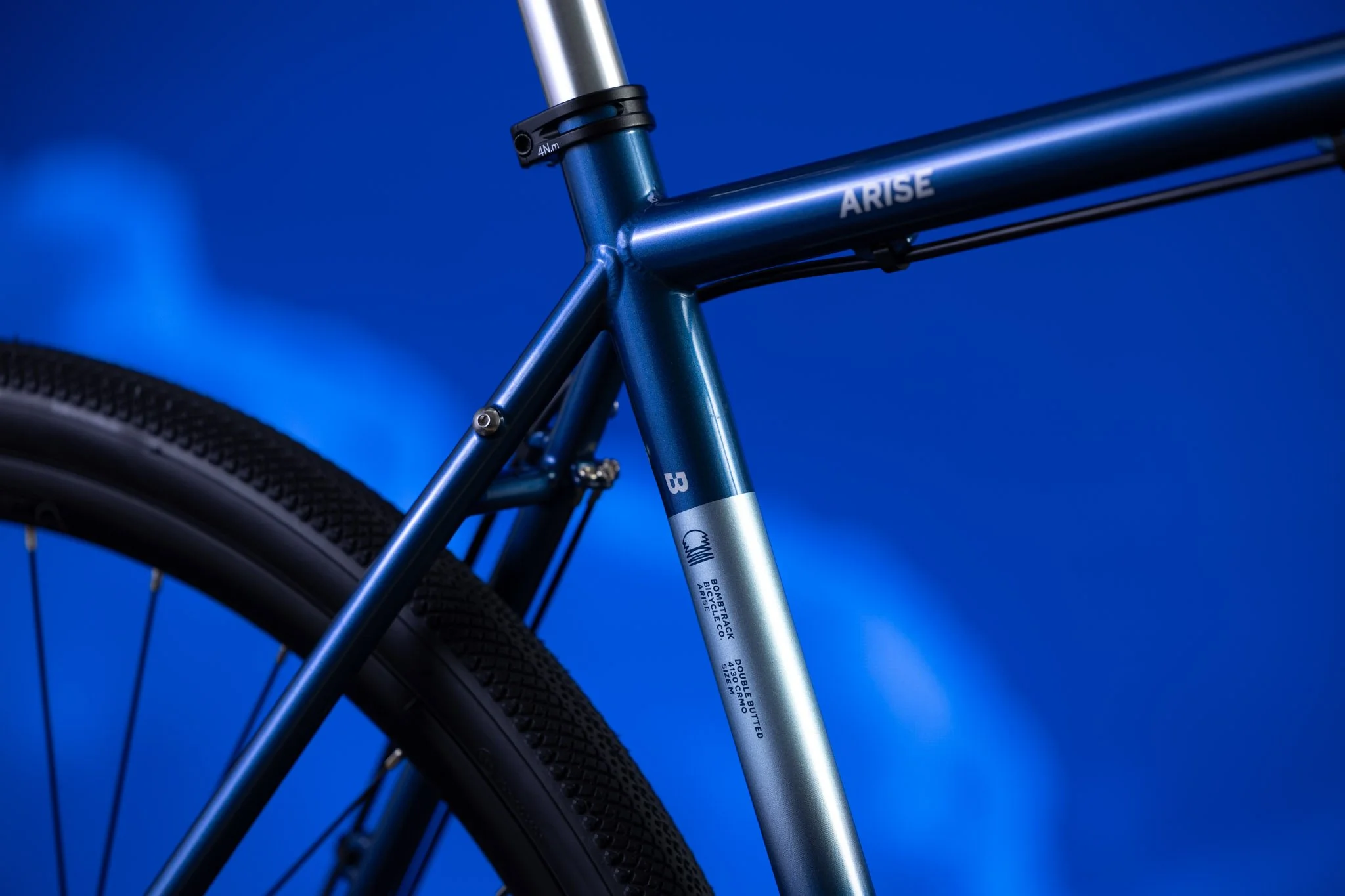

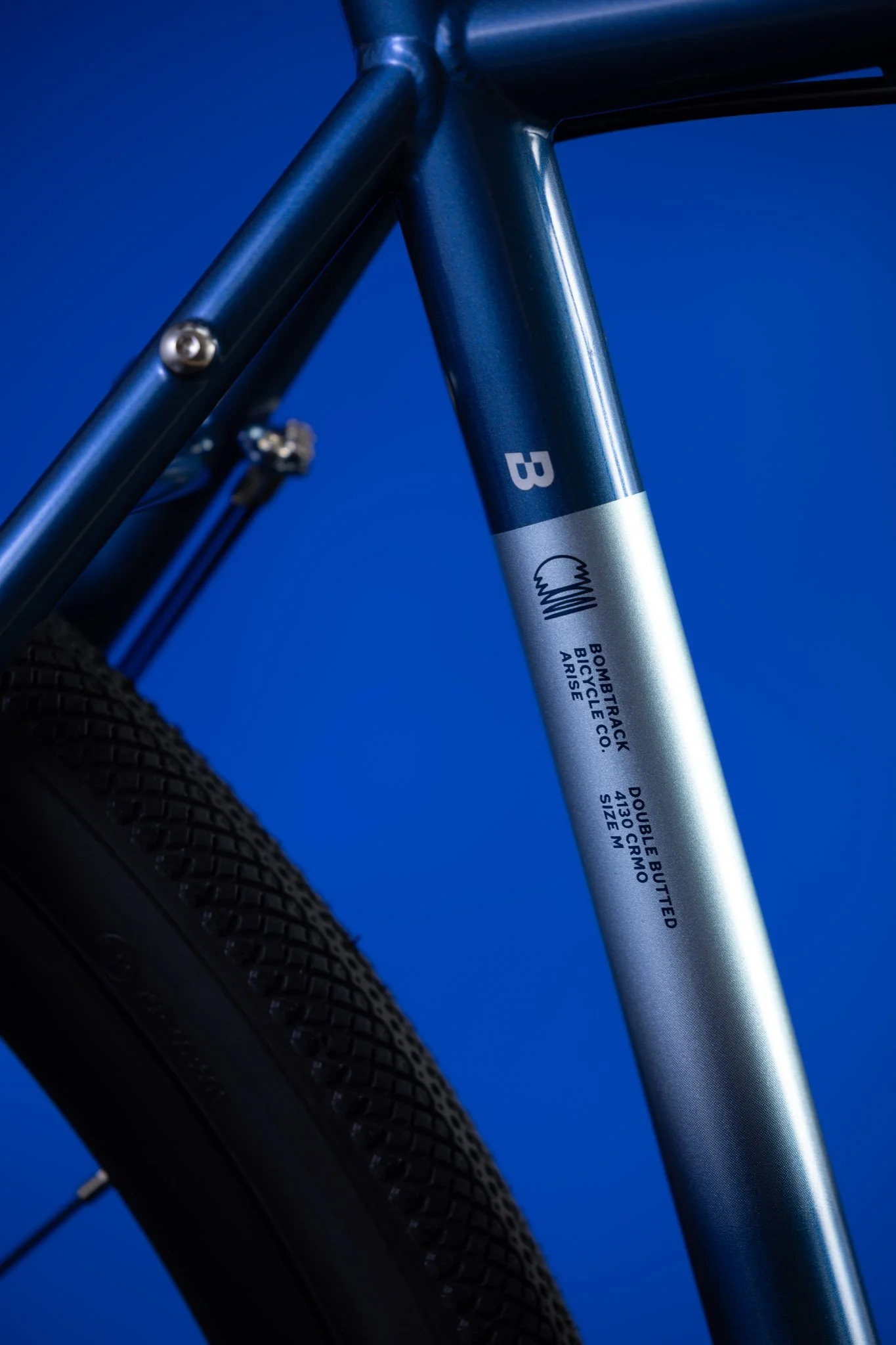

Double butted crmo frame and fork with internal light cable routing.
-
![]()

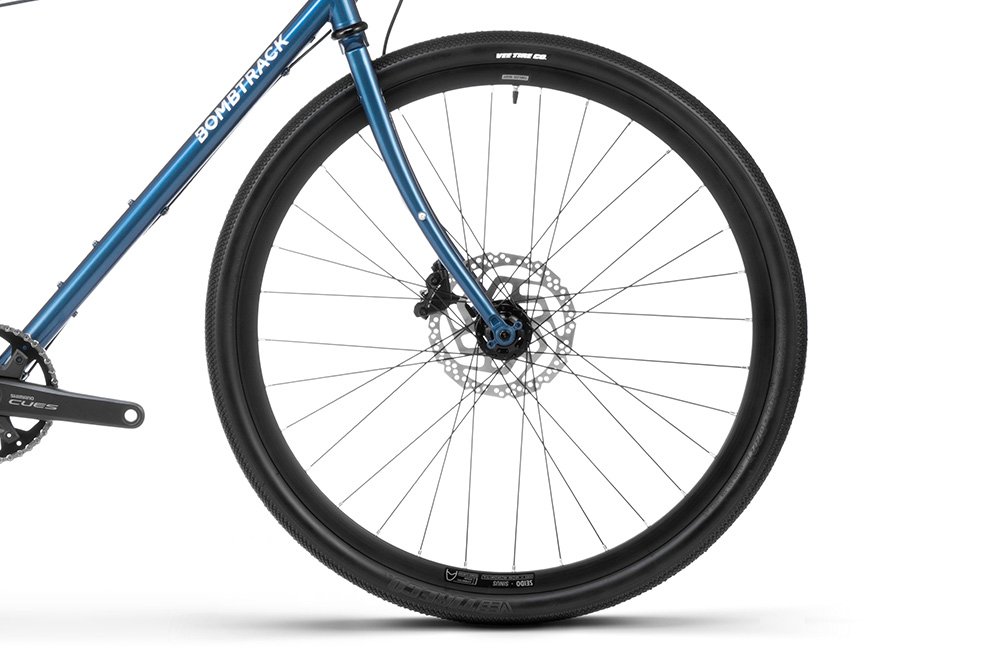

WHEELS
XS and S with 650B wheels for proper fit without any compromises in geometry.
-
![]()

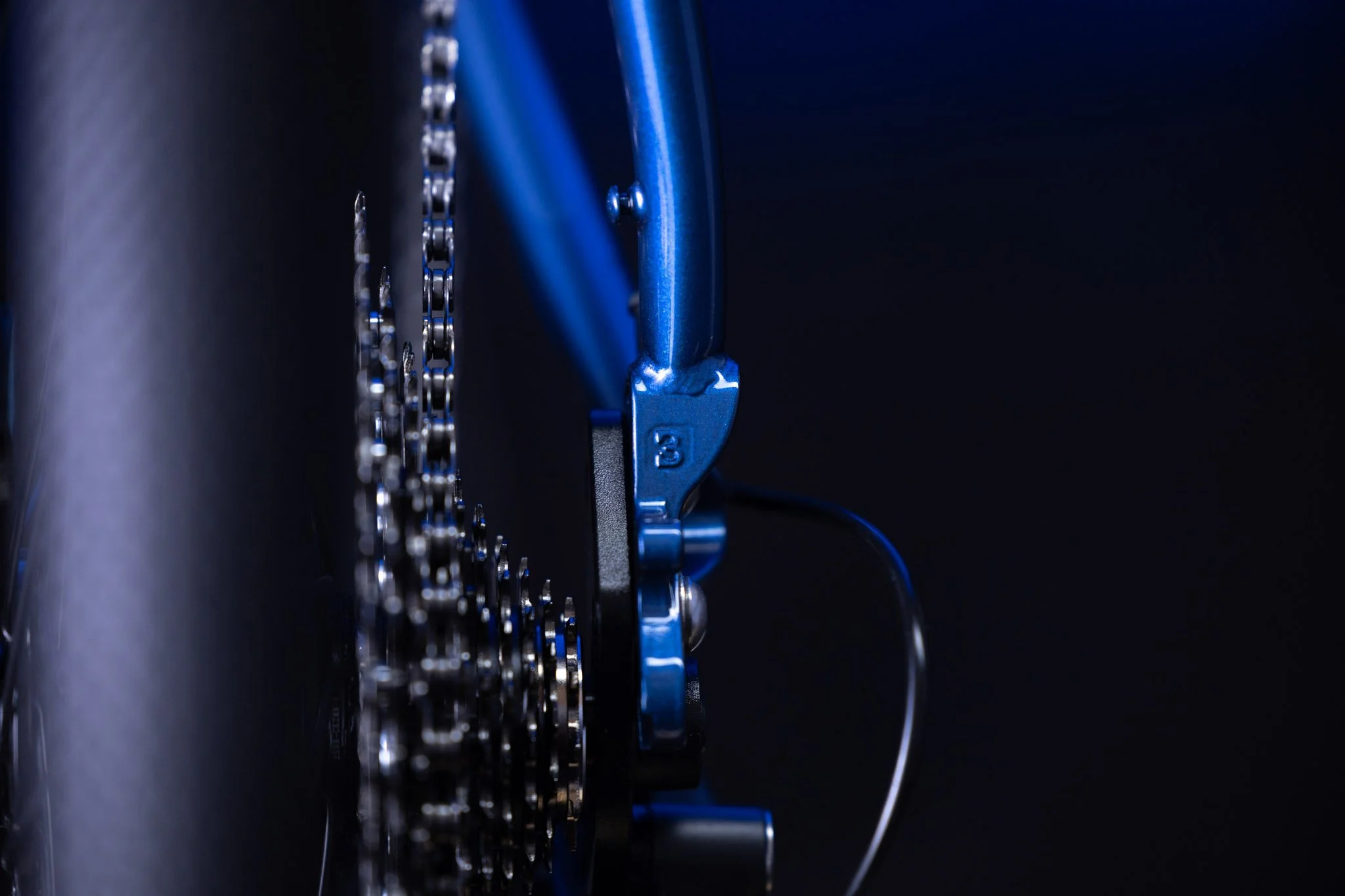

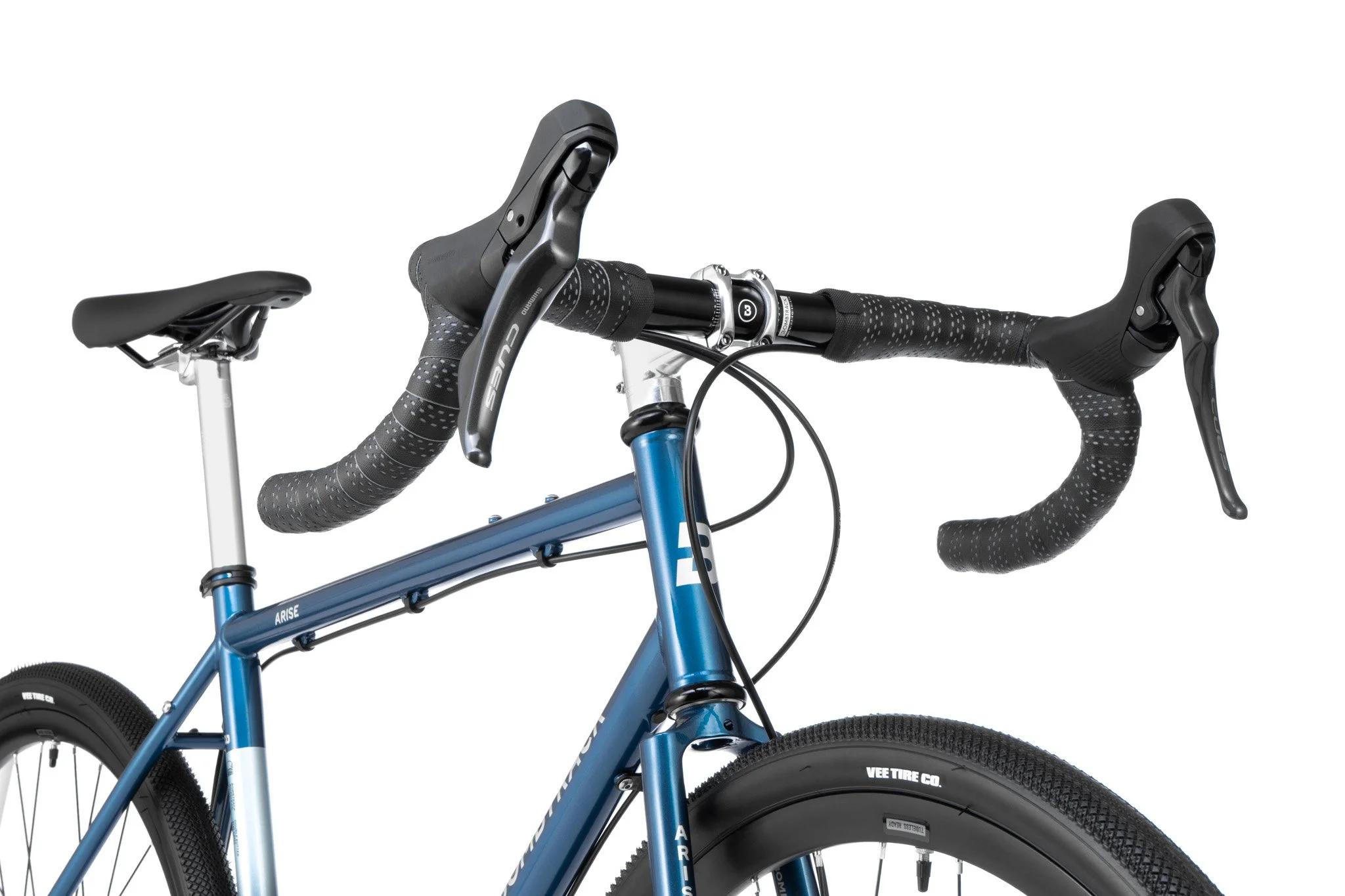

DRIVETRAIN

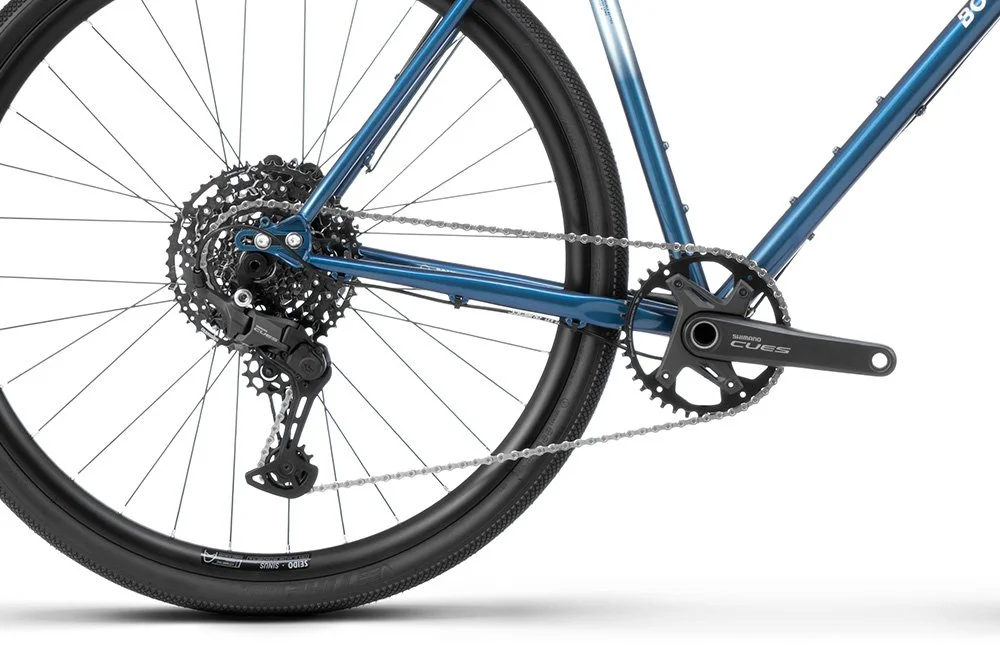

Hydraulic Shimano Cues 1 x 10 dropbar drivetrain.
-
![]()

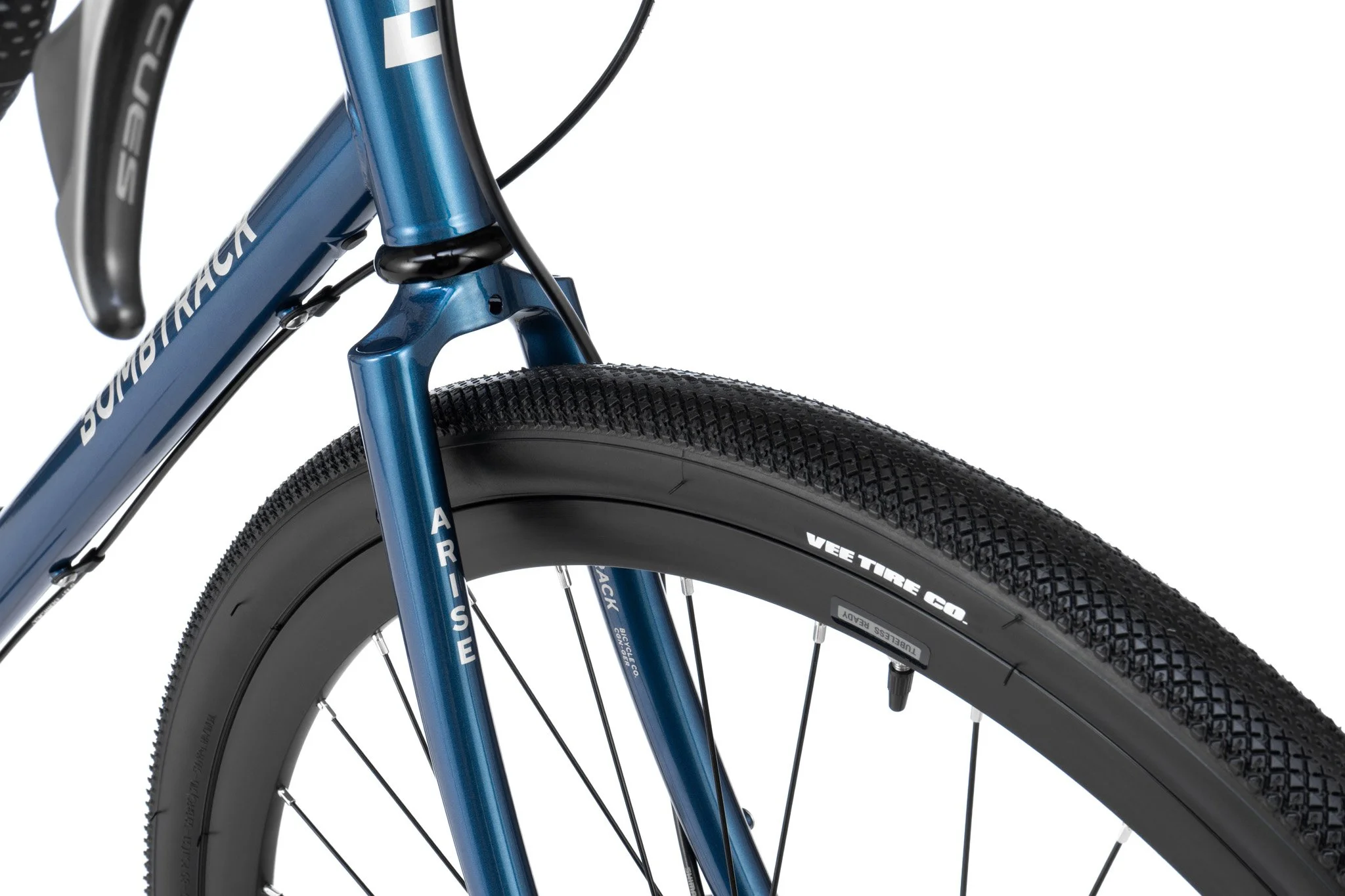

FORK

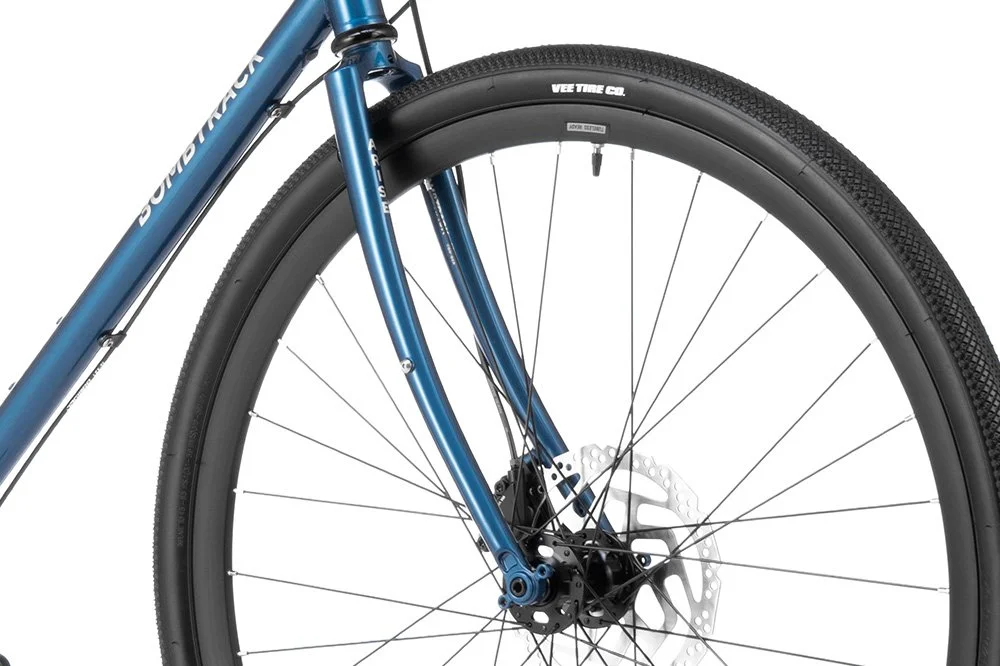

Classic brazed steel fork with FM brake mount and throughh axle dropouts.
-
![]()
RIMS

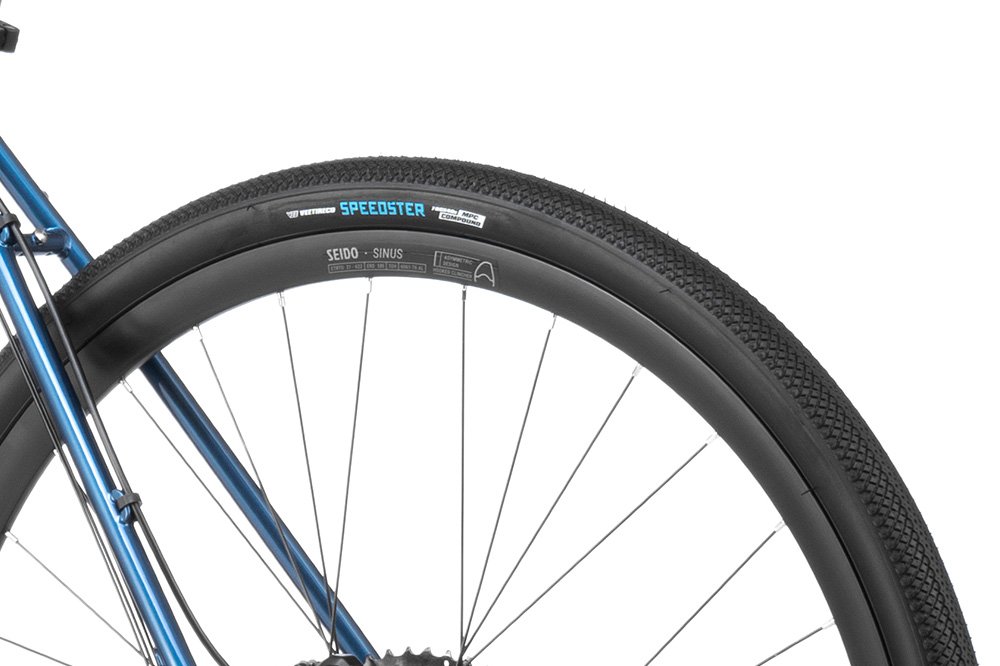

Tubeless ready Seido Sinus rims.
-
![]()
HUBS

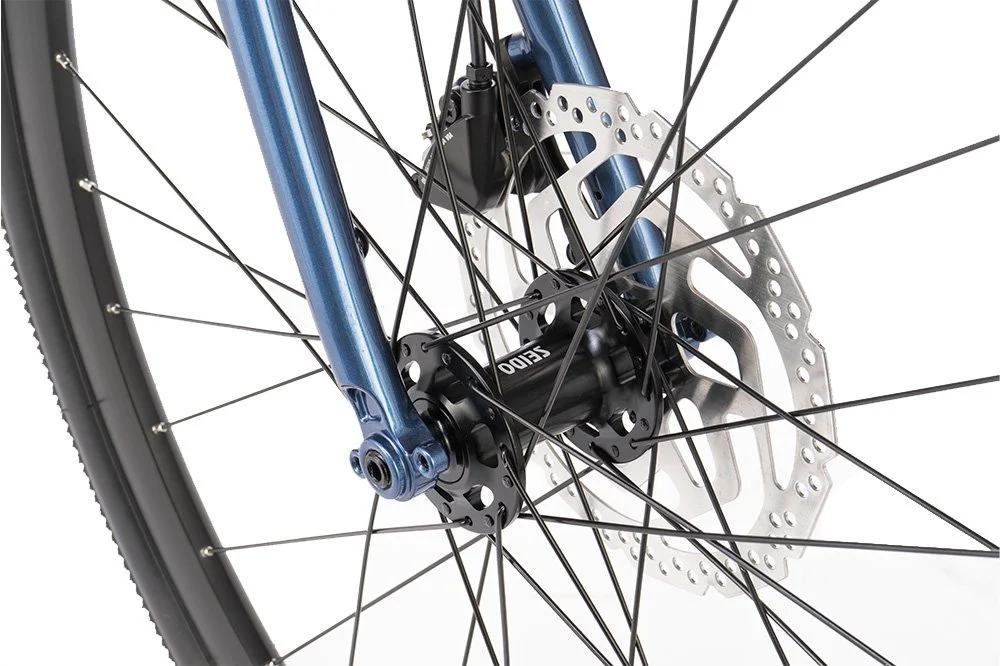

Seido Tau disc brake hubs with 12 mm through axles.
"Monday to Friday it's the dependable steed for all weather and all surfaces, but come the weekend, the Arise roams free wherever it pleases"
SPECIFICATIONS
| Model | ARISE SG CUES |
|---|---|
| Color 1 | Metallic midnight blue |
| Color 2 | - |
| Color 3 | - |
| Frame | 4130 double butted crmo, heat treated front triangle, TA sliding dropouts, rack / fender mounts, 68 mm BSA BB shell |
| Fork | 4130 crmo, TA, rack / fender mounts, internal hub dynamo cable routing |

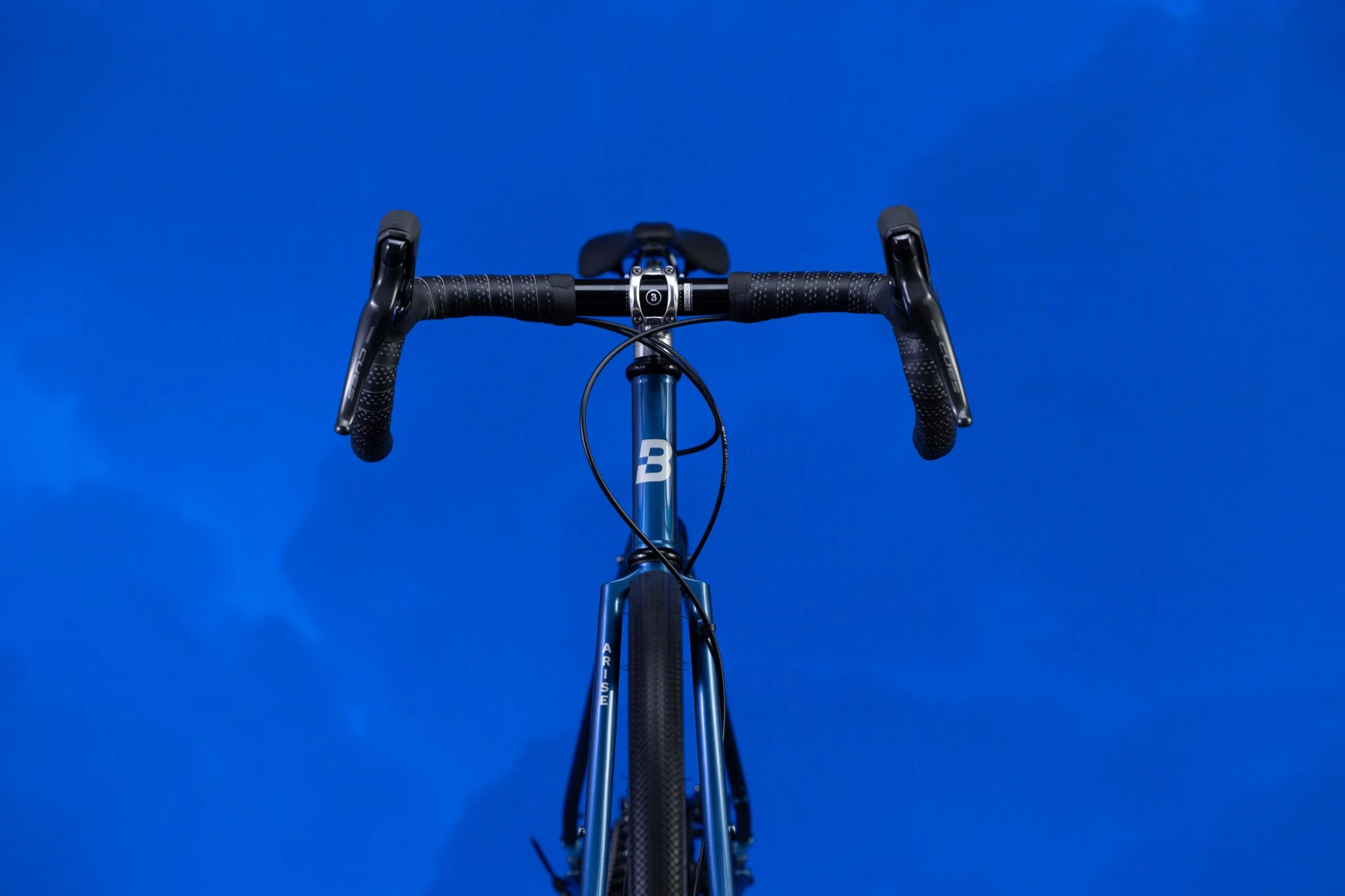

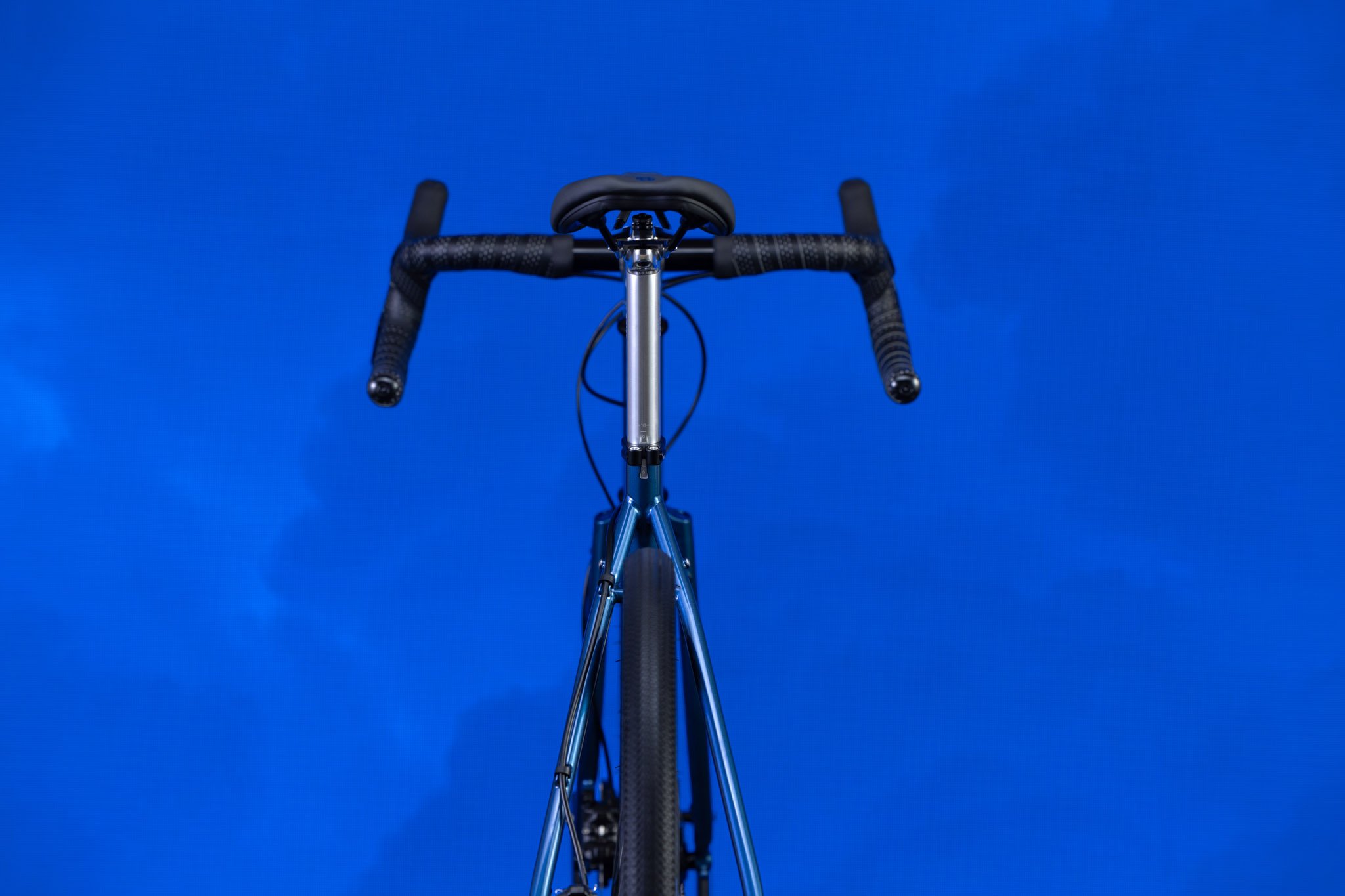

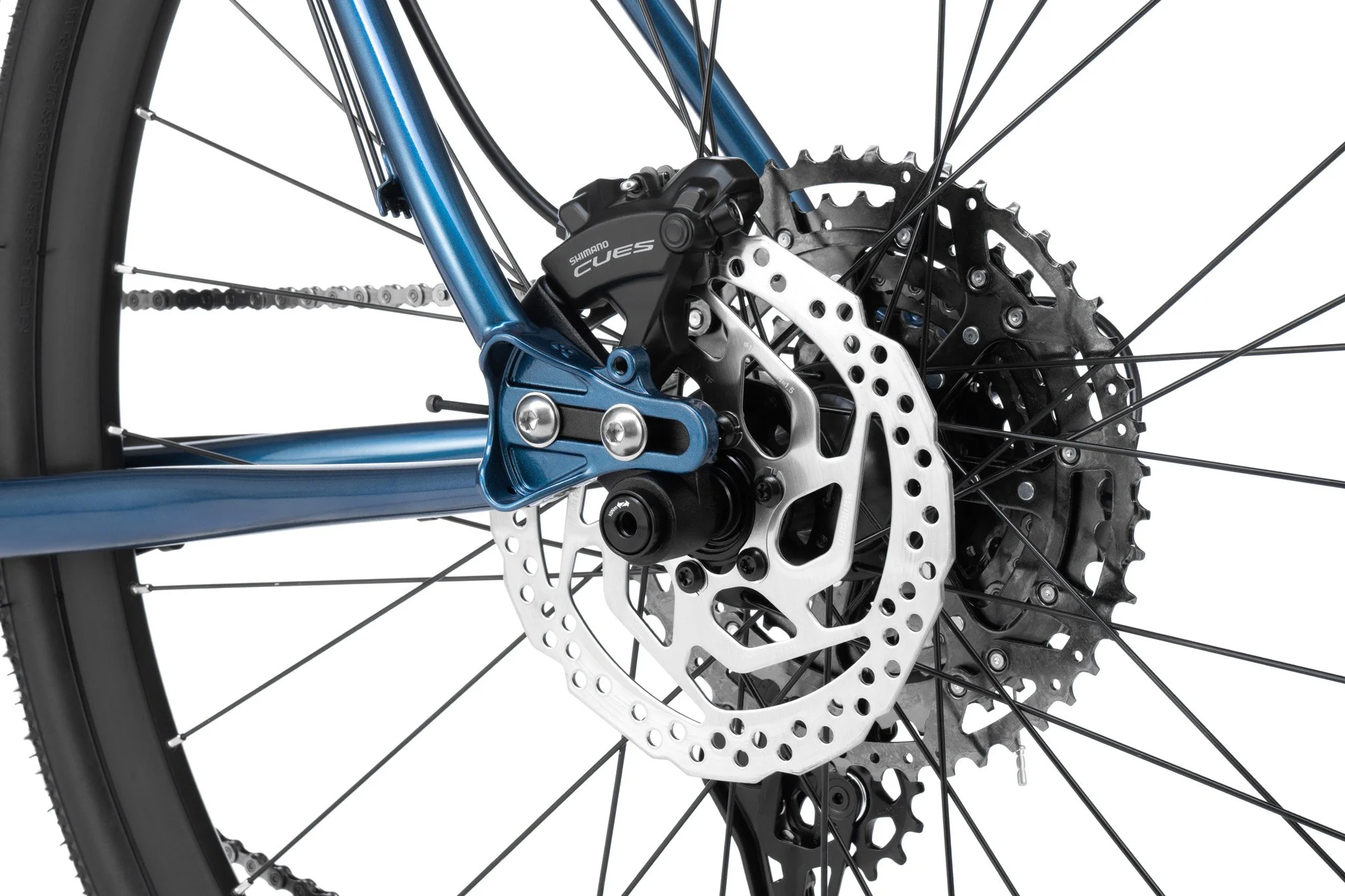

| Handlebar | Bombtrack CX-10 drop bar, 31.8 mm, 10° flare |
| Grips | Bombtrack Escape bar tape |
| Stem | Seido Meander forged aluminium stem, -6° |
| Headset | Neco H282 sealed external aheadset, 1.1/8'' |
| Levers | Shimano CUES ST-U6030 STI Hydraulic |
| Shifter | Shimano CUES ST-U6030 STI 1 x 10 |
| Brakes | Shimano CUES BR-U6030 hydraulic disc brakes |
| Rotor | Shimano SM-RT26 180 mm front and 160 mm rear rotor |

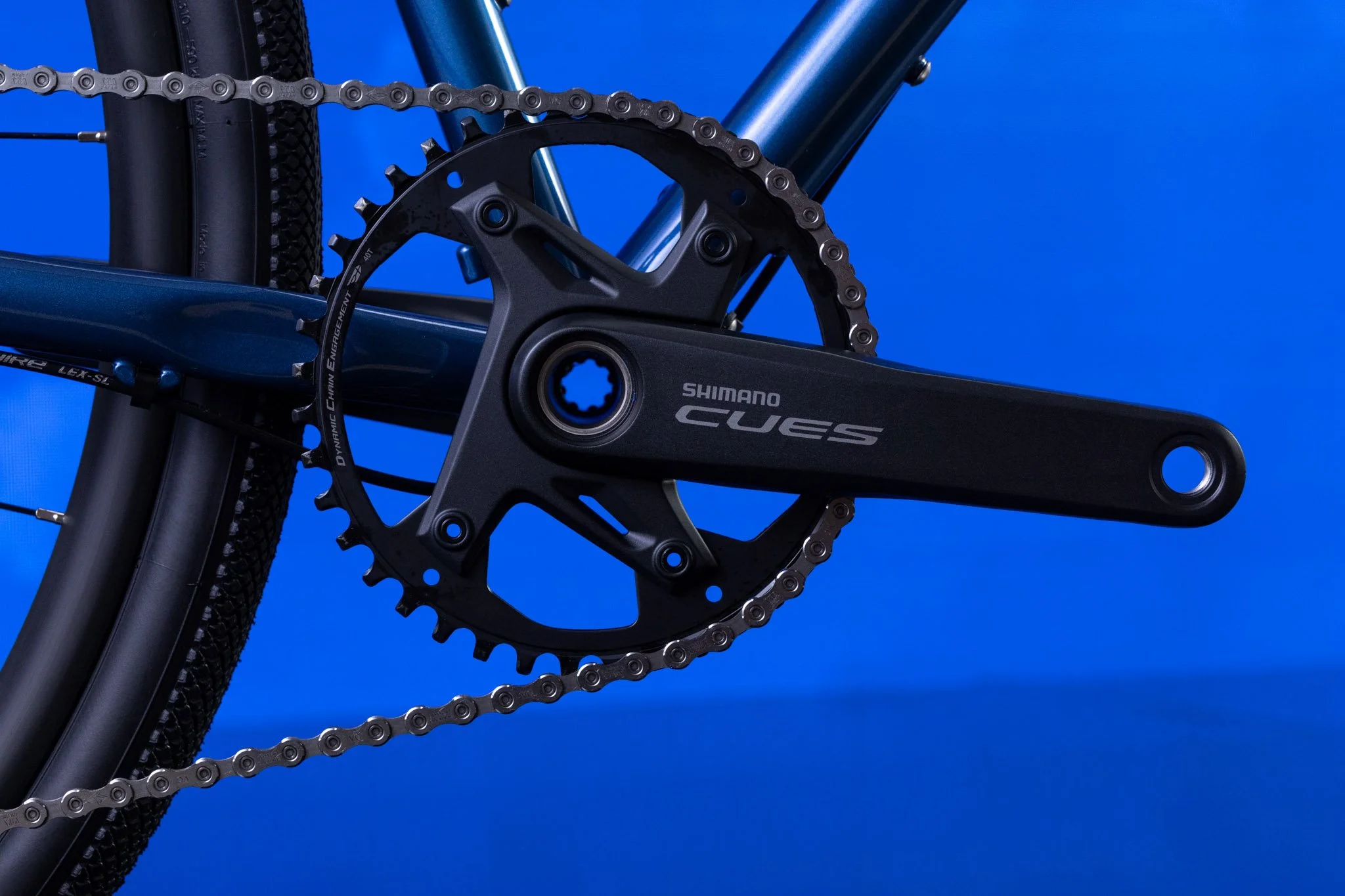

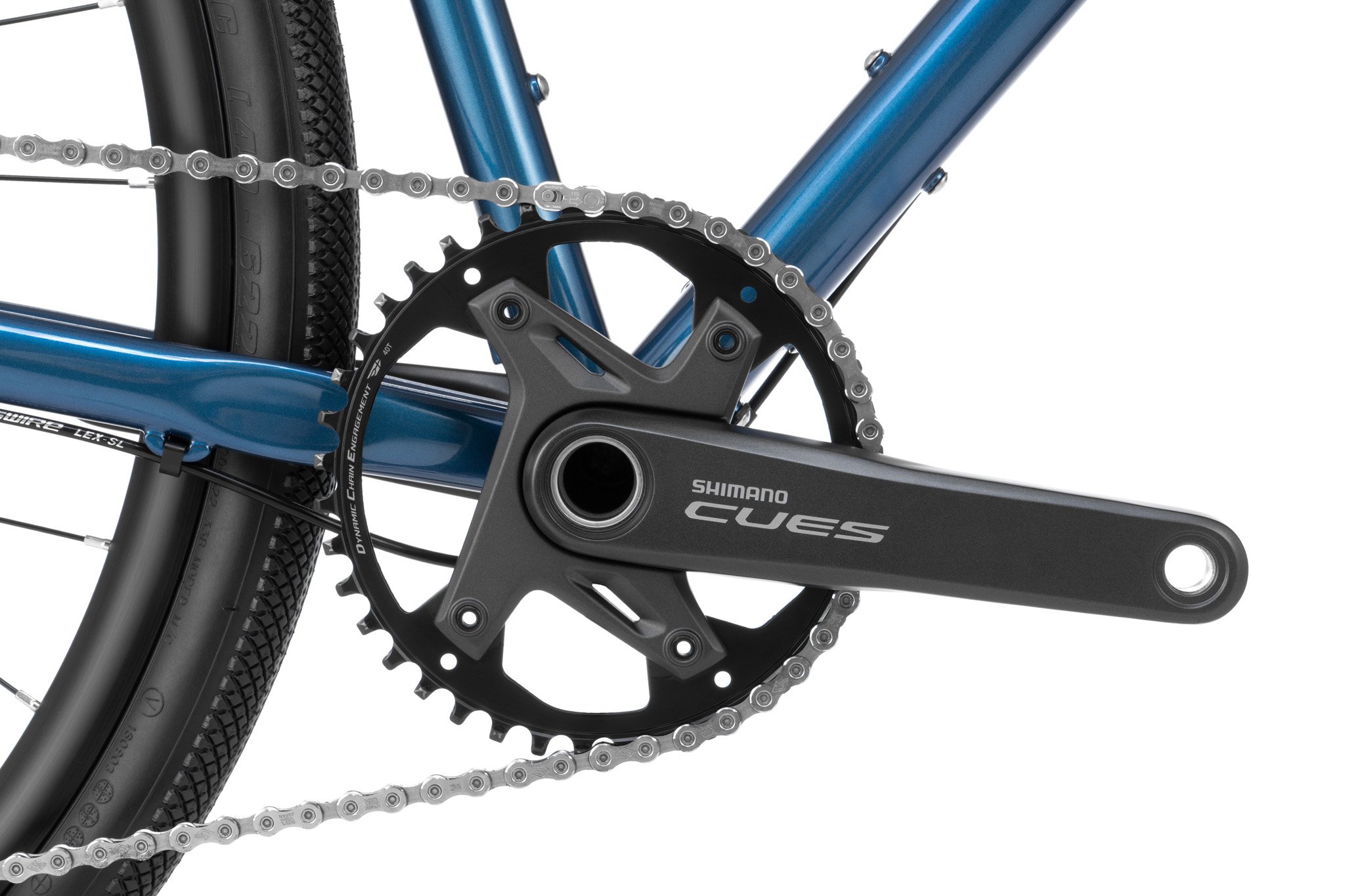

| Crankset | Shimano CUES FC-U6030-1, 24 mm spindle |
| BB | BSA sealed BB, external cups |
| Pedals | - |
| Chain | Shimano Linkglide CN-LG500 chain, 1/2'' x 11/128'', with quick link |
| Chainring | Shimano Cues, narrow-wide, 40 T |
| Cassette | Shimano CS-LG400 10-speed, 11 - 48 T |
| Front derailleur | - |

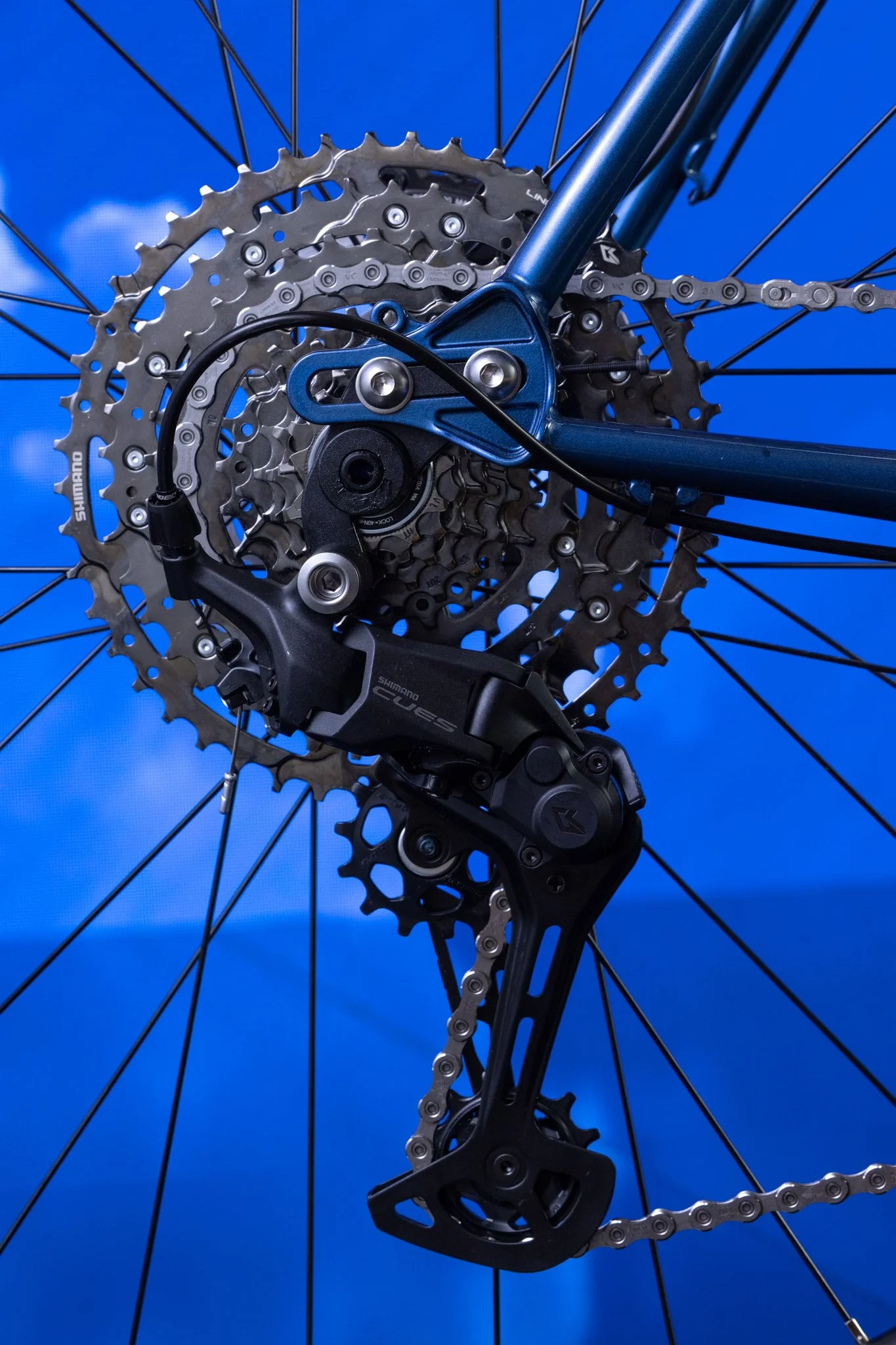

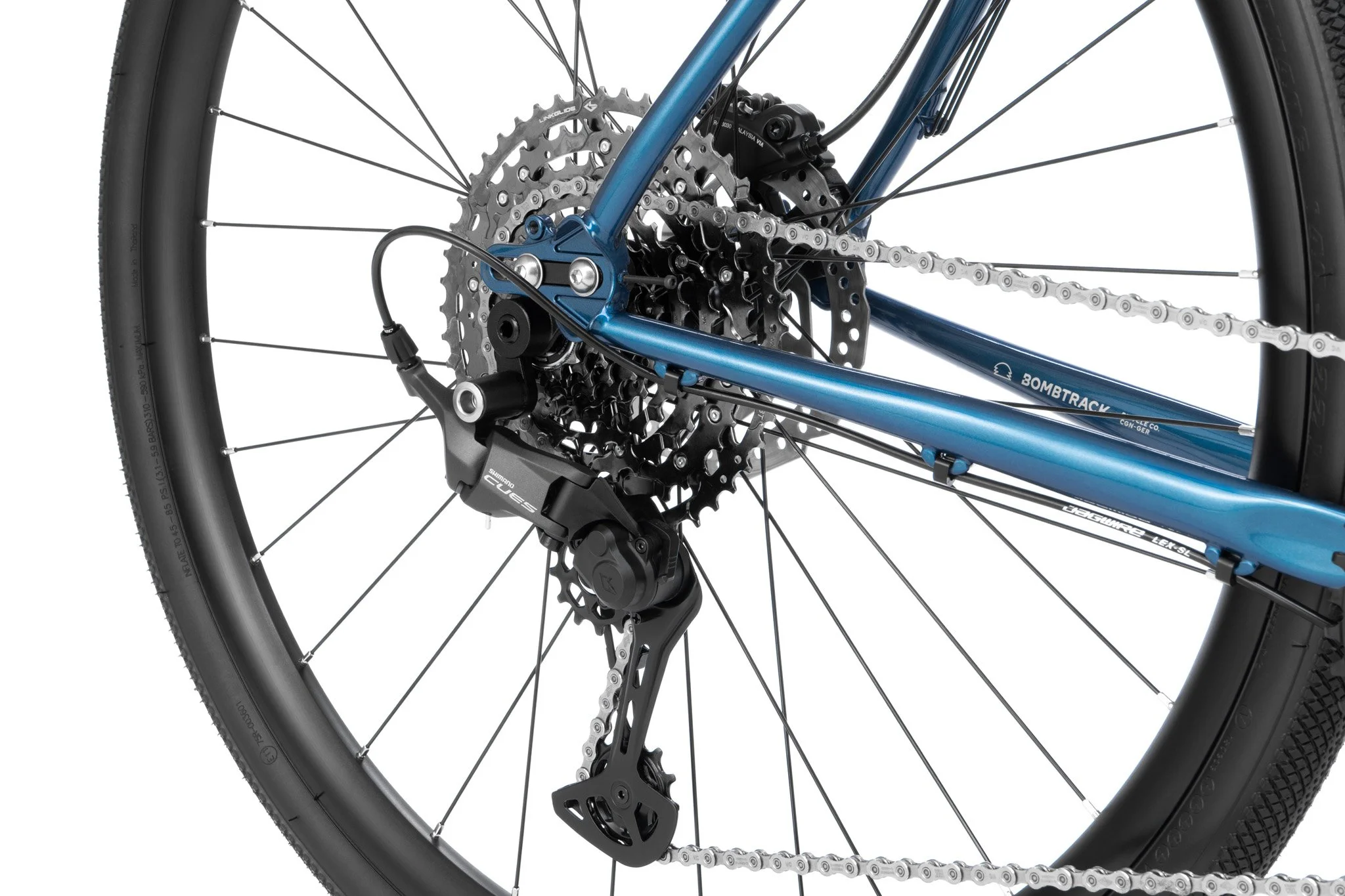

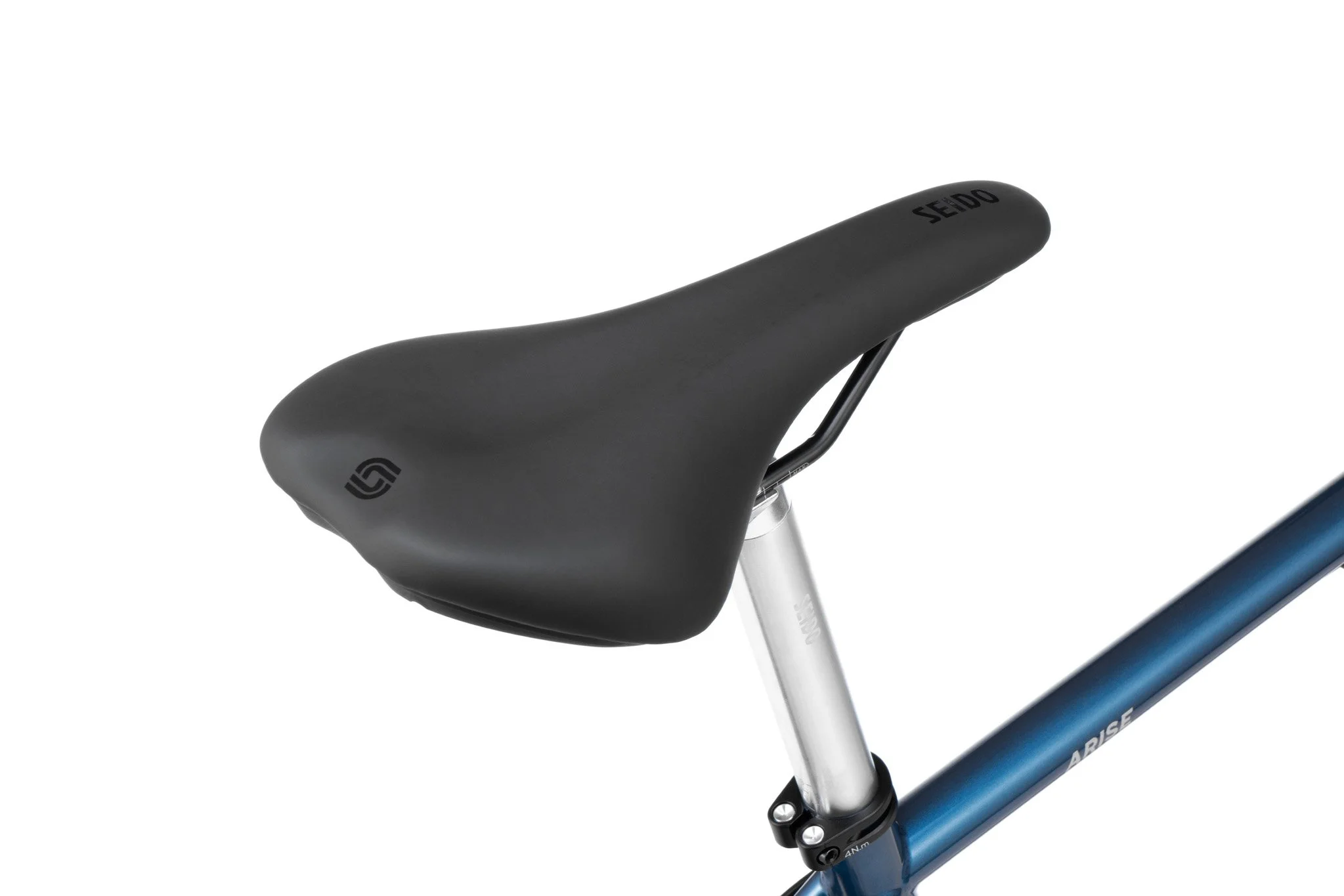

| Rear derailleur | Shimano CUES RD-U6000, clutch |
| Front hub | Seido Arc sealed hub, 6-bolt disc |
| Rear hub | Seido Arc sealed hub, 11-speed, 6-bolt disc |
| Through axle | 12 x 100 mm / 12 x 142 mm |
| Front rim | Seido Sinus i21, tubeless ready, 32h |
| Rear rim | Seido Sinus i21, tubeless ready, 32h |
| Saddle | Seido Comp saddle |
| Seat post | Seido Yew Offset 27.2 mm x 355 mm |
| Seat clamp | Bombtrack Origin 29.8 mm |
| Front tire | XS - S Vee Tire Speedster 650B x 38C / M - XL Vee Tire Speedster 700C x 40C |
| Rear tire | XS - S Vee Tire Speedster 650B x 38C / M - XL Vee Tire Speedster 700C x 40C |
| Fender | - |
| Rack | - |
| Kickstand | - |
| Light | - |
| Weight | - |
| Weight frameset | TBA |
| Maximum rider weight | TBA |
| ASTM riding condition | 120 kg incl. luggage |
| 2 |
Final product may vary in appearance, finish and minor details.
BUILD INFOS
| Model | ARISE SG CUES |
|---|---|
| BB standard | BSA - 68 mm shell width |
| Headset standard (S.H.I.S.) | EC34 / 28.6 | EC34 / 30 |
| Headset crown race angle | 45° |
| Fork steerer inner diameter | 25.4 mm |
| Fork max tire clearance w/o fender | XS - S 650B x 42C / M - XL 700C x 42C |
| Frame max tire clearance w/o fender | XS - S 650B x 42C / M - XL 700C x 42C ¹ |
| Maximum chainring clearance 1x | 44 T with 45 mm chainline |
| Maximum chainring clearance 2x | 52 / 36 T with 45 mm chainline |
| Seat post diameter | 27.2 mm |
| Seat clamp diameter | 29.8 mm |
| Front derailleur clamp diameter | 28.6 mm |
| Frame front derailleur compatible | yes |
| Brake mount front | FM 160 / 180 |
| Brake mount rear | FM 140 / 160 |
| Frame thickness rear brake mount | 10 mm |
| Maximum rotor clearance front | 180 mm |
| Maximum rotor clearance rear | 160 mm |
| Front through axle | 12 mm x 100 mm, 1.5 thread pitch |
| Rear through axle | 12 mm x 142 mm, 1.5 thread pitch |
| ISO testing standard | Road |
| Crankarm | XS - M 170 mm / L - XL 175 mm |
| Q Factor | 152 mm |
| BCD crank | 110 mm, asymmetric Shimano 4 bolts |
| Chainring offset | 0 mm |
| Chainline | 50 mm |
| Spoke length front wheel | TBA |
| Spoke length rear wheel | TBA |
| Spoke count (front / rear) | 32 / 32 |
| ERD | XS - S 551 mm / M - XL 585 mm |
| Front hub PCD | 58 mm |
| Rear hub PCD | 58 mm |
| Front hub flange distance / offset | 56.5 mm center to center / 6.6 mm |
| Rear hub flange distance / offset | 51 mm center to center / 8.8 mm |
| Stem length | 80 mm |
| Stem angle | -6° |
| Headset spacers | 1 x 10 mm, 2 x 5 mm |
| Seat post offset | 23 mm |
| Seat post length | 355 mm |
| Bike trailer | approved |
| Seat tube mounted child seat | approved |
| Derailleur hanger | |
| Frame small parts | BT-CR-007 |
| Hub end caps front | BT-HC-012 |
| Hub end caps rear | BT-HC-017 |
| Cassette body | BT-CB-006 |
| Crankarm bolt | BT-CRP-001 |
| Through axle front | BT-TA-F-603 |
| Through axle rear | BT-TA-R-603 |
¹ Max tire clearance of 650B x 47C is possible, but depending on the tire and rim combination it might be necessary to move the sliding dropout to a rearwards position or accept tire clearance of less than 6 mm between tire and frame.
GEOMETRY
FRAME GEOMETRY
| Model | ARISE SG CUES | ||||
|---|---|---|---|---|---|
| Bike Size | XS | S | M | L | XL |
| Wheel size | 650B | 650B | 700C | 700C | 700C |
| Seat Tube Length | 460 | 490 | 520 | 550 | 580 |
| Horizontal TT length | 506 | 529 | 554 | 578 | 602 |
| Seat Angle | 73.5° | 73.5° | 73° | 73° | 73° |
| Head Angle | 70° | 70.5° | 70.5° | 71° | 71° |
| Headtube Length | 100 | 130 | 150 | 180 | 210 |
| BB Drop | 55 | 55 | 70 | 70 | 70 |
| Chainstay Length | 420 | 420 | 435 | 435 | 435 |
| Fork Offset | 55 | 55 | 55 | 55 | 55 |
| Trail | 64 | 60 | 68 | 65 | 65 |
| Wheelbase Length | 995 | 1016 | 1045 | 1065 | 1090 |
| Standover | 733 | 762 | 799 | 828 | 857 |
| Reach | 351 | 370 | 379 | 394 | 409 |
| Stack | 508 | 538 | 572 | 602 | 631 |
| Front Center | 582 | 602 | 619 | 639 | 664 |
| Axle to Crown | 390 | 390 | 390 | 390 | 390 |
| Minimum rider height ¹ | 1500 | 1600 | 1700 | 1790 | 1880 |
| Maximum rider height ¹ | 1610 | 1710 | 1810 | 1900 | 1990 |
¹ Our bike size recommendation generally represents a rough guideline for quickly narrowing down the sizes from which to choose based on the body height. Bike fitting is a complex topic and other measurements and factors have to be accounted for as well. Since no two human bodys are exactly the same it is not possible to give a 100% correct advice for everyone. Therefore Bombtrack cannot guarantee for the stated recommendations to be correct for every individual customer. The best way to work out the correct size is to consult a local Bombtrack dealer or a professional bike fitter and have them determine the needed size.

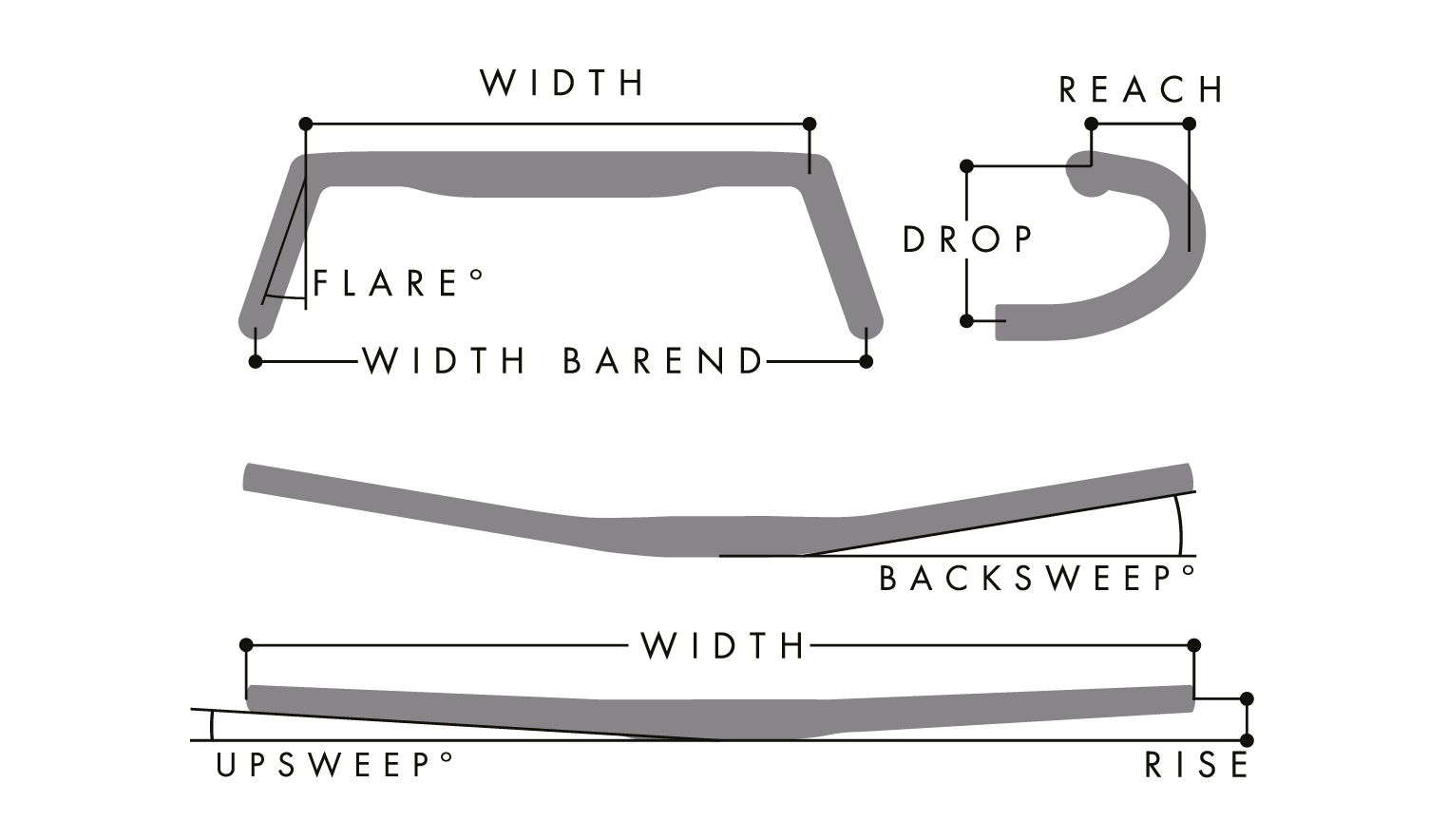

HANDLEBAR GEOMETRY
| Model | ARISE SG CUES | ||||
|---|---|---|---|---|---|
| Bike Size | XS | S | M | L | XL |
| Handlebar type | Dropbar | Dropbar | Dropbar | Dropbar | Dropbar |
| Width (drops) | 420 | 420 | 440 | 440 | 440 |
| Width (barends) | 466 | 466 | 486 | 486 | 486 |
| Reach | 75 | 75 | 75 | 75 | 75 |
| Flare | 10° | 10° | 10° | 10° | 10° |
| Backsweep | - | - | - | - | - |
| Drop | 116 | 116 | 116 | 116 | 116 |
| Upsweep | - | - | - | - | - |
| Rise | - | - | - | - | - |
