gear TENSION C FRAMESET
1 / 8
BT_MY24_Tension_C_frameset_matt_black_web_01.jpg Image 1 of 8
BT_MY24_Tension_C_frameset_matt_black_web_02.jpg Image 2 of 8
BT_MY24_Tension_C_frameset_matt_black_web_03.jpg Image 3 of 8
BT_MY24_Tension_C_frameset_matt_black_web_04.jpg Image 4 of 8
BT_MY24_Tension_C_frameset_matt_black_web_05.jpg Image 5 of 8
BT_MY24_Tension_C_frameset_matt_black_web_06.jpg Image 6 of 8
BT_MY24_Tension_C_frameset_matt_black_web_07.jpg Image 7 of 8
BT_MY24_Tension_C_frameset_matt_black_web_08.jpg Image 8 of 8

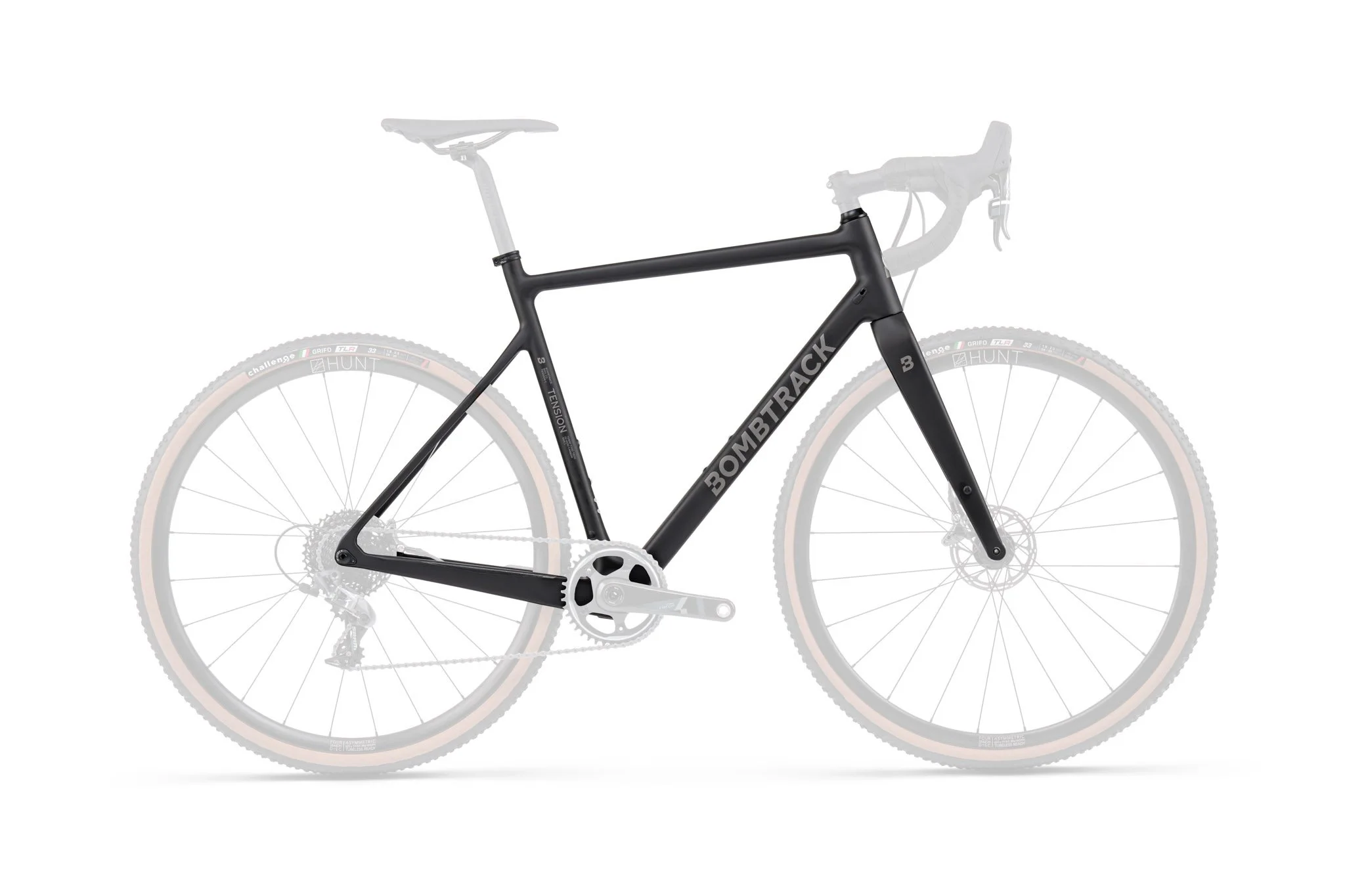

TENSION C FRAMESET

US$0.00

A World Cup-winning design ridden to multiple Elite level wins by pro rider Gosse van der Meer. Mix it with the very best on our top-flight racer. Built around an aggressive carbon chassis, its weight is kept to an absolute minimum to deliver you to the bell lap with enough energy left to boss the finishing sprint.

Quantity:
Add To Cart

A World Cup-winning design ridden to multiple Elite level wins by pro rider Gosse van der Meer. Mix it with the very best on our top-flight racer. Built around an aggressive carbon chassis, its weight is kept to an absolute minimum to deliver you to the bell lap with enough energy left to boss the finishing sprint.

A World Cup-winning design ridden to multiple Elite level wins by pro rider Gosse van der Meer. Mix it with the very best on our top-flight racer. Built around an aggressive carbon chassis, its weight is kept to an absolute minimum to deliver you to the bell lap with enough energy left to boss the finishing sprint.



“Head down, tongue down, pedal pedal pedal.”



  • SPECIFICATIONS
  • BUILD INFO
  • GEOMETRY
SPECIFICATIONS
ModelTENSION C
Color 1Matt Black
Color 2-
FrameToray T700/T800 Hi-Mod carbon, TA, 68 mm T47 BB shell
ForkFull carbon, TA, 1.1/2'' - 1.1/8''
HeadsetSealed integrated aheadset, 1.1/2'' - 1.1/8''
Through axle12 x 100 mm / 12 x 142 mm
Seat clampBombtrack Prime 31.8 mm
Rack-
Weight frameset1060 g frame (size S, incl. TA, hanger, cable guides) / 600 g fork (300 mm steerer, incl. TA)
Maximum rider weight115 kg incl. luggage
ASTM riding condition2
BUILD INFO
ModelTENSION C
BB standardT47 - 68 mm shell width
Headset standard (S.H.I.S.)IS42 / 28.6 | IS52 / 40
Headset crown race angle45°
Fork steerer inner diameter23.6 mm
Fork max tire clearance w/o fender700C x 37C
Frame max tire clearance w/o fender700C x 37C
Maximum chainring clearance 1x46 T with 45 mm chainline
Maximum chainring clearance 2x53 / 39 T with 43.5 mm chainline
Seat post diameter27.2 mm
Seat clamp diameter31.8 mm
Front derailleur clamp diameter31.8 mm
Frame front derailleur compatibleyes
Brake mount frontFM 140 / 160
Brake mount rearFM 140 / 160
Maximum rotor clearance front160 mm
Maximum rotor clearance rear160 mm
Front through axle12 mm x 100 mm, 1.5 thread pitch
Rear through axle12 mm x 142 mm, 1.5 thread pitch
ISO testing standardRoad
Bike trailernot approved
Seat tube mounted child seatnot approved
Derailleur hangerBT-DH-013
Frame small partsBT-CR-012
Through axle frontBT-TA-F-603
Through axle rearBT-TA-R-603
GEOMETRY

FRAME GEOMETRY

ModelTENSION C
Bike SizeXSSMLXL
Wheel size700C700C700C700C700C
Seat Tube Length490520540560580
Horizontal TT length521535545560575
Seat Angle75.0°74.0°73.5°73.0°73.0°
Head Angle71.0°71.5°72.0°72.0°72.0°
Headtube Length110123140160180
BB Drop6464646464
Chainstay Length425425425425425
Fork Offset4545454545
Trail7370666666
Wheelbase Length10071007100810181033
Standover761785800818837
Reach378376378382391
Stack533553565584603
Front Center591591591601616
Axle to Crown400400400400400
Minimum rider height 15501630171017901860
Maximum rider height 16501730181018801950
