gear MUNROE CARGO FRAMESET
1 / 8
BT_MY24_Munroe_Cargo_frameset_matt_teal_web_01.jpg Image 1 of 8
BT_MY24_Munroe_Cargo_frameset_matt_teal_web_02.jpg Image 2 of 8
BT_MY24_Munroe_Cargo_frameset_matt_teal_web_03.jpg Image 3 of 8
BT_MY24_Munroe_Cargo_frameset_matt_teal_web_04.jpg Image 4 of 8
BT_MY24_Munroe_Cargo_frameset_matt_teal_web_05.jpg Image 5 of 8
BT_MY24_Munroe_Cargo_frameset_matt_teal_web_06.jpg Image 6 of 8
BT_MY24_Munroe_Cargo_frameset_matt_teal_web_07.jpg Image 7 of 8
BT_MY24_Munroe_Cargo_frameset_matt_teal_web_08.jpg Image 8 of 8

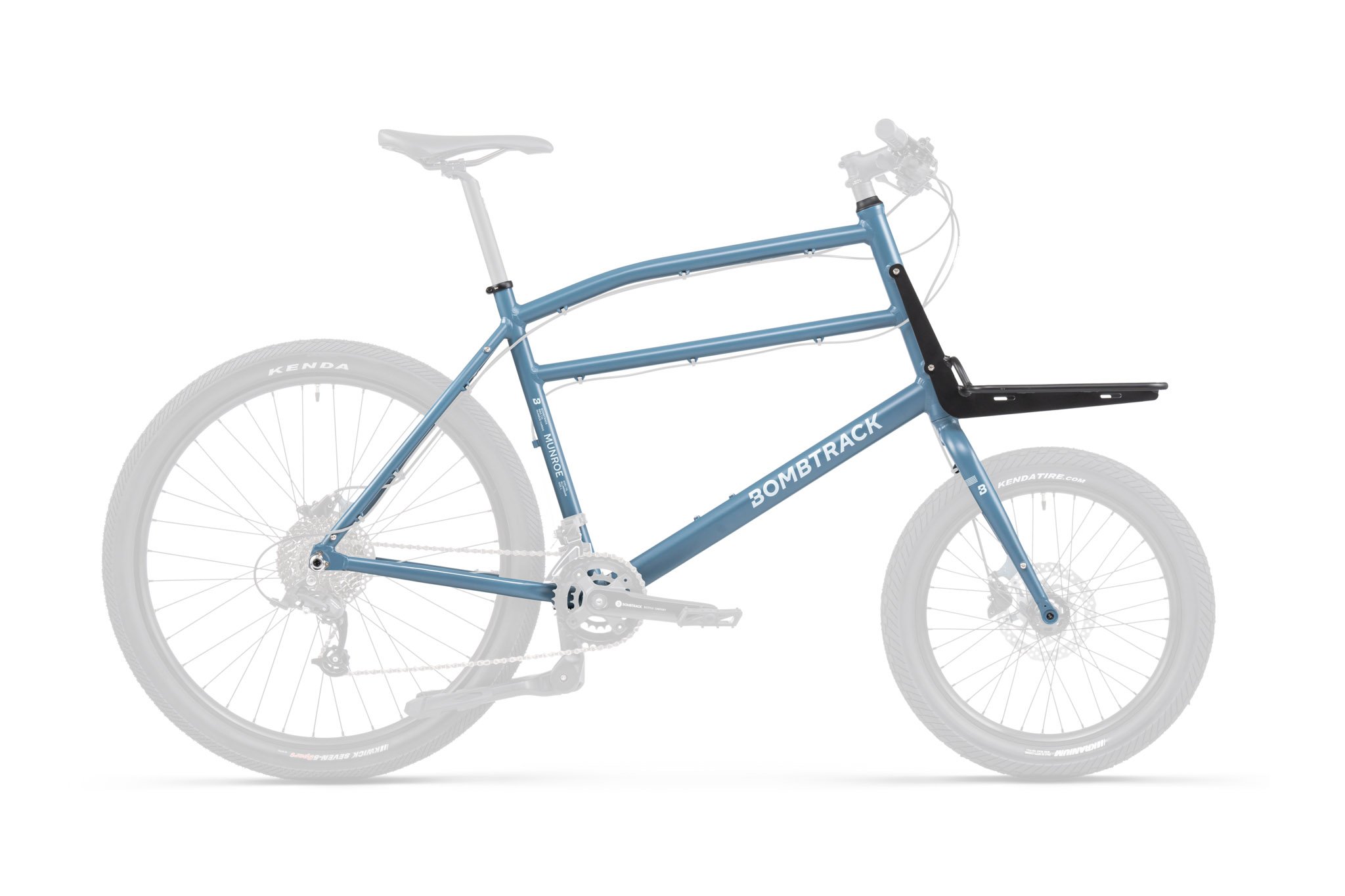

MUNROE CARGO FRAMESET

US$0.00

Odd wheels for balanced handling. With a strong and manoeuvrable 20-inch front wheel providing strength and a rear 27.5-inch hoop taking care of rider comfort, the Munroe Cargo will look after both you and your stuff. Employing a dedicated cargo rack with a sizable carry limit, it’ll take a month’s shopping home, or deliver an amp to your friend’s gig. Day off playing courier? Then ditch the rack for nippier city use.

Quantity:
Add To Cart

Odd wheels for balanced handling. With a strong and manoeuvrable 20-inch front wheel providing strength and a rear 27.5-inch hoop taking care of rider comfort, the Munroe Cargo will look after both you and your stuff. Employing a dedicated cargo rack with a sizable carry limit, it’ll take a month’s shopping home, or deliver an amp to your friend’s gig. Day off playing courier? Then ditch the rack for nippier city use.

Odd wheels for balanced handling. With a strong and manoeuvrable 20-inch front wheel providing strength and a rear 27.5-inch hoop taking care of rider comfort, the Munroe Cargo will look after both you and your stuff. Employing a dedicated cargo rack with a sizable carry limit, it’ll take a month’s shopping home, or deliver an amp to your friend’s gig. Day off playing courier? Then ditch the rack for nippier city use.



“Allowing it to transport a month’s shopping home, or an entire house party’s worth of refreshments, it’s one more reason not to use a car.”



  • SPECIFICATIONS
  • BUILD INFO
  • GEOMETRY
SPECIFICATIONS
ModelMUNROE CARGO
Color 1Matt Teal
Color 2-
Frame6061-T6 hydroformed aluminium, TA, rack / fender mounts, 68 mm BSA BB shell
Fork6061 aluminium, TA dropouts, with fender mounts, internal light cable routing
HeadsetNeco H52MP sealed integrated aheadset, 1.1/8''
Through axle12 x 100 mm / 12 x 142 mm
Seat clampBombtrack Prime 31.8 mm
RackBombtrack Cargo frontrack, aluminium
Weight frameset3240 g frame (size M, incl. TA, hanger, rack and bolts) / 770 g fork (400 mm steerer)
Maximum rider weight140 kg incl. luggage
ASTM riding condition1
BUILD INFO
ModelMUNROE CARGO
BB standardBSA - 68 mm shell width
Headset standard (S.H.I.S.)IS42 / 28.6 | IS42 / 30
Headset crown race angle45°
Fork steerer inner diameter24.6 mm
Fork max tire clearance w/o fender20'' x 2.5''
Frame max tire clearance w/o fender27.5'' x 2.2''
Maximum chainring clearance 1x42 T with 45 mm chainline
Maximum chainring clearance 2x52 / 38 T with 45 mm chainline
Seat post diameter27.2 mm
Seat clamp diameter31.8 mm
Front derailleur clamp diameter31.8 mm
Frame front derailleur compatibleyes
Brake mount frontPM 6''
Brake mount rearPM 6''
Maximum rotor clearance front180 mm
Maximum rotor clearance rear180 mm
Front through axle12 mm x 100 mm, 1.5 thread pitch
Rear through axle12 mm x 142 mm, 1.5 thread pitch
ISO testing standardMTB
Bike trailerapproved
Seat tube mounted child seatapproved
Derailleur hangerBT-DH-023
Frame small parts-
Through axle frontBT-TA-F-603
Through axle rearBT-TA-R-603
GEOMETRY

FRAME GEOMETRY

ModelMUNROE CARGO
Bike SizeML
Wheel size27.5'' / 20''27.5'' / 20''
Seat Tube Length460520
Horizontal TT length588617
Seat Angle73.0°73.0°
Head Angle71.0°70.5°
Headtube Length300350
BB Drop6565
Chainstay Length440440
Fork Offset4040
Trail4548
Wheelbase Length10971135
Standover780832
Reach414430
Stack567612
Front Center663701
Axle to Crown348348
Minimum rider height 16501800
Maximum rider height 18201950
