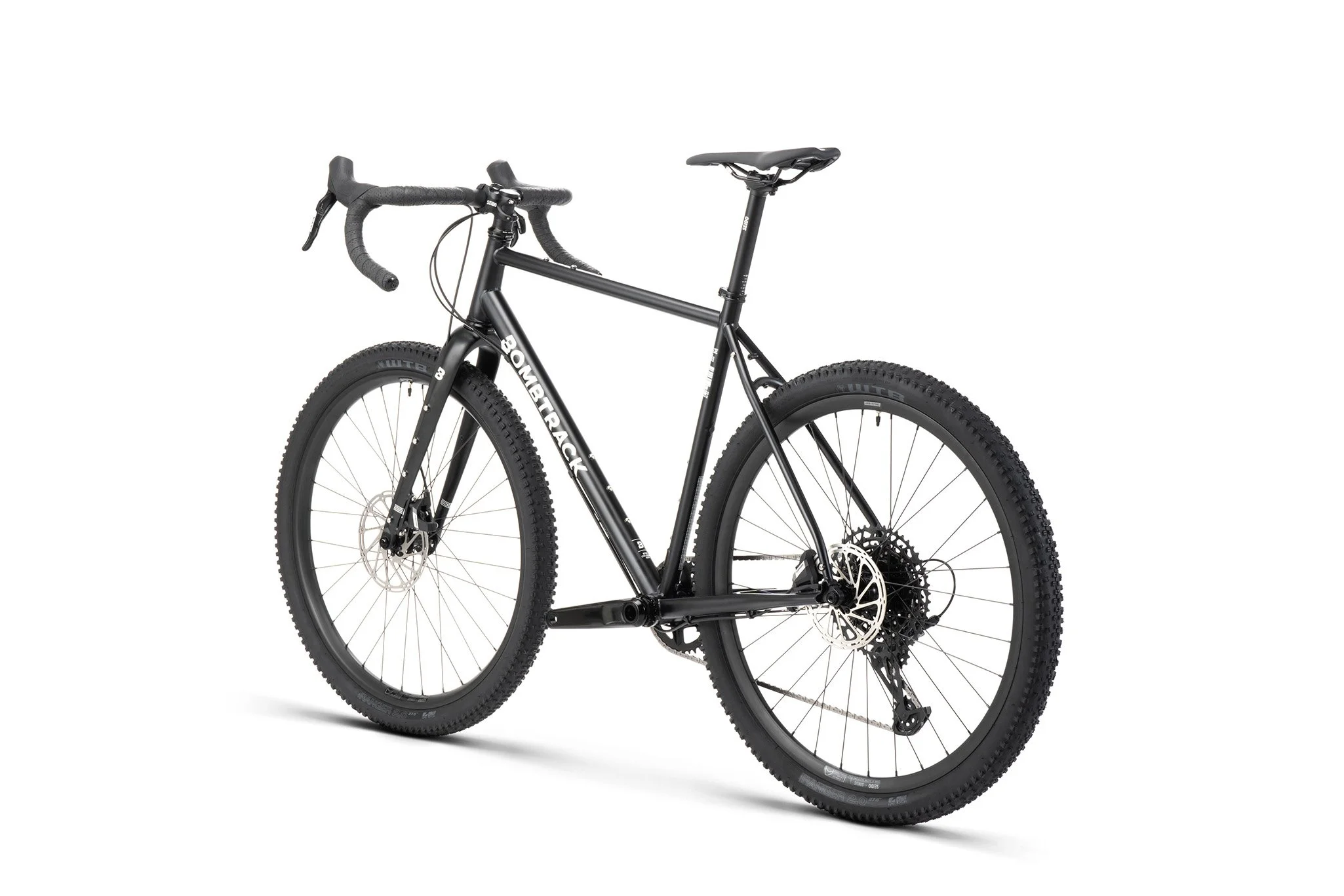

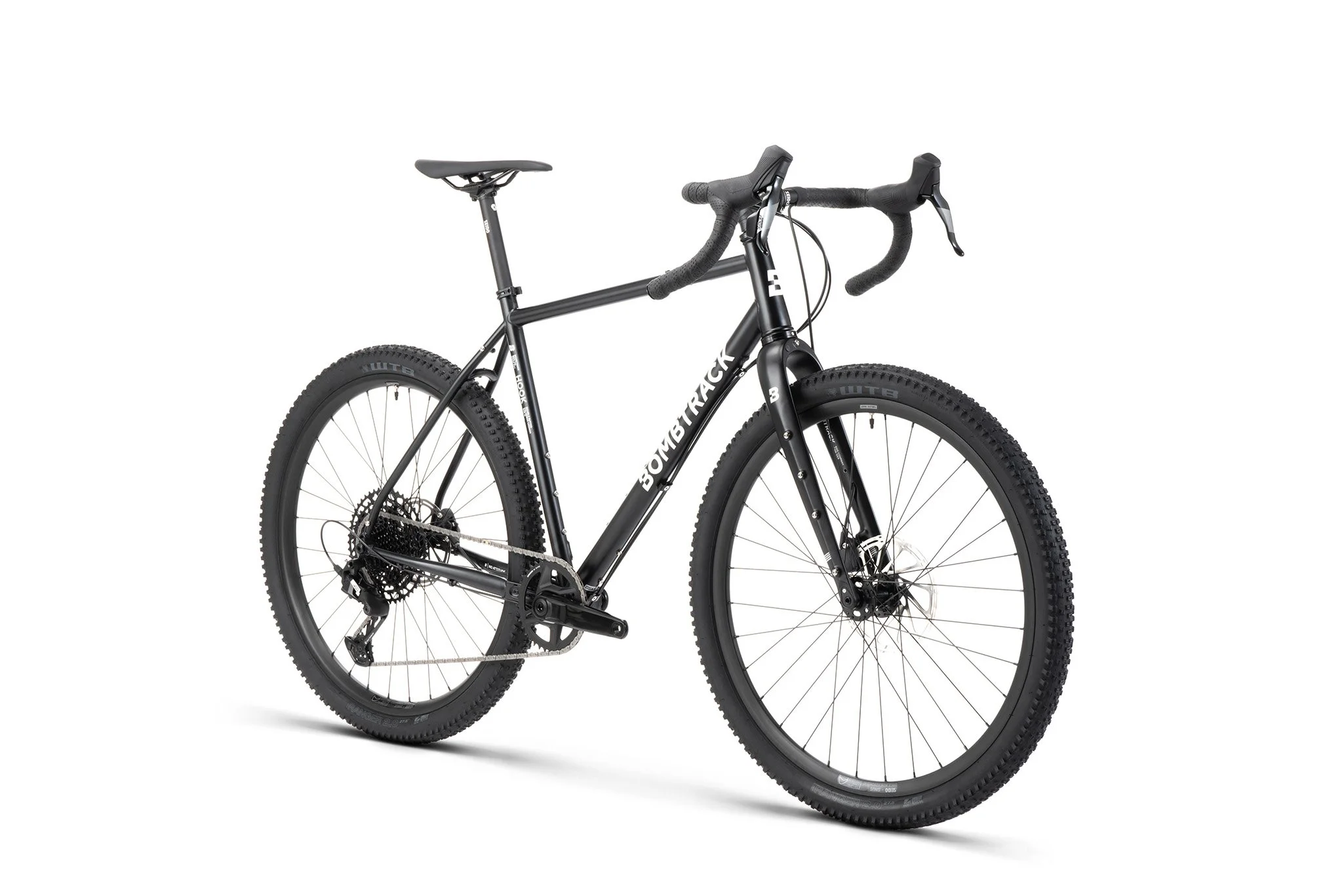

HOOK EXT APEX EAGLE

This bike’s built tough with Columbus Cromor steel tubing, giving it a smooth ride and loads of durability. We’ve loaded it up with all the mounts you’ll need to carry your gear - racks, cages, whatever you want. The WTB Ranger 27.5 x 2.0” tires grip the trail like a champ, making it a blast when you leave the pavement behind. Thanks to the SRAM Apex Eagle 1x setup, shifting and braking feel solid and simple, with a wide gear range to tackle anything from steep climbs to fast flats. The Seido MGV carbon fork also has plenty of mounts and room for big tires, plus neat hidden cables to keep things looking clean. Basically, the EXT is ready to roll wherever your ride takes you — whether it’s a quick spin around the neighbourhood or a weekend off-road mission.

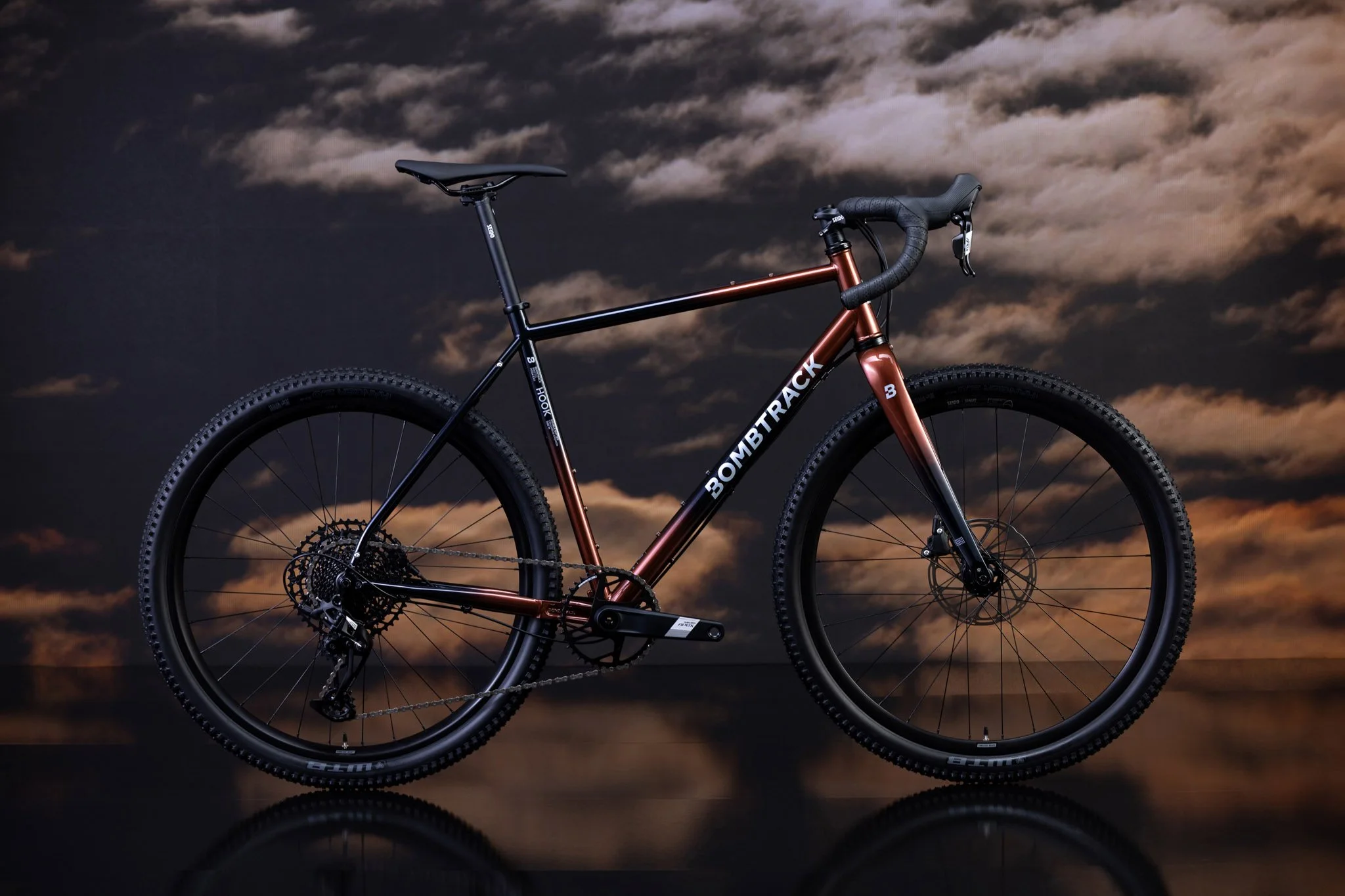

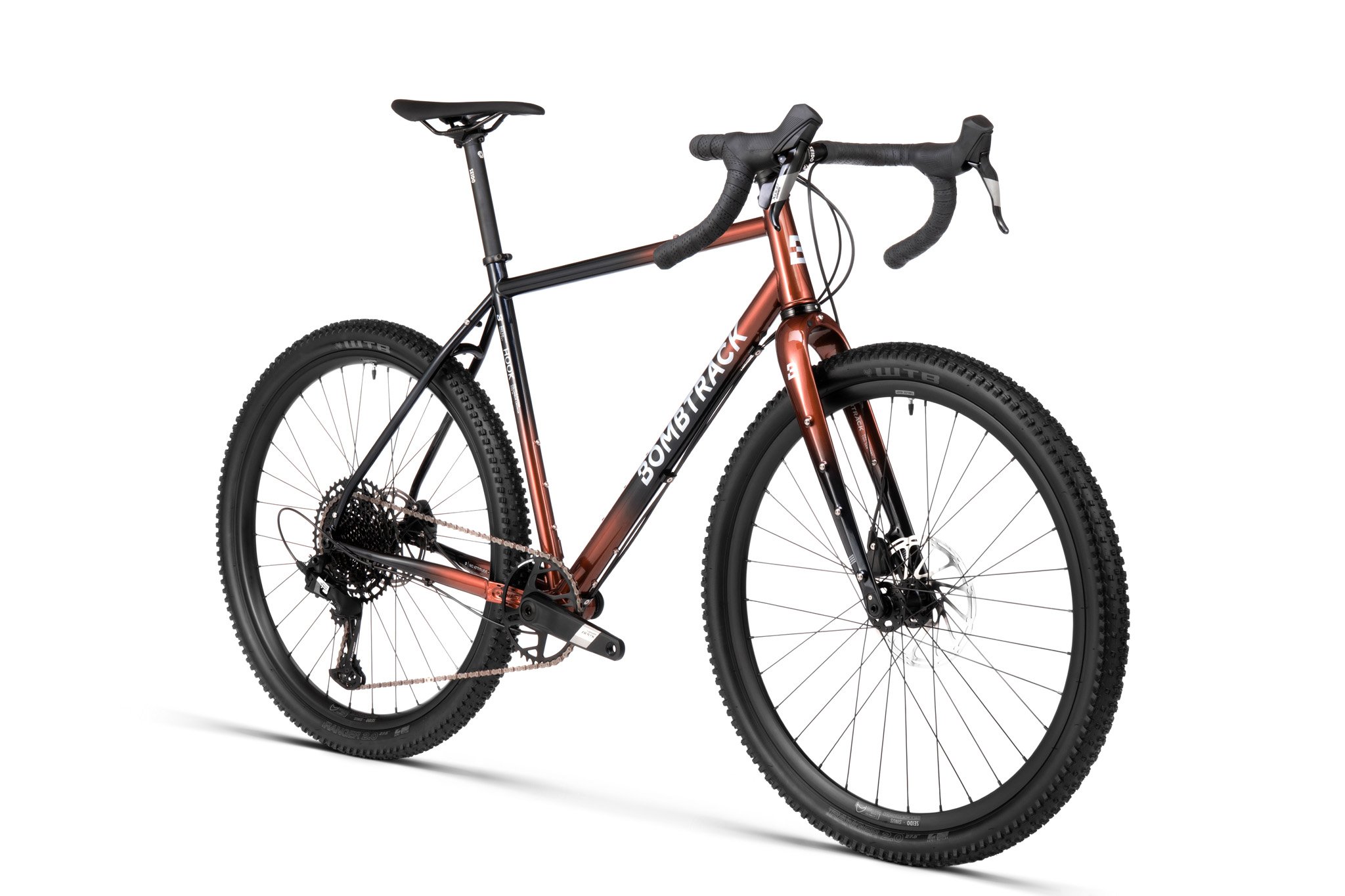

METALLIC SUNGLOW FADE

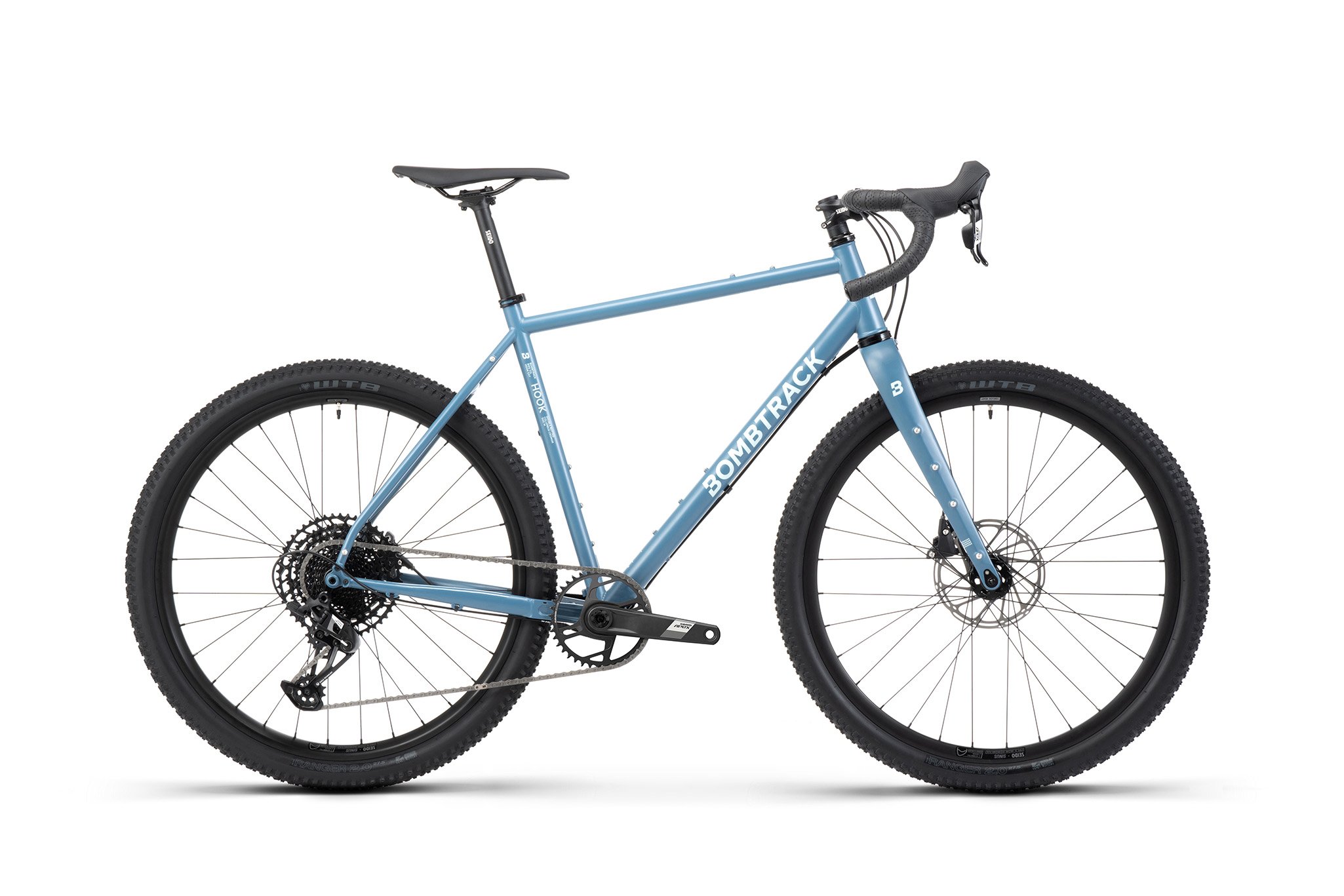

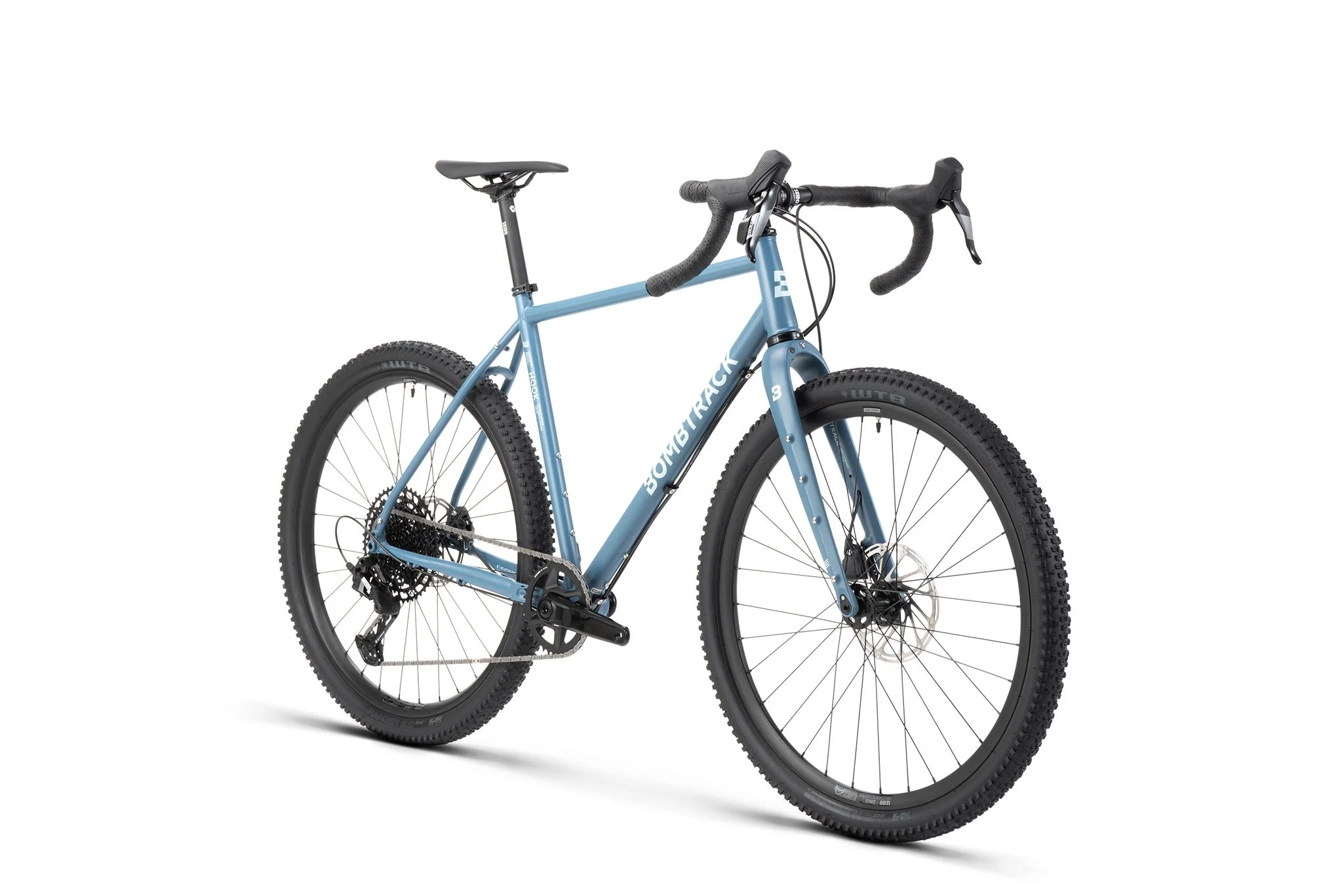

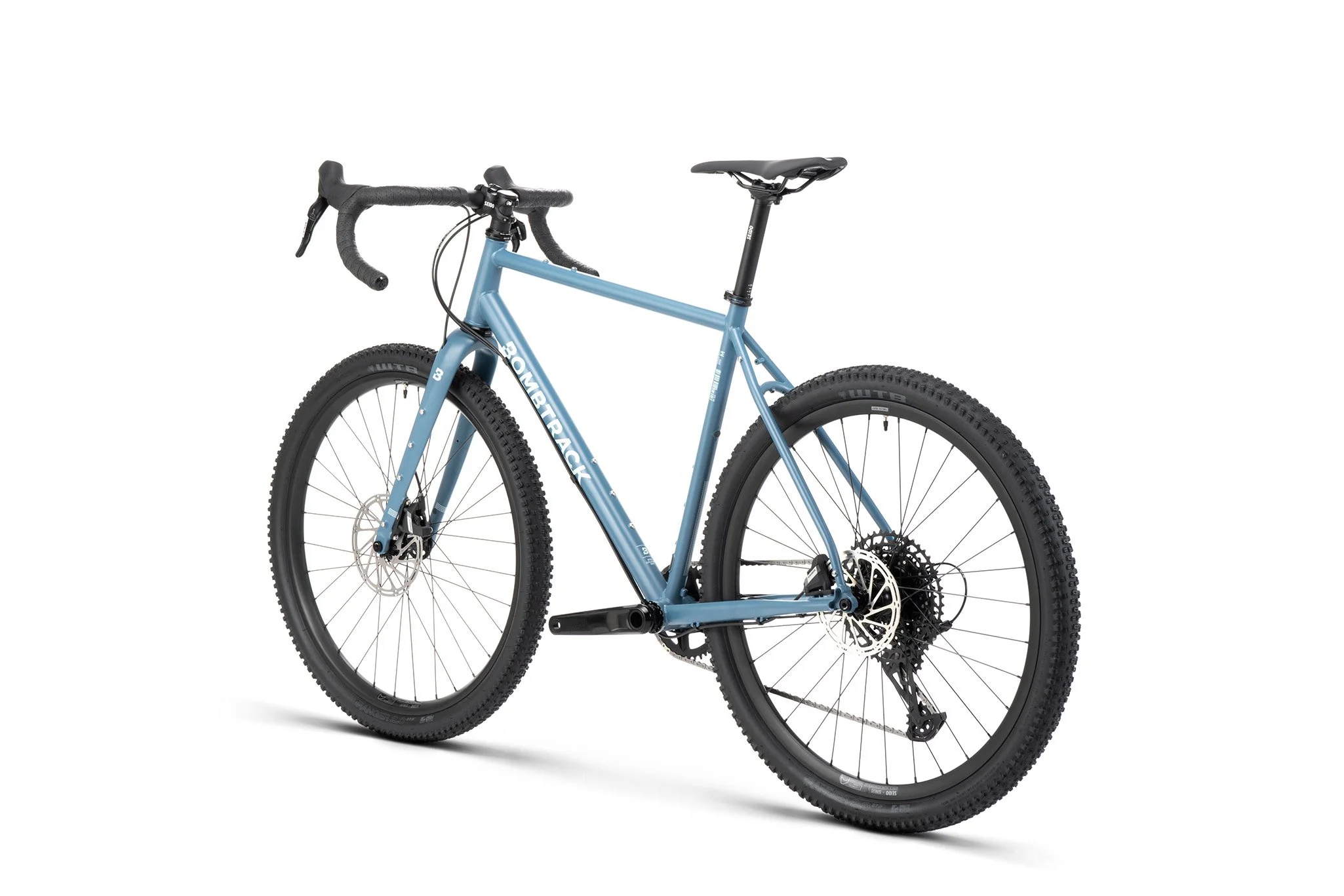

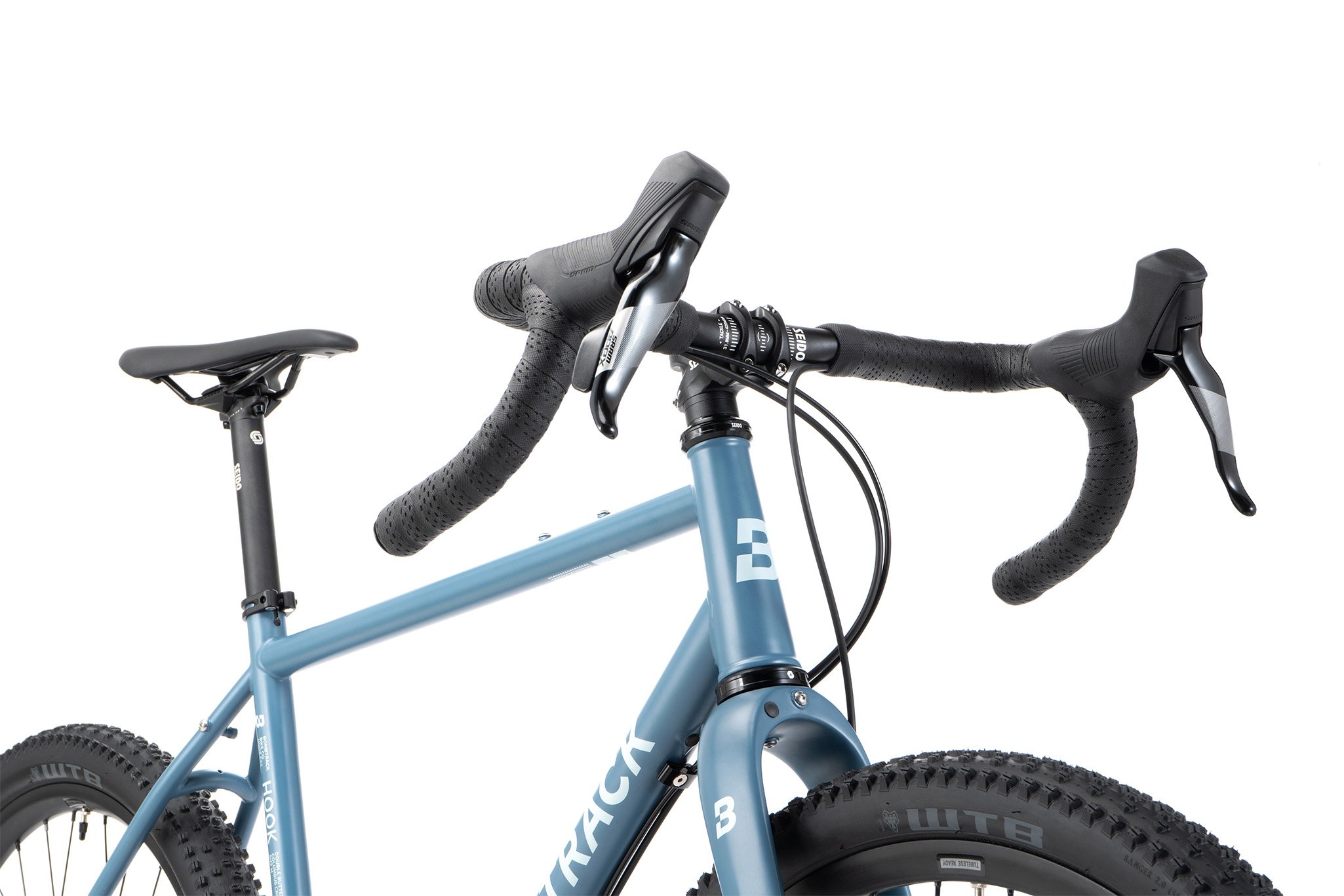

MATT TEAL

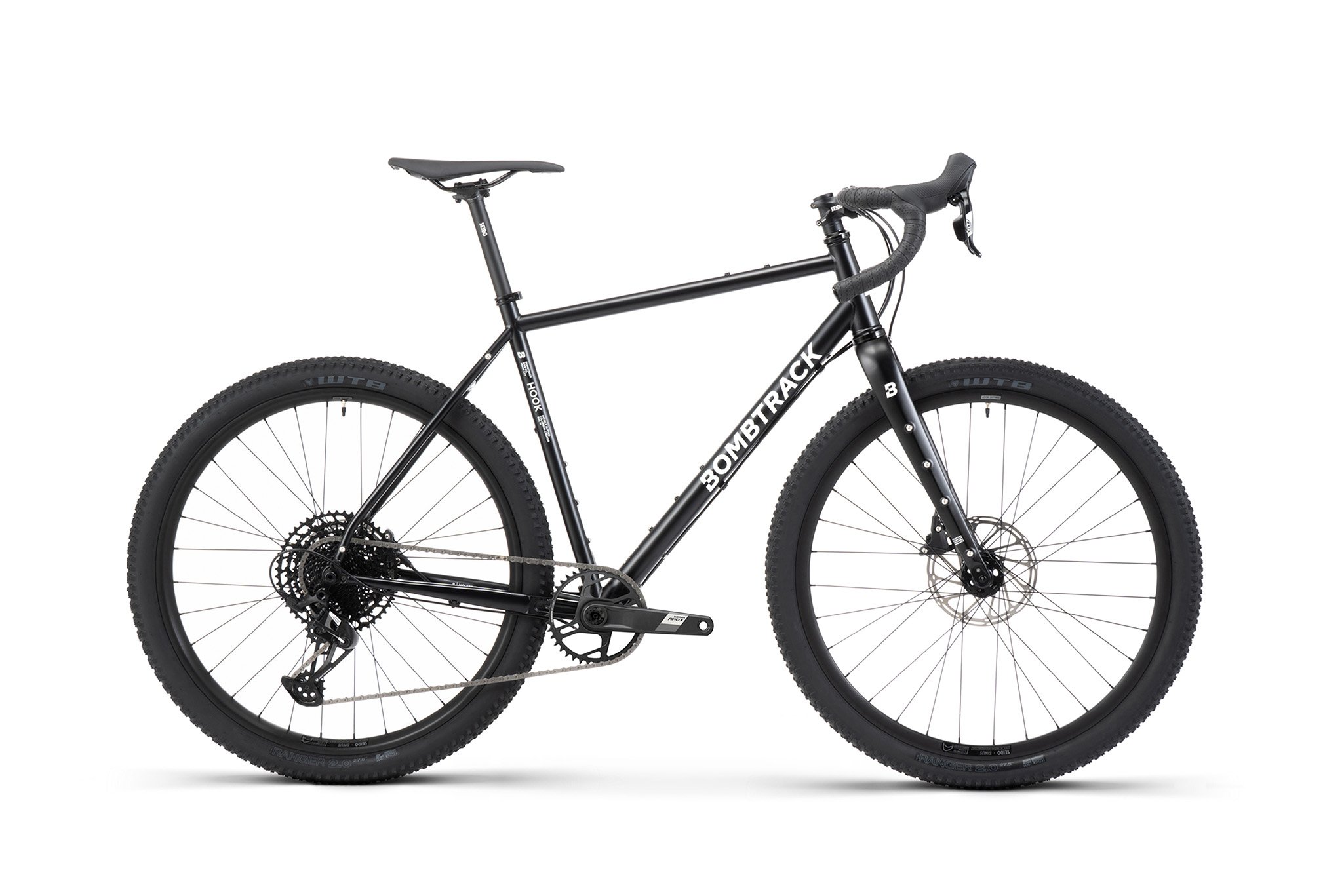

MATT BLACK

HIGHLIGHTS

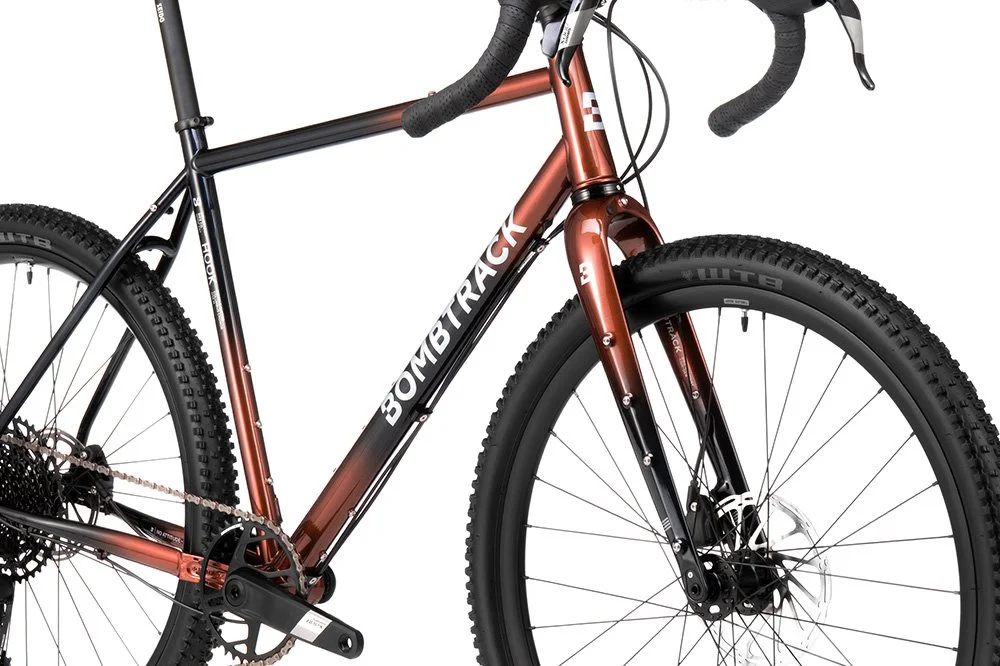

  • FRAME

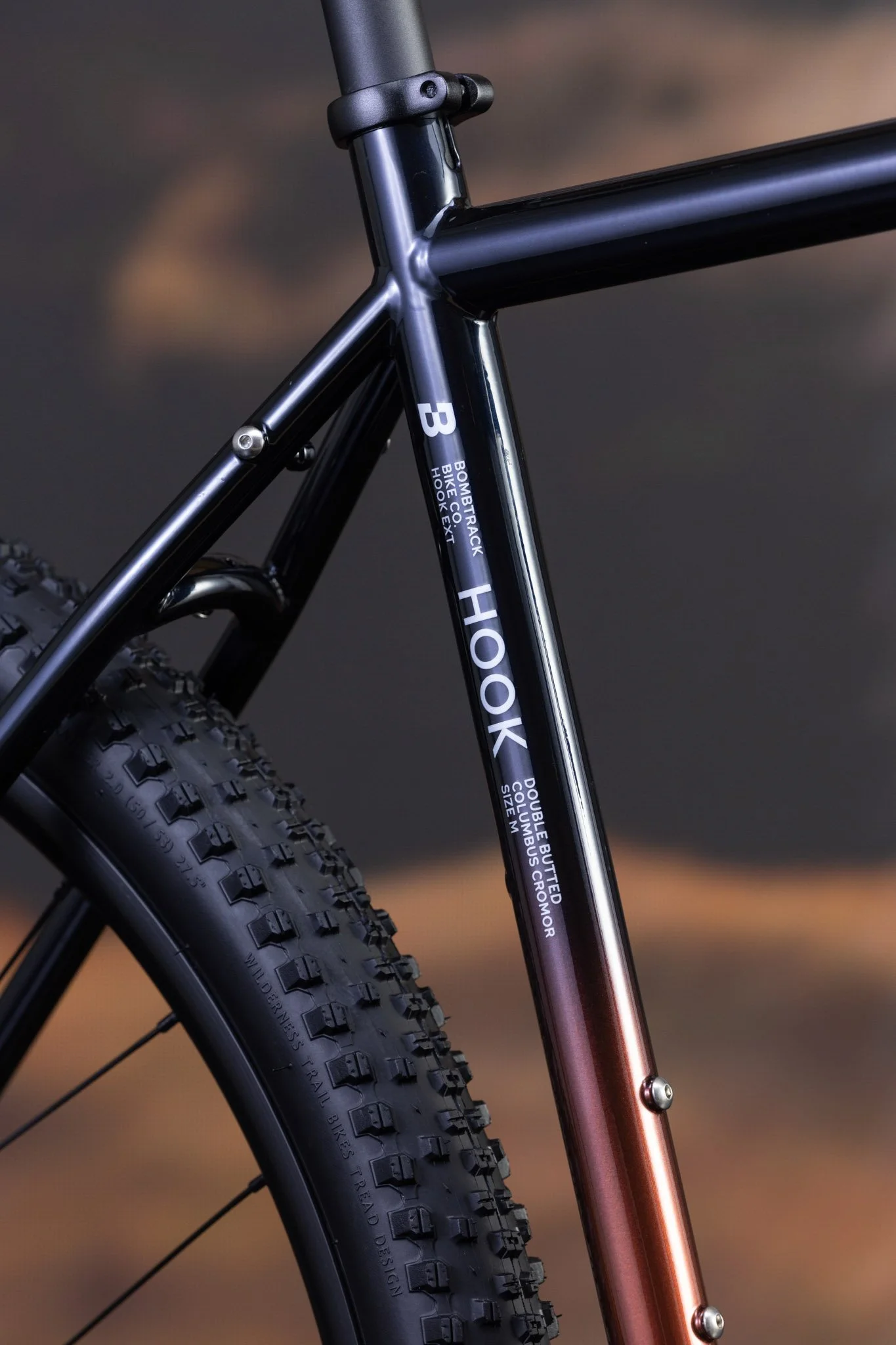

    Double butted crmo frame with tapered headtube and T47 bottom bracket.

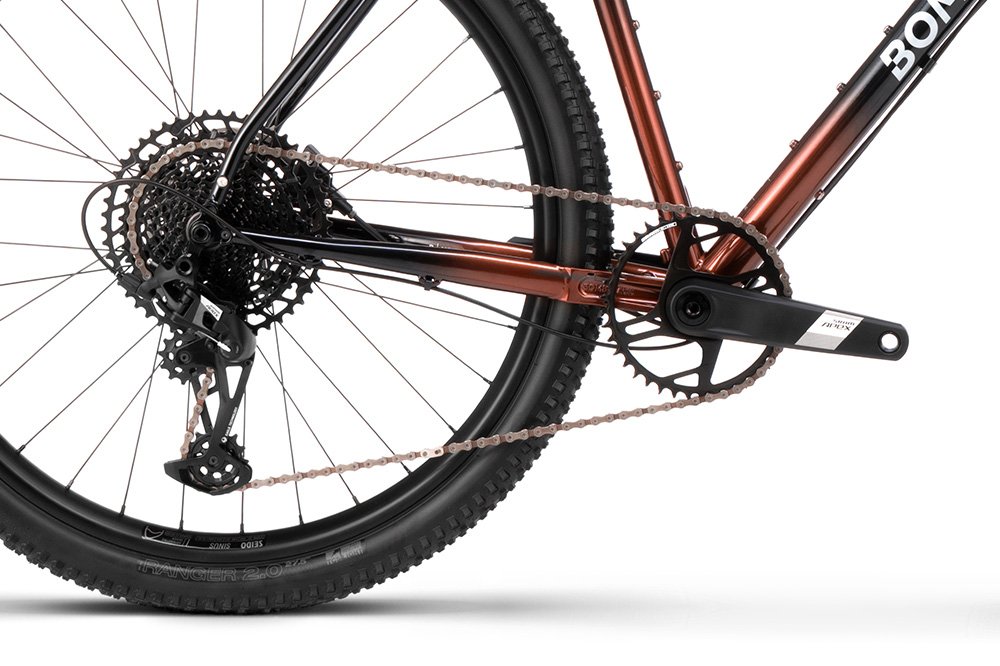

  • DRIVETRAIN

    Hydraulic Sram Apex Eagle 1 x 12 wide range drivetrain.

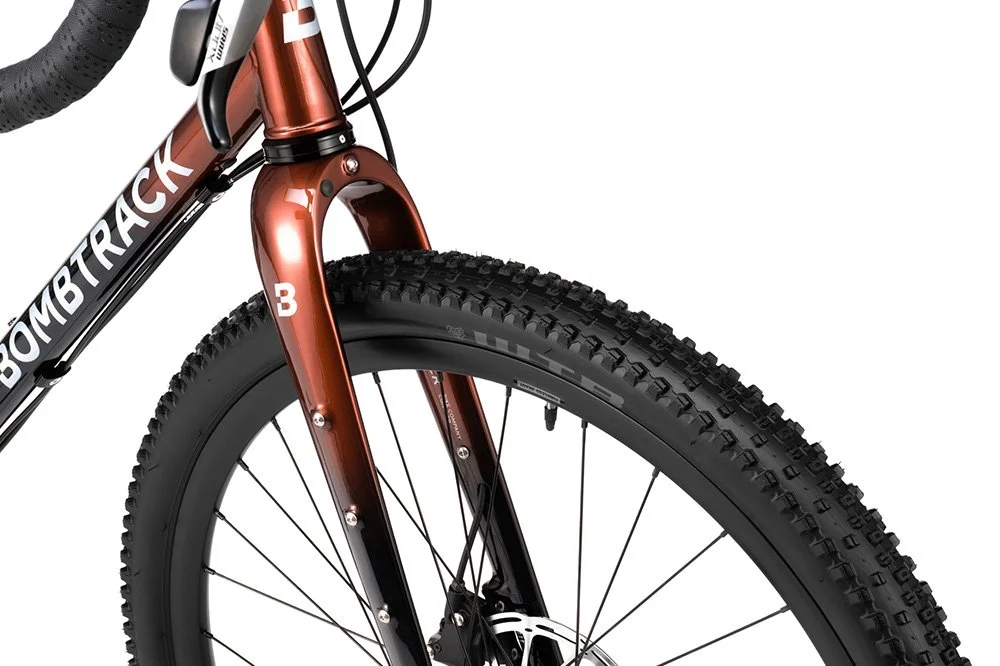

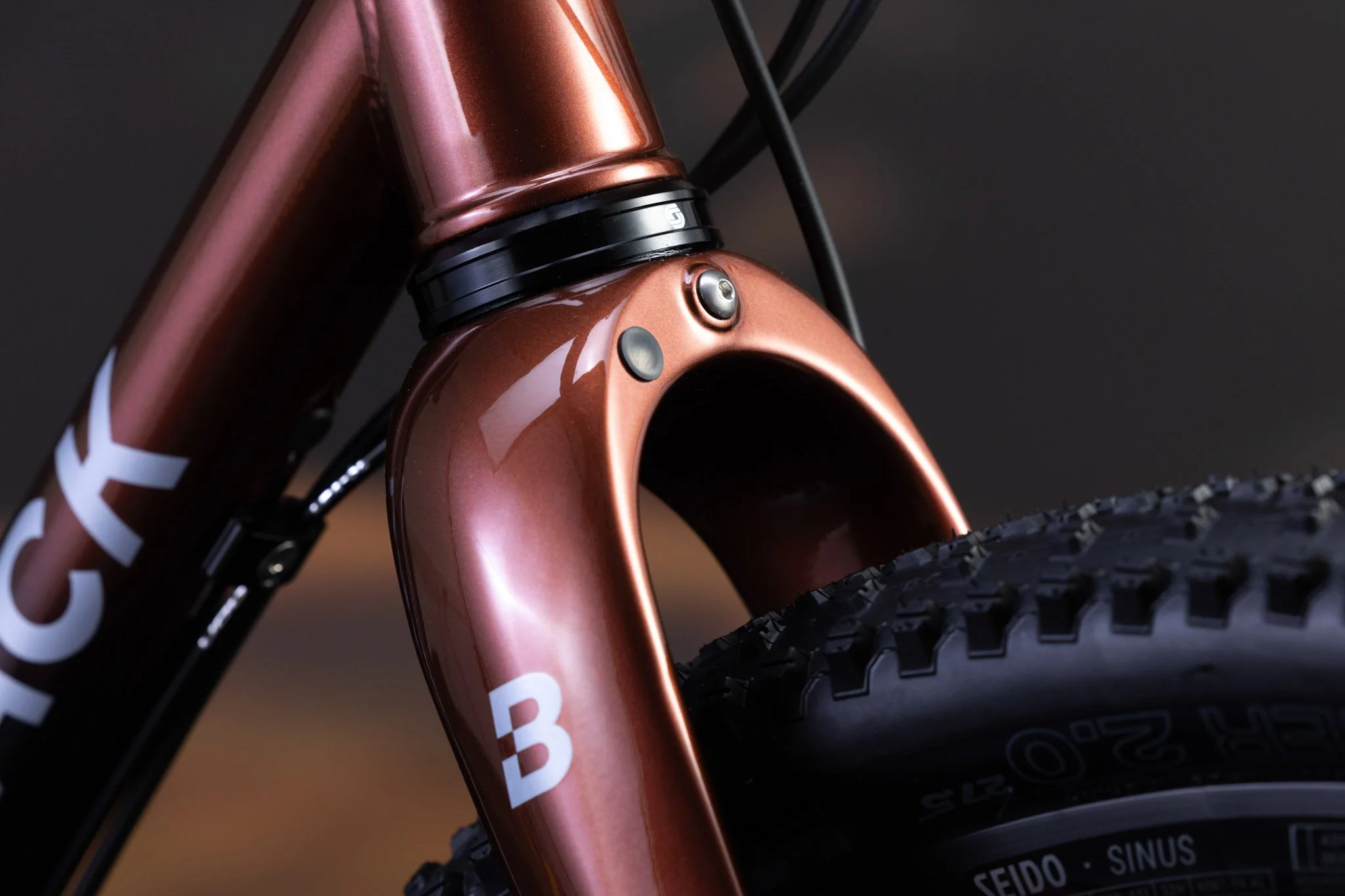

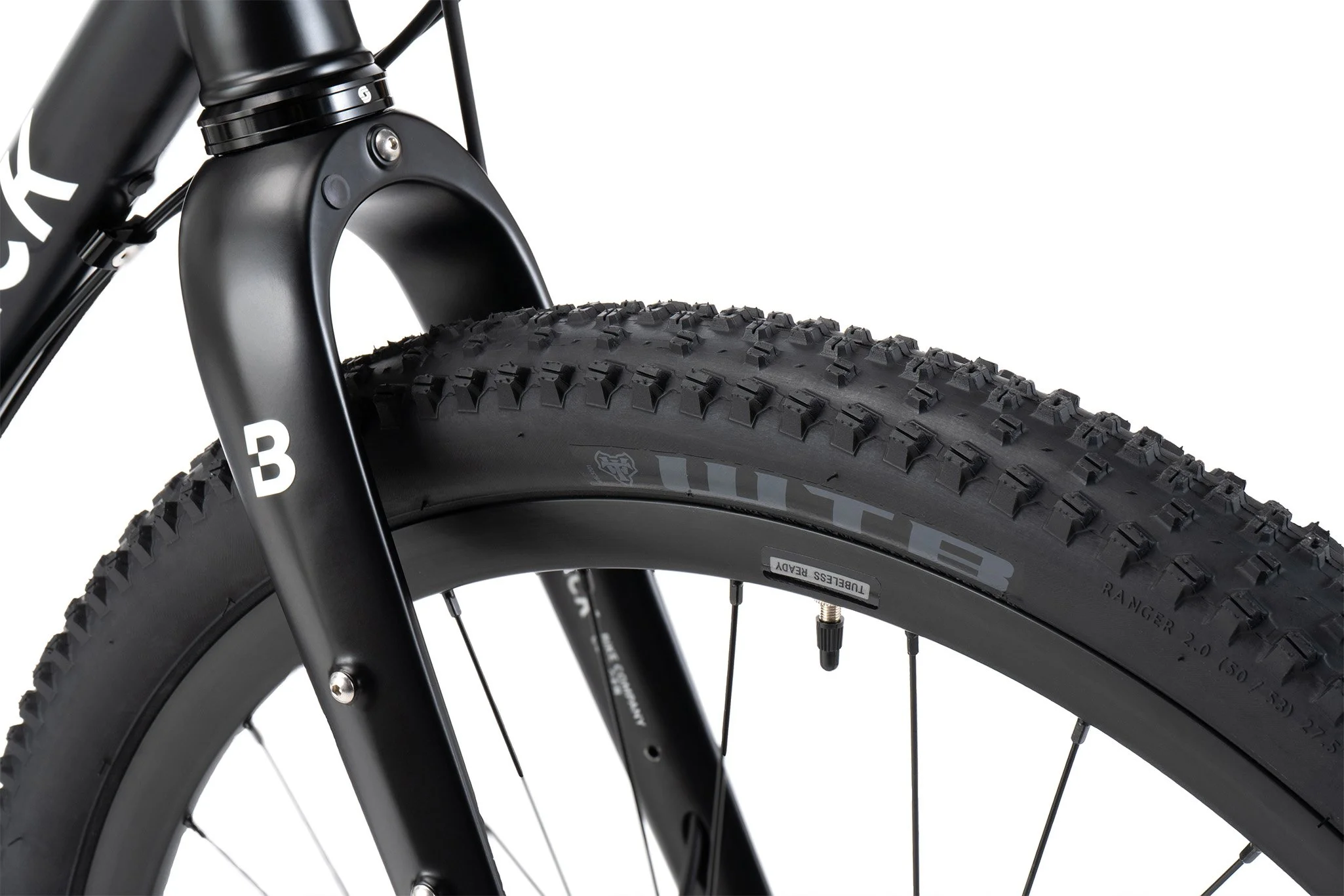

  • FORK

    Seido MGV full carbon fork with lowrider mounts and internal light cable routing.

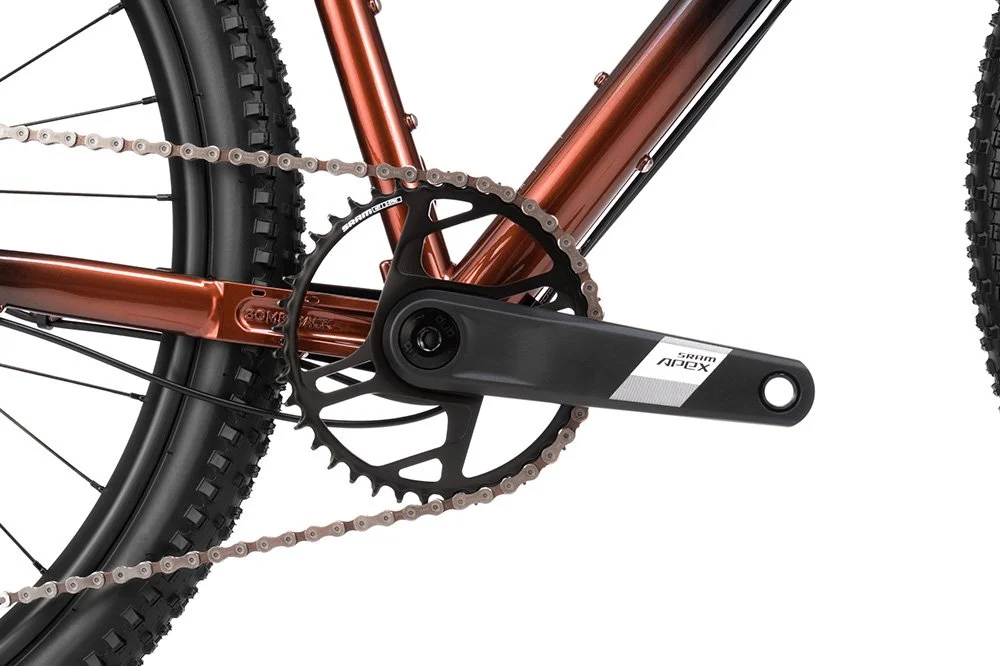

  • CRANKSET

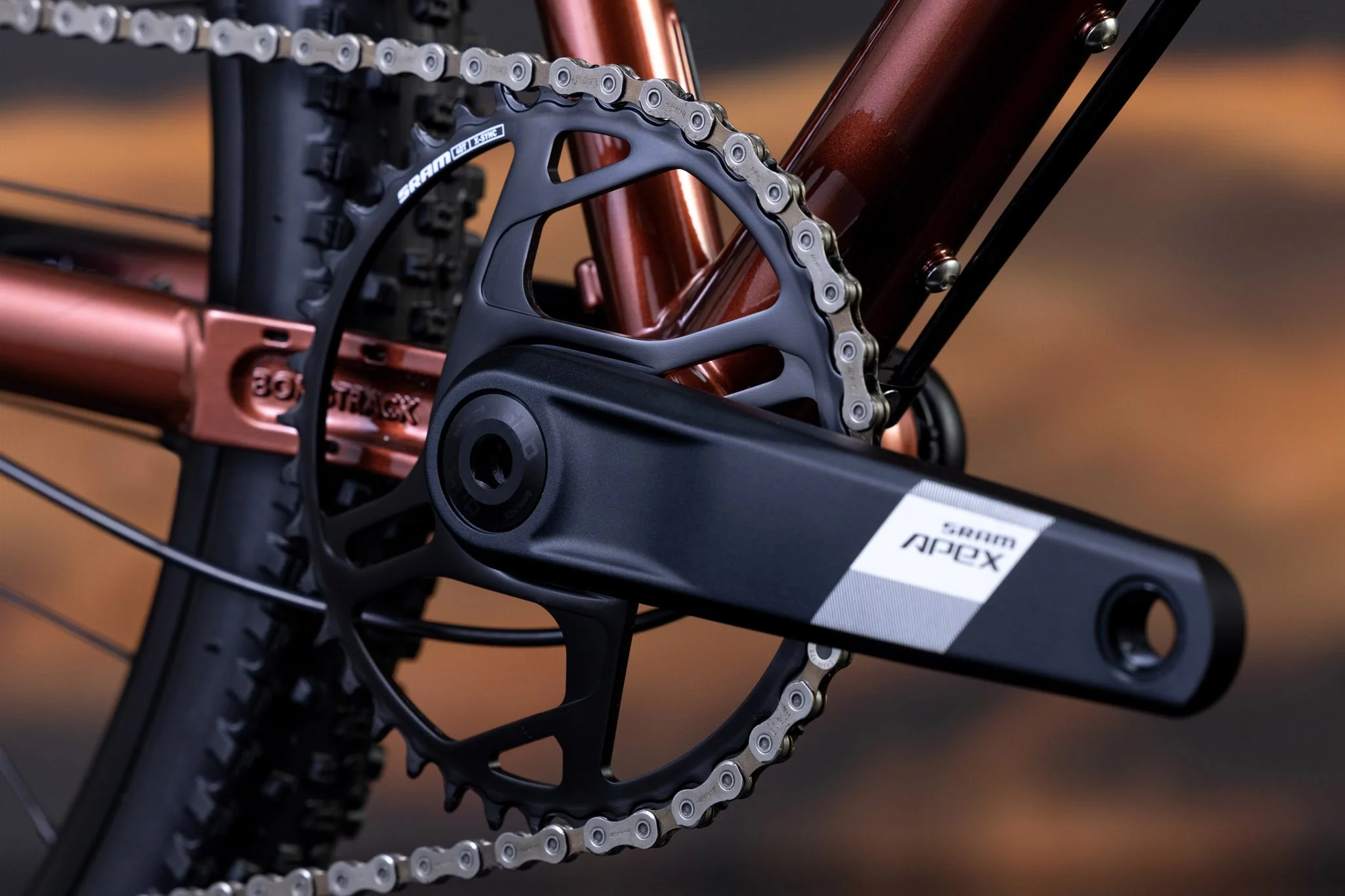

    Sram Apex Wide crankset with 40 T direct mount chainring.

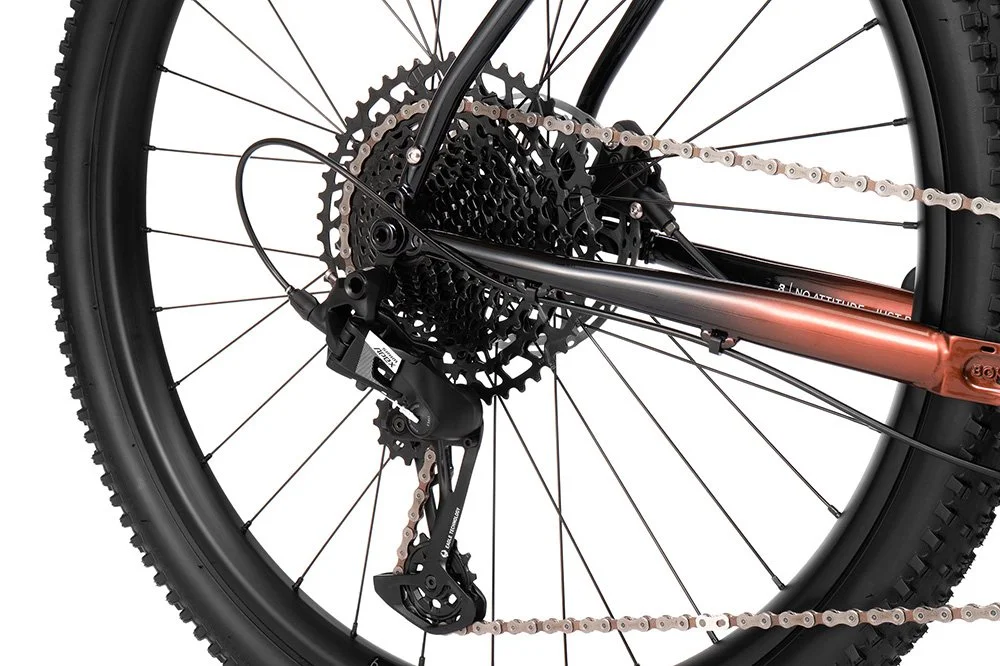

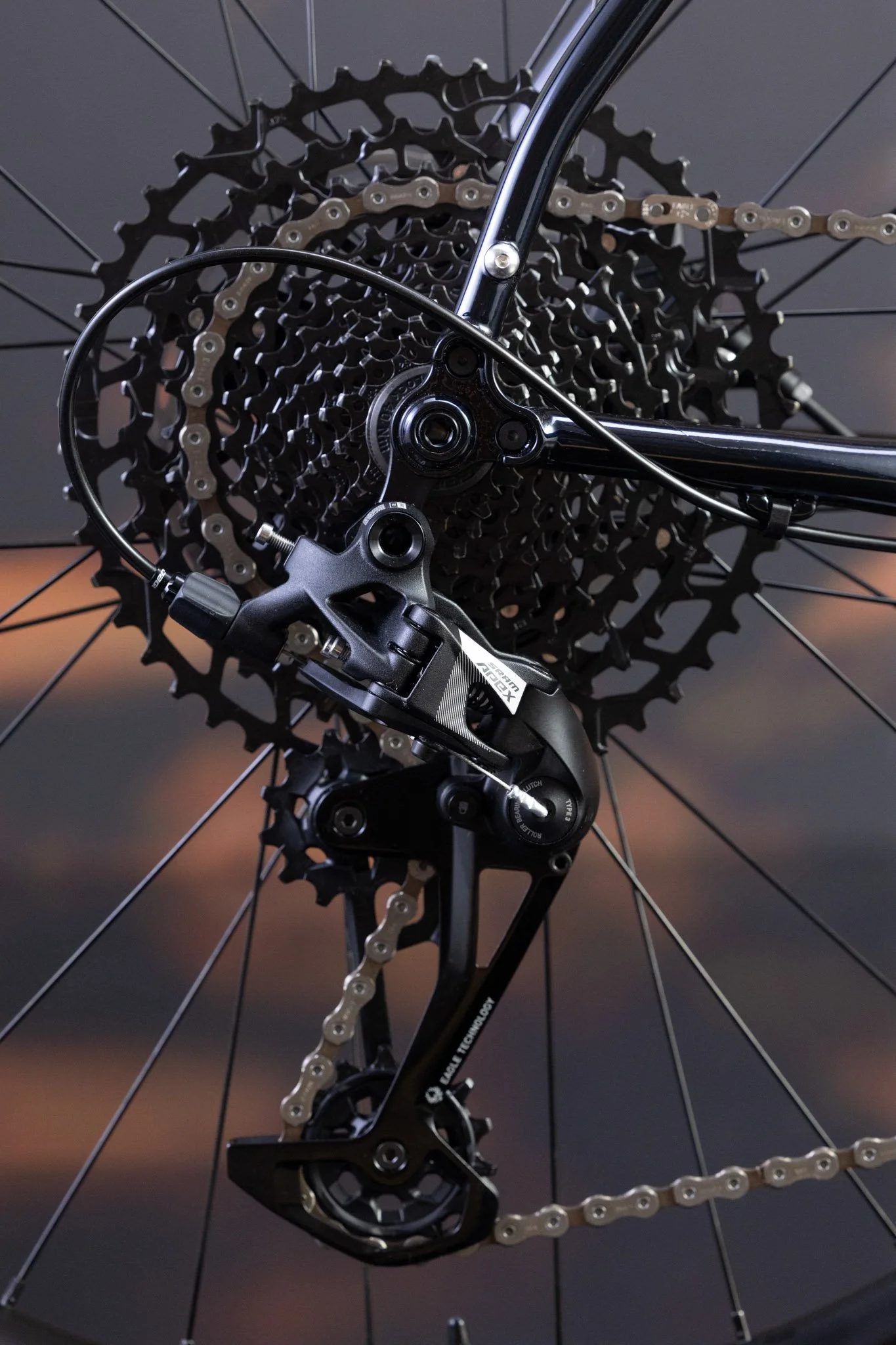

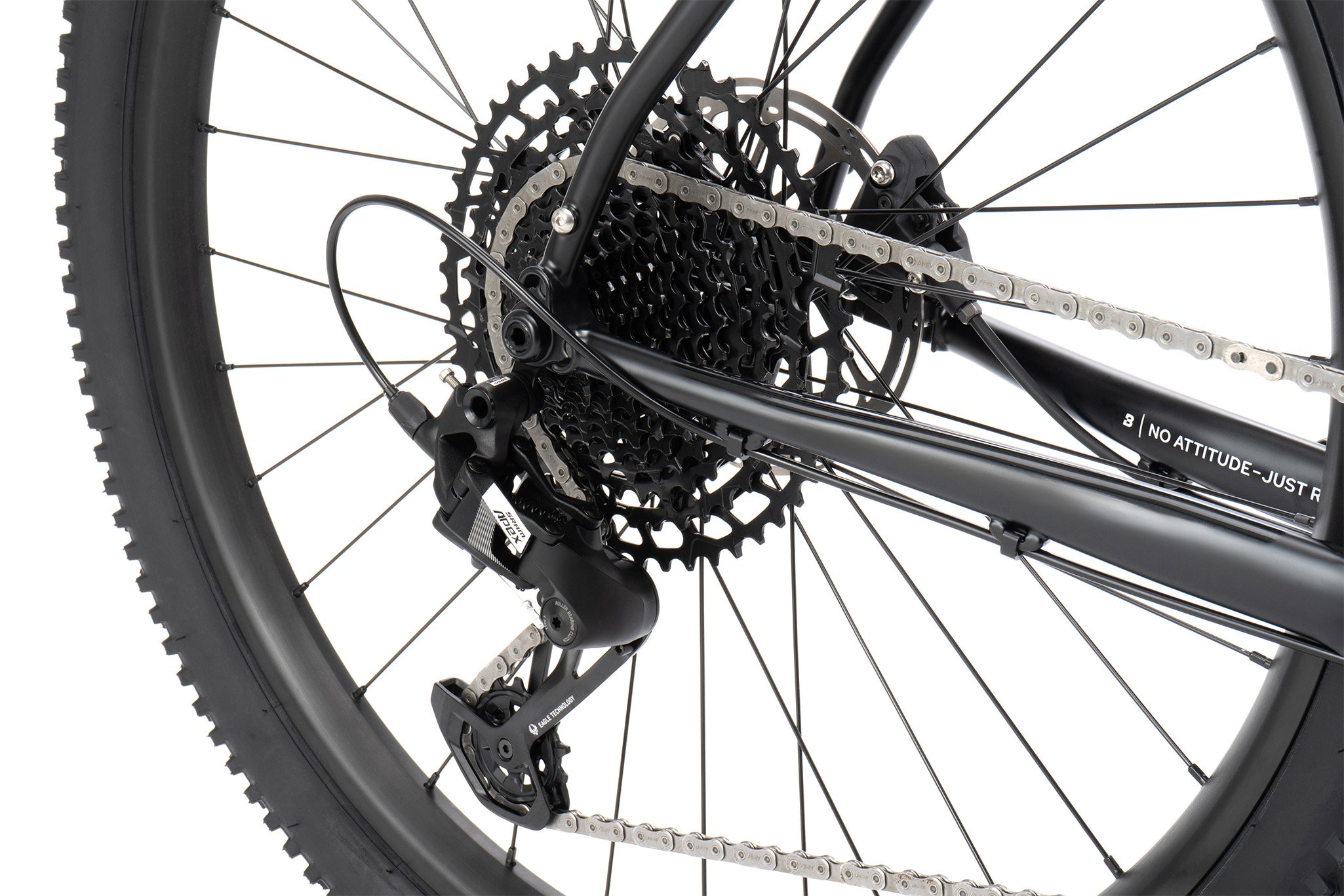

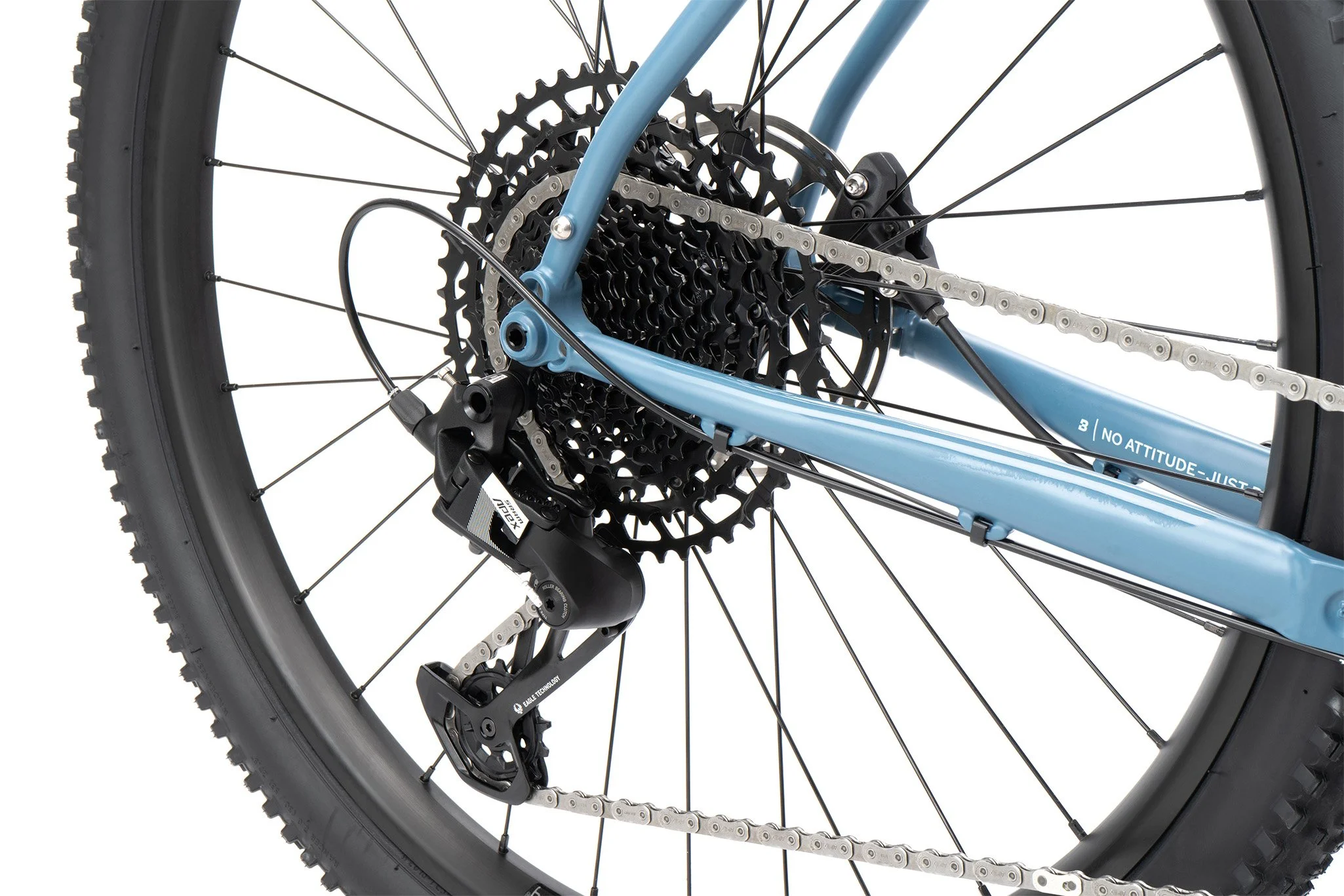

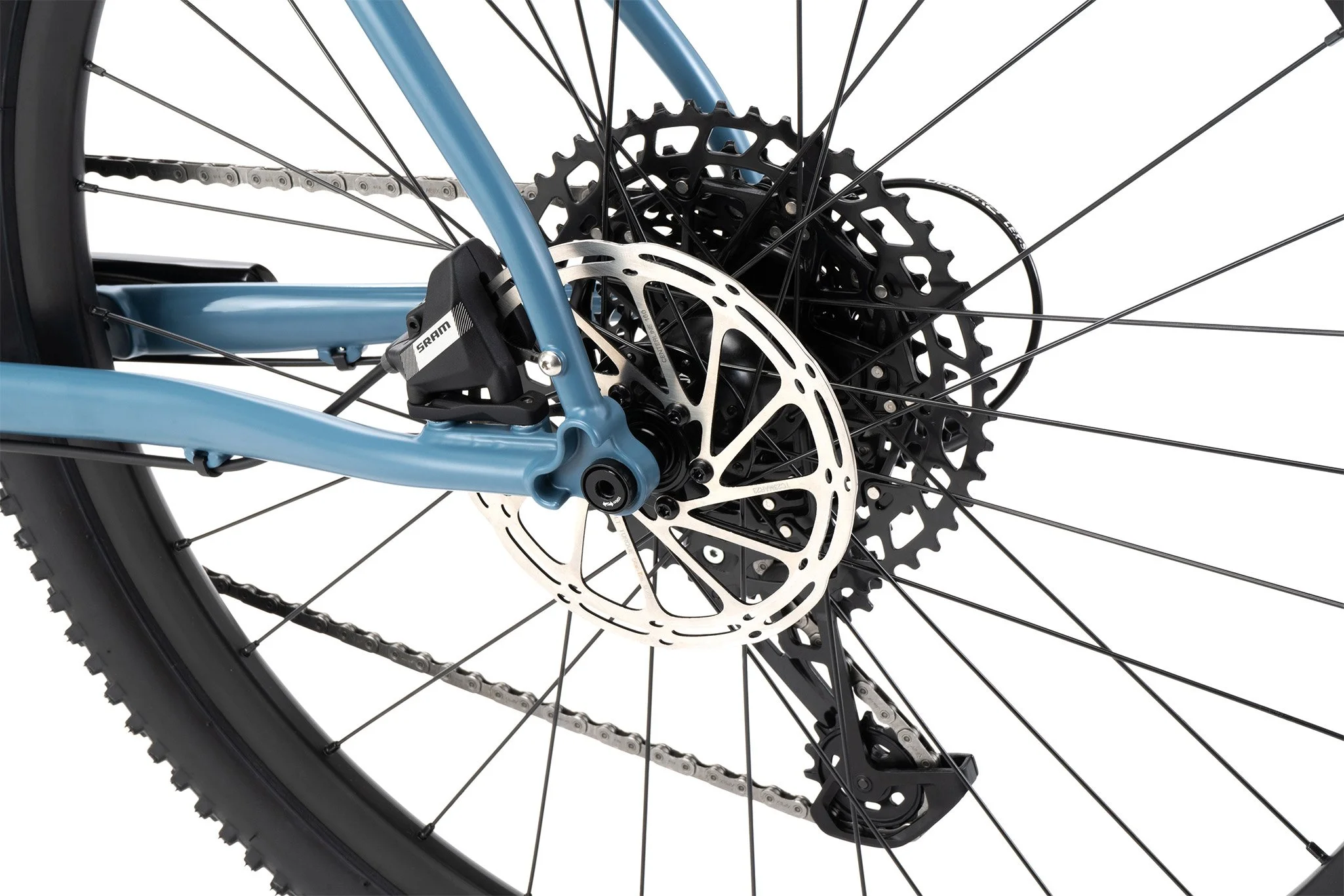

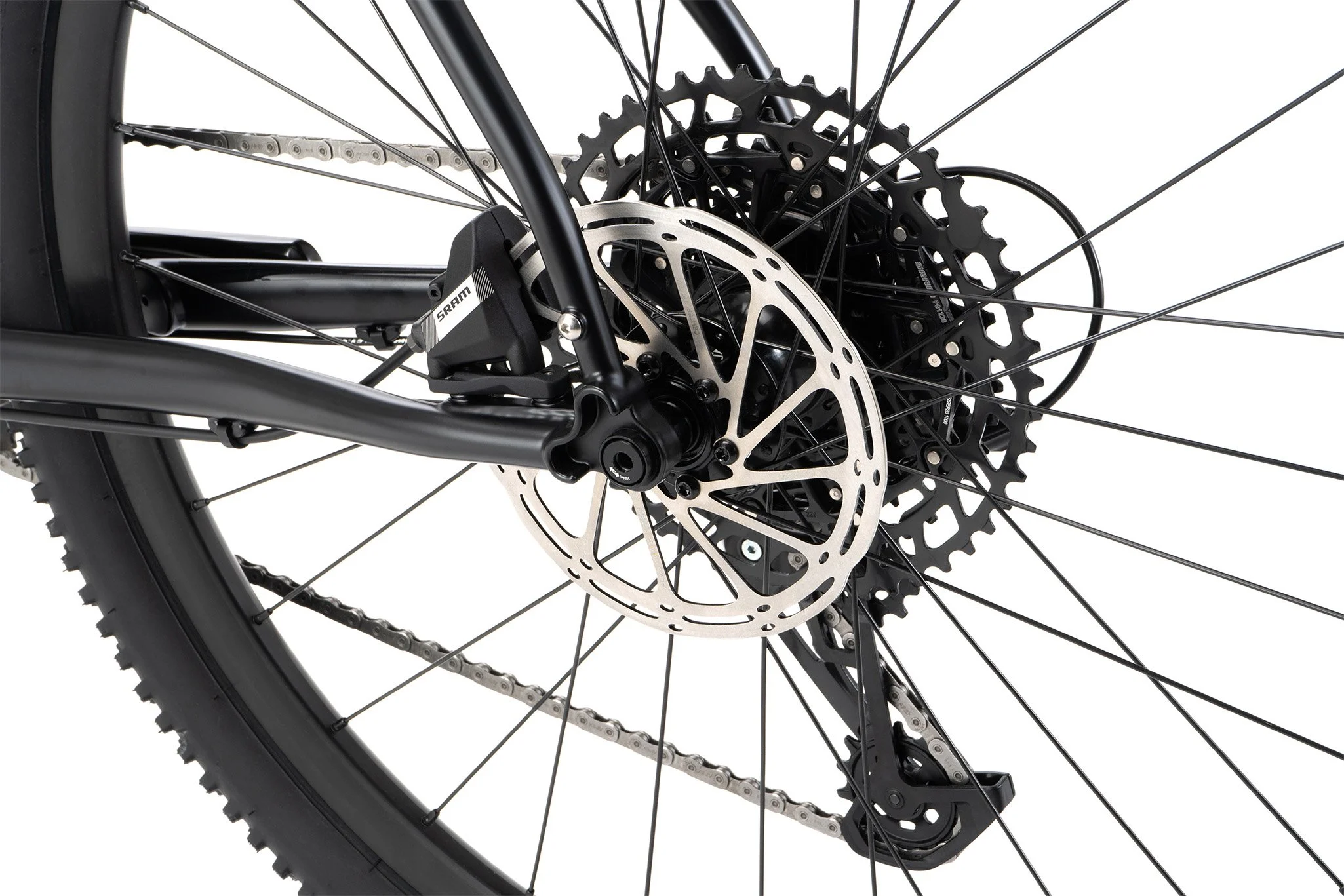

  • REAR DERAILLEUR

    Sram Apex Eagle rear derailleur for wide 1x gear range.

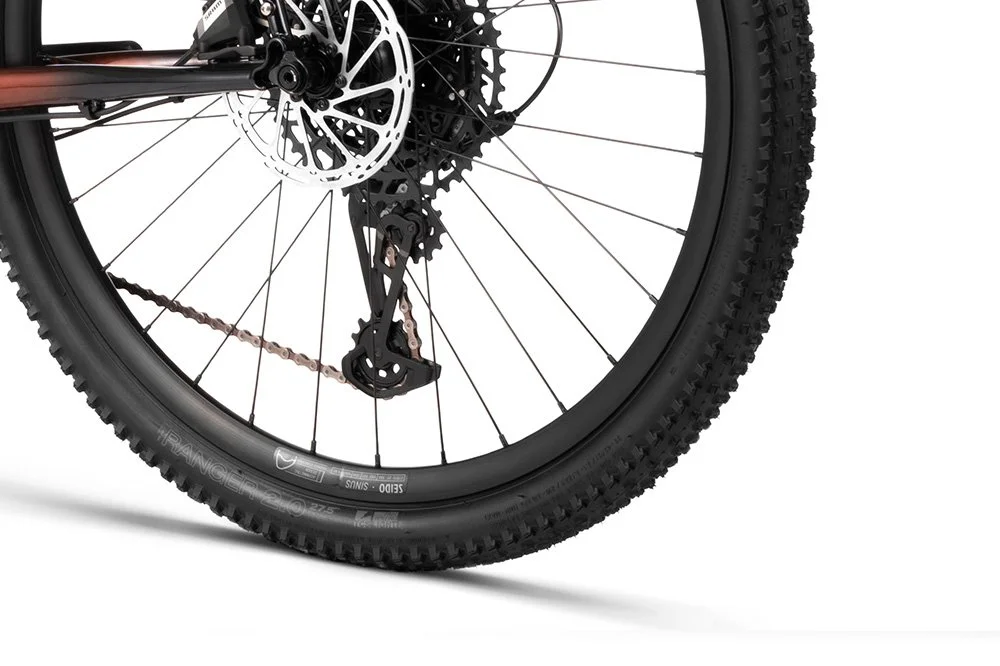

  • RIMS

    Tubeless ready Seido Sinus i25 rims.

"Gravel racing is such a varied discipline, with courses spanning from 100km to Ultra Endurance distances - the Hook EXT is there for any competitive scenario"

SPECIFICATIONS

ModelHOOK EXT APEX EAGLE
Color 1Matt Black
Color 2Matt Teal
Color 3Metallic sunglow fade
FrameColumbus Cromor double butted, TA, rack / fender mounts, internal light cable routing, rear light mount, 85.5 mm T47 BB shell
ForkSeido MGV full carbon, TA, 1.1/2'' - 1.1/8'', fender / triple cage mounts, 180 mm max rotor size, lowrider rack compatible, internal hub dynamo cable routing

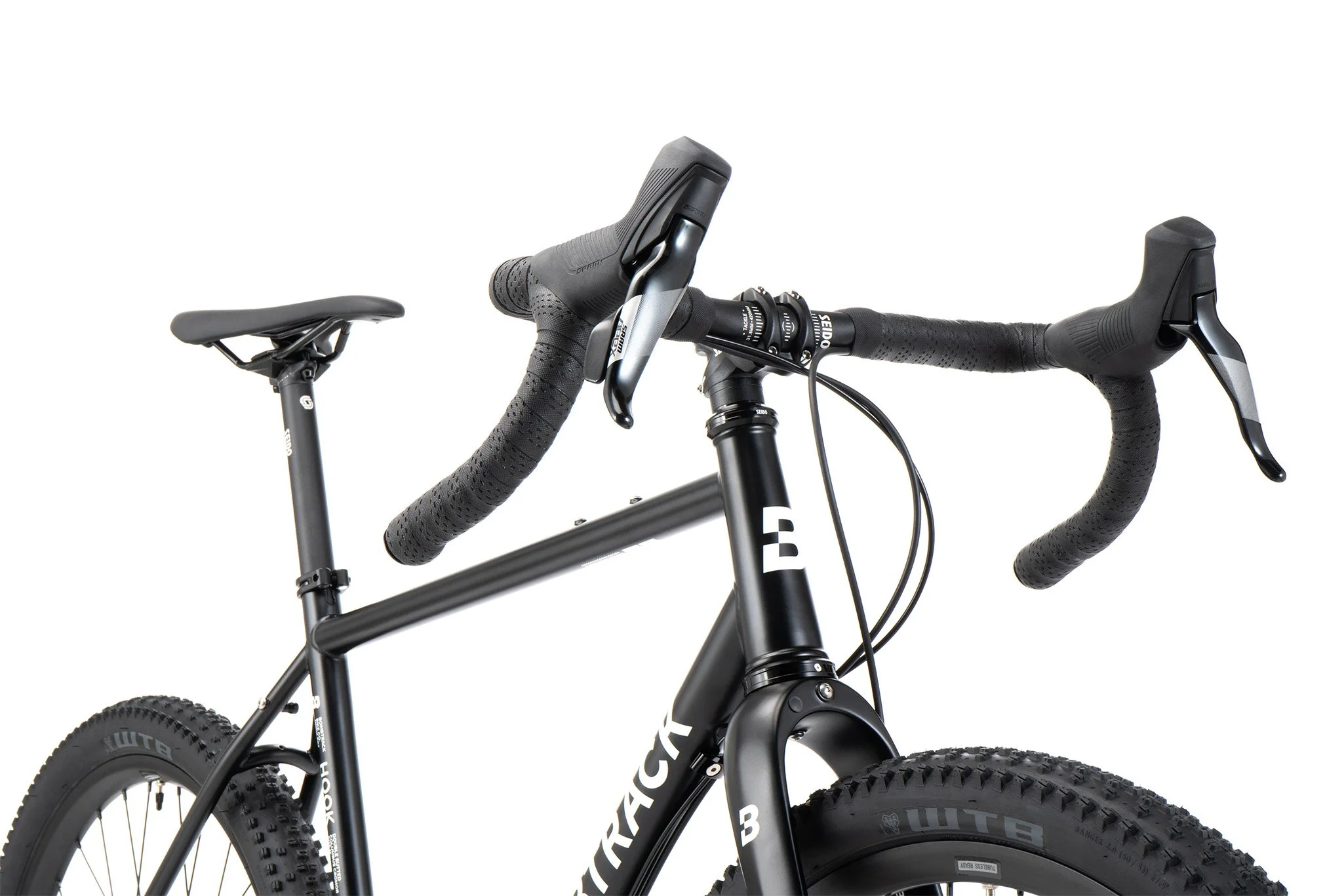

HandlebarSeido Tackle drop bar, 31.8 mm, 16° flare
GripsBombtrack Escape bar tape

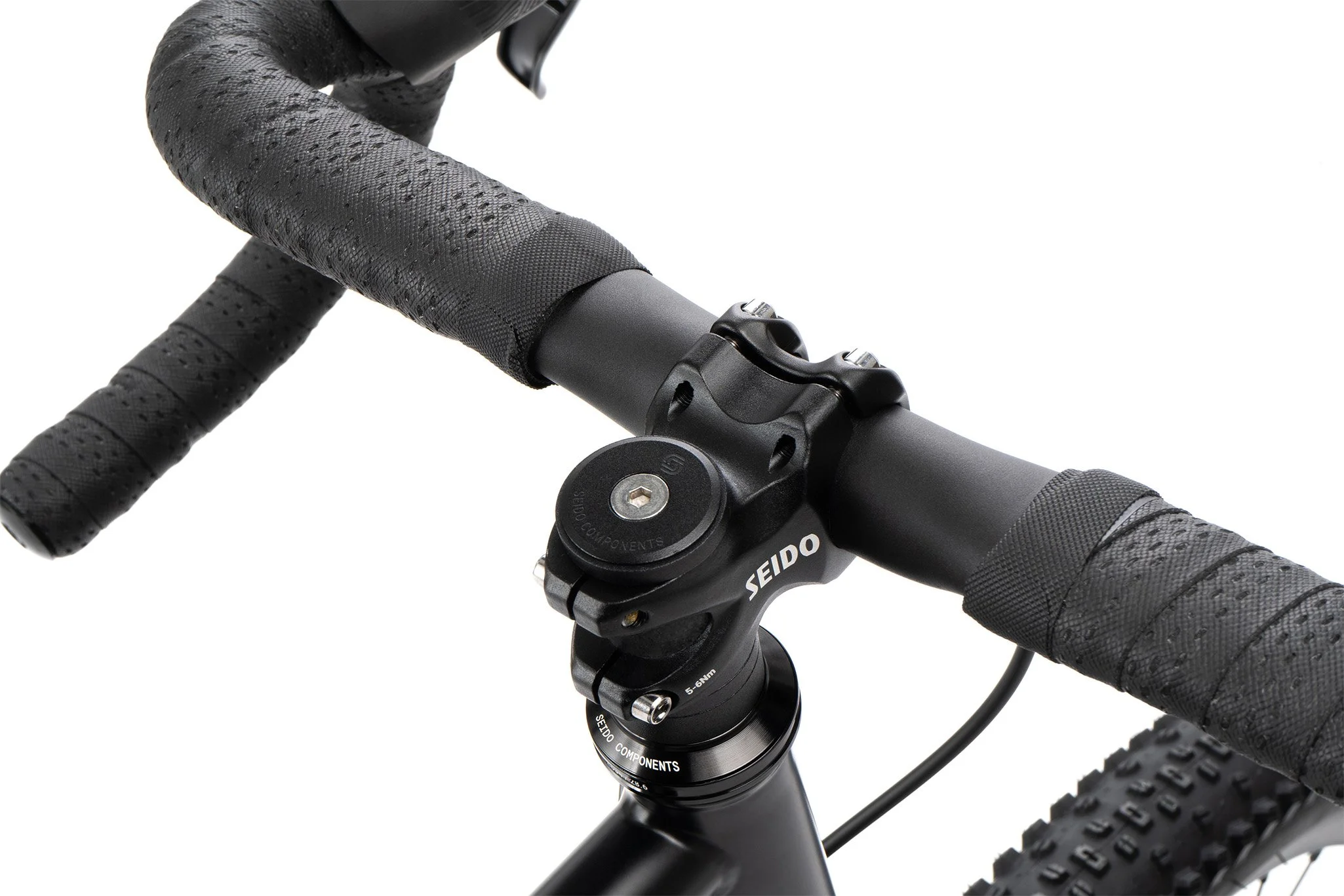

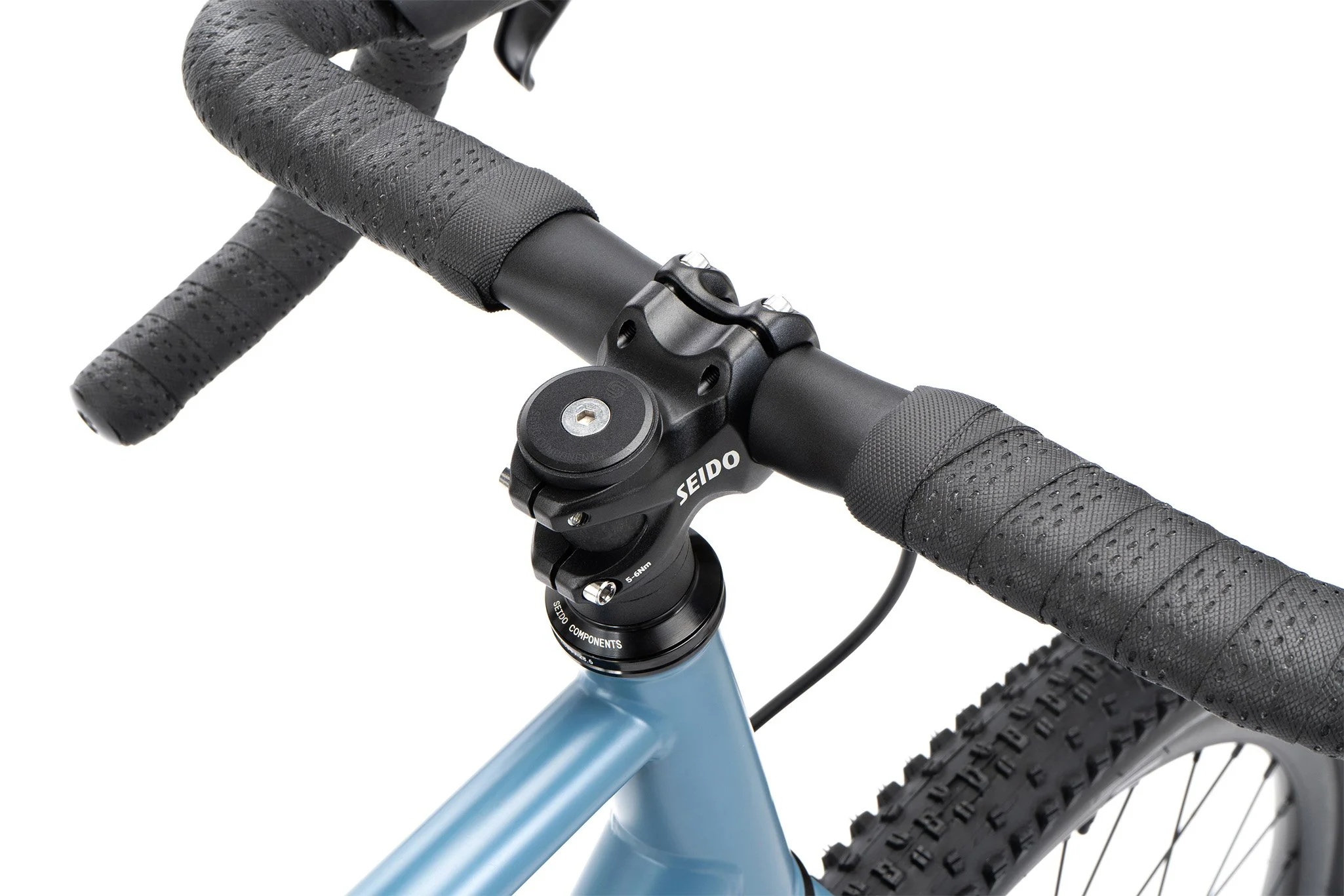

StemSeido Chase forged aluminium stem, 0°
HeadsetSeido Pro EC sealed external headset, 1.1/2'' - 1.1/8''
LeversSram Apex Eagle double tap hydraulic
ShifterSram Apex Eagle double tap 1x12

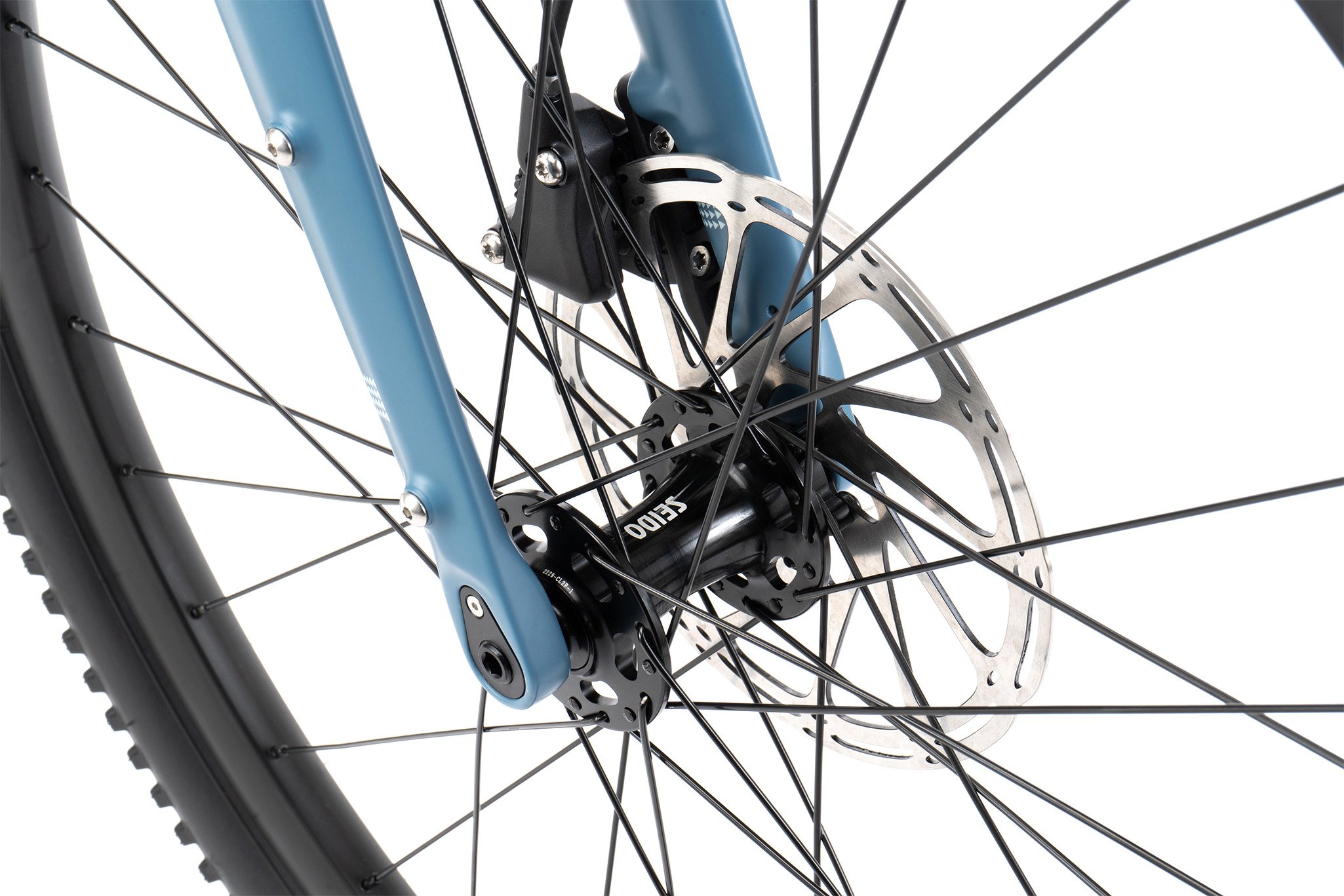

BrakesSram Apex flat mount hydraulic disc brakes

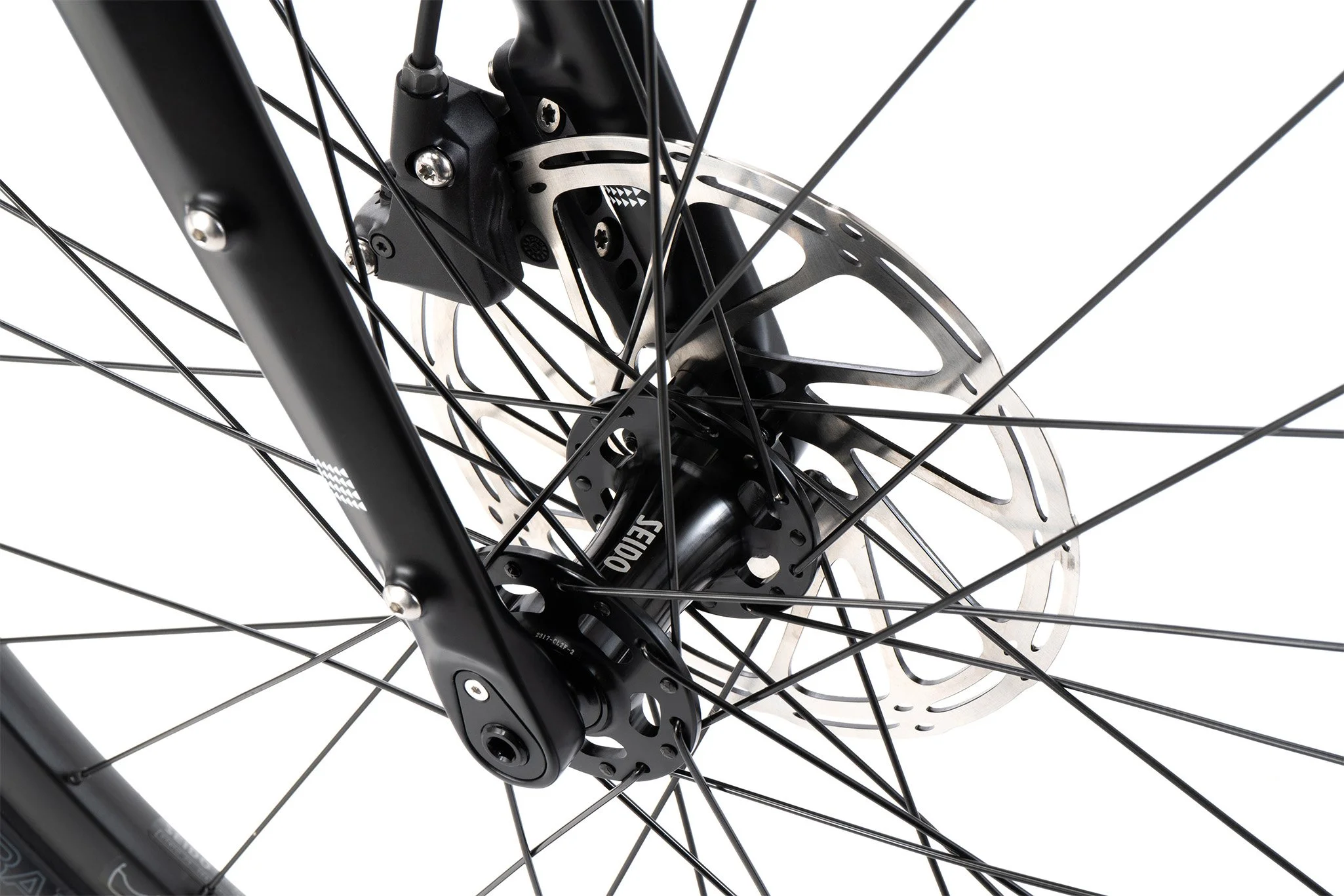

RotorSram Centerline 180 mm front and 160 mm rear rotor
CranksetSeido Lyer forged aluminium crank, direct mount interface
(Sram compatible),30 mm spindle
BBSeido T47 Pro 85.5 mm for 30 mm spindle
Pedals-
ChainSram Apex, flattop, 1/2'' x 11/128'', 112L
ChainringCNC machined aluminium, narrow-wide, 40 T
CassetteSram NX Eagle PG-1230 12-speed, 11 - 50 T
Front derailleur-
Rear derailleurSram Apex Eagle, clutch, long cage
Front hubSeido Tau sealed hub, 6-bolt disc
Rear hubSeido Tau sealed hub, HG driver, 6-bolt disc
Through axle12 x 100 mm / 12 x 142 mm
Front rimSeido Sinus i25 double wall asymmetric, tubeless ready, 32h
Rear rimSeido Sinus i25 double wall asymmetric, tubeless ready, 32h

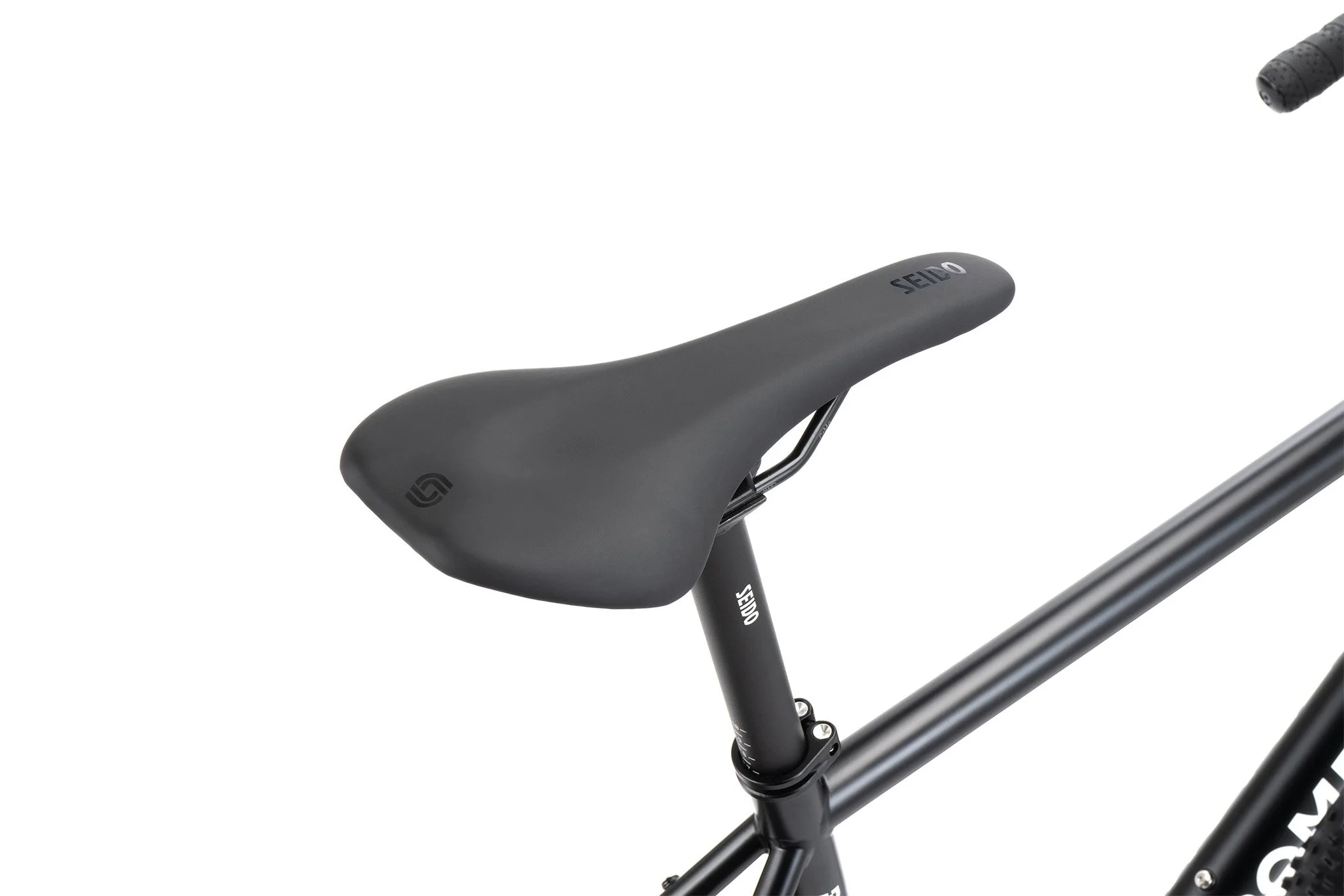

SaddleSeido Comp saddle

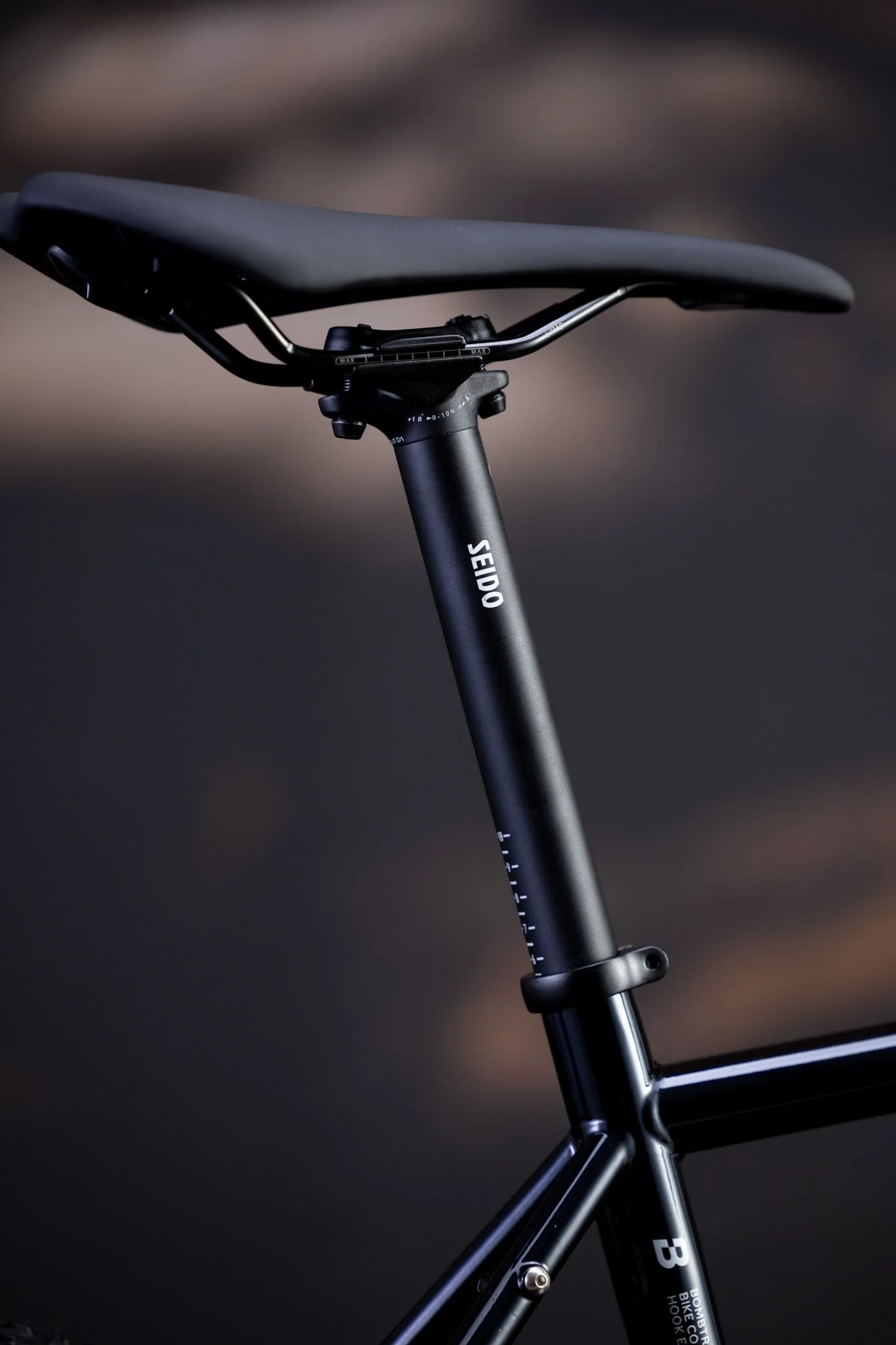

Seat postSeido Yew aluminium seatpost, 27.2 mm x 350 mm
Seat clampBombtrack Prime 29.8 mm

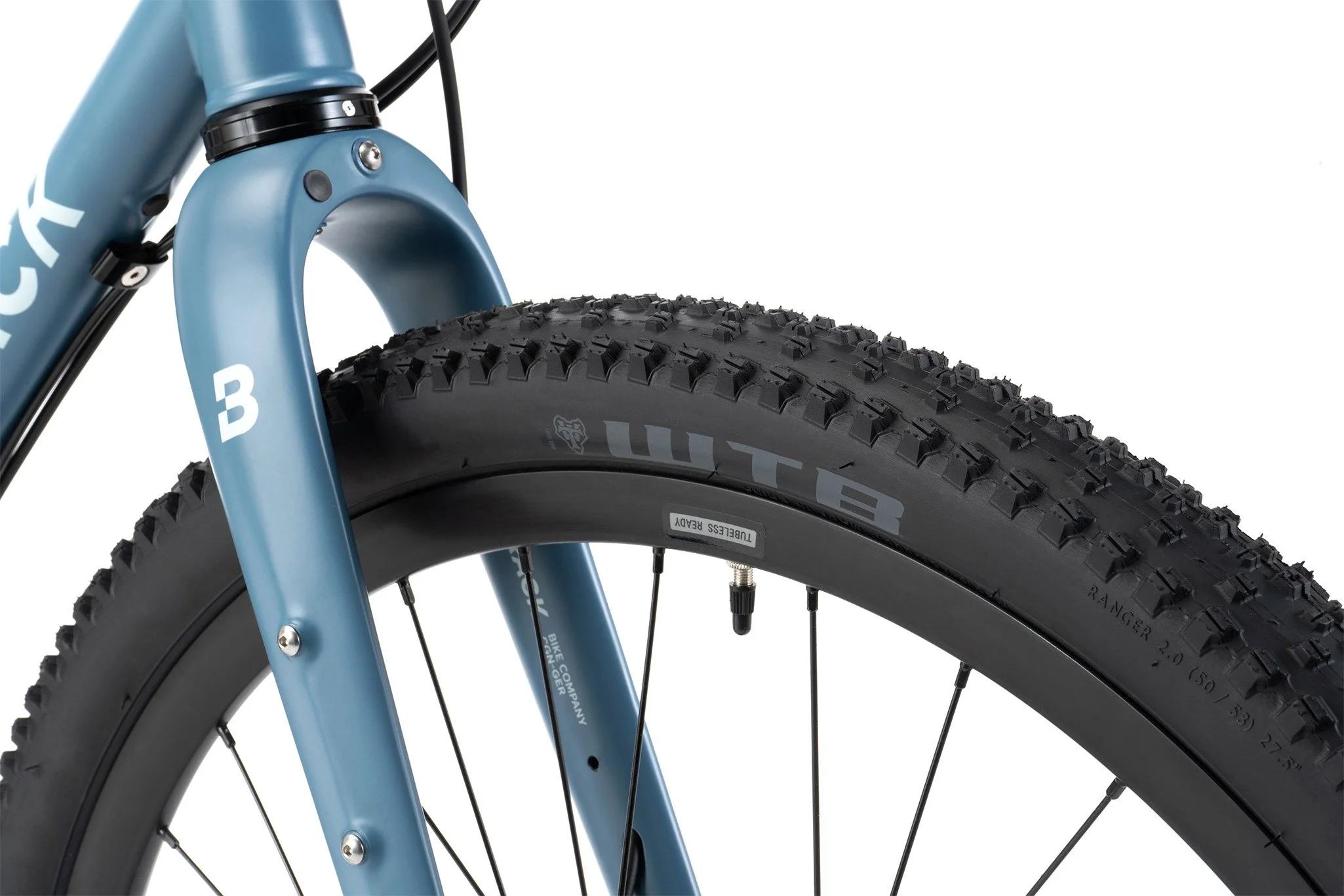

Front tireWTB Ranger TCS Light / Fast Rolling 27.5'' x 2.0'', tubeless ready
Rear tireWTB Ranger TCS Light / Fast Rolling 27.5'' x 2.0'', tubeless ready
Fender-
Rack-
Kickstand-
Light-
WeightTBA
Weight frameset2710 g frame (size L, incl. TA, hanger) / 550 g fork (300 mm steerer, incl. TA)
Maximum rider weight130 kg incl. Luggage
ASTM riding condition2


Final product may vary in appearance, finish and minor details.

BUILD INFOS

ModelHOOK EXT APEX EAGLE
BB standardT47 - 85.5 mm shell width
Headset standard (S.H.I.S.)EC34 / 28.6 | EC44 / 40
Headset crown race angle45°
Fork steerer inner diameter23.6 mm
Fork max tire clearance w/o fender650B x 57C / 700C x 57C
Frame max tire clearance w/o fender650B x 52C / 700C x 40C
Maximum chainring clearance 1x44 T with 45 mm chainline
Maximum chainring clearance 2x50 / 36 T with 45 mm chainline
Seat post diameter27.2 mm
Seat clamp diameter29.8 mm
Front derailleur clamp diameter28.6 mm
Frame front derailleur compatibleyes
Brake mount frontFM 160 / 180
Brake mount rearFM 140 / 160
Frame thickness rear brake mount10 mm
Maximum rotor clearance front180 mm
Maximum rotor clearance rear160 mm
Front through axle12 mm x 100 mm, 1.5 thread pitch
Rear through axle12 mm x 142 mm, 1.5 thread pitch
ISO testing standardRoad
CrankarmXS 165 mm / S - M 170 mm / L - XL 175 mm
Q Factor152 mm
BCD crankDirect mount (Sram compatible)
Chainring offset6 mm
Chainline46 mm
Spoke length front wheeltba
Spoke length rear wheeltba
Spoke count (front / rear)32 / 32
ERD551 mm
Front hub PCD58 mm
Rear hub PCD58 mm
Front hub flange distance / offset56.5 mm center to center / 6.6 mm
Rear hub flange distance / offset51 mm center to center / 8.8 mm
Stem lengthXS - M 45 mm / L - XL 60 mm
Stem angle0°
Headset spacers1 x 10 mm, 2 x 5 mm
Seat post offset0 mm
Seat post length350 mm
Bike trailerapproved
Seat tube mounted child seatapproved
Derailleur hangerBT-DH-008
Frame small partsBT-CR-007 / BT-CR-006
Hub end caps frontBT-HC-014
Hub end caps rearBT-HC-017
Cassette bodyBT-CB-006
Crankarm boltBT-CRP-002
Through axle frontBT-TA-F-601
Through axle rearBT-TA-R-602


GEOMETRY



FRAME GEOMETRY

ModelHOOK EXT APEX EAGLE
Bike SizeXSSMLXL
Wheel size27.5''27.5''27.5''27.5''27.5''
Seat Tube Length460500530570600
Horizontal TT length520534558572597
Seat Angle73.9°73.9°73.5°73.5°73.0°
Head Angle70.9°70.9°71.5°71.5°71.5°
Headtube Length110130150170190
BB Drop7171666666
Chainstay Length425425425425425
Fork Offset5353535353
Trail6464616060
Wheelbase Length10031018103410491068
Standover753782805834857
Reach360369381390403
Stack558577593612631
Front Center588603618632652
Axle to Crown410410410410410
Minimum rider height ¹15001600170017901880
Maximum rider height ¹16101710181019001990


¹ Our bike size recommendation generally represents a rough guideline for quickly narrowing down the sizes from which to choose based on the body height. Bike fitting is a complex topic and other measurements and factors have to be accounted for as well. Since no two human bodys are exactly the same it is not possible to give a 100% correct advice for everyone. Therefore Bombtrack cannot guarantee for the stated recommendations to be correct for every individual customer. The best way to work out the correct size is to consult a local Bombtrack dealer or a professional bike fitter and have them determine the needed size.

HANDLEBAR GEOMETRY

ModelHOOK EXT APEX EAGLE
Bike SizeXSSMLXL
Handlebar typeDropbarDropbarDropbarDropbarDropbar
Width (drops)420420420440440
Width (barends)490490490510510
Reach7777777777
Flare16°16°16°16°16°
Backsweep-----
Drop128128128128128
Upsweep-----
Rise-----
Unbenannter Katalog3985.jpg

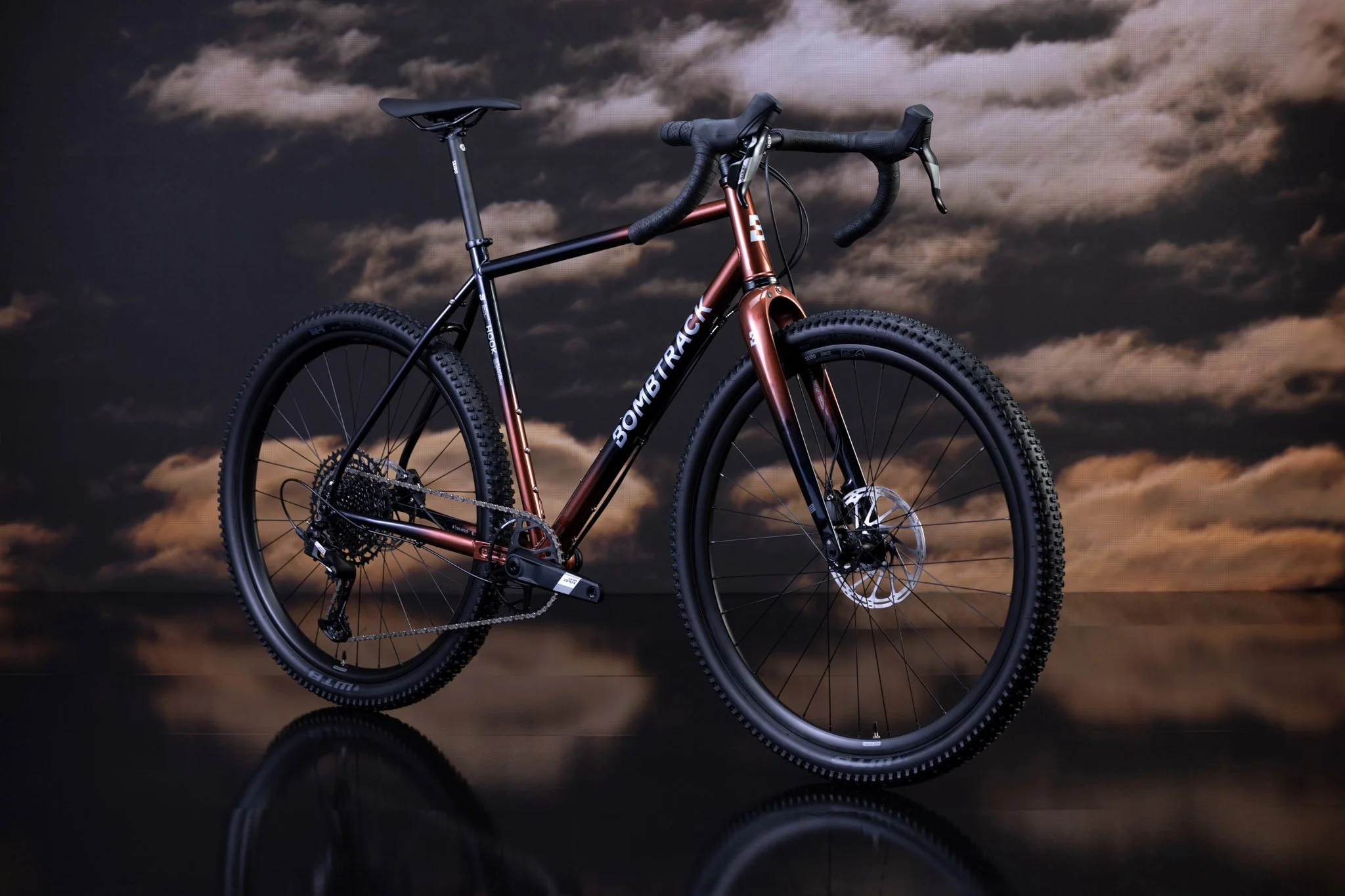

Unbenannter Katalog3995.jpg
Unbenannter Katalog4019.jpg
Unbenannter Katalog4023.jpg
Unbenannter Katalog4027.jpg
Unbenannter Katalog4048.jpg
Unbenannter Katalog4052.jpg
Unbenannter Katalog4064.jpg

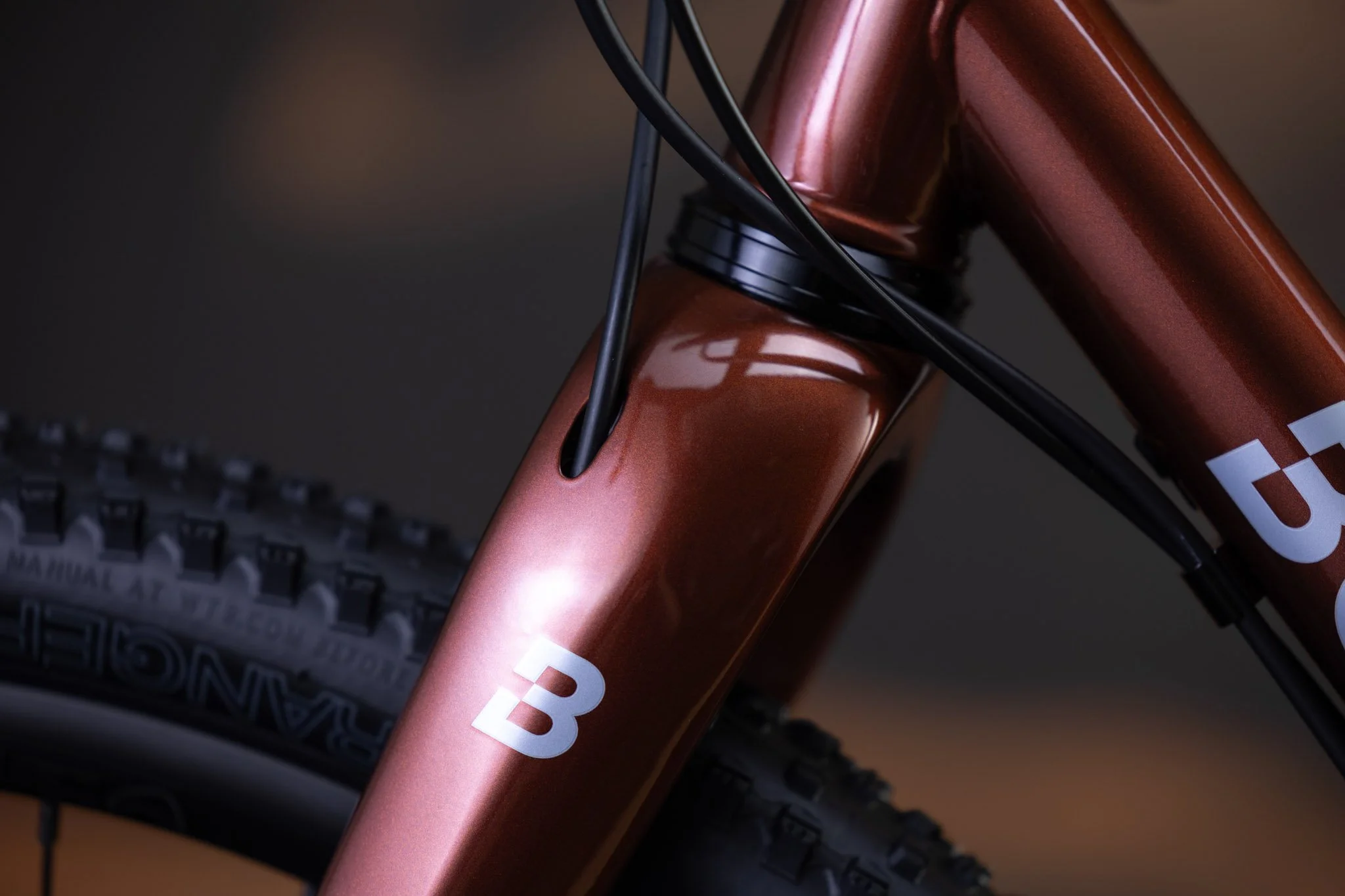

Unbenannter Katalog4082.jpg
