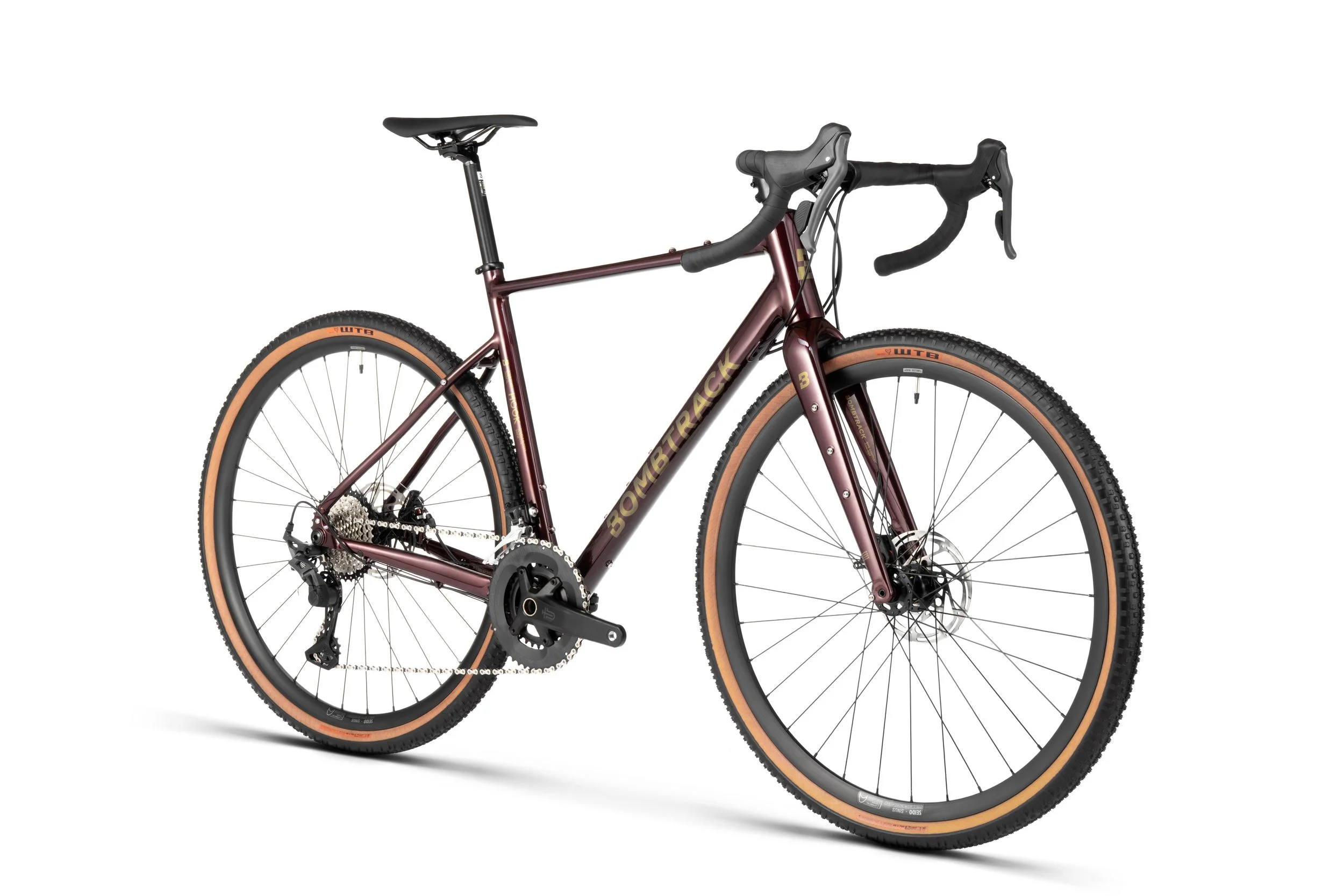

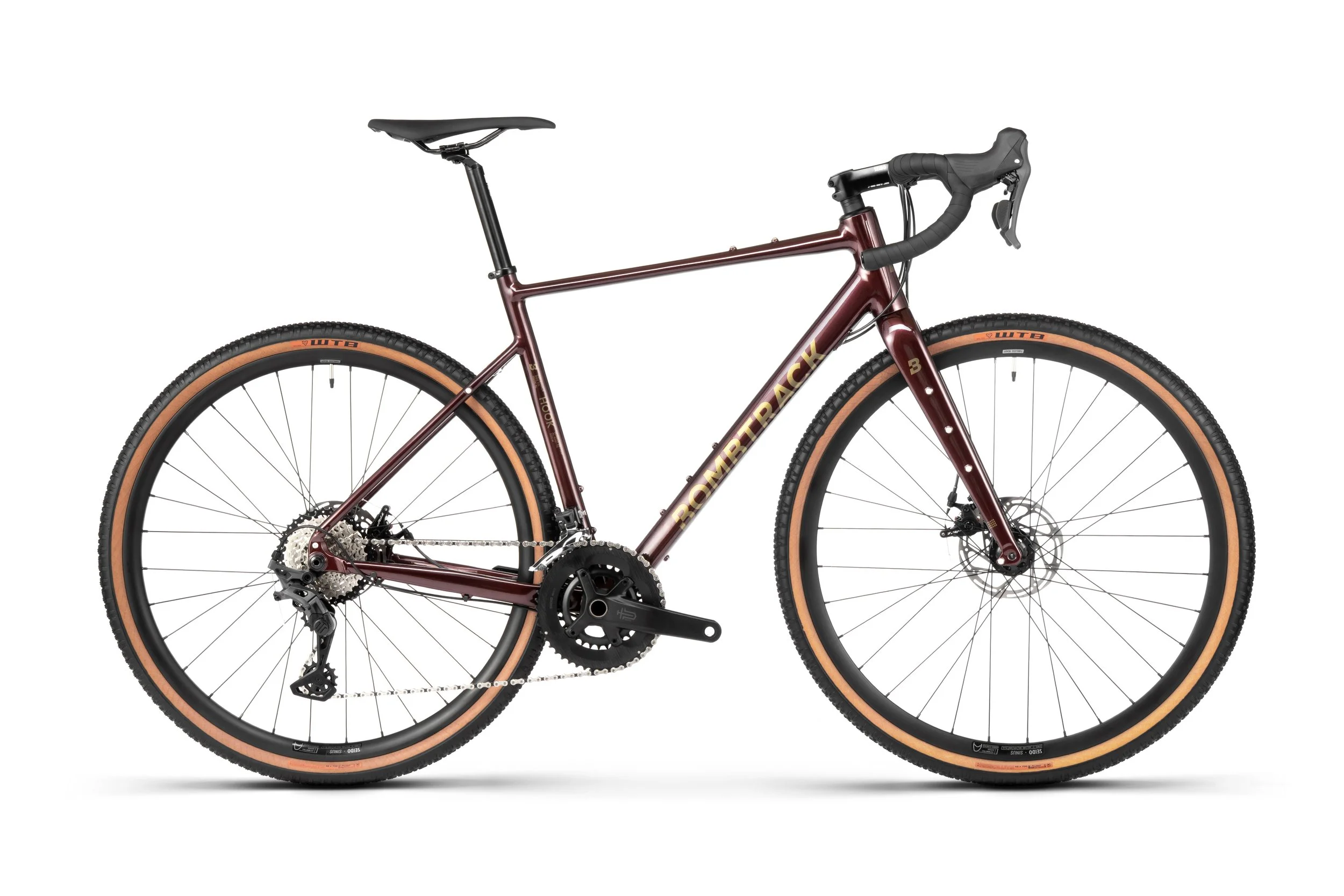

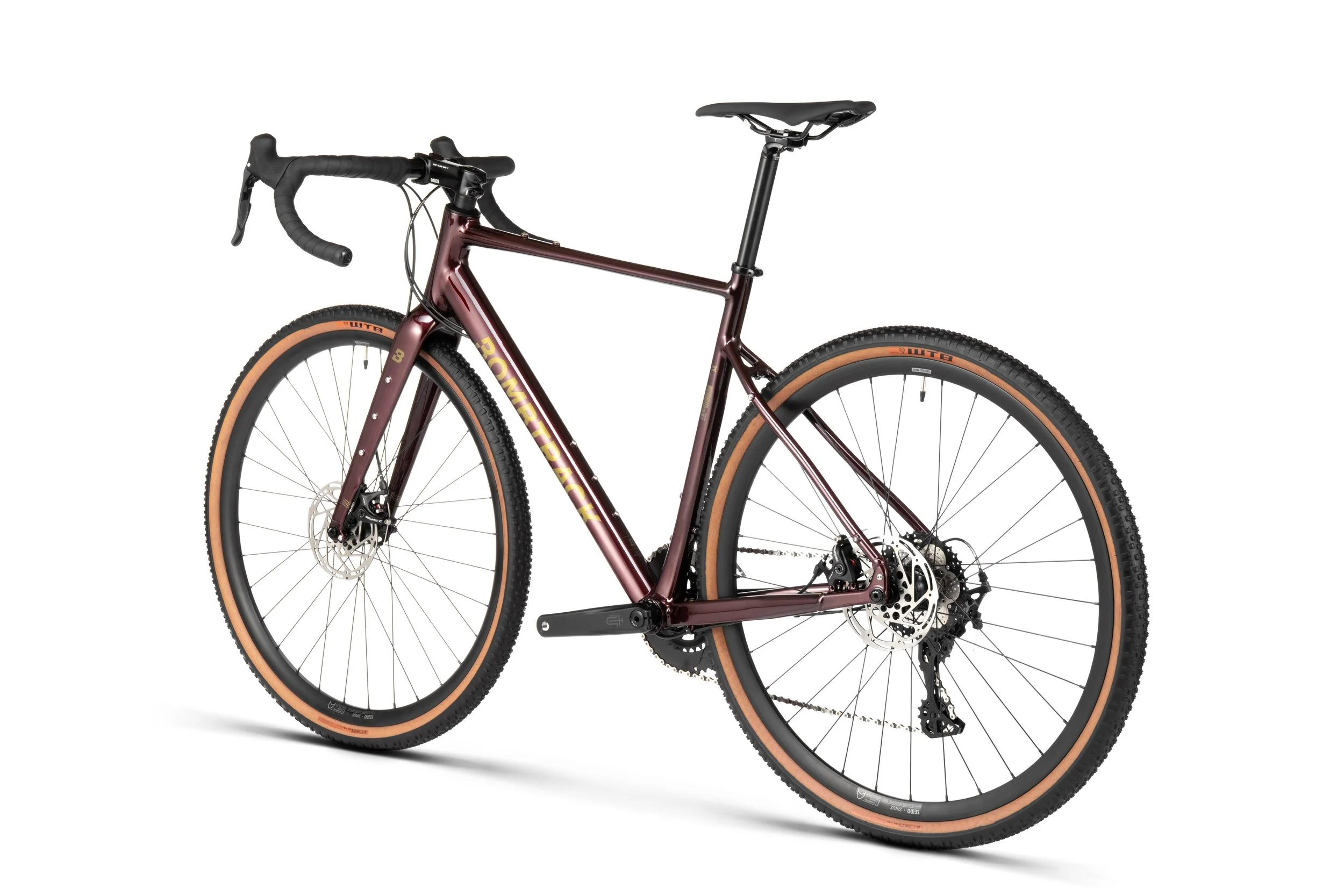

HOOK AL SWORD



Our Hook AL Sword all-road bike strikes a fine balance between light weight and simplicity. We selected the Microshift Sword groupset for its functionality and ease of servicing - sometimes a cable brake is all you need. But when we combined the wide range 11-48t cassette with the lightweight 6061-T6 hydro-formed aluminium frame, we unlocked mountain-mode and created a bike that flies up the ascents like an ibex. The Hook AL frame is also equipped for the gnarliest of descents – the frame is stealth dropper post ready for functionality with a clean aesthetic. Completing this versatile package is a dose of futureproofing that comes with the UDH derailleur hanger.

METALLIC MAHOGANY

HIGHLIGHTS

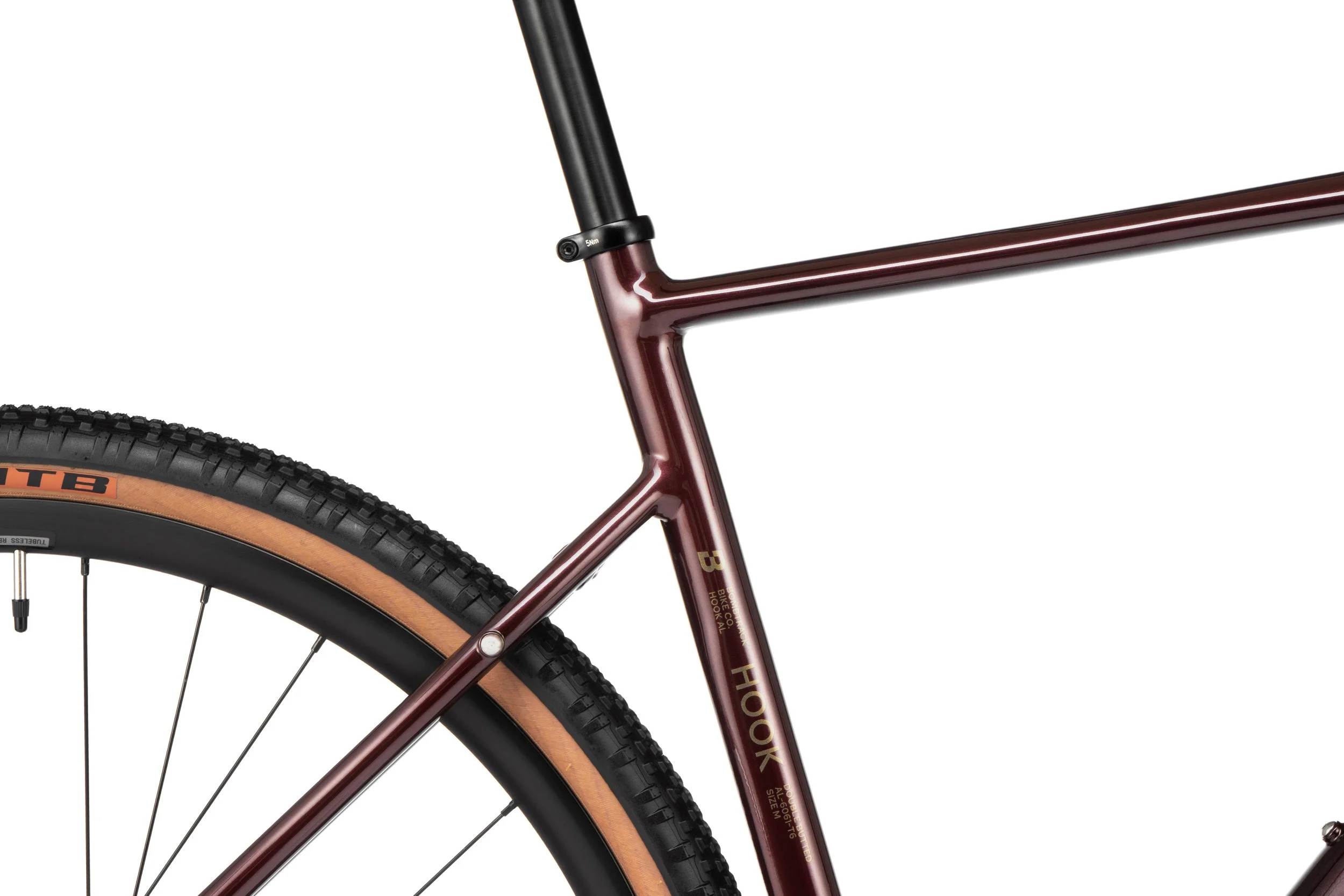

  • FRAME

    Lightweight aluminium frame with T47 bottom bracket.

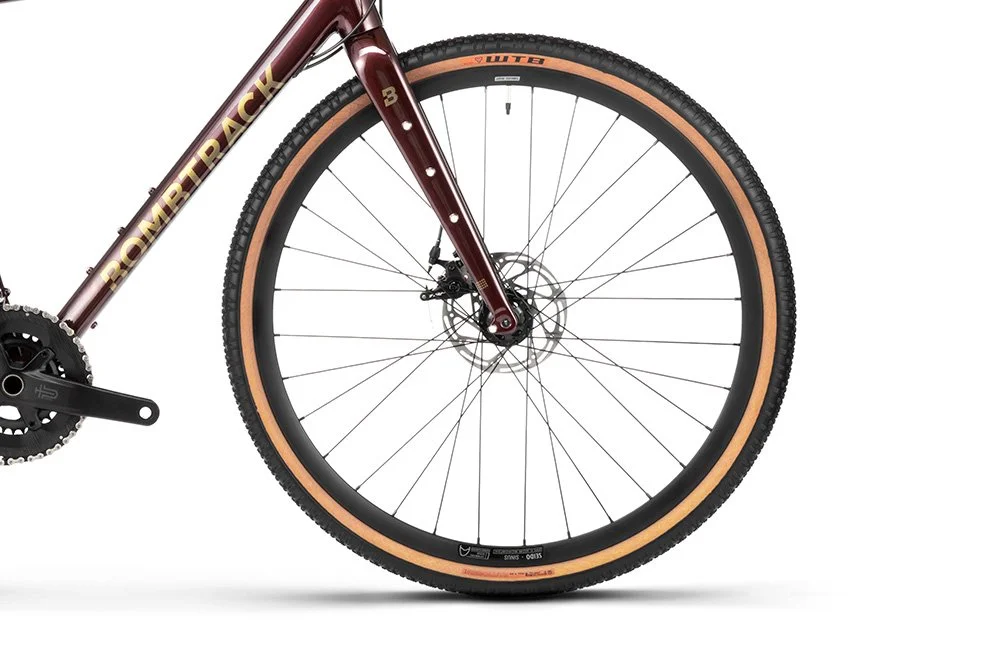

  • WHEELS

    Size S with 650B wheels for proper fit without any compromises in geometry.

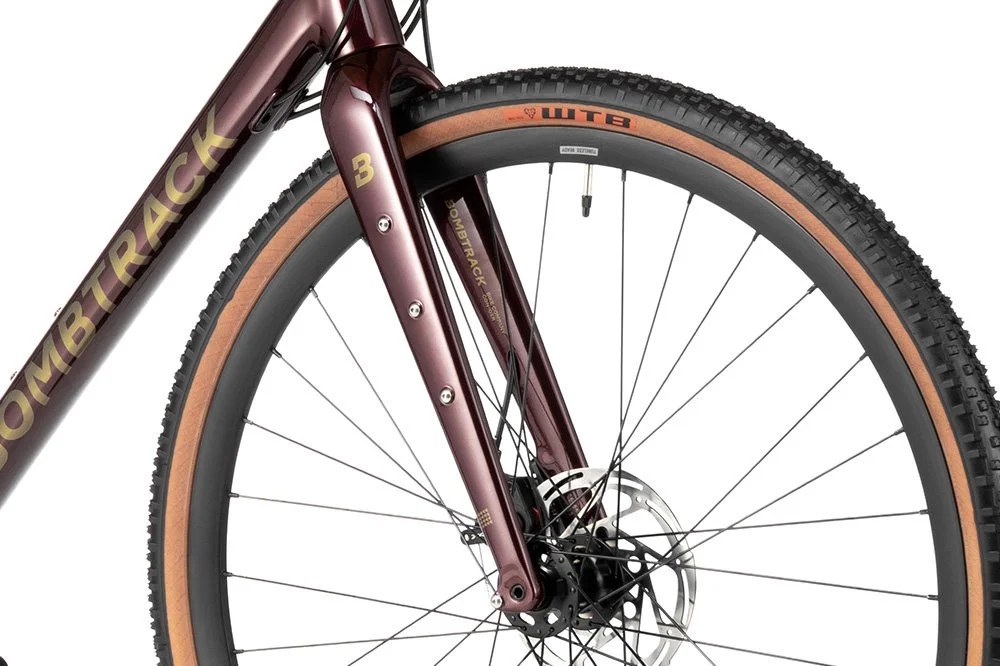

  • FORK

    Full carbon fork with triple cage mounts.

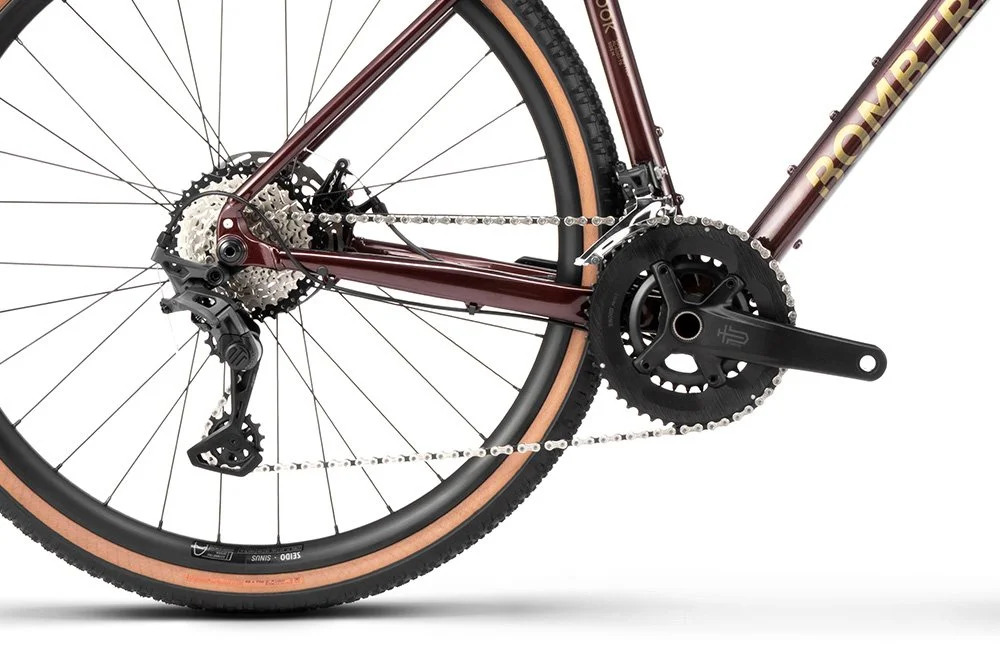

  • DRIVETRAIN

    Microshift Sword 2x10 groupset with wide range gearing and TRP Spyre brakes.

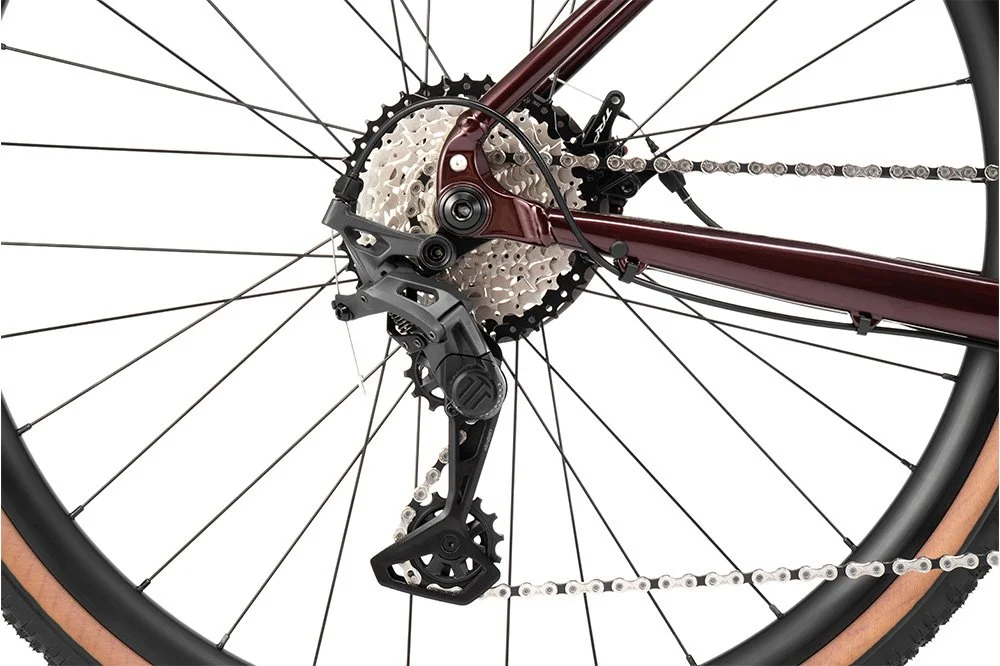

  • REAR DERAILLEUR

    Microshift Sword rear derailleur with clutch and replacable cage.

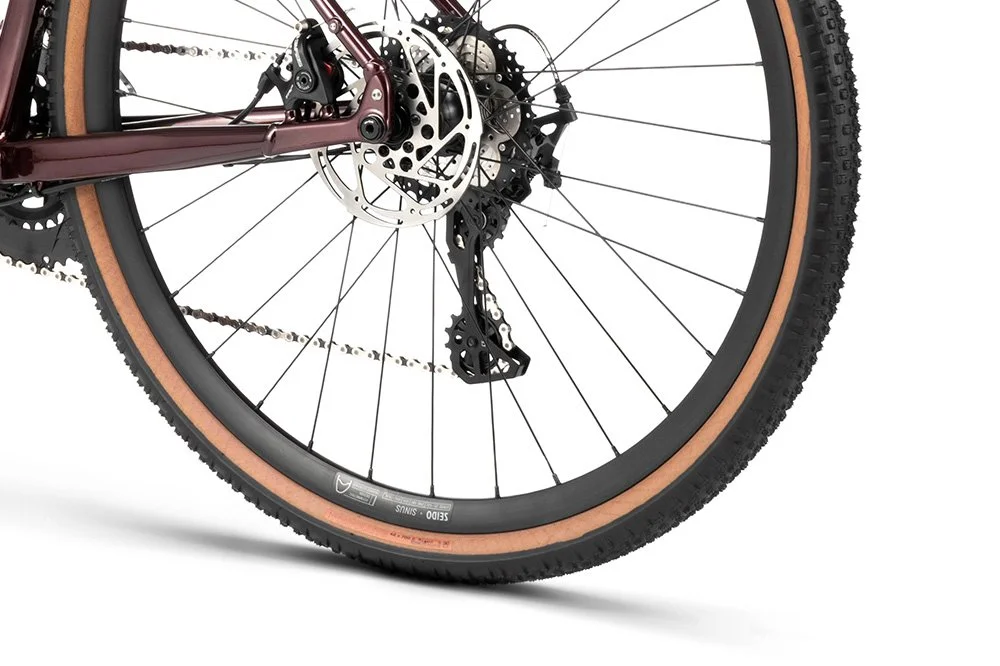

  • RIMS

    Seido Sinus i21 tubeless ready rims.

"The Microshift Sword groupset brings absolute dependability to the lightweight frameset of the Hook AL"

SPECIFICATIONS

ModelHOOK AL SWORD
Color 1Metallic mahogany
Color 2-
Color 3-
Frame6061-T6 hydro-formed aluminium, TA, rack / fender mounts, stealth dropper ready, 85.5 mm T47 BB shell, UDH derailleur hanger, optional full internal cable routing

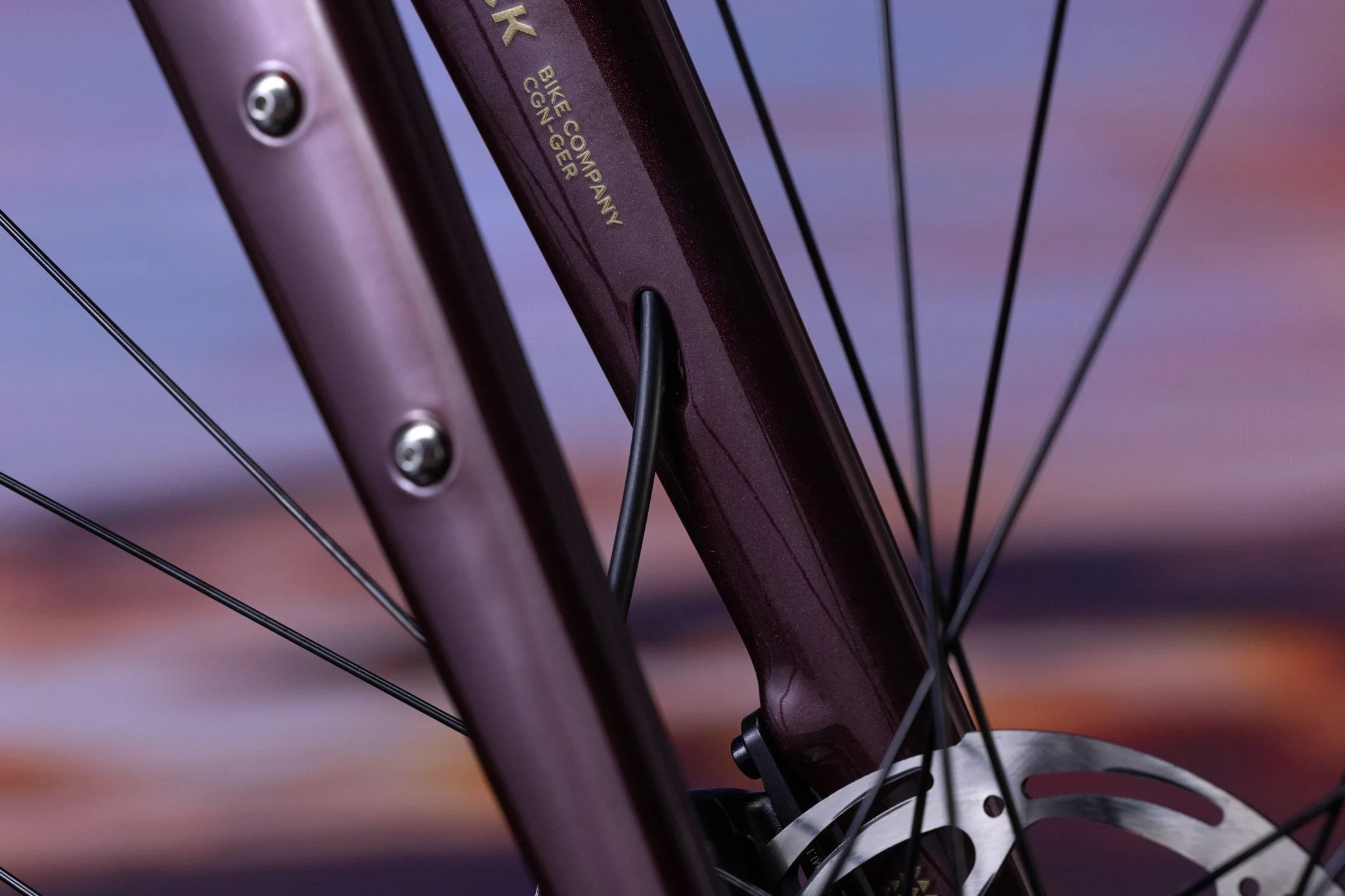

ForkFull carbon, TA, 1.1/2'' - 1.1/8'', triple cage mounts, fender mounts

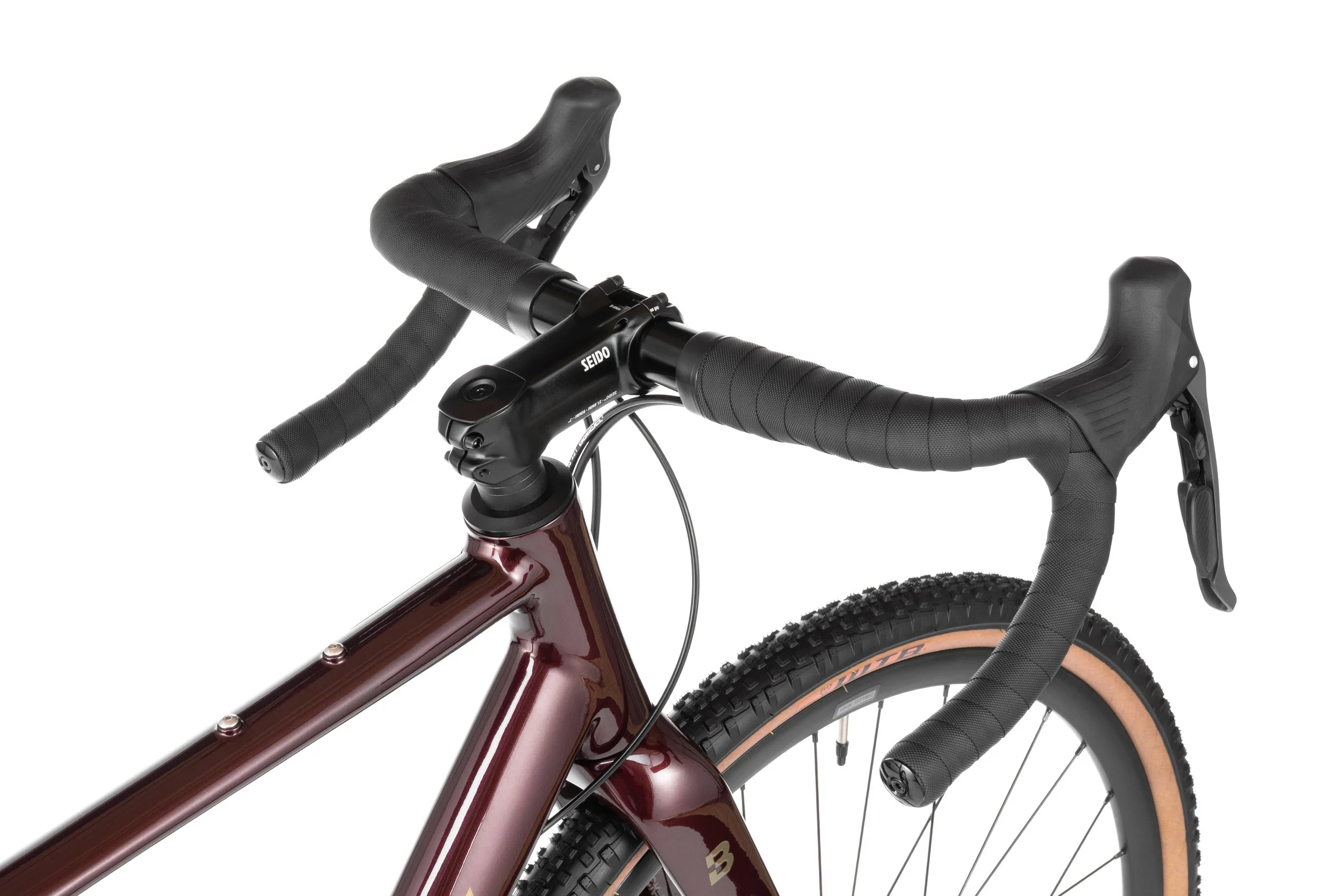

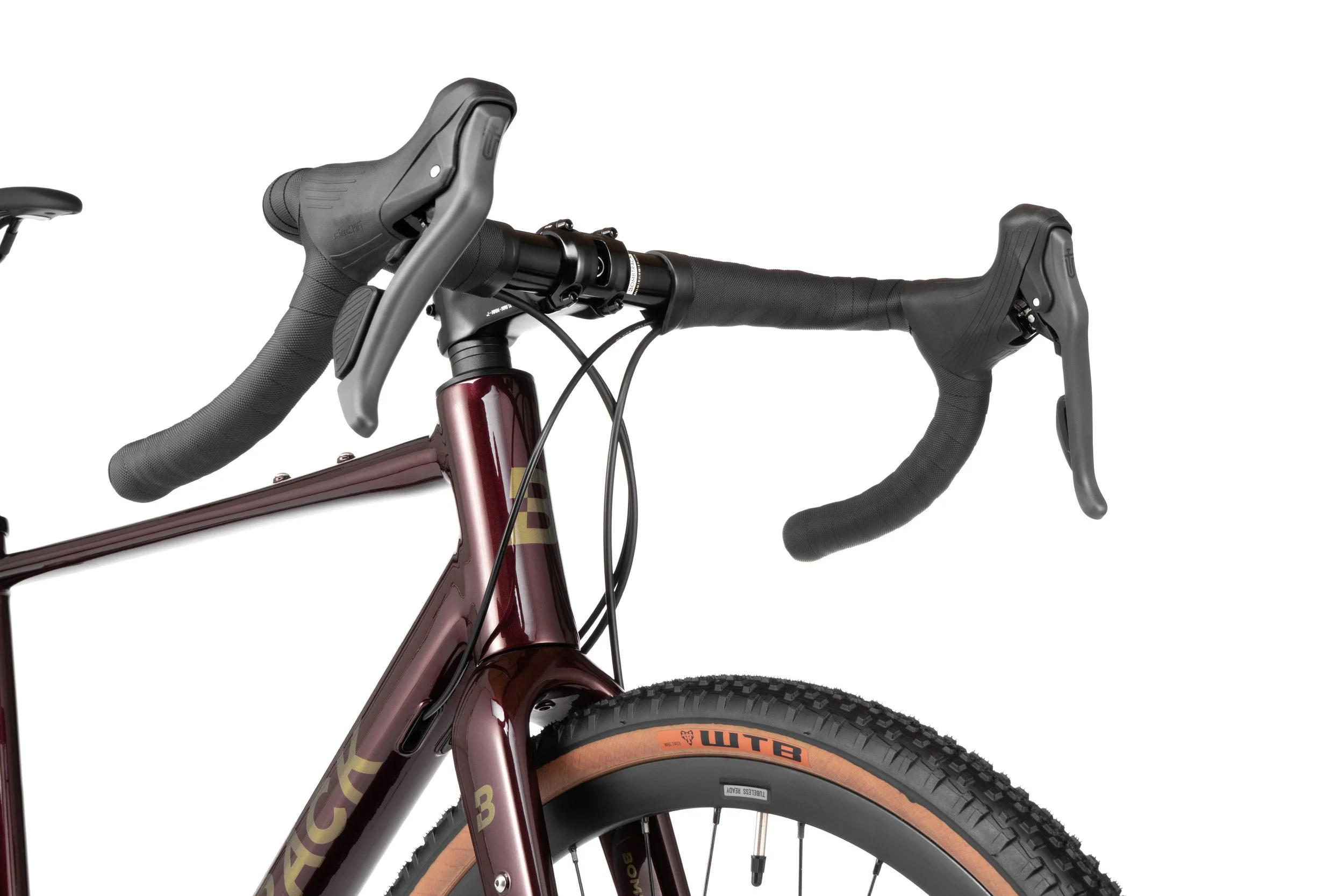

HandlebarBombtrack CX-10 drop bar, 31.8 mm, 10° flare
GripsBombtrack Escape bar tape
StemSeido Scatter forged aluminium stem, -7°
HeadsetSealed integrated headset, 1.1/2'' - 1.1/2''

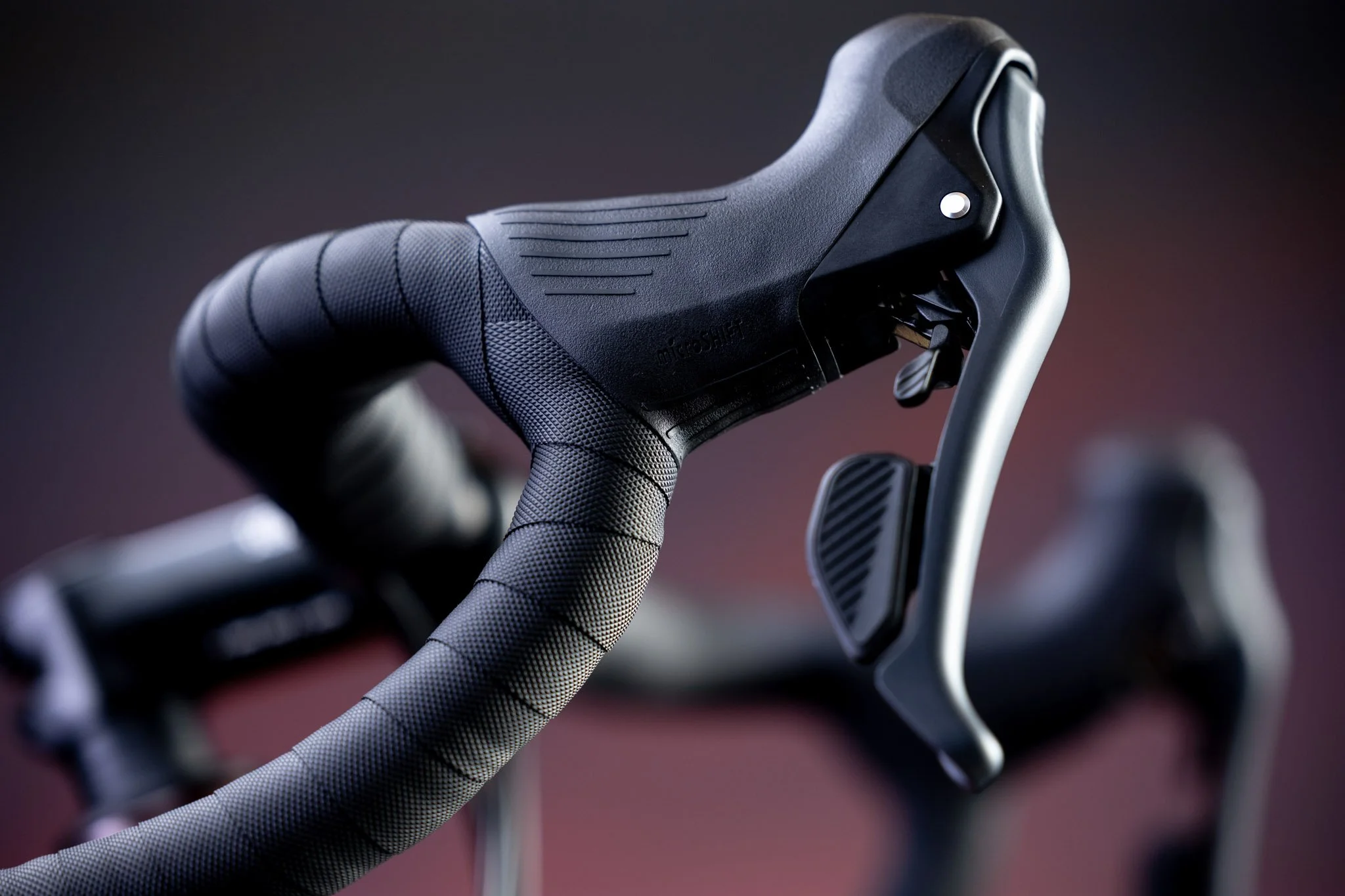

LeversMicroshift Sword SB-G7000 dual control lever mechanic
ShifterMicroshift Sword SB-G7000 dual control lever 2 x 10

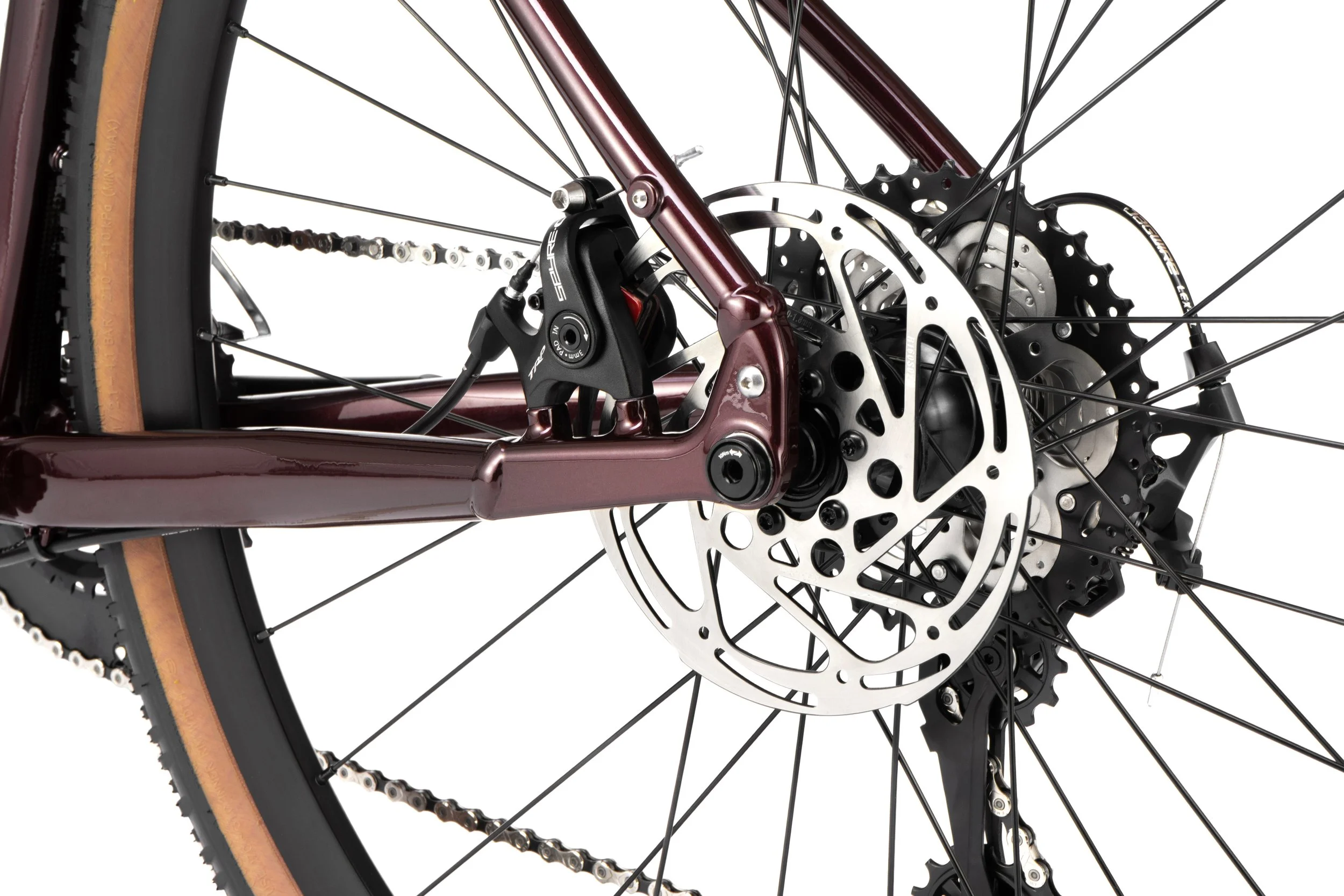

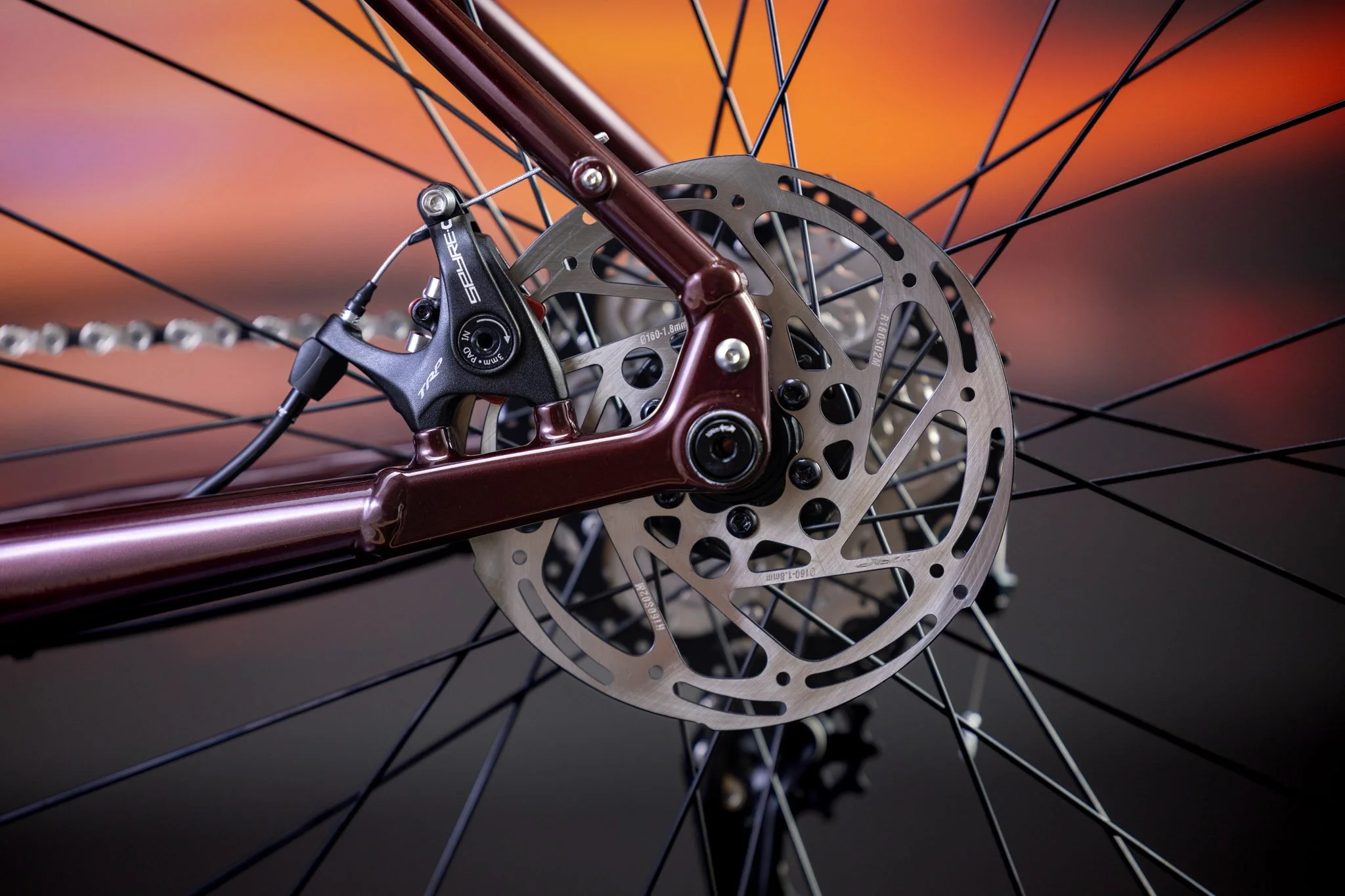

BrakesTRP Spyre C mechanic disc brakes
RotorTRP 160 mm rotors

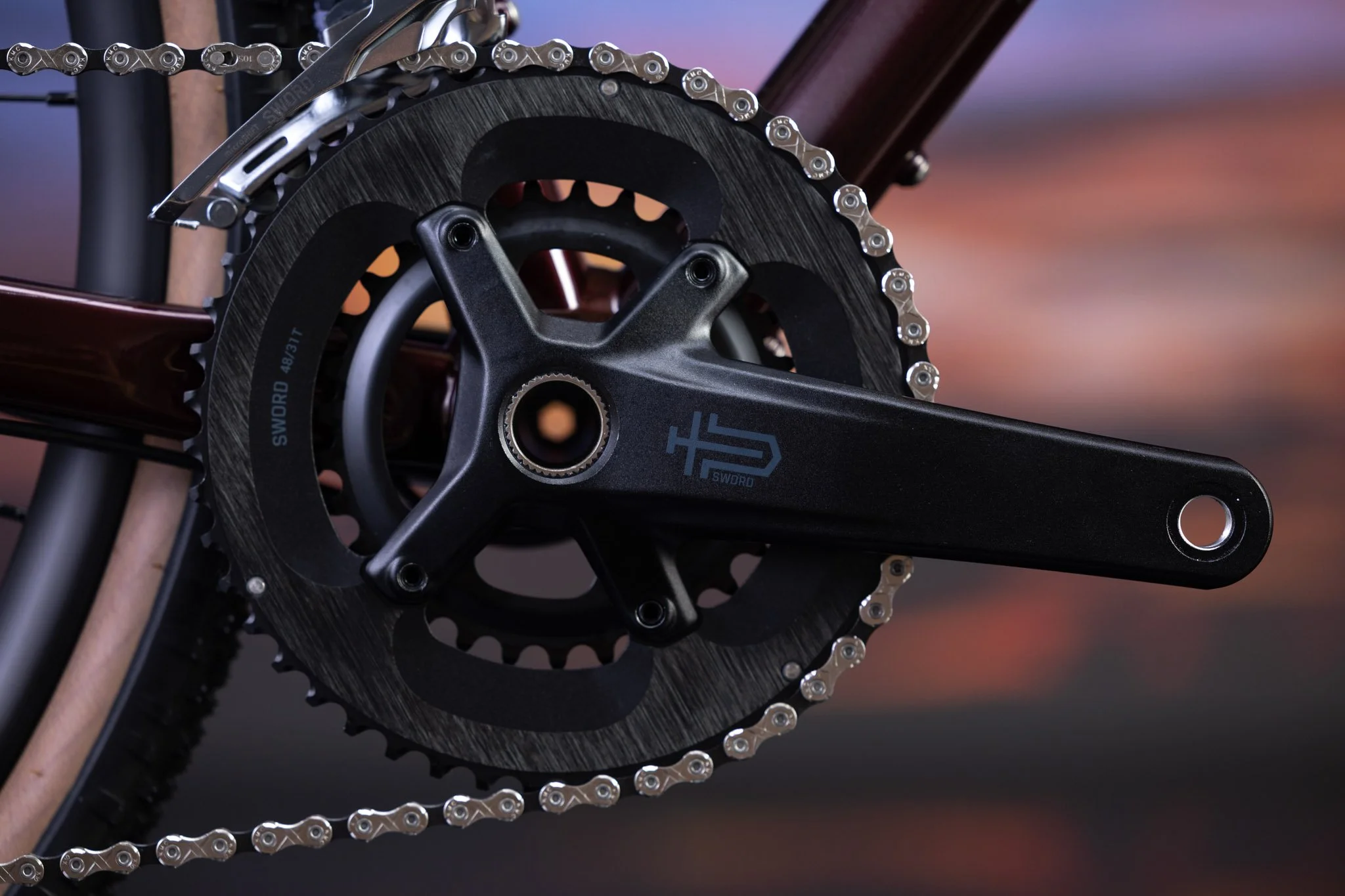

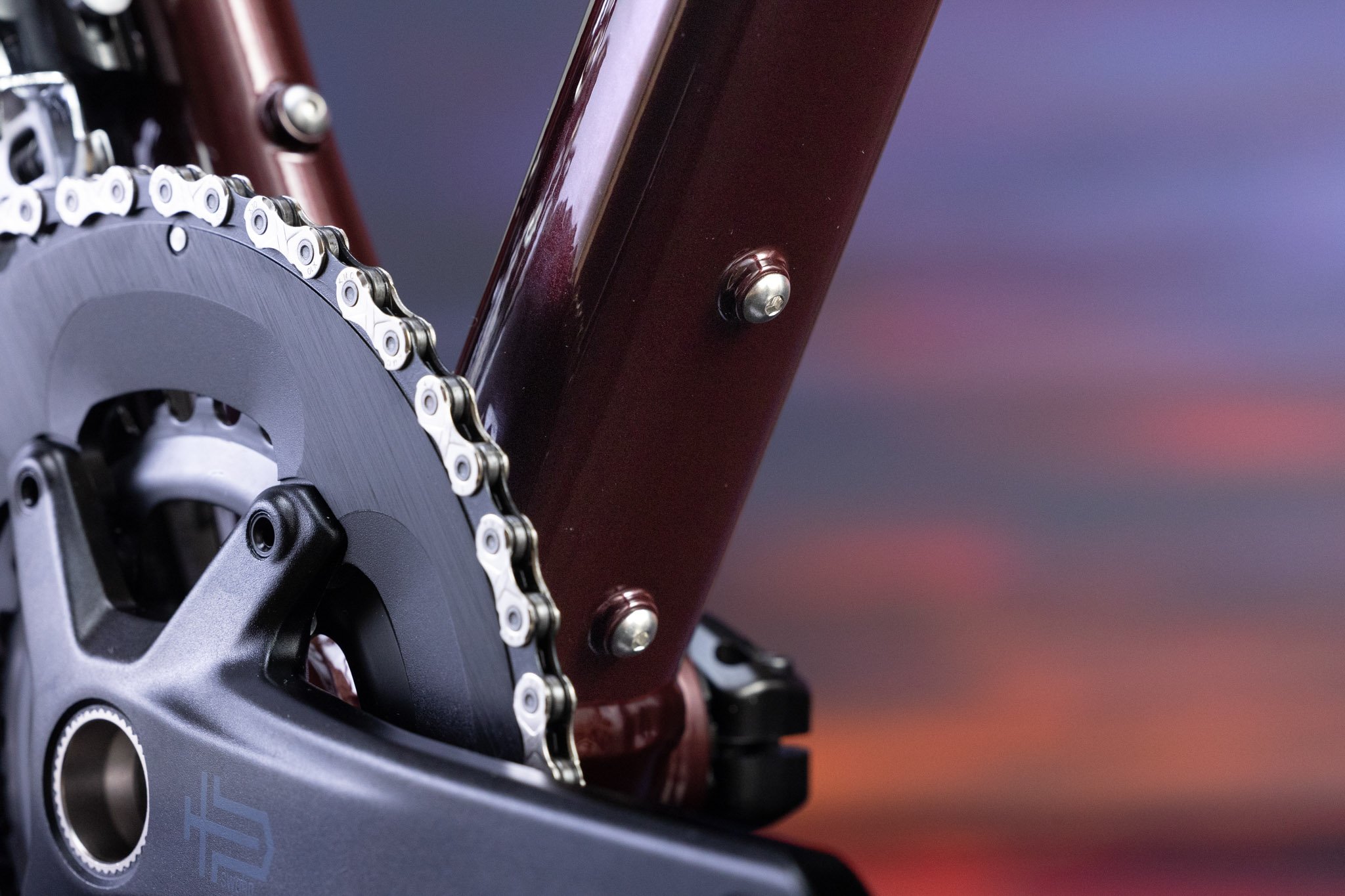

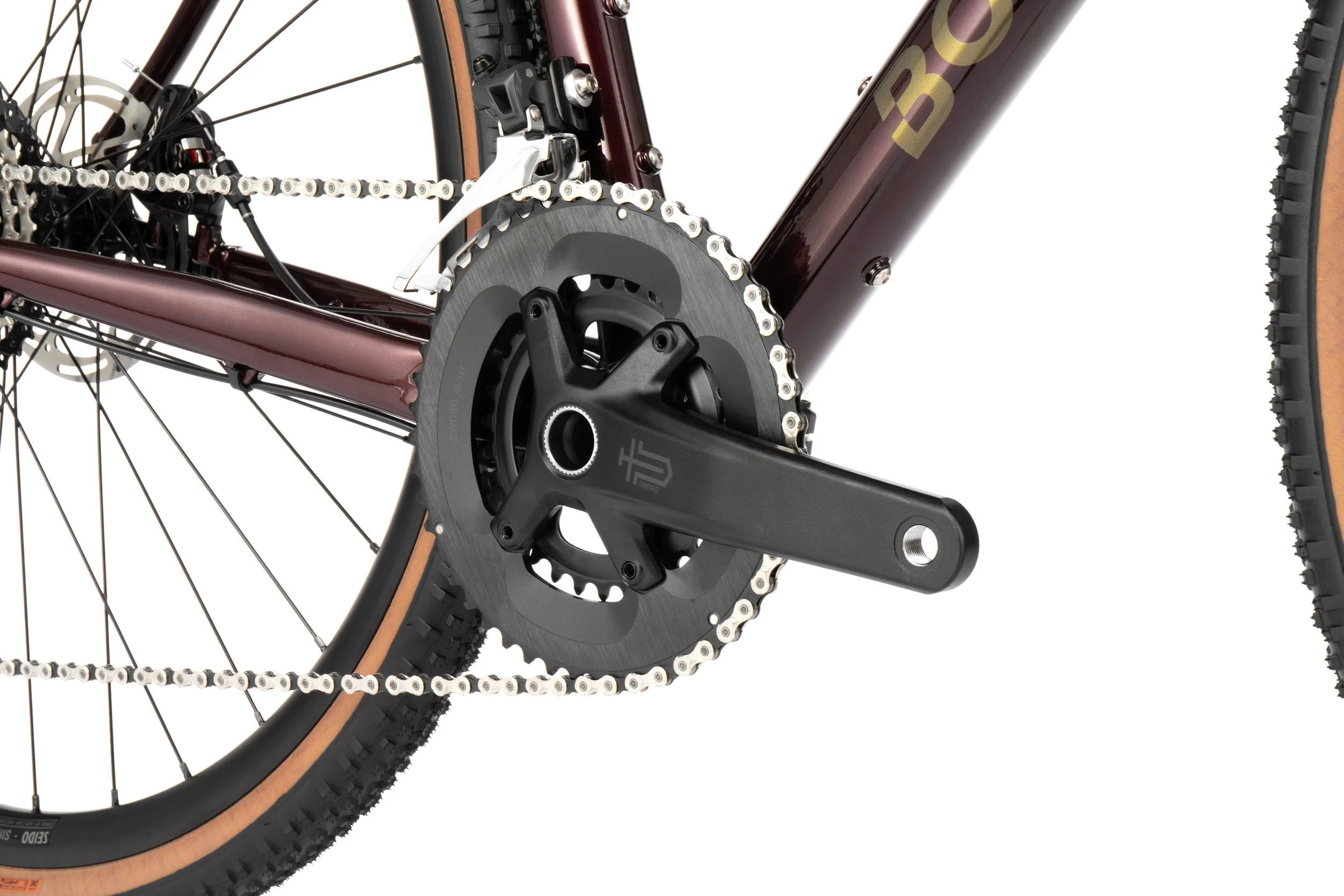

CranksetMicroshift Sword 2x Wide forged aluminium crank, 24 mm spindle
BBSeido 86.5 mm T47 internal sealed BB for 24 mm spindle
Pedals-
ChainKMC X10 chain, 1/2'' x 11/128''
ChainringAluminium / Steel, 48 / 31 T
CassetteMicroshift CS-H105 10-speed, 11 - 38 T
Front derailleurMicroshift Sword FD-G7020-F

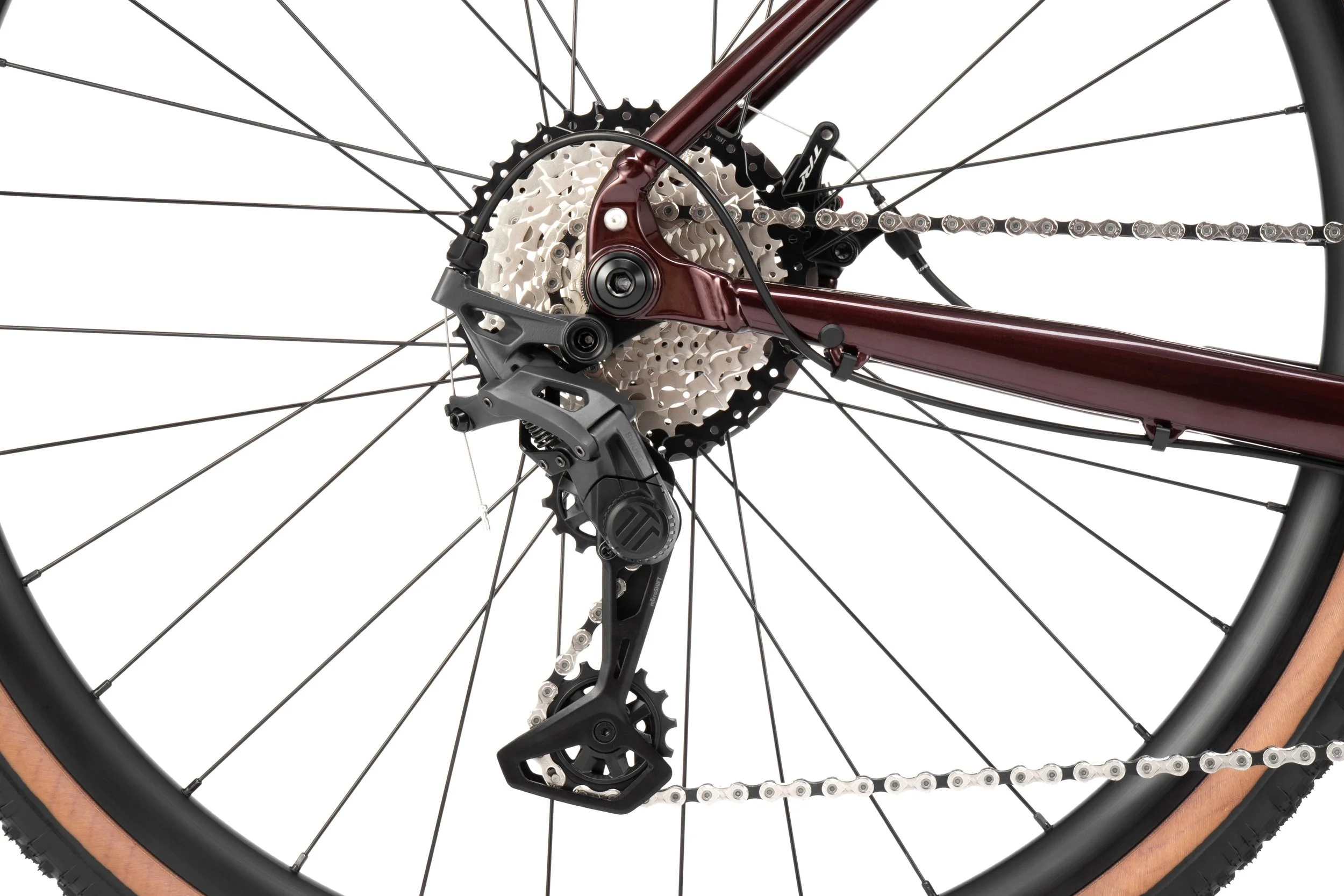

Rear derailleurMicroshift Sword RD-G7025L, clutch, long cage
Front hubSeido Arc sealed hub, 6-bolt disc
Rear hubSeido Arc sealed hub, 11-speed, 6-bolt disc
Through axle12 x 100 mm / 12 x 142 mm
Front rimSeido Sinus i21 double wall asymmetric, tubeless ready, 32h
Rear rimSeido Sinus i21 double wall asymmetric, tubeless ready, 32h

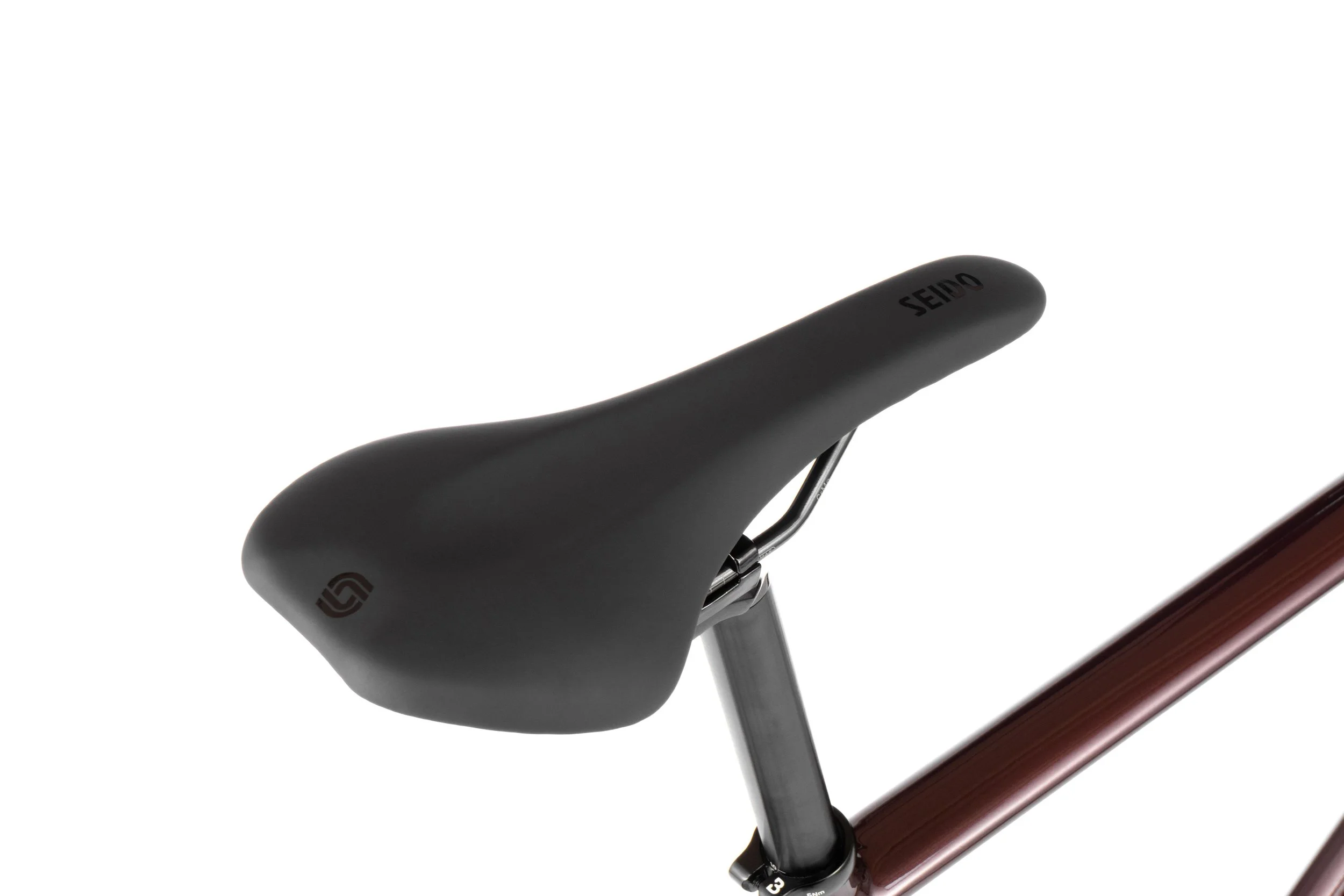

SaddleSeido Comp saddle
Seat postBombtrack Beech 27.2 mm x 415 mm size XL; 315 mm size XS - L
Seat clampBombtrack Prime 29.8 mm
Front tireXS - S WTB Resolute 650B x 42C /
M - XL WTB Venture 700C x 40C, tubeless ready
Rear tireXS - S WTB Resolute 650B x 42C /
M - XL WTB Venture 700C x 40C, tubeless ready
Fender-
Rack-
Kickstand-
Light-
WeightTBA
Weight framesetTBA
Maximum rider weight120 kg incl. luggage
ASTM riding condition2


Final product may vary in appearance, finish and minor details.

BUILD INFOS

ModelHOOK AL SWORD
BB standardT47 - 85.5 mm shell width
Headset standard (S.H.I.S.)IS52 / 28.6 | IS52 / 40
Headset crown race angle36°
Fork steerer inner diameter23.6 mm
Fork max tire clearance w/o fender650B x 52C / 700C x 45C
Frame max tire clearance w/o fenderS 650B x 45C / M - L 700C x 45C
Maximum chainring clearance 1x40 T with 45 mm chainline
Maximum chainring clearance 2x48 / 32 T with 47 mm chainline
Seat post diameter27.2 mm
Seat clamp diameter31.8 mm
Front derailleur clamp diameterbolt on FD hanger included in frame
Frame front derailleur compatibleyes
Brake mount frontFM 140 / 160
Brake mount rearFM 160 / 180
Frame thickness rear brake mount20 mm
Maximum rotor clearance front160 mm
Maximum rotor clearance rear180 mm
Front through axle
Rear through axle
ISO testing standardRoad
CrankarmS - M 170 mm / L 175 mm
Q Factor154 mm
BCD crank110 mm / 80 mm, asymmetric Shimano 4 bolts
Chainring offset0 mm
Chainline47 mm
Spoke length front wheel
Spoke length rear wheel
Spoke count (front / rear)
ERD
Front hub PCD
Rear hub PCD
Front hub flange distance / offset
Rear hub flange distance / offset
Stem lengthS 80 mm / M 90 mm / L 100 mm
Stem angle-7°
Headset spacers1 x 10 mm, 2 x 5 mm
Seat post offset24 mm
Seat post length315 mm
Bike trailernot approved
Seat tube mounted child seatnot approved
Derailleur hangerSram UDH
Frame small parts
Hub end caps front
Hub end caps rear
Cassette body
Crankarm bolt
Through axle front
Through axle rear


GEOMETRY



FRAME GEOMETRY

Model
Bike SizeSML
Wheel size650B700C700C
Seat Tube Length490530550
Horizontal TT length529553574
Seat Angle74.2°74.2°74.2°
Head Angle70.7°71.2°71.2°
Headtube Length145155180
BB Drop577272
Chainstay Length410425429
Fork Offset484848
Trail647171
Wheelbase Length100310311057
Standover769807828
Reach374390404
Stack551578601
Front Center600617639
Axle to Crown395395395
Minimum rider height ¹160017001790
Maximum rider height ¹171018101900


¹ Our bike size recommendation generally represents a rough guideline for quickly narrowing down the sizes from which to choose based on the body height. Bike fitting is a complex topic and other measurements and factors have to be accounted for as well. Since no two human bodys are exactly the same it is not possible to give a 100% correct advice for everyone. Therefore Bombtrack cannot guarantee for the stated recommendations to be correct for every individual customer. The best way to work out the correct size is to consult a local Bombtrack dealer or a professional bike fitter and have them determine the needed size.

HANDLEBAR GEOMETRY

Model
Bike SizeSML
Handlebar typeDropbarDropbarDropbar
Width (drops)400420440
Width (barends)446466486
Reach757575
Flare10°10°10°
Backsweep---
Drop116116116
Upsweep---
Rise---

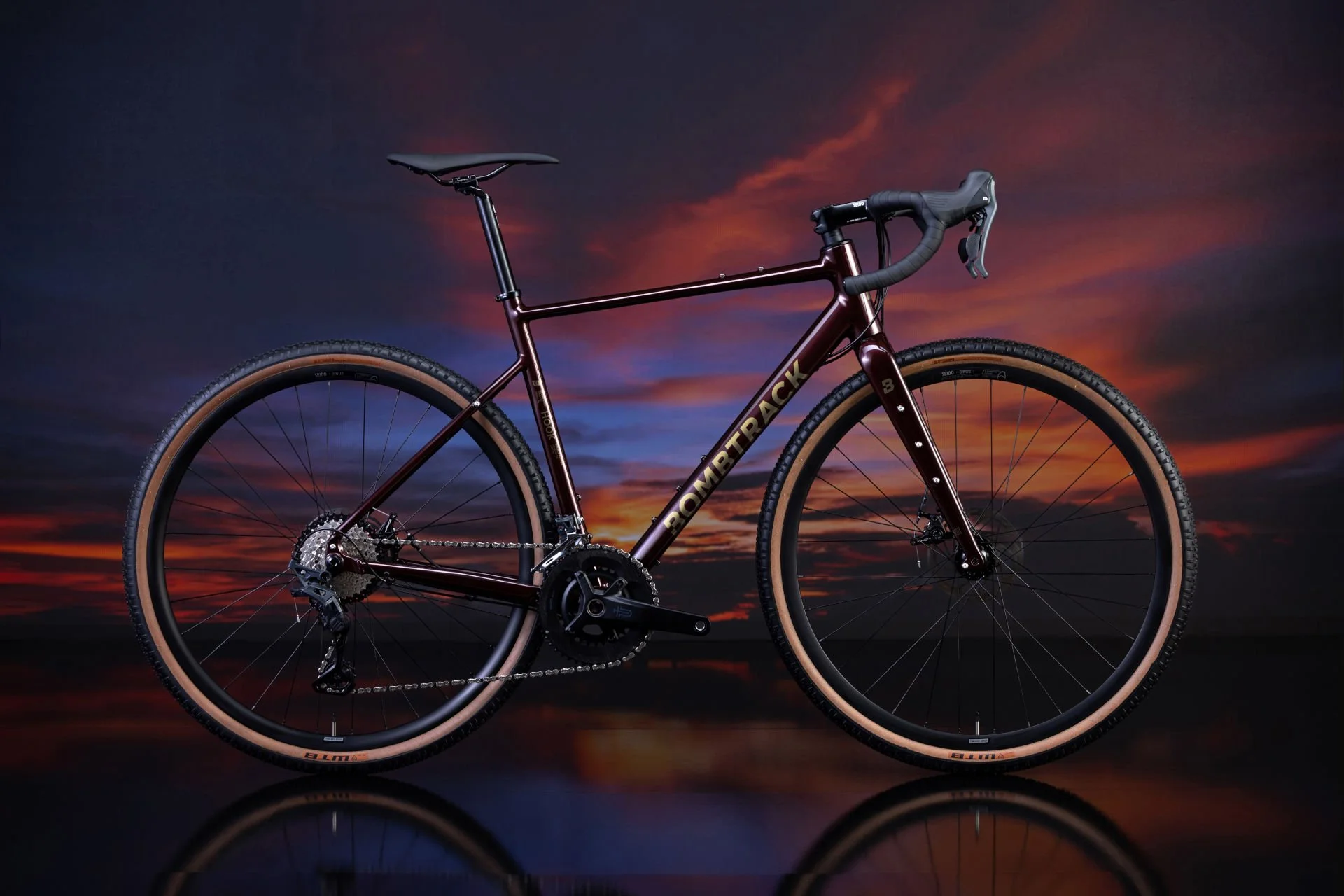

Unbenannter Katalog3382_website.jpg

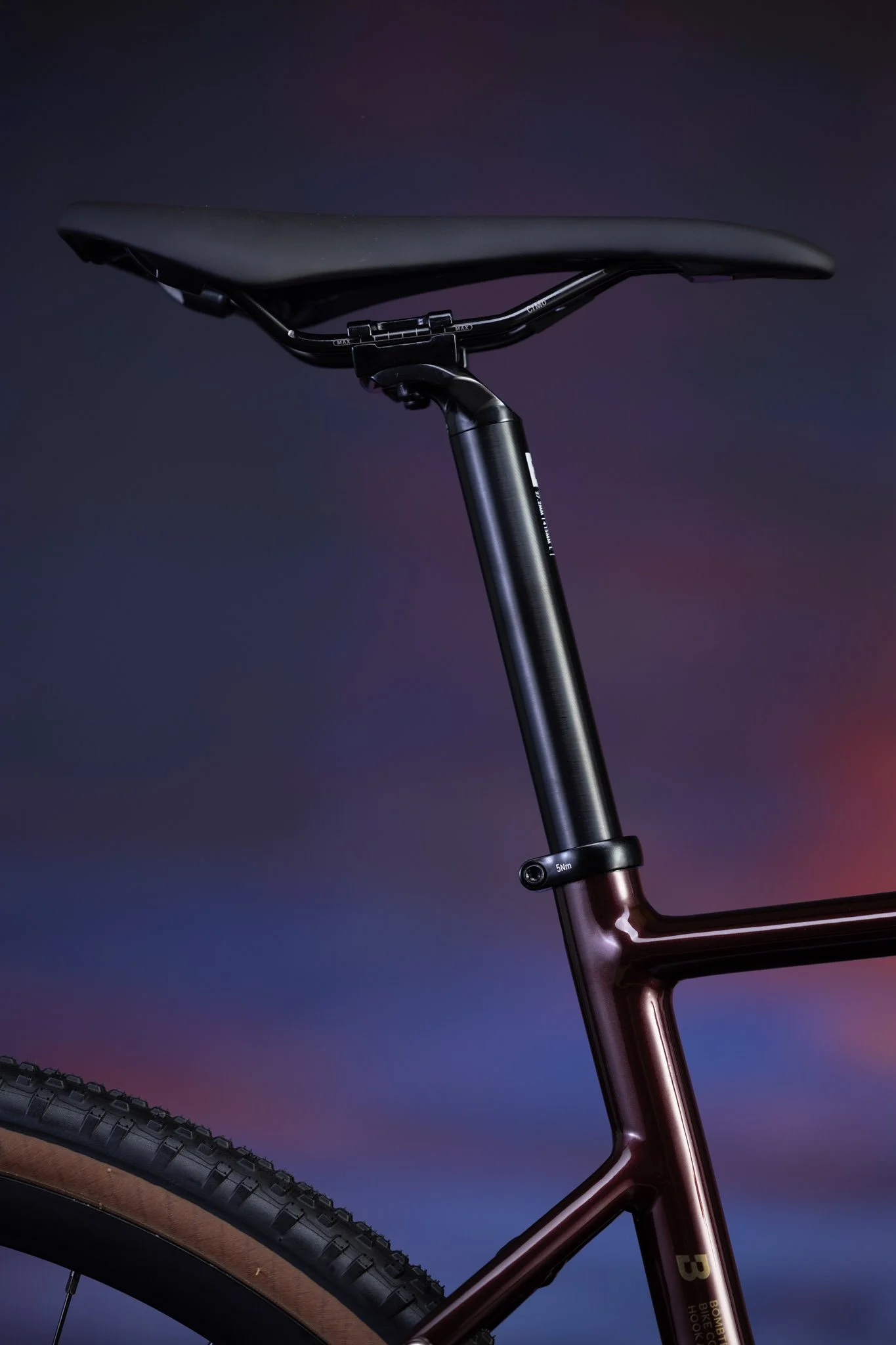

Unbenannter Katalog3395.jpg

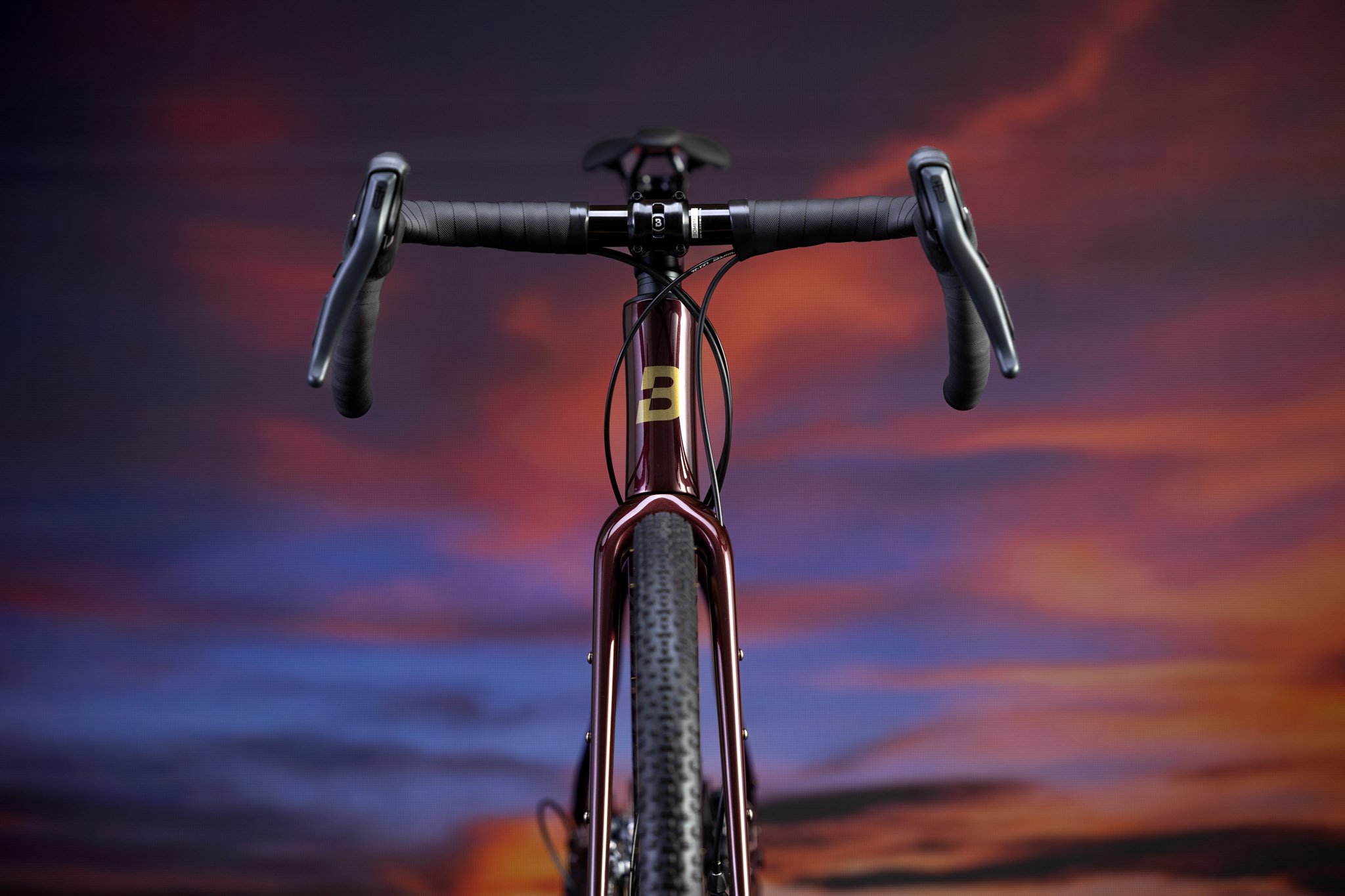

Unbenannter Katalog3461.jpg
Unbenannter Katalog3520.jpg
Unbenannter Katalog3530.jpg
Unbenannter Katalog3389.jpg

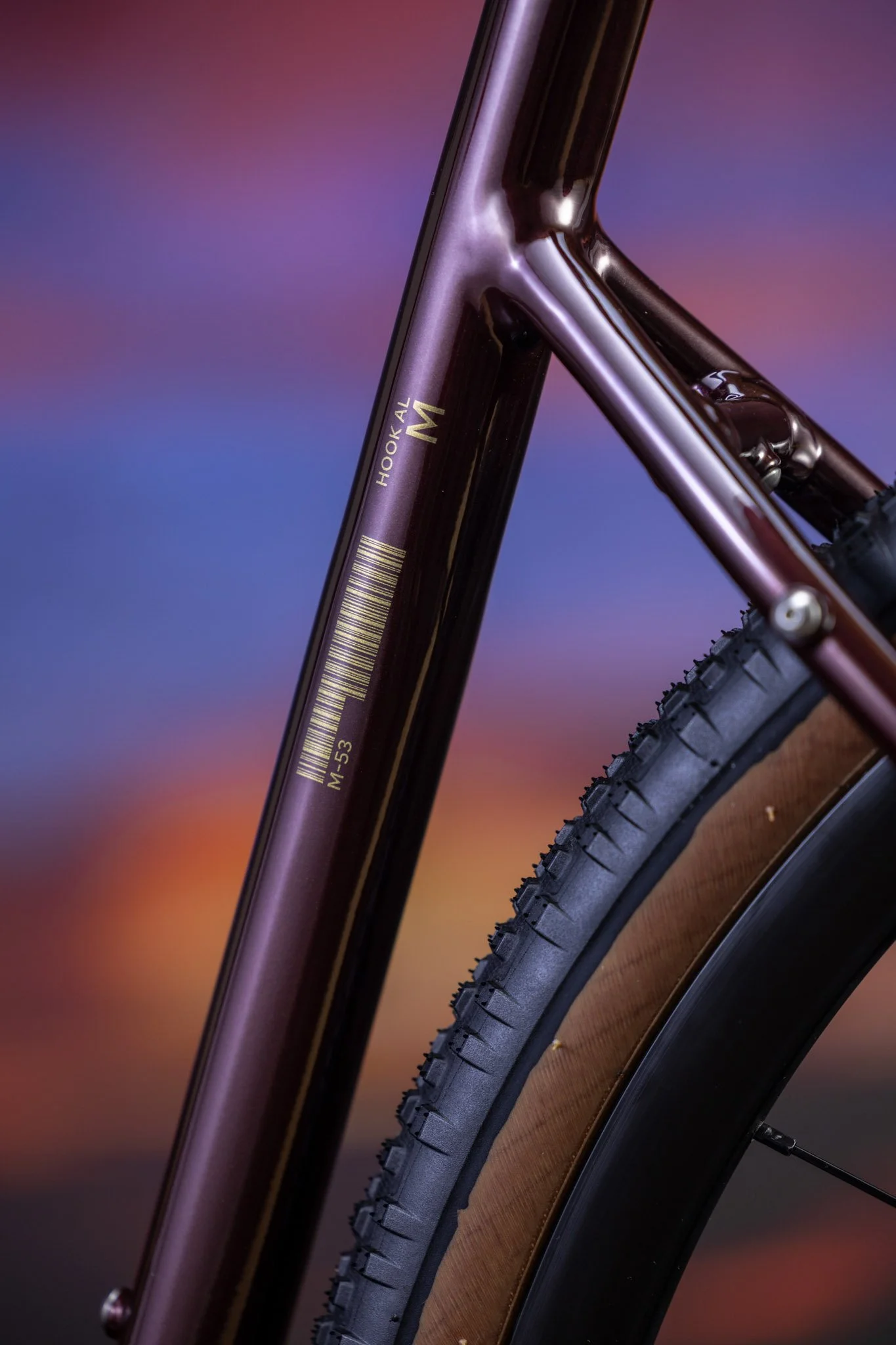

Unbenannter Katalog3533.jpg

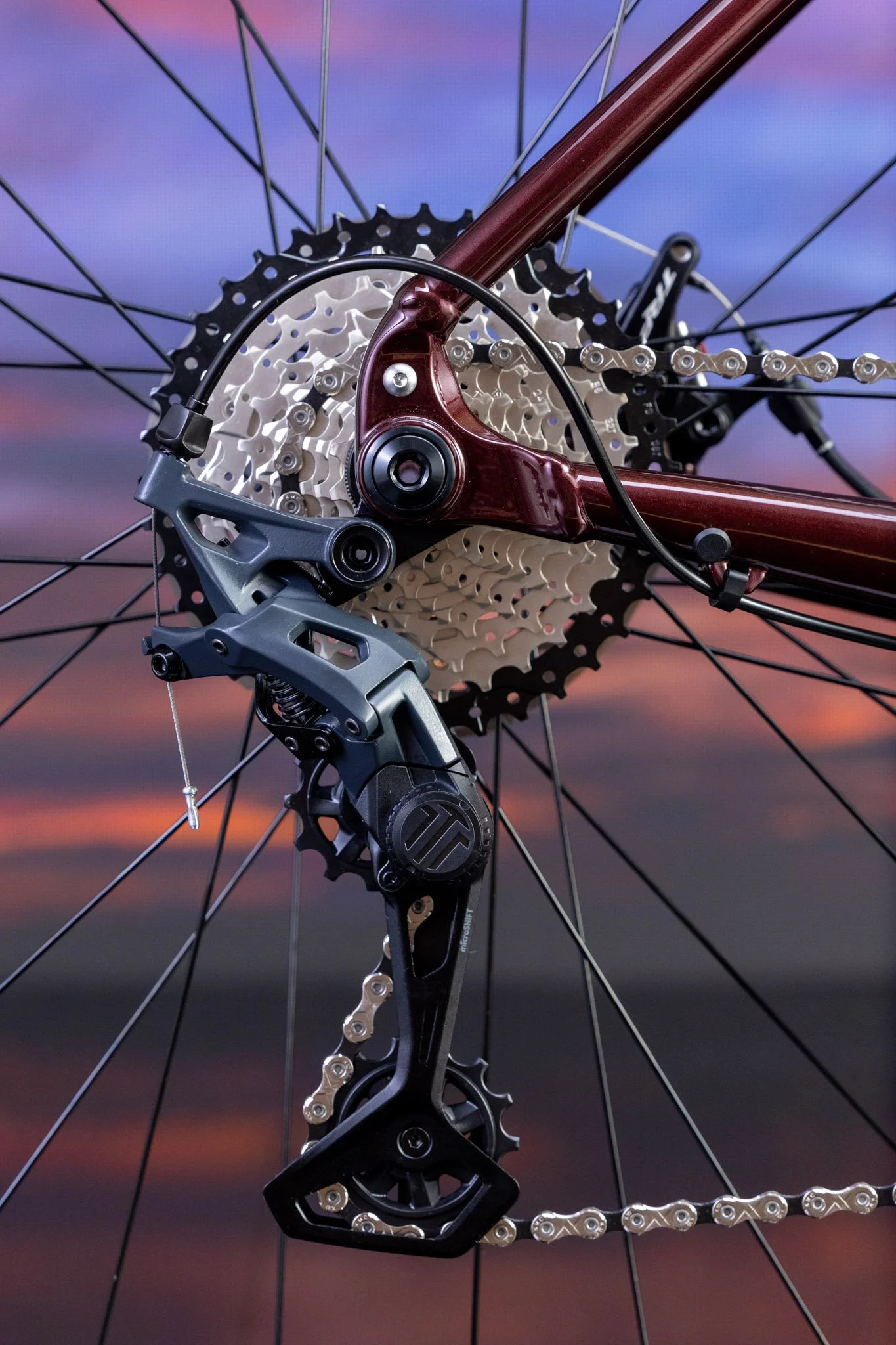

Unbenannter Katalog3391.jpg
Unbenannter Katalog3514.jpg
Unbenannter Katalog3429.jpg

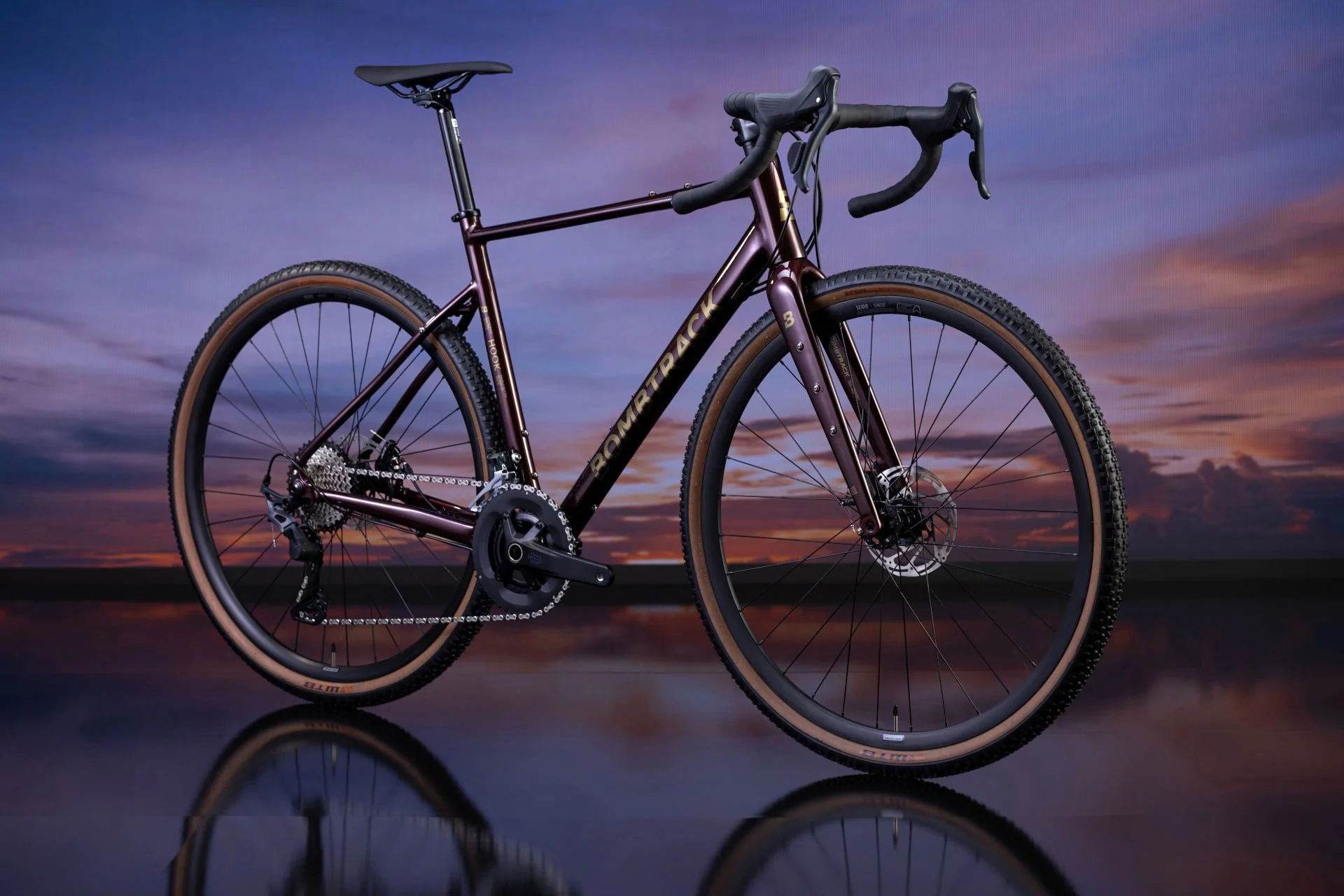

Unbenannter Katalog3408 website.jpg
