AUDAX AL SWORD

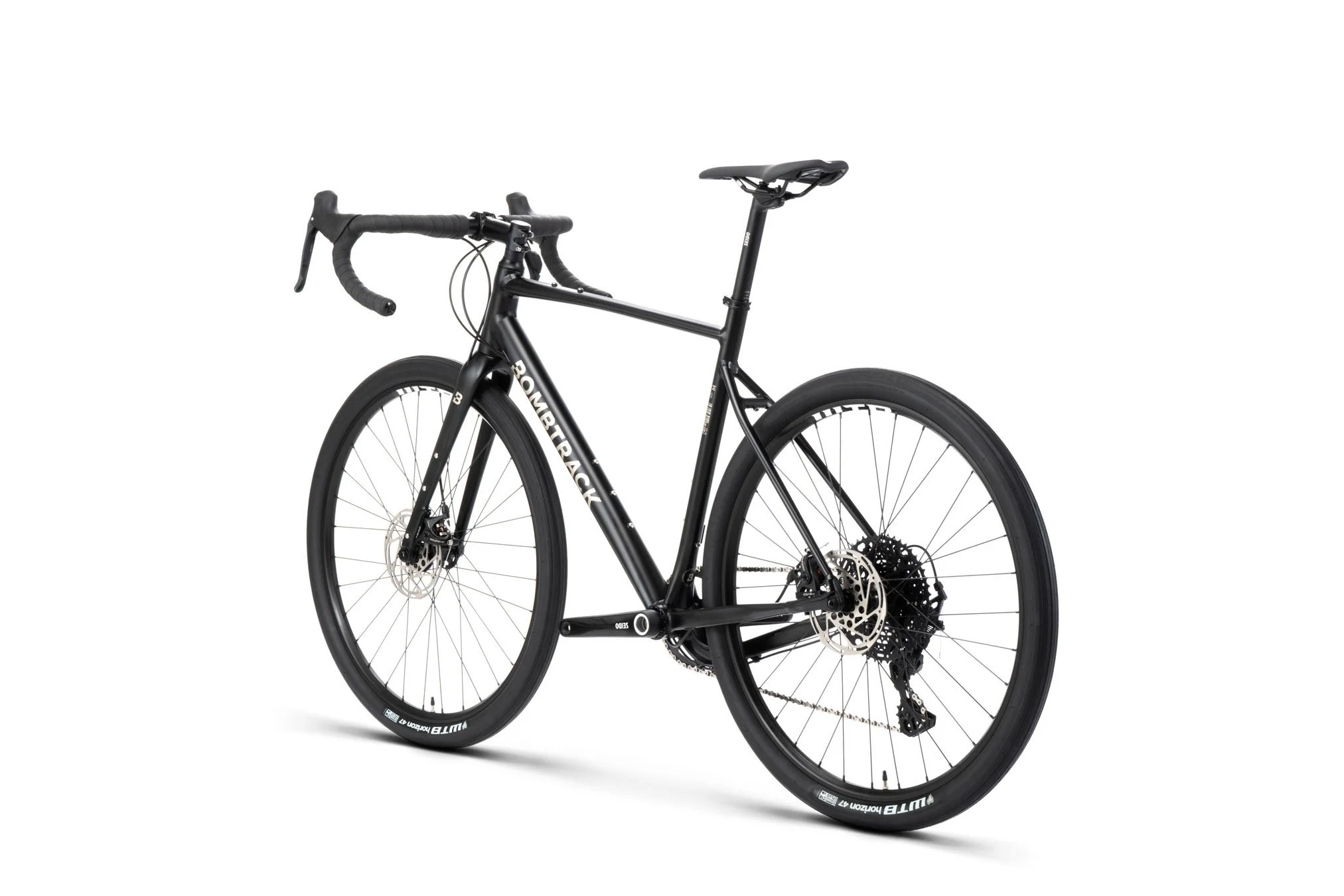

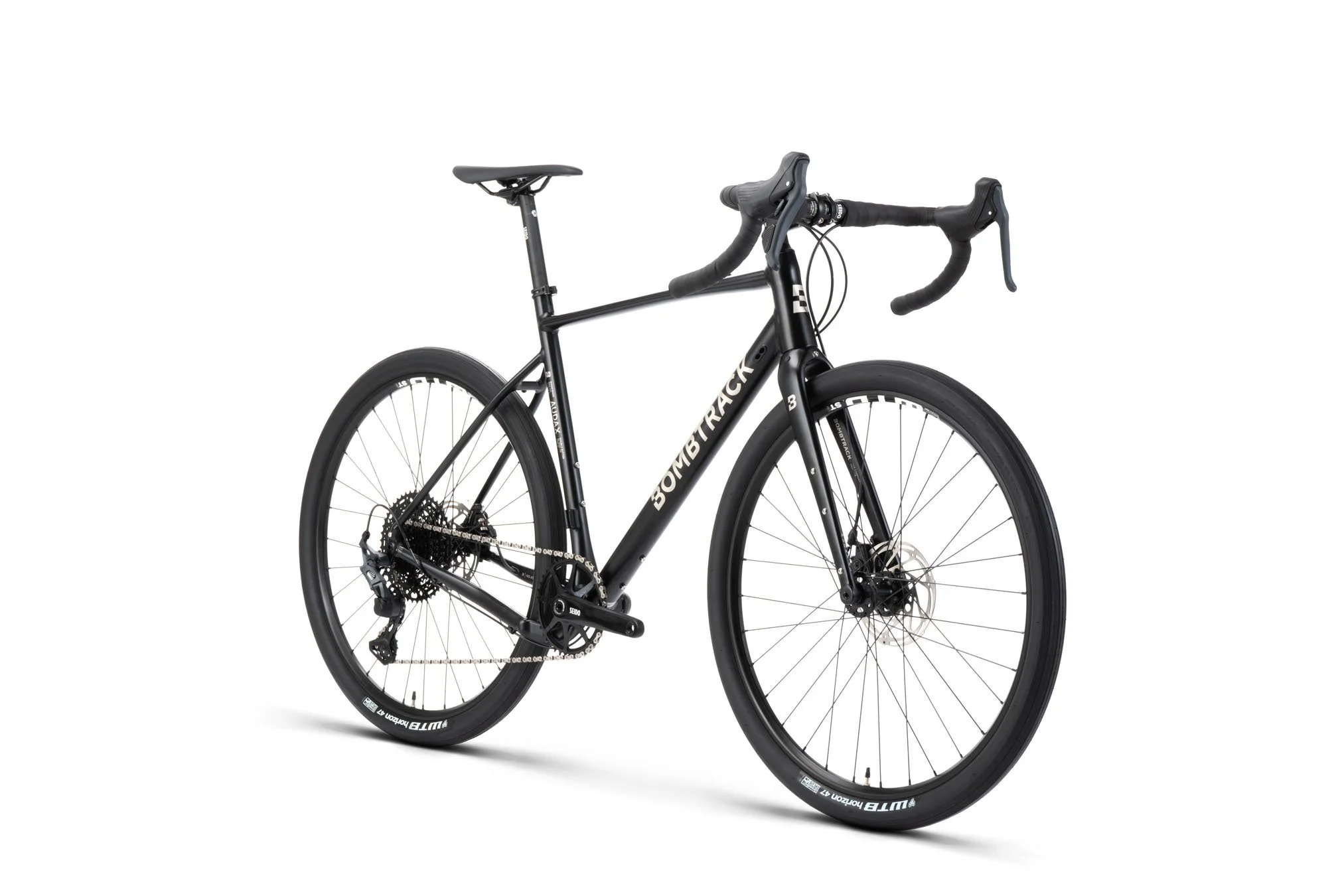

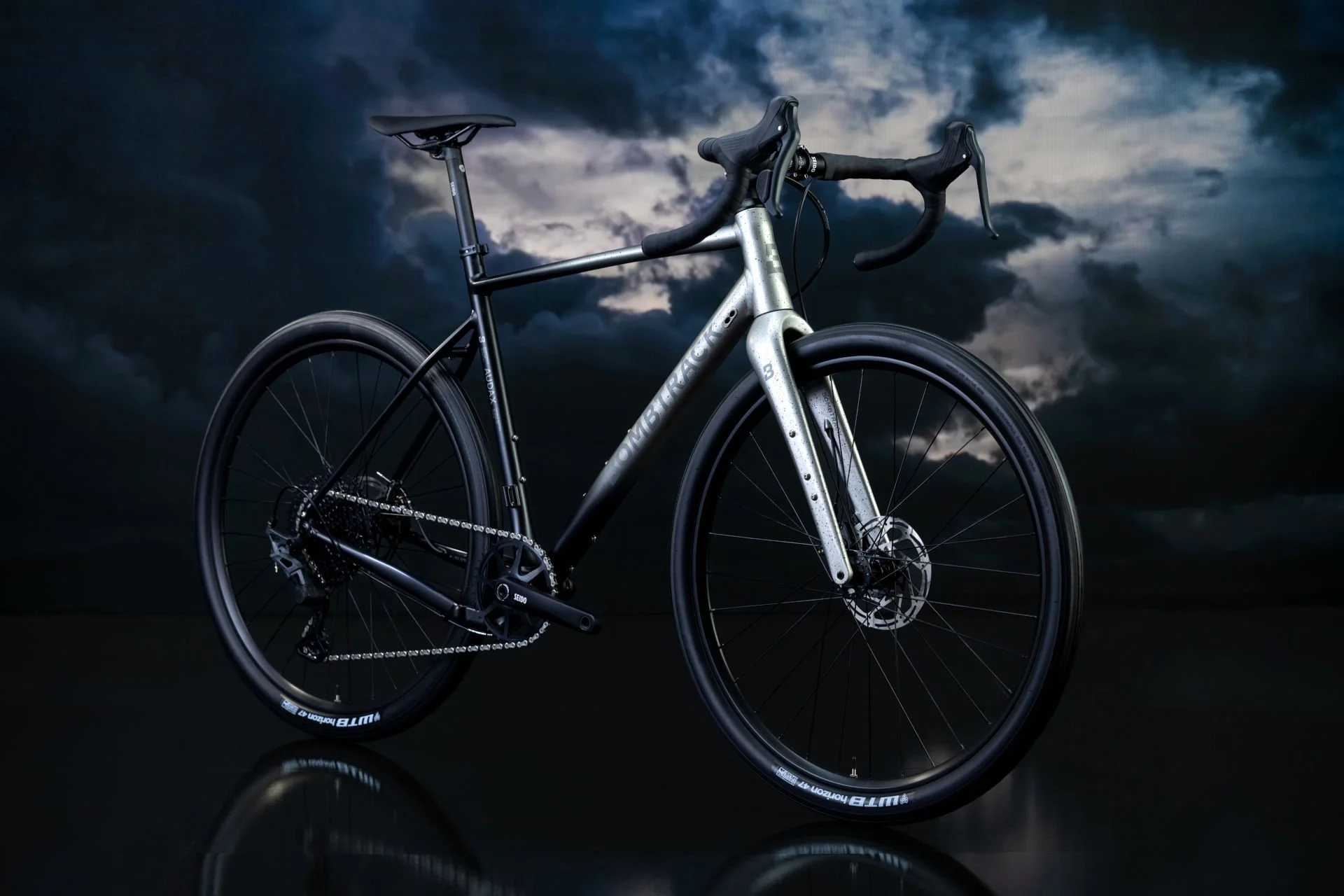

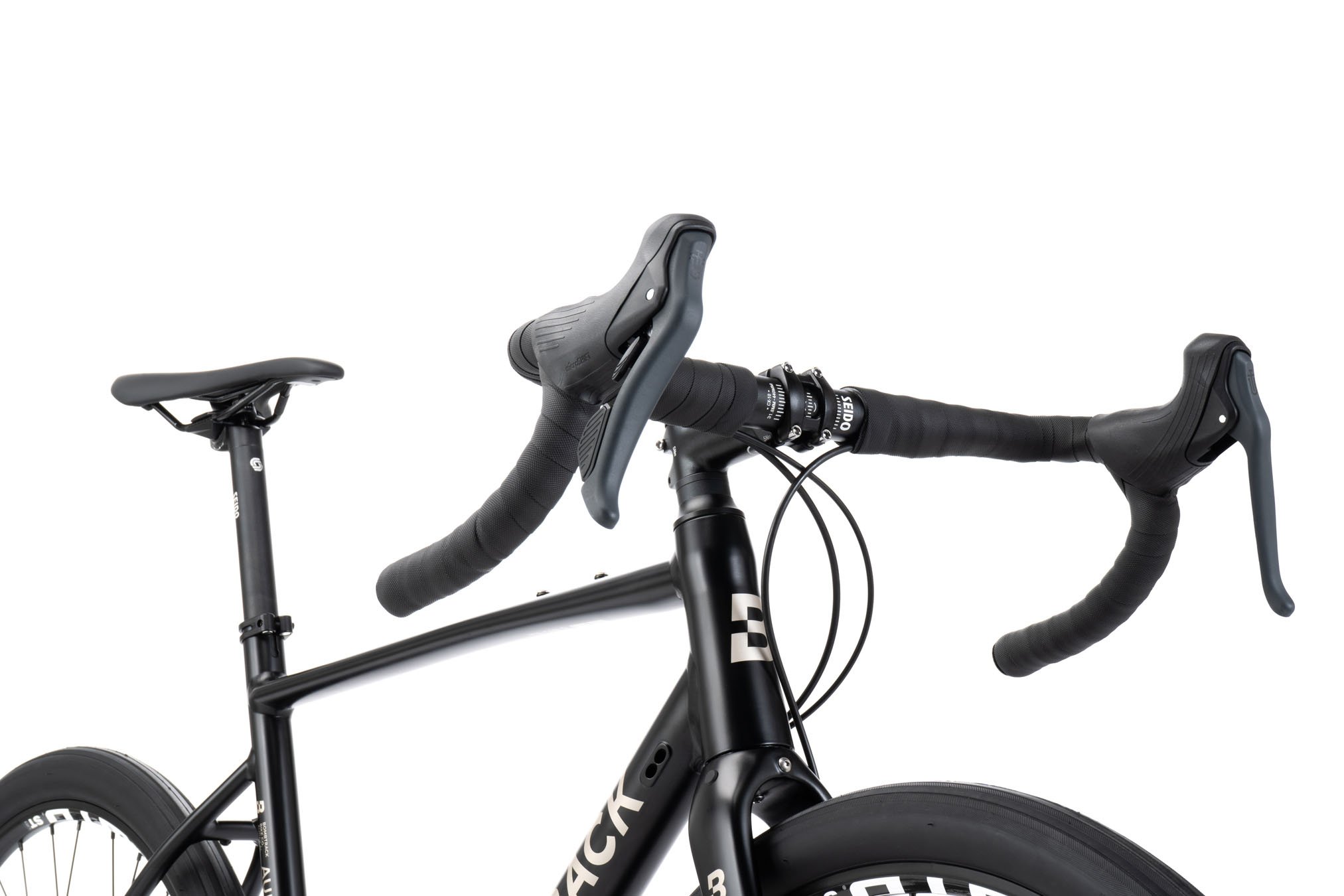

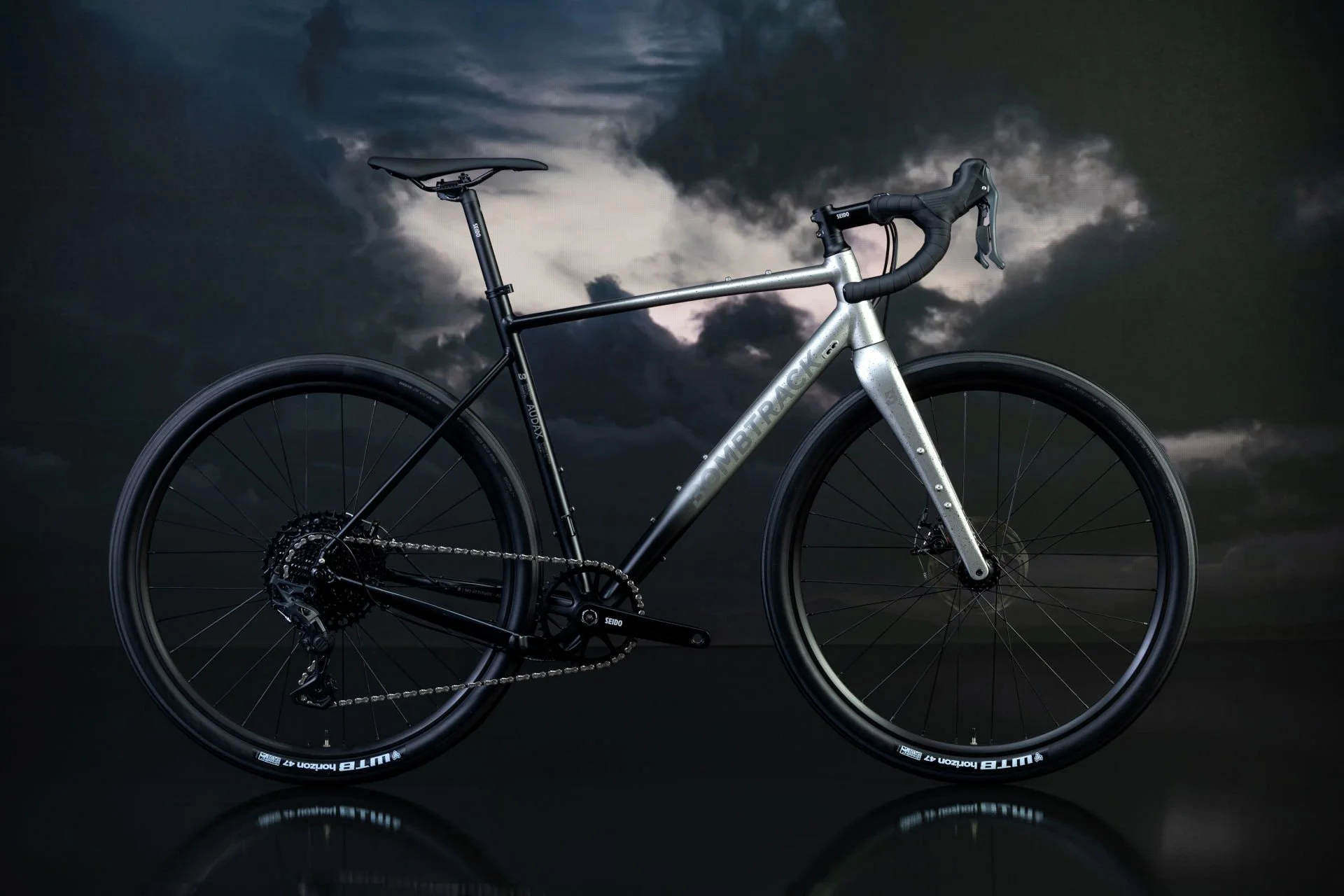

The Audax AL Sword is an allroad bike designed for long miles, mixed surfaces and everyday reliability. Its lightweight aluminium frame with a T47 bottom bracket delivers a strong, responsive ride, while the full carbon fork with bottle cage mounts boosts versatility for endurance adventures. Equipped with Microshift’s Sword 10-speed wide-range drivetrain and an 11 – 48T cassette, you’ll have all the gears you need for steep climbs and fast flats. The clutched Sword rear derailleur with a replaceable cage ensures smooth, secure shifting, even on rough terrain. A Bombtrack Lyer 30 mm aluminium crankset with a 40T narrow-wide chainring adds durability and chain retention. Rolling on tubeless-ready WTB ST i21 rims with plush 650B x 47C WTB Horizon tires, the Audax AL Sword is ready for the road less travelled.

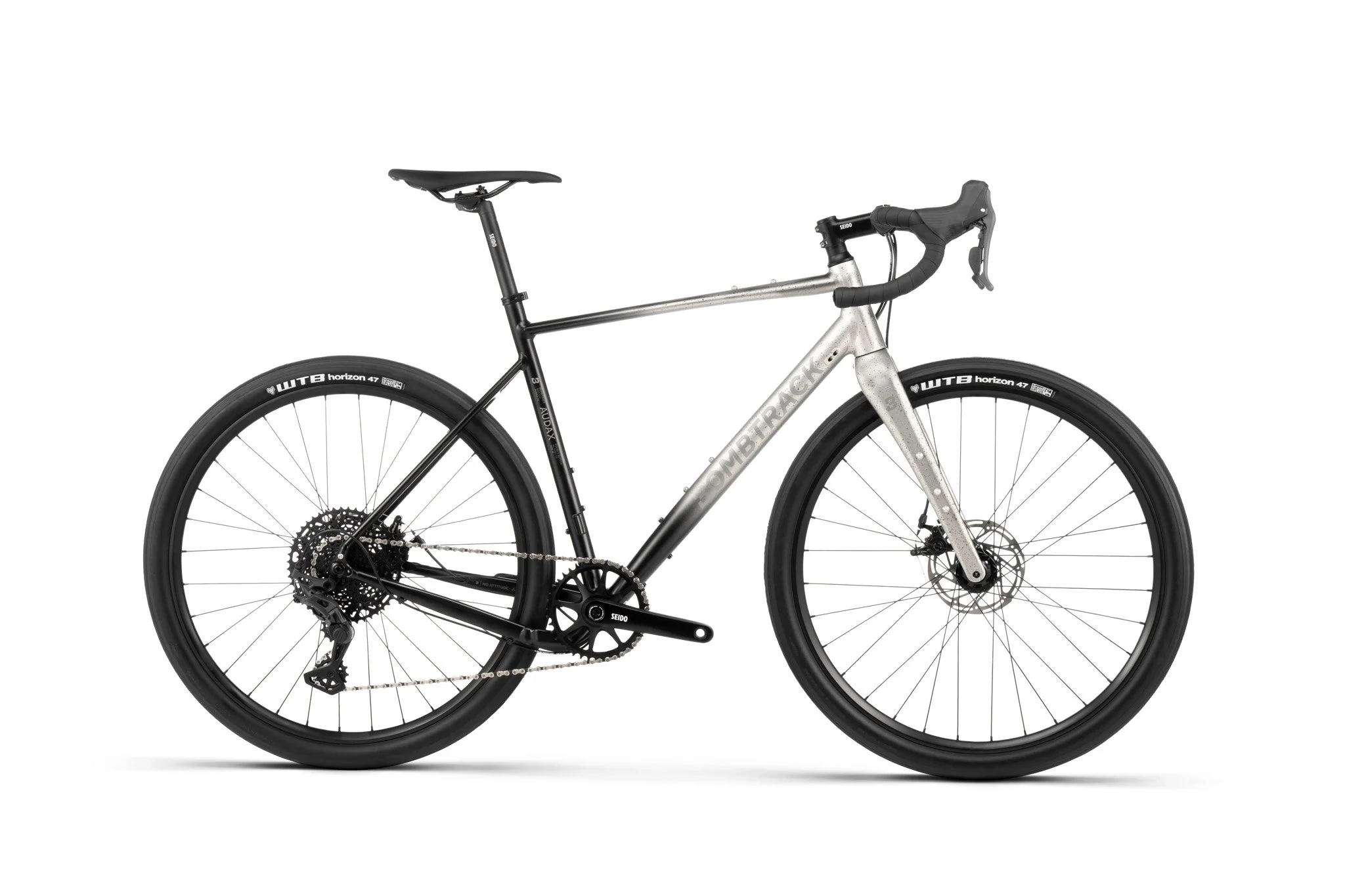

MATT SPLATTER SILVER / BLACK FADE

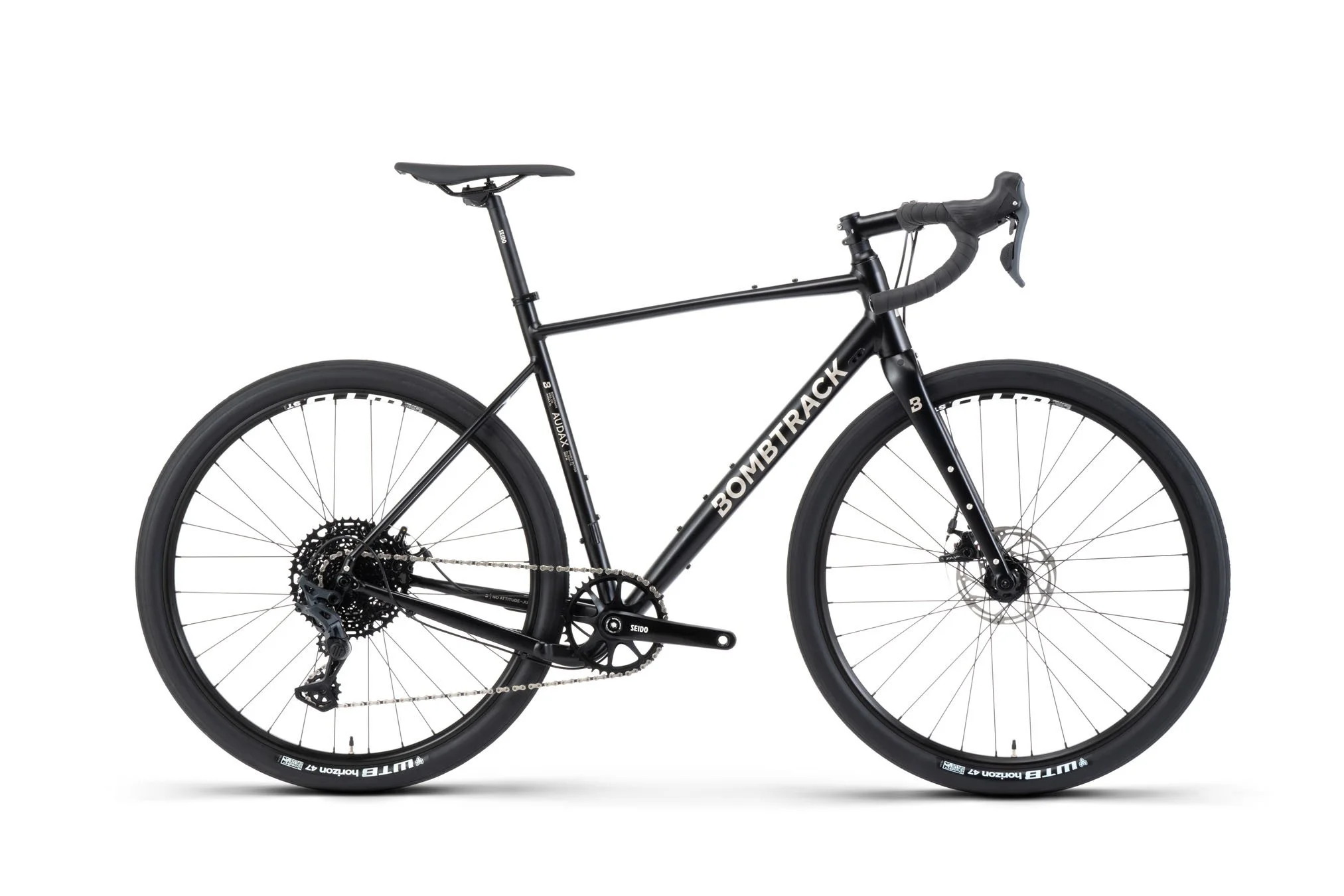

MATT BLACK
HIGHLIGHTS
-
![]()

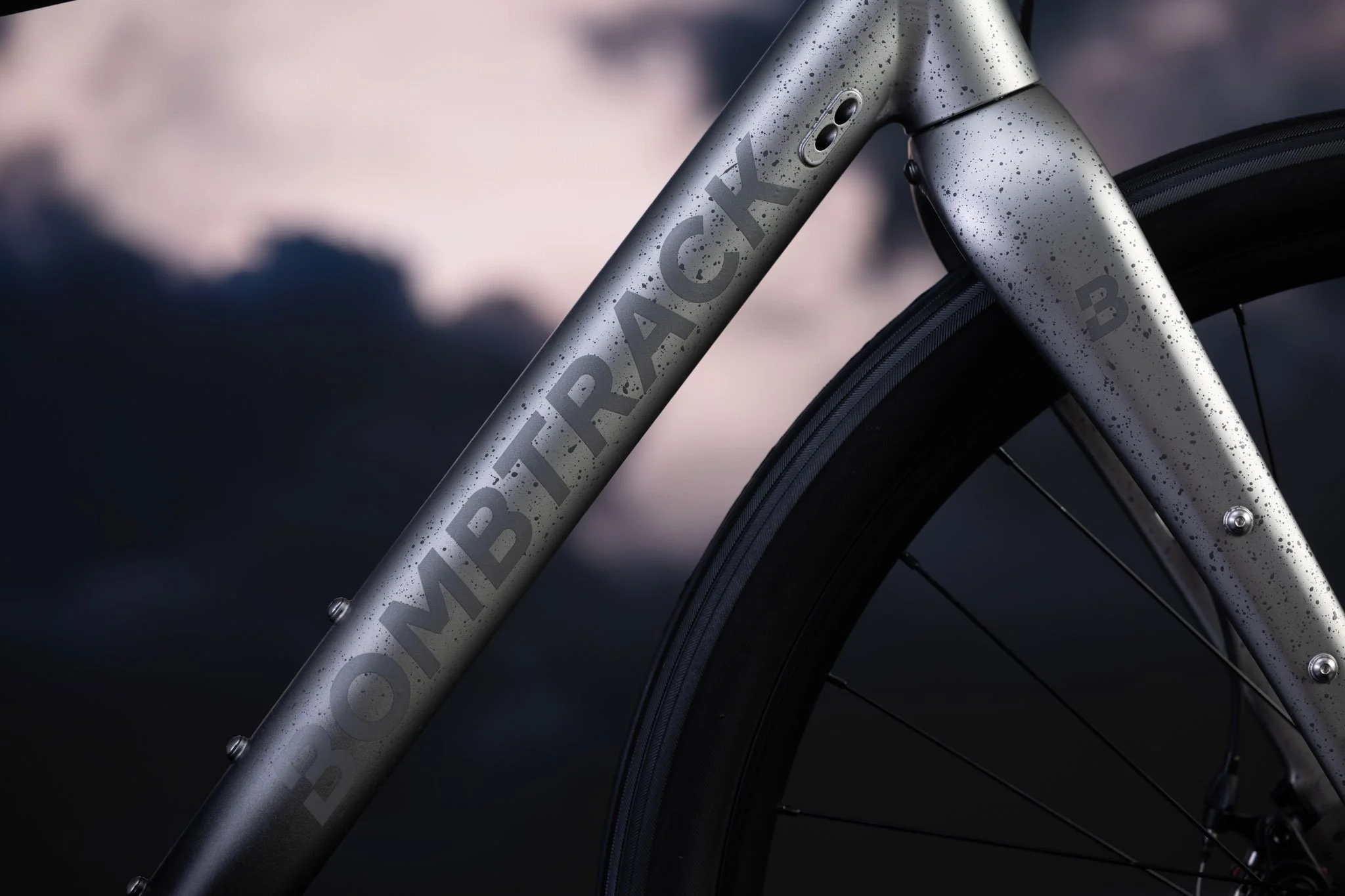

FRAME

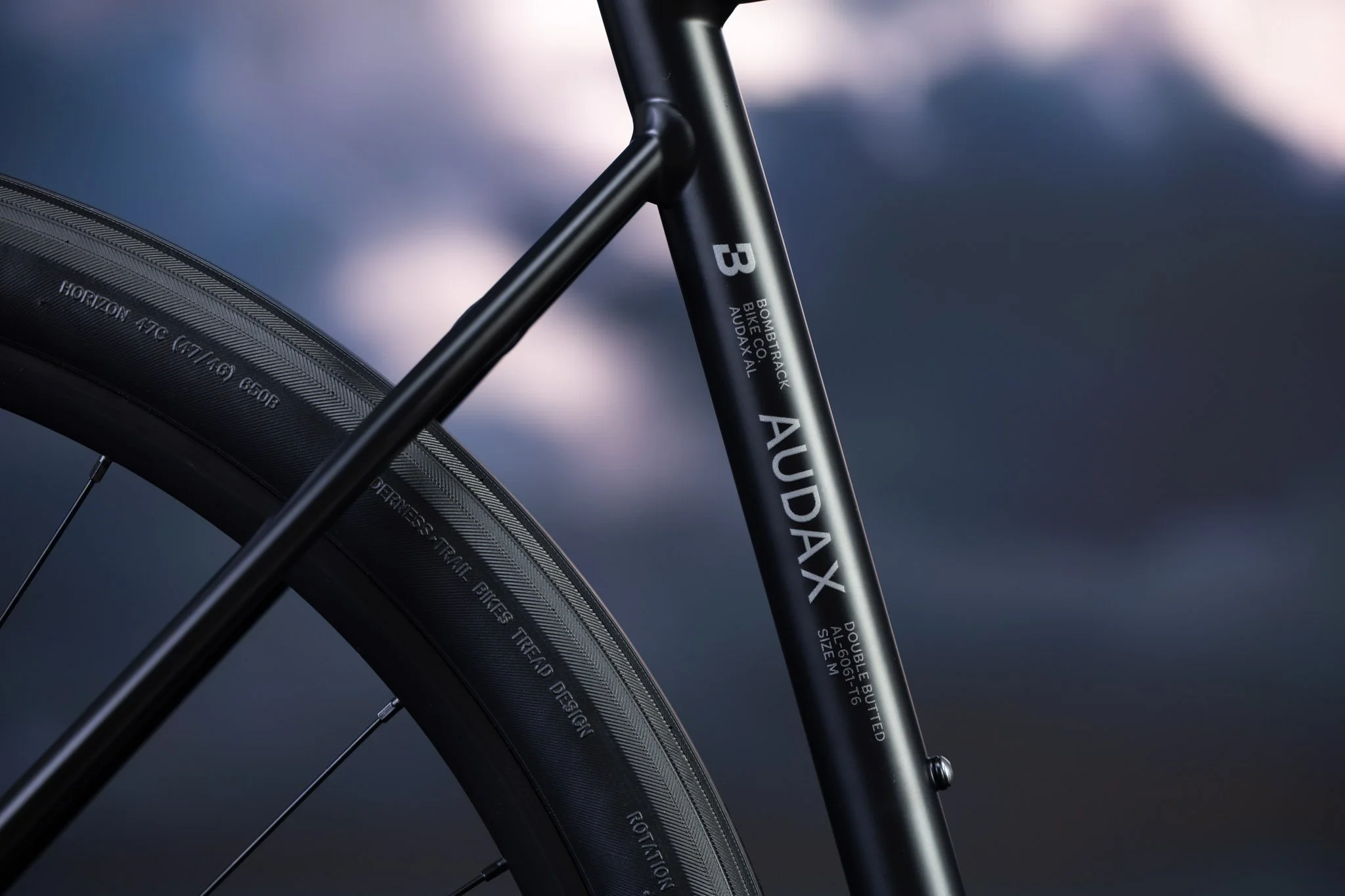

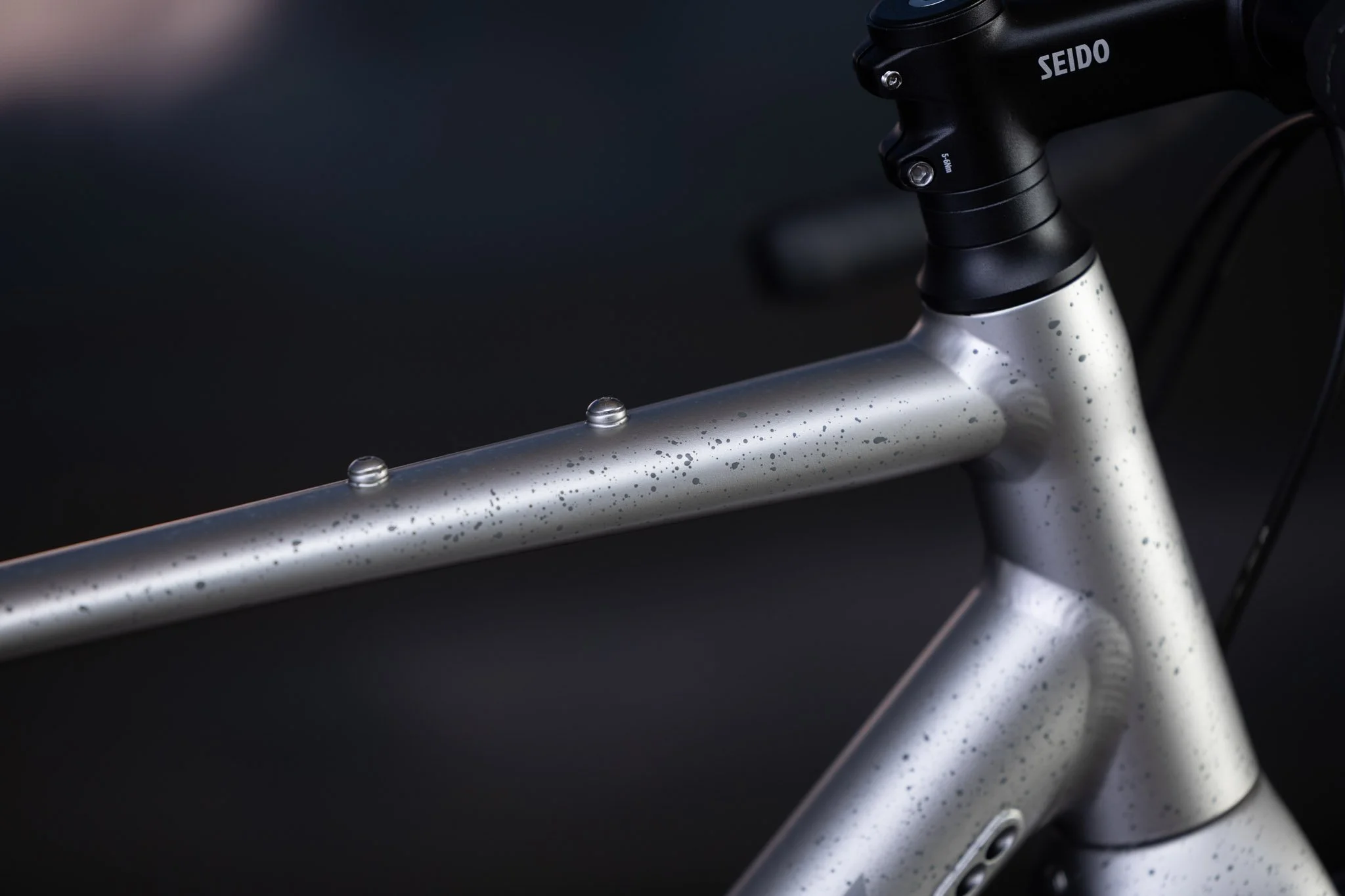

Lightweight aluminium frame with T47 bottom bracket.
-
![]()

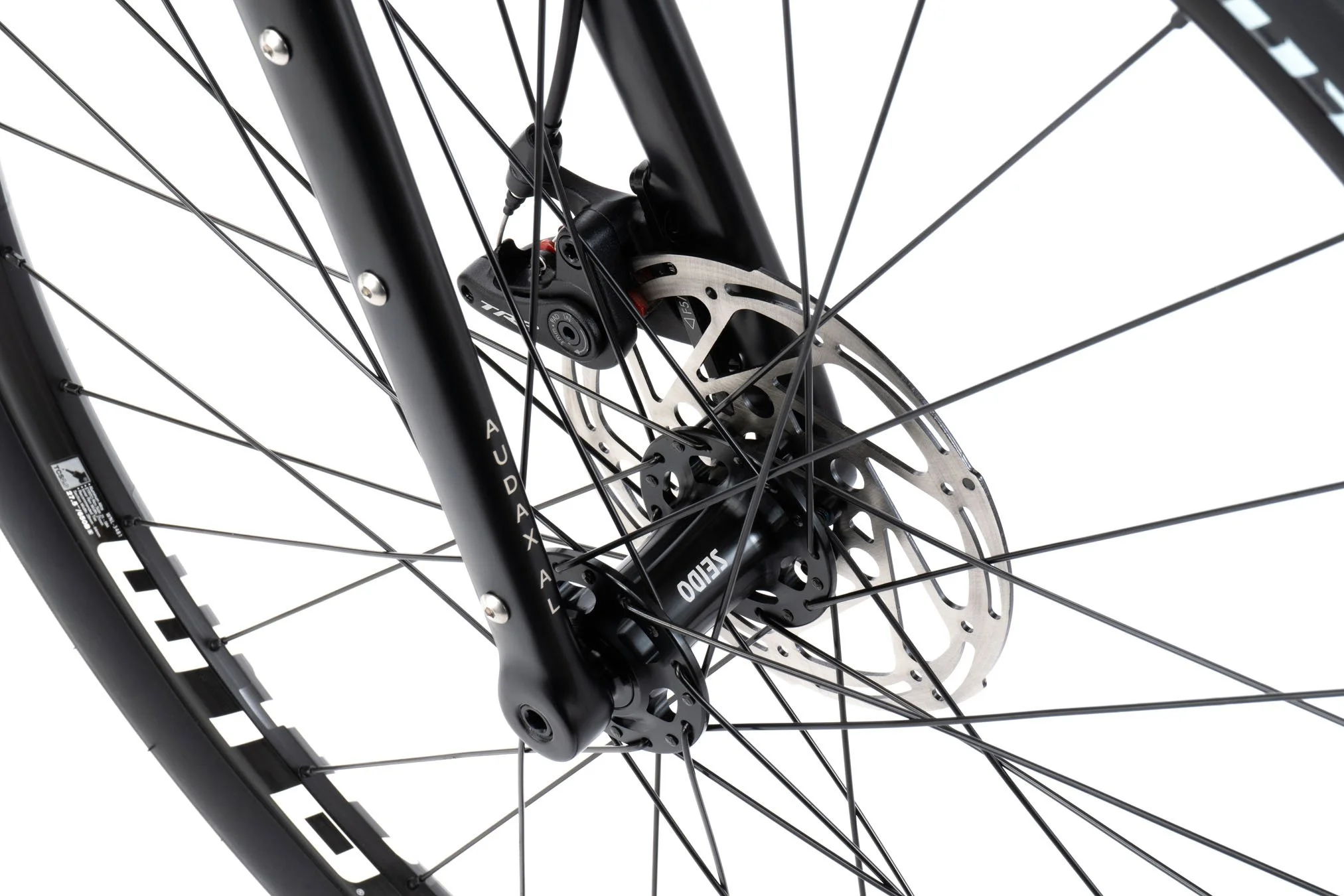

FORK

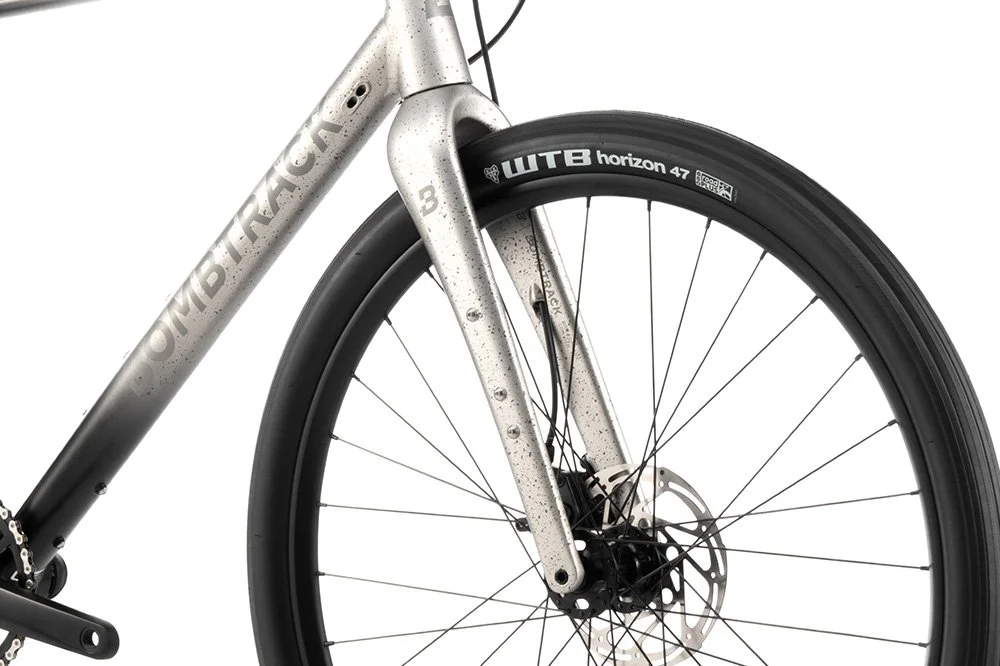

Full carbon fork with bottle cage mounts.
-
![]()

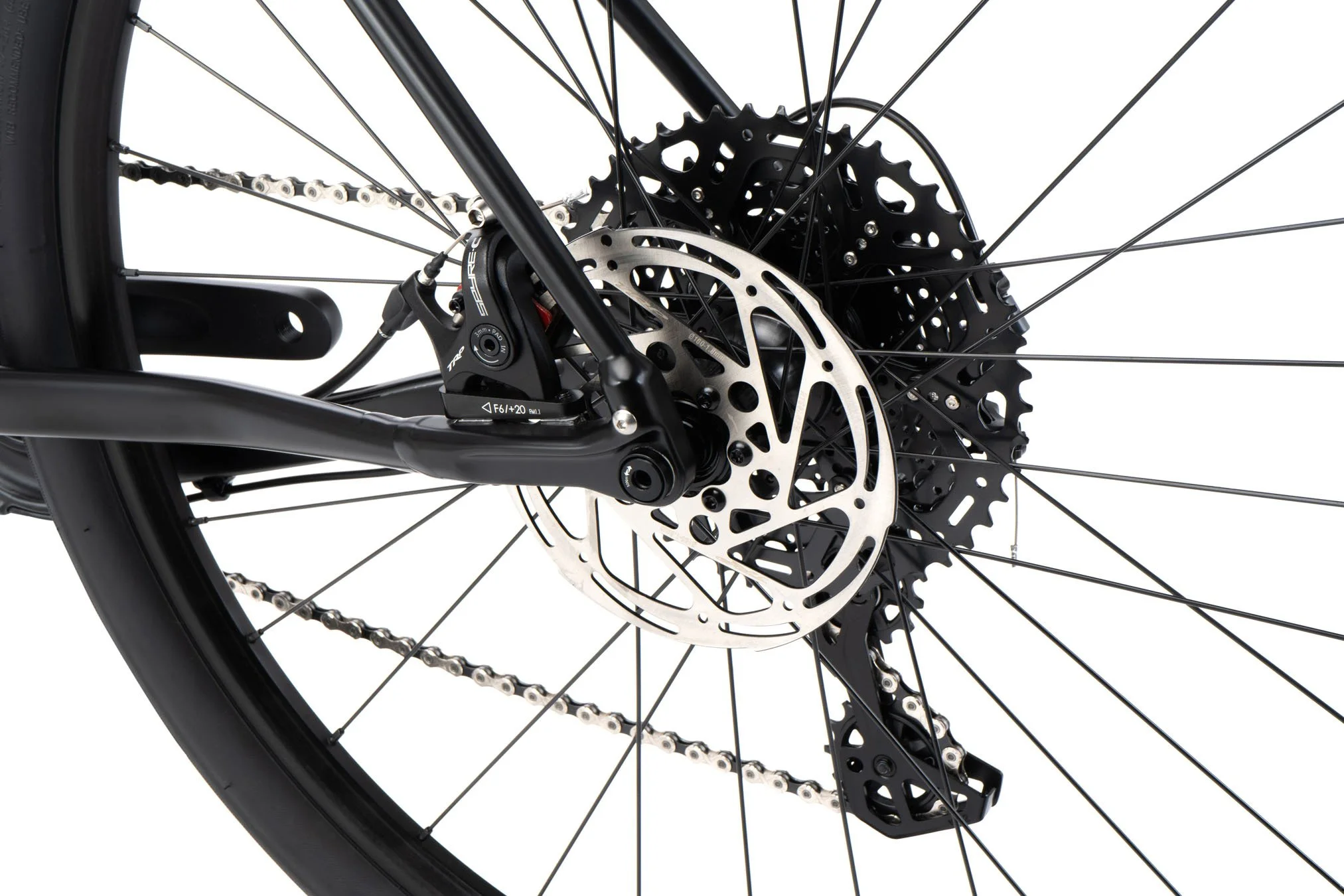

DRIVETRAIN
Microshift Sword 10 speed wide-range drop bar groupset with 11 - 48 T cassette.
-
![]()
DERAILLEUR

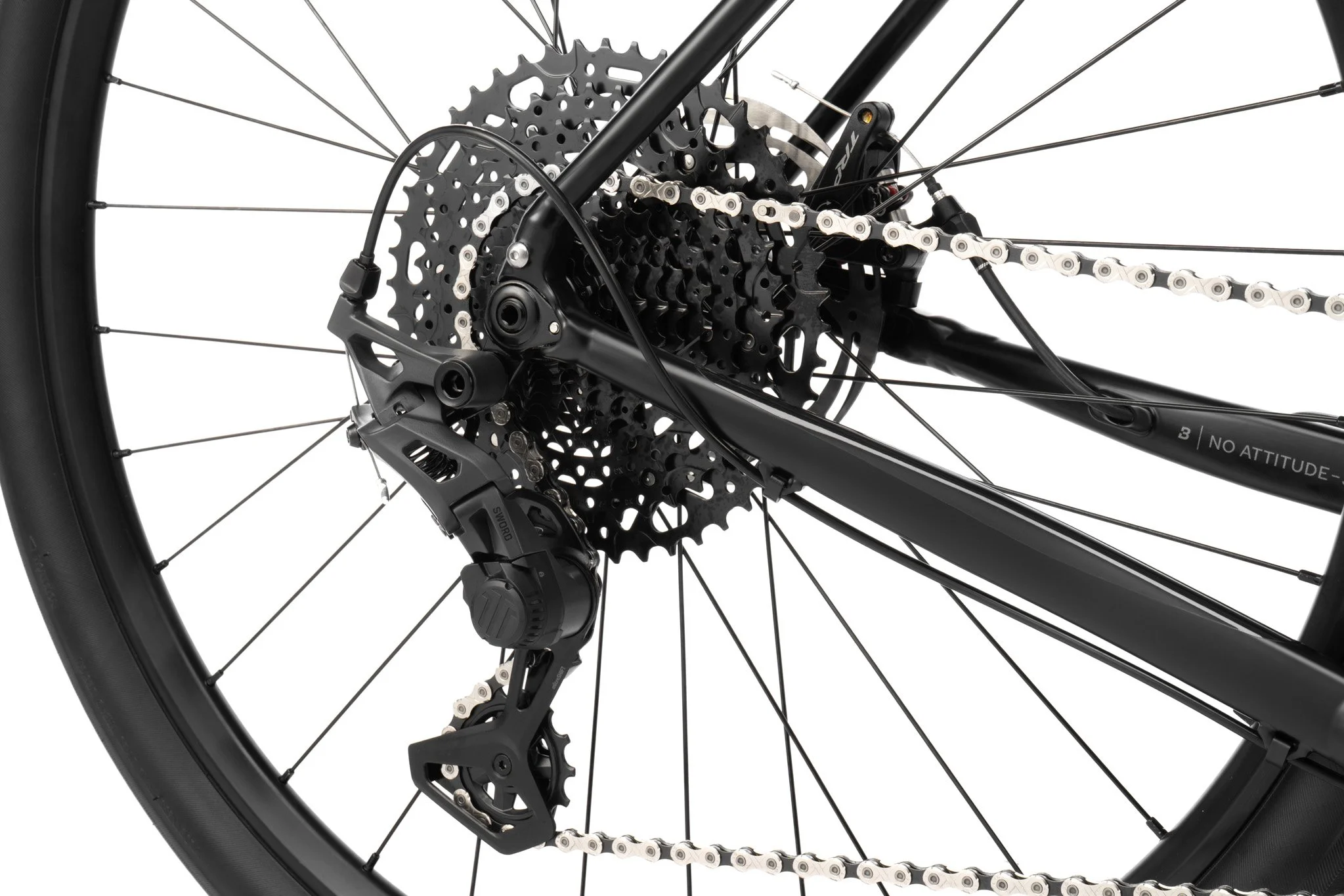

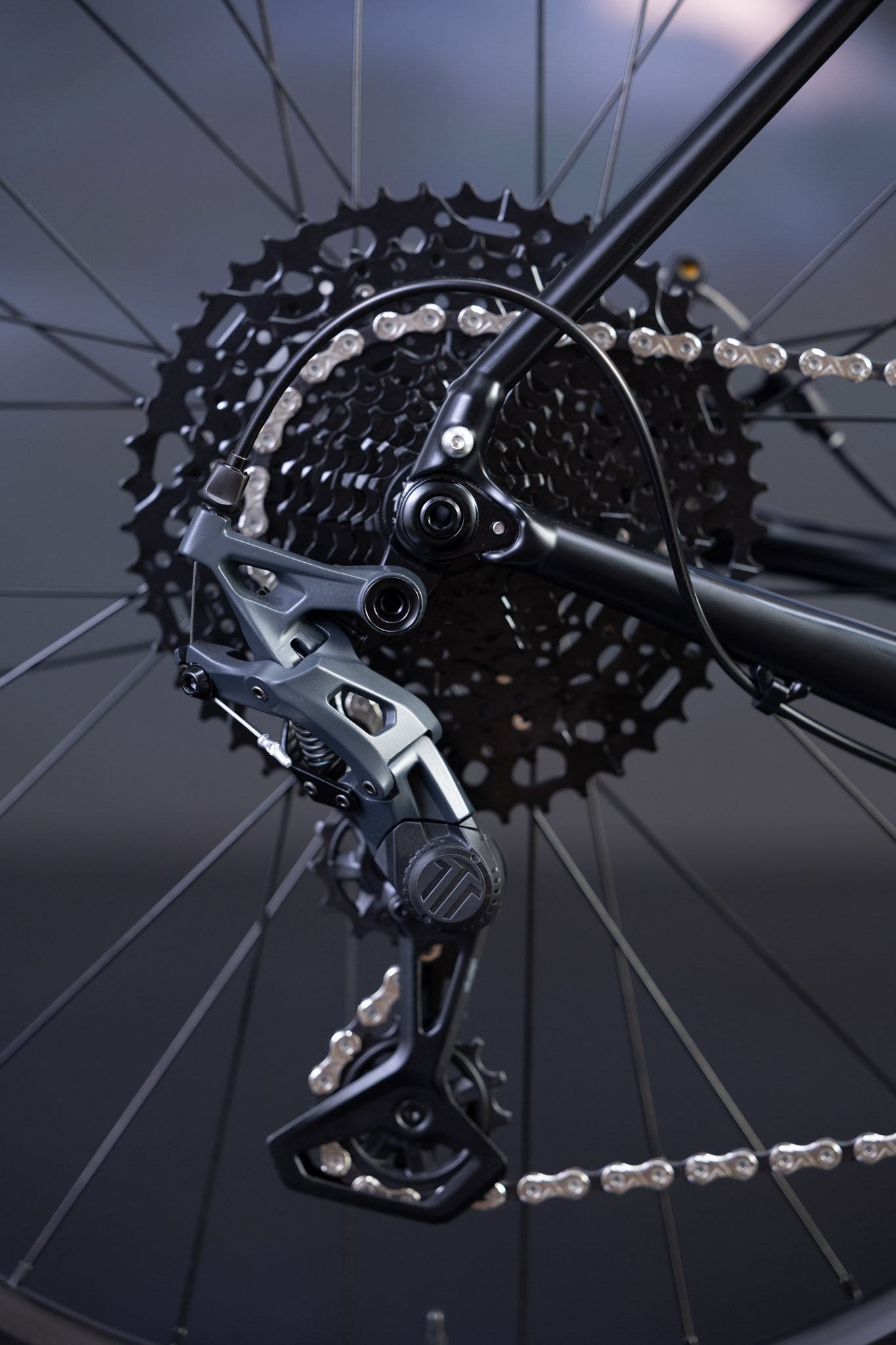

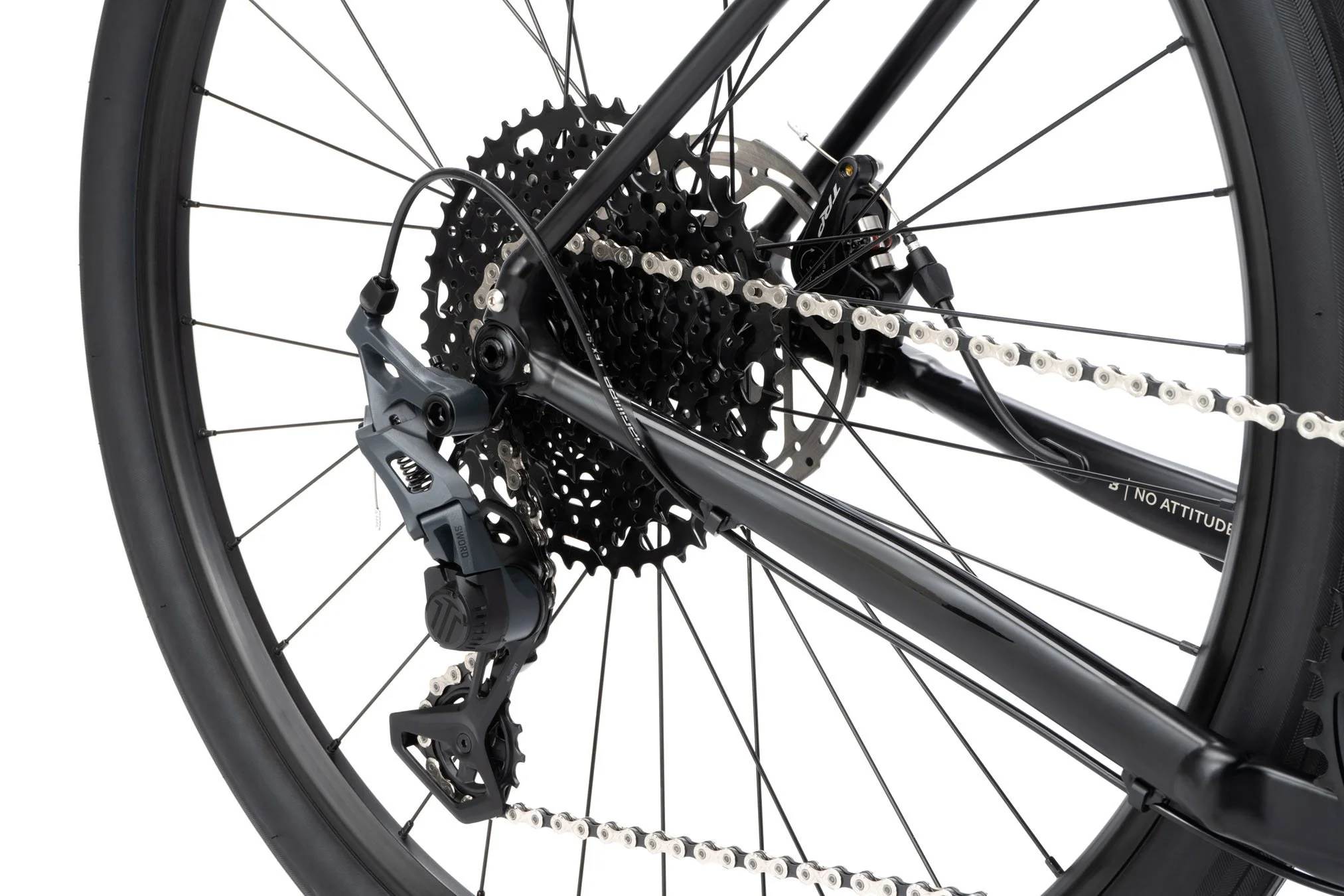

Microshift Sword rear derailleur with clutch and replacable cage.
-
![]()

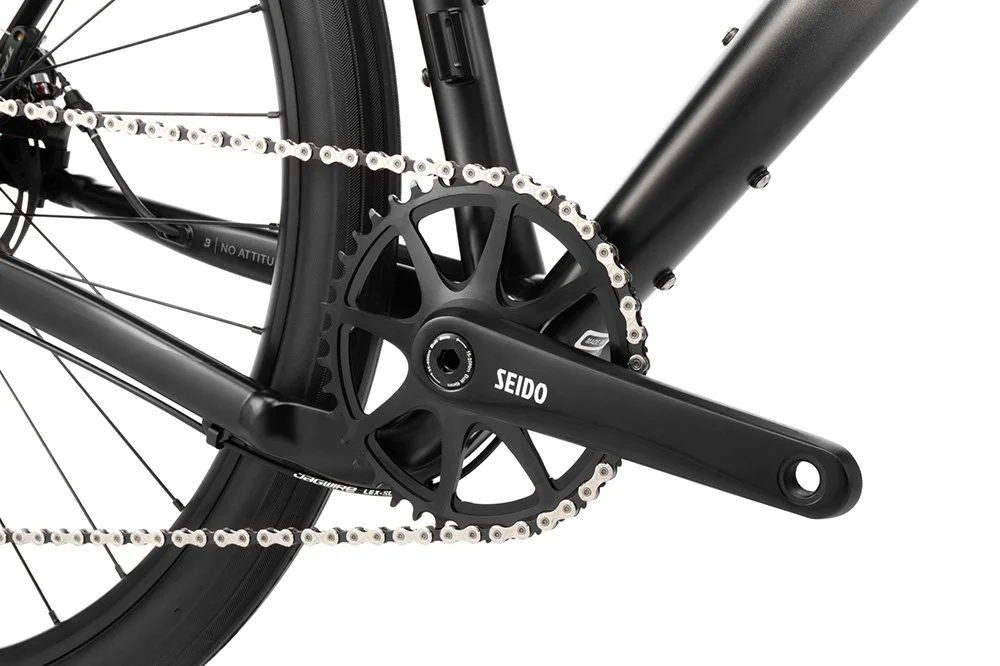

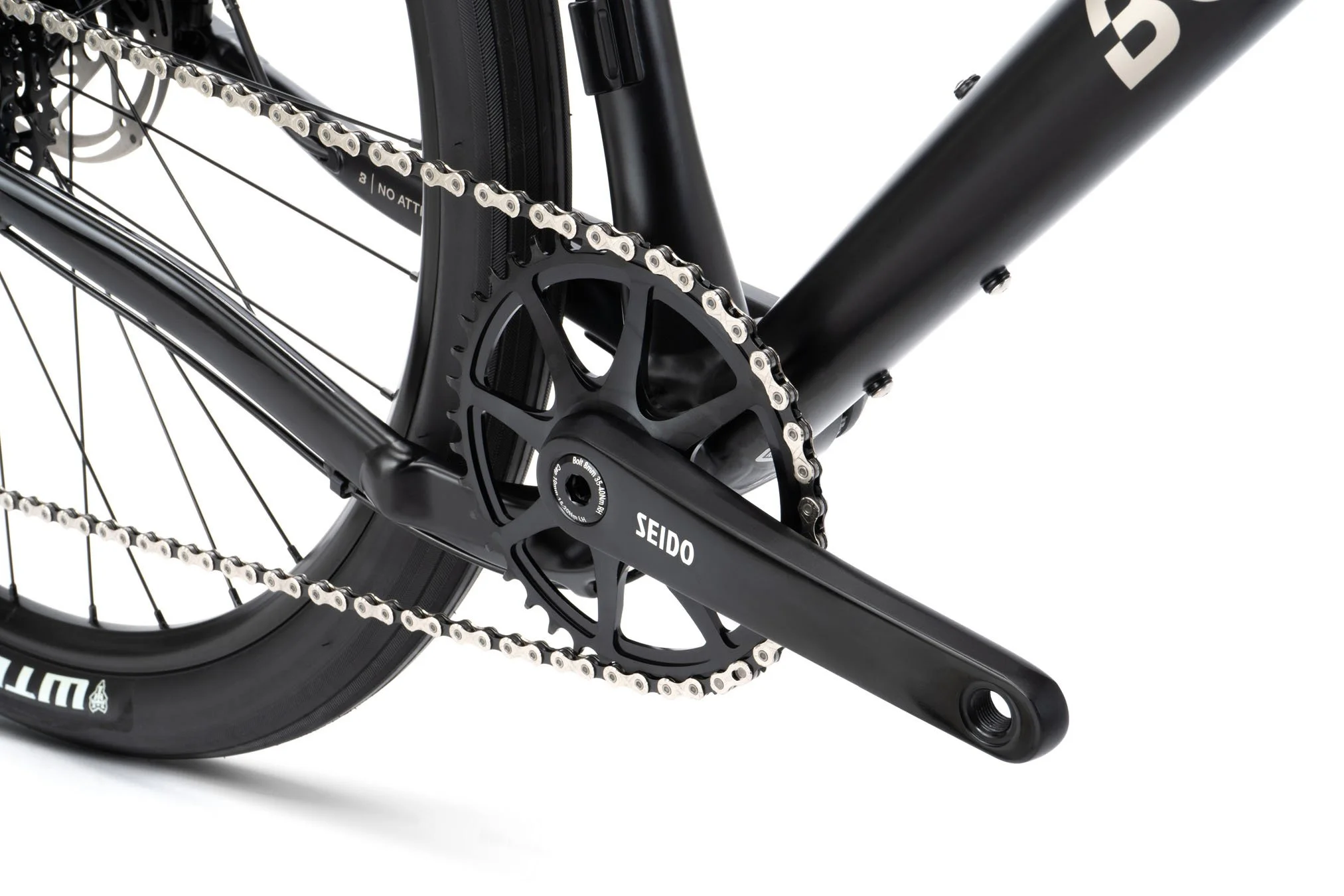

CRANKSET

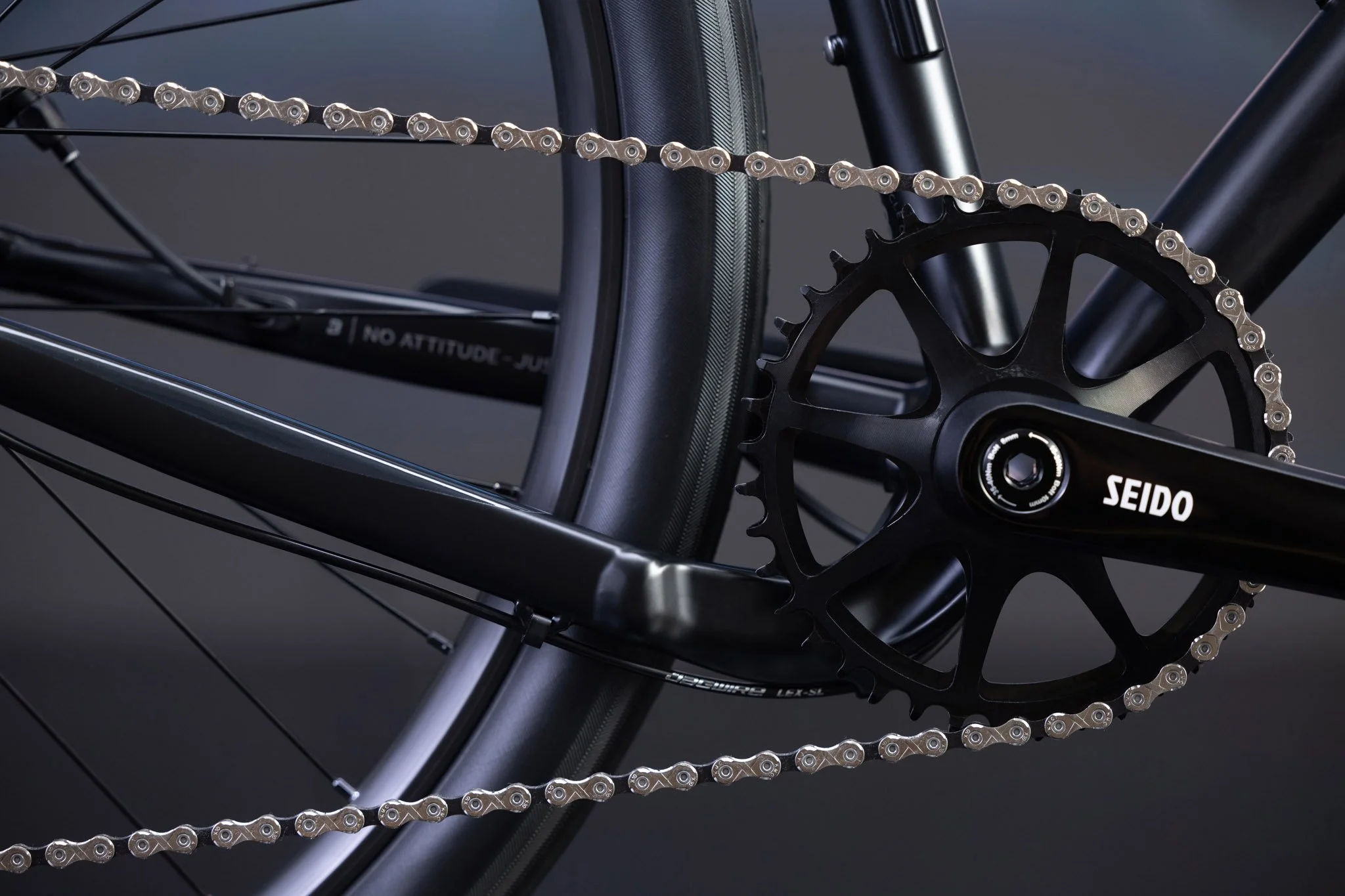

Seido Lyer 30 mm aluminium crank with 40 T direct mount narrow-wide chainring.
-
![]()
RIMS

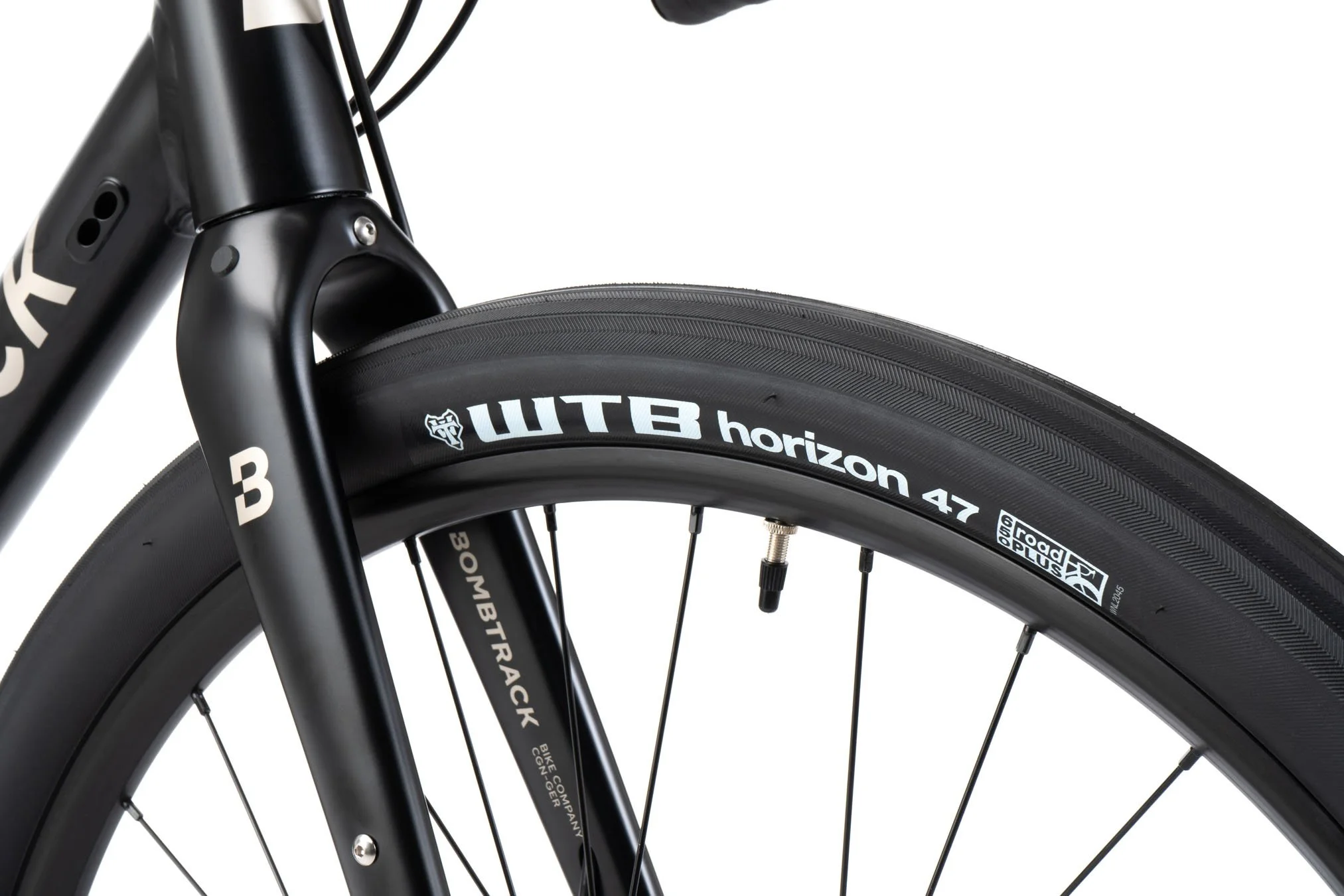

WTB ST i21 tubeless ready rims with WTB Horizon 650B x 47C tires.

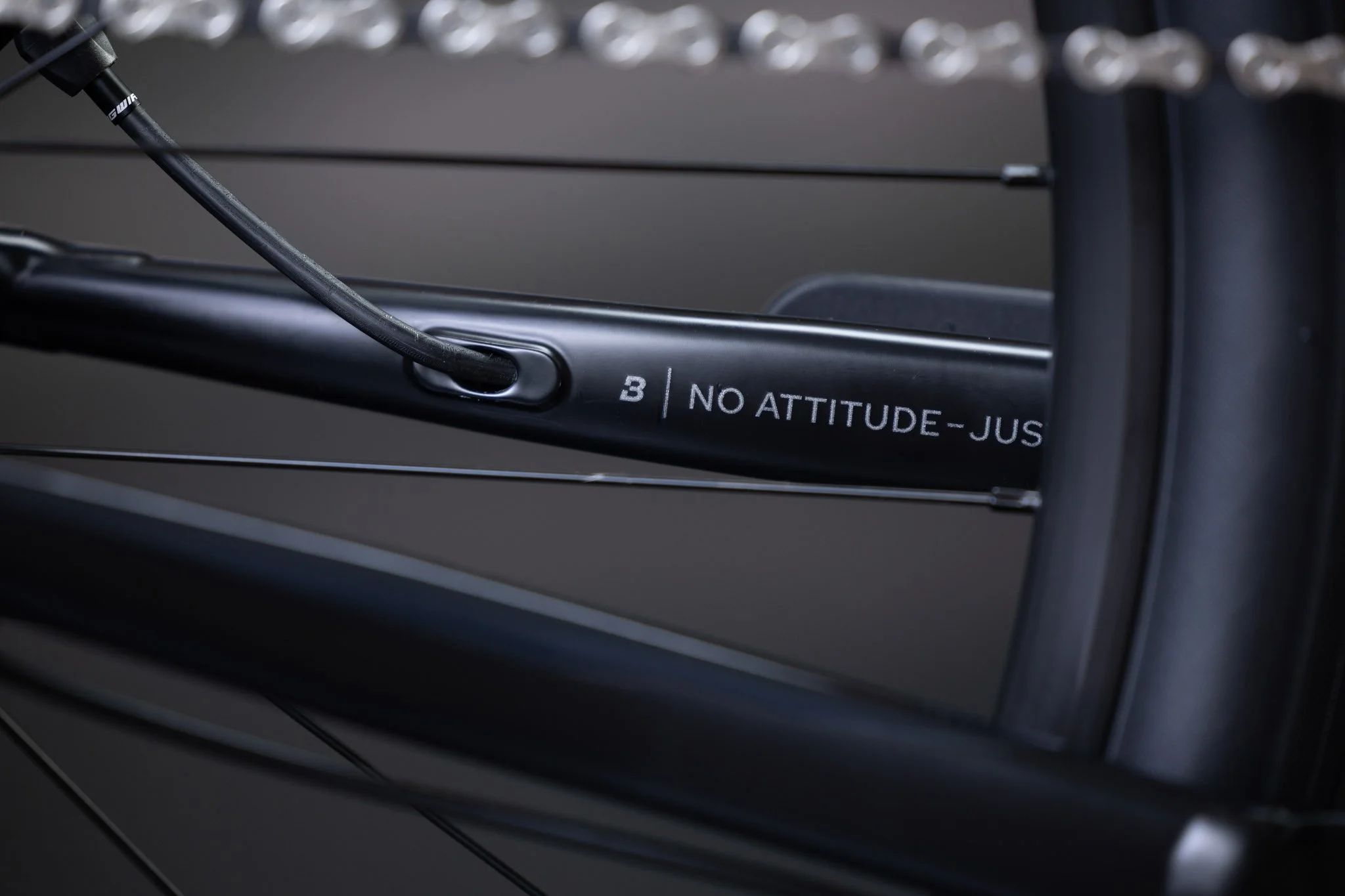

"Whether its head down on the Paris-Brest-Paris or cutting about up the rough switchbacks of Monte Grappa, the Sword drivetrain can be depended upon, and short chainstays on a lightweight aluminium frame make scrambling up the loose stuff a breeze"
SPECIFICATIONS

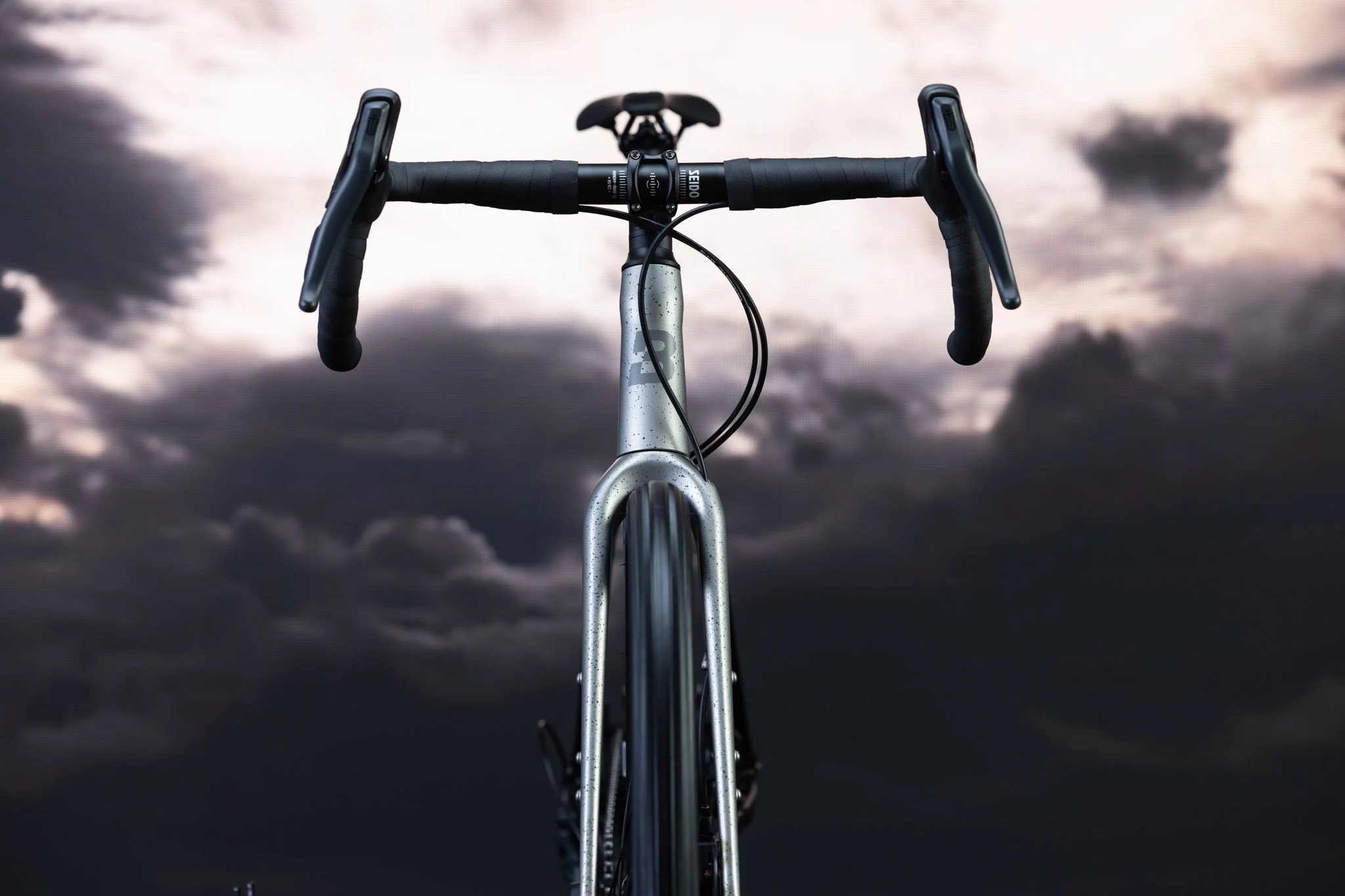

| Model | AUDAX AL SWORD |
|---|---|
| Color 1 | Matt black |
| Color 2 | Matt splatter silver / black fade |
| Color 3 | - |
| Frame | 6061-T6 double butted aluminium, TA, fender mounts, 86.5 mm T47 BB shell |
| Fork | Full carbon, TA, 1.1/2'' - 1.1/8'', with fender / cage mounts |
| Handlebar | Seido CX-10 drop bar, 31.8 mm, 10° flare |
| Grips | Bombtrack Command bar tape |
| Stem | Seido Meander forged aluminium stem, -6° |
| Headset | Sealed integrated aheadset, 1.1/2'' - 1.1/8'' |
| Levers | Microshift Sword SB-G7000 dual control lever mechanic |
| Shifter | Microshift Sword SB-G7000 dual control lever 1 x 10 |
| Brakes | TRP Spyre C flat mount mechanic disc brakes |
| Rotor | TRP 160 mm rotors |
| Crankset | Bombtrack Lyer forged aluminium crank, direct mount interface (Sram compatible),30 mm spindle |
| BB | Bombtrack T47 internal sealed BB for 30 mm spindle |
| Pedals | - |
| Chain | KMC X10 chain, 1/2'' x 11/128'' |
| Chainring | CNC machined aluminium, narrow-wide, 40 T |
| Cassette | Microshift CS-H105 10-speed, 11 - 48 T |
| Front derailleur | - |
| Rear derailleur | Microshift Sword RD-G7025L, clutch, medium cage |
| Front hub | Bombtrack Arc sealed hub, 6-bolt disc |
| Rear hub | Bombtrack Arc sealed hub, 11-speed, 6-bolt disc |
| Through axle | 12 x 100 mm / 12 x 142 mm |
| Front rim | WTB ST i21 double wall, TCS 2.0, 32h |
| Rear rim | WTB ST i21 double wall, TCS 2.0, 32h |

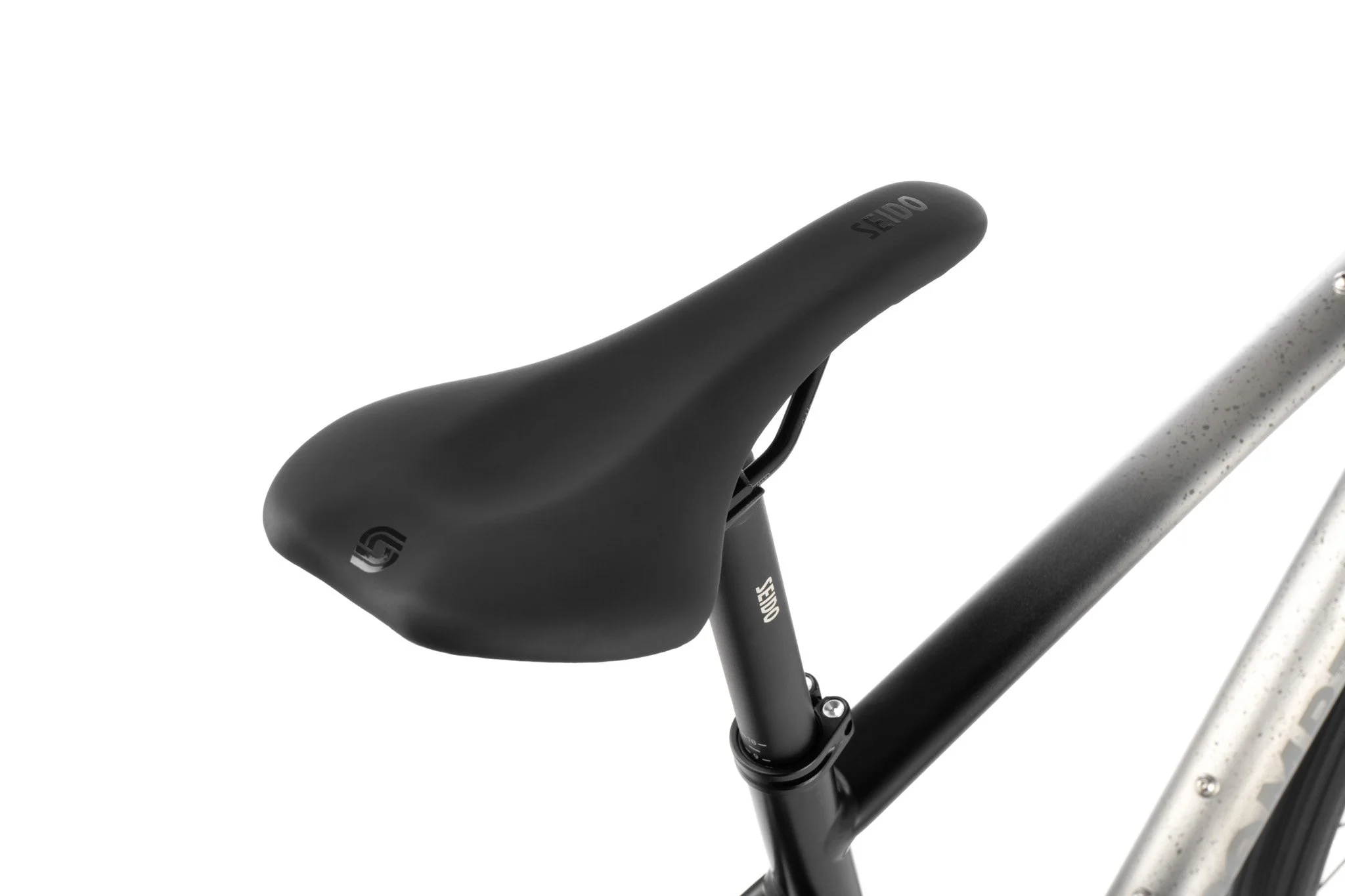

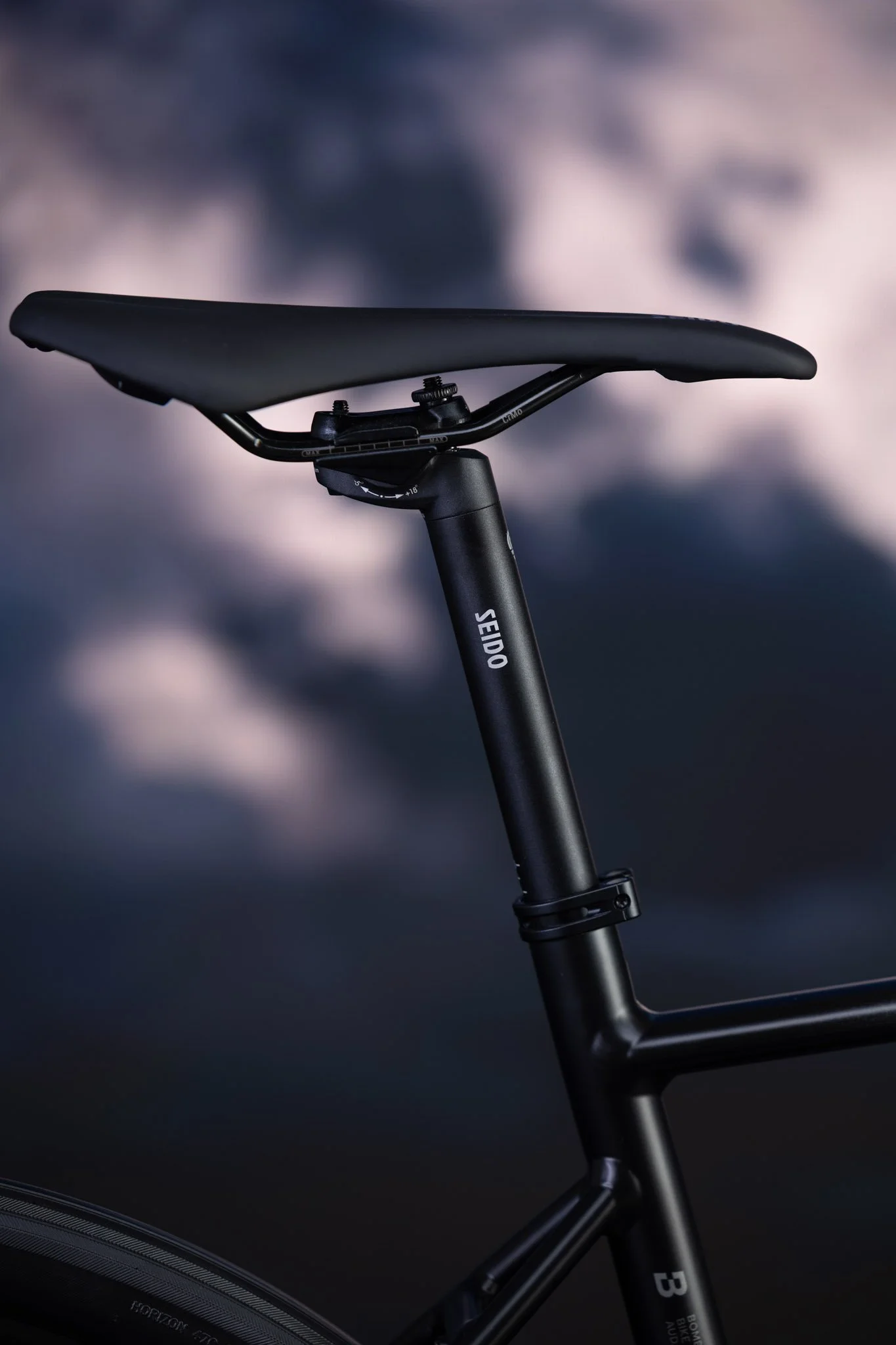

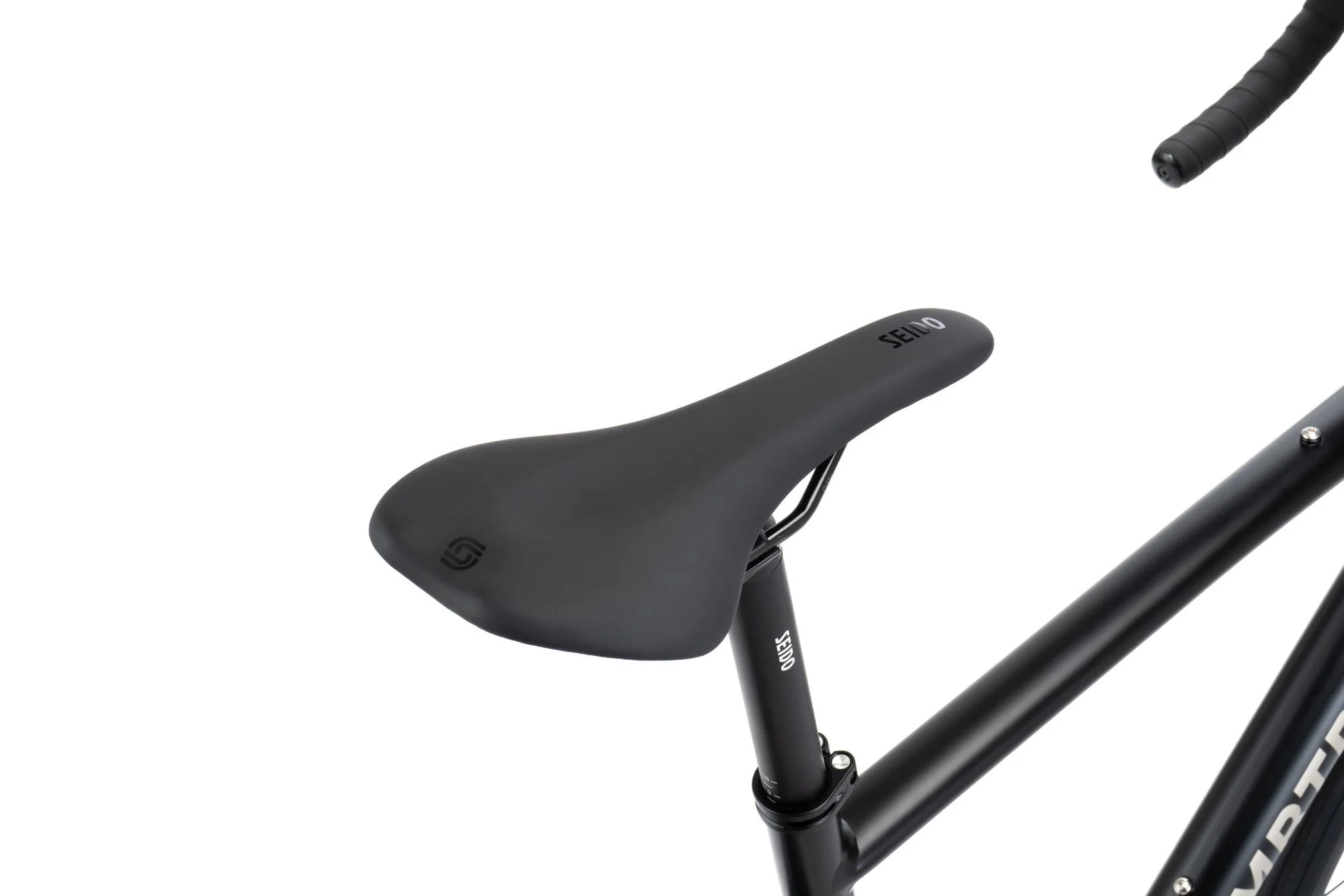

| Saddle | Seido Comp saddle |
| Seat post | Seido Yew Offset 27.2 mm x 355 mm |
| Seat clamp | Bombtrack Prime 31.8 mm |
| Front tire | WTB Horizon 650B x 47C |
| Rear tire | WTB Horizon 650B x 47C |
| Fender | - |
| Rack | - |
| Kickstand | - |
| Light | - |
| Weight | tba |
| Weight frameset | 1810 g frame (size M, incl. TA, hanger) / 530 g fork (300 mm steerer, incl. TA) |
| Maximum rider weight | 120 kg incl. luggage |
| ASTM riding condition | 2 |
Final product may vary in appearance, finish and minor details.
BUILD INFOS
| Model | AUDAX AL SWORD |
|---|---|
| BB standard | T47 - 86.5 mm shell width |
| Headset standard (S.H.I.S.) | IS42 / 28.6 | IS52 / 40 |
| Headset crown race angle | 36° |
| Fork steerer inner diameter | 23.6 mm |
| Fork max tire clearance w/o fender | 650B x 50C / 700C x 35C |
| Frame max tire clearance w/o fender | 650B x 50C / 700C x 35C |
| Maximum chainring clearance 1x | 42 T with 45 mm chainline |
| Maximum chainring clearance 2x | 50 / 34 T with 43.5 mm chainline |
| Seat post diameter | 27.2 mm |
| Seat clamp diameter | 31.8 mm |
| Front derailleur clamp diameter | integrated FD hanger |
| Frame front derailleur compatible | yes |
| Brake mount front | FM 140 / 160 |
| Brake mount rear | FM 140 / 160 |
| Frame thickness rear brake mount | 20 mm |
| Maximum rotor clearance front | 160 mm |
| Maximum rotor clearance rear | 160 mm |
| Front through axle | 12 mm x 100 mm, 1.5 thread pitch |
| Rear through axle | 12 mm x 142 mm, 1.5 thread pitch |
| ISO testing standard | Road |
| Crankarm | XS 165 mm / S - M 170 mm / L - XL 175 mm |
| Q Factor | 152 mm |
| BCD crank | Direct mount (Sram Compatible) |
| Chainring offset | 6 mm |
| Chainline | 46 mm |
| Spoke length front wheel | 273 mm, 274 mm |
| Spoke length rear wheel | 274 mm, 272 mm |
| Spoke count (front / rear) | 32 / 32 |
| ERD | 568 mm |
| Front hub PCD | 58 mm |
| Rear hub PCD | 58 mm |
| Front hub flange distance / offset | 56.5 mm center to center / 6.6 mm |
| Rear hub flange distance / offset | 51 mm center to center / 8.8 mm |
| Stem length | XS - S 80 mm / M 90 mm / L - XL 100 mm |
| Stem angle | -6° |
| Headset spacers | 1 x 10 mm, 2 x 5 mm |
| Seat post offset | 23 mm |
| Seat post length | 355 mm |
| Bike trailer | approved |
| Seat tube mounted child seat | not approved |
| Derailleur hanger | BT-DH-018 |
| Frame small parts | BT-CR-013 |
| Hub end caps front | BT-HC-012 |
| Hub end caps rear | BT-HC-017 |
| Cassette body | BT-CB-006 |
| Crankarm bolt | BT-CRP-002 |
| Through axle front | BT-TA-F-601 |
| Through axle rear | BT-TA-R-601 |
GEOMETRY
FRAME GEOMETRY
| Model | AUDAX SWORD | ||||
|---|---|---|---|---|---|
| Bike Size | XS | S | M | L | XL |
| Wheel size | 650B | 650B | 650B | 650B | 650B |
| Seat Tube Length | 470 | 500 | 530 | 560 | 590 |
| Horizontal TT length | 505 | 527 | 551 | 569 | 592 |
| Seat Angle | 75.0° | 74.5° | 74.0° | 74.0° | 73.5° |
| Head Angle | 71.0° | 72.0° | 72.0° | 72.0° | 72.0° |
| Headtube Length | 100 | 120 | 150 | 180 | 205 |
| BB Drop | 70 | 68 | 68 | 65 | 65 |
| Chainstay Length | 420 | 420 | 420 | 420 | 420 |
| Fork Offset | 53 | 53 | 53 | 53 | 53 |
| Trail | 64 | 58 | 58 | 58 | 58 |
| Wheelbase Length | 989 | 998 | 1019 | 1039 | 1057 |
| Standover | 728 | 754 | 782 | 812 | 838 |
| Reach | 368 | 379 | 390 | 401 | 411 |
| Stack | 512 | 533 | 561 | 587 | 611 |
| Front Center | 579 | 588 | 608 | 628 | 645 |
| Axle to Crown | 385 | 385 | 385 | 385 | 385 |
| Minimum rider height ¹ | 1500 | 1600 | 1700 | 1790 | 1880 |
| Maximum rider height ¹ | 1610 | 1710 | 1810 | 1900 | 1990 |
¹ Our bike size recommendation generally represents a rough guideline for quickly narrowing down the sizes from which to choose based on the body height. Bike fitting is a complex topic and other measurements and factors have to be accounted for as well. Since no two human bodys are exactly the same it is not possible to give a 100% correct advice for everyone. Therefore Bombtrack cannot guarantee for the stated recommendations to be correct for every individual customer. The best way to work out the correct size is to consult a local Bombtrack dealer or a professional bike fitter and have them determine the needed size.
HANDLEBAR GEOMETRY
| Model | AUDAX AL SWORD | ||||
|---|---|---|---|---|---|
| Bike Size | XS | S | M | L | XL |
| Handlebar type | Dropbar | Dropbar | Dropbar | Dropbar | Dropbar |
| Width (drops) | 400 | 400 | 420 | 440 | 440 |
| Width (barends) | 446 | 446 | 466 | 486 | 486 |
| Reach | 75 | 75 | 75 | 75 | 75 |
| Flare | 10° | 10° | 10° | 10° | 10° |
| Backsweep | - | - | - | - | - |
| Drop | 116 | 116 | 116 | 116 | 116 |
| Upsweep | - | - | - | - | - |
| Rise | - | - | - | - | - |
