BEYOND SUS

Six years ago, we were one of the first bike brands to fit a suspension fork to a production gravel bike, and we immediately foresaw the huge amount of fun to be had ripping along really tough, technical trails. New for our 2024 range, the Beyond SUS has a RockShox Rudy XPLR fork with an adjustable 40 mm of travel combined with our multi-purpose Beyond frame and its multitude of mounting points for whatever you have planned. Sram Apex 1 x 11 mechanical provides the shifting, TRP Spyre C callipers the control, and tough but lightweight WTB rims fitted with grippy Venture TCS tyres get you in and out of trouble. Wave goodbye to aching hands and say hello to crazy high-speed technical singletrack detours. Hell yeah!

METALLIC TEAL

HIGHLIGHTS

FRAME

Double butted crmo frame with rack and fender mounts and light cable routing.
WHEELS

XS and S with 27.5 wheels for proper fit without any compromises in geometry.
FORK

RockShox Rudy XPLR suspension fork with 40 mm travel.
DRIVETRAIN

Sram Apex 1 x 11 groupset with wide range gearing and TRP Spyre brakes.
RIMS

Tubeless ready WTB ST i23 rims.
TIRES

Tubeless ready WTB Venture Light / Fast Rolling tires.

"A steel frame, suspension fork and mountain bike width tires. Plus all the carrying options you'll ever need."

SPECIFICATIONS

Model	BEYOND SUS
Color 1	Metallic Teal
Color 2	-
Frame	4130 double butted crmo, TA, rack / fender mounts, internal light cable routing, 73 mm BSA BB shell
Fork	RockShox Rudy XPLR suspension fork, 1.1/2" - 1.1/8", 40 mm travel, 51 mm offset
Handlebar	Bombtrack Tackle gravel bar, 31.8 mm, 25° flare
Grips	Bombtrack Command bar tape
Stem	Bombtrack Tramp forged aluminium stem, 3°
Headset	Sealed external aheadset, 1.1/2'' - 1.1/8''
Levers	Sram Apex double tap mechanic
Shifter	Sram Apex double tap 1 x 11
Brakes	TRP Spyre C mechanic disc brakes
Rotor	Sram Centerline 180 mm front and 160 mm rear rotor
Crankset	Bombtrack Ames forged aluminium crank, 24 mm spindle
BB	BSA sealed BB, external cups
Pedals	-
Chain	KMC X11 chain, 1/2'' x 11/128'', 114L
Chainring	Aluminium, narrow-wide, 36 T
Cassette	Sram PG-1130 11-speed, 11 - 42 T
Front derailleur	-

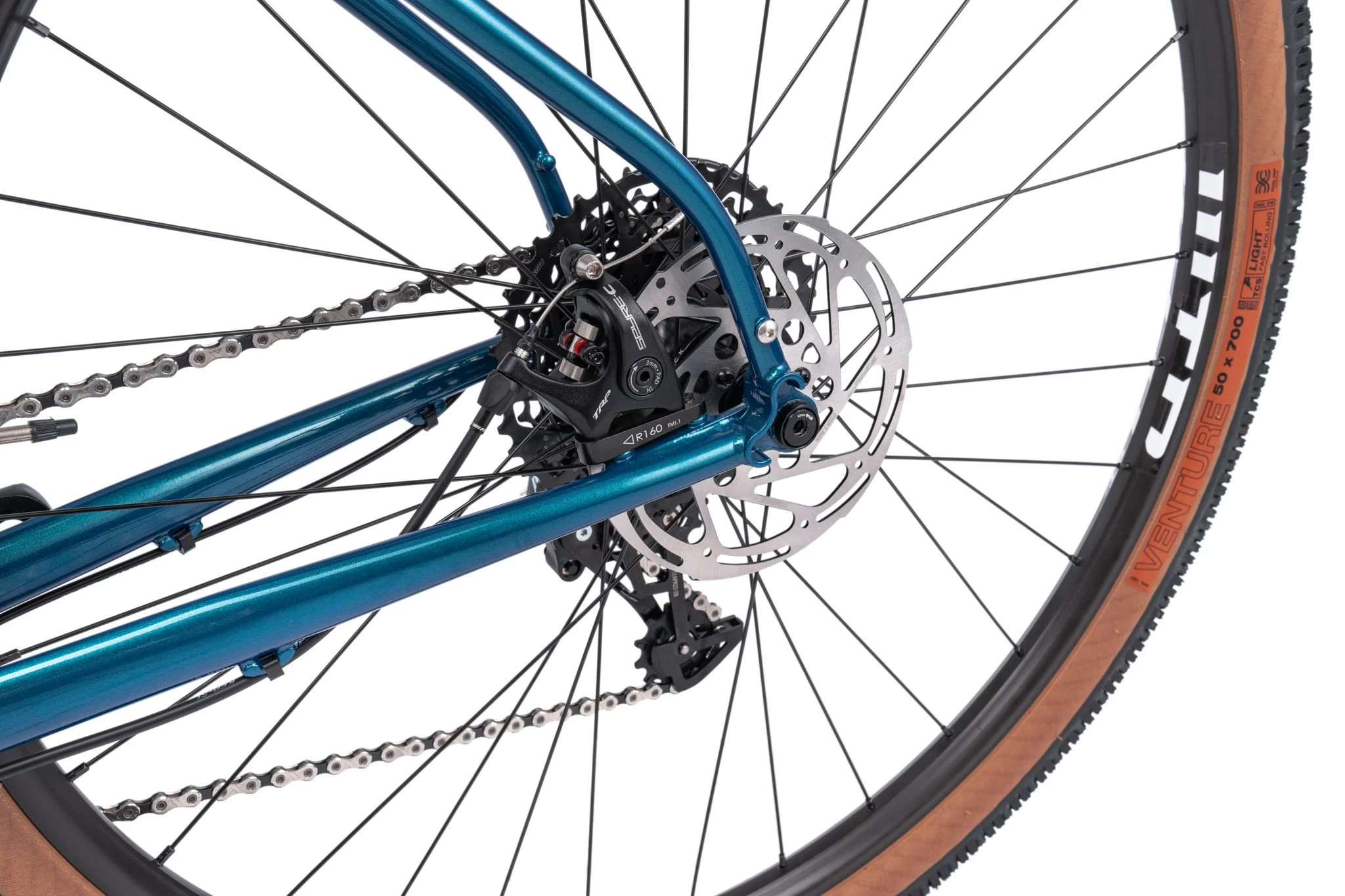

Rear derailleur	Sram Apex 1, clutch, long cage
Front hub	Bombtrack Arc sealed hub, 6-bolt disc
Rear hub	Bombtrack Arc sealed hub, 11-speed, 6-bolt disc
Through axle	12 x 100 mm / 12 x 142 mm
Front rim	WTB ST i23 double wall, TCS 2.0, 32h
Rear rim	WTB ST i23 double wall, TCS 2.0, 32h
Saddle	Bombtrack Fuzz saddle
Seat post	Seido Beech 27.2 mm x 400 mm
Seat clamp	Bombtrack Prime 29.8 mm
Front tire	WTB Venture TCS Light / Fast Rolling XS - S 27.5'' x 1.9'' / M - XL 29'' x 2.0'', tubeless ready
Rear tire	WTB Venture TCS Light / Fast Rolling XS - S 27.5'' x 1.9'' / M - XL 29'' x 2.0'', tubeless ready
Fender	-
Rack	-
Kickstand	-
Light	-
Weight	tba
Weight frameset	tba
Maximum rider weight	140 kg incl. luggage
ASTM riding condition	2

Final product may vary in appearance, finish and minor details.

BUILD INFOS

Model	BEYOND SUS
BB standard	BSA - 73 mm shell width
Headset standard (S.H.I.S.)	EC34 / 28.6 \| EC44 / 40
Headset crown race angle	45°
Fork steerer inner diameter	24.6 mm
Fork max tire clearance w/o fender	XS - S 27.5'' x 2.0'' / M - XL 29'' x 2.0''
Frame max tire clearance w/o fender	XS - S 27.5'' x 2.1'' / M - XL 29'' x 2.1''
Maximum chainring clearance 1x	36 T with 48 mm chainline
Maximum chainring clearance 2x	42 / 28 T with 49.5 mm chainline
Seat post diameter	27.2 mm
Seat clamp diameter	29.8 mm
Front derailleur clamp diameter	28.6 mm
Frame front derailleur compatible	yes
Brake mount front	FM 160 / 180
Brake mount rear	FM 140 / 160
Maximum rotor clearance front	180 mm
Maximum rotor clearance rear	160 mm
Front through axle	12 mm x 100 mm, 1.5 thread pitch
Rear through axle	12 mm x 142 mm, 1.5 thread pitch
ISO testing standard	MTB
Crankarm	XS 165 mm / S - M 170 mm / L - XL 175 mm
Q Factor	179 mm
BCD crank	104 mm, 4 bolts
Chainring offset	0 mm
Chainline	49.5 mm
Spoke length front wheel	XS - S 272 mm, 273 mm / M - XL 292 mm, 293 mm
Spoke length rear wheel	XS - S 274 mm, 272 mm / M - XL 293 mm, 291 mm
Spoke count (front / rear)	32 / 32
ERD	XS - S 570 mm / M - XL 606 mm
Front hub PCD	58 mm
Rear hub PCD	58 mm
Front hub flange distance / offset	56.5 mm center to center / 6.6 mm
Rear hub flange distance / offset	51 mm center to center / 8.8 mm
Stem length	50 mm
Stem angle	3°
Headset spacers	1 x 10 mm, 2 x 5 mm, XL: 1 x 10 mm, 1 x 5 mm
Seat post offset	24 mm
Seat post length	400 mm
Bike trailer	approved
Seat tube mounted child seat	approved
Derailleur hanger	BT-DH-008
Frame small parts	BT-CR-007
Hub end caps front	BT-HC-014
Hub end caps rear	BT-HC-017
Cassette body	BT-CB-006
Crankarm bolt	BT-CRP-001
Through axle front	RockShox Maxle Stealth 12 x 100
Through axle rear	BT-TA-R-602

GEOMETRY

FRAME GEOMETRY

Model	BEYOND SUS
Bike Size	XS	S	M	L	XL
Wheel size	27.5''	27.5''	29''	29''	29''
Seat Tube Length	400	440	480	520	560
Horizontal TT length	493	522	558	590	624
Seat Angle	74.9°	74.4°	73.4°	72.9°	72.4°
Head Angle	69.9°	70.4°	70.9°	71.9°	71.9°
Headtube Length	100	130	150	190	220
BB Drop	54	54	69	69	69
Chainstay Length	425	425	455	455	455
Fork Offset	50	50	50	50	50
Trail	76	73	76	69	69
Wheelbase Length	1000	1021	1066	1082	1110
Standover	730	764	805	845	876
Reach	347	362	376	389	408
Stack	538	569	605	647	675
Front Center	581	602	620	636	663
Axle to Crown	425	425	425	425	425
Minimum rider height	1500	1600	1700	1790	1880
Maximum rider height	1610	1710	1810	1900	1990

¹ Our bike size recommendation generally represents a rough guideline for quickly narrowing down the sizes from which to choose based on the body height. Bike fitting is a complex topic and other measurements and factors have to be accounted for as well. Since no two human bodys are exactly the same it is not possible to give a 100% correct advice for everyone. Therefore Bombtrack cannot guarantee for the stated recommendations to be correct for every individual customer. The best way to work out the correct size is to consult a local Bombtrack dealer or a professional bike fitter and have them determine the needed size.

² 25% sag

HANDLEBAR GEOMETRY

Model	BEYOND SUS
Bike Size	XS	S	M	L	XL
Handlebar type	Dropbar	Dropbar	Dropbar	Dropbar	Dropbar
Width (drops)	420	420	440	440	440
Width (barends)	530	530	550	550	550
Reach	77	77	77	77	77
Flare	25°	25°	25°	25°	25°
Backsweep	-	-	-	-	-
Drop	128	128	128	128	128
Upsweep	-	-	-	-	-
Rise	-	-	-	-	-
