“When the daily grind it ’s getting too much and the lure of adventure becomes overwhelming, the Beyond is the bike to take you on that journey.”
SPECIFICATIONS
| Model | BEYOND |
|---|---|
| Color 1 | Metallic Black |
| Color 2 | Metallic Green |

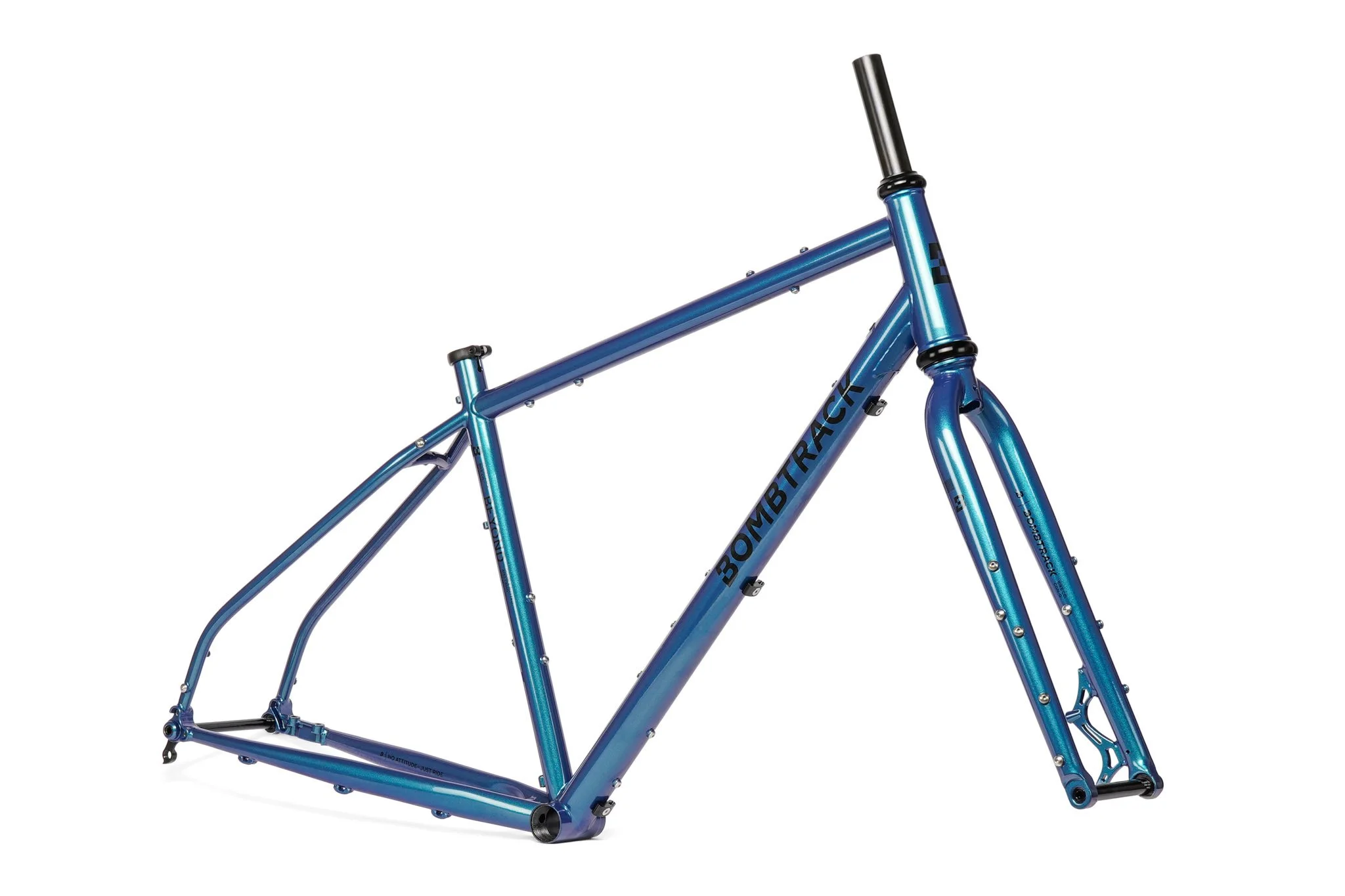

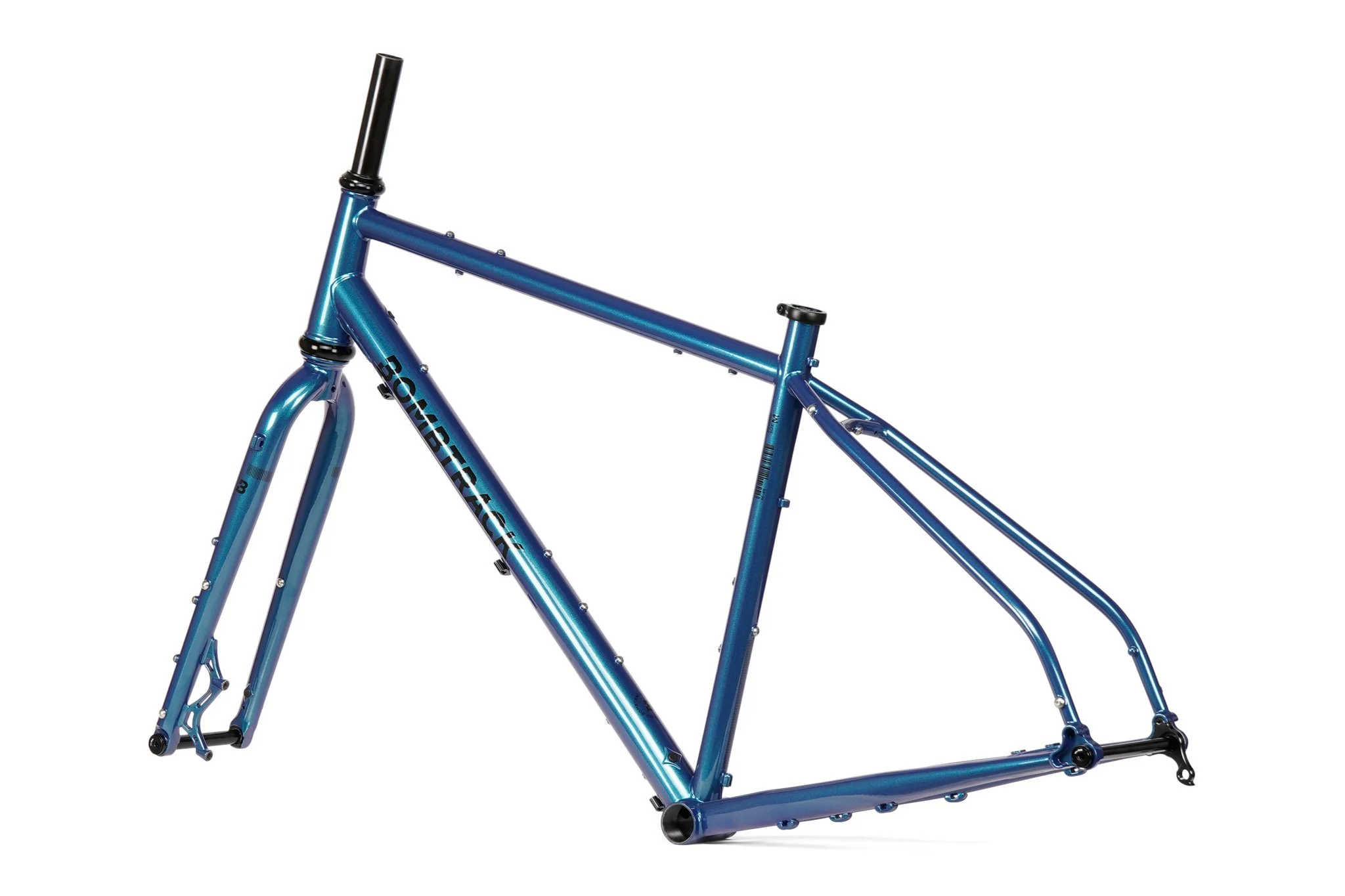

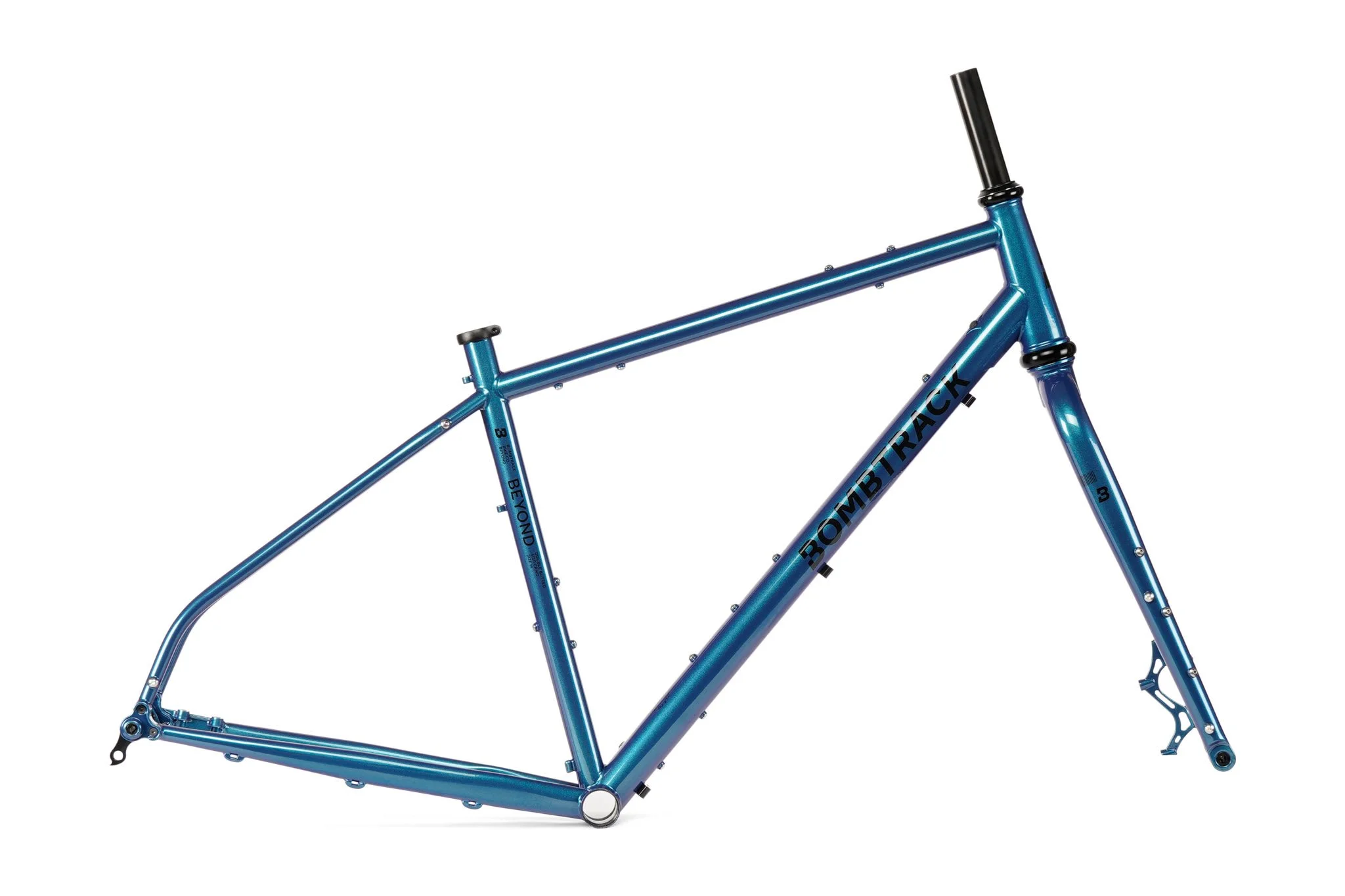

| Frame | 4130 double butted crmo, TA, rack / fender mounts, internal light cable routing, 73 mm BSA BB shell |

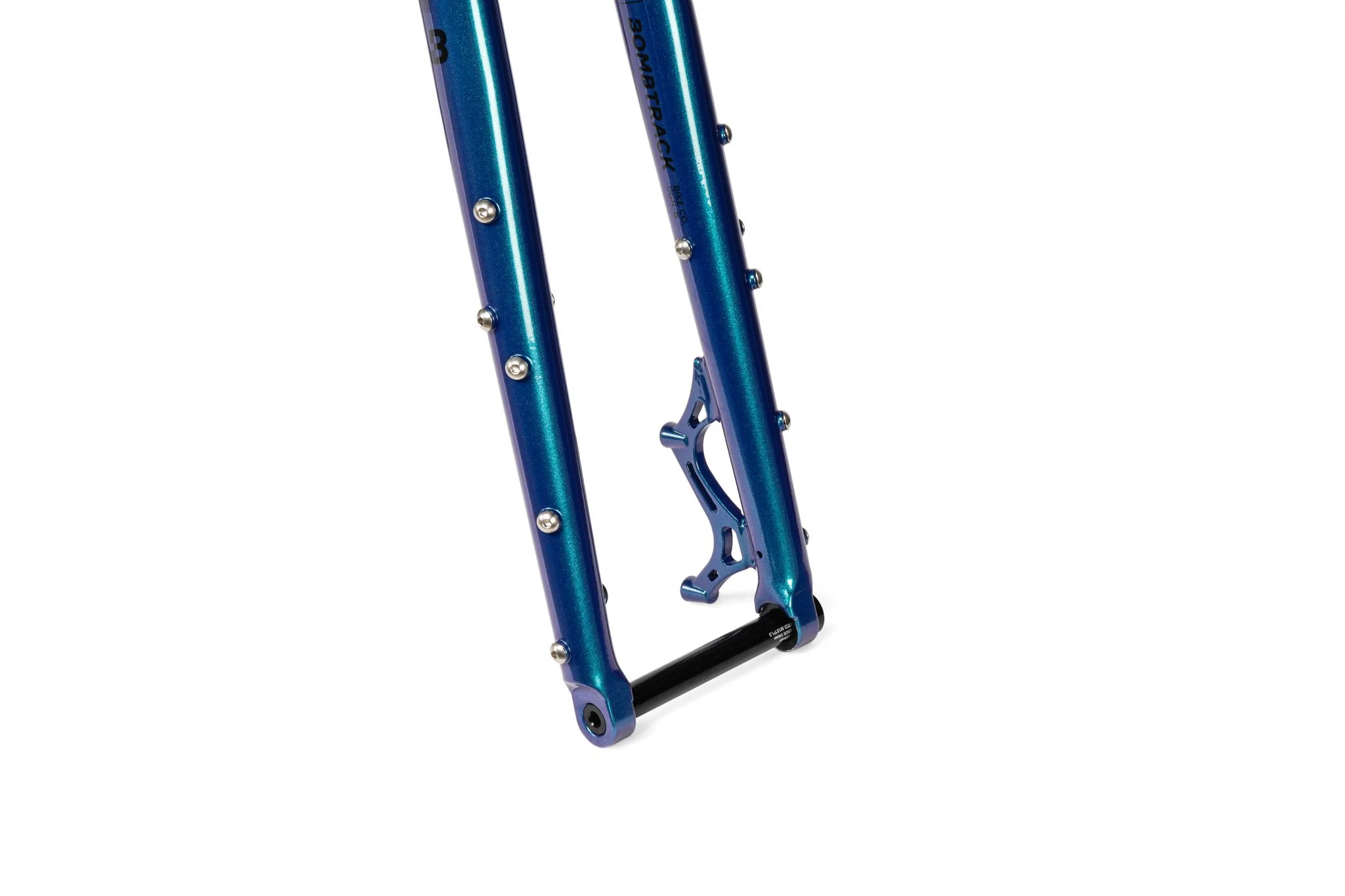

| Fork | 4130 crmo, double butted blades, TA, 1.1/2'' - 1.1/8'', fender / rack / triple cage mounts, internal hub dynamo cable routing |

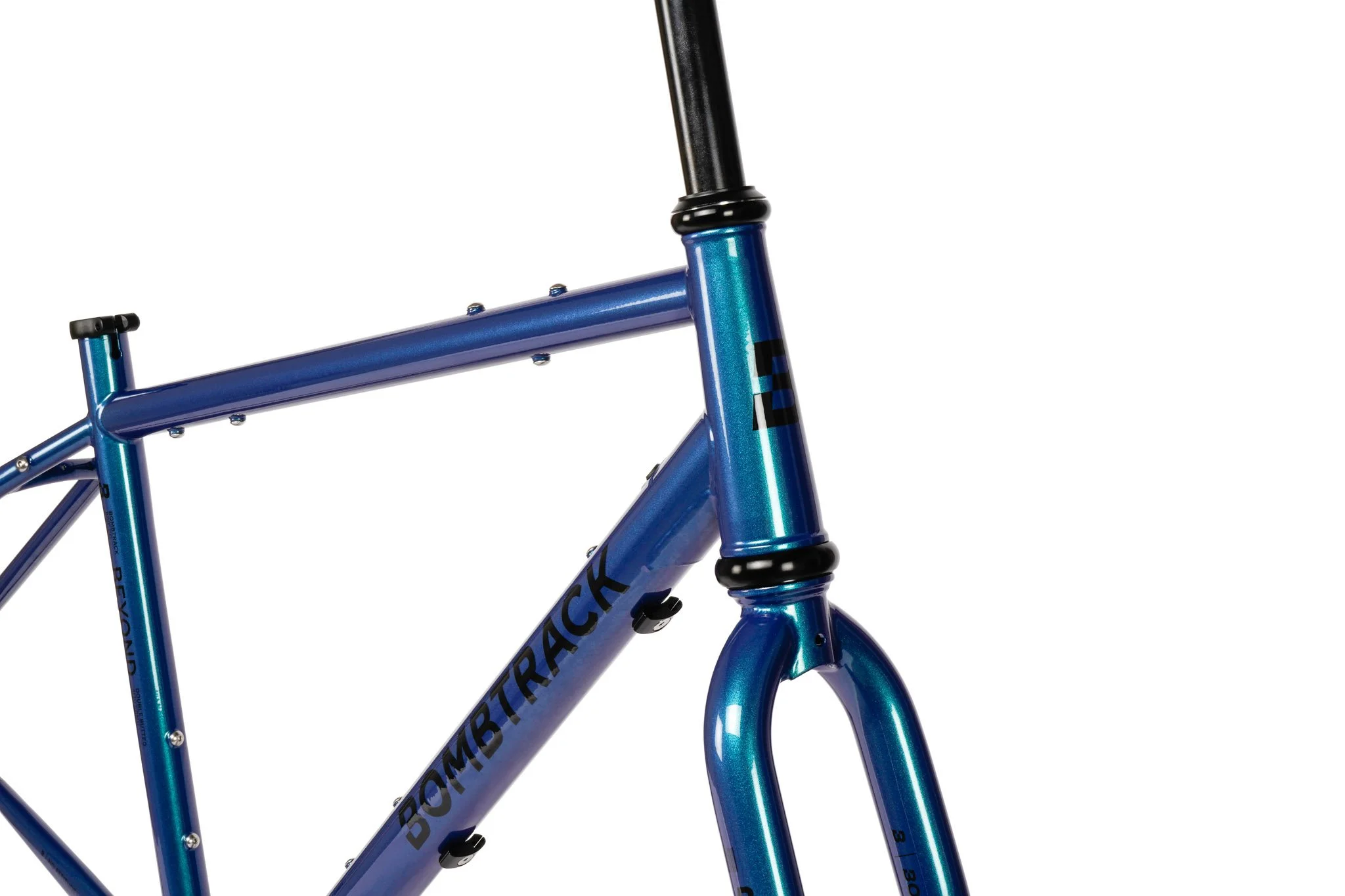

| Headset | Sealed external aheadset, 1.1/2'' - 1.1/8'' |

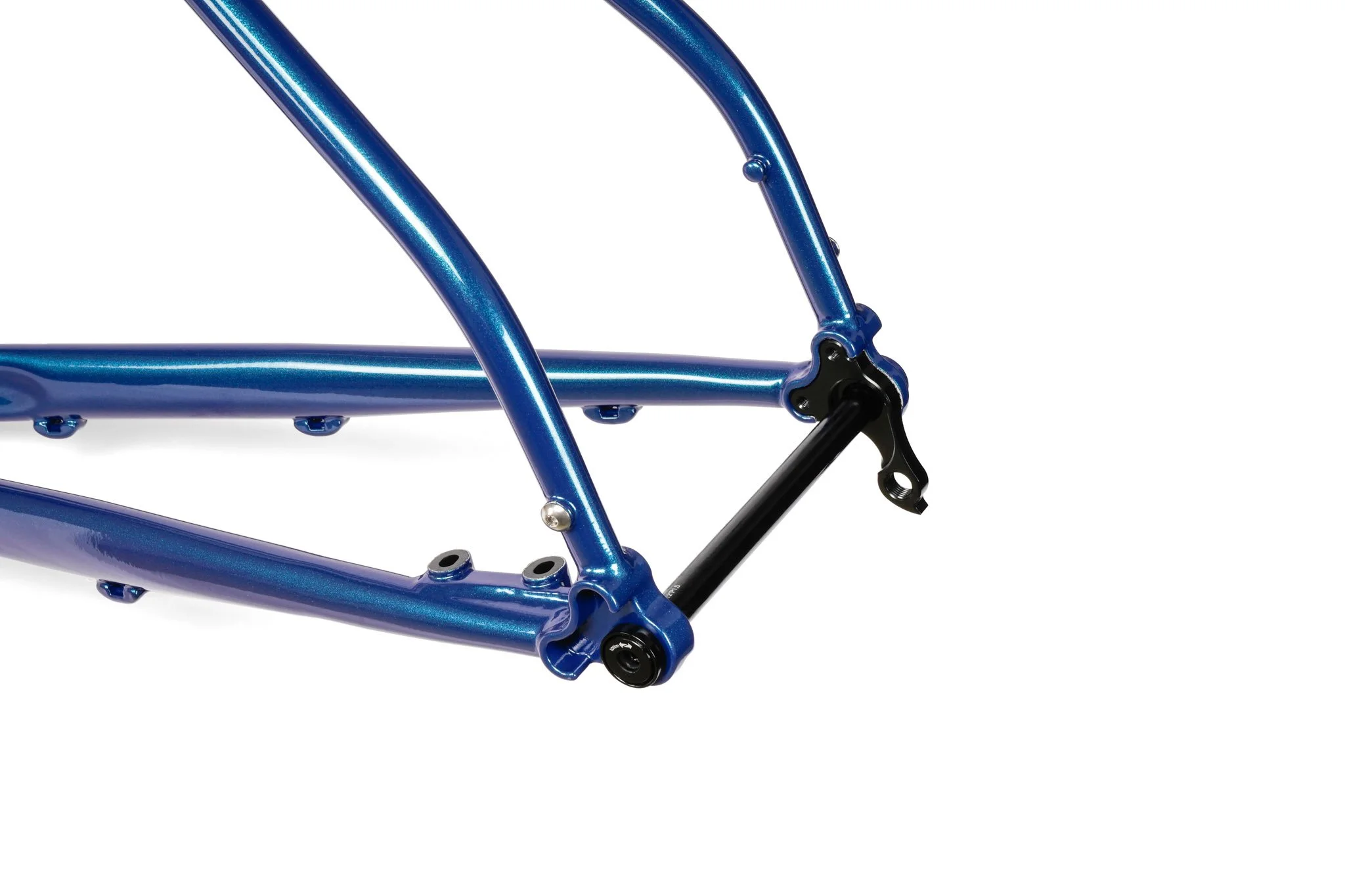

| Through axle | 15 x 100 mm / 12 x 142 mm |

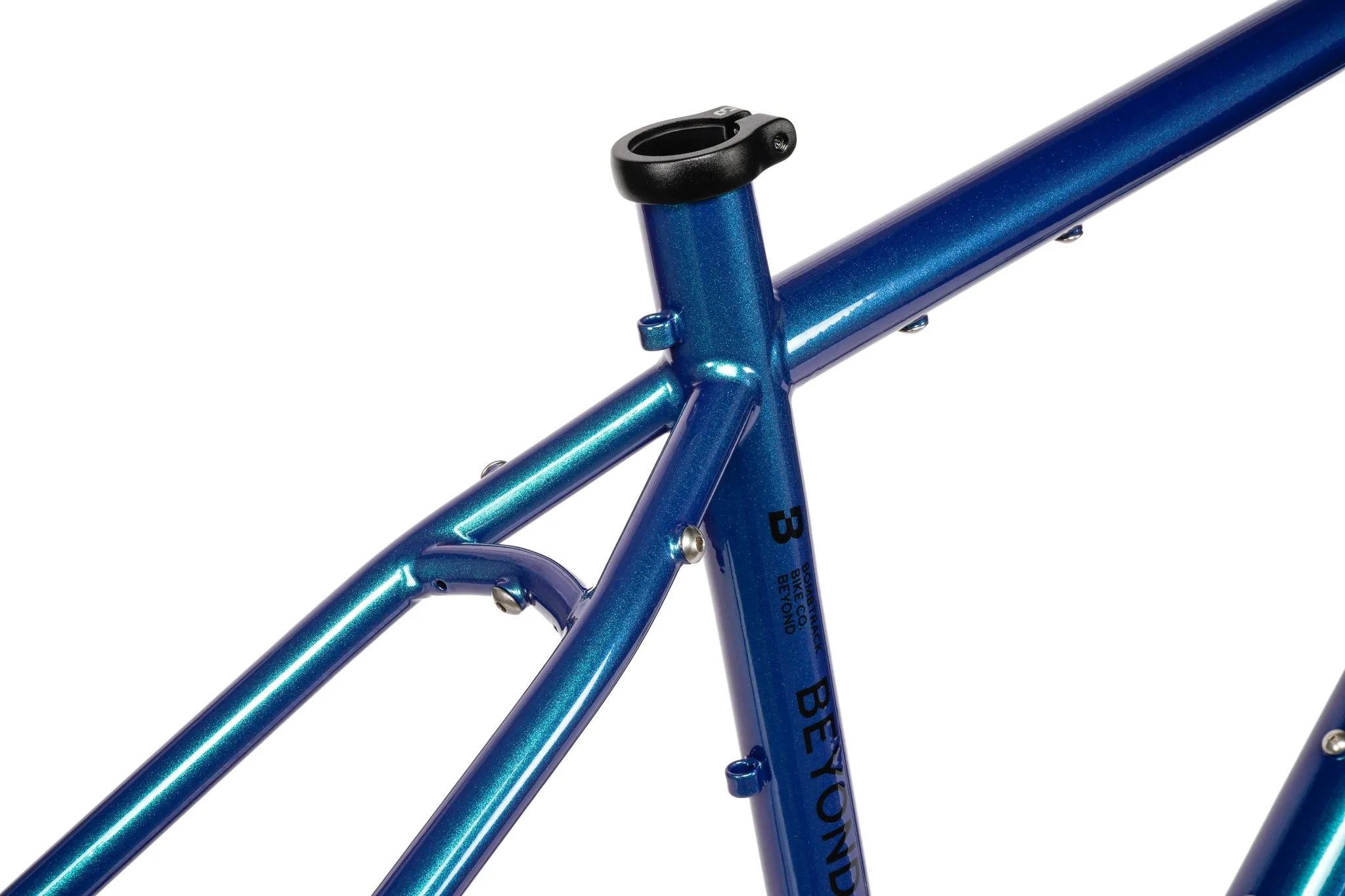

| Seat clamp | Bombtrack Prime 29.8 mm |
| Rack | - |
| Weight frameset | 2540 g frame (size M, incl. TA, bolts, seatclamp, hanger) / 1500 g fork (300 mm steerer, incl. TA) |
| Maximum rider weight | 140 kg incl. luggage |
| ASTM riding condition | 2 |
BUILD INFO
| Model | BEYOND |
|---|---|

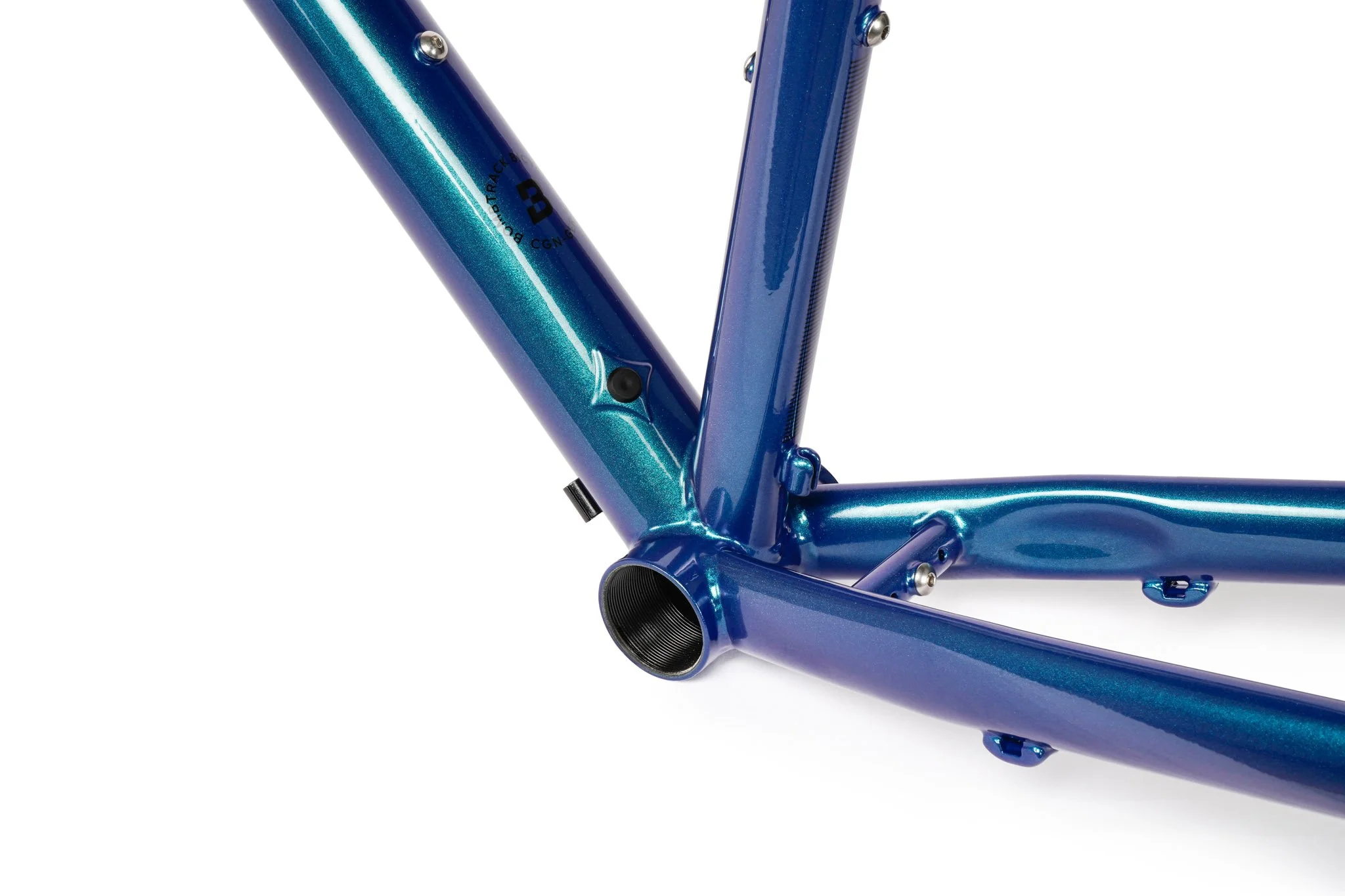

| BB standard | BSA - 73 mm shell width |
| Headset standard (S.H.I.S.) | EC34 / 28.6 | EC44 / 40 |
| Headset crown race angle | 45° |
| Fork steerer inner diameter | 25.4 mm |
| Fork max tire clearance w/o fender | XS - S 27.5'' x 2.1'' / M - XL 29'' x 2.1'' |
| Frame max tire clearance w/o fender | XS - S 27.5'' x 2.1'' / M - XL 29'' x 2.1'' |
| Maximum chainring clearance 1x | 36 T with 48 mm chainline |
| Maximum chainring clearance 2x | 42 / 28 T with 49.5 mm chainline |
| Seat post diameter | 27.2 mm |
| Seat clamp diameter | 29.8 mm |
| Front derailleur clamp diameter | 28.6 mm |
| Frame front derailleur compatible | yes |
| Brake mount front | PM 6'' |
| Brake mount rear | FM 140 / 160 |
| Maximum rotor clearance front | 203 mm |
| Maximum rotor clearance rear | 160 mm |
| Front through axle | 15 mm x 100 mm, 1.5 thread pitch |
| Rear through axle | 12 mm x 142 mm, 1.5 thread pitch |
| ISO testing standard | MTB |
| Bike trailer | approved |
| Seat tube mounted child seat | approved |
| Derailleur hanger | BT-DH-008 |
| Frame small parts | BT-CR-007 |
| Through axle front | BT-TA-F-602 |
| Through axle rear | BT-TA-R-602 |
GEOMETRY
FRAME GEOMETRY
| Model | BEYOND | ||||
|---|---|---|---|---|---|
| Bike Size | XS | S | M | L | XL |
| Wheel size | 27.5'' | 27.5'' | 29'' | 29'' | 29'' |
| Seat Tube Length | 400 | 440 | 480 | 520 | 560 |
| Horizontal TT length | 494 | 522 | 558 | 590 | 623 |
| Seat Angle | 75.0° | 74.5° | 73.5° | 73.0° | 72.5° |
| Head Angle | 70.0° | 70.5° | 71.0° | 72.0° | 72.0° |
| Headtube Length | 100 | 130 | 150 | 190 | 220 |
| BB Drop | 55 | 55 | 70 | 70 | 70 |
| Chainstay Length | 425 | 425 | 455 | 455 | 455 |
| Fork Offset | 50 | 50 | 50 | 50 | 50 |
| Trail | 73 | 70 | 73 | 67 | 67 |
| Wheelbase Length | 1000 | 1021 | 1065 | 1082 | 1109 |
| Standover | 727 | 761 | 802 | 842 | 873 |
| Reach | 349 | 364 | 379 | 392 | 411 |
| Stack | 538 | 568 | 604 | 646 | 675 |
| Front Center | 581 | 602 | 620 | 636 | 663 |
| Axle to Crown | 420 | 420 | 420 | 420 | 420 |
| Minimum rider height | 1500 | 1600 | 1700 | 1790 | 1880 |
| Maximum rider height | 1610 | 1710 | 1810 | 1900 | 1990 |
