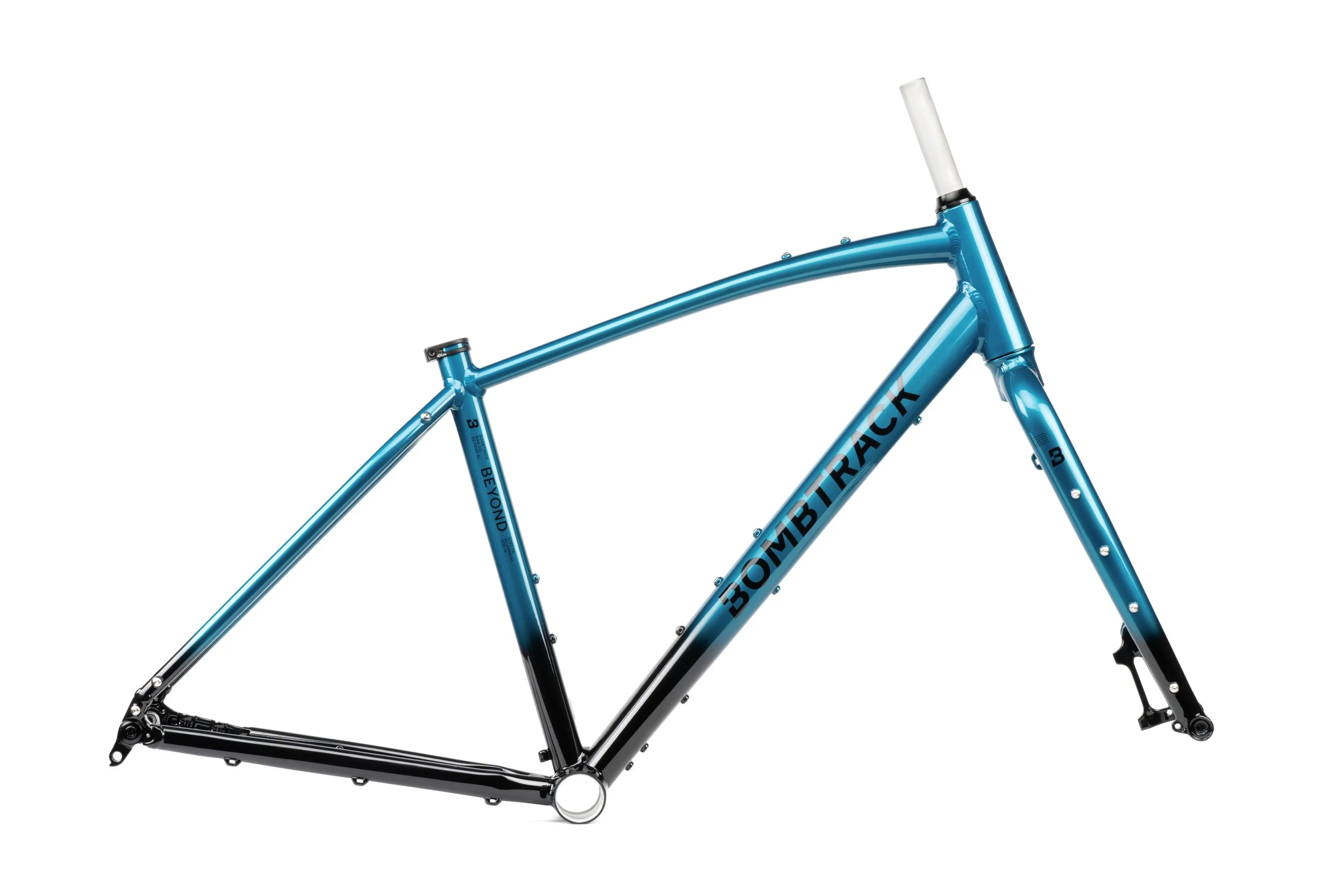

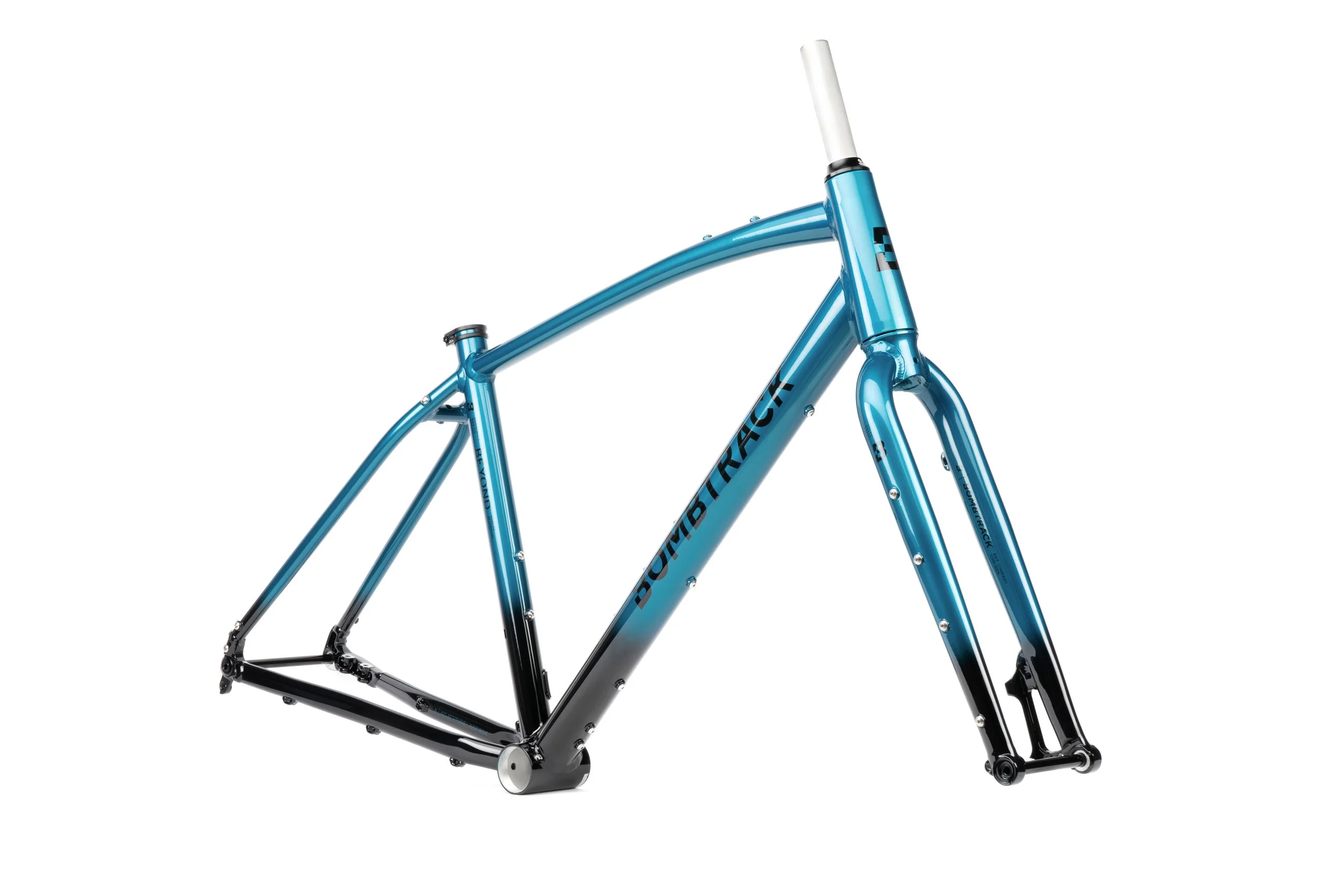

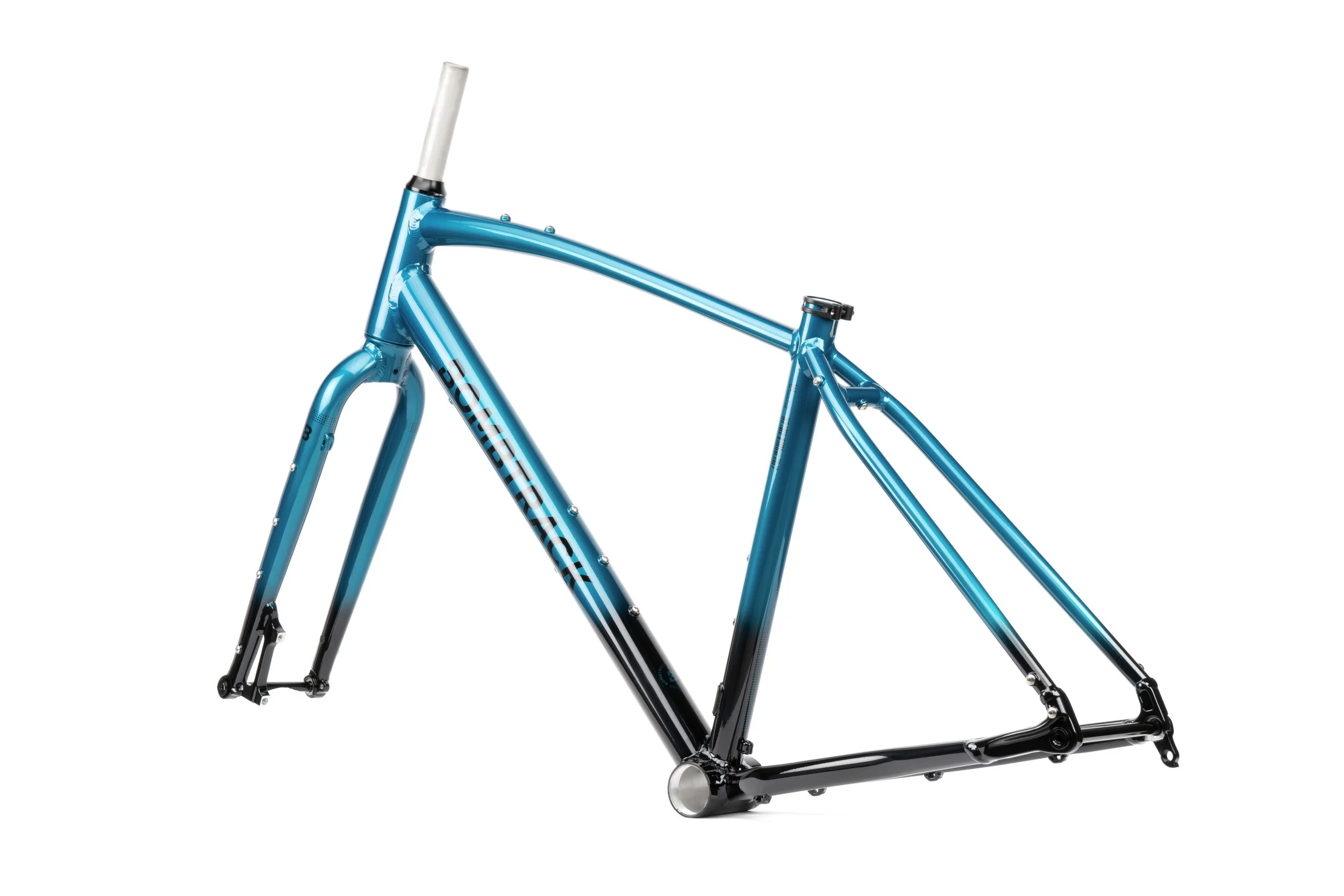

BEYOND AL FRAMESET

US$0.00

A new version of our continent-crossing adventure tourer based on feedback from users in the field. Fast on tarmac, smooth over broken ground, its broad tyre clearance will allow to carry you and your kit comfortably above a range of surfaces. Multiple mounts across the frame and fork allowing you to configure your luggage however you choose.

Color:

Quantity:

"With a full range of mounts and braze-ons across ist fork and frame, it's happy to accept either panniers or bikepacking bags."

SPECIFICATIONS

Model	BEYOND AL
Color 1	Metallic Black / Turquoise
Color 2	Matt Metallic Red
Frame	6061-T6 hydro-formed Aluminium, TA, rack / fender mounts, stealth dropper ready, 86.5 mm T47 BB shell
Fork	6061 aluminium, TA, 1.1/2'' - 1.1/8'', fender / rack / triple cage mounts, internal hub dynamo cable routing
Headset	Sealed integrated aheadset, 1.1/2'' - 1.1/8''
Through axle	12 x 100 mm / 12 x 142 mm

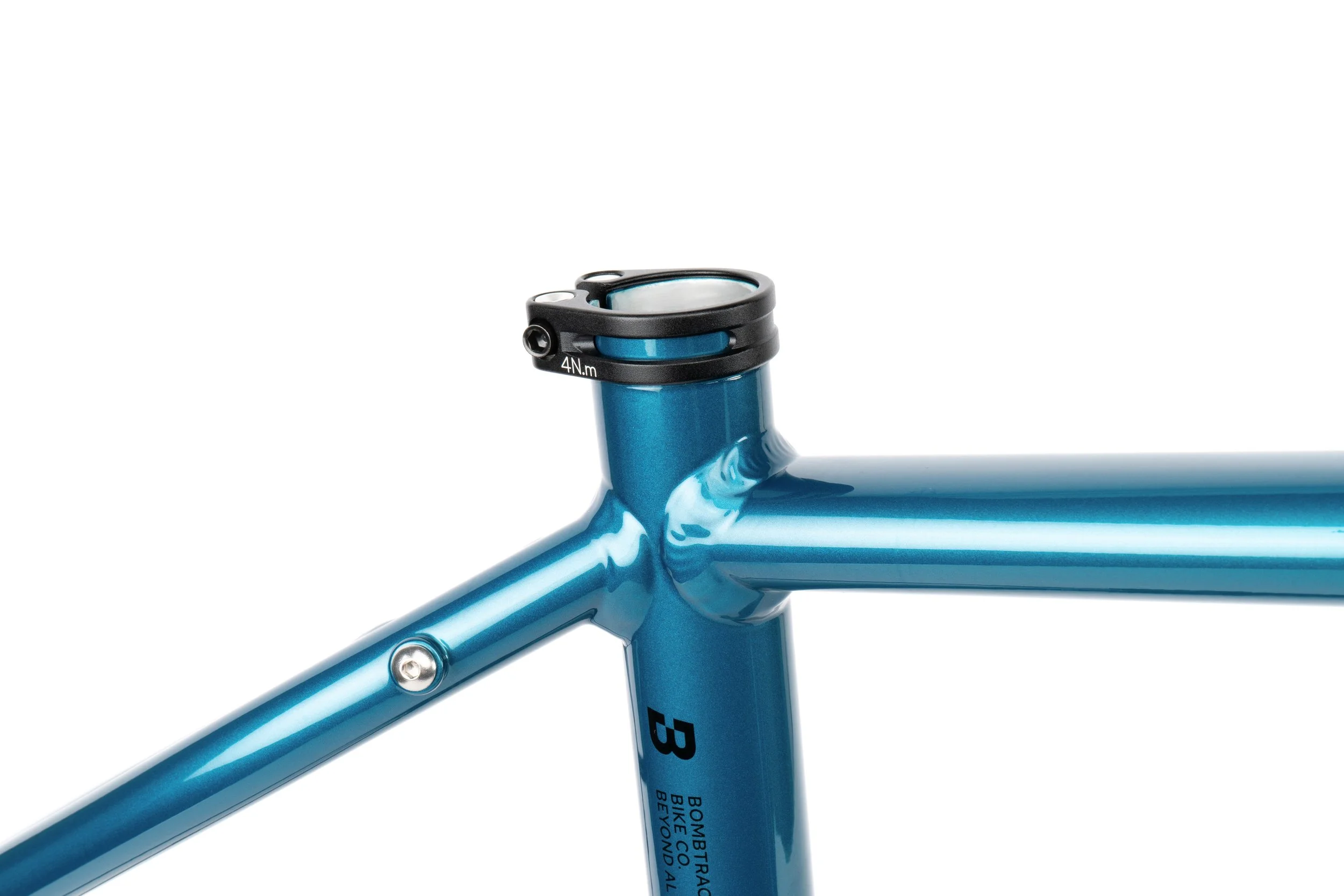

Seat clamp	Bombtrack Prime 34.9 mm
Rack	-
Weight frameset	2145 g frame (size M, incl. TA, bolts, seatclamp, hanger) / 1000 g fork (300 mm steerer, incl. TA)
Maximum rider weight	140 kg incl. luggage
ASTM riding condition	2

BUILD INFO

Model	BEYOND AL

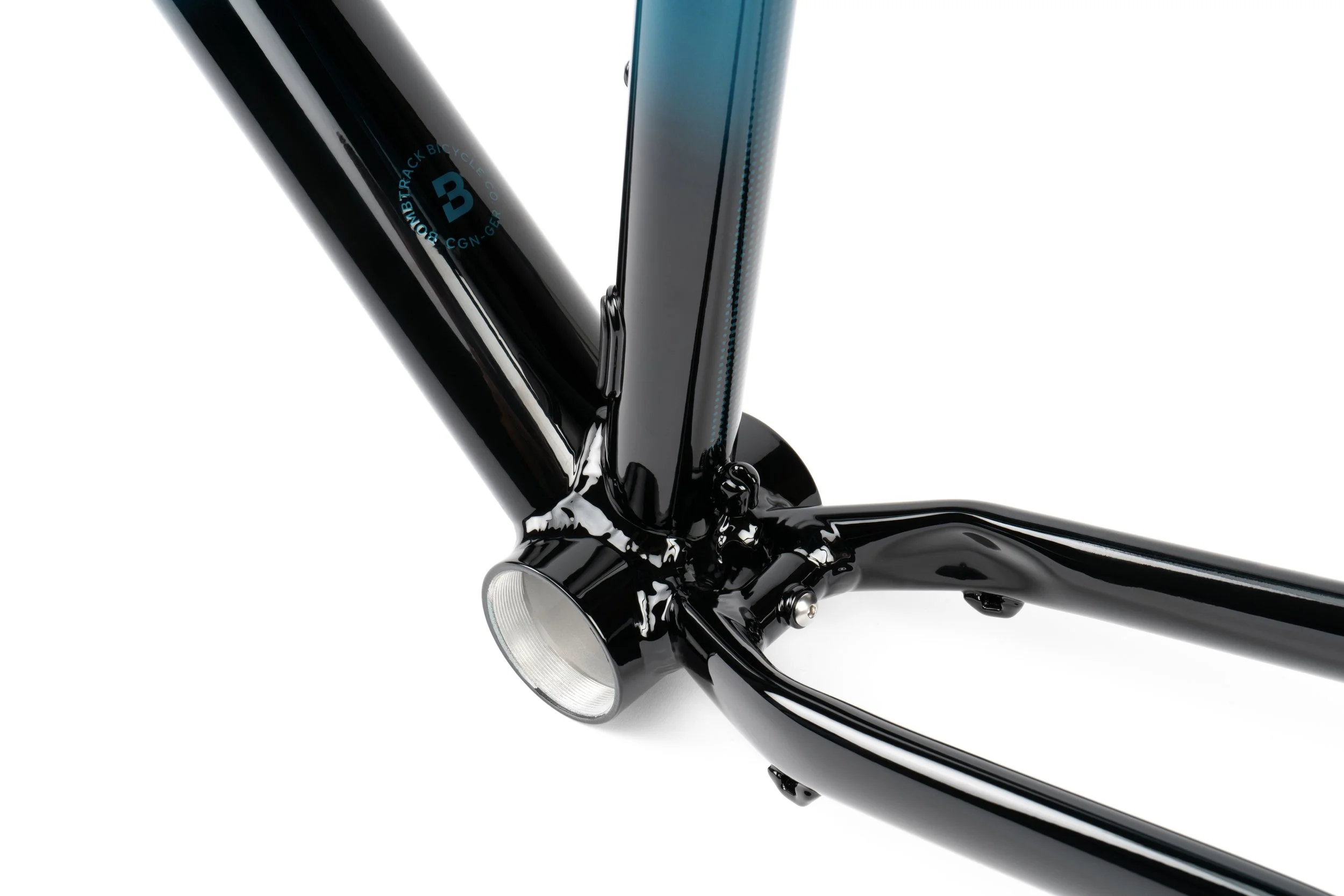

BB standard	T47 - 86.5 mm shell width
Headset standard (S.H.I.S.)	IS42 / 28.6 \| IS52 / 40
Headset crown race angle	45°
Fork steerer inner diameter	24.6 mm
Fork max tire clearance w/o fender	27.5'' x 2.25'' / 29'' x 2.1''
Frame max tire clearance w/o fender	S 27.5'' x 2.25'' / M - L 29'' x 2.25''
Maximum chainring clearance 1x	36 T with 50 mm chainline
Maximum chainring clearance 2x	40 / 28 T with 50 mm chainline
Seat post diameter	31.8 mm
Seat clamp diameter	34.9 mm
Front derailleur clamp diameter	34.9 mm
Frame front derailleur compatible	yes
Brake mount front	PM 6''
Brake mount rear	FM 140 / 160
Maximum rotor clearance front	203 mm
Maximum rotor clearance rear	160 mm
Front through axle	12 mm x 100 mm, 1.5 thread pitch
Rear through axle	12 mm x 142 mm, 1.5 thread pitch
ISO testing standard	MTB
Bike trailer	approved
Seat tube mounted child seat	not approved

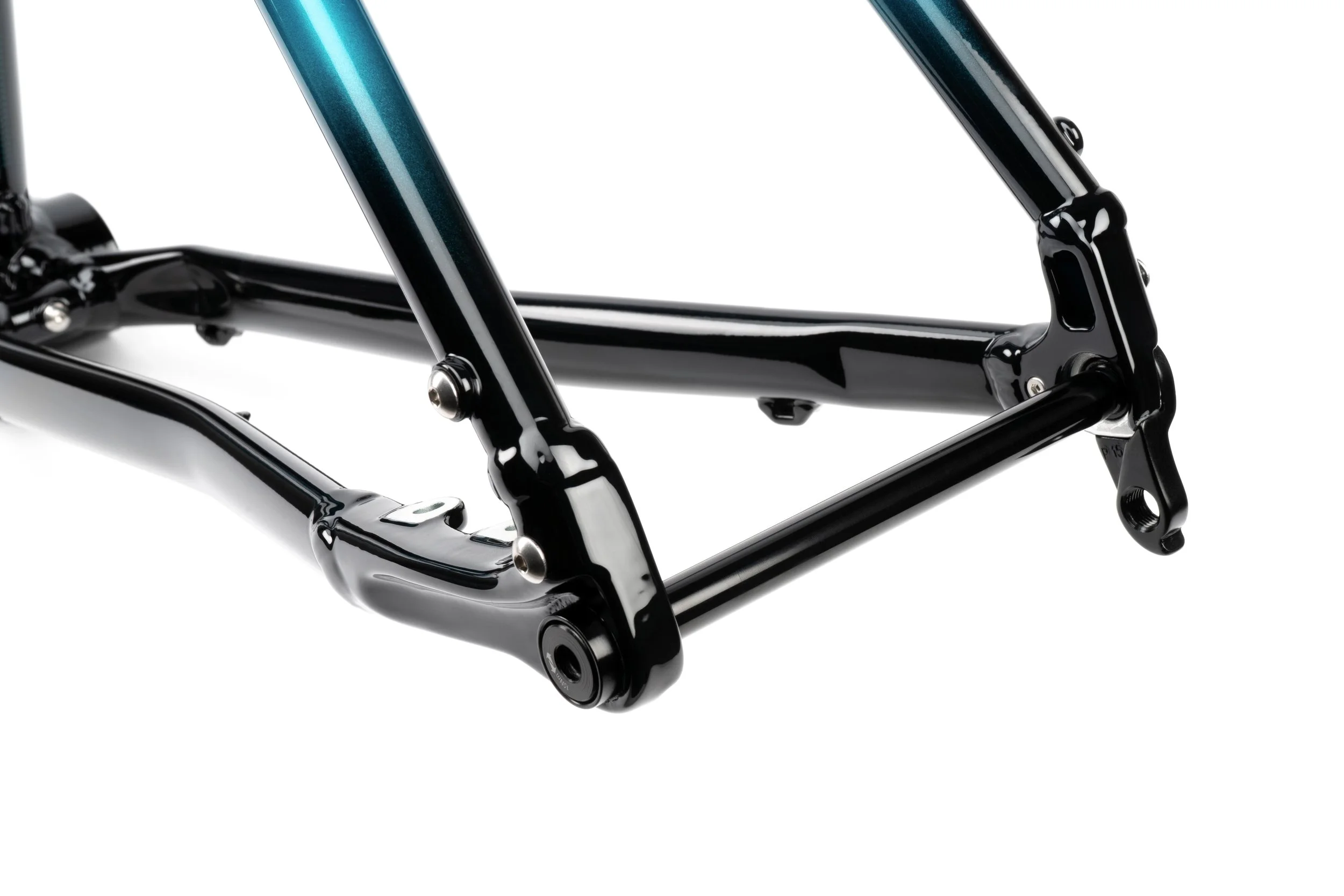

Derailleur hanger	BT-DH-018
Frame small parts	BT-CR-007
Through axle front	BT-TA-F-603
Through axle rear	BT-TA-R-601

GEOMETRY

FRAME GEOMETRY

Model	BEYOND AL
Bike Size	S	M	L	XL
Wheel size	27.5''	29''	29''	29''
Seat Tube Length	440	480	520	560
Horizontal TT length	546	567	597	626
Seat Angle	74°	74°	74°	74°
Head Angle	70°	70,5°	70,5°	70.5°
Headtube Length	140	160	200	230
BB Drop	60	74	74	74
Chainstay Length	420	445	445	445
Fork Offset	53	53	53	53
Trail	70	75	75	75
Wheelbase Length	1040	1077	1109	1140
Standover	775	821	859	893
Reach	382	394	413	´434
Stack	569	604	642	670
Front Center	627	642	674	705
Axle to Crown	420	420	420	420
Minimum rider height *	1600	1700	1790	1880
Maximum rider height *	1710	1810	1900	1990
